2026 Cummins DFEK 500 kW Diesel Generator Set
$149,900 each
- 500 kW
- Diesel
- 0 Hours
- New
Quantity Available: 3
Stock #: MEG1523
Click the button below to email our Sales Manager about this unit.
Details
Resources
Details
Technical Specifications
- Overview
- Year:2026
- Manufacturer:Cummins
- Package Model:DFEK

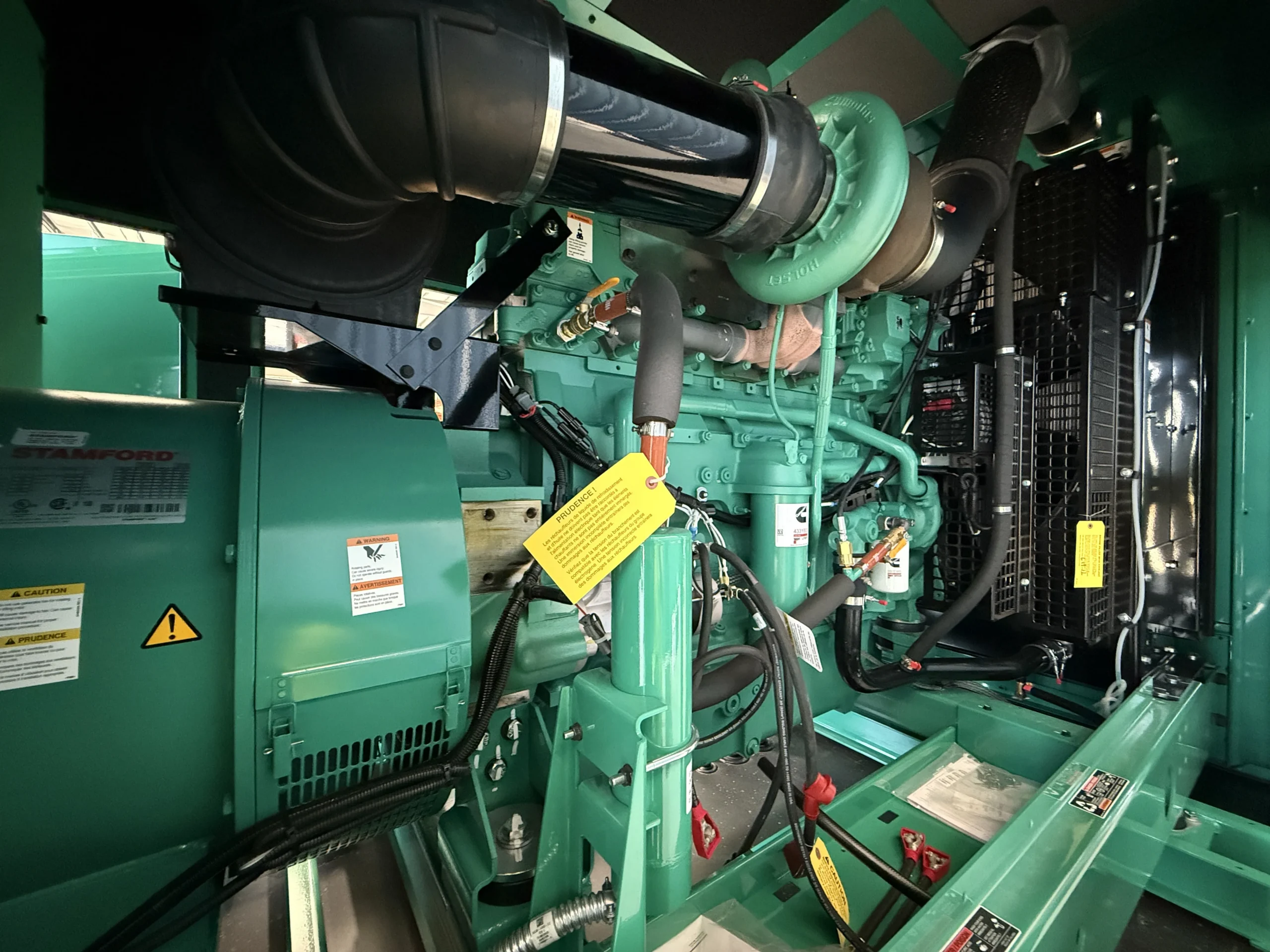

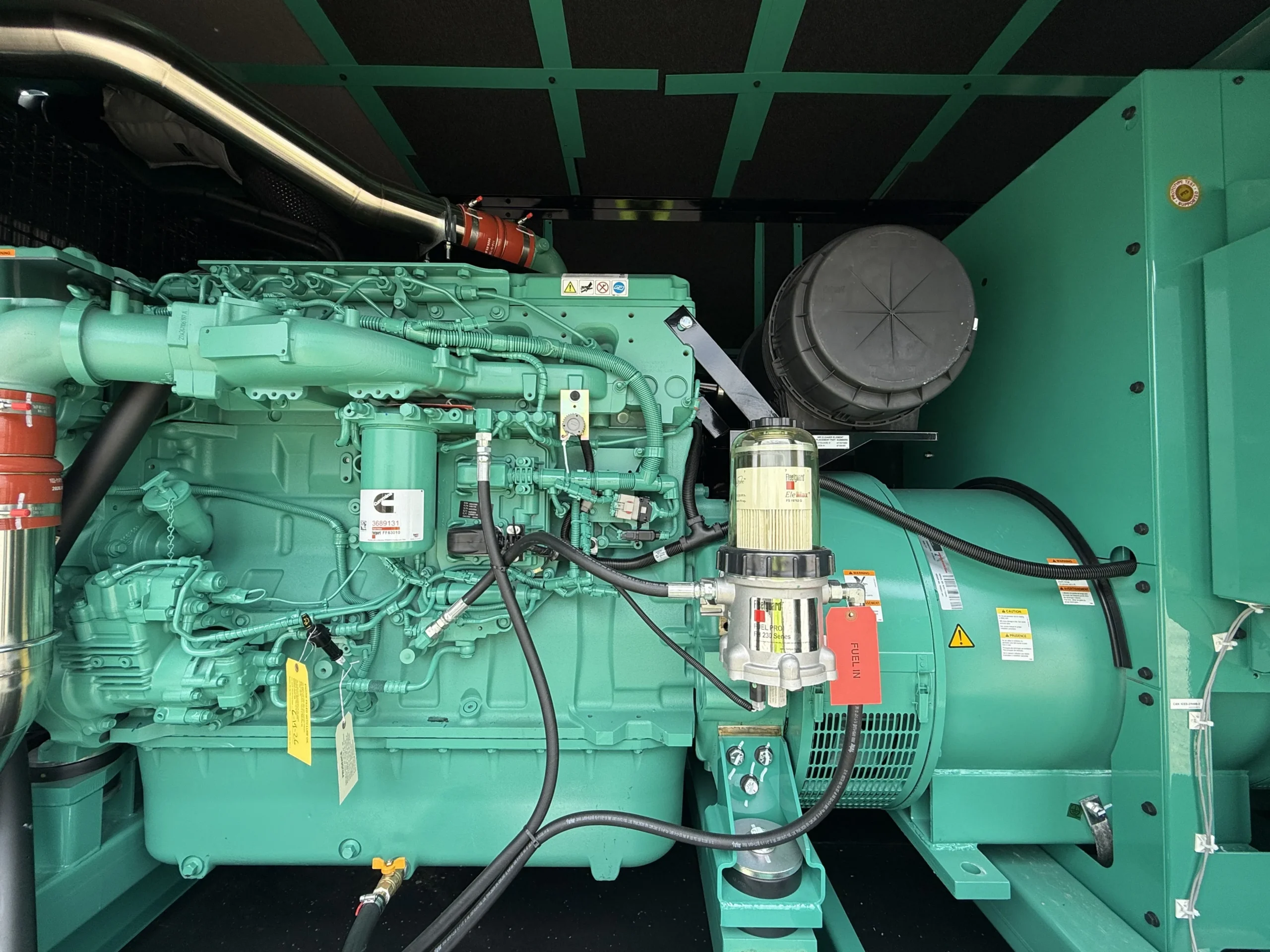

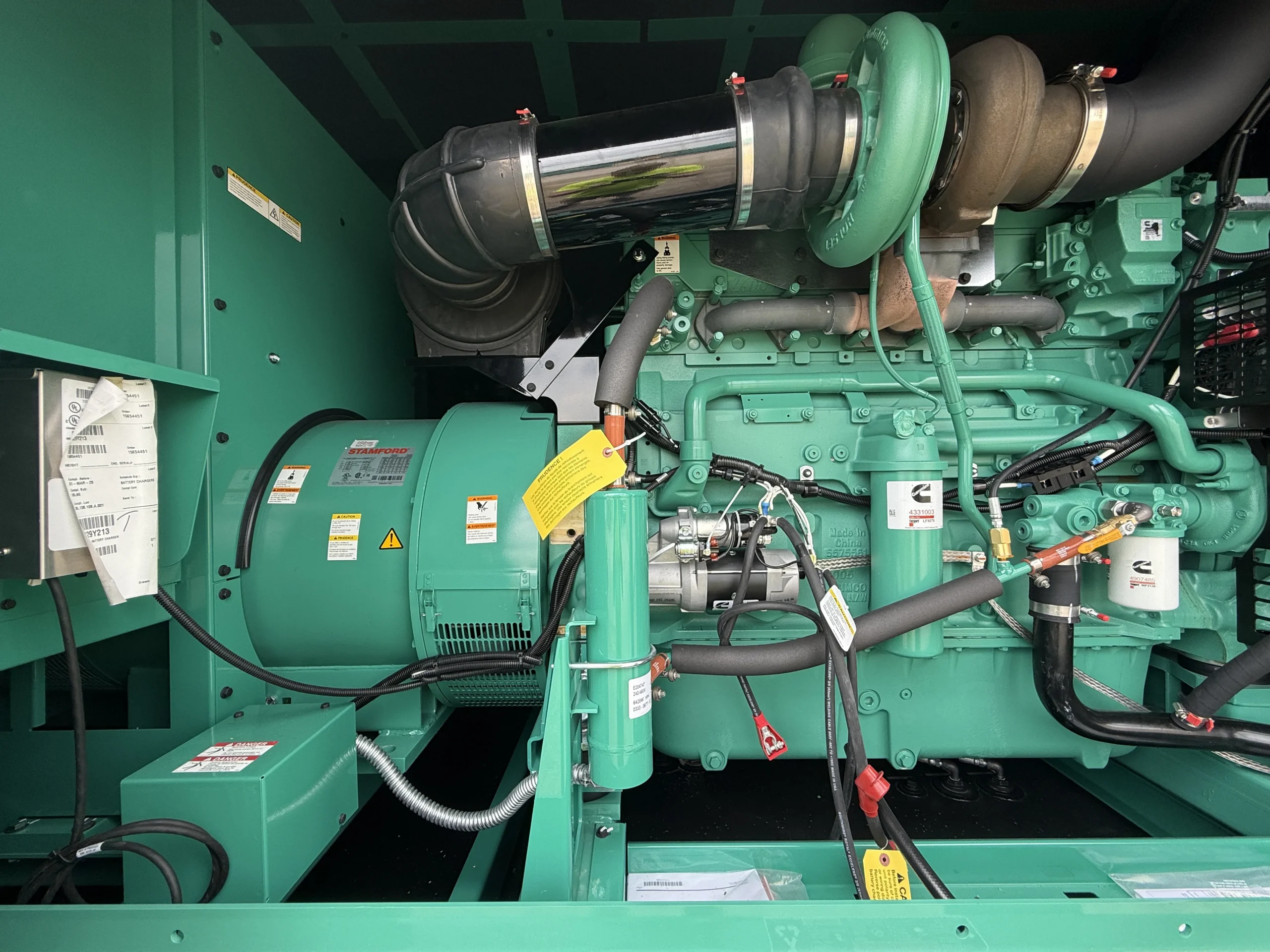

- Generator Model:Stamford HCI534D1

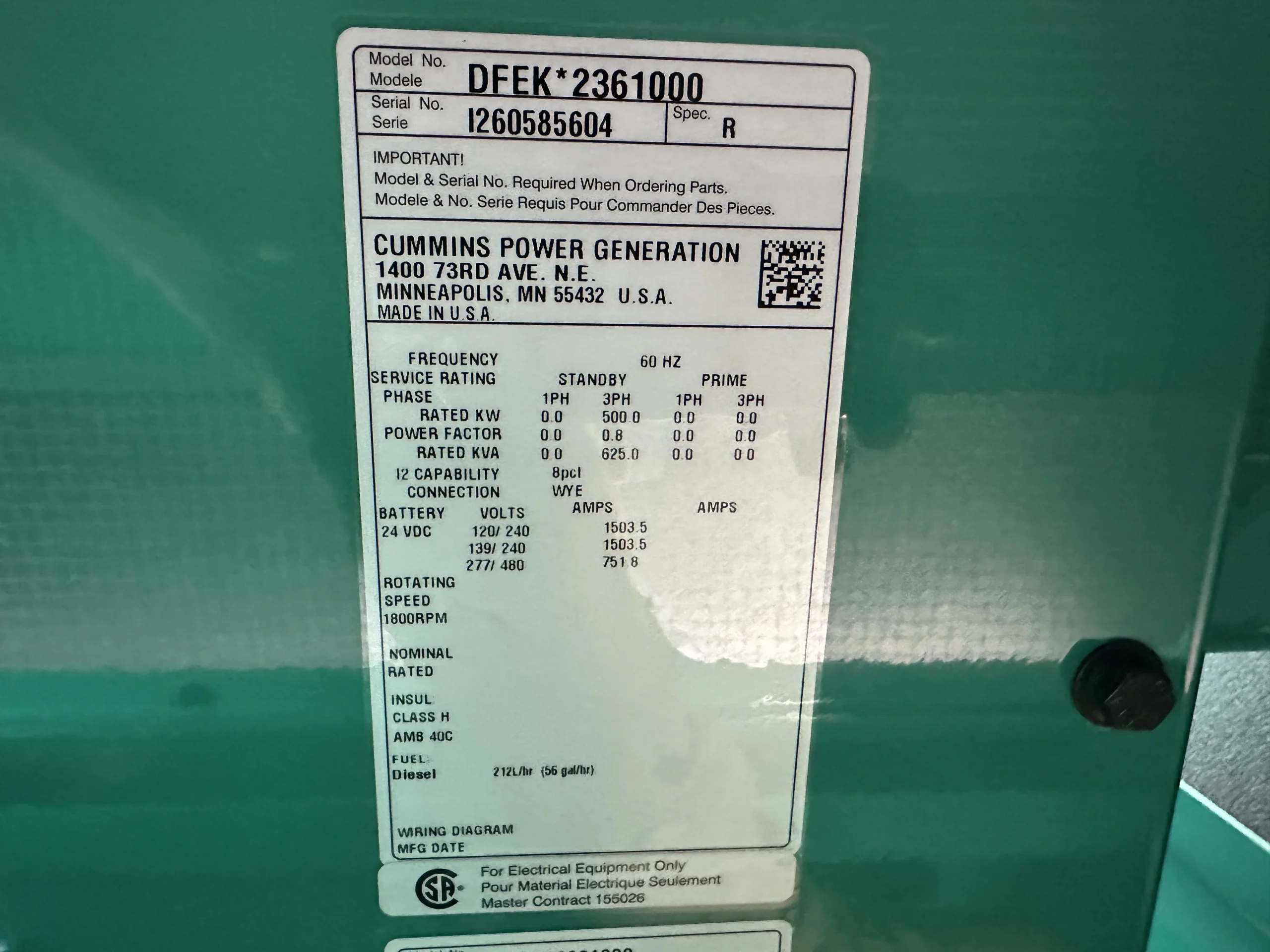

- Serial Number:I260585604
- Condition:New
- Hours:0
- Warranty
- Warranty Type:Manufacturer Warranty
- Warranty Details:Cummins 2-year / 1,000-hour limited warranty – supplied
- Electrical
- kW:500
- kVA:625.0
- Voltage:277/480
- Amperage:751.8
- Frequency:60 Hz
- RPM:1,800

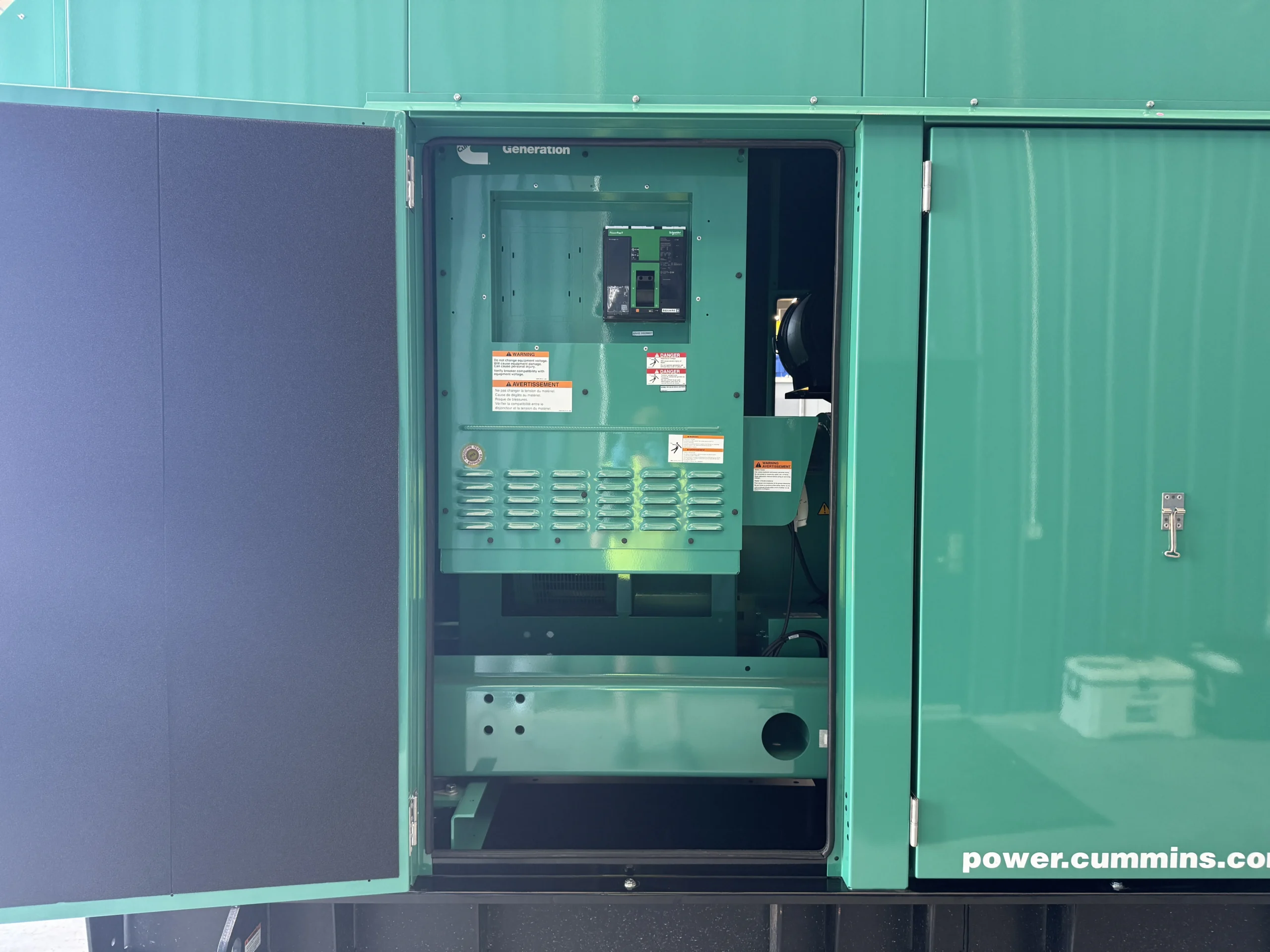

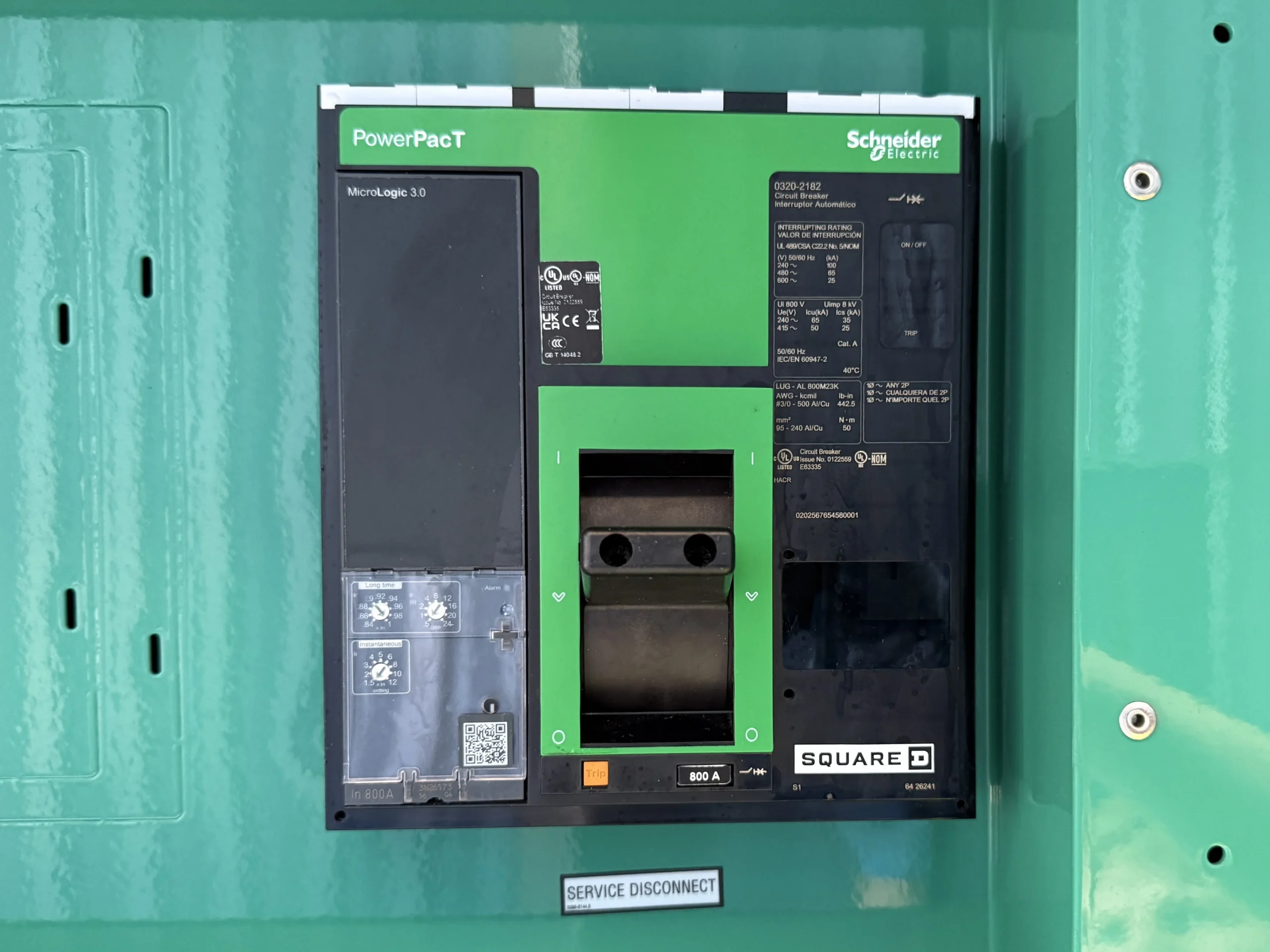

- Breaker:800A, 3-pole, 100% rated main-line circuit breaker

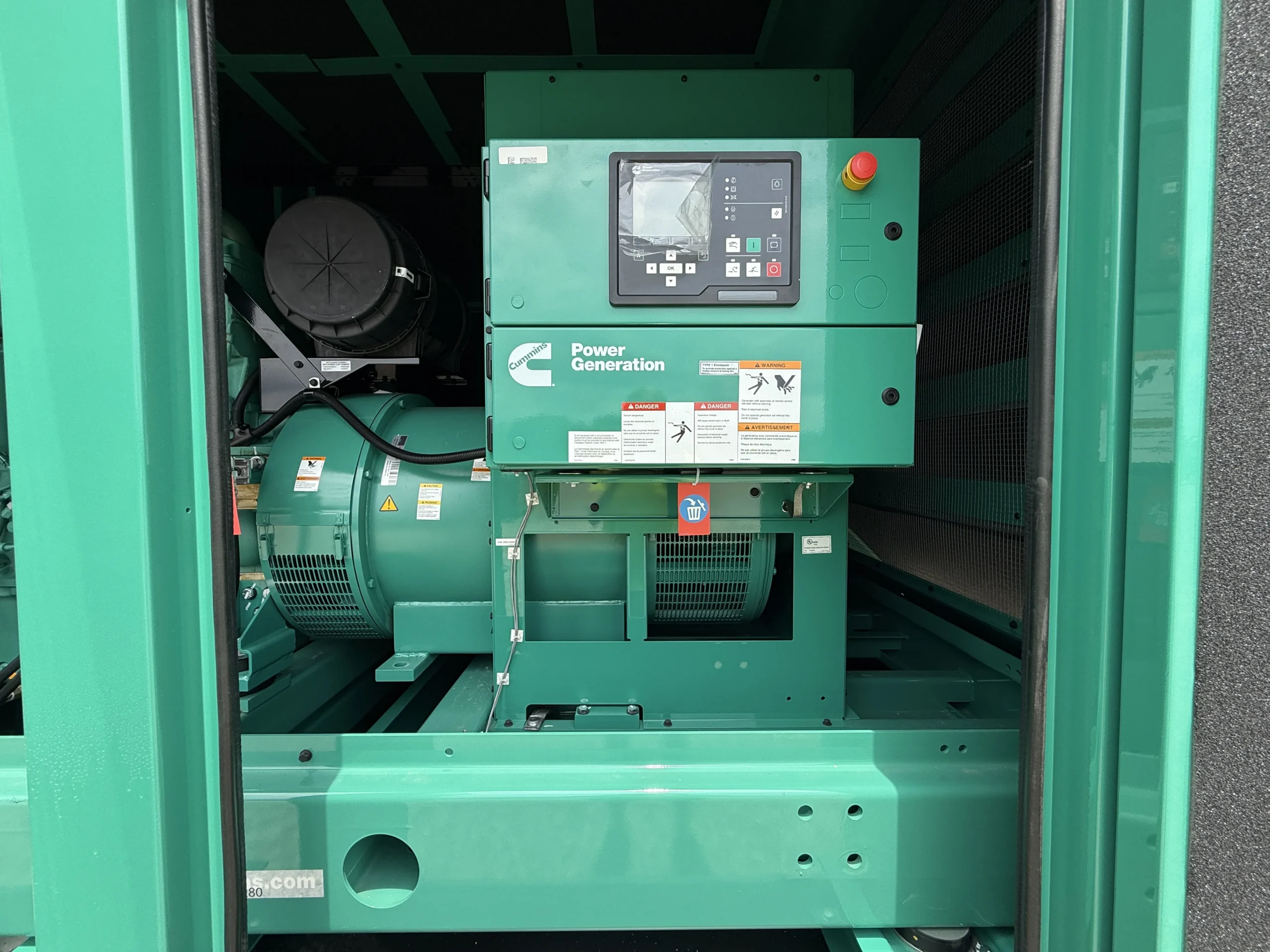

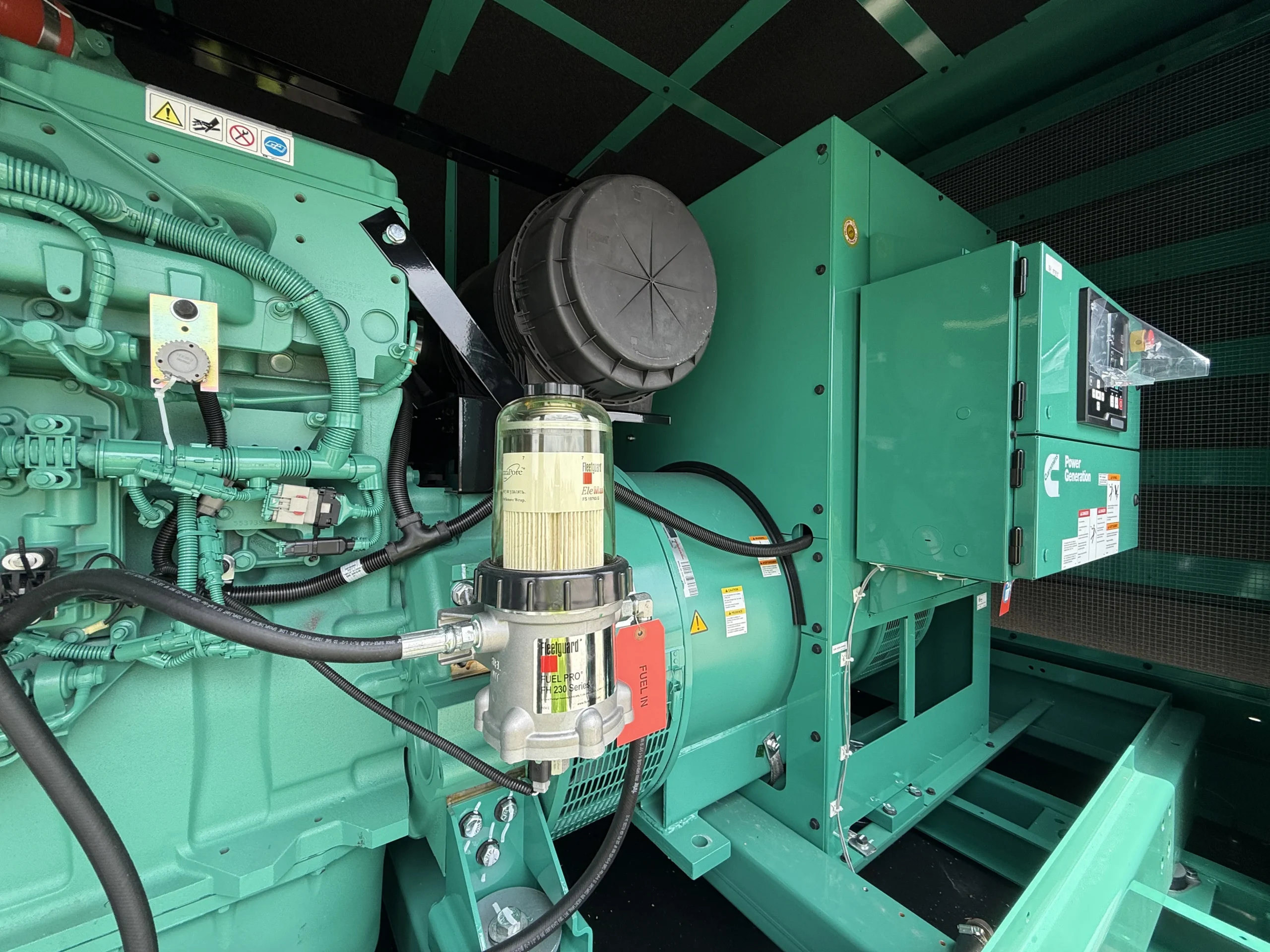

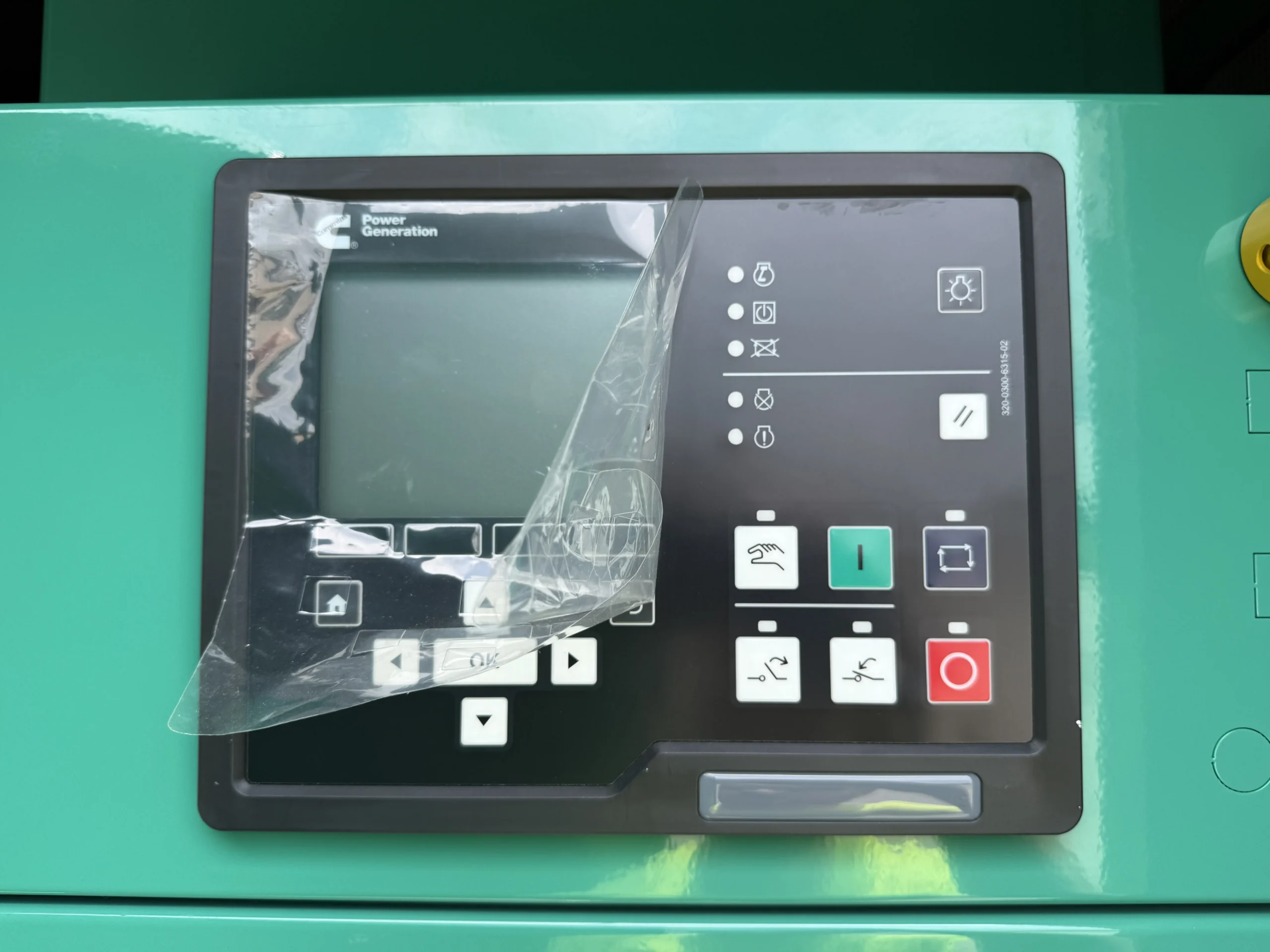

- Control Panel:Cummins PowerCommand 2.3
- Phase Type:Three Phase
- Power Rating:Standby

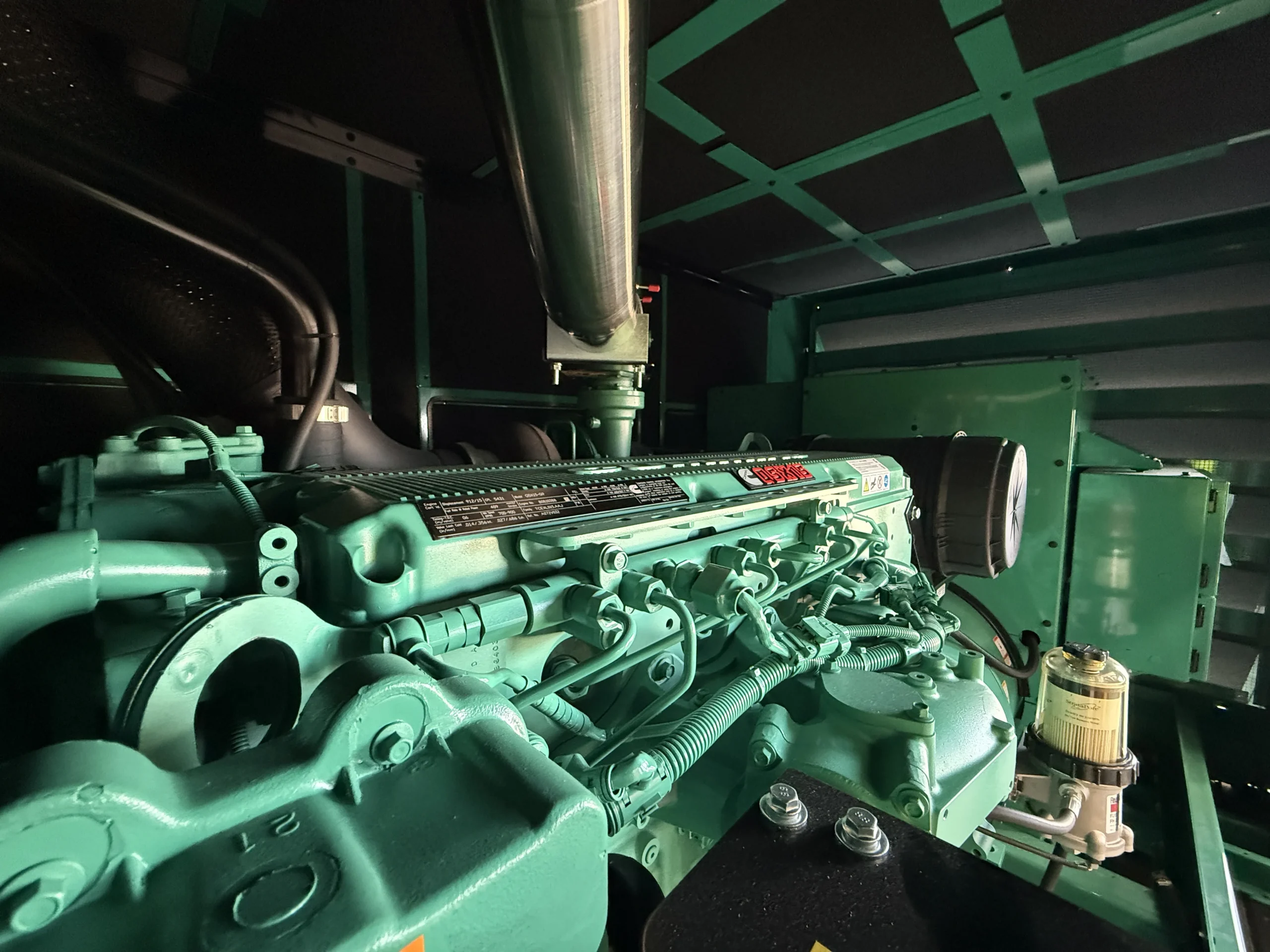

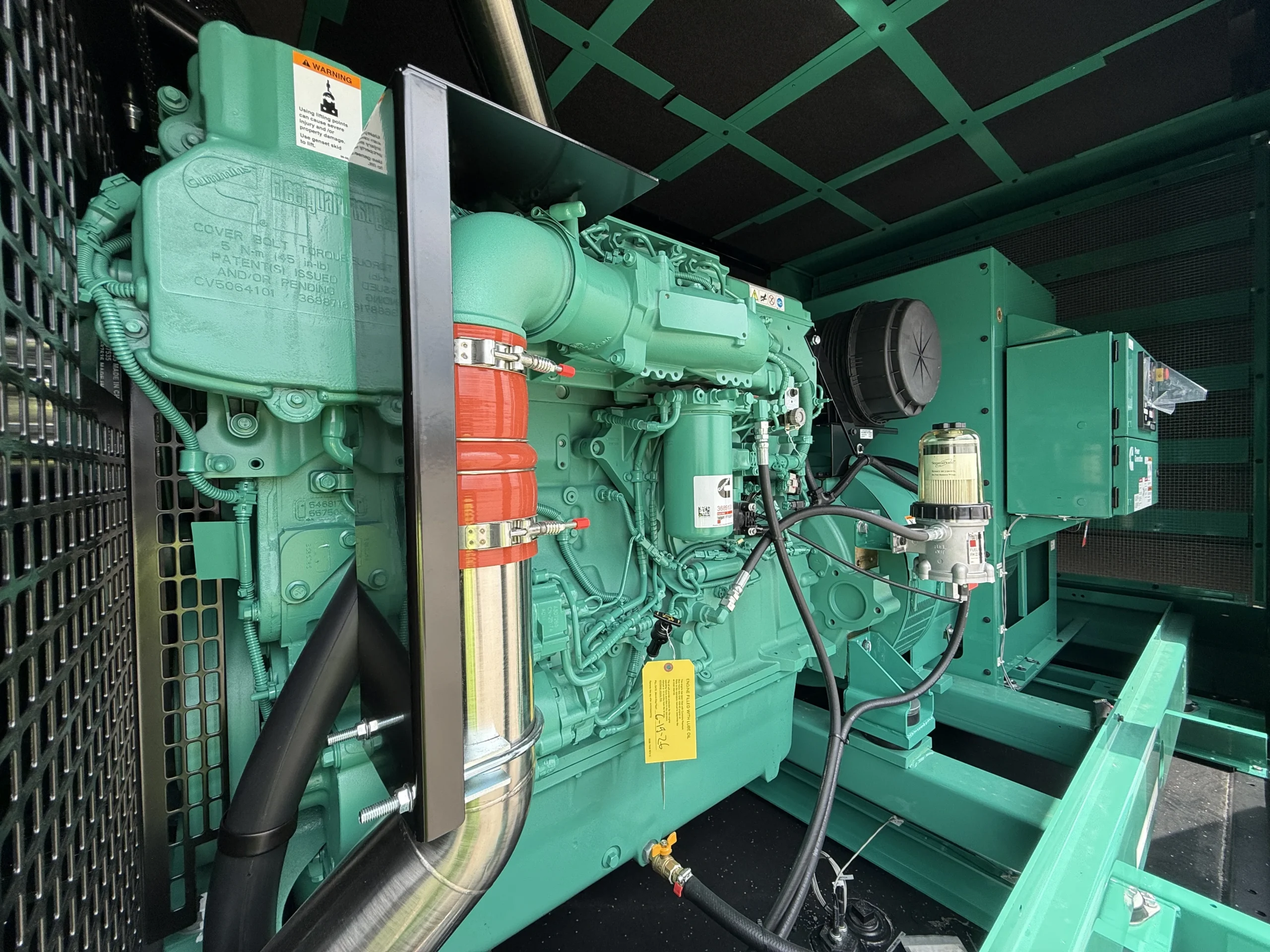

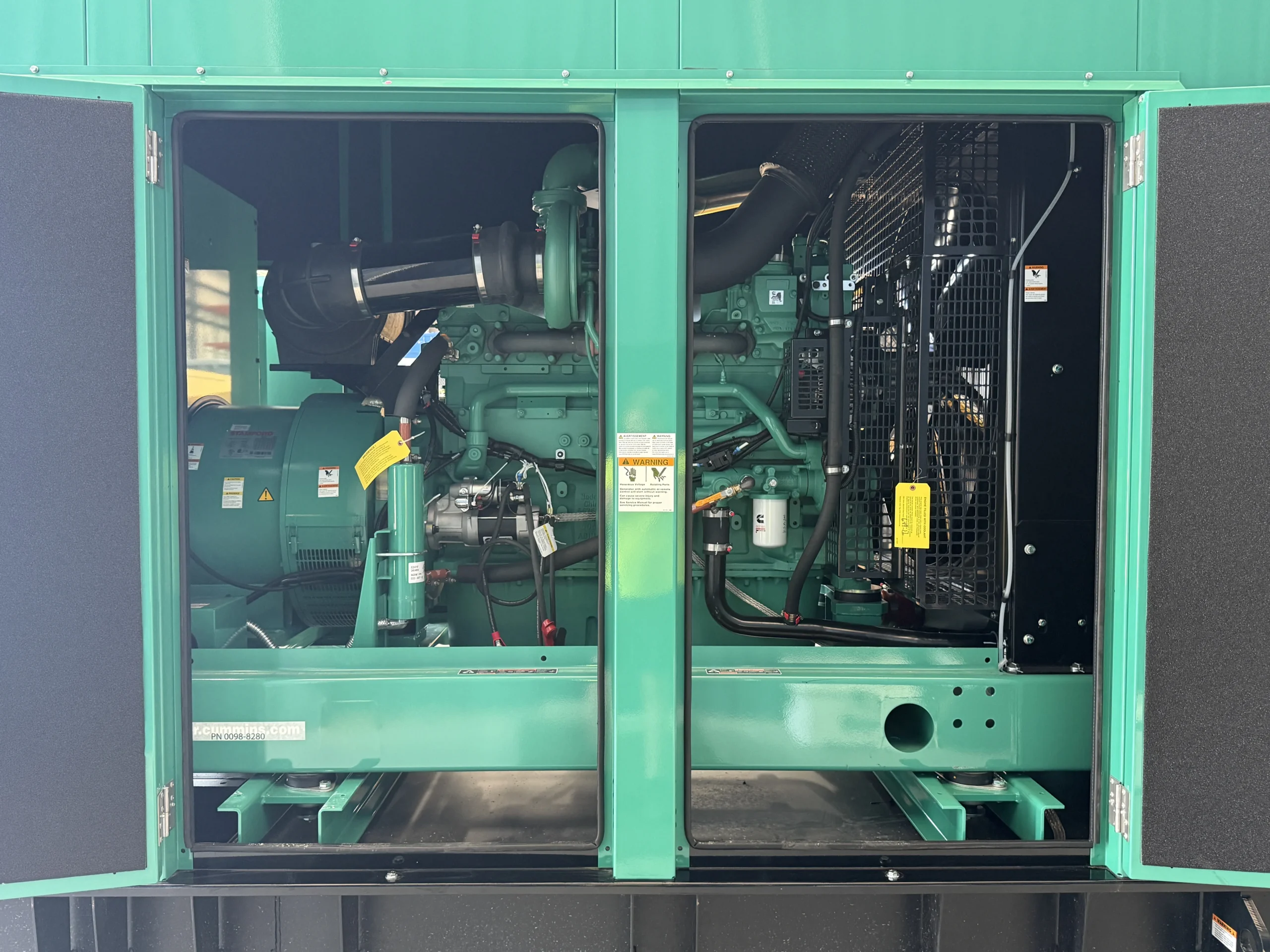

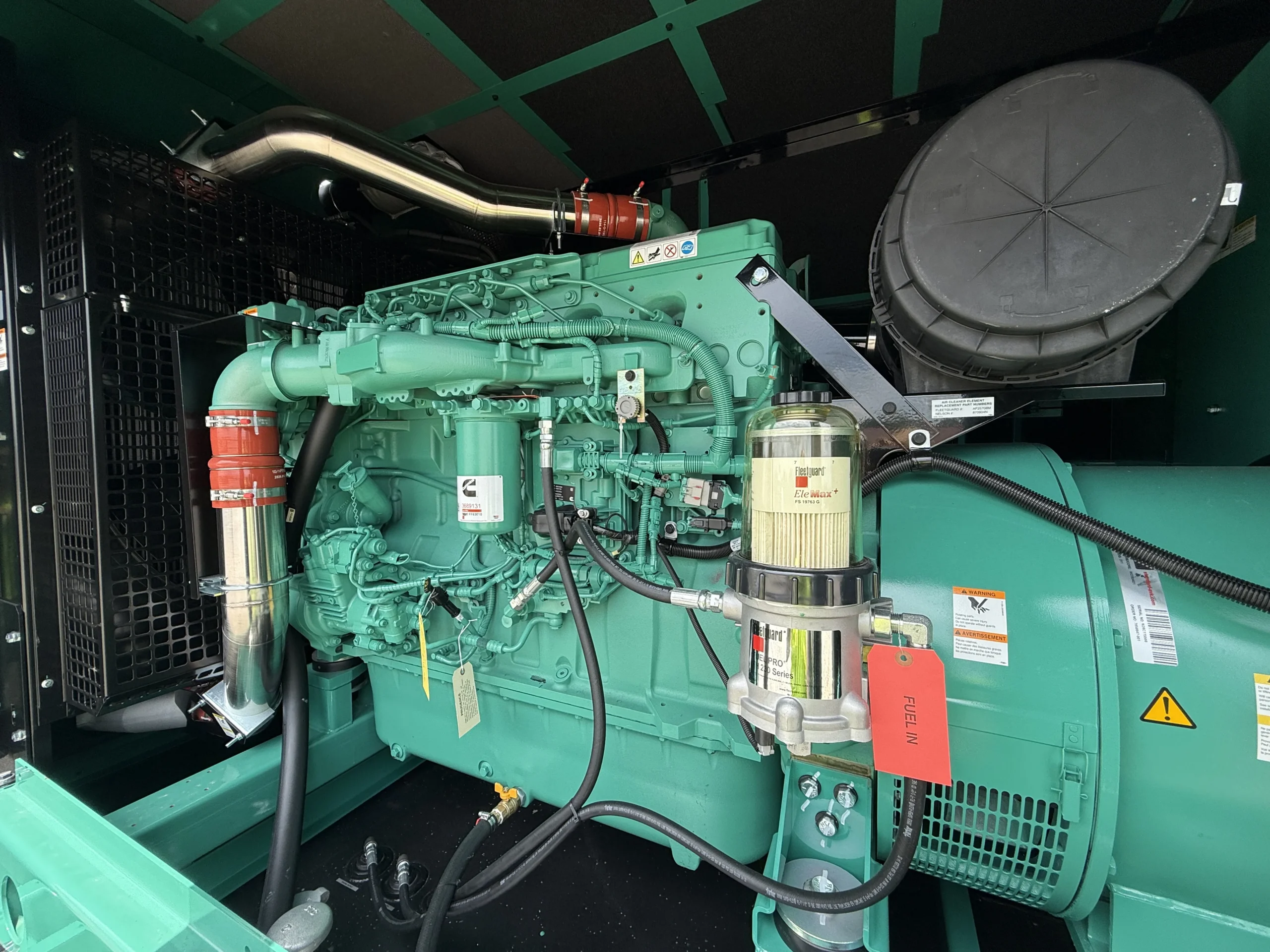

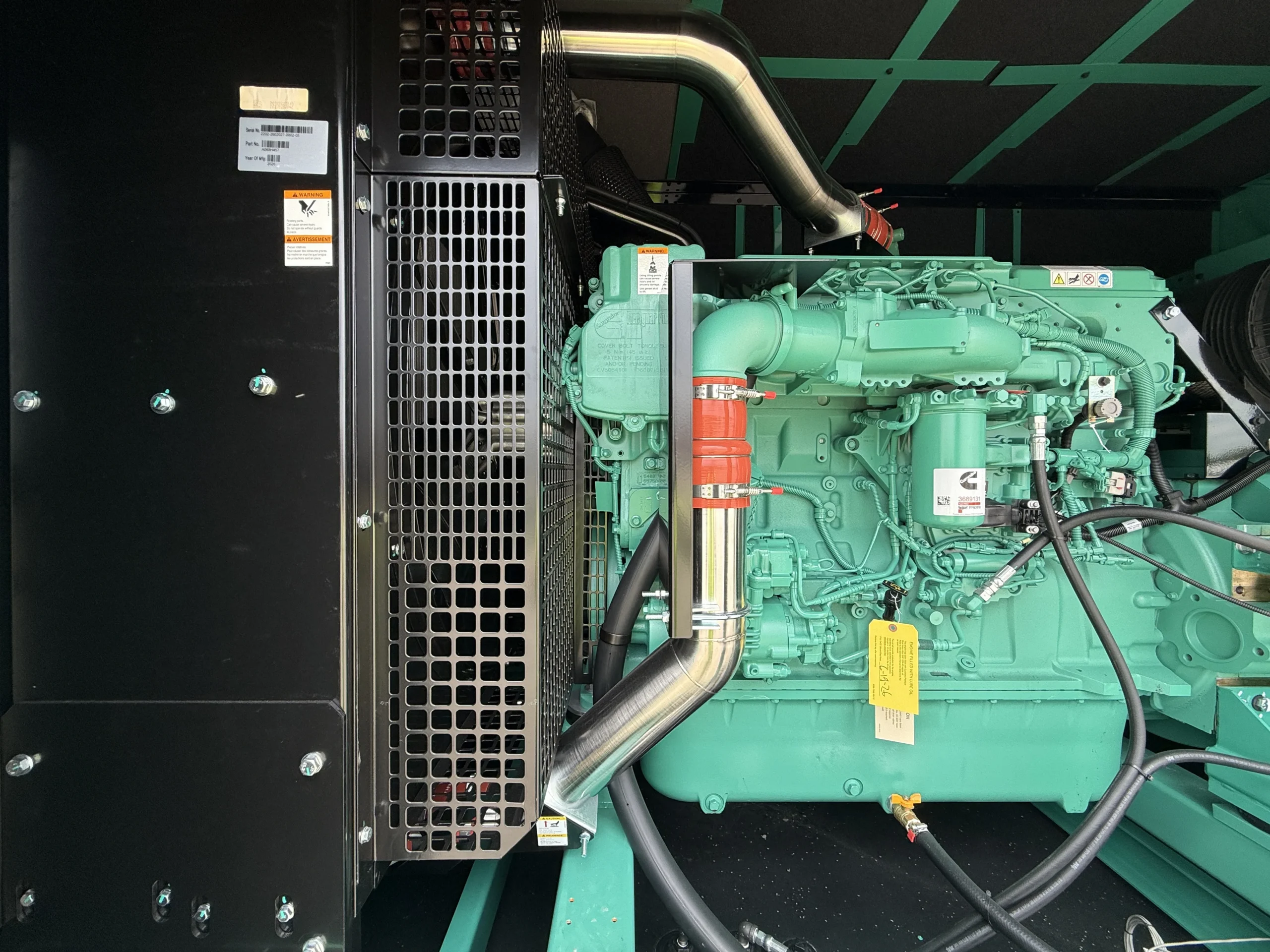

- Engine
- Fuel Type:Diesel
- Engine Manufacturer:Cummins

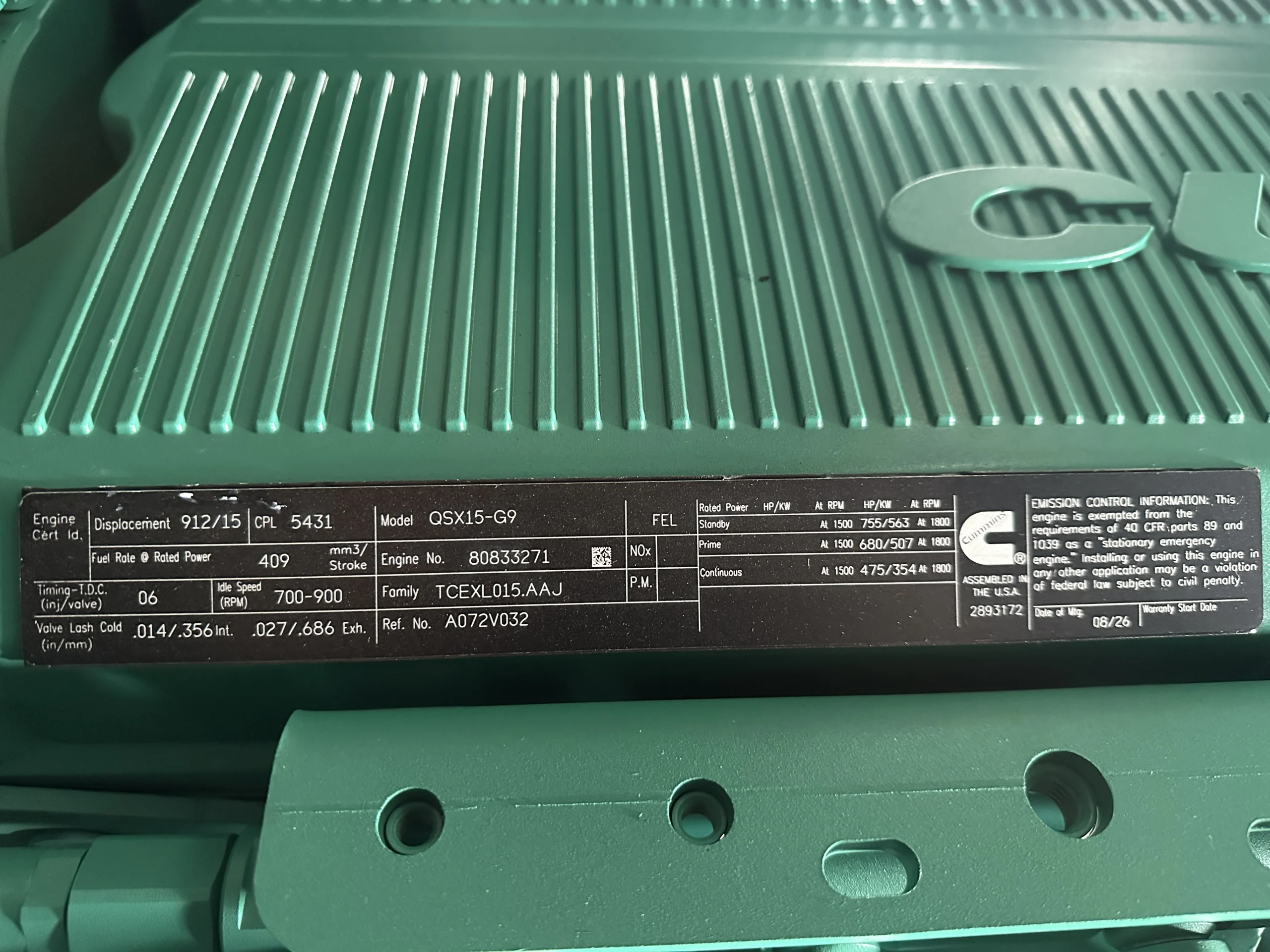

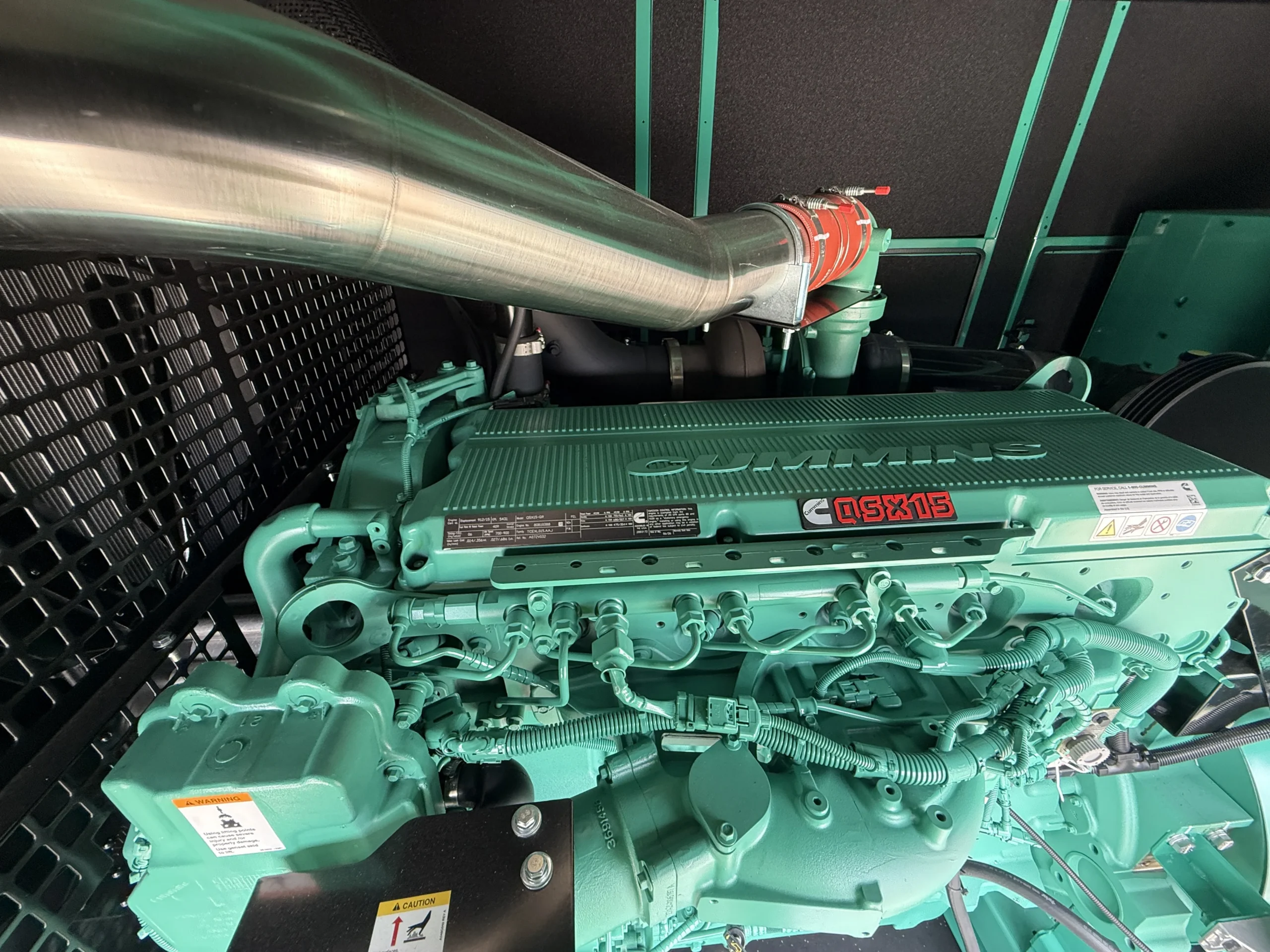

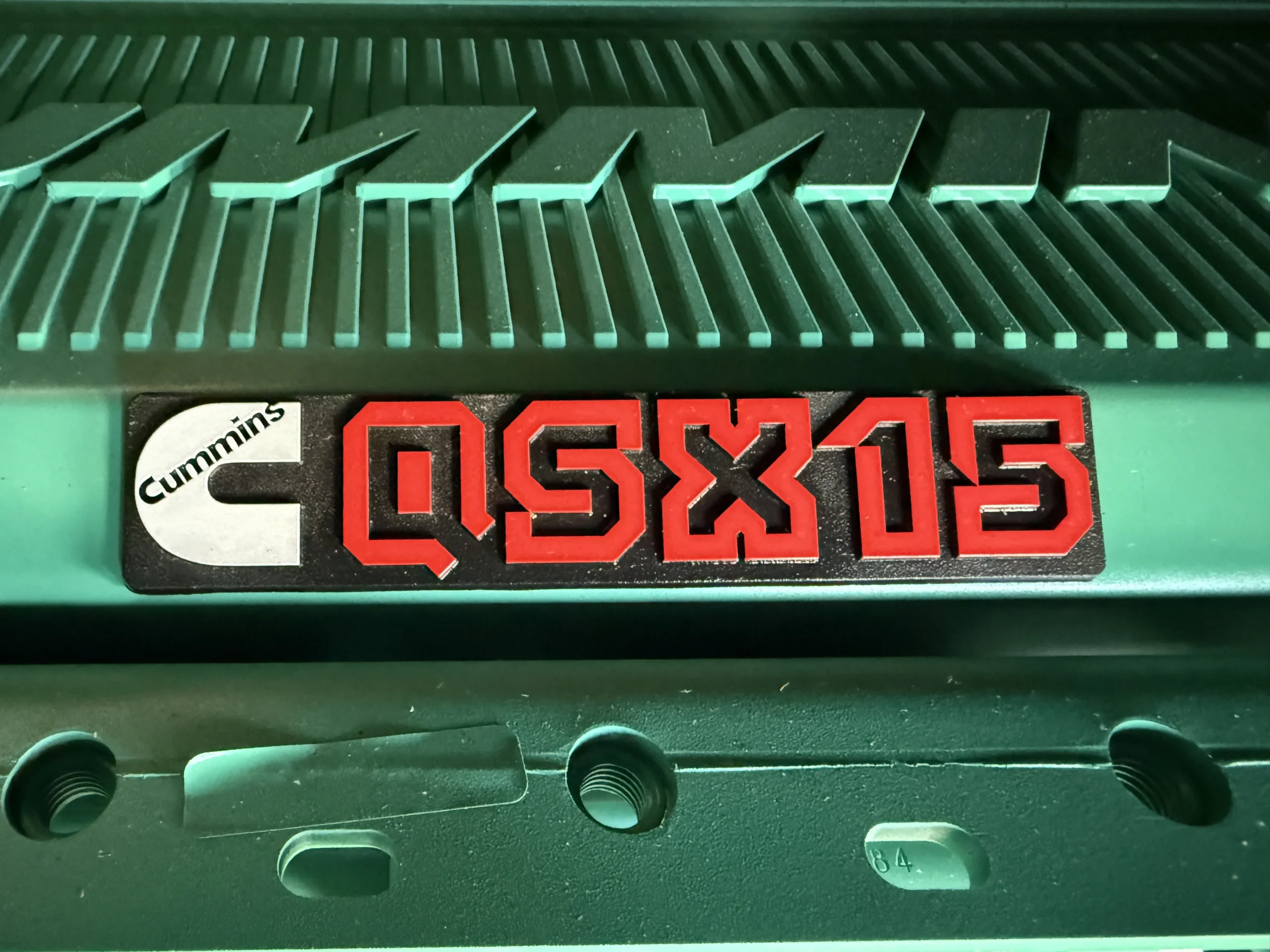

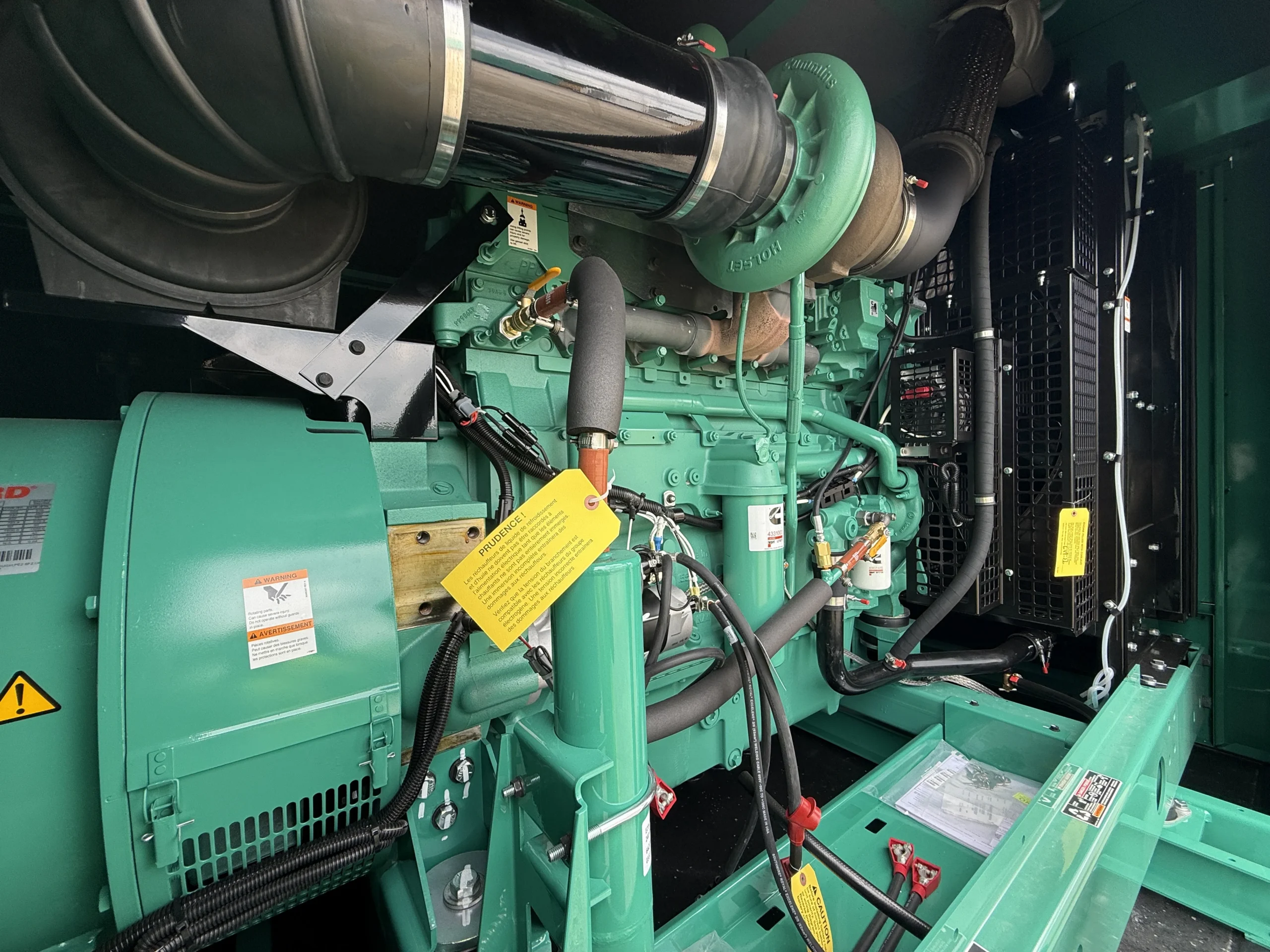

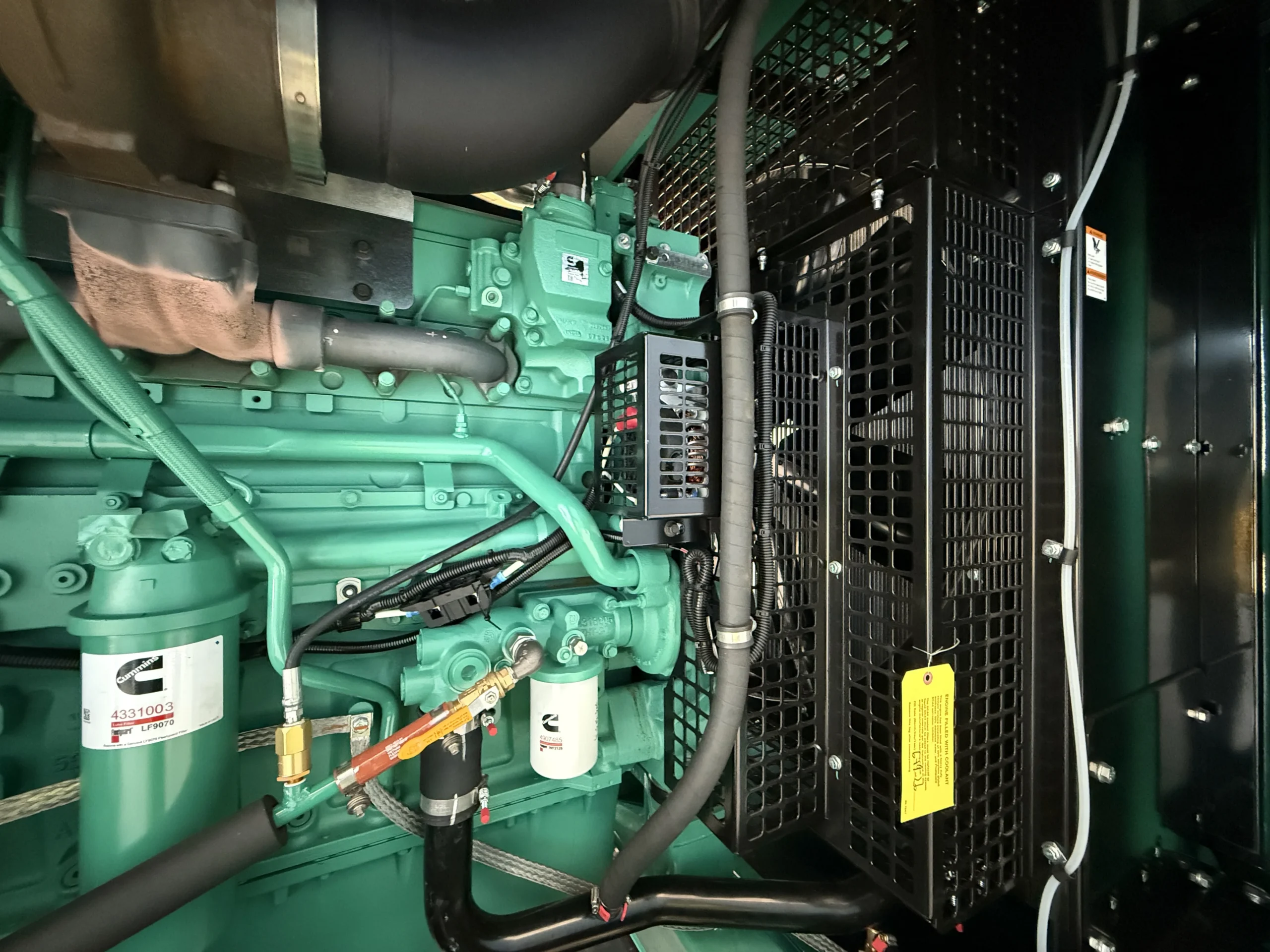

- Engine Model:QSX15-G9
- Engine S/N:80833271
- Emissions Tier:EPA Tier 2 (Stationary Emergency Rated)
- Horsepower:755 HP
- Displacement:15.0 L
- Cummins Parts List (CPL):5431

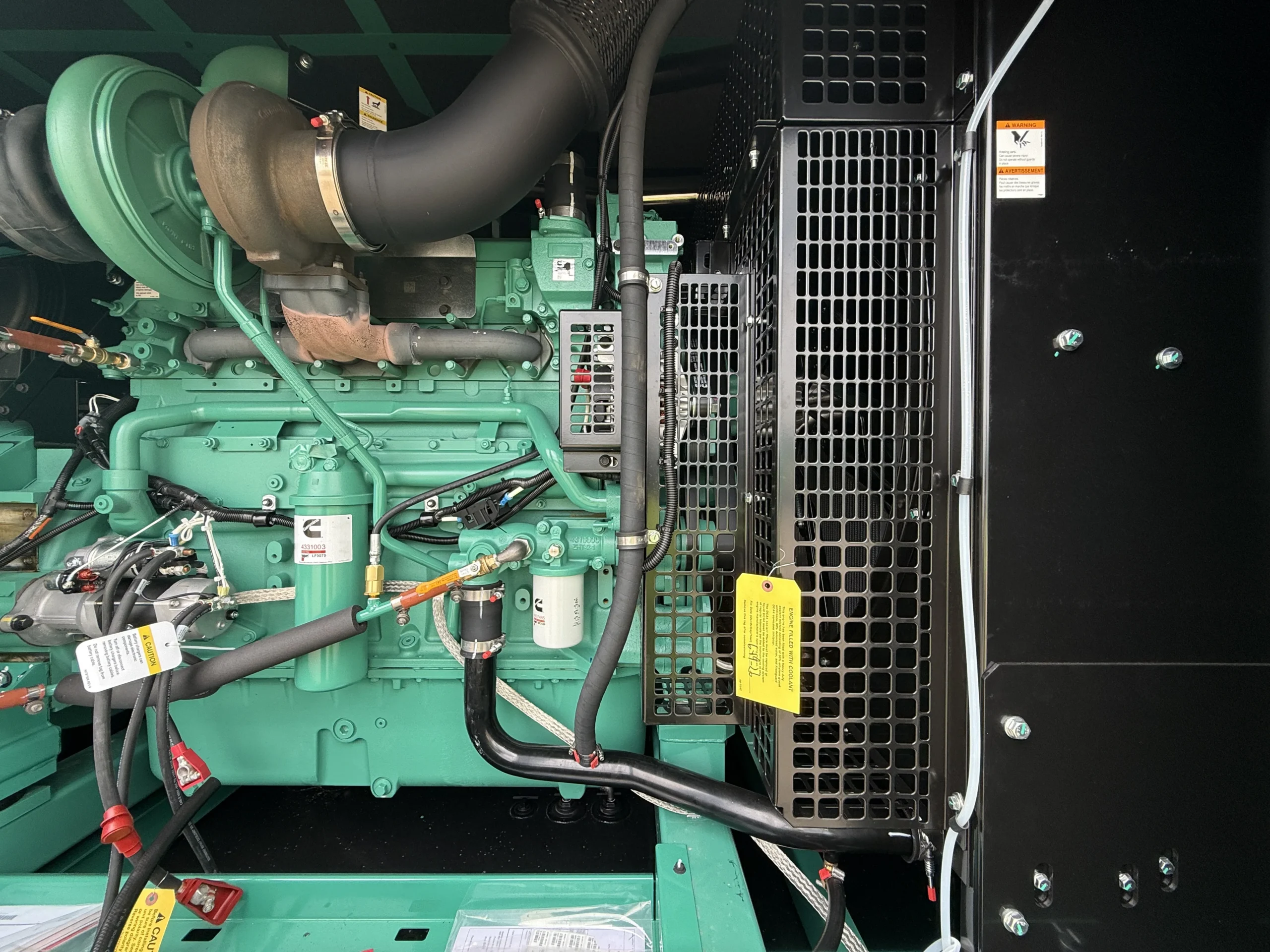

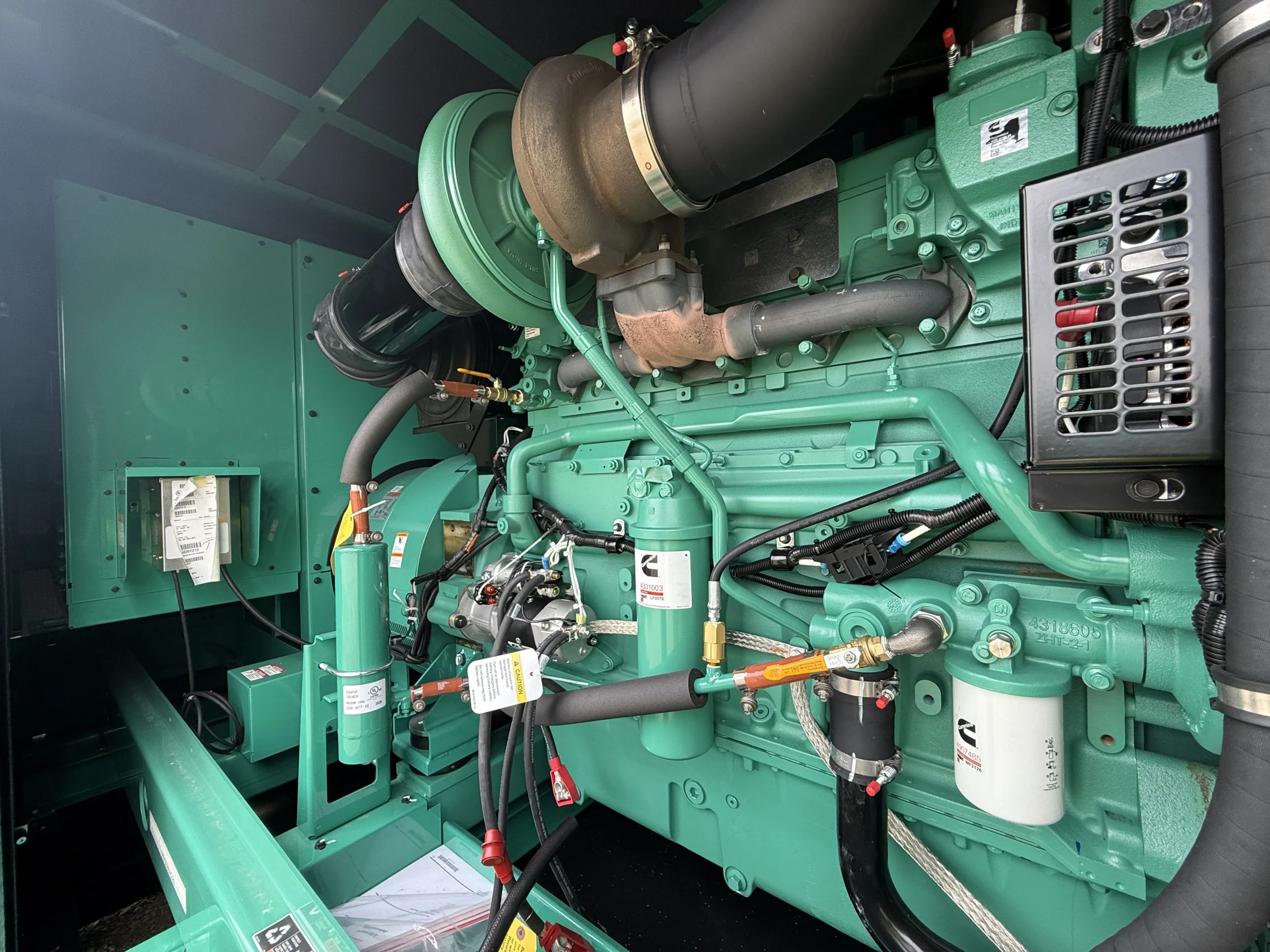

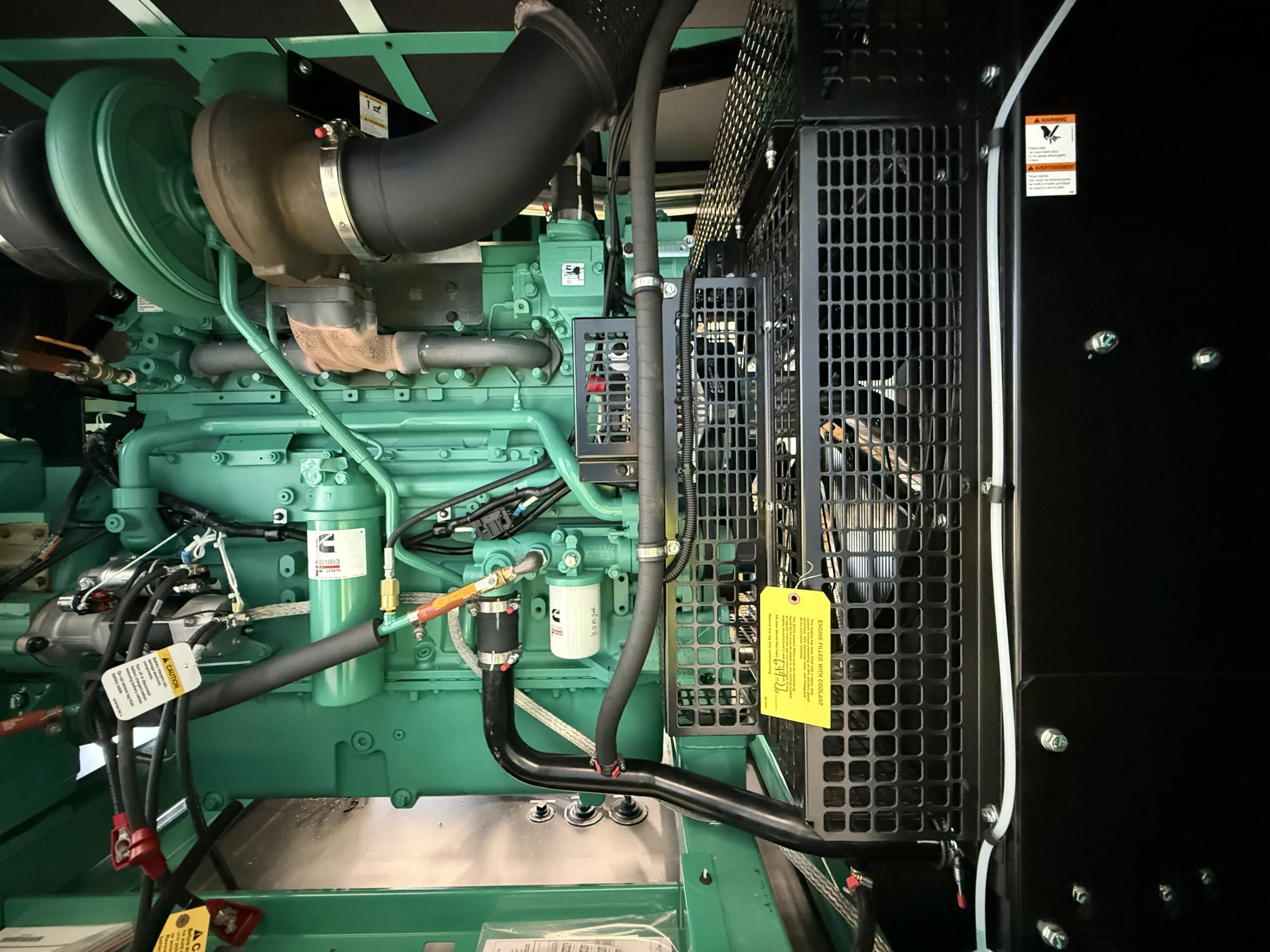

- Aspiration:Turbocharged Aftercooled
- Governor Type:Electronic
- Generator / Package
- Generator Insulation Class:Class H
- Reconnectable:Yes
- Leads:12
- Voltage Configuration:277/480V, three-phase, 4-wire Wye
- Excitation Type:PMG (Permanent Magnet Generator)
- Fuel Tank Capacity:869 Gallons

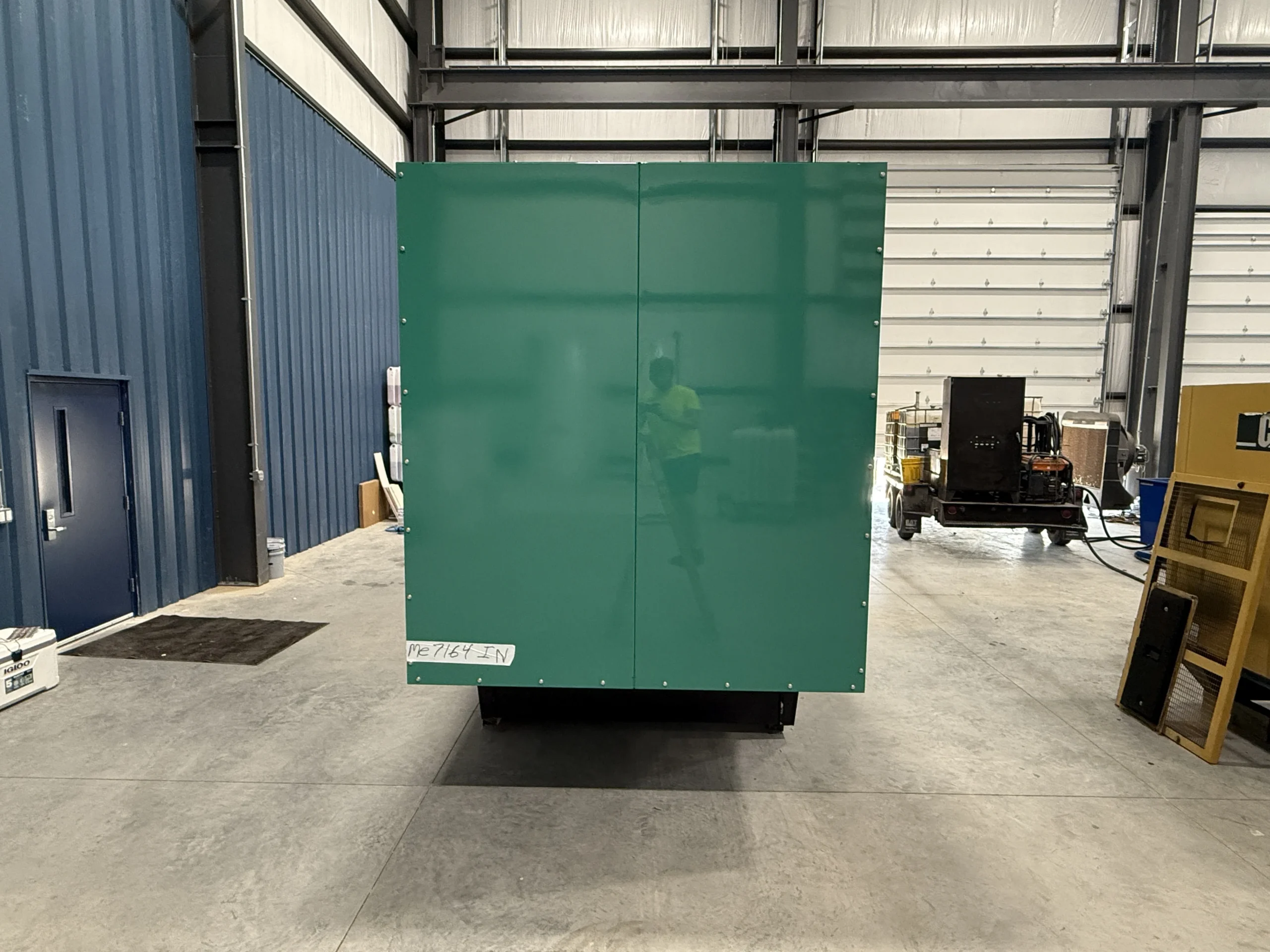

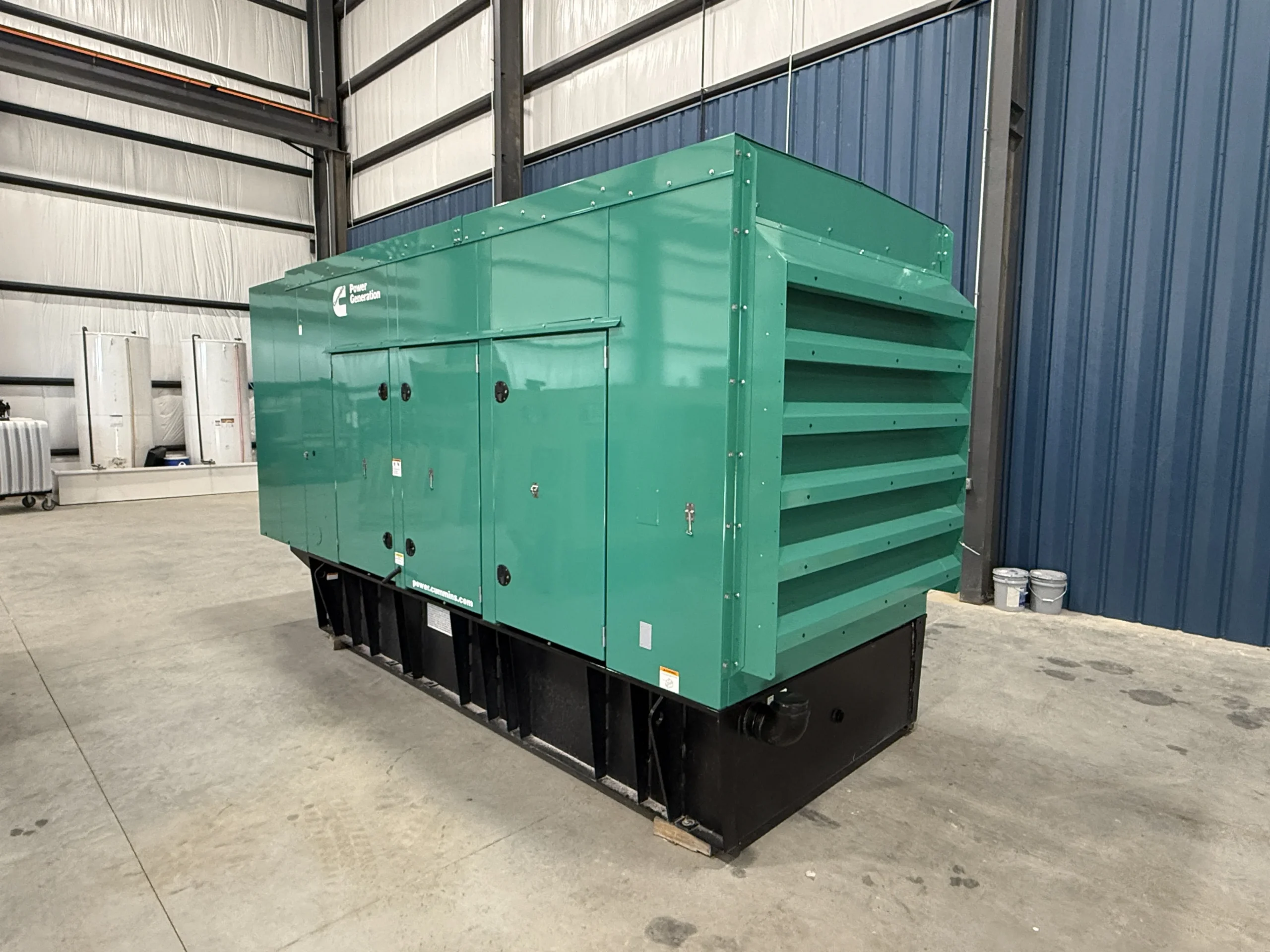

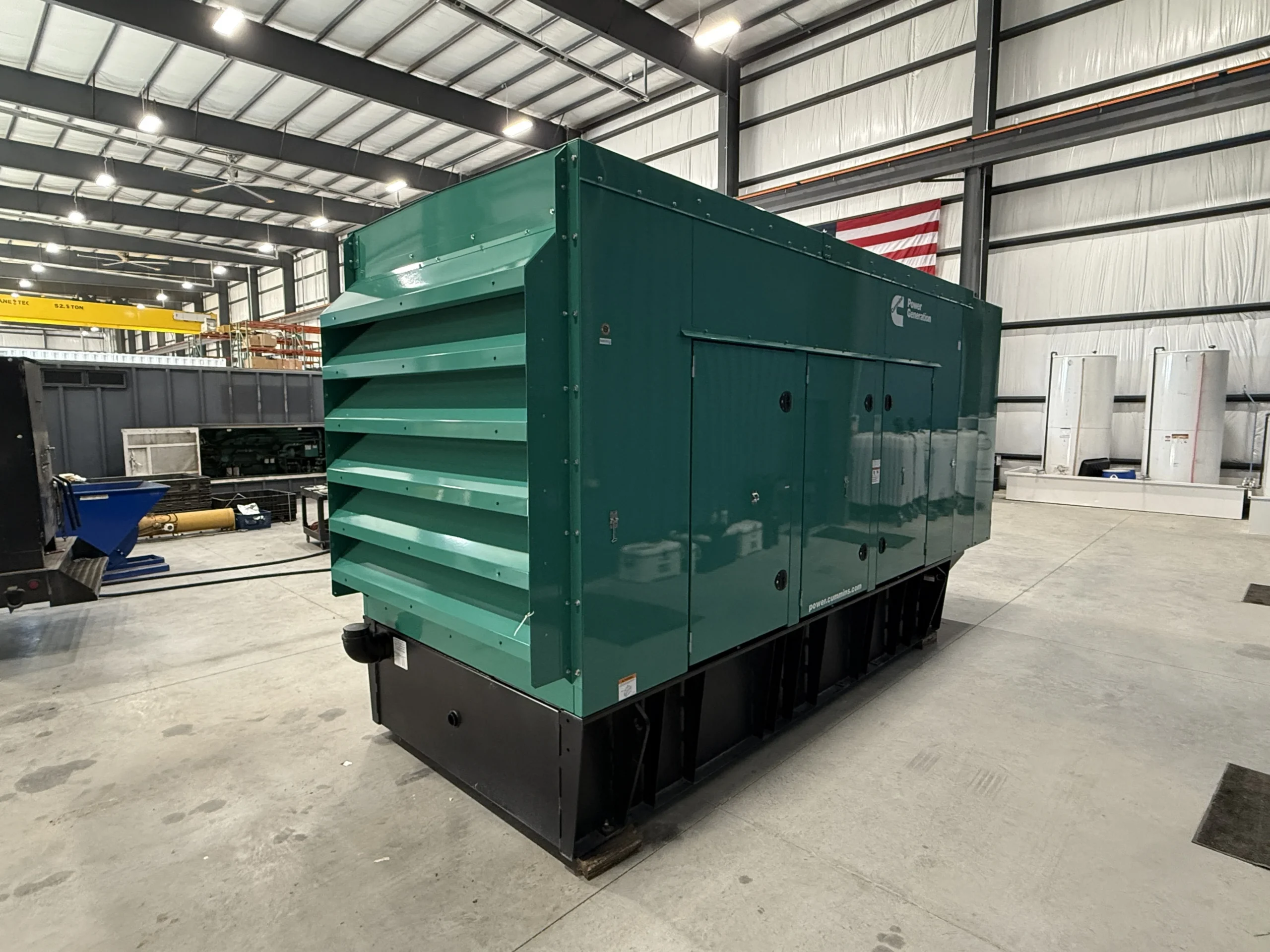

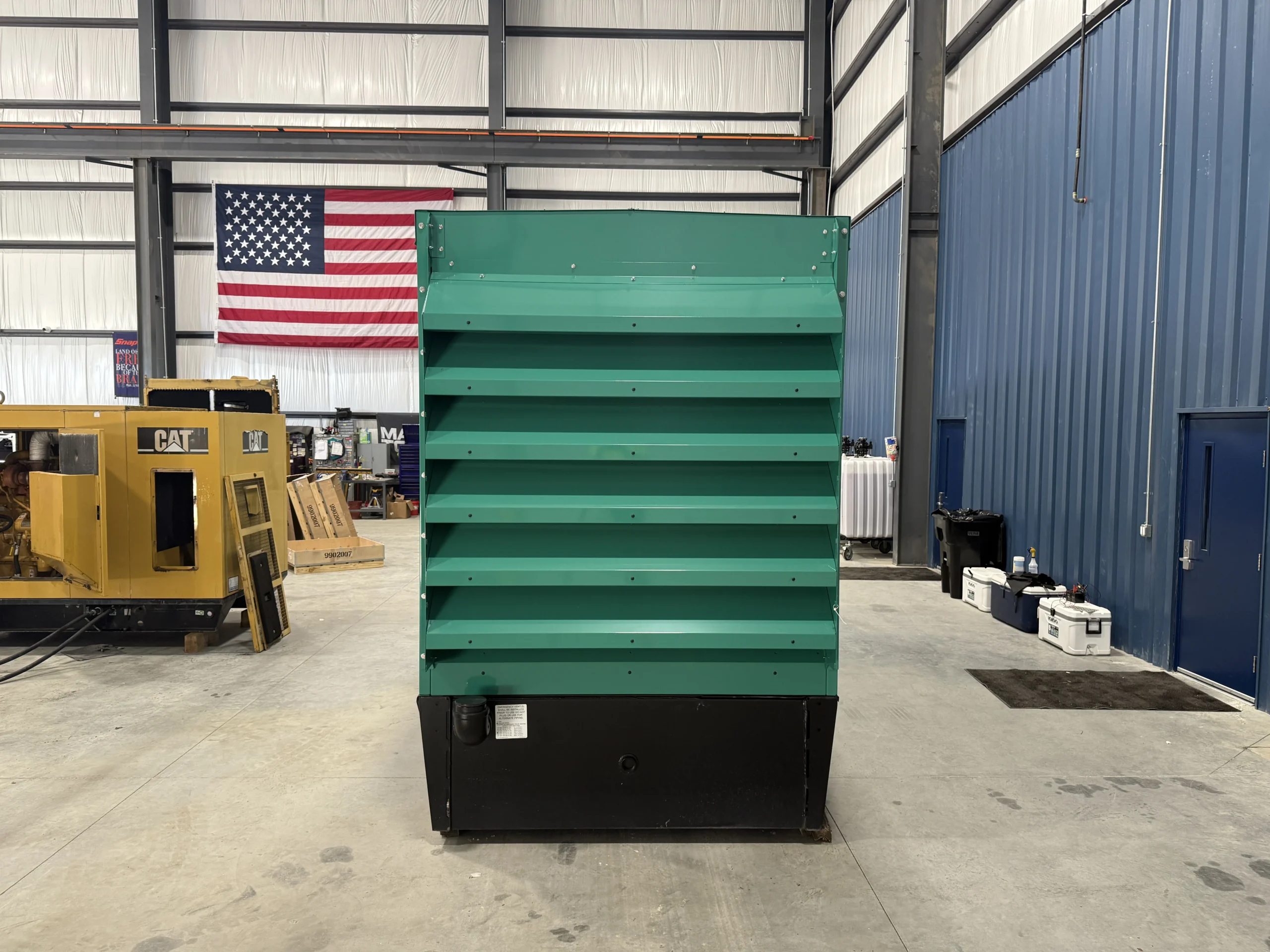

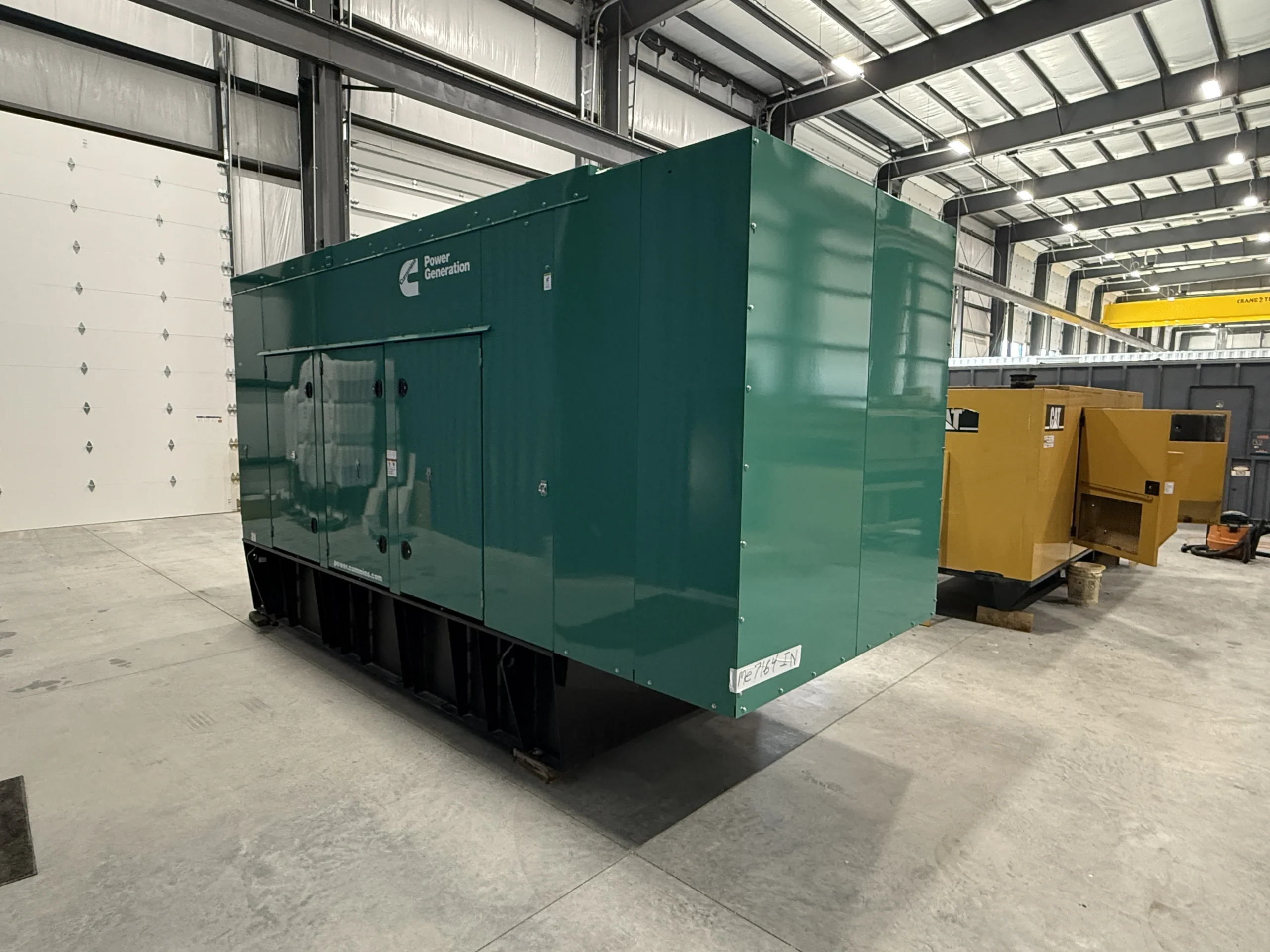

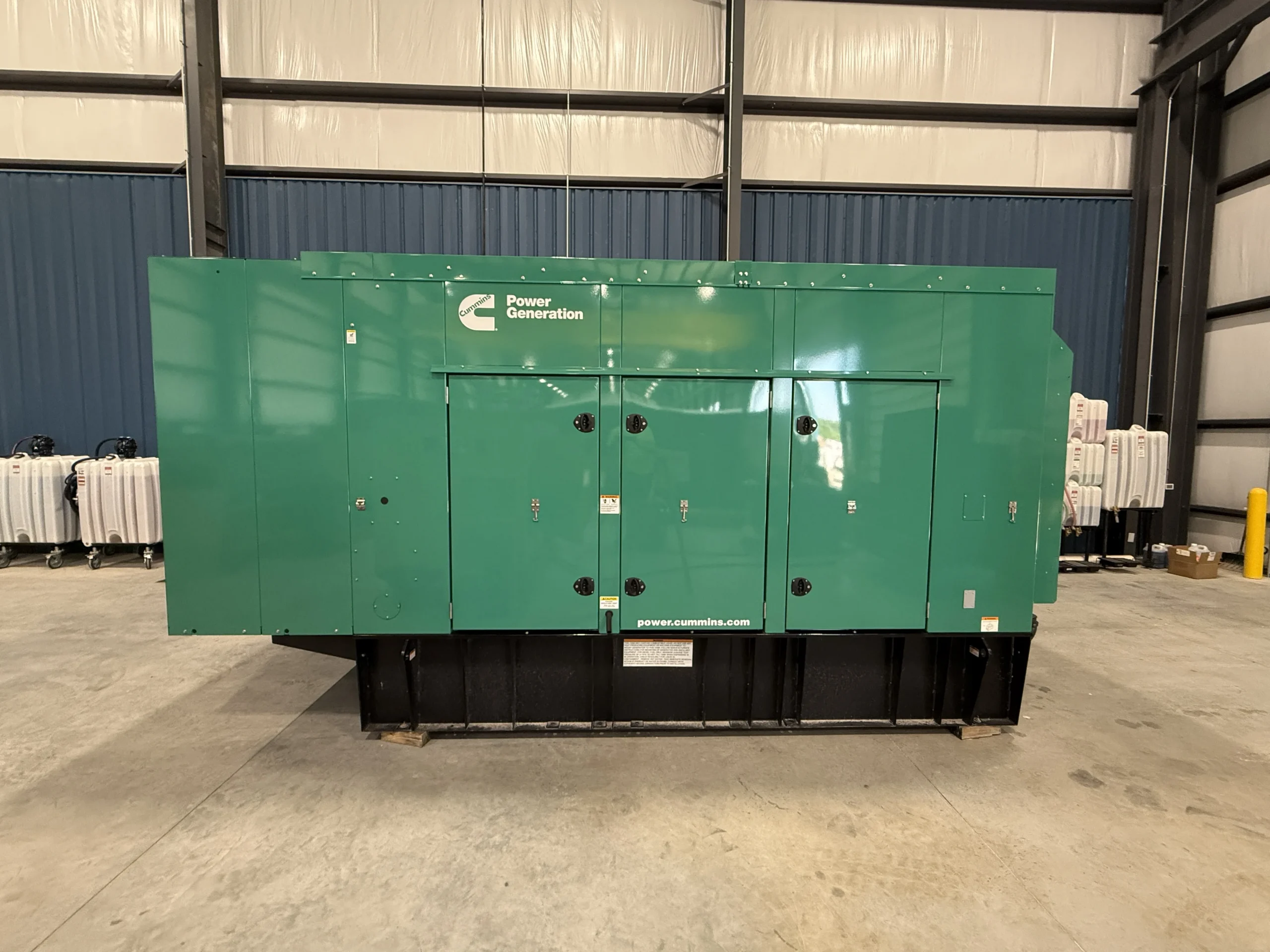

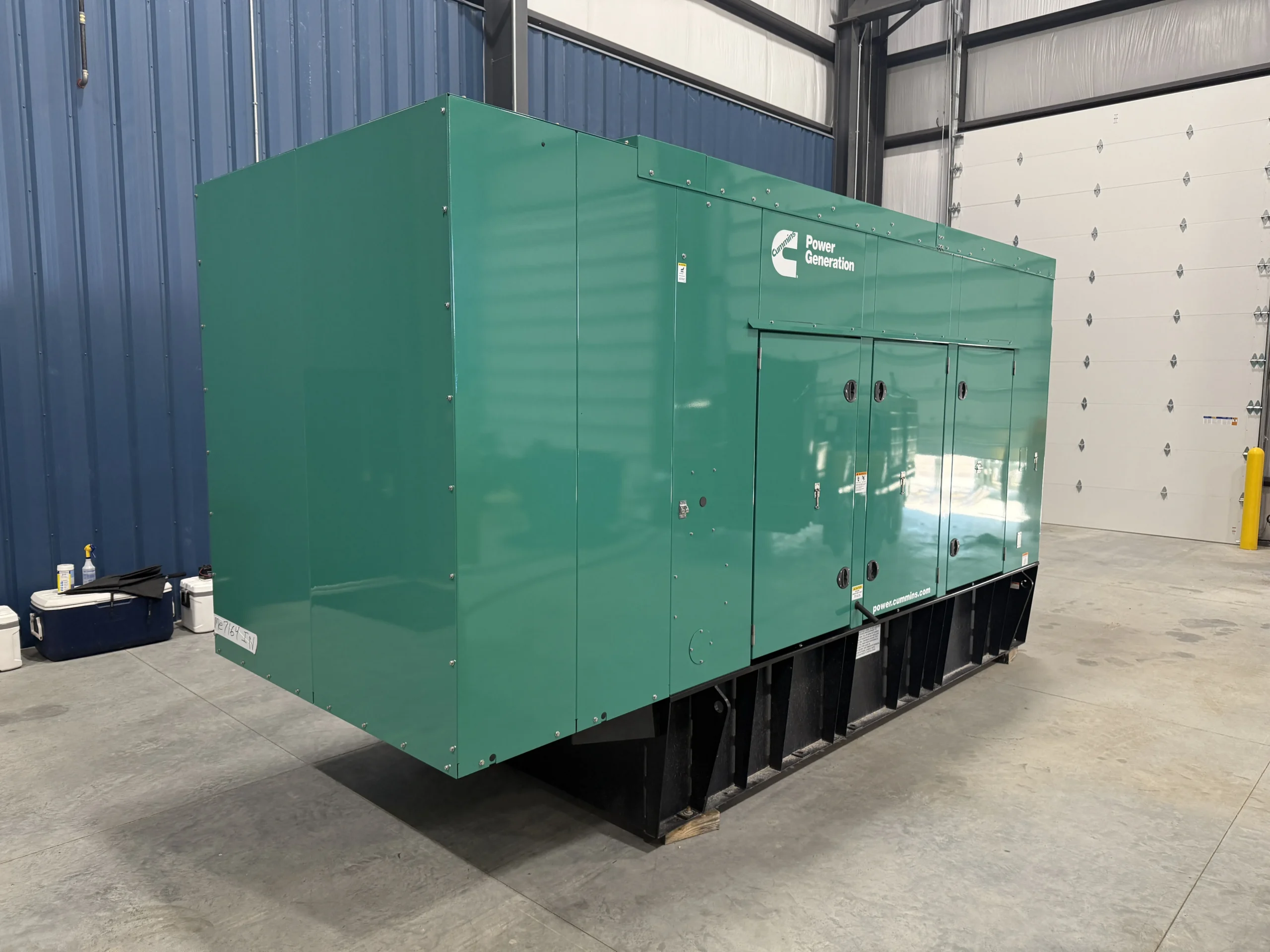

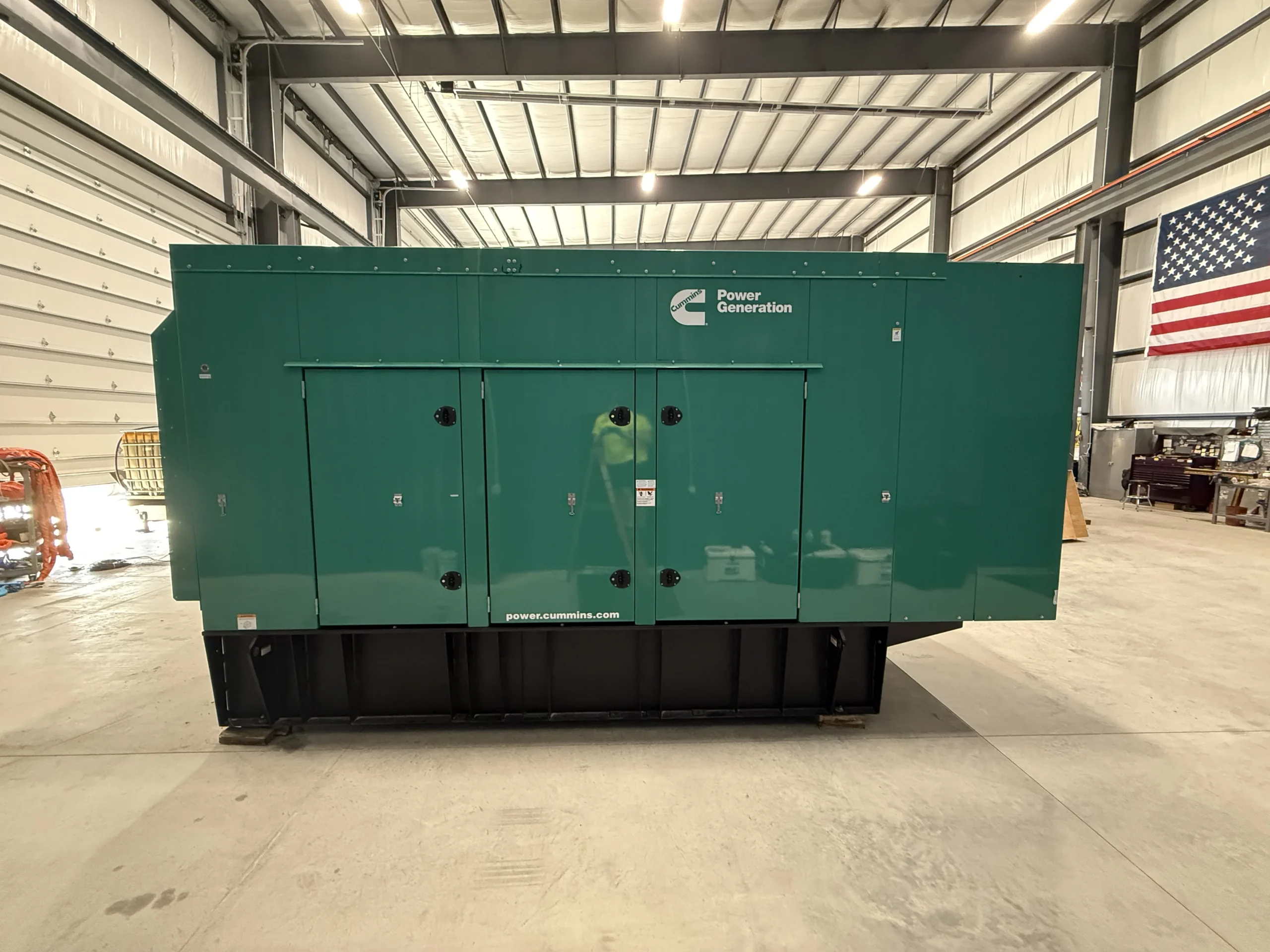

- Enclosure Type:Sound Attenuated Enclosure
- Mounting Type:Base Tank Mounted

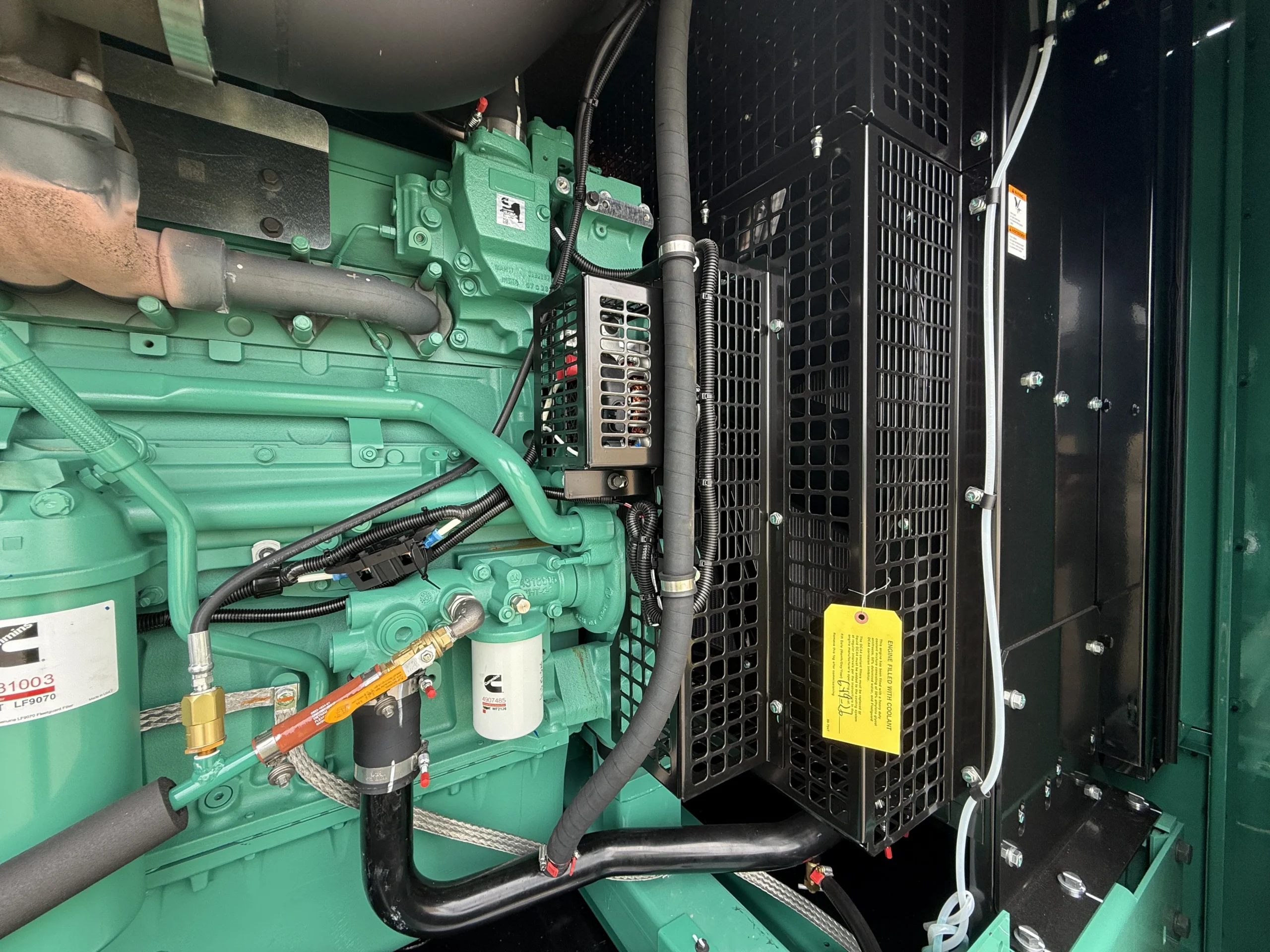

- Accessories / Components

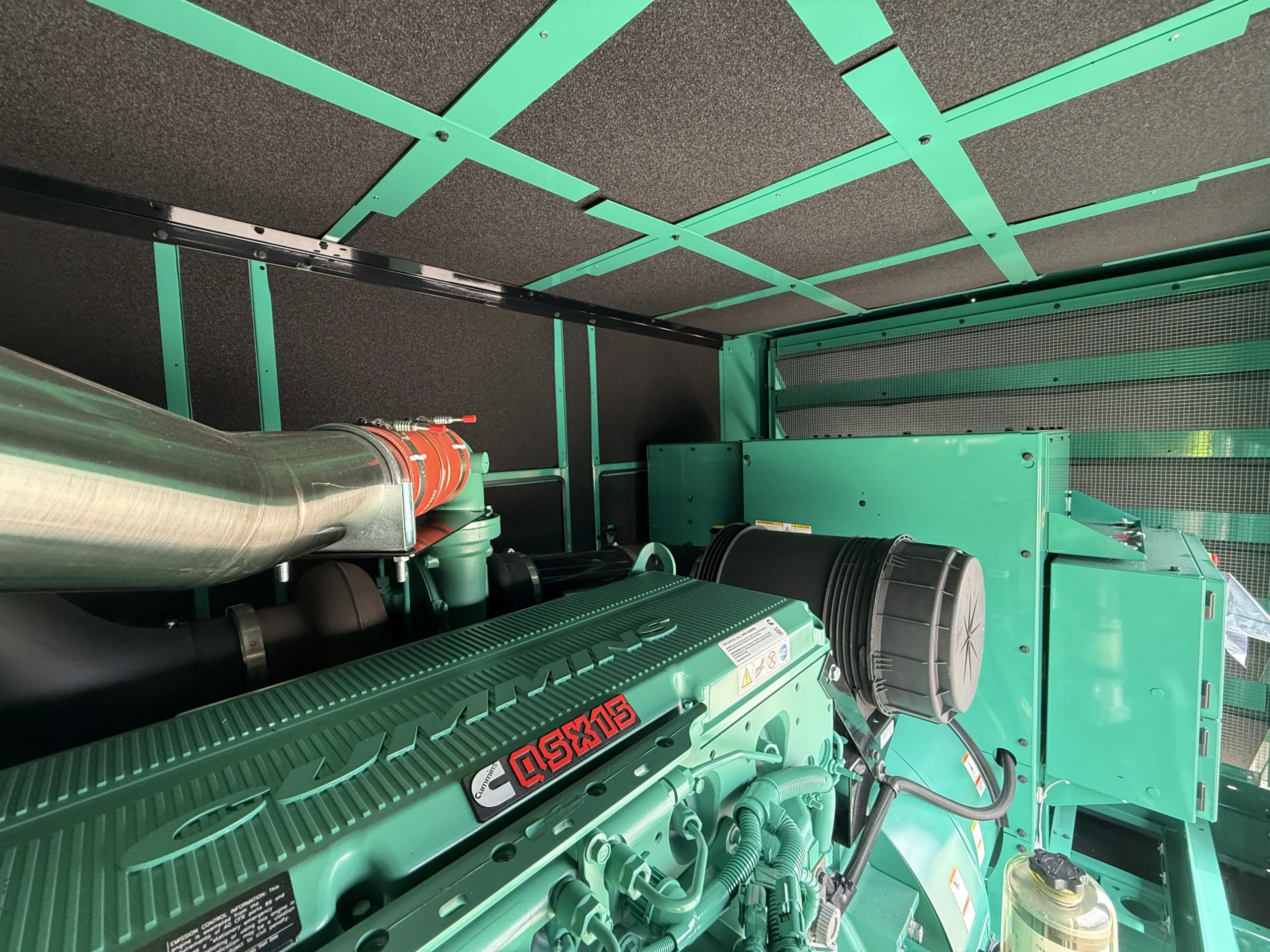

- Air Cleaner:Normal-duty, dry-type air cleaner

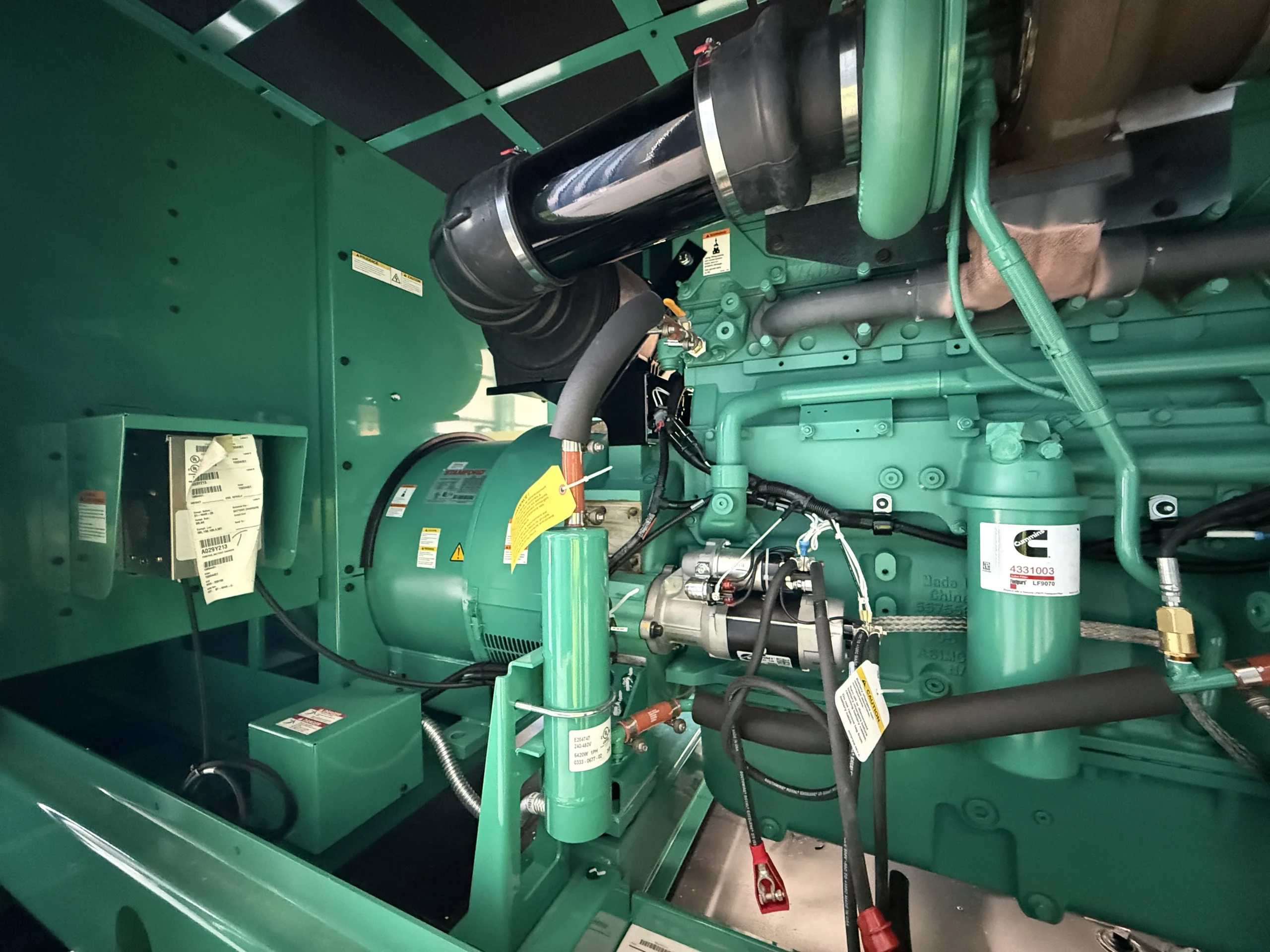

- Jacket Water Heater:Included; 208/240/480V

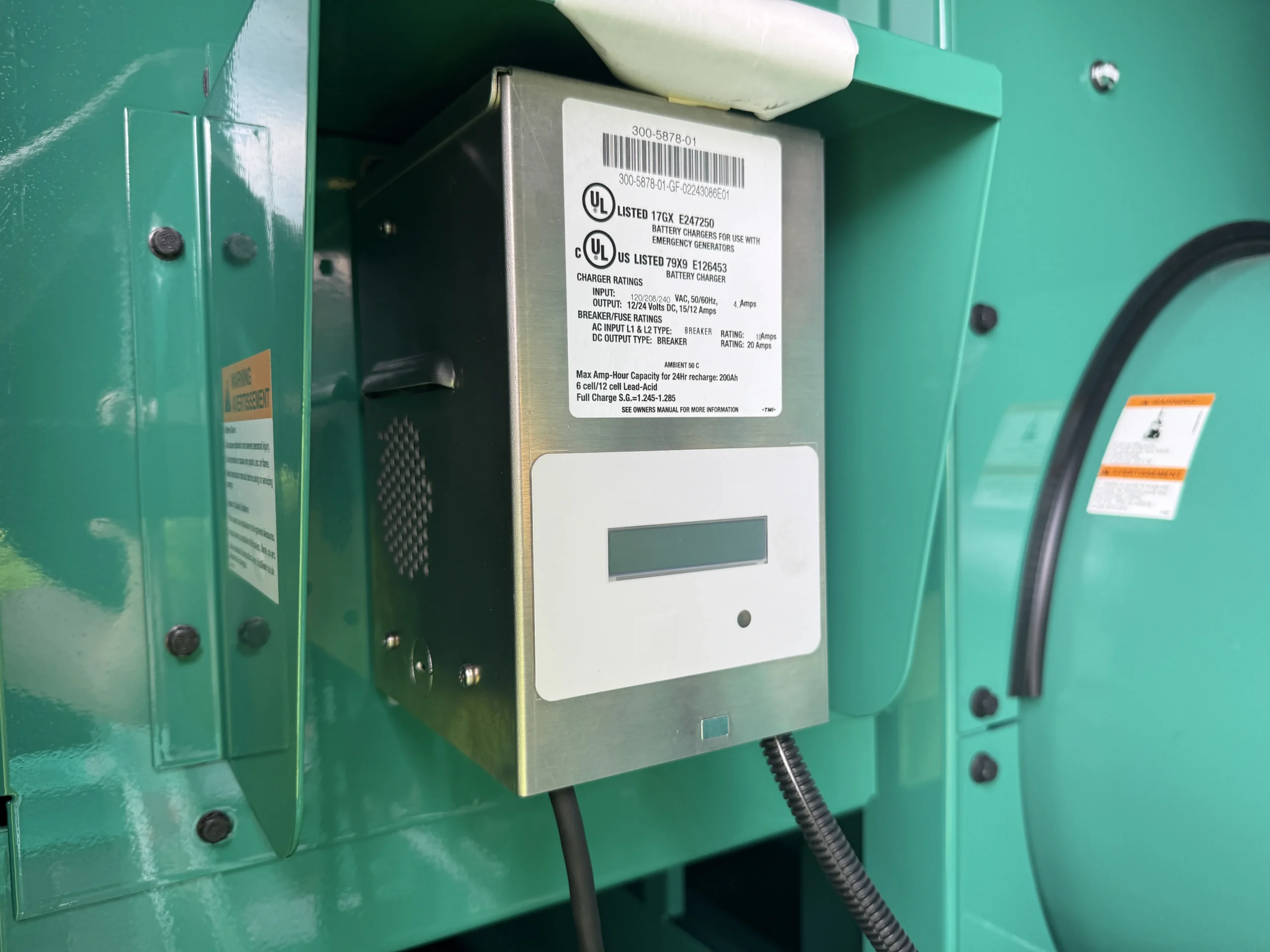

- Battery Charger:Cummins P/N 300-5878-01; 120/208/240 VAC input; 12/24V DC output, rated 15/12A respectively
- Starting System:24V DC electric

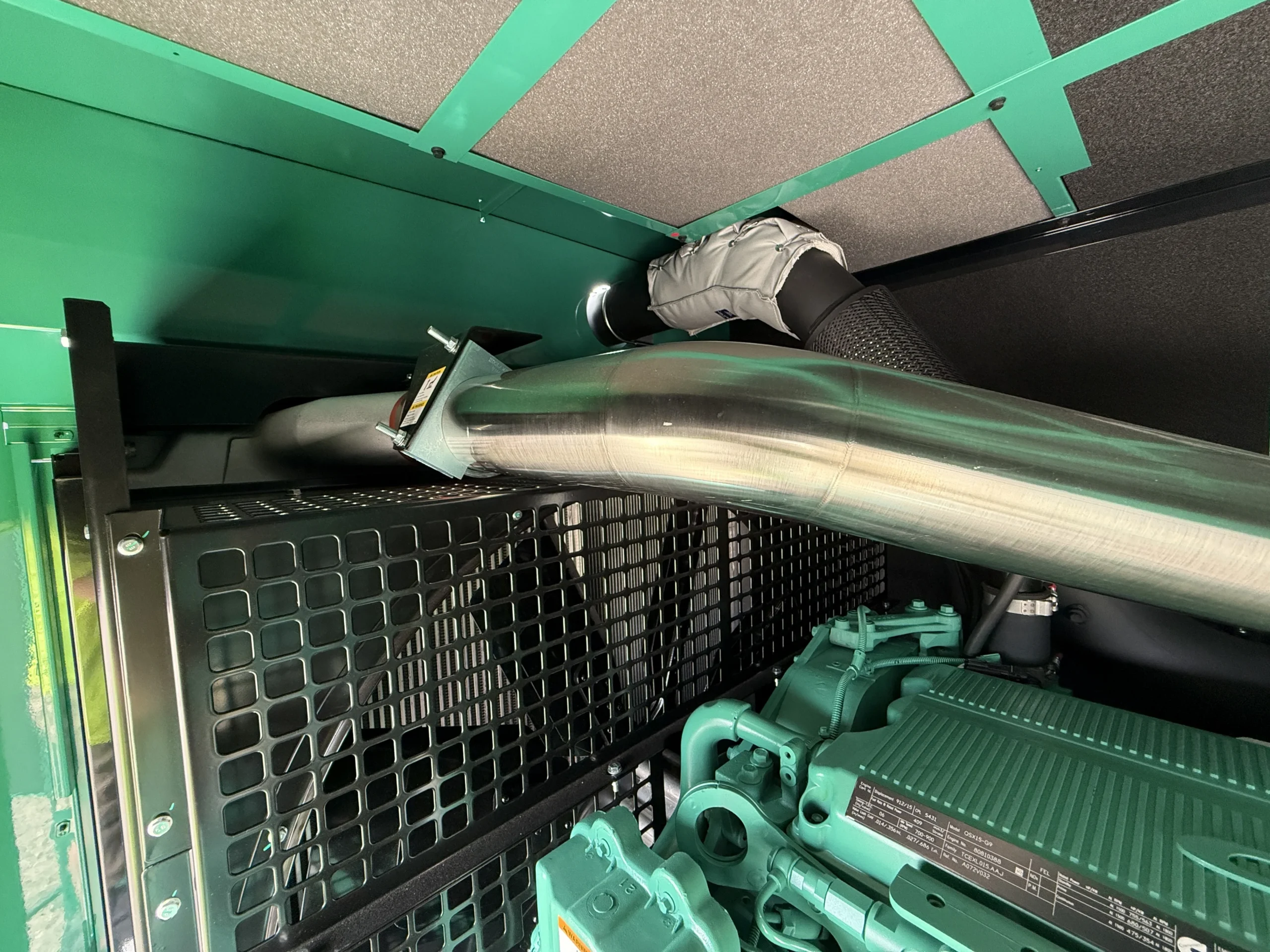

- Exhaust System:Exhaust piping with flexible connector and insulation blanket
- Shipping / Reference
- Dimensions (L × W × H):222" × 86" × 117"
- Weight:17,996 lbs
- Stock Number:MEG1523
