500-999KW Generators

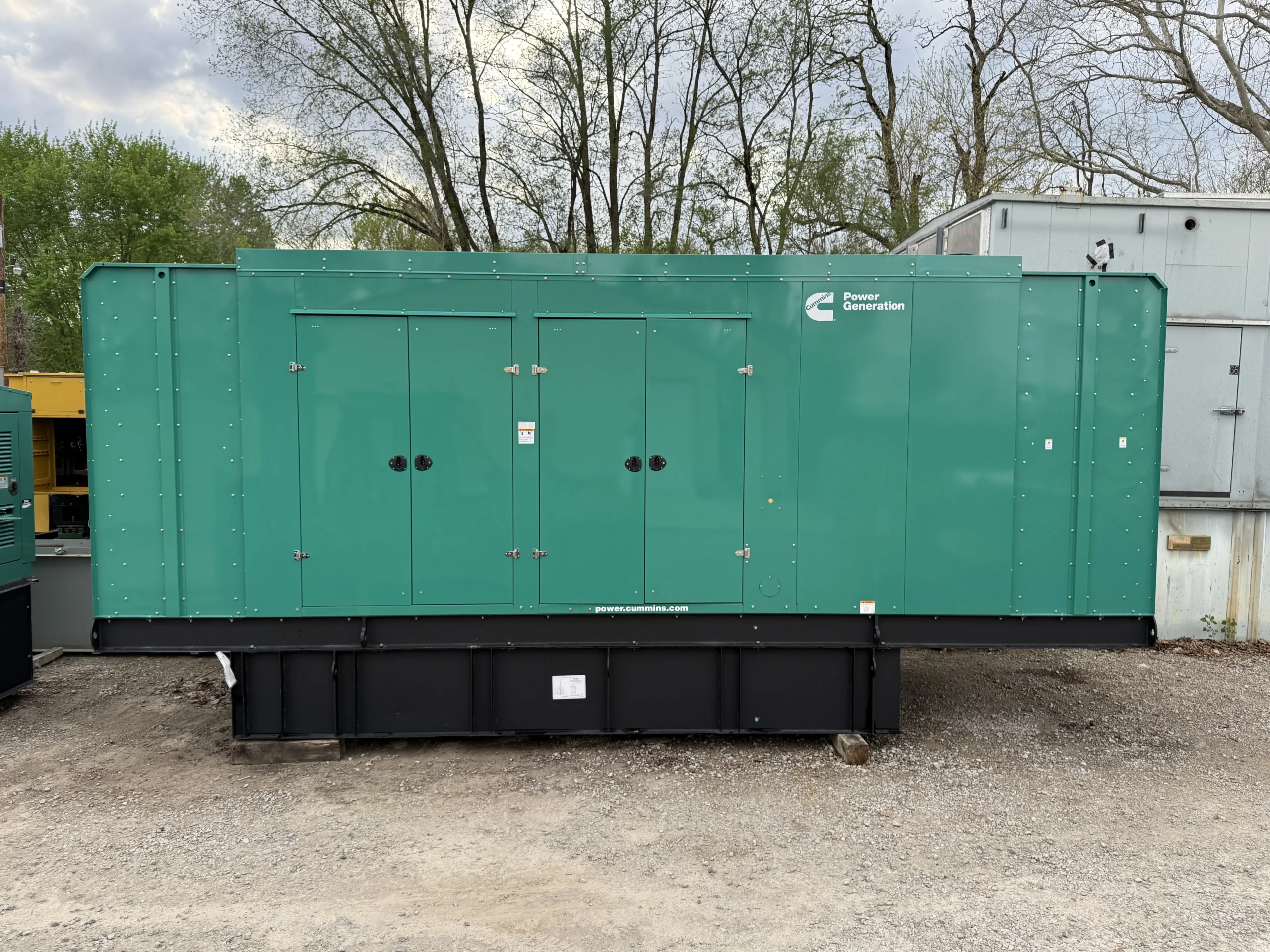

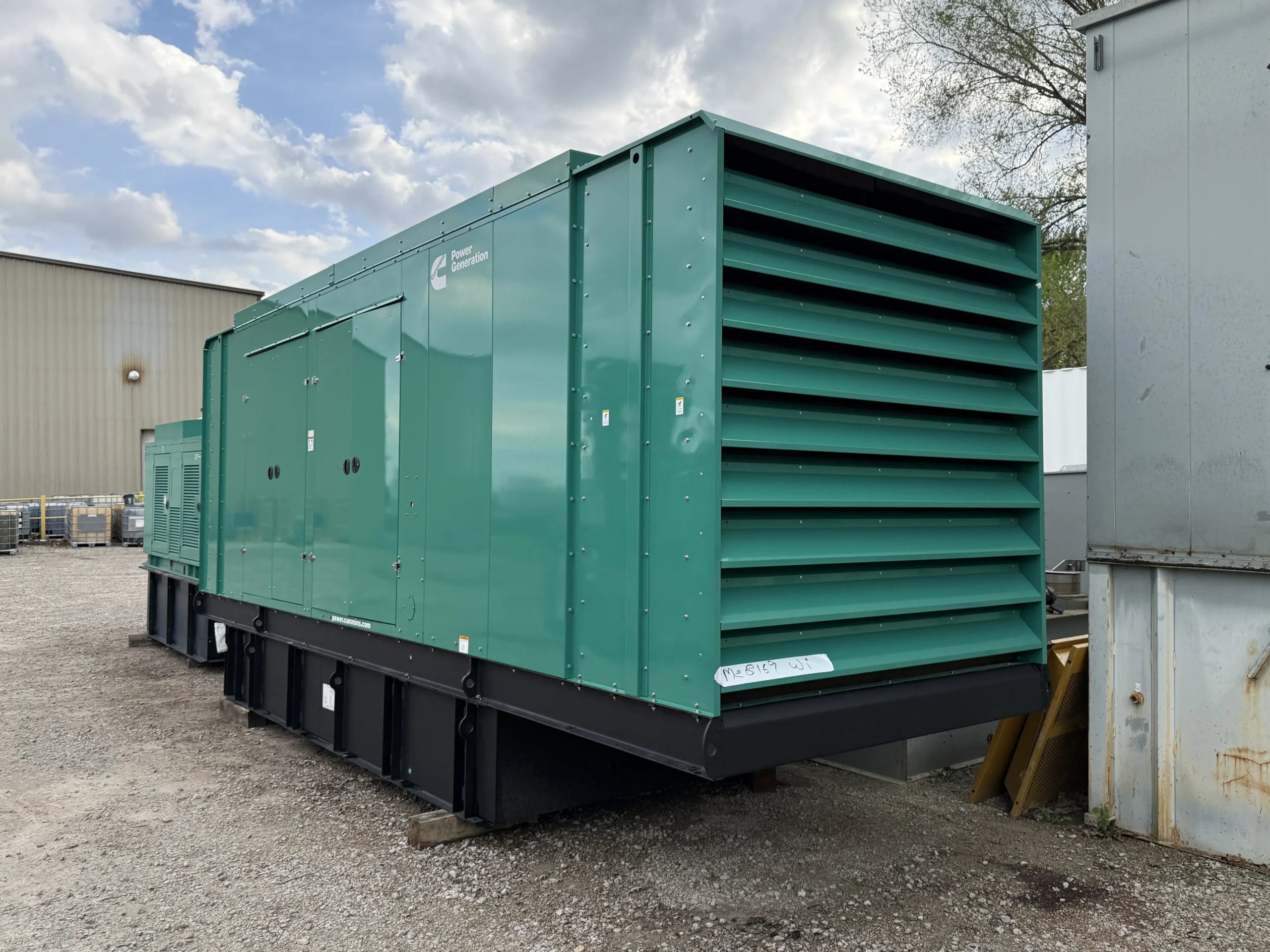

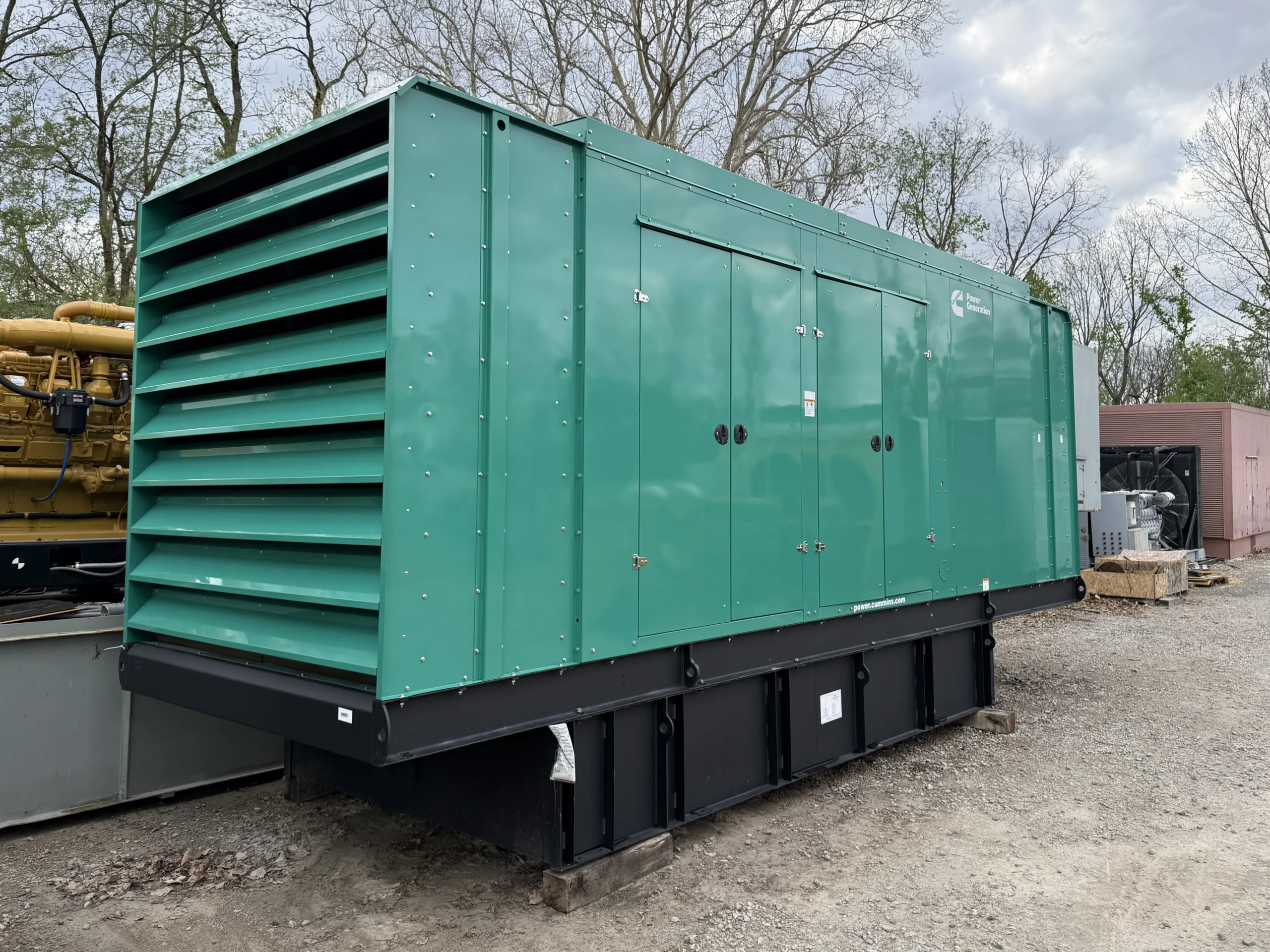

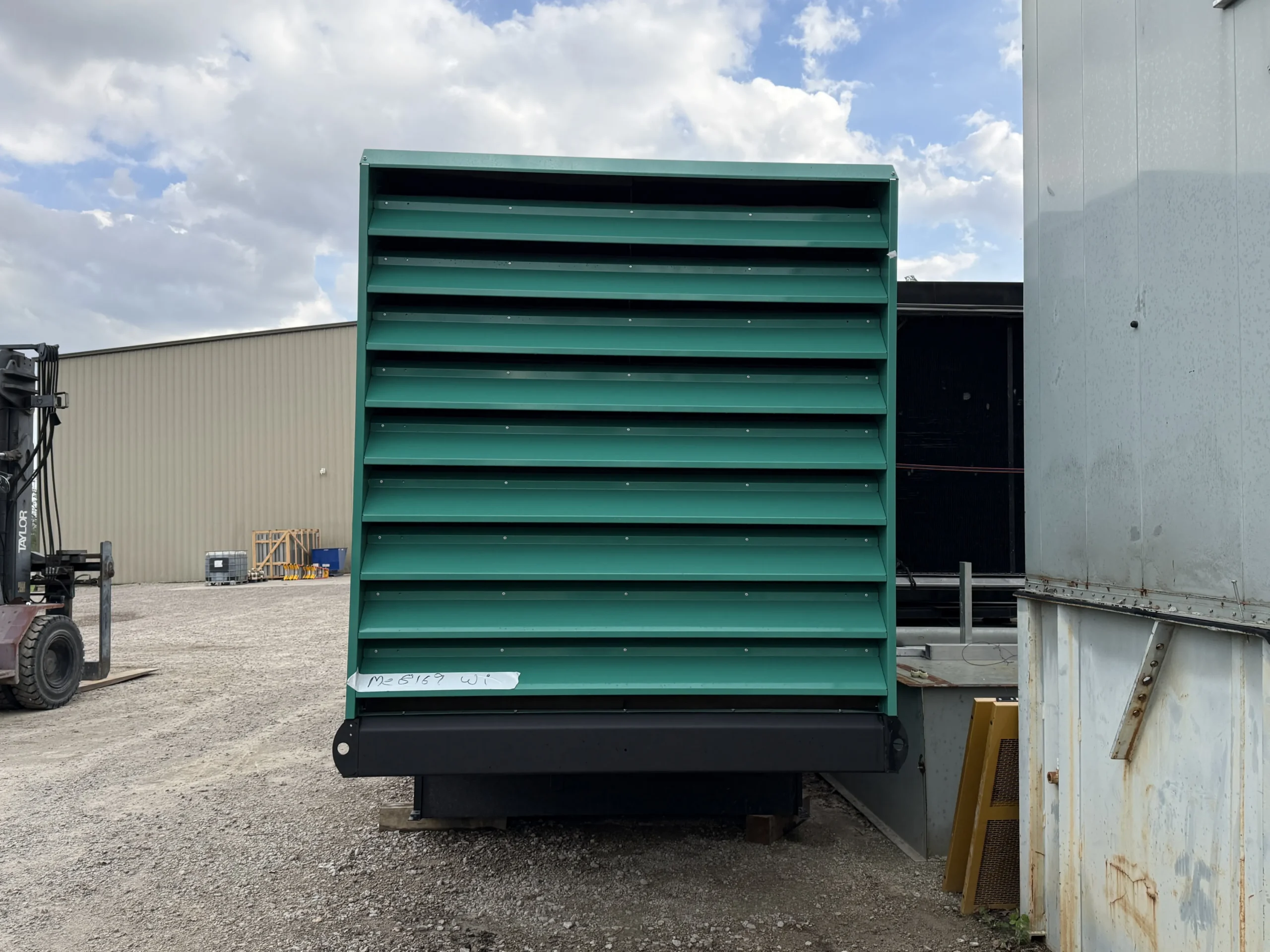

2026 Cummins C800D6E 800kW Diesel Generator – New
$299,900
- 800 kW
- Diesel
- 0 Hours
- New
Click the button below to email our Sales Manager about this unit.
Details
Resources
Details
Technical Specifications
- Overview
- Year:2026
- Manufacturer:Cummins
- Package Model:C800D6E
- Generator Model:S6L1D-C4
- Condition:New
- Hours:0
- Electrical
- kW:800
- kVA:1,000.0
- Voltage:277/480
- Amperage:1,203.0
- Frequency:60 Hz
- RPM:1,800
- Breaker:Square D PowerPacT P PJP36120U33E, 1,200 A, 3-pole, MicroLogic 5.0 LSI electronic trip, 65 kA interrupting rating at 480V
- Control Panel:Cummins PowerCommand 2.3
- Phase Type:Three Phase
- Power Rating:Standby
- Engine
- Fuel Type:Diesel
- Engine Manufacturer:Cummins
- Engine Model:S17-G1
- Emissions Tier:EPA Tier 2 (Stationary Emergency Rated)
- Horsepower:1,474 HP
- Displacement:16.8 L
- Aspiration:Turbocharged Aftercooled
- Governor Type:Electronic
- Generator / Package
- Generator Insulation Class:Class H
- Reconnectable:Yes
- Leads:12
- Voltage Configuration:480Y/277V, three-phase, four-wire
- Excitation Type:PMG (Permanent Magnet Generator)
- Fuel Tank Capacity:1,770 Gallons
- Enclosure Type:Sound Attenuated Enclosure
- Mounting Type:Base Tank Mounted
- Accessories / Components
- Jacket Water Heater:208/240/480V coolant heater
- Battery Charger:SENS 10 A, 24V DC output; 120/208/240V AC input; ships loose
- Starting System:24V DC electric start; batteries not included
- Exhaust System:Enclosure-integrated exhaust system
- Shipping / Reference
- Dimensions (L × W × H):266" × 87" × 130"
- Weight:26,000 lbs
- Stock Number:MEG1470
Resources
Description
