1000-1999KW Generators
2024 CAT D1250 GC 1250kW Diesel Generator Set
$399,900
- 1250 kW
- Diesel
- 0 Hours
- New
Stock #: MEG1448
Click the button below to email our Sales Manager about this unit.
Details
Resources
Details
Technical Specifications
- Overview
- Year:2024
- Manufacturer:Caterpillar

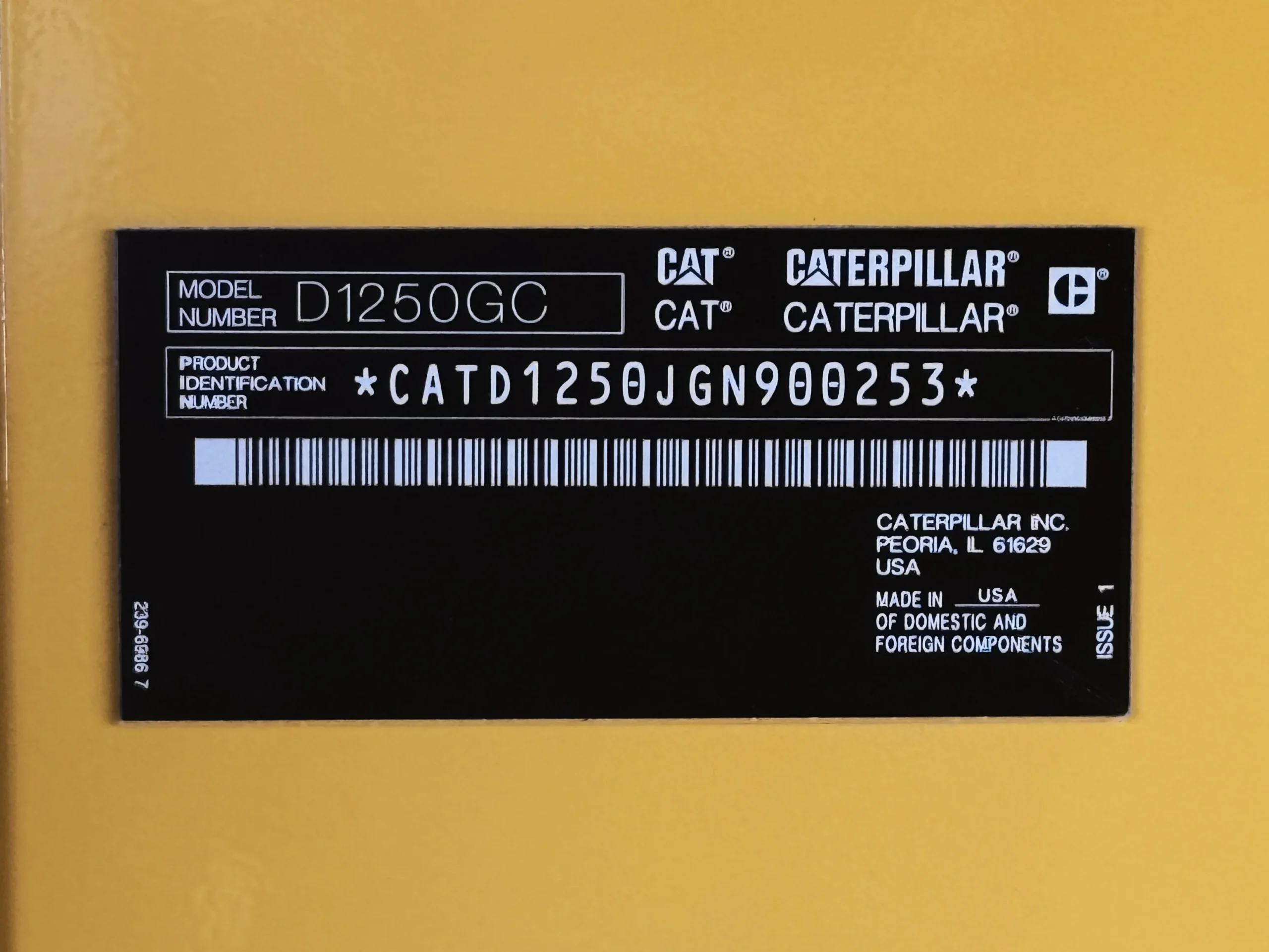

- Package Model:D1250 GC

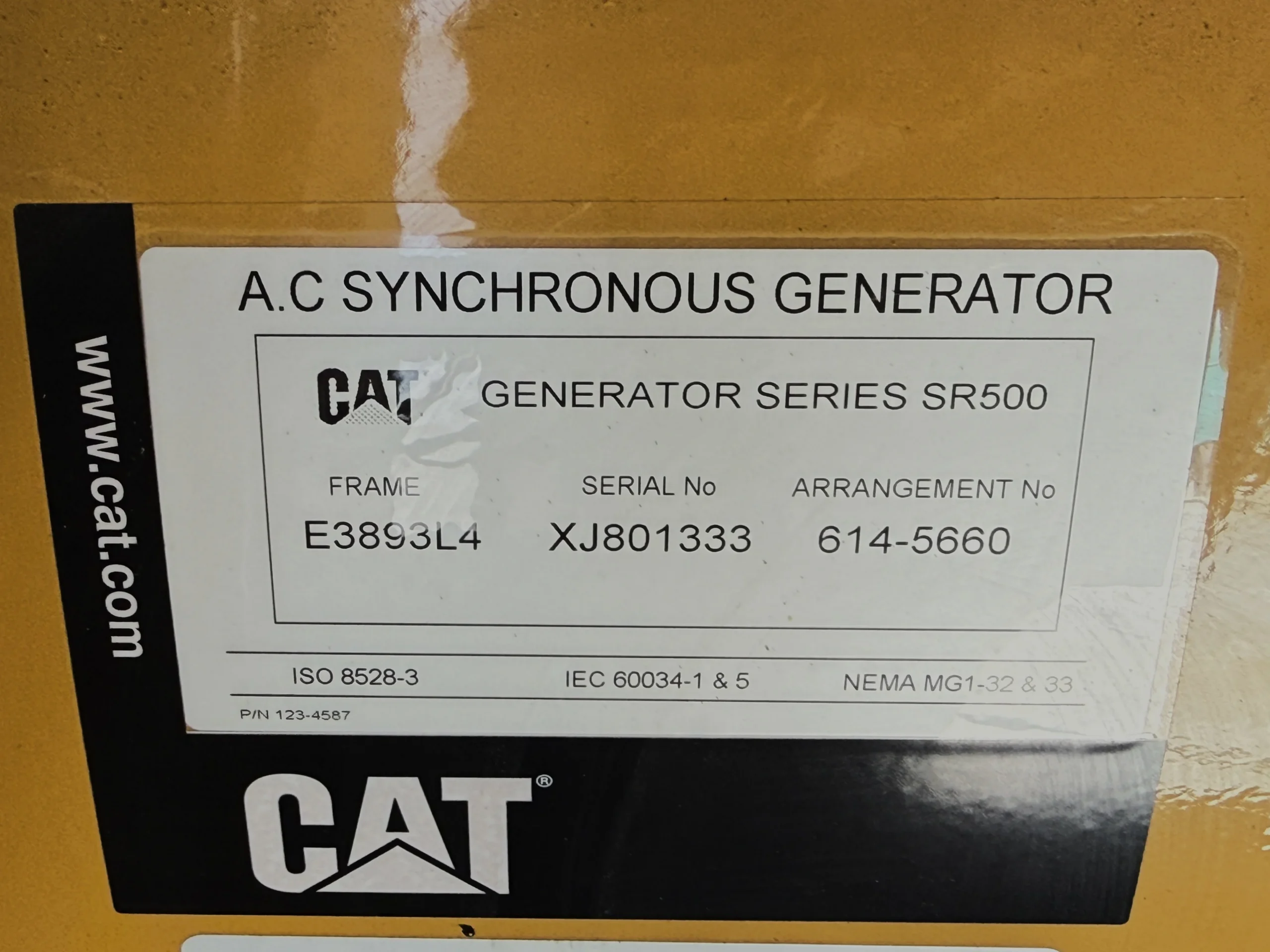

- Generator Model:CAT E3893L4

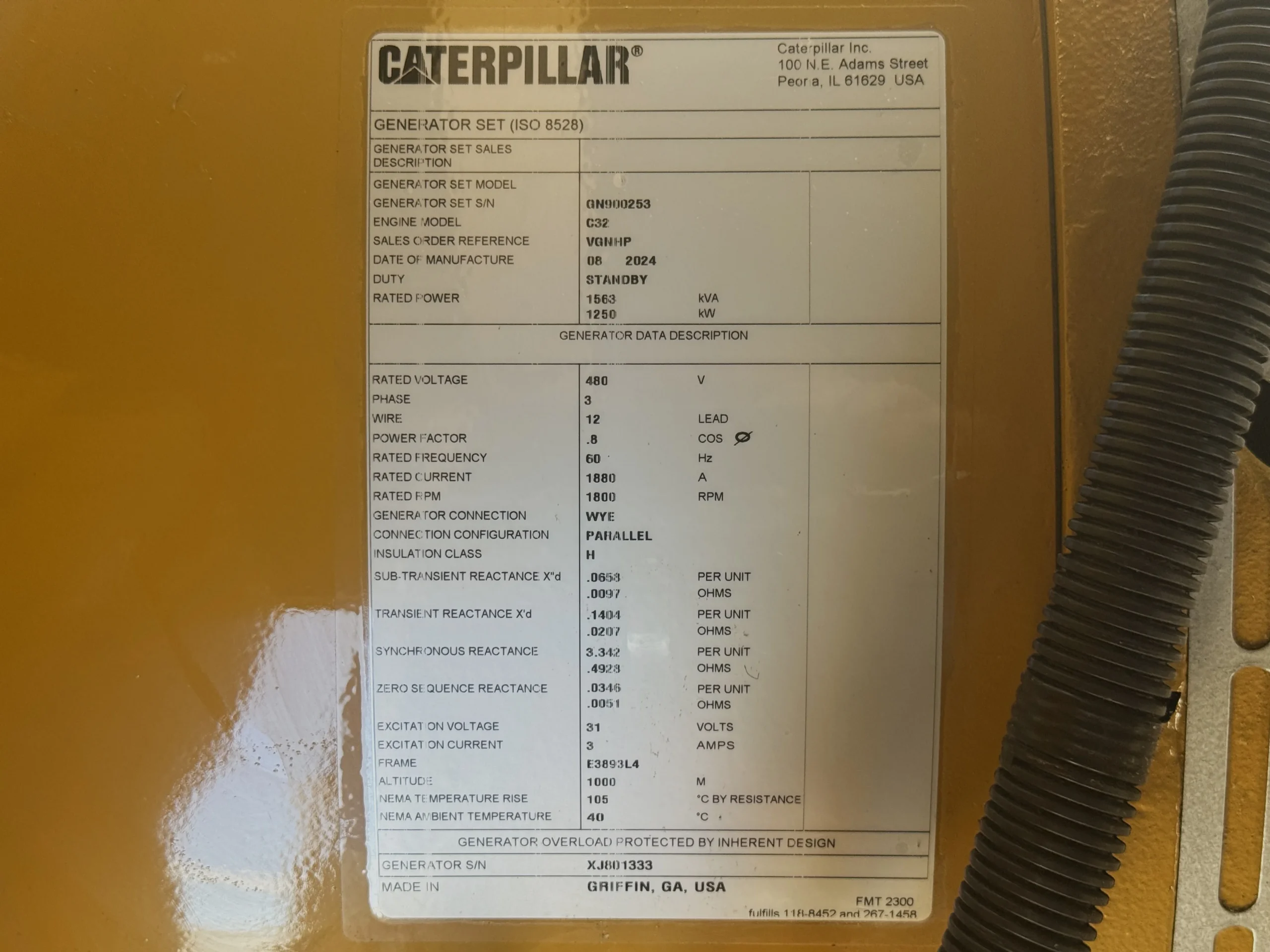

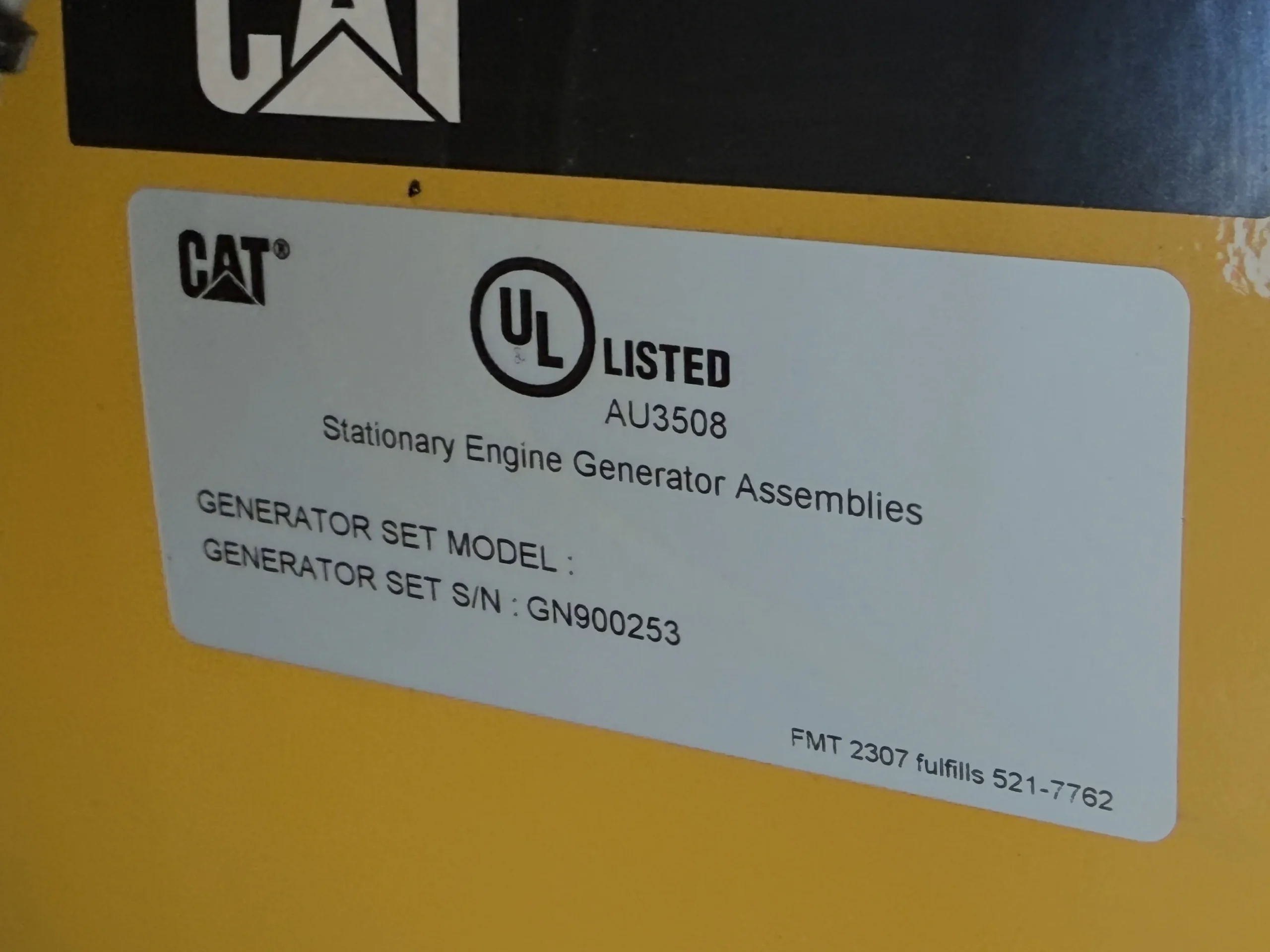

- Serial Number:GN900253
- Condition:New
- Hours:0
- Electrical
- kW:1,250
- kVA:1,562.5
- Voltage:277/480
- Amperage:1,879.0
- Frequency:60 Hz
- RPM:1,800

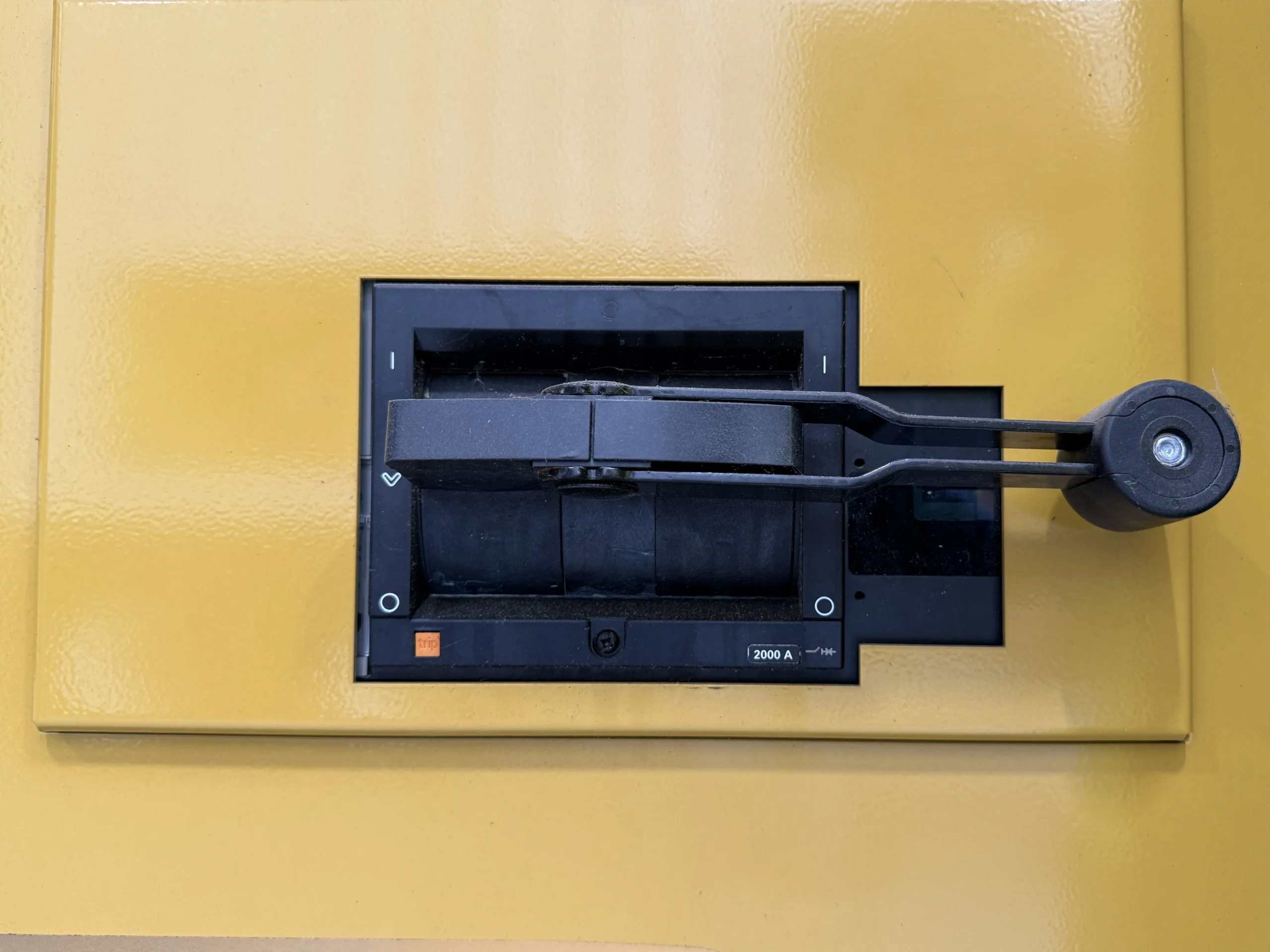

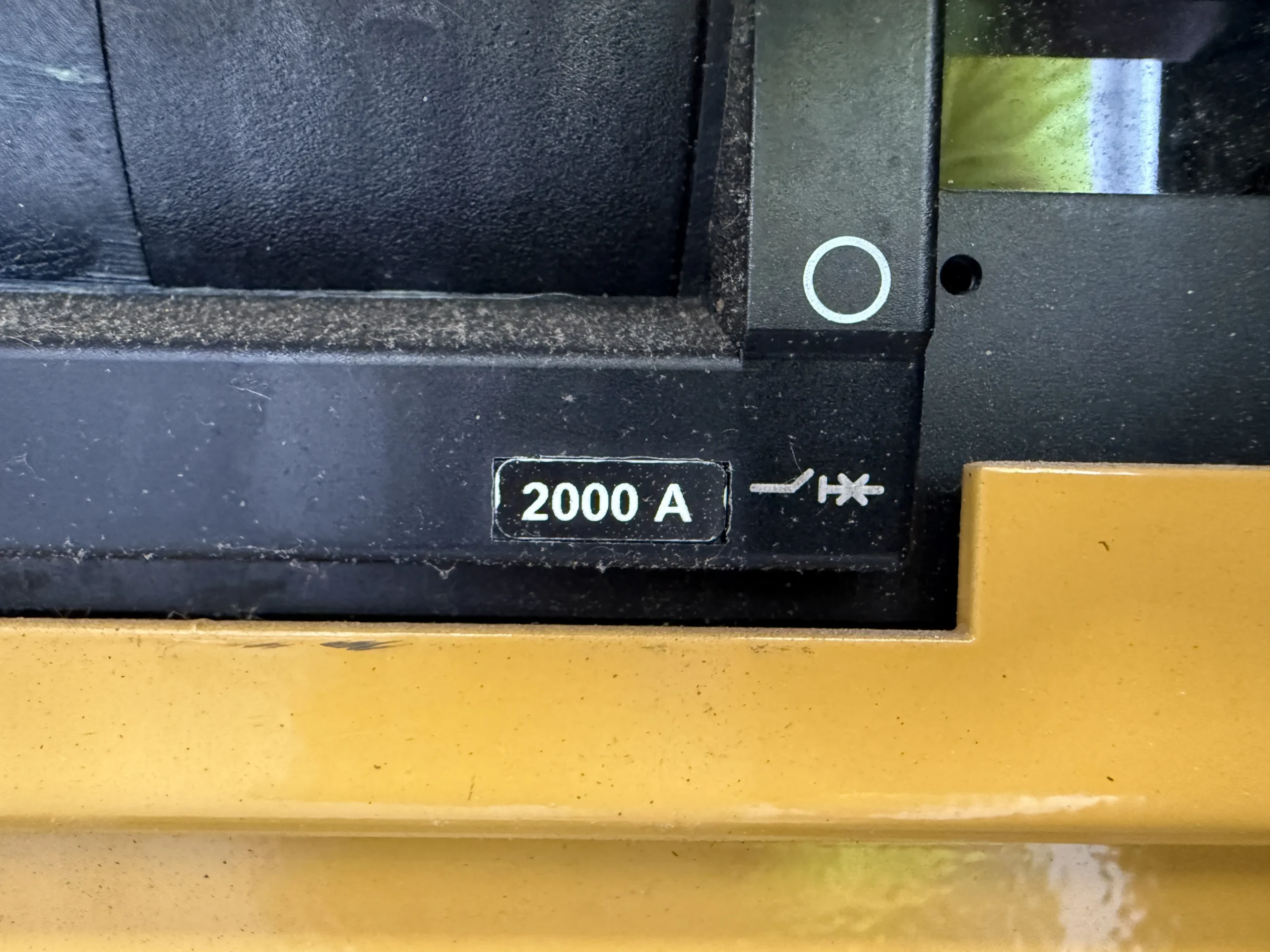

- Breaker:2,000A LSIG-P, 3-Pole, Motor Operated

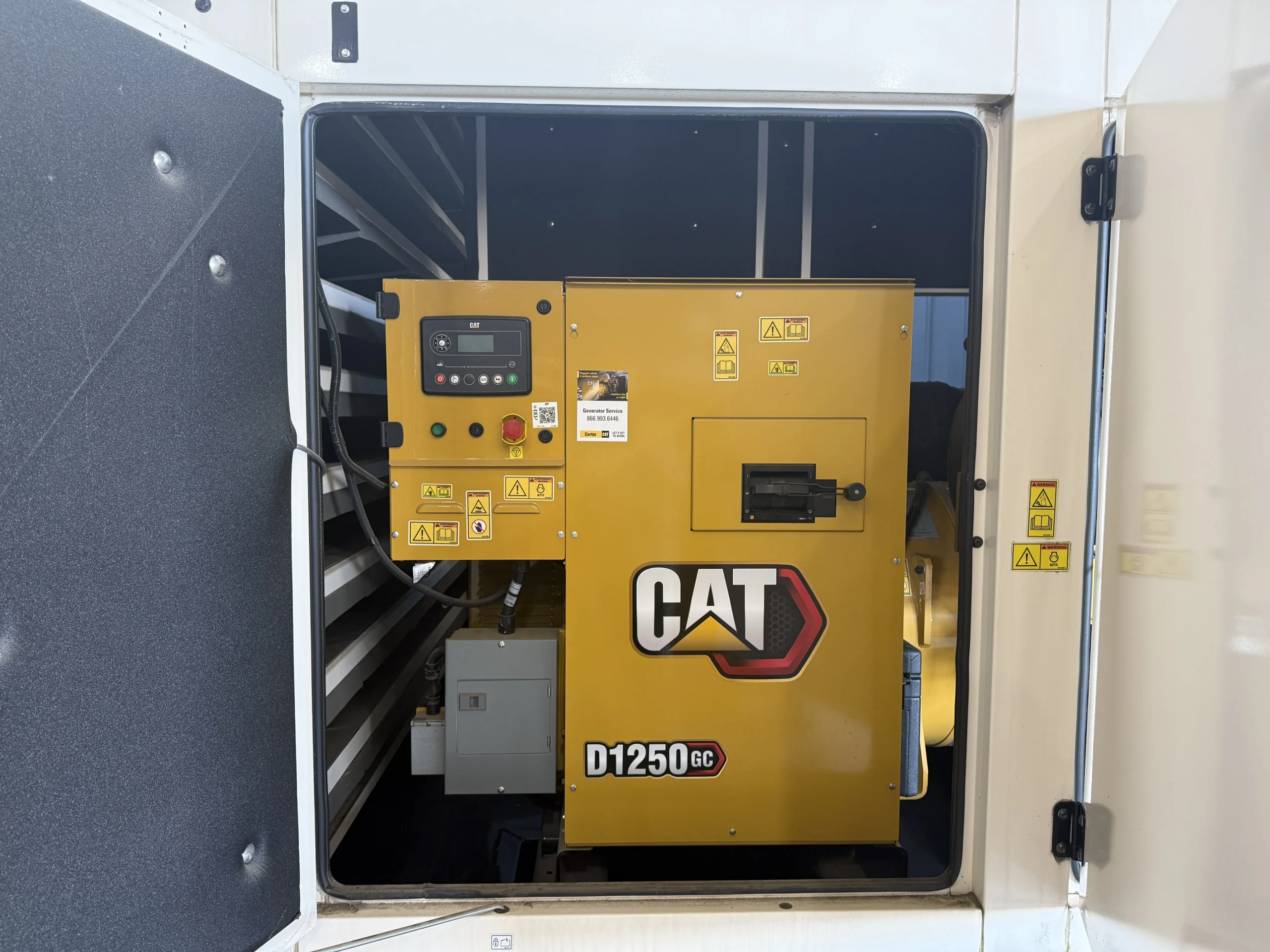

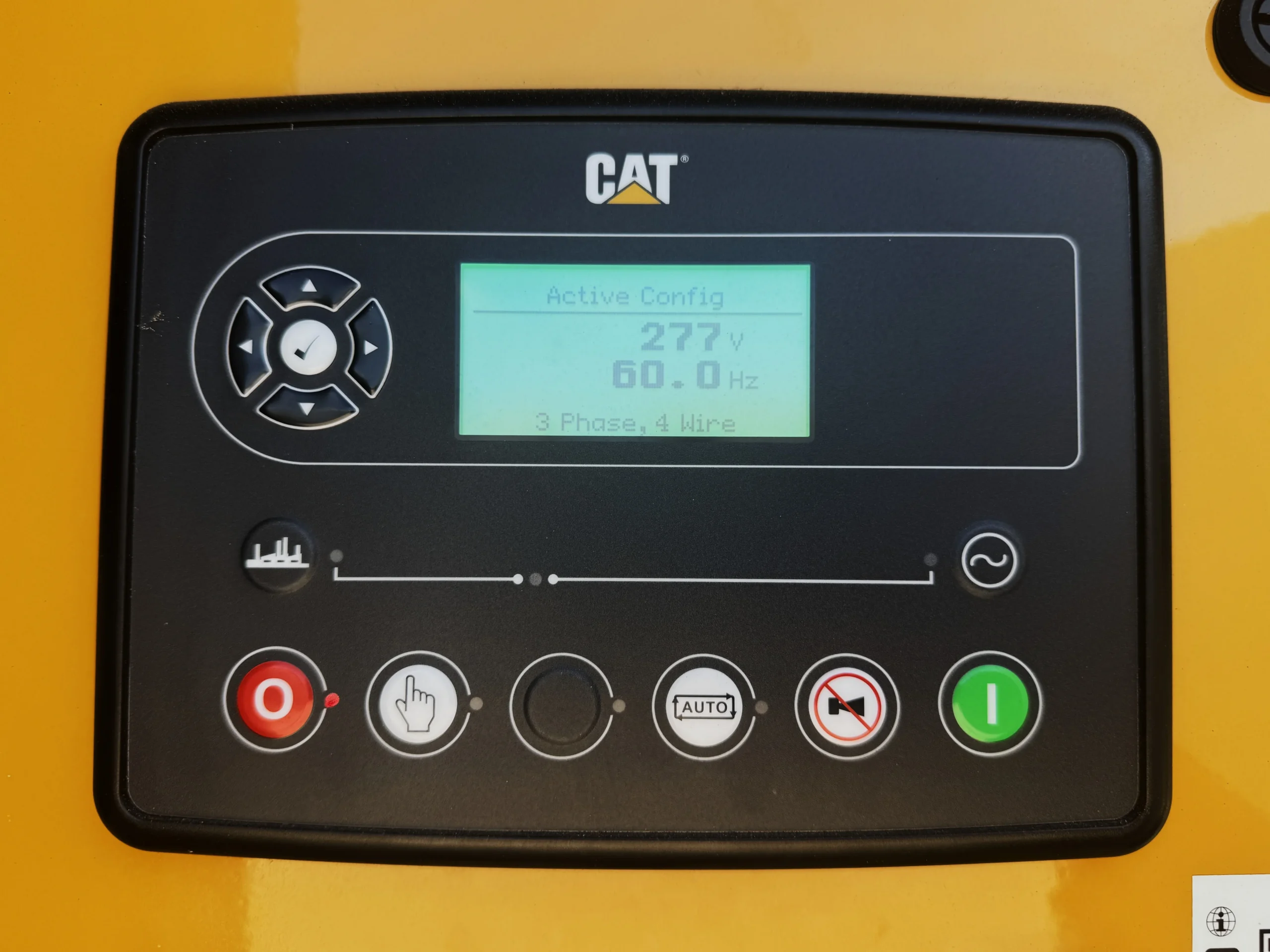

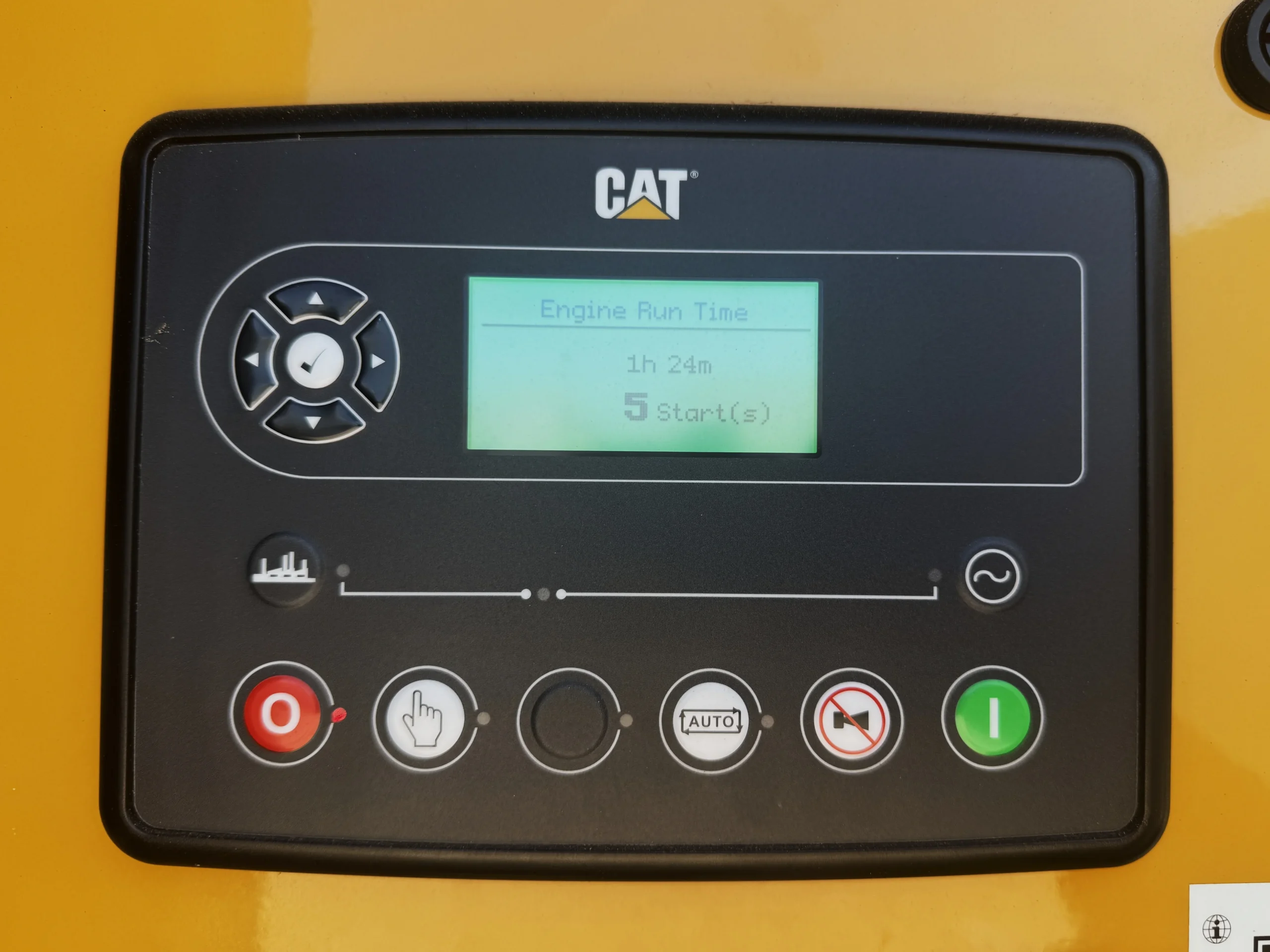

- Control Panel:CAT GCCP 1.2
- Phase Type:Three Phase
- Power Rating:Standby
- Engine
- Fuel Type:Diesel
- Engine Manufacturer:Caterpillar

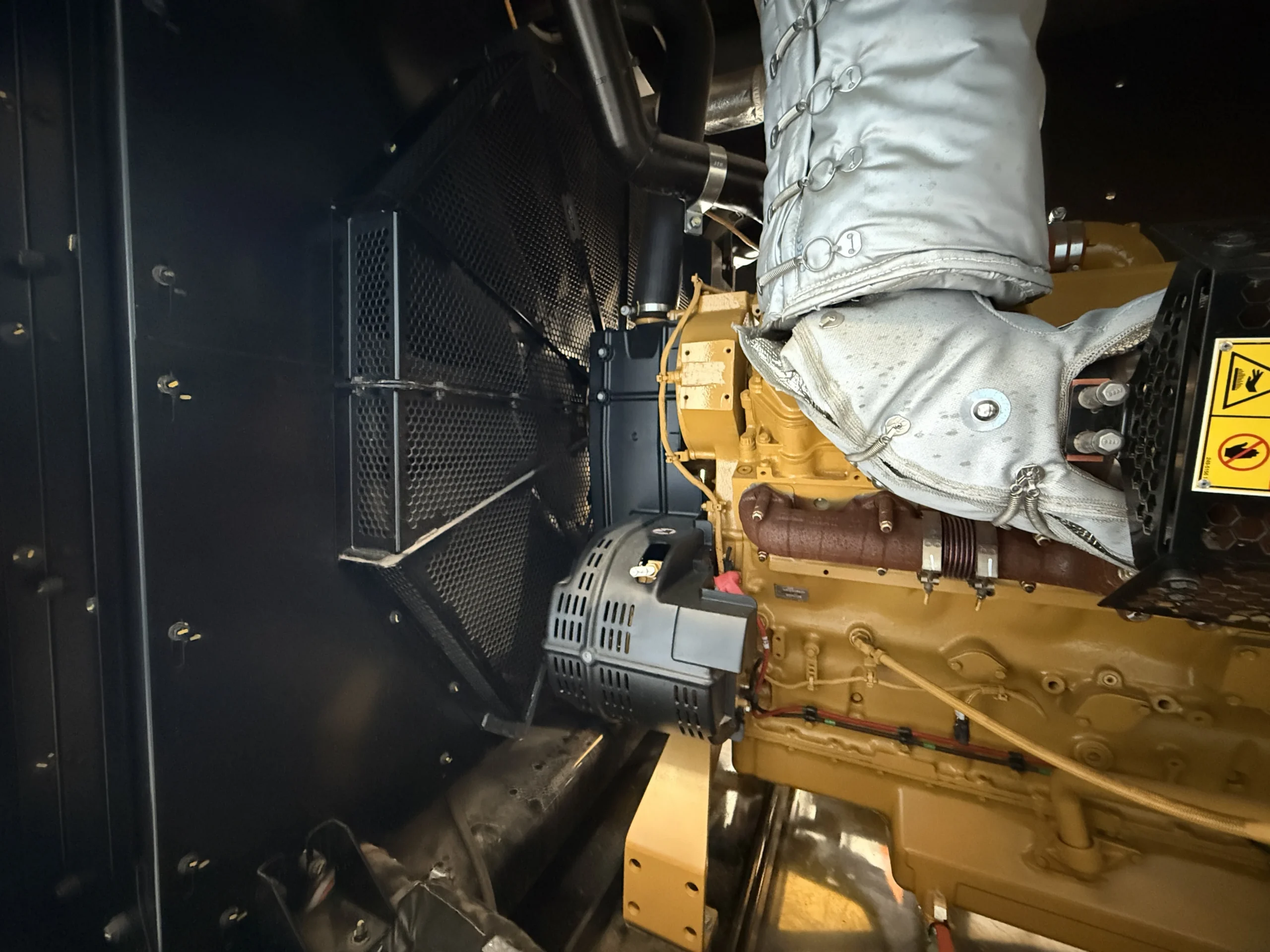

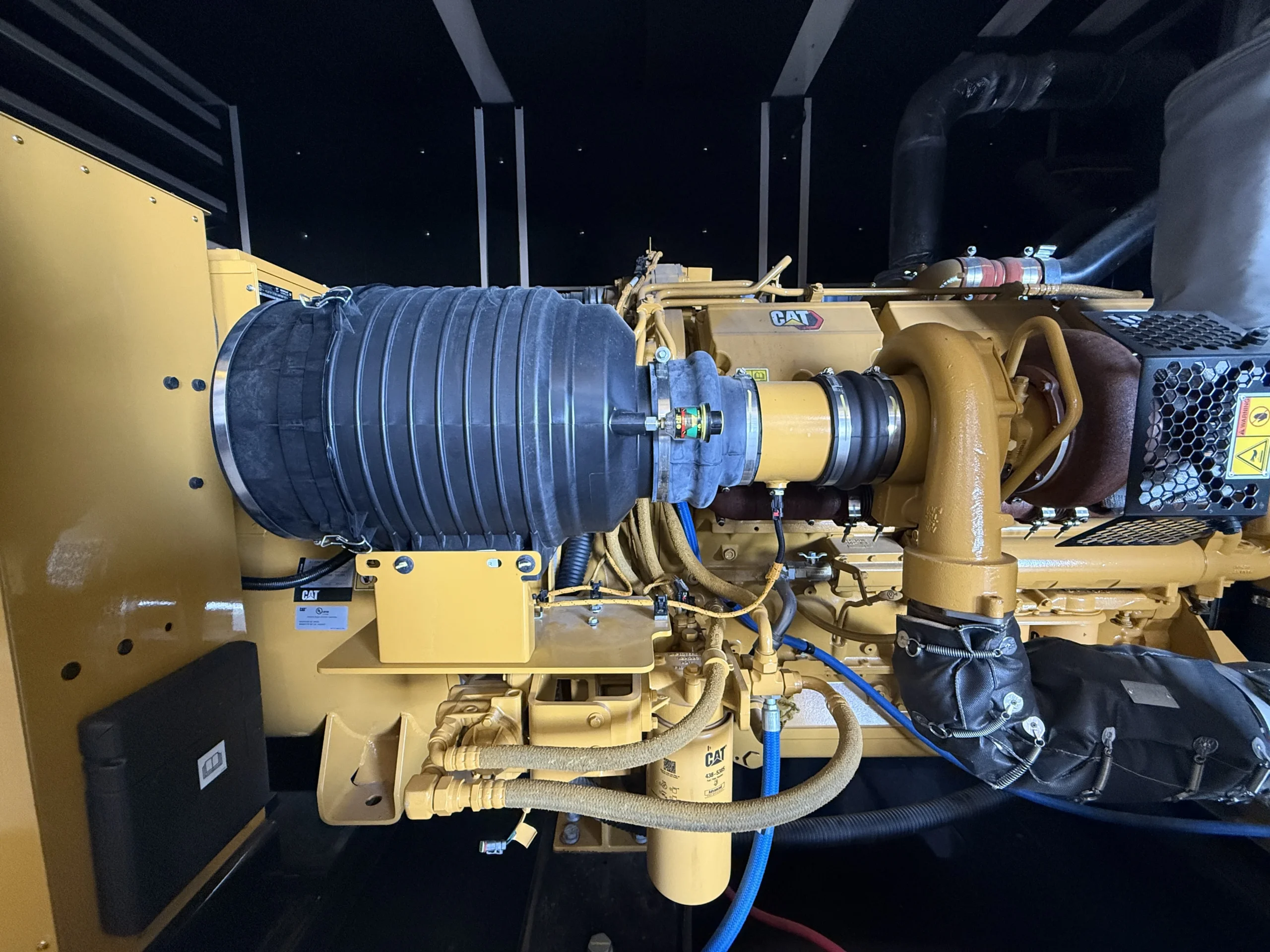

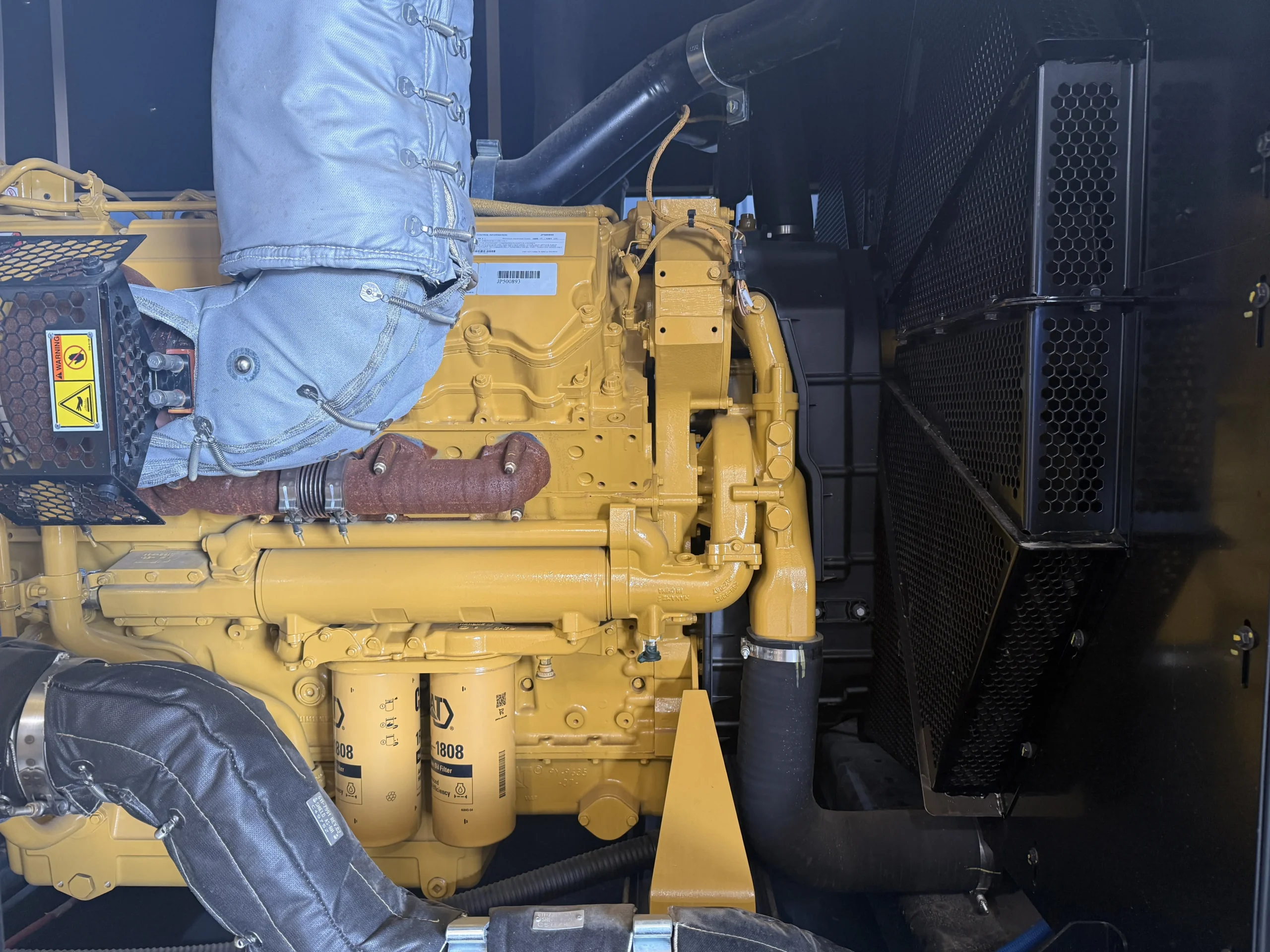

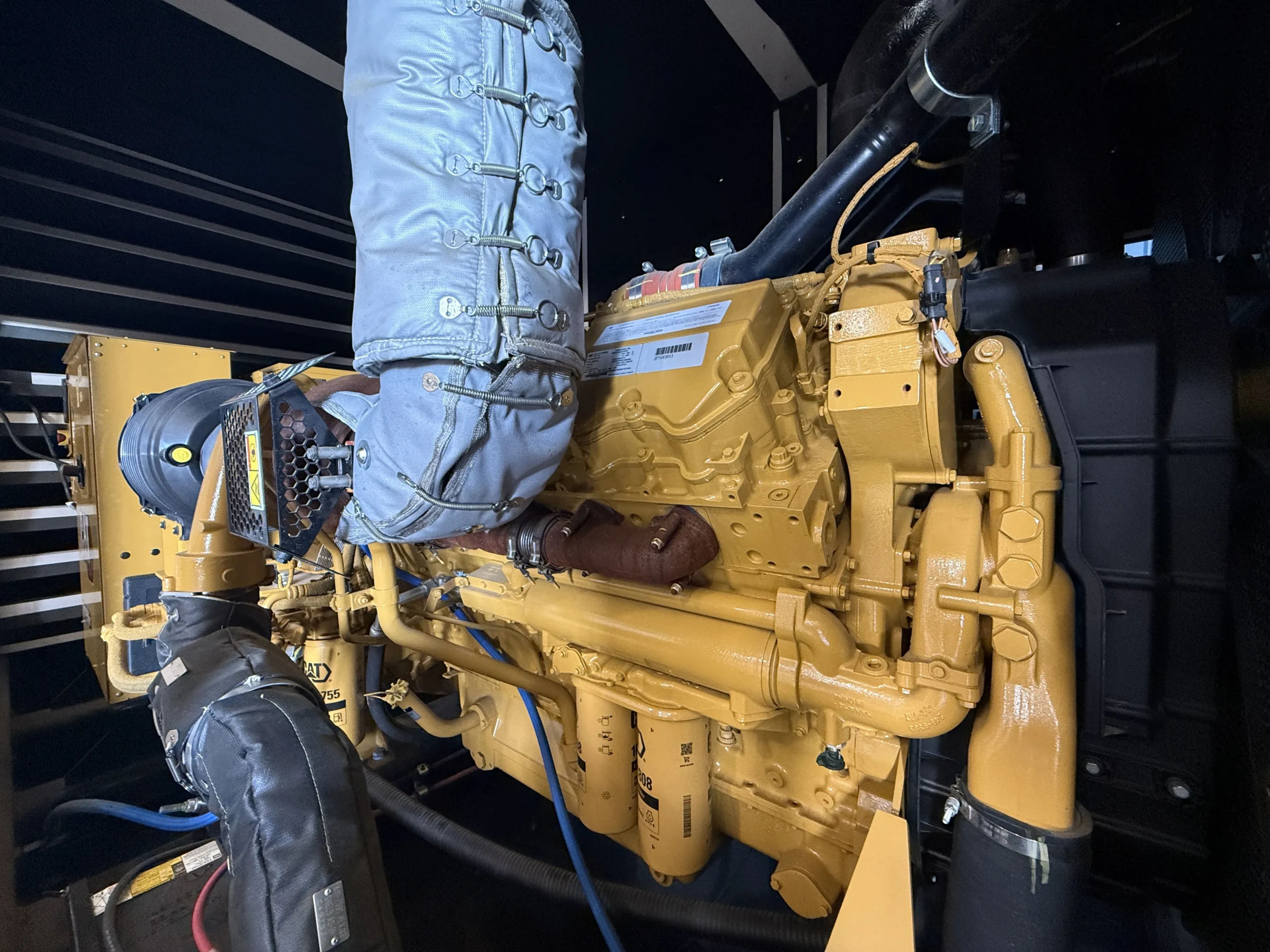

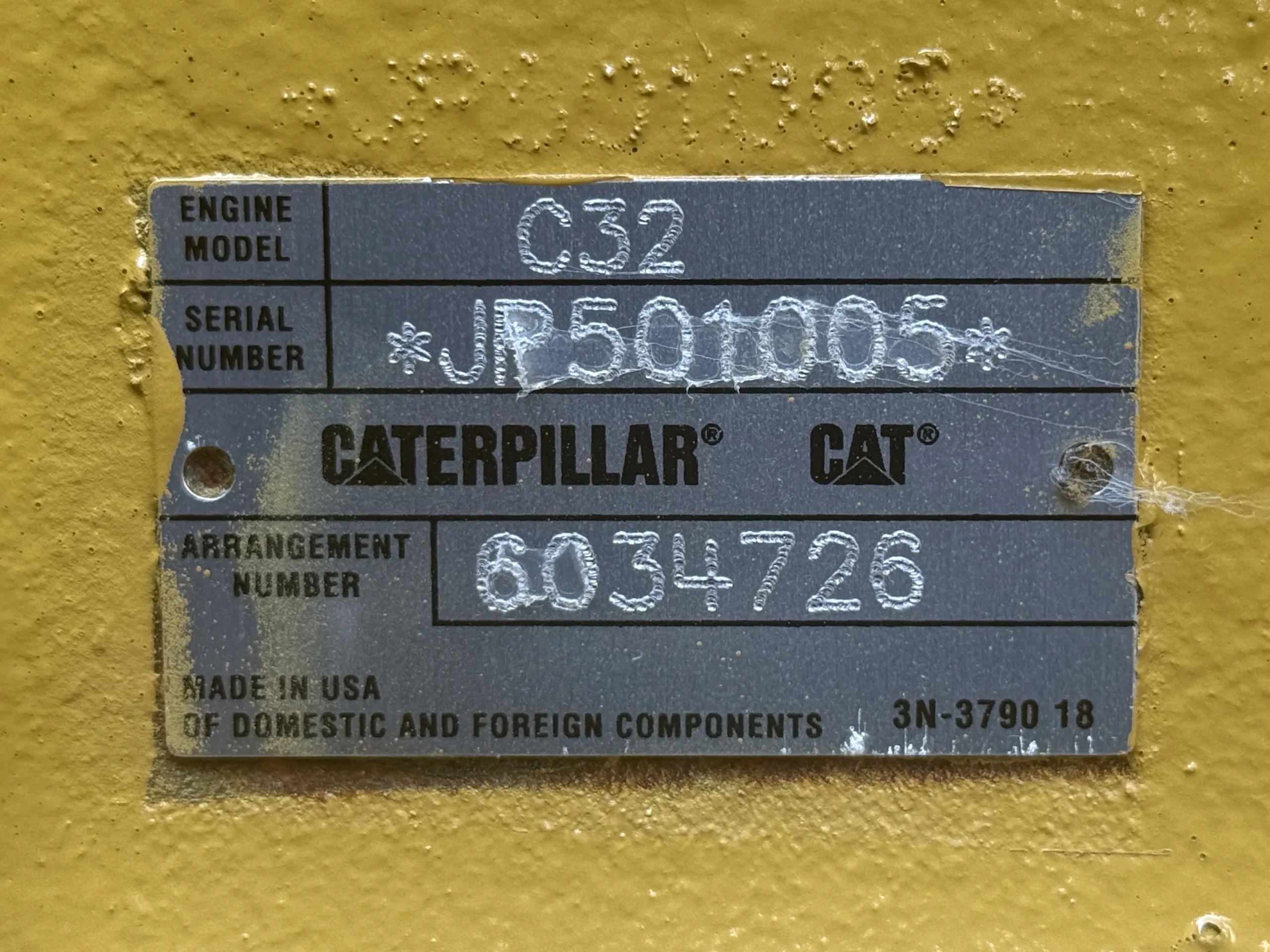

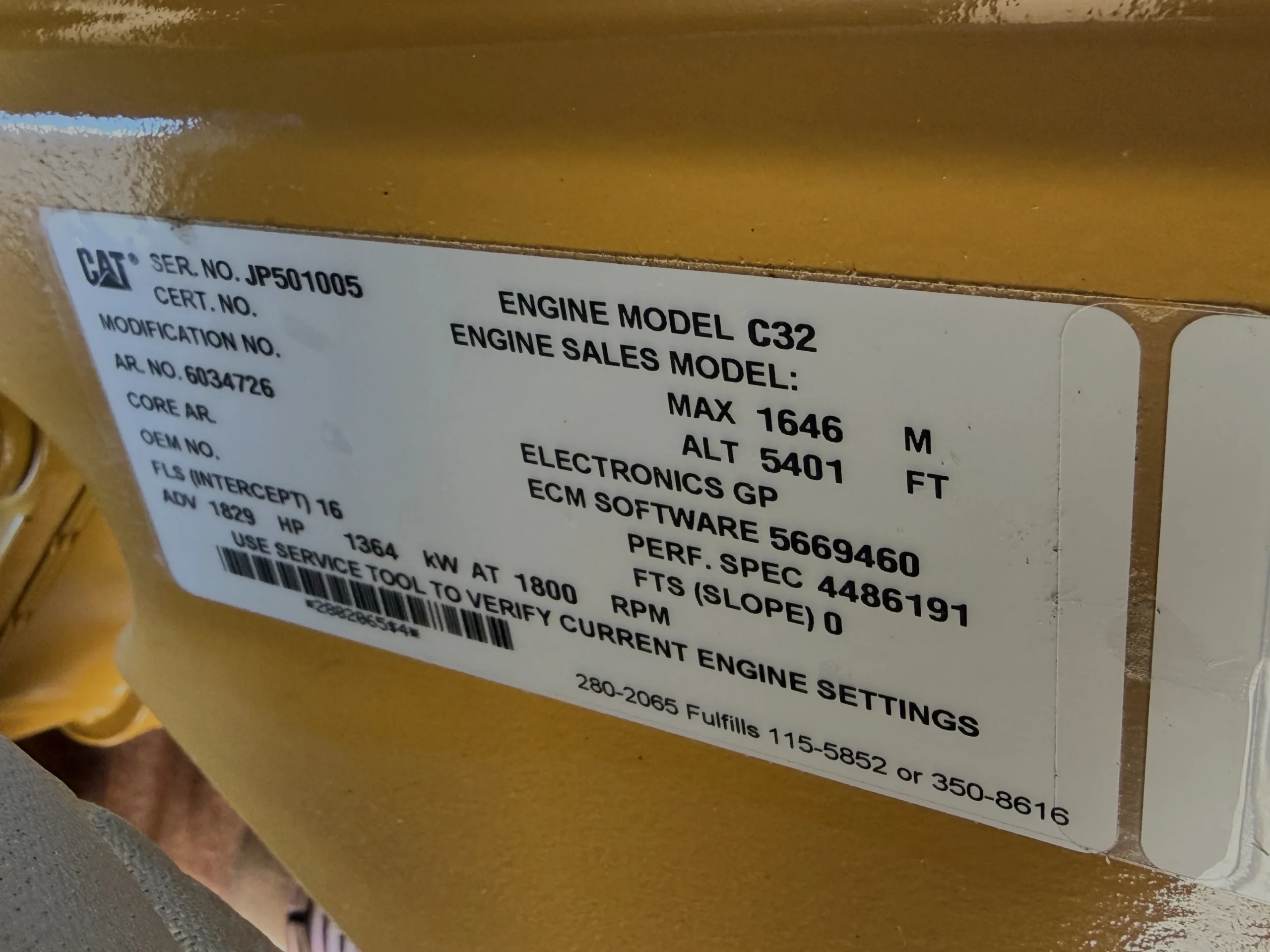

- Engine Model:C32
- Engine S/N:JP501005

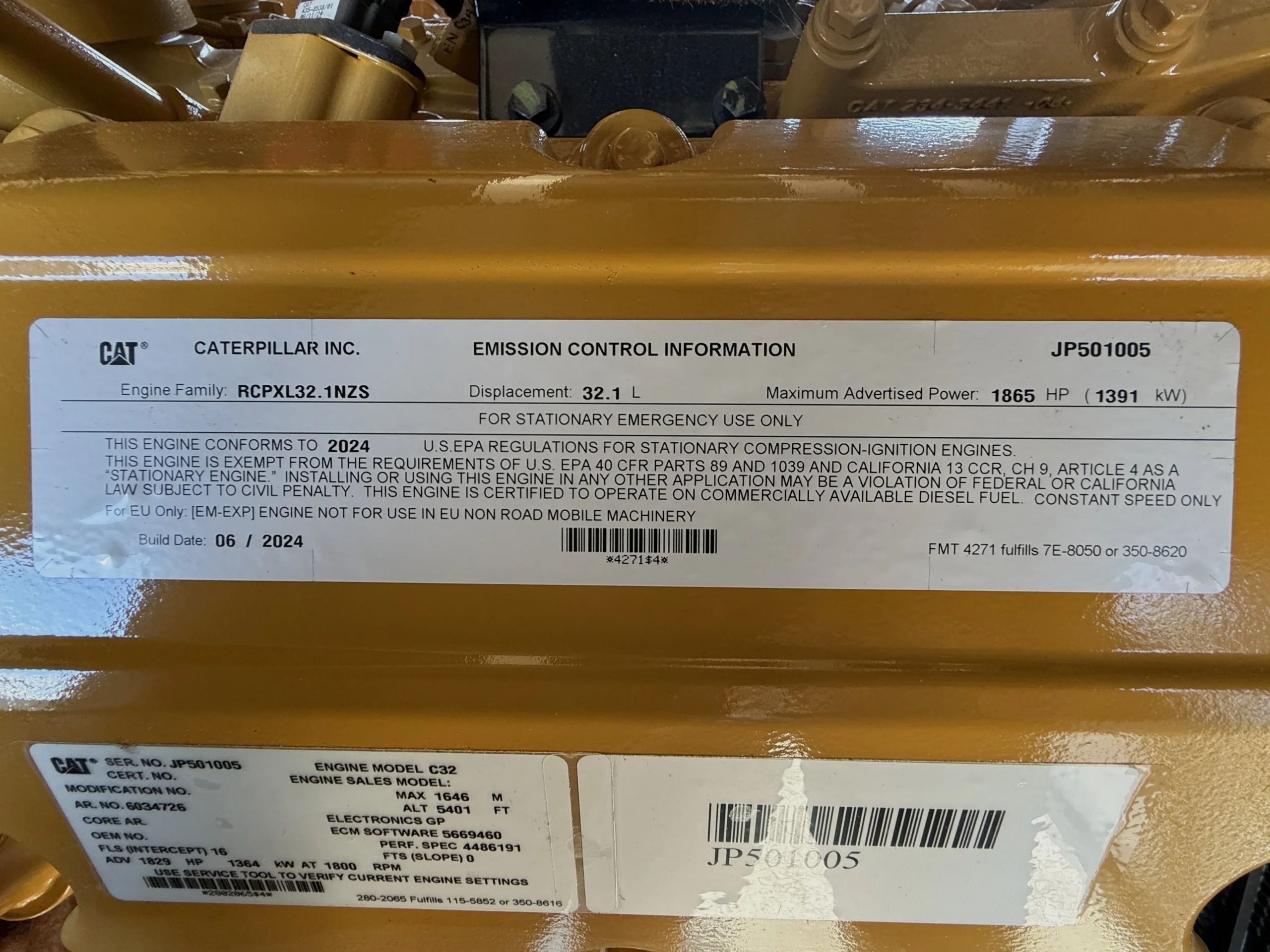

- Emissions Tier:EPA Tier 2 (Stationary Emergency Rated)
- Horsepower:1,829 HP
- Displacement:32.1 L

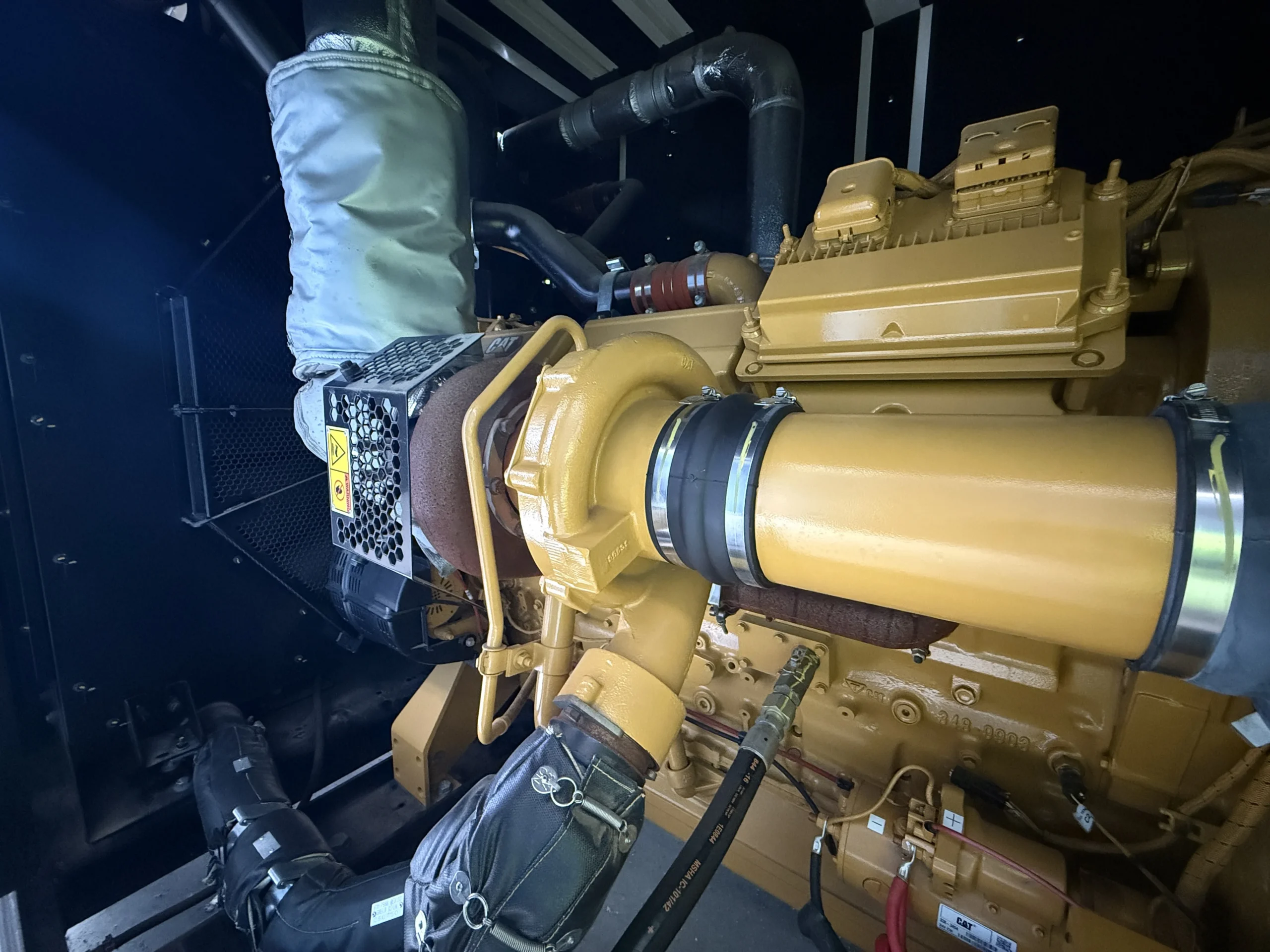

- Aspiration:Turbocharged Aftercooled
- Governor Type:Electronic
- Generator / Package
- Generator Insulation Class:Class H
- Reconnectable:Yes
- Voltage Configuration:277/480V, Three-Phase, Four-Wire Wye
- Excitation Type:PMG (Permanent Magnet Generator)

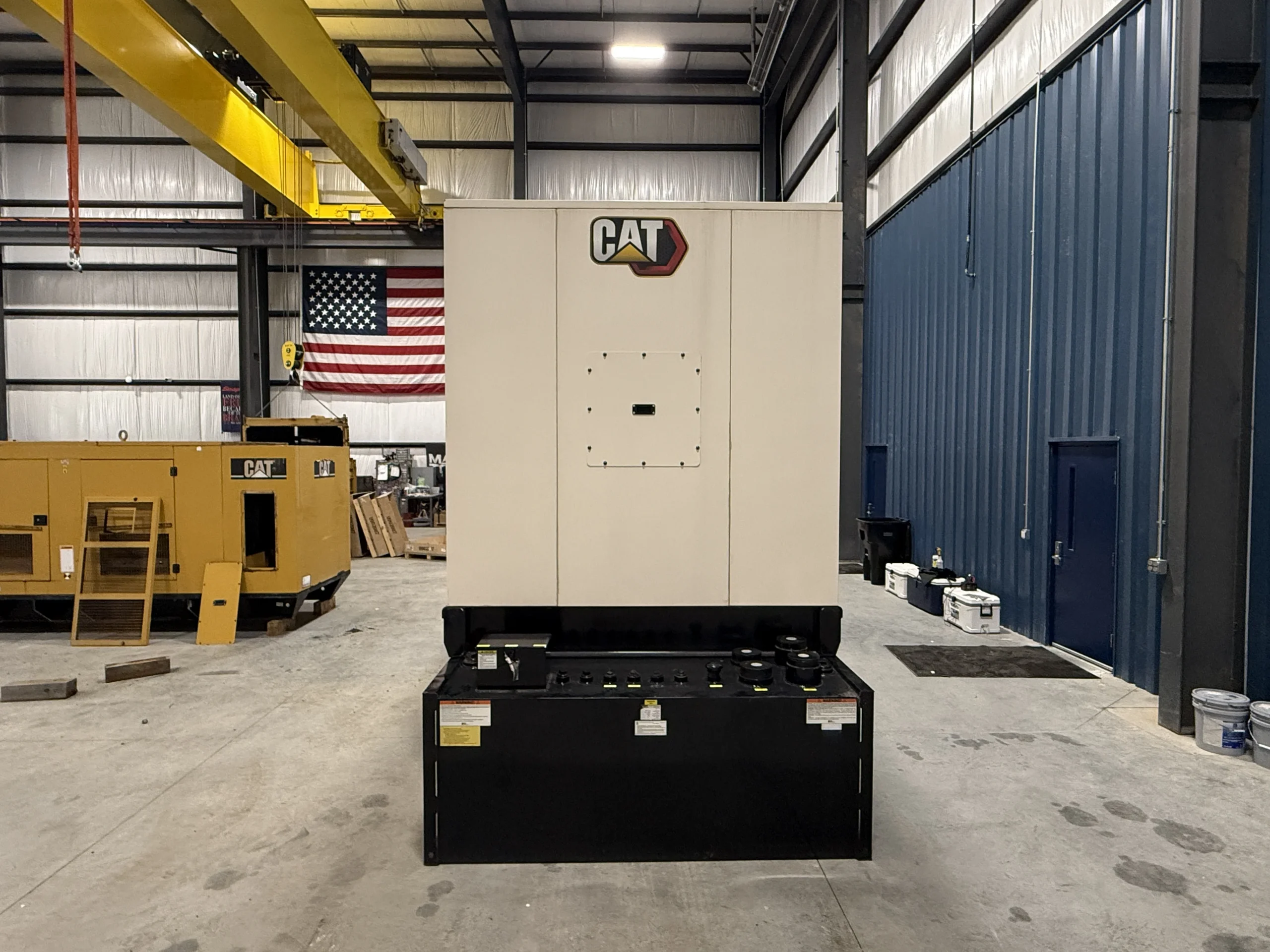

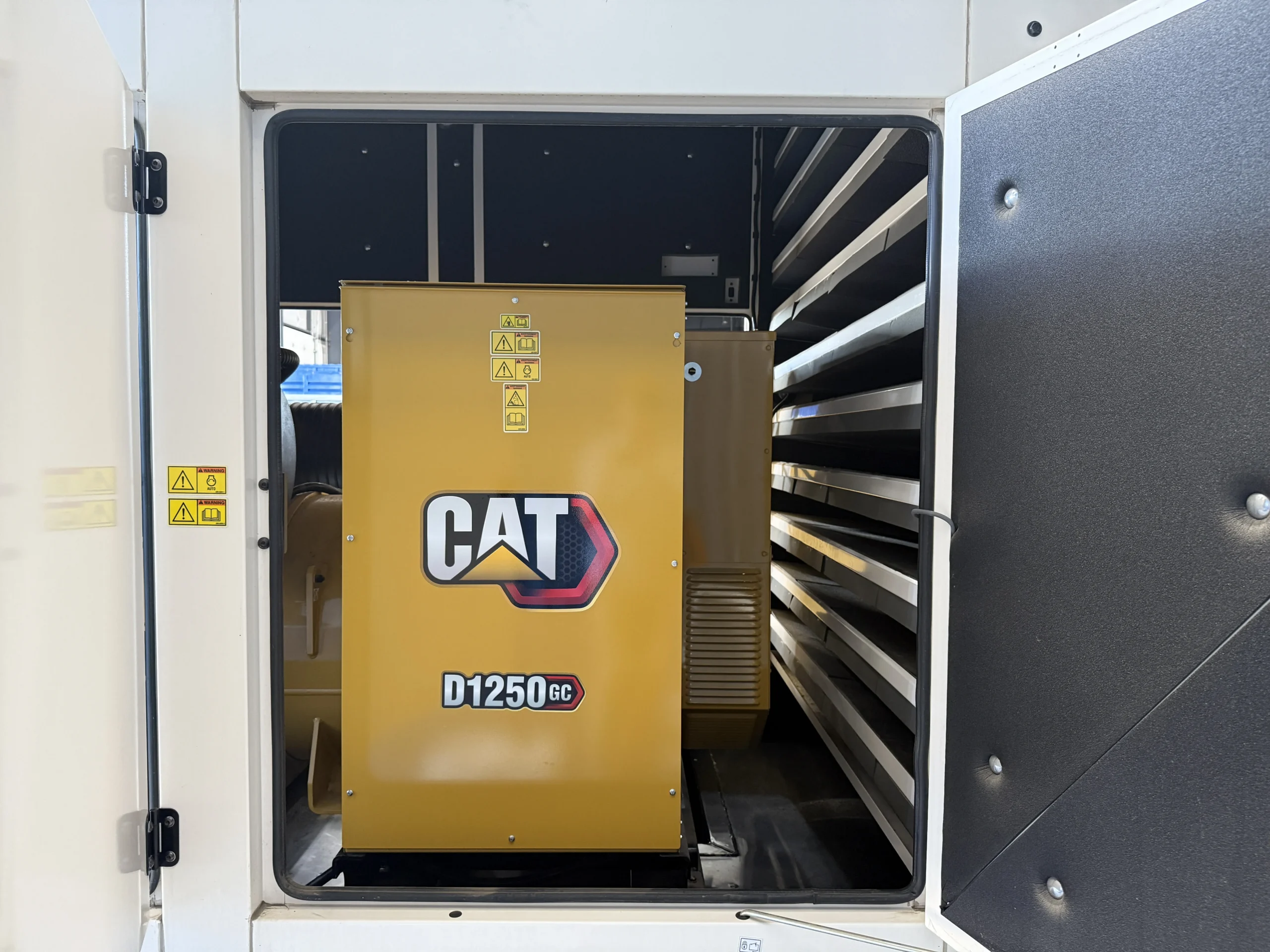

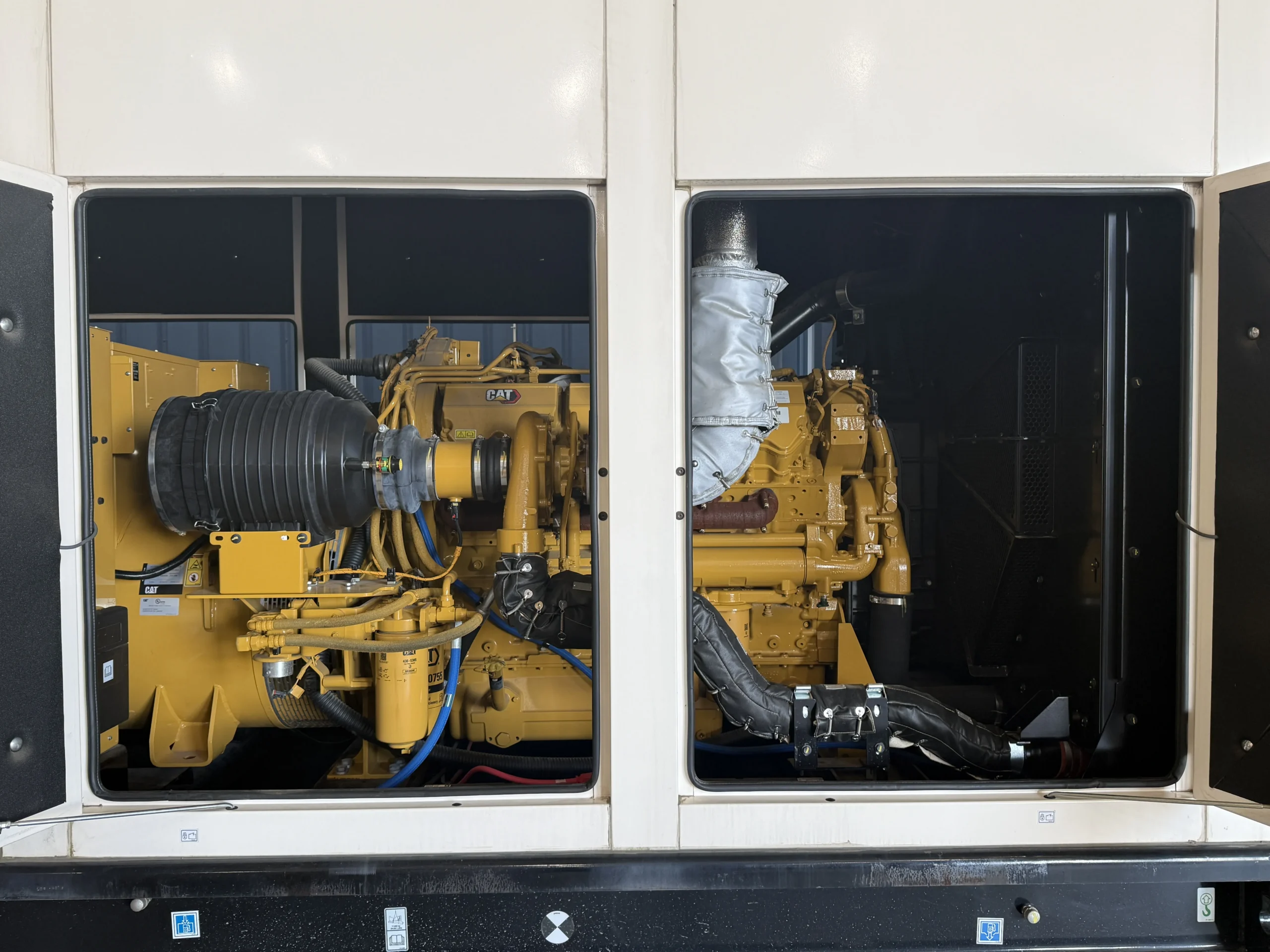

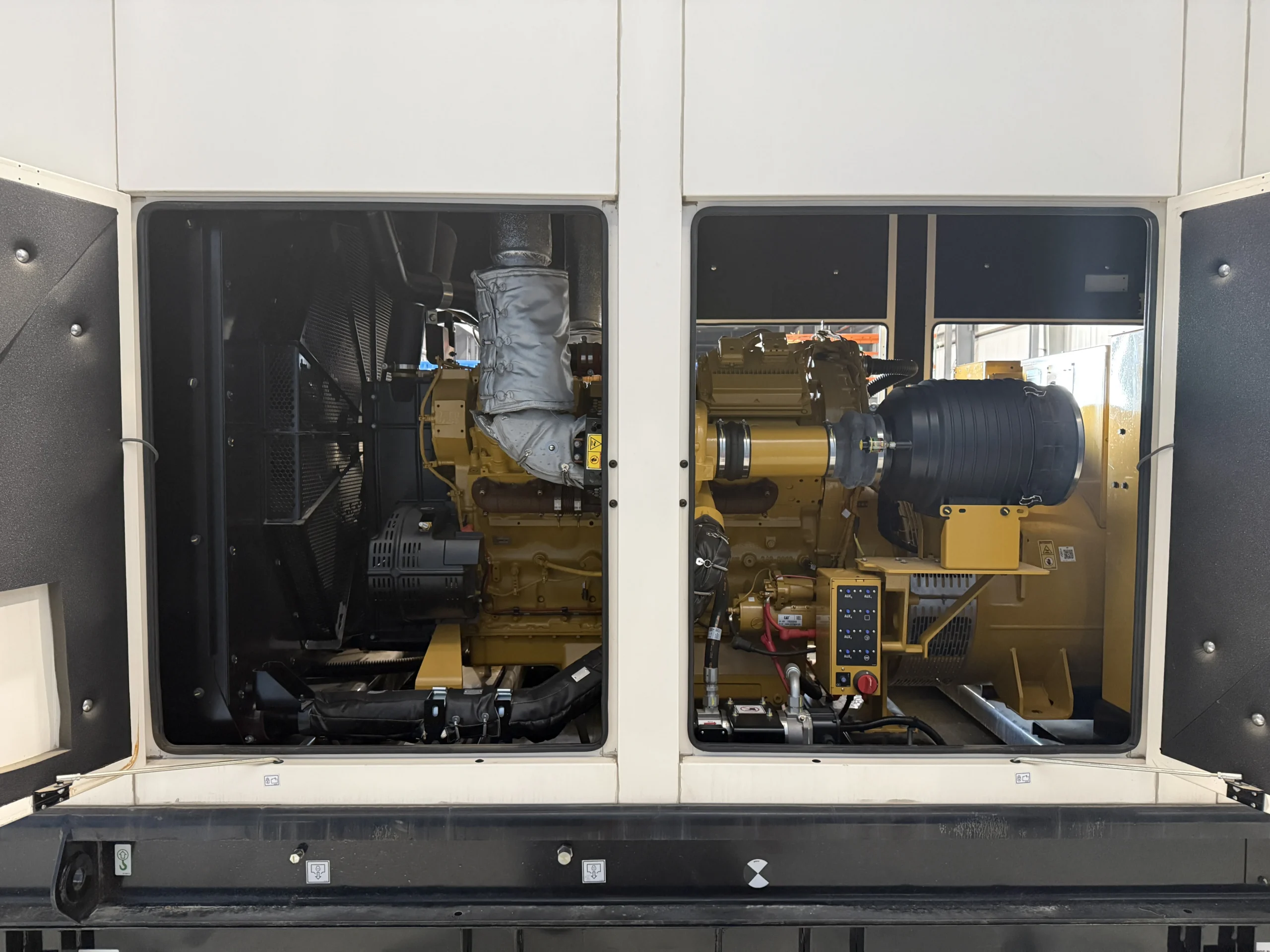

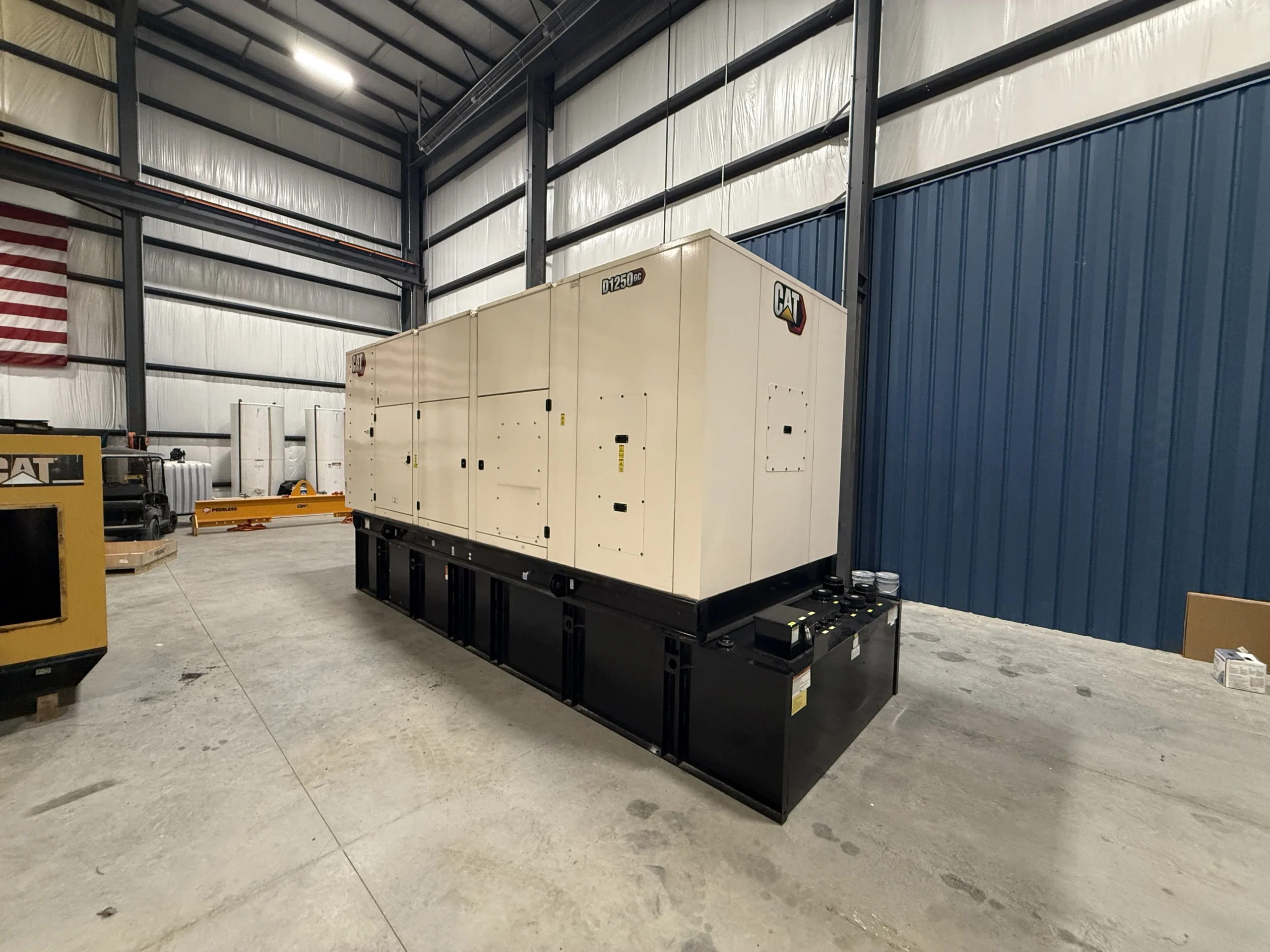

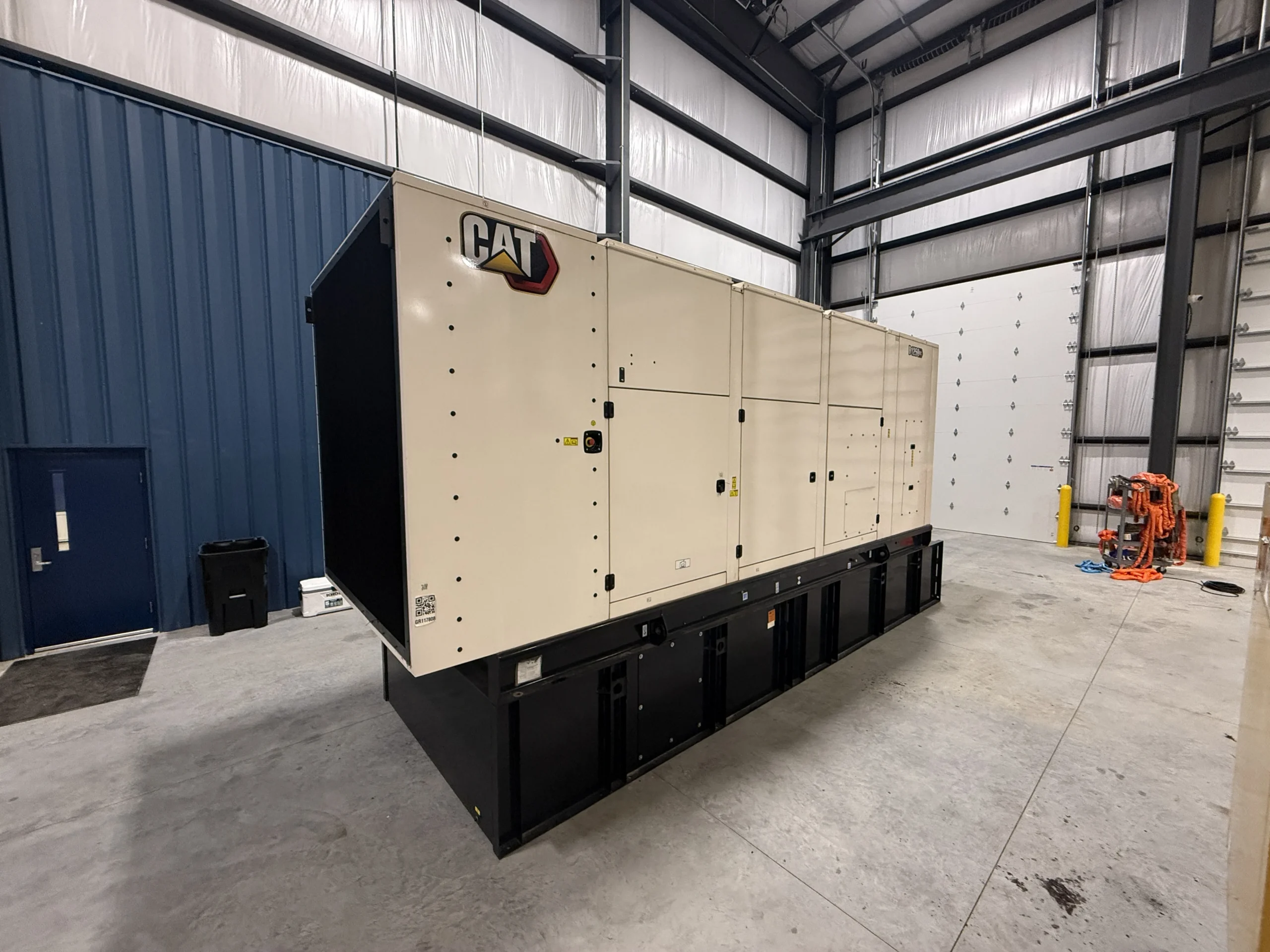

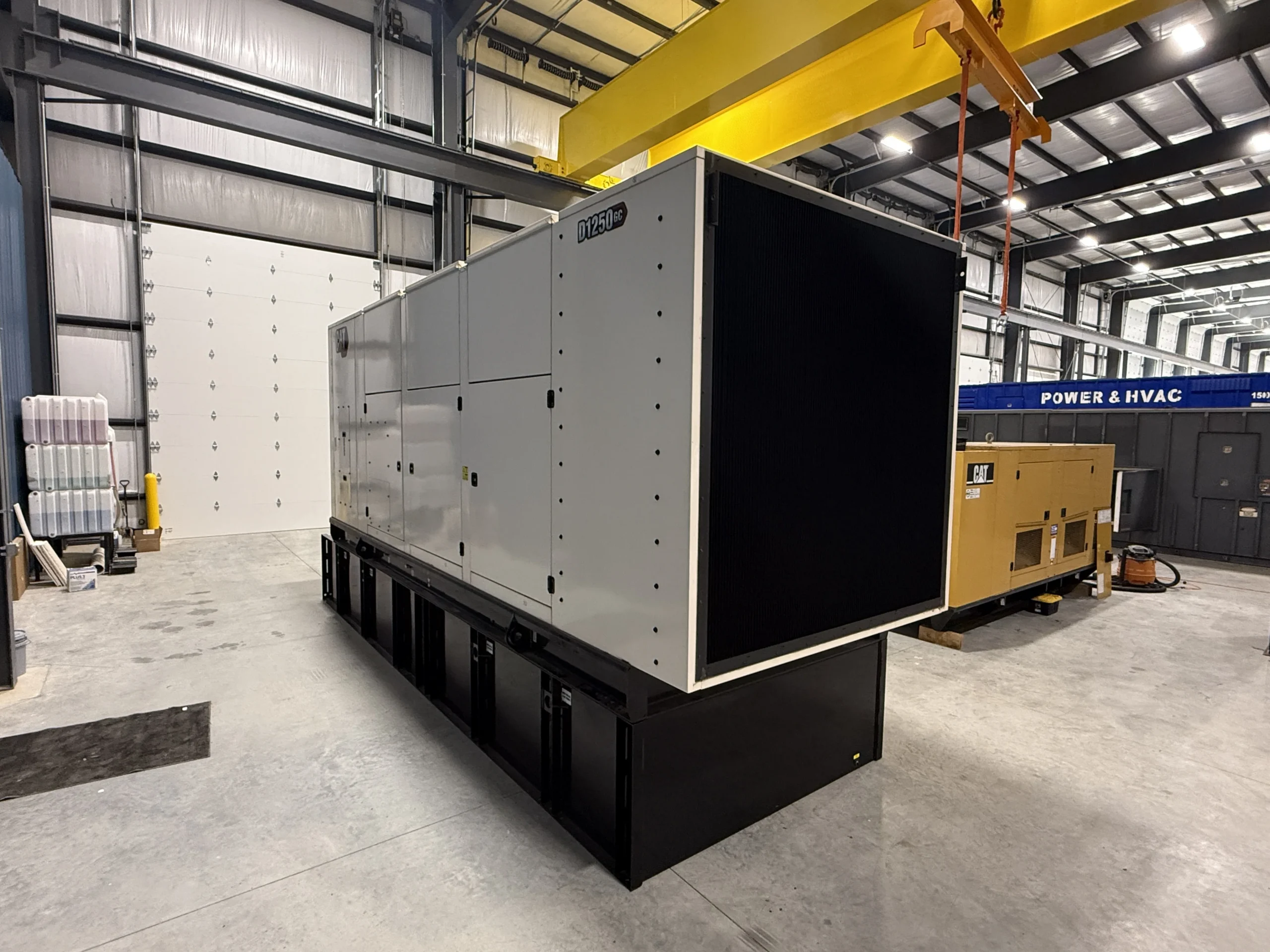

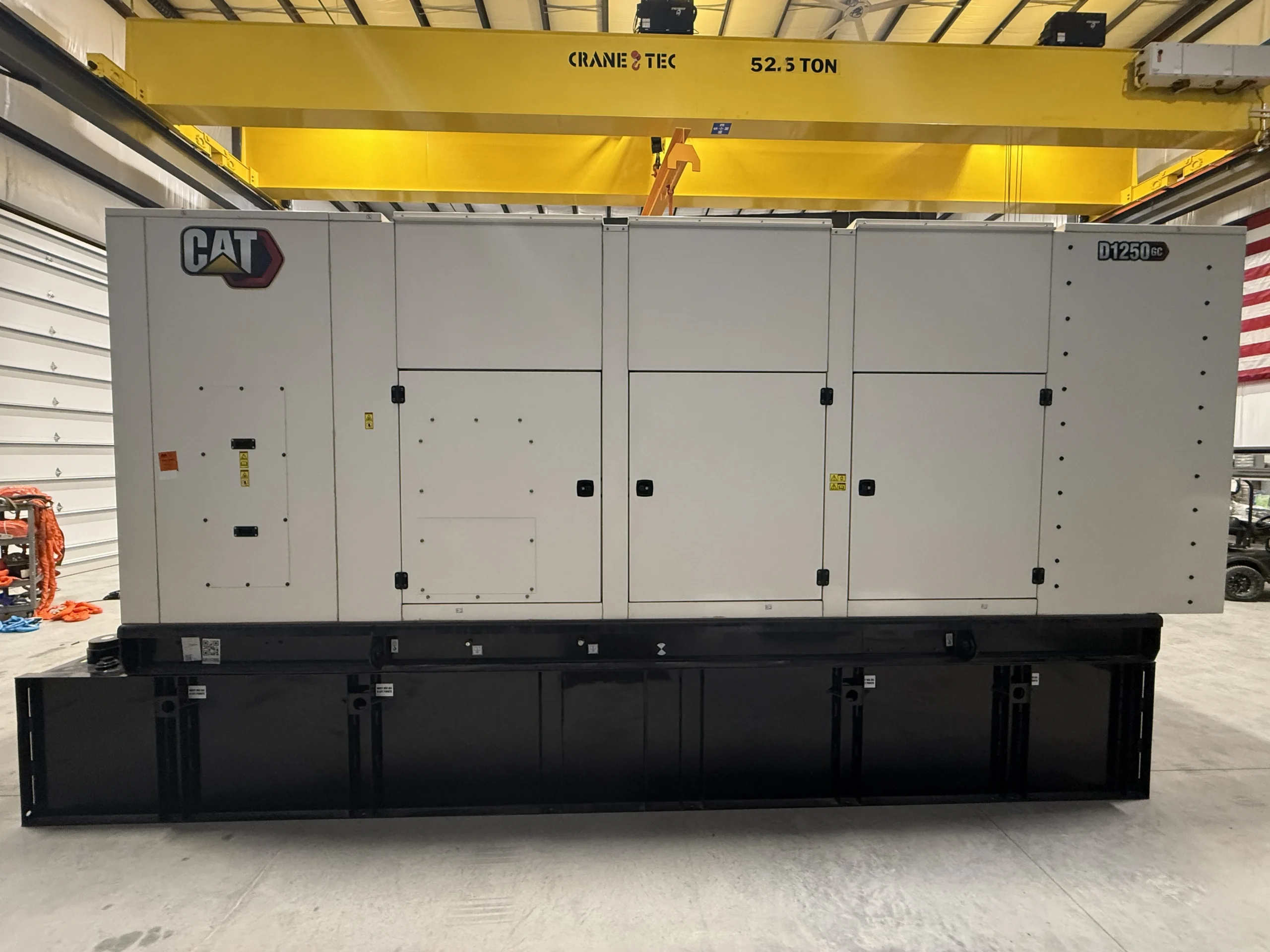

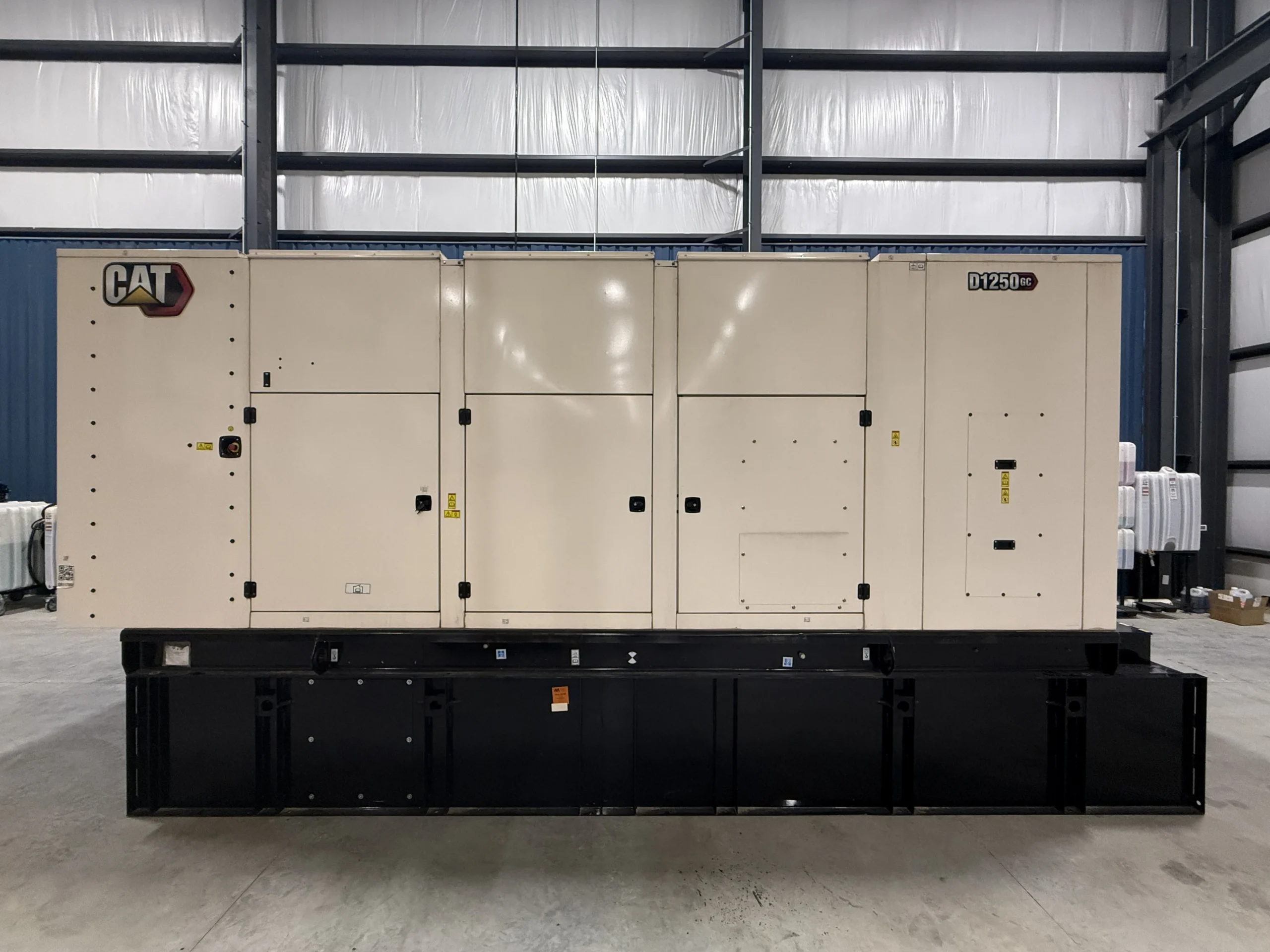

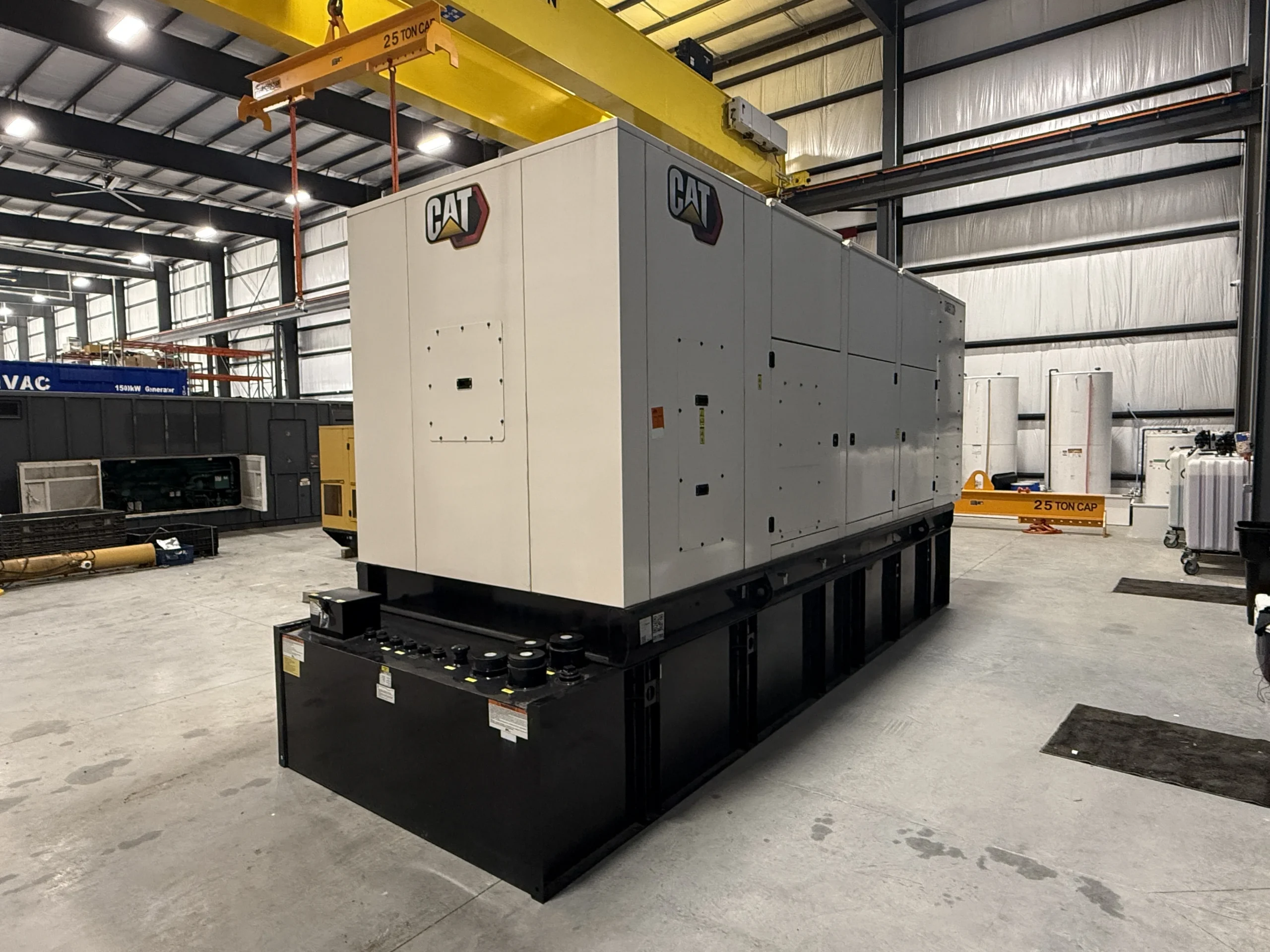

- Enclosure Type:Sound Attenuated Enclosure

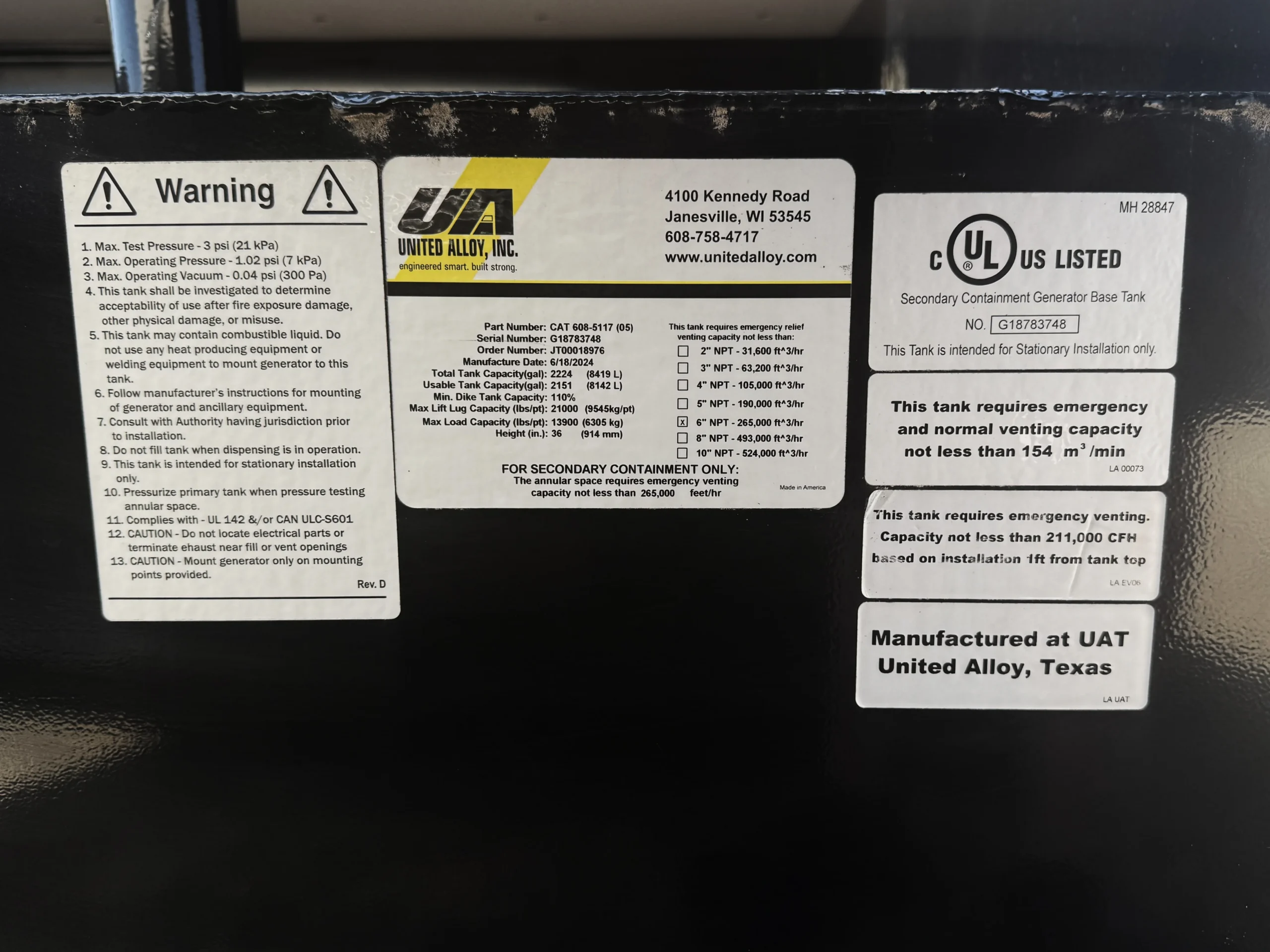

- Mounting Type:Base Tank Mounted
- Accessories / Components

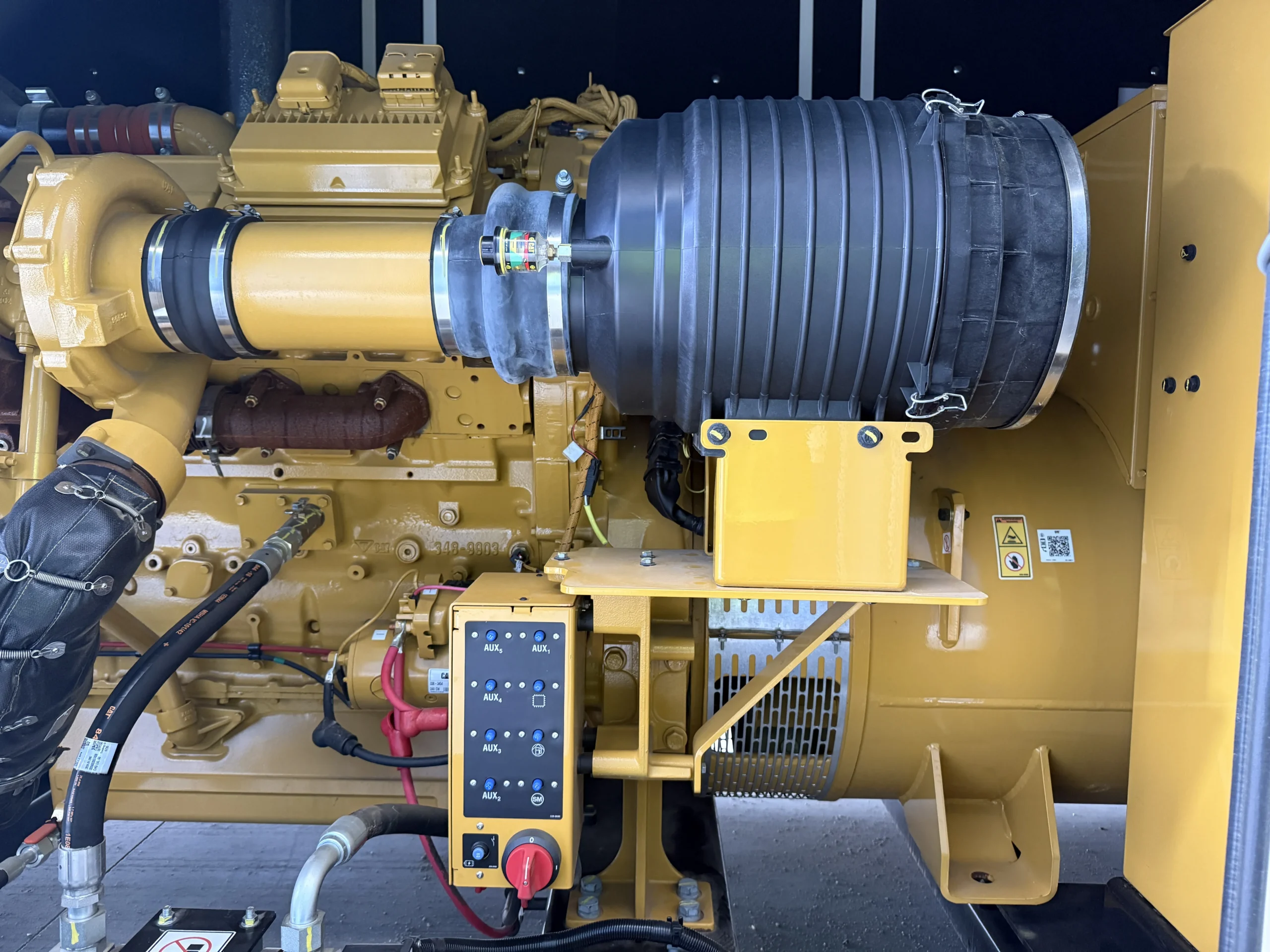

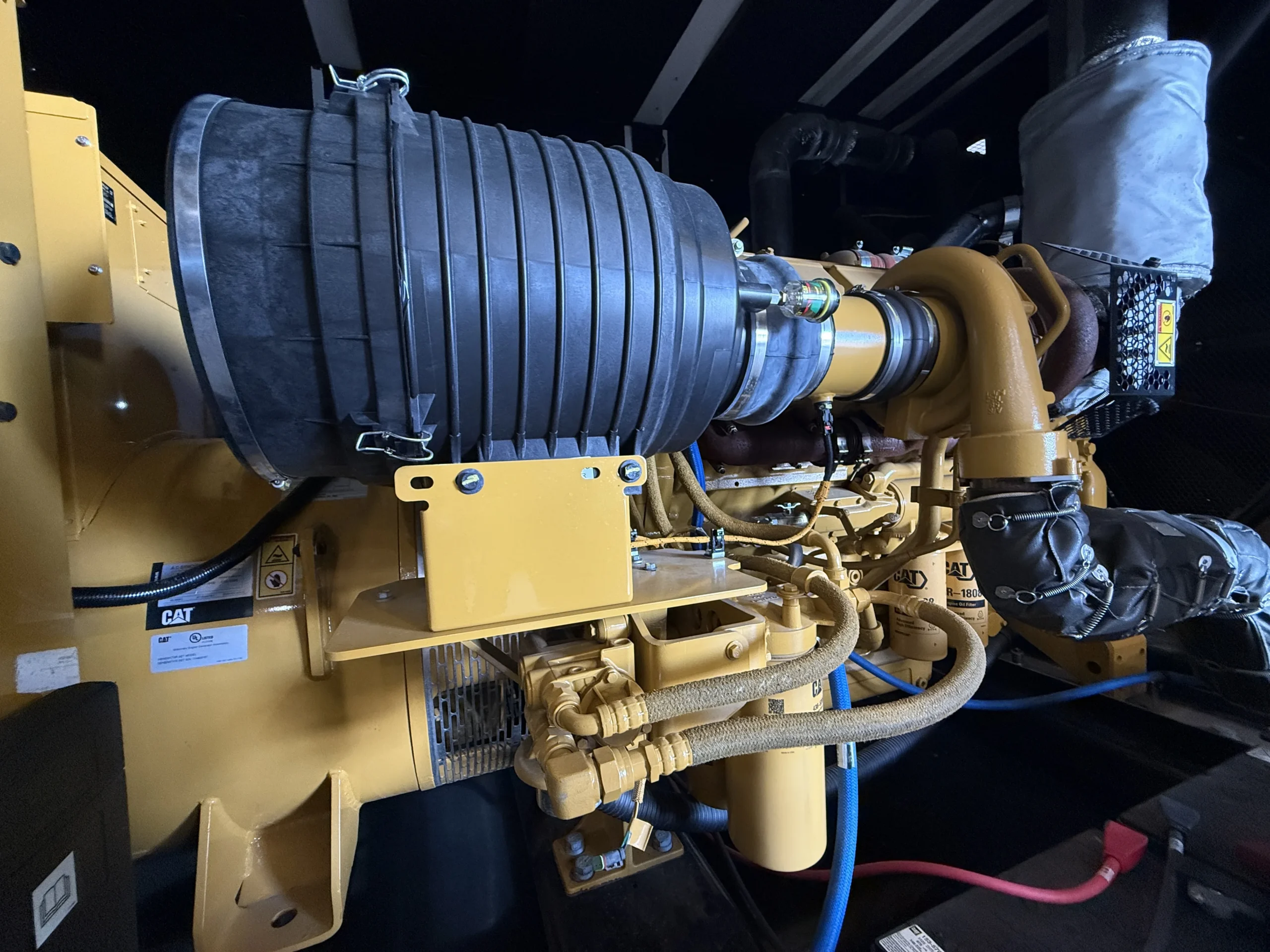

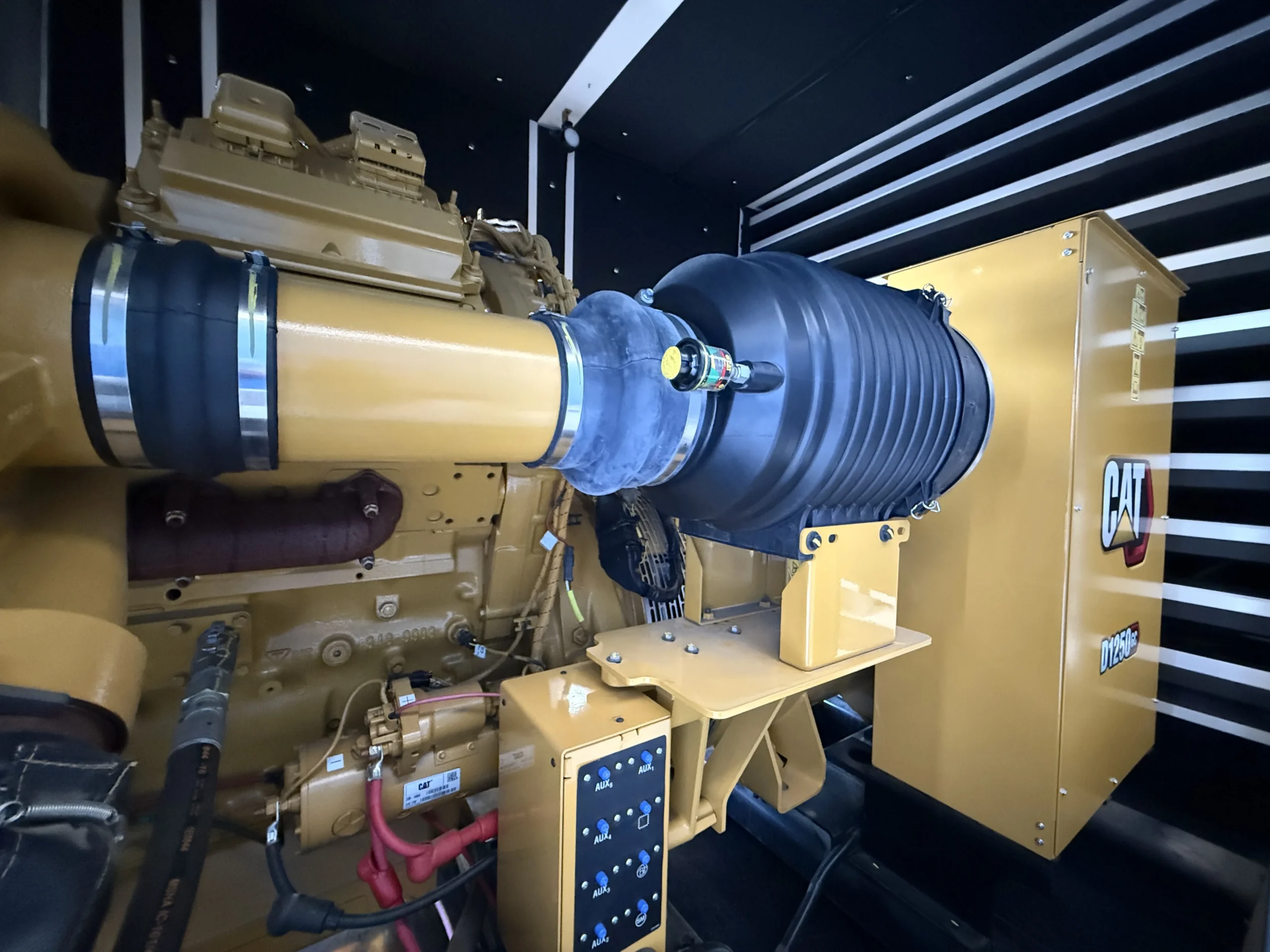

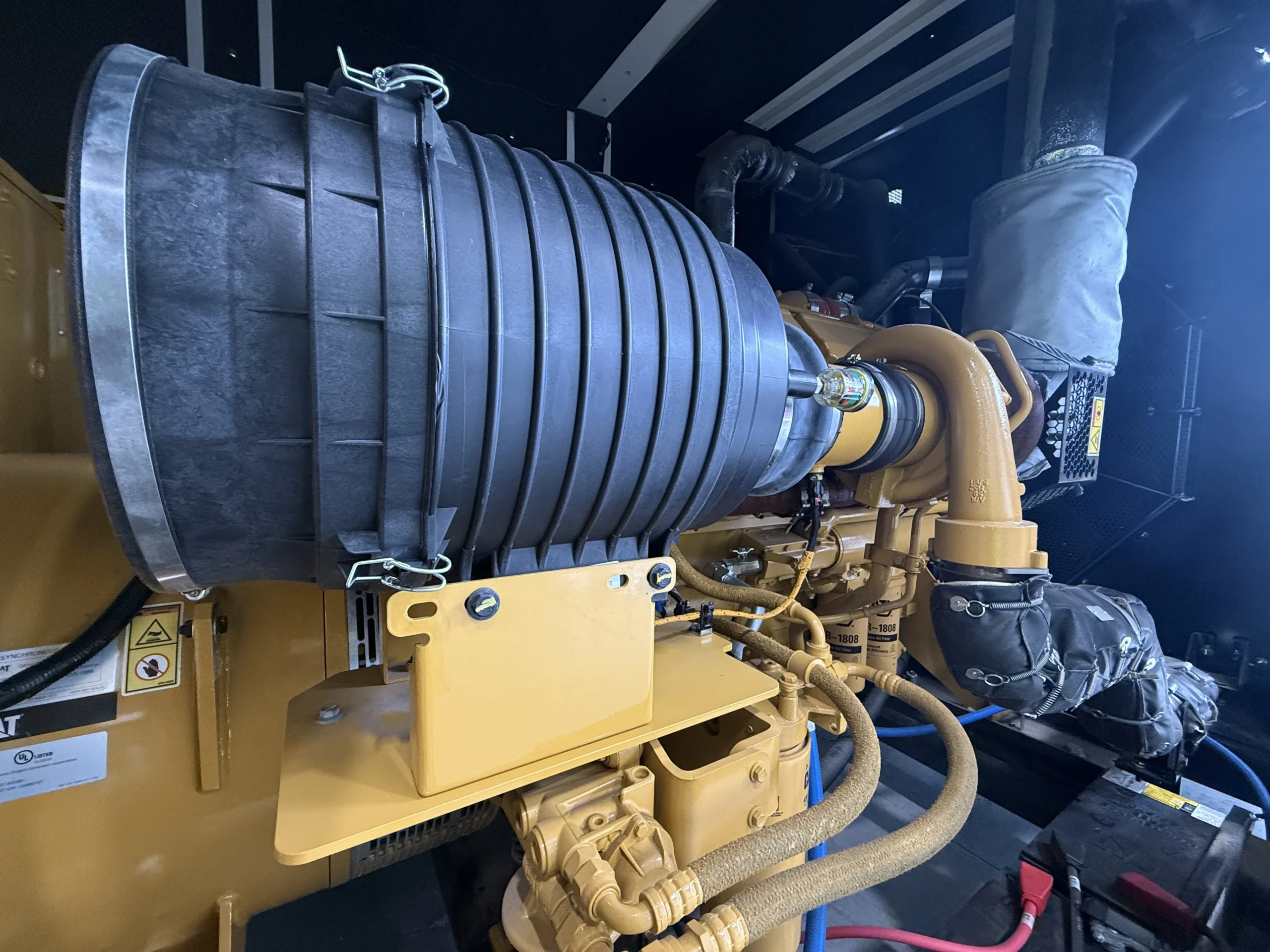

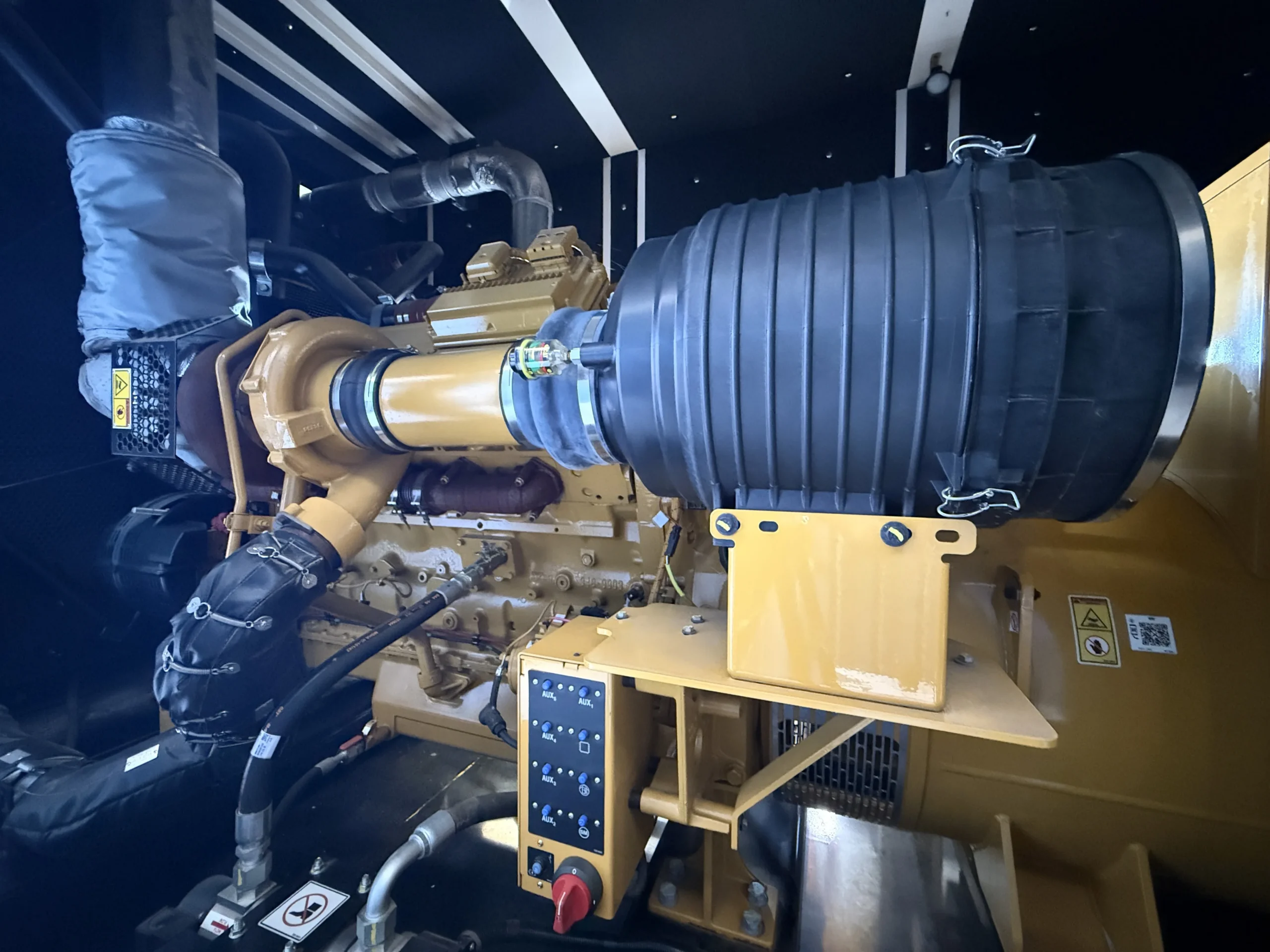

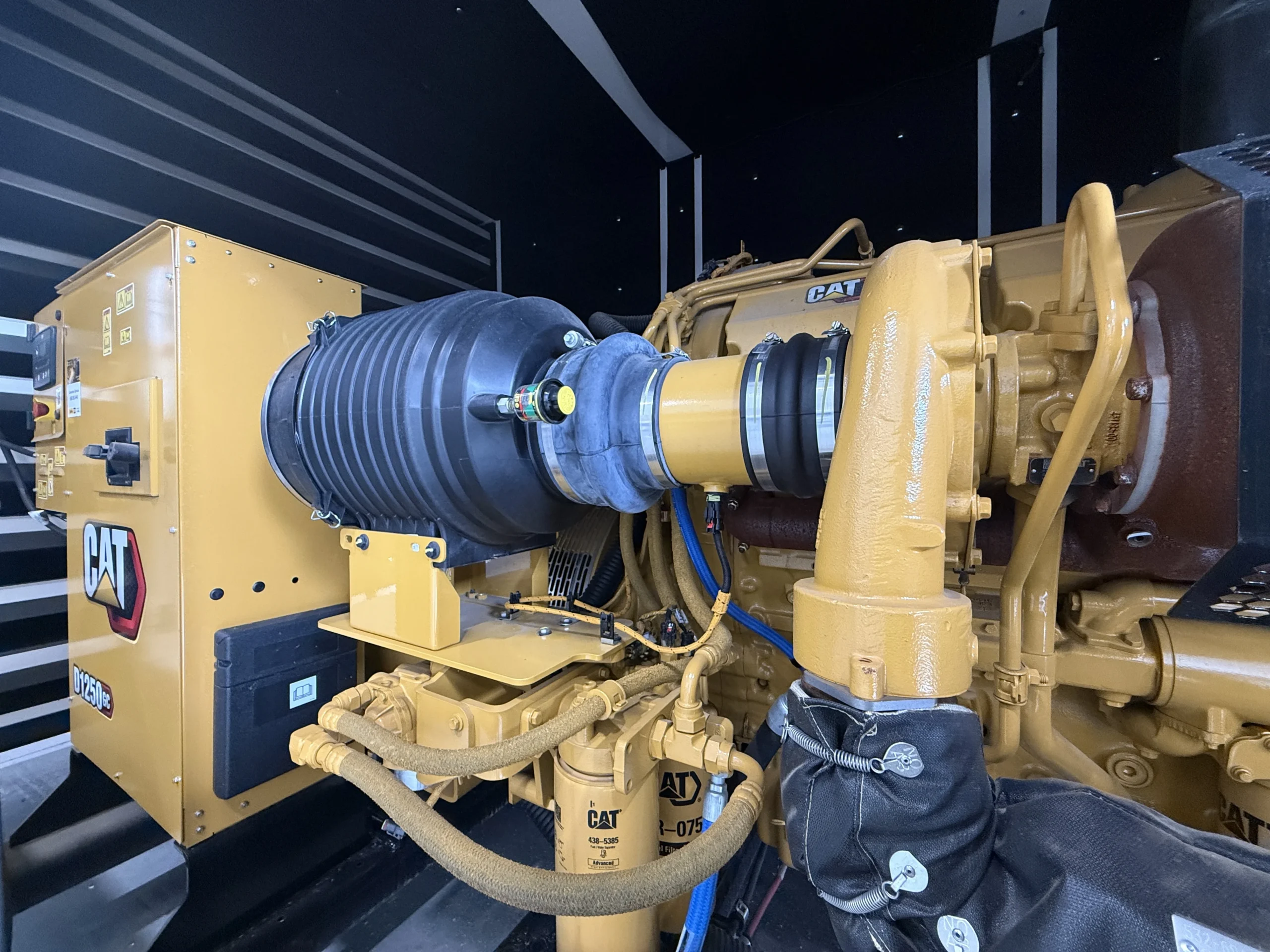

- Air Cleaner:Single Heavy-Duty Dry-Type Air Cleaner

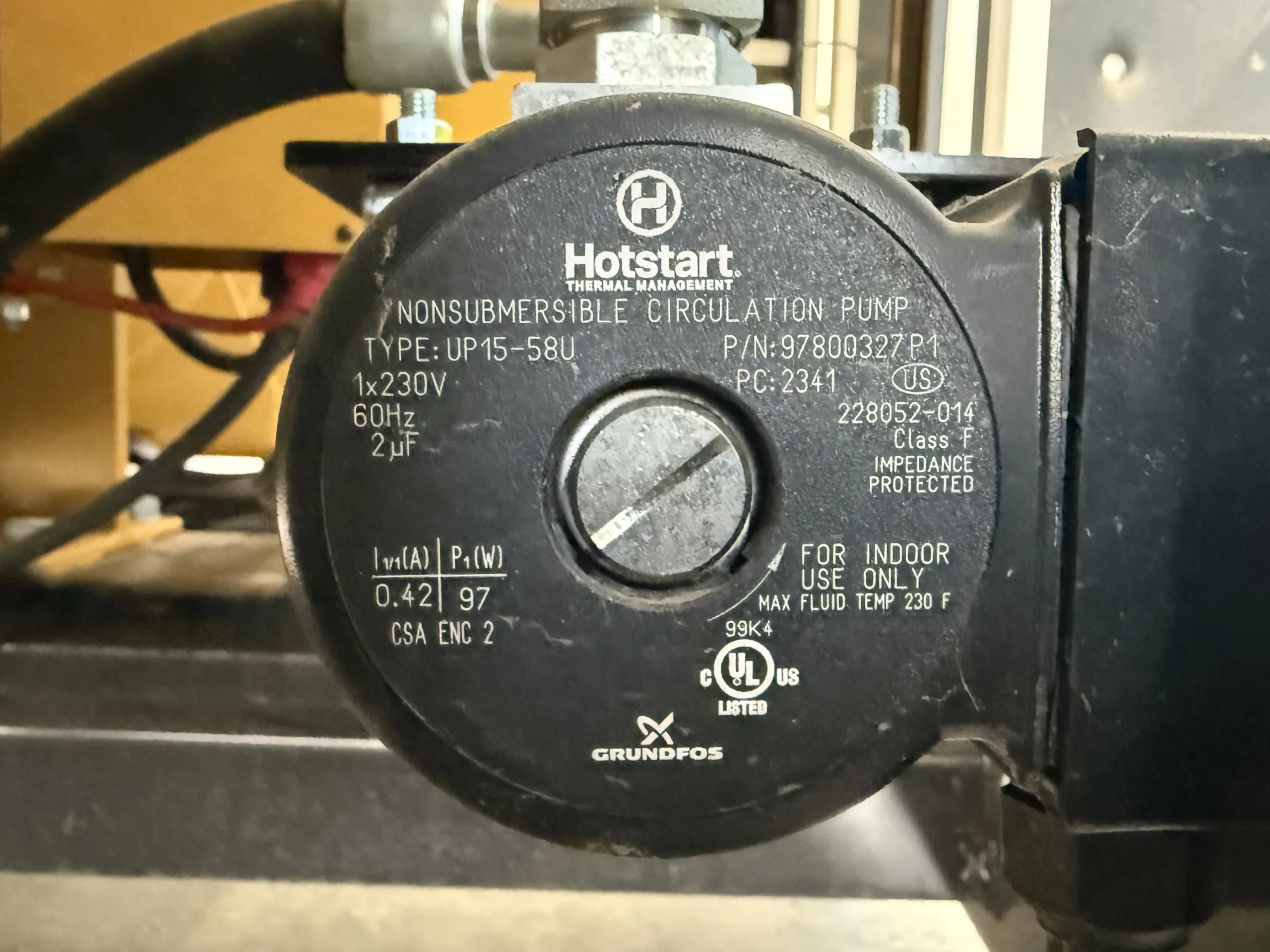

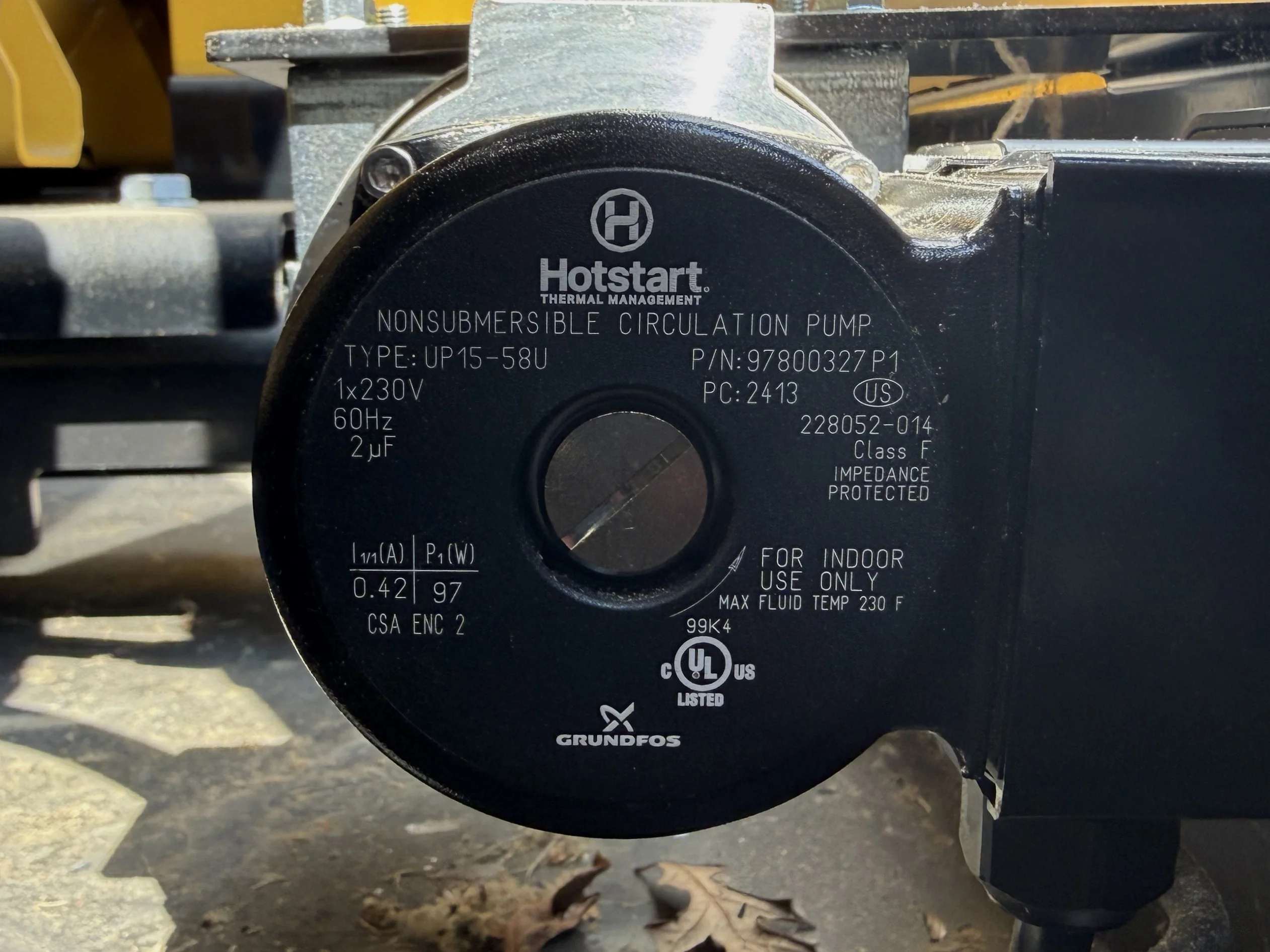

- Jacket Water Heater:CAT Jacket Water Heater with Hotstart Circulation Pump, 240V/60Hz

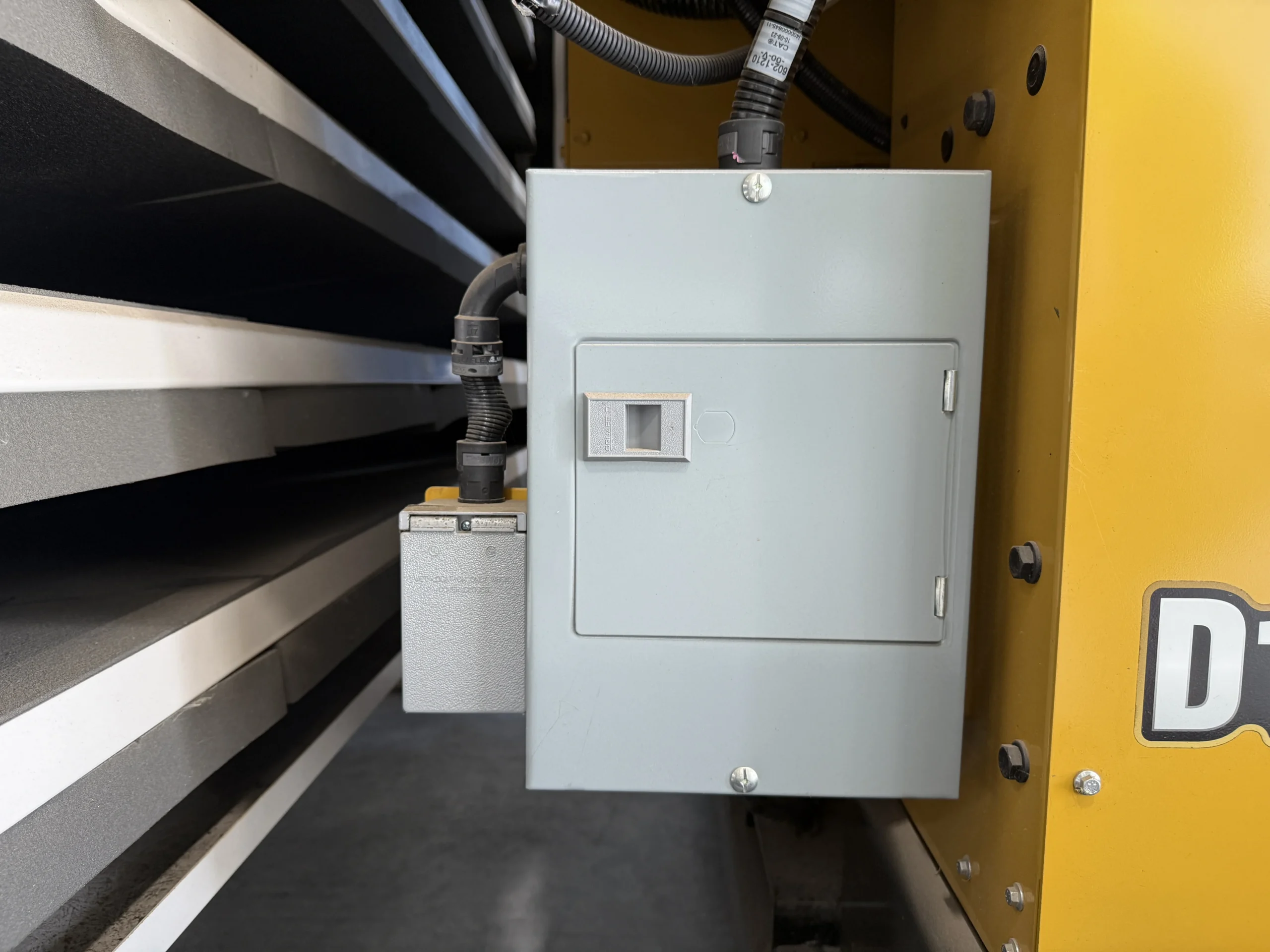

- Battery Charger:10-Amp Battery Charger, Installed

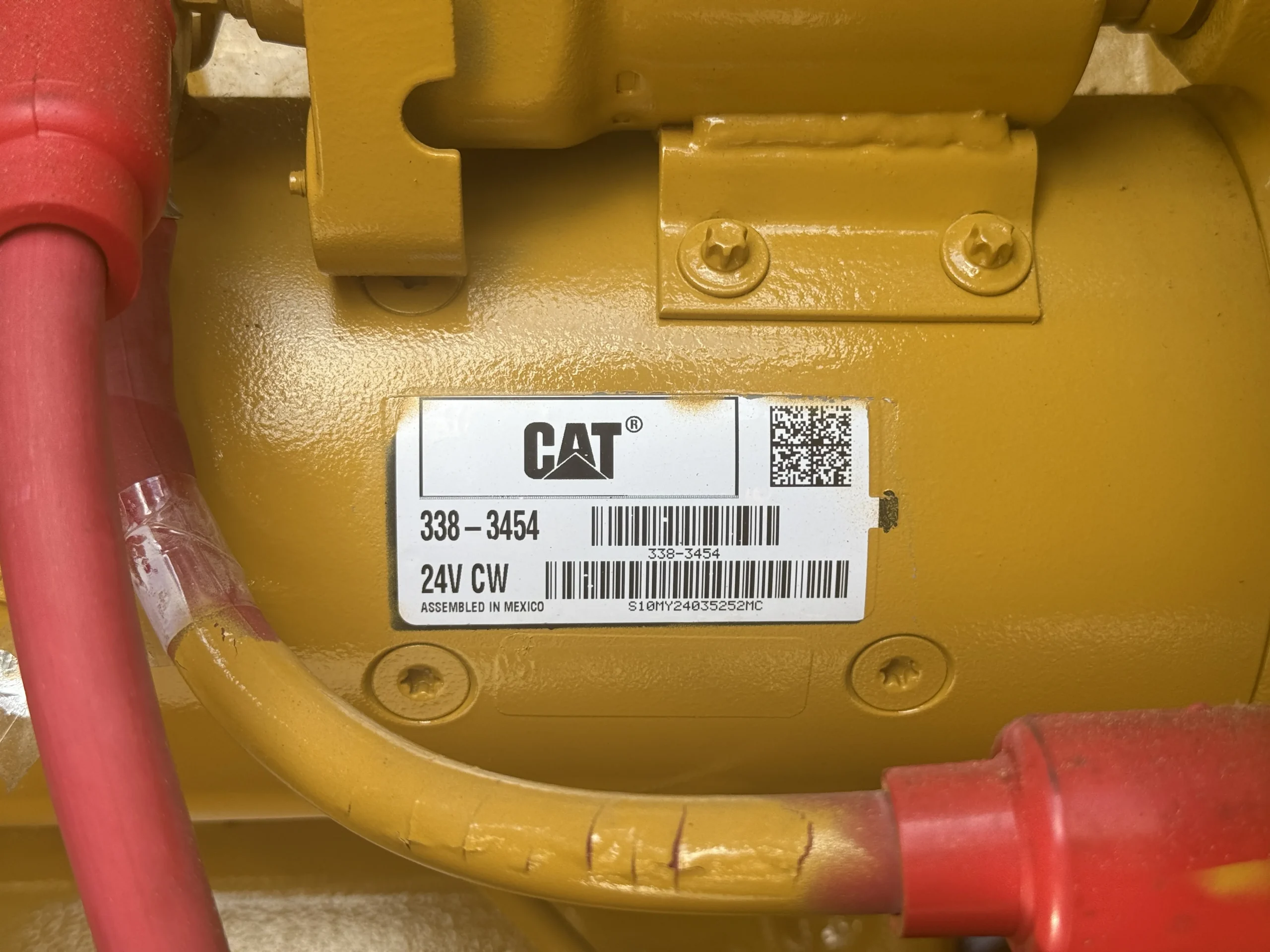

- Starting System:24V DC Electric Start

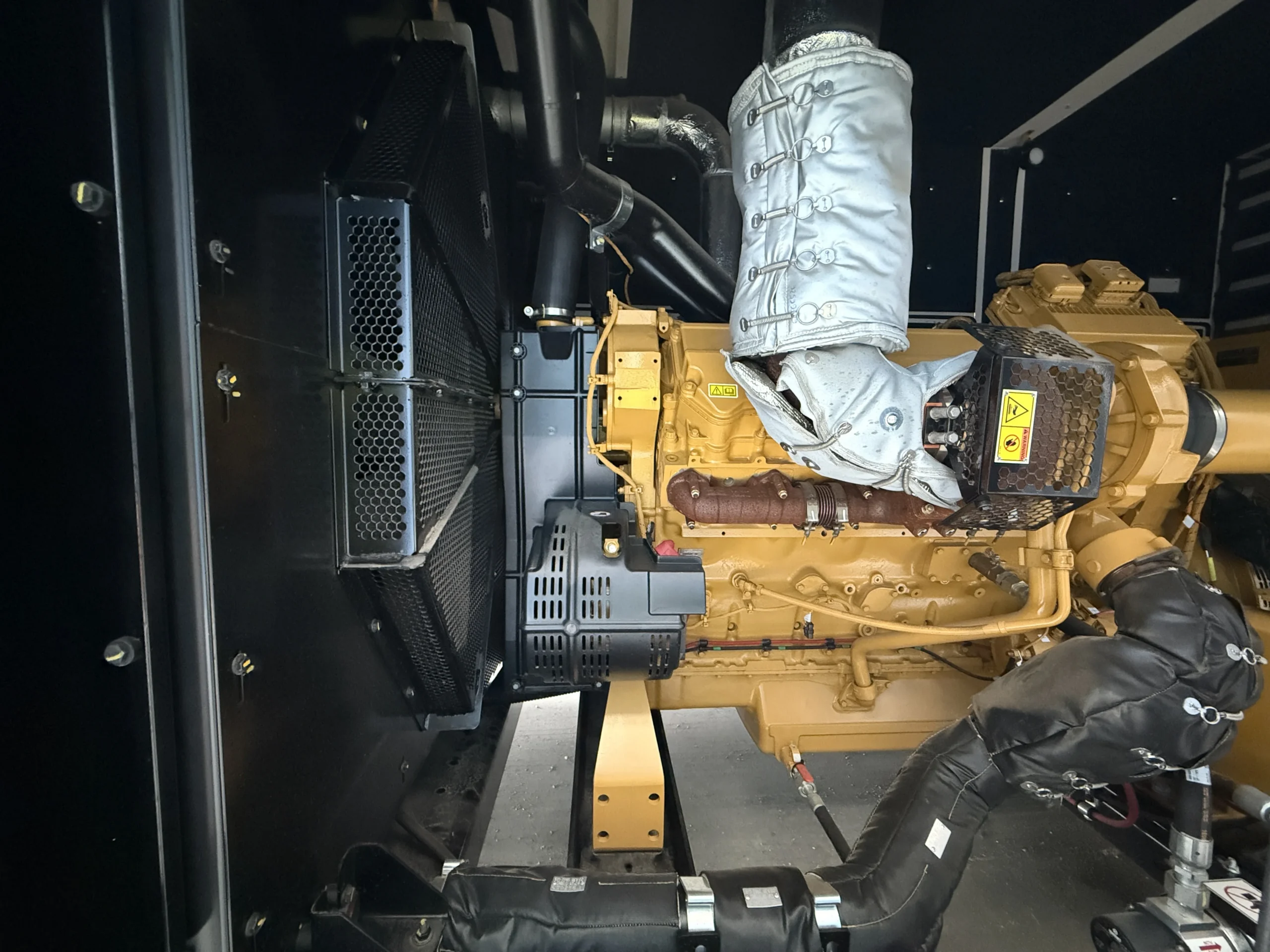

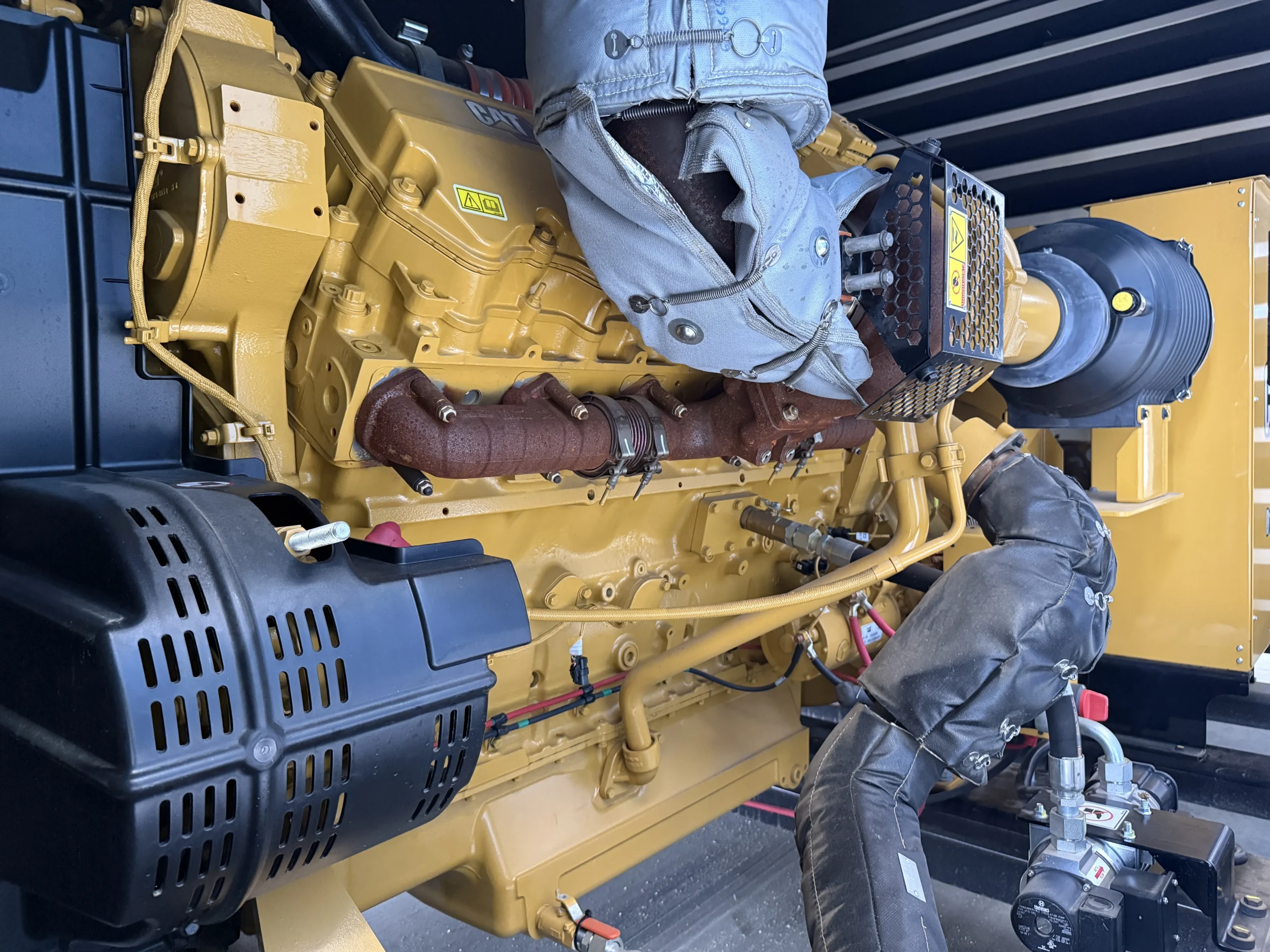

- Exhaust System:Dual-Turbo Dry Exhaust with Insulated Exhaust Piping
- Shipping / Reference
- Dimensions (L × W × H):300" × 93" × 129"
- Weight:28,000 lbs
- Stock Number:MEG1448
