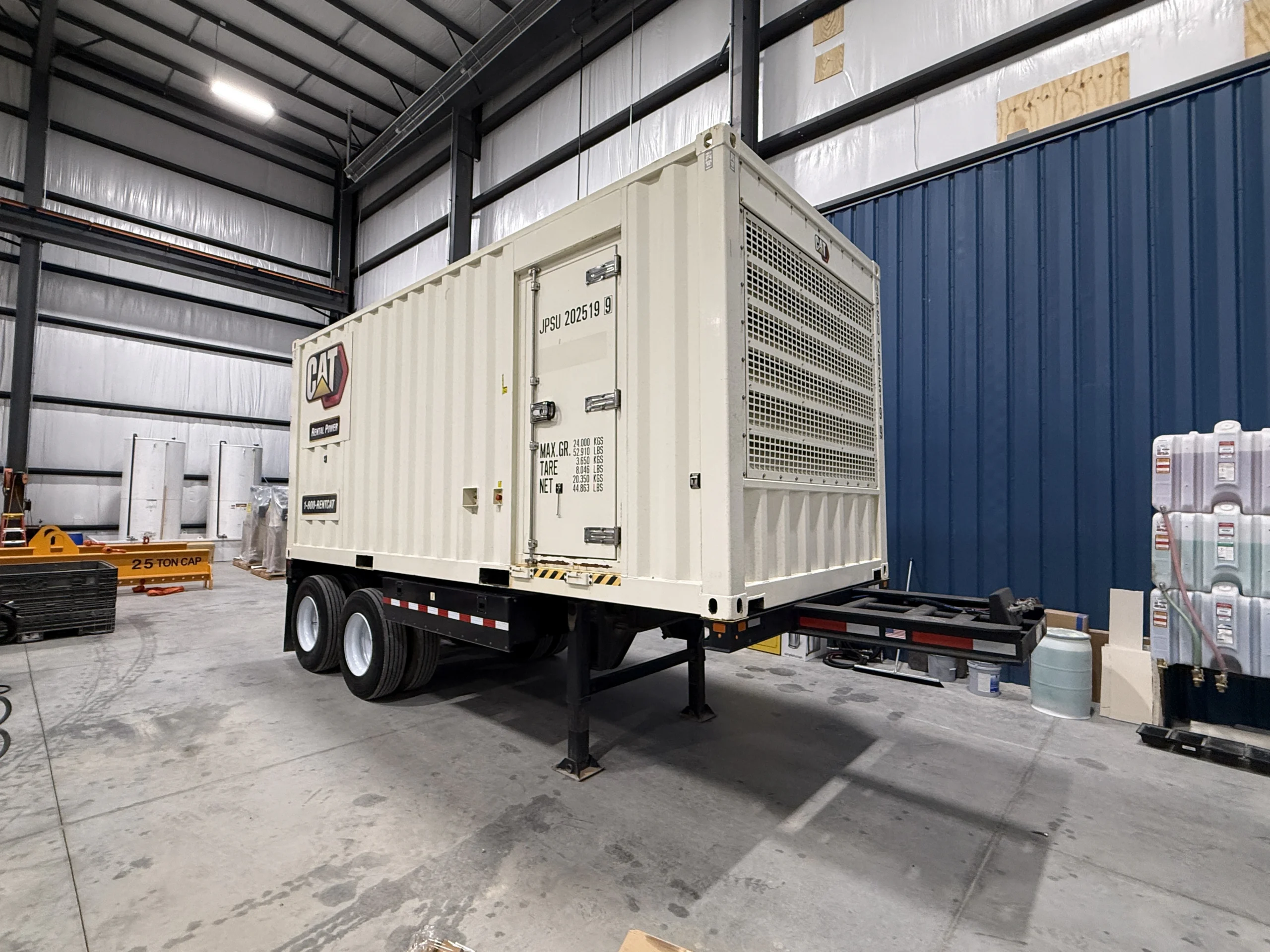

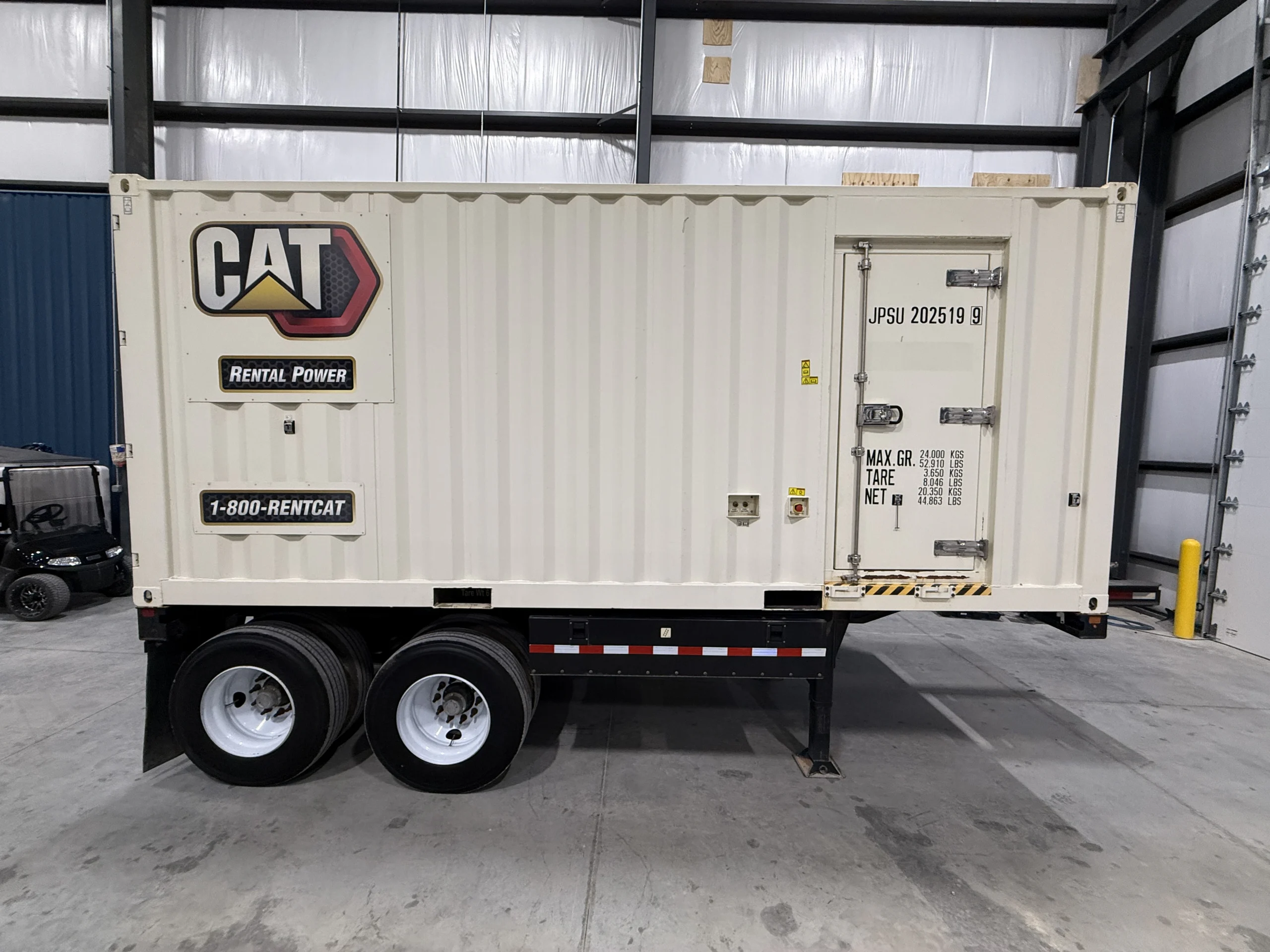

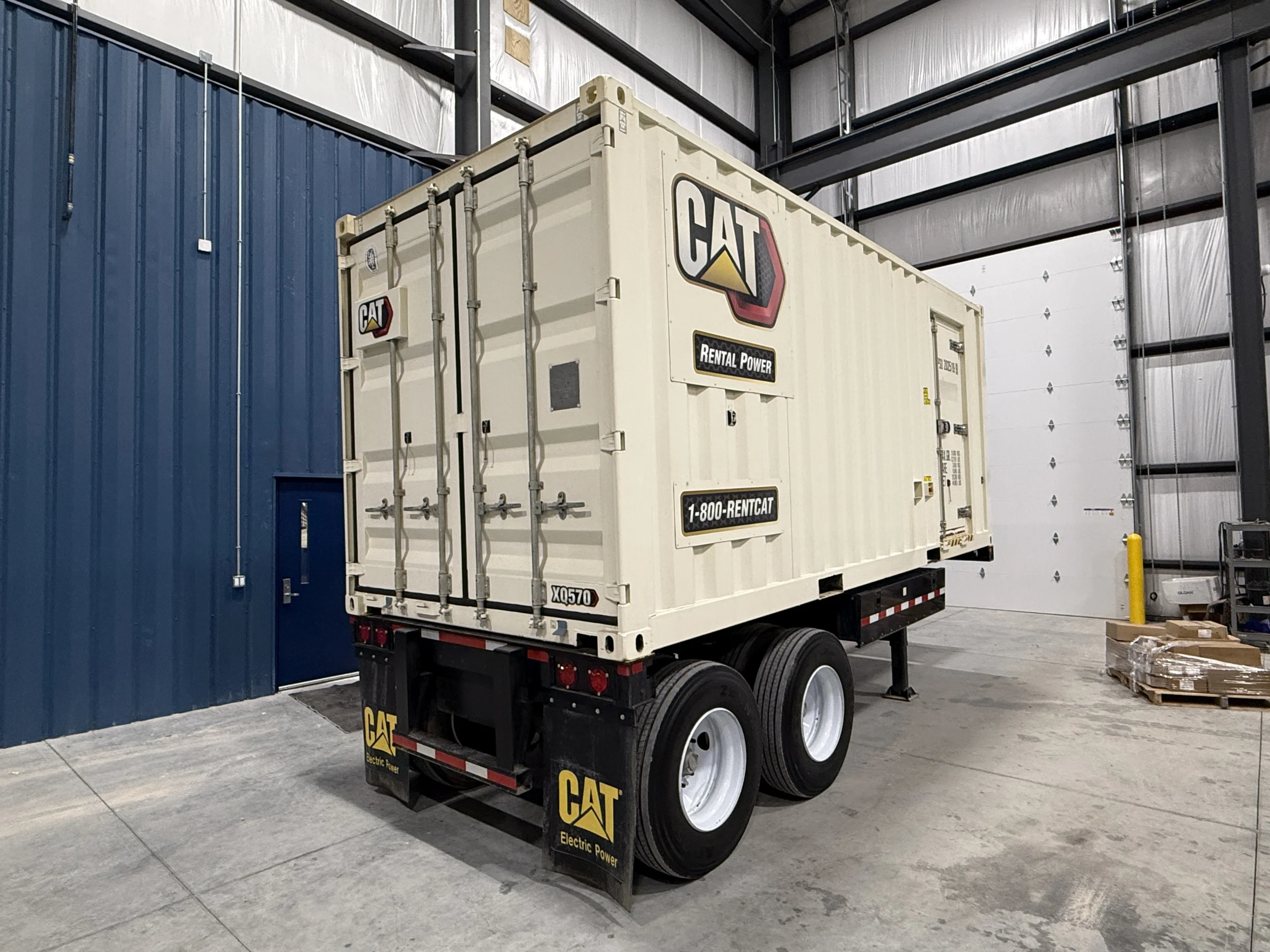

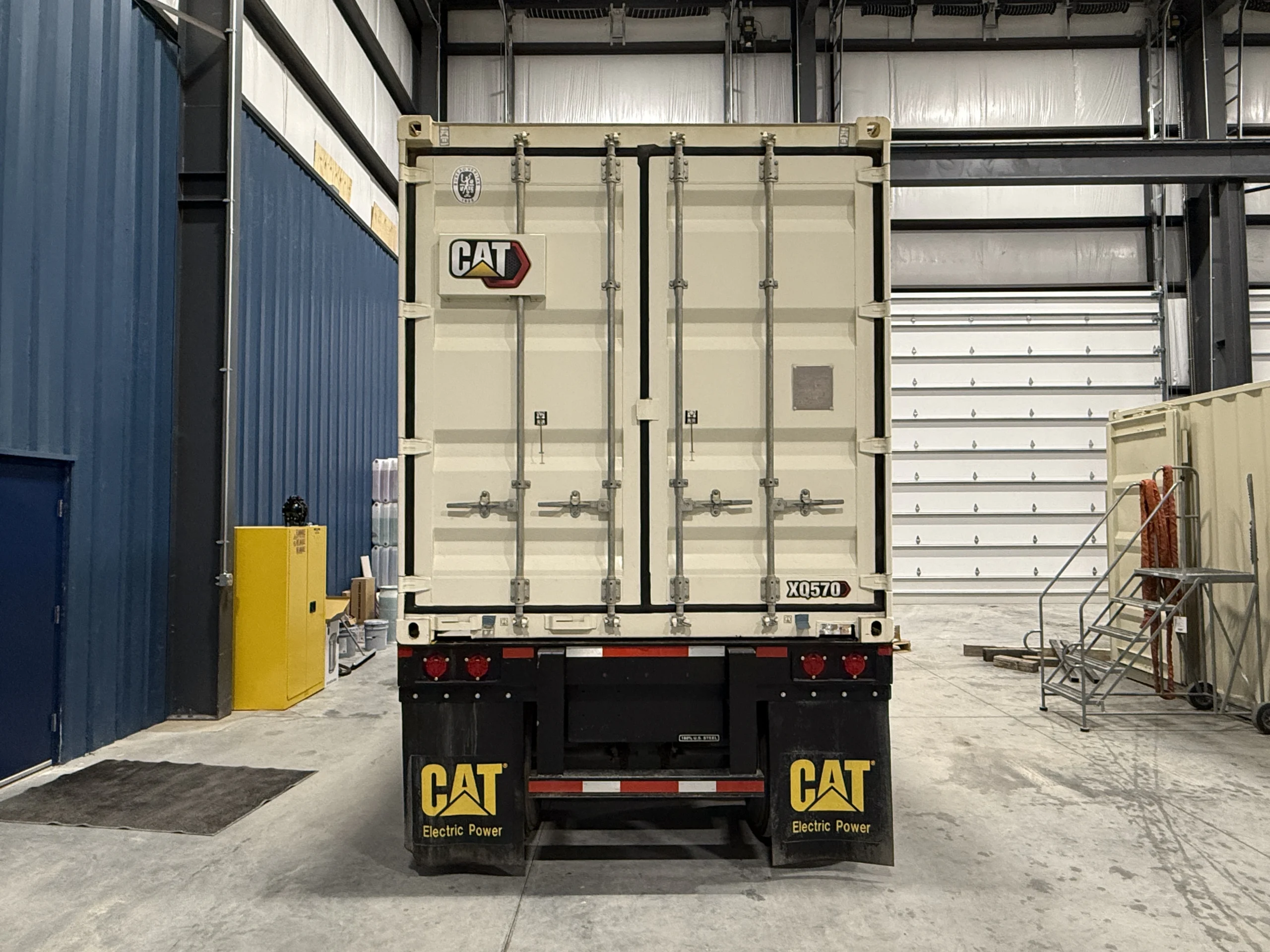

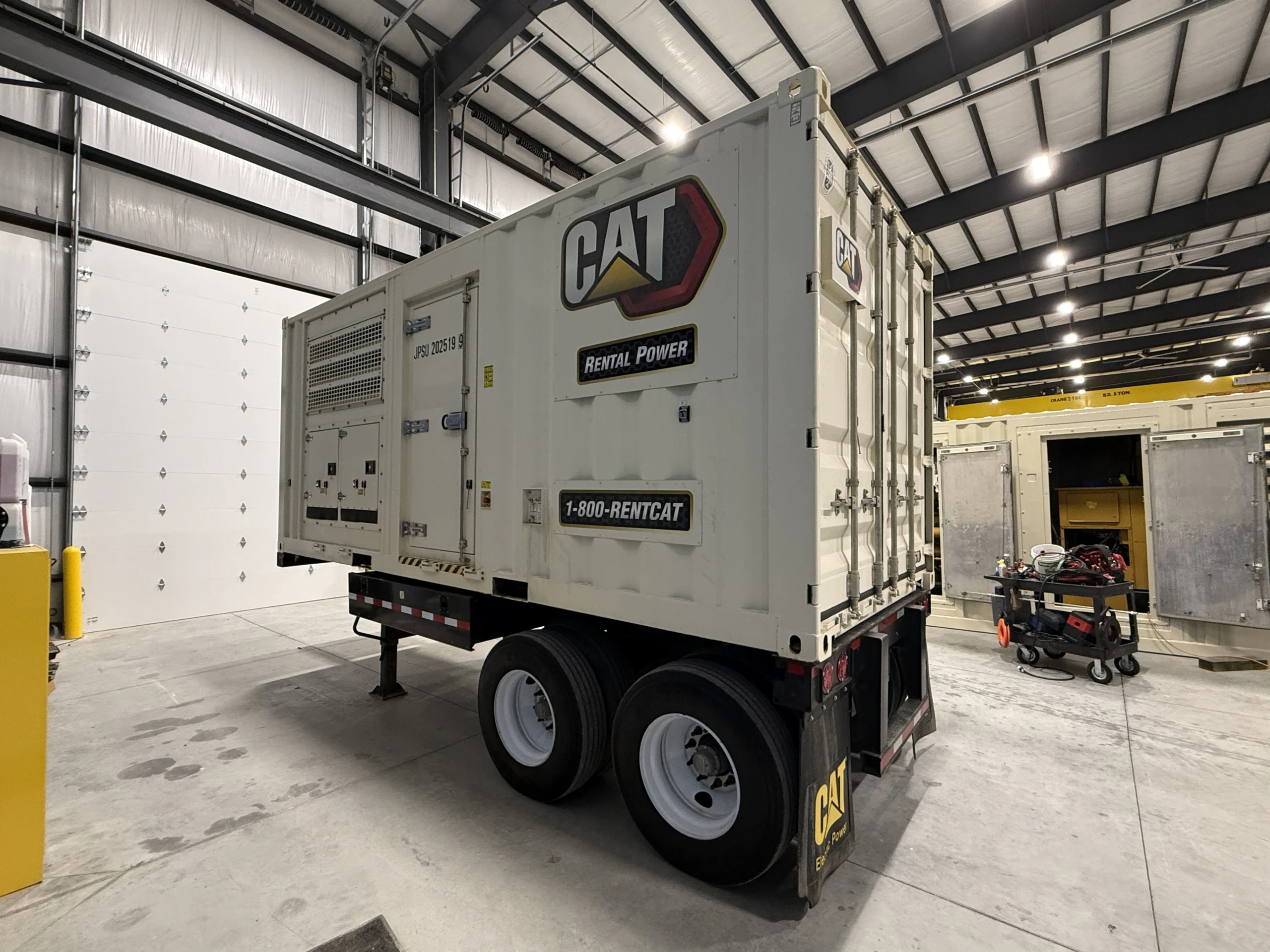

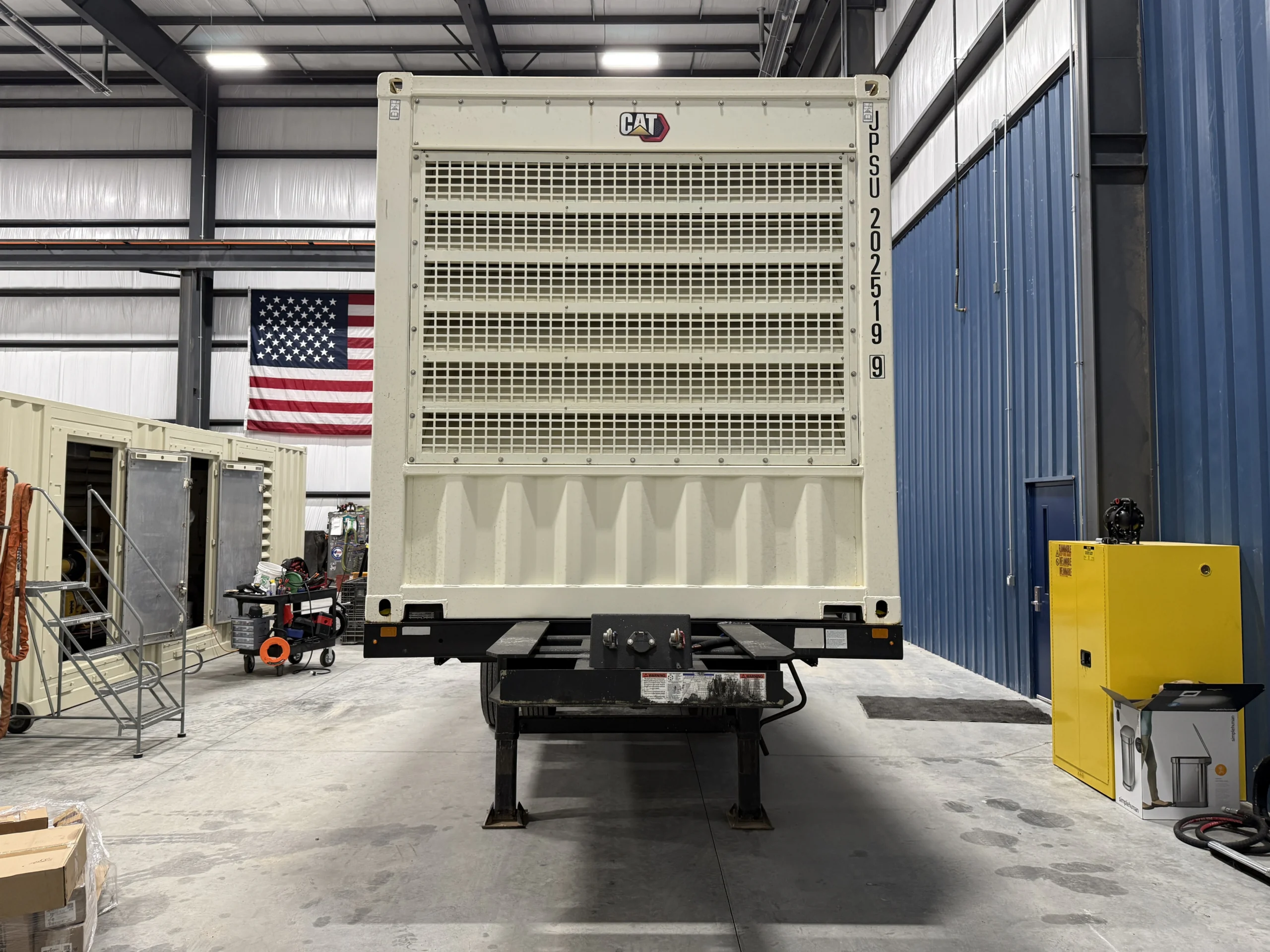

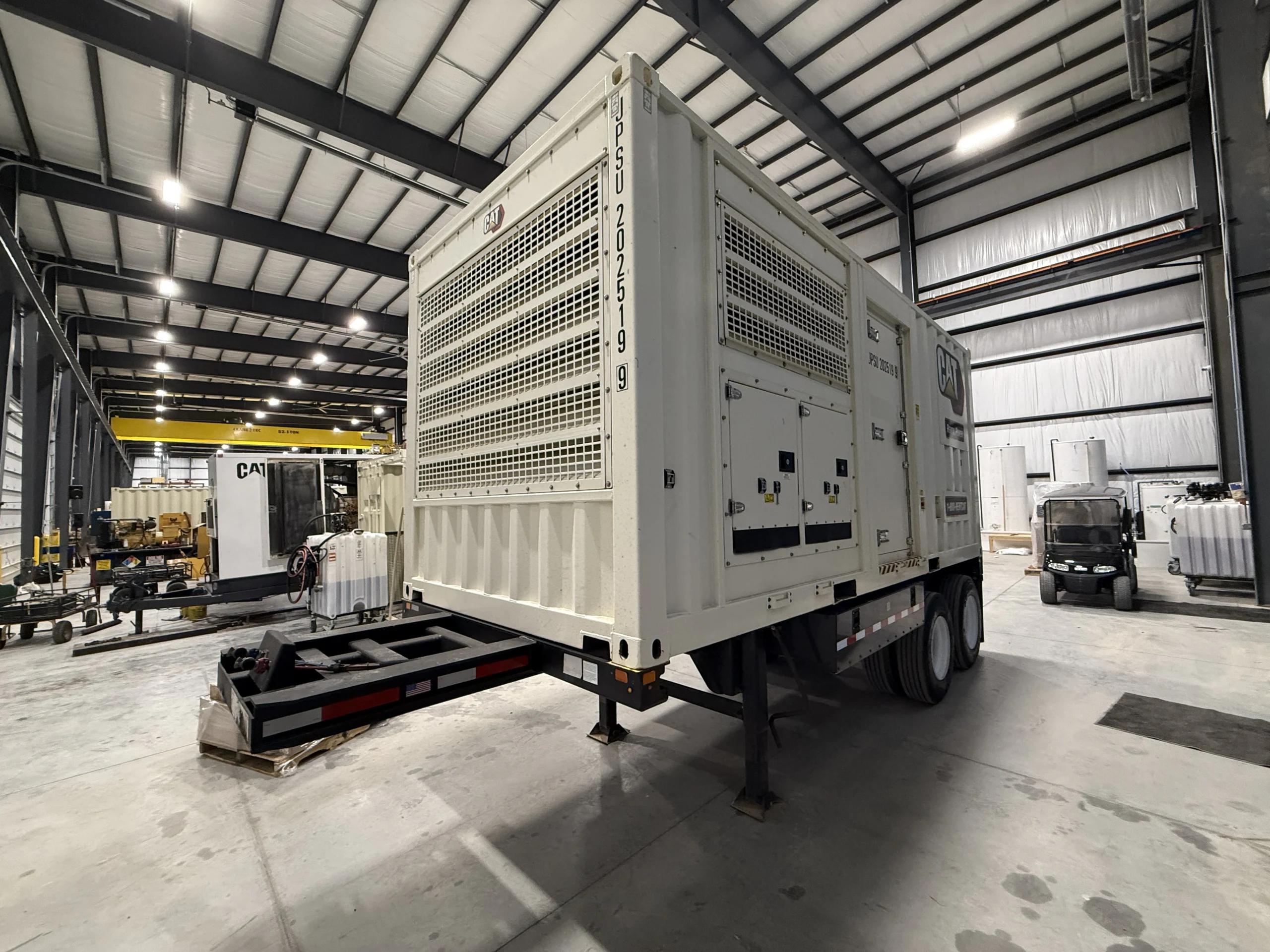

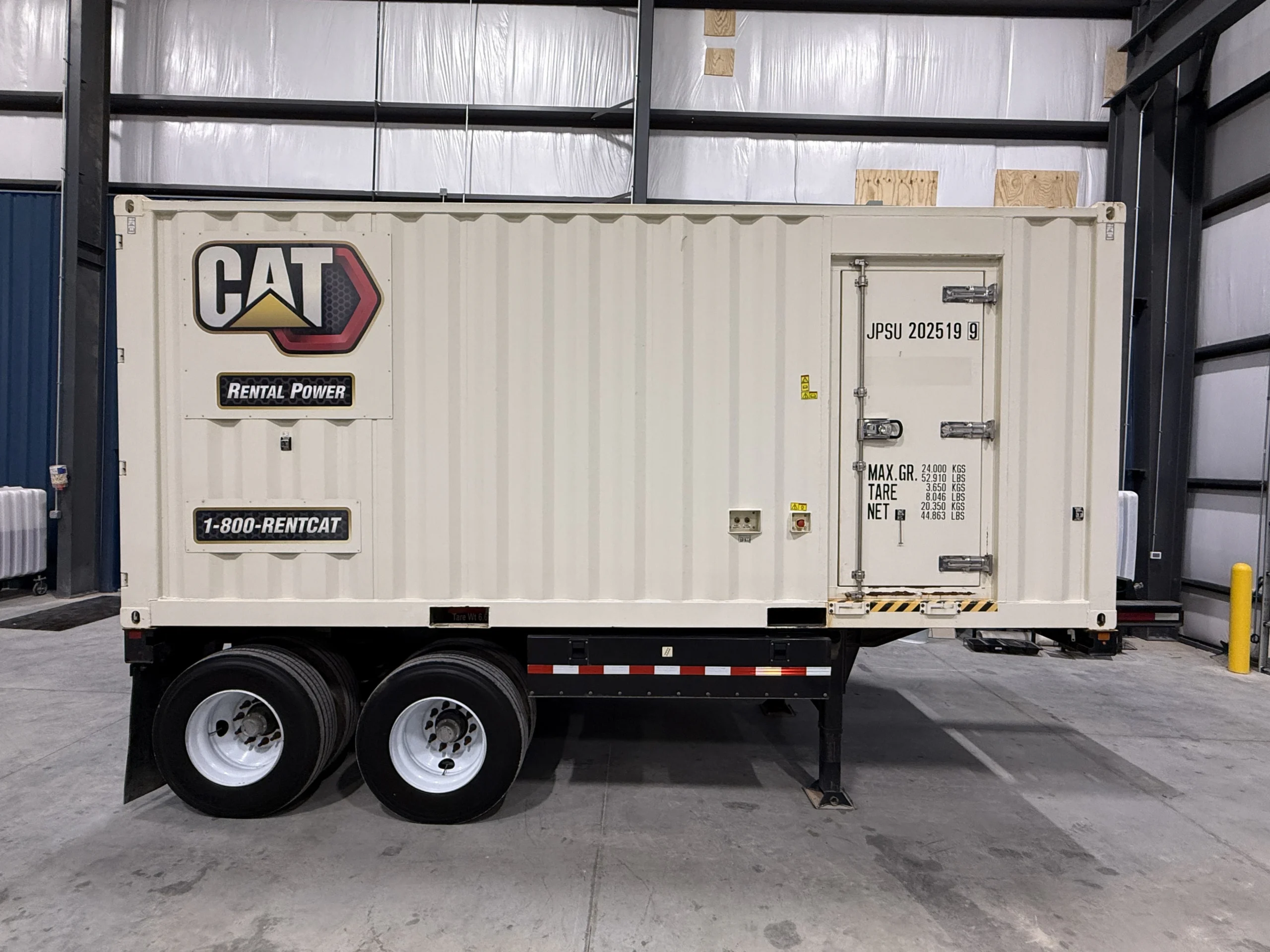

2022 CAT XQ570 500kW Portable Diesel Generator
$254,500
- 500 kW
- Diesel
- 4,689 Hours
- Used
Stock #: MEG1476
Click the button below to email our Sales Manager about this unit.
Details
Resources
Details
Technical Specifications
- Overview
- Year:2022
- Manufacturer:Caterpillar
- Package Model:XQ570

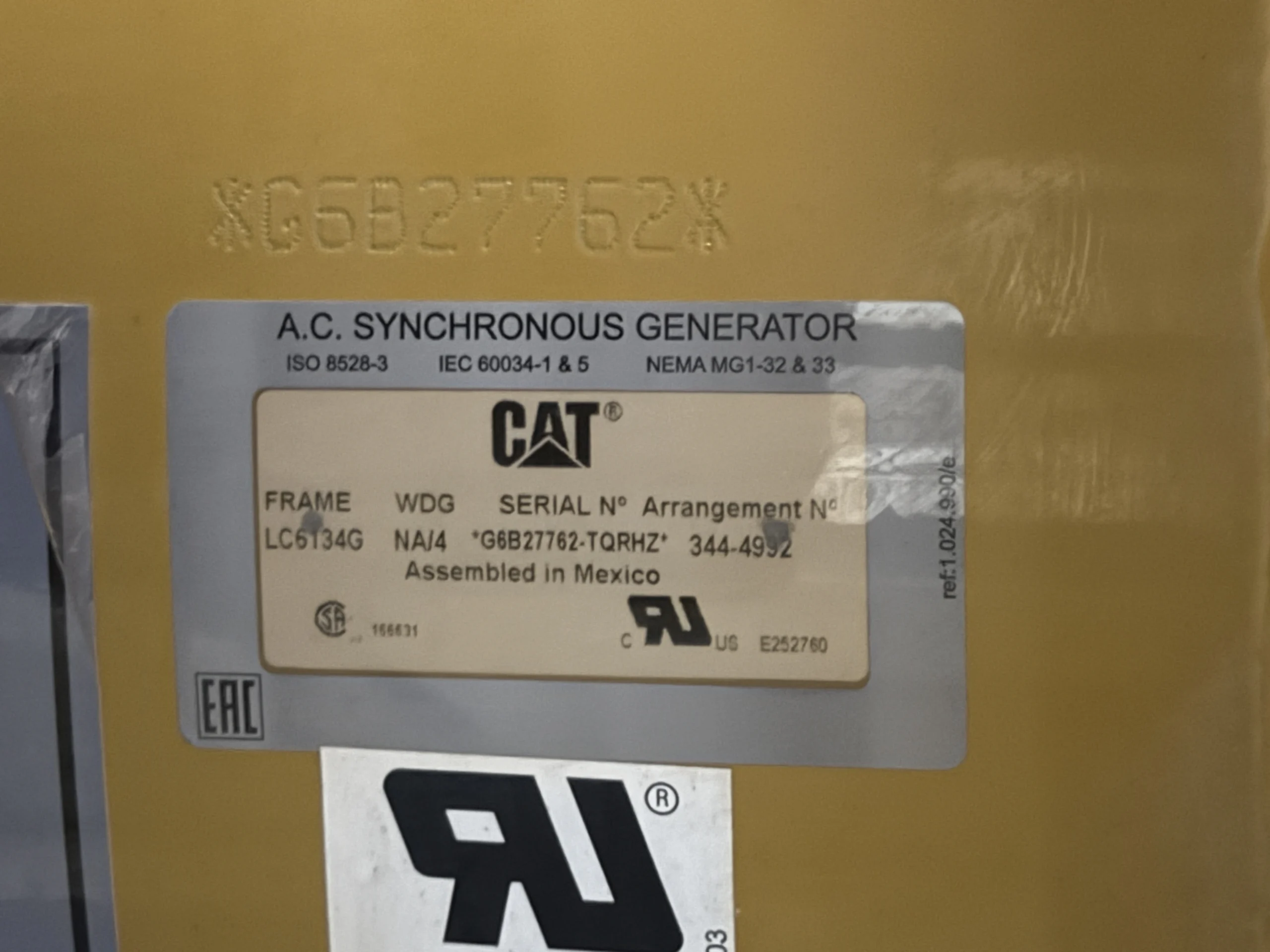

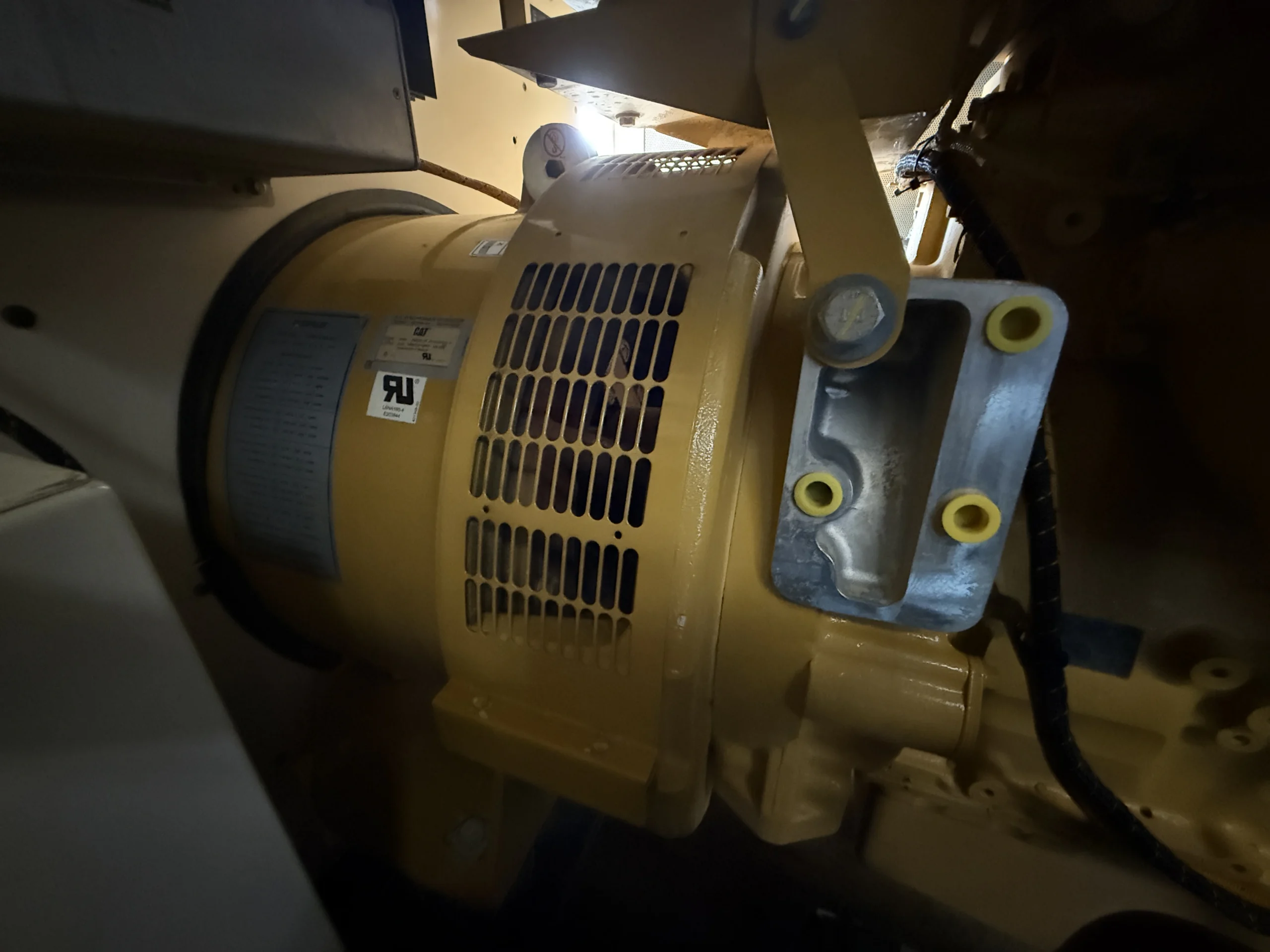

- Generator Model:LC6134G

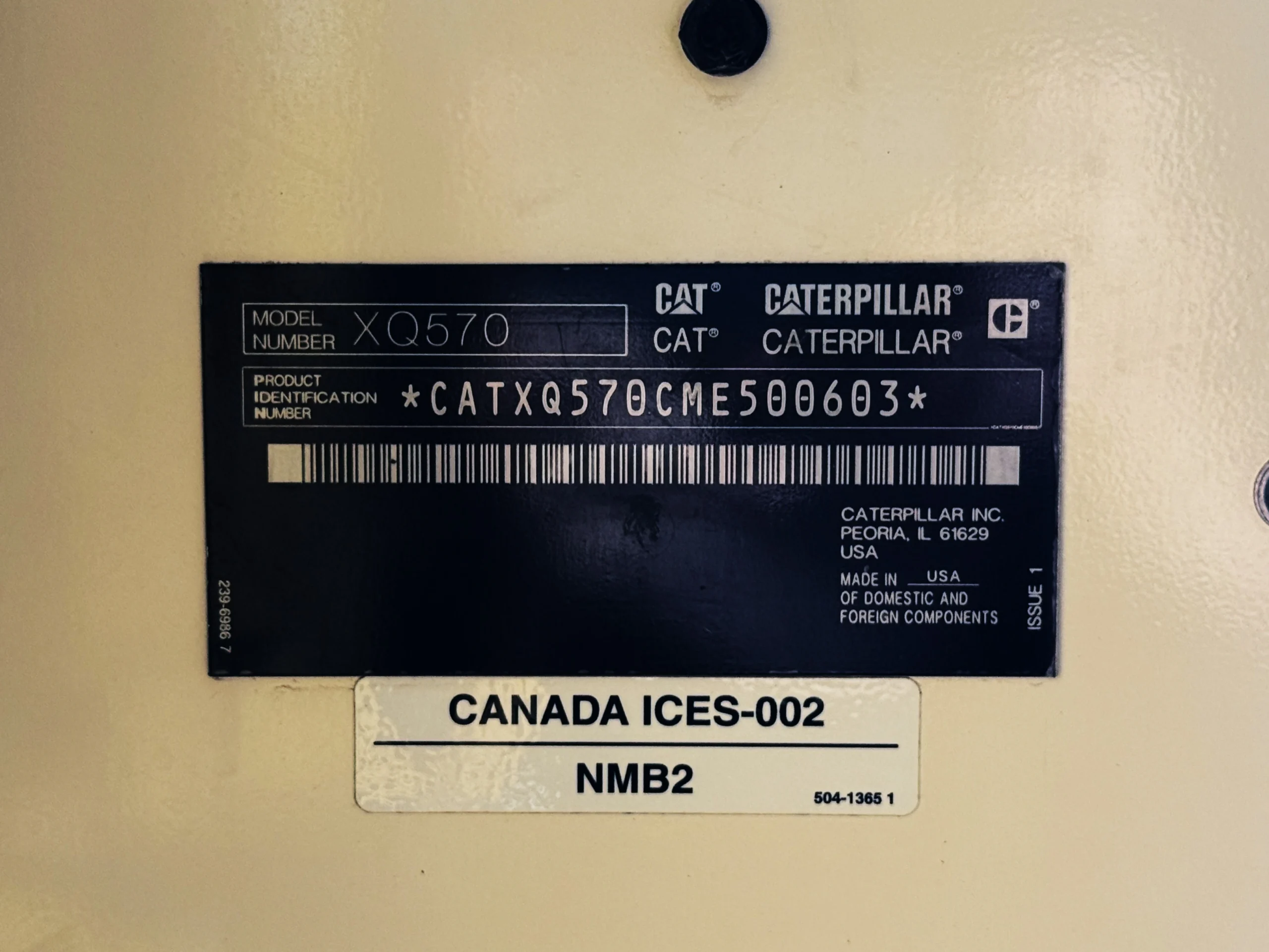

- Serial Number:ME500603
- Condition:Used

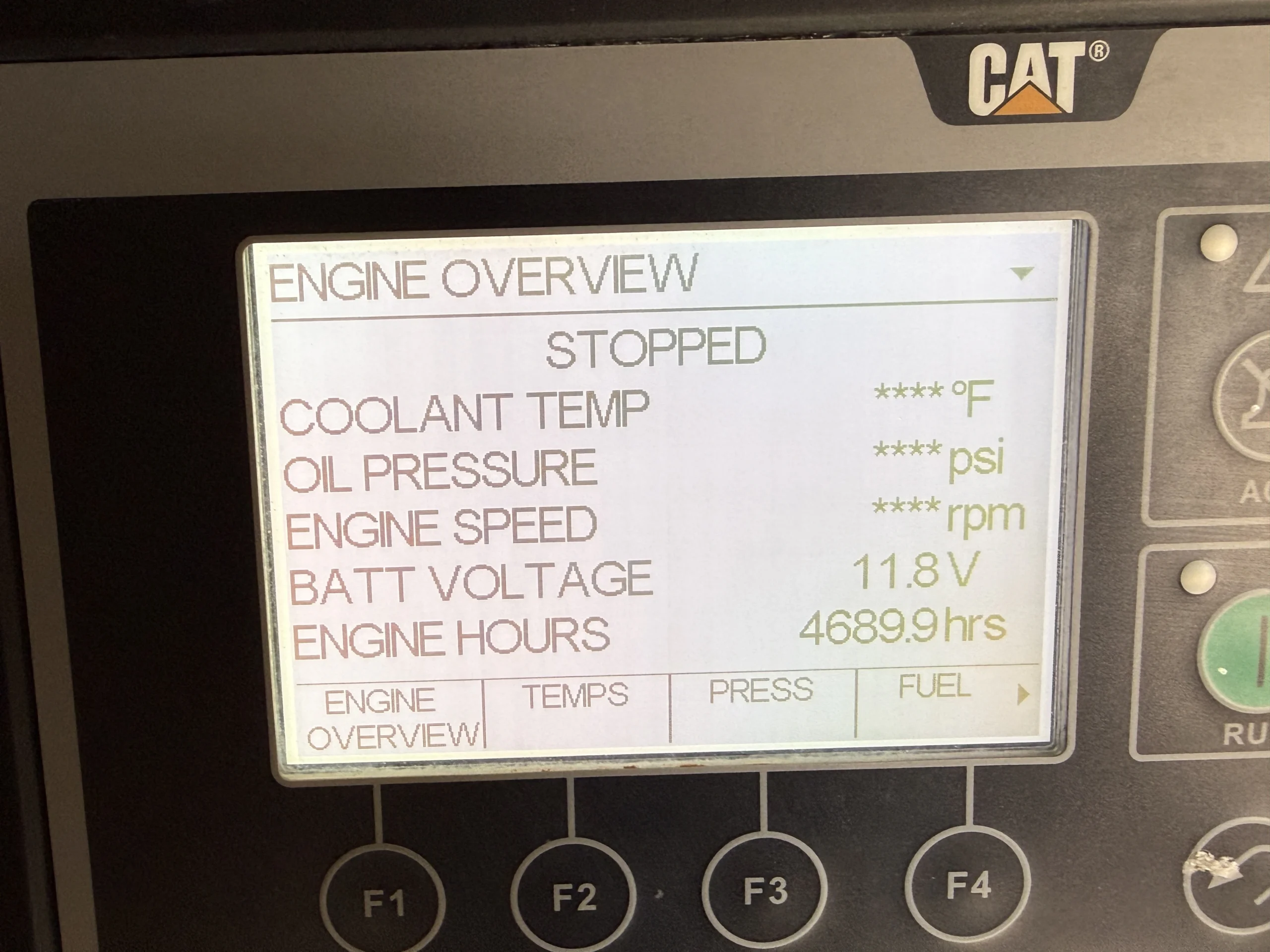

- Hours:4,689

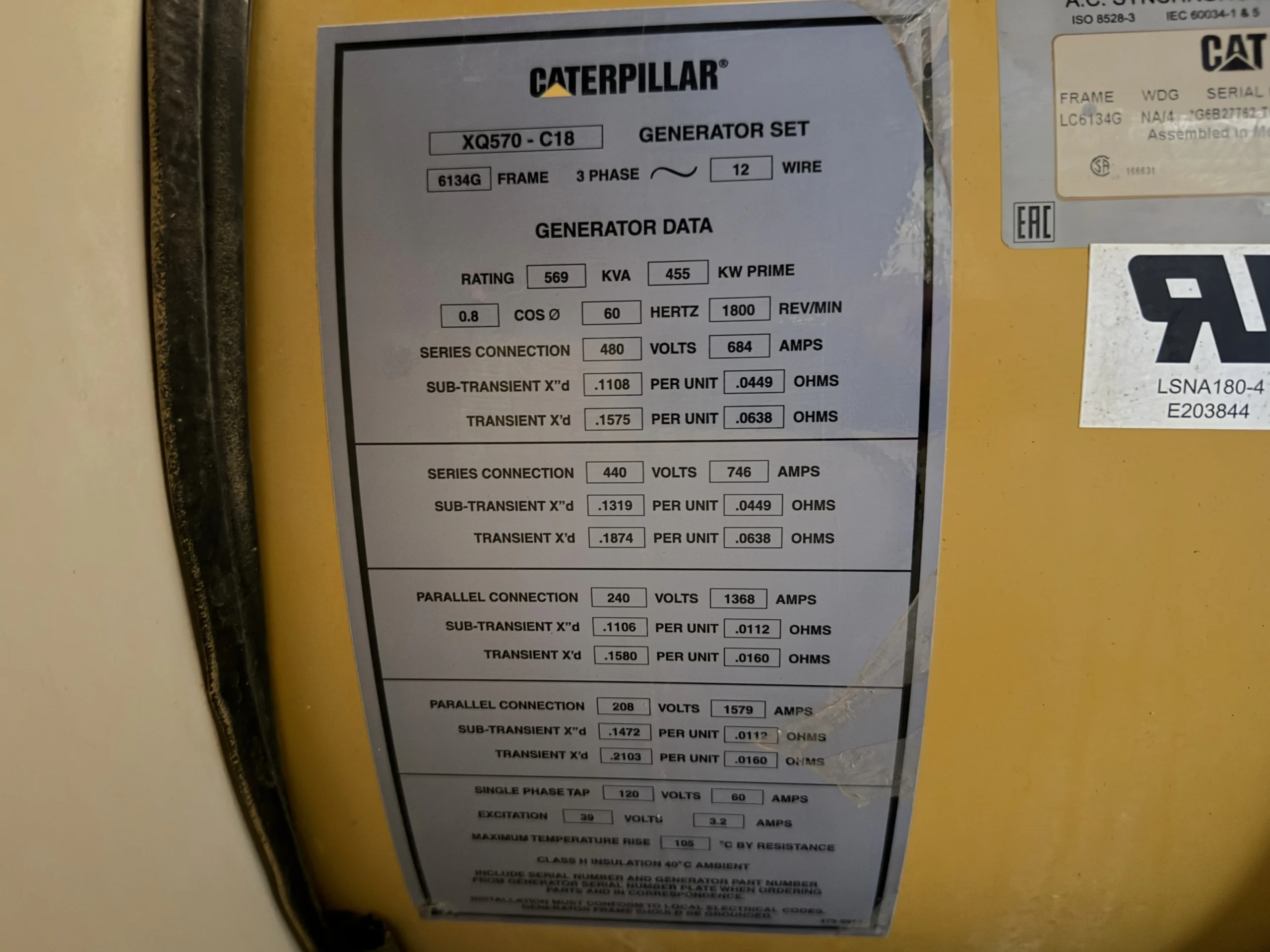

- Electrical

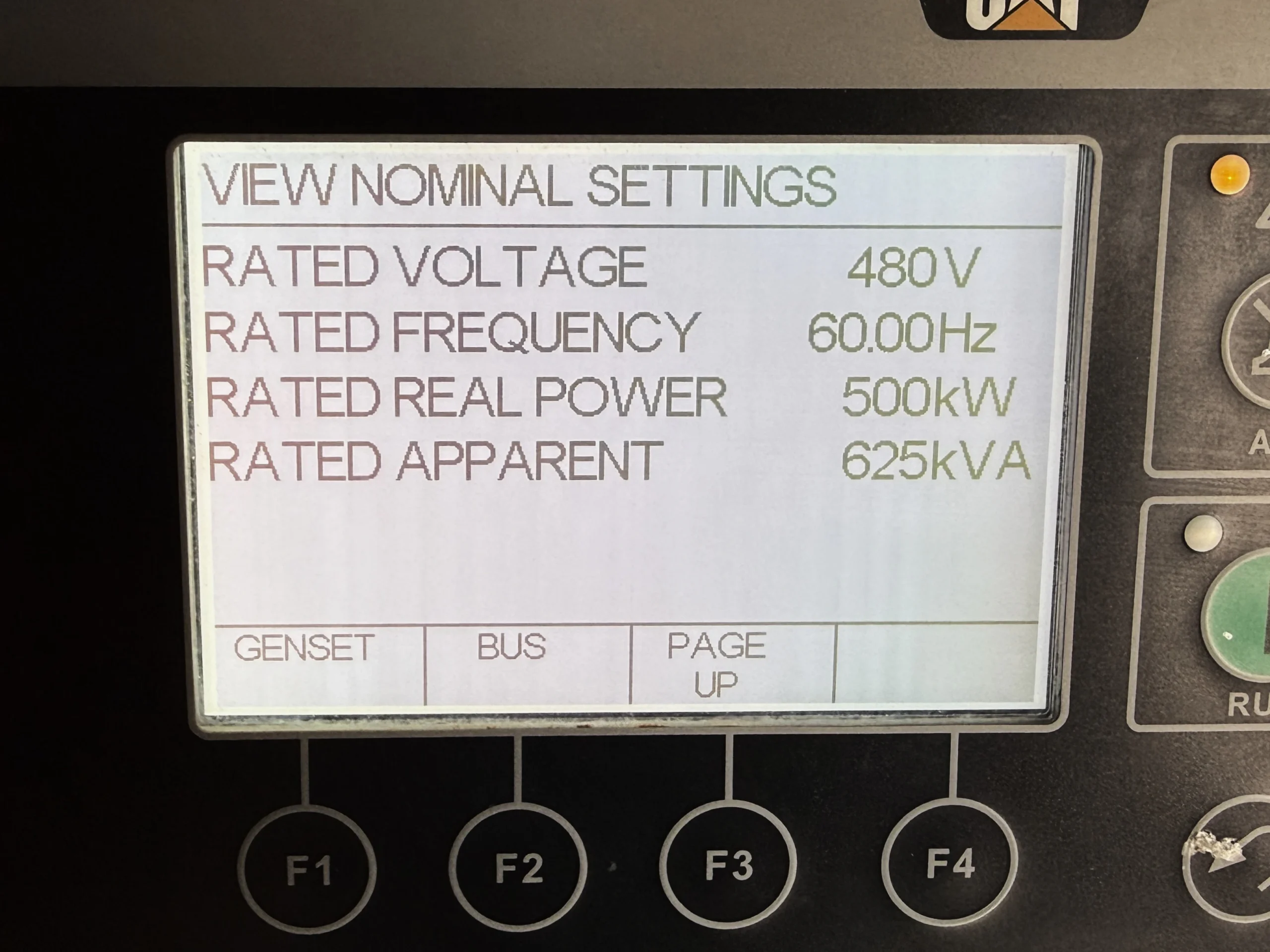

- kW:500
- kVA:625.0
- Voltage:277/480
- Amperage:752.0
- Frequency:60 Hz
- RPM:1,800

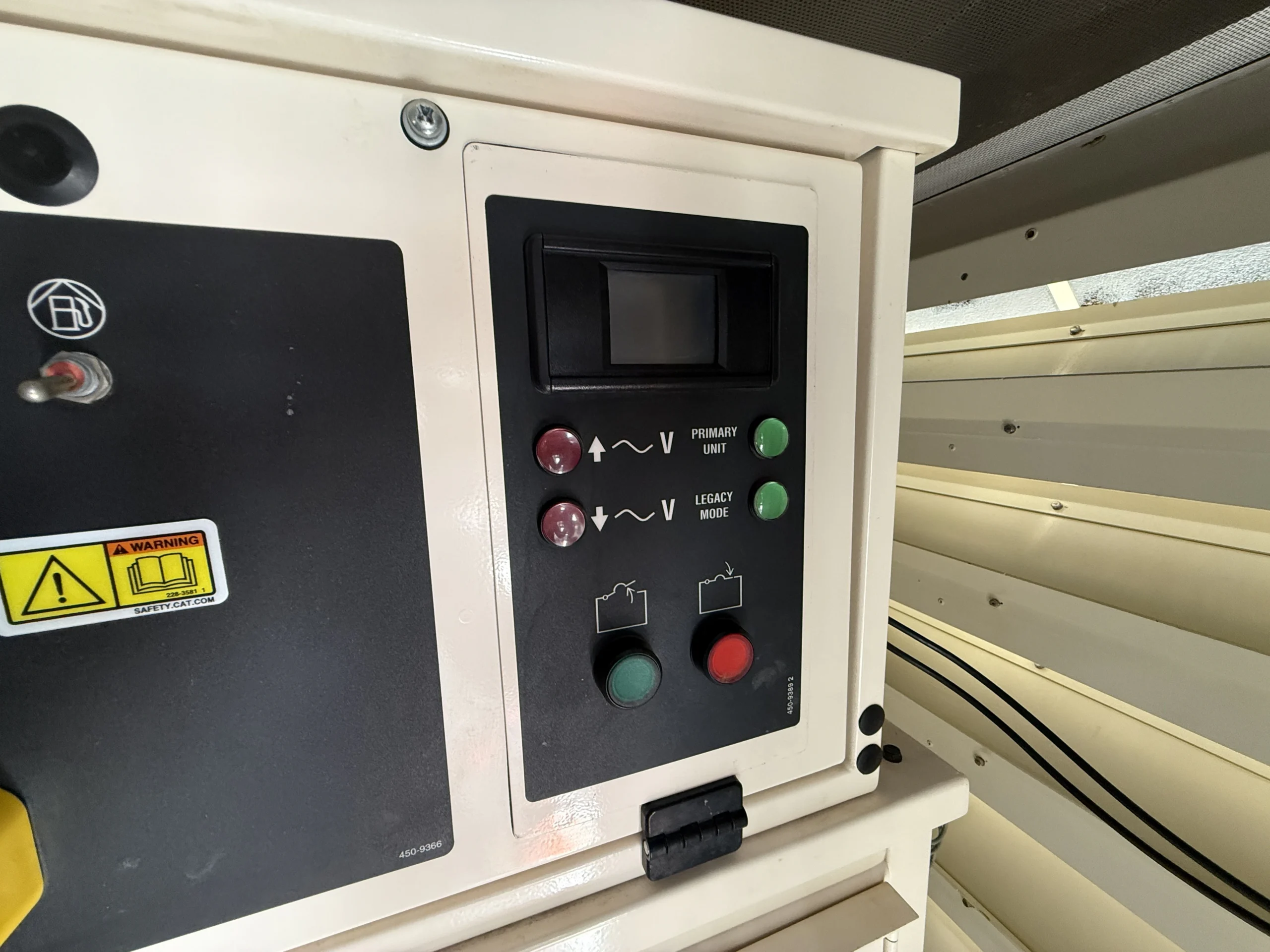

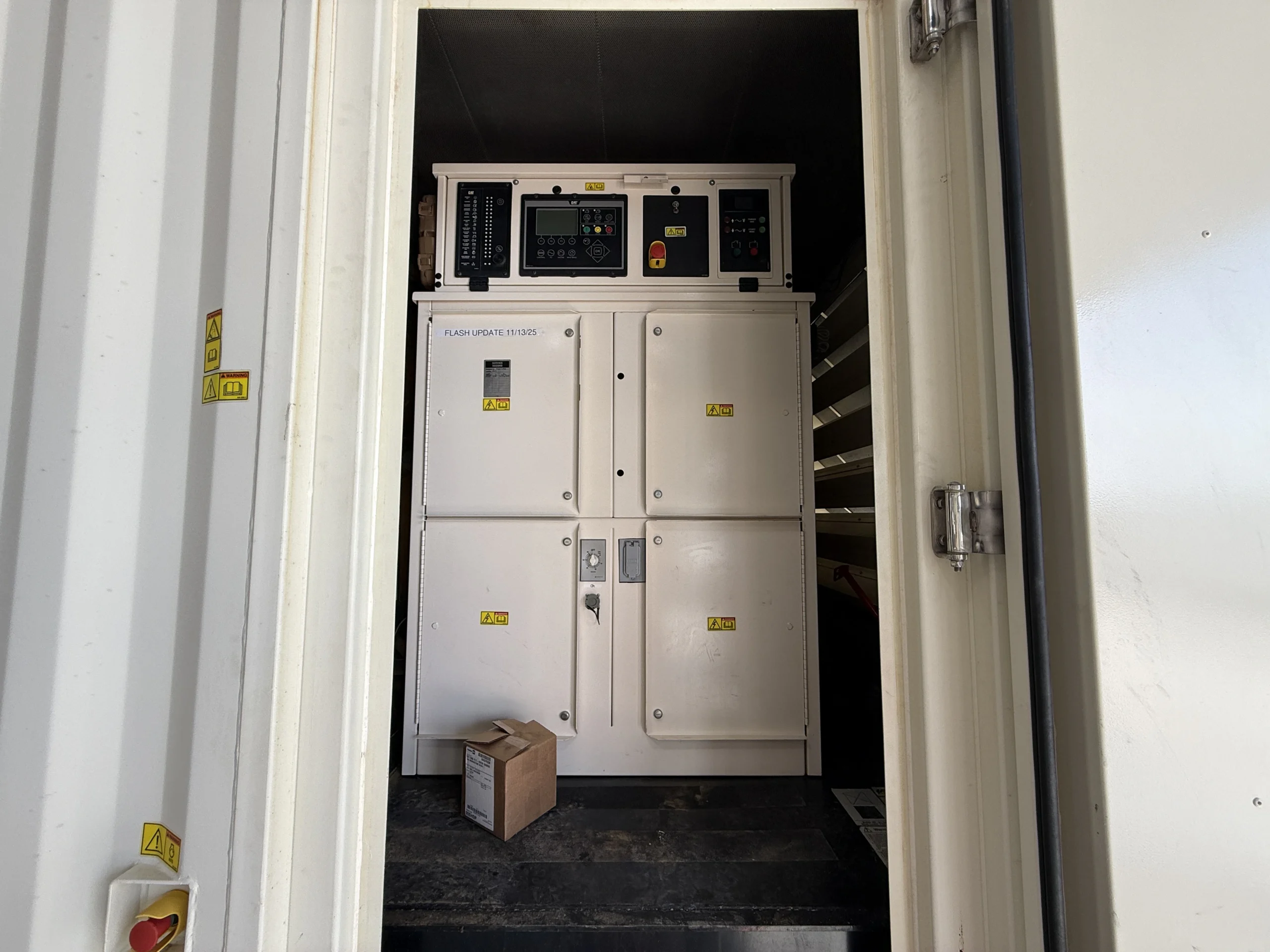

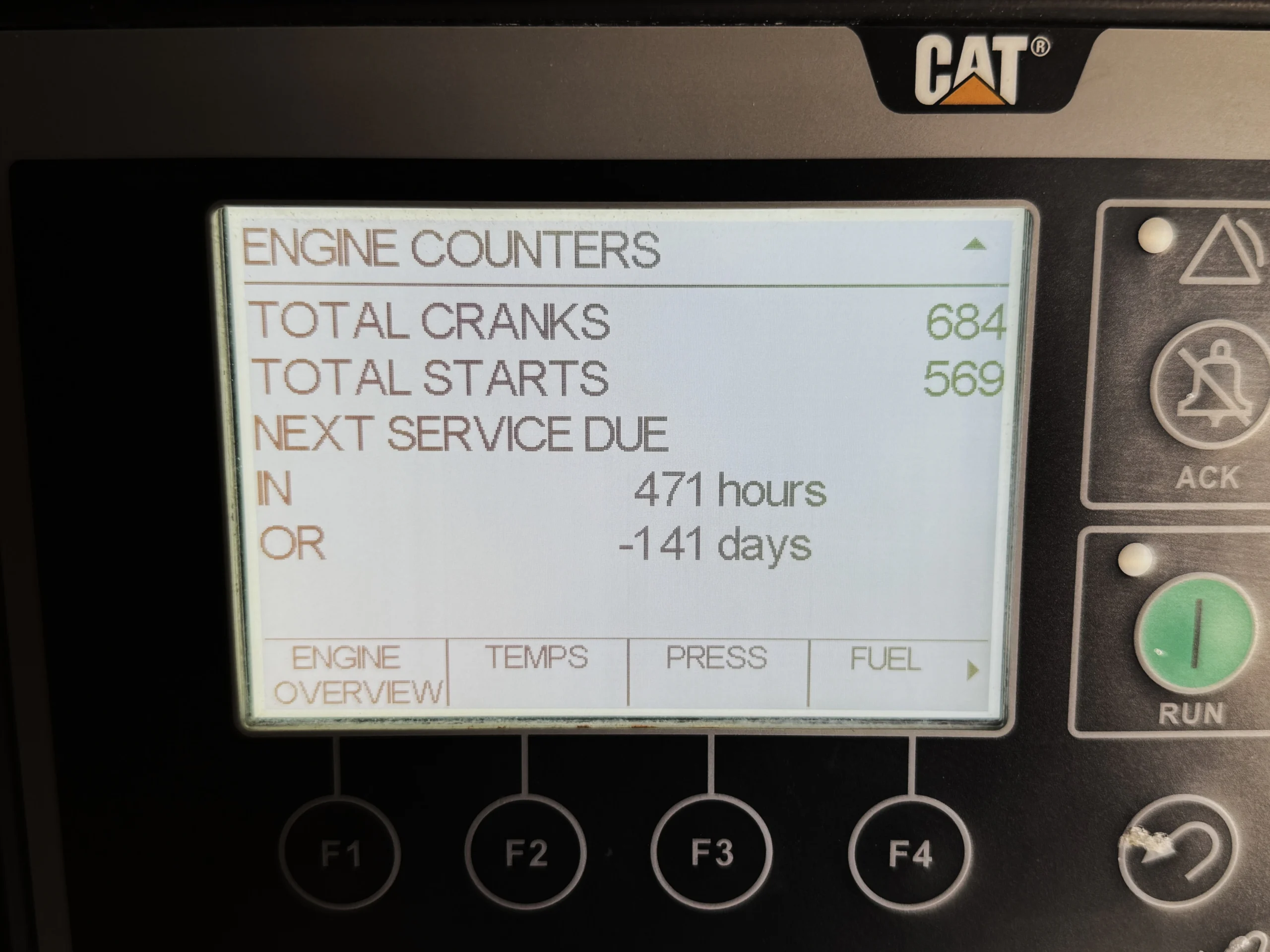

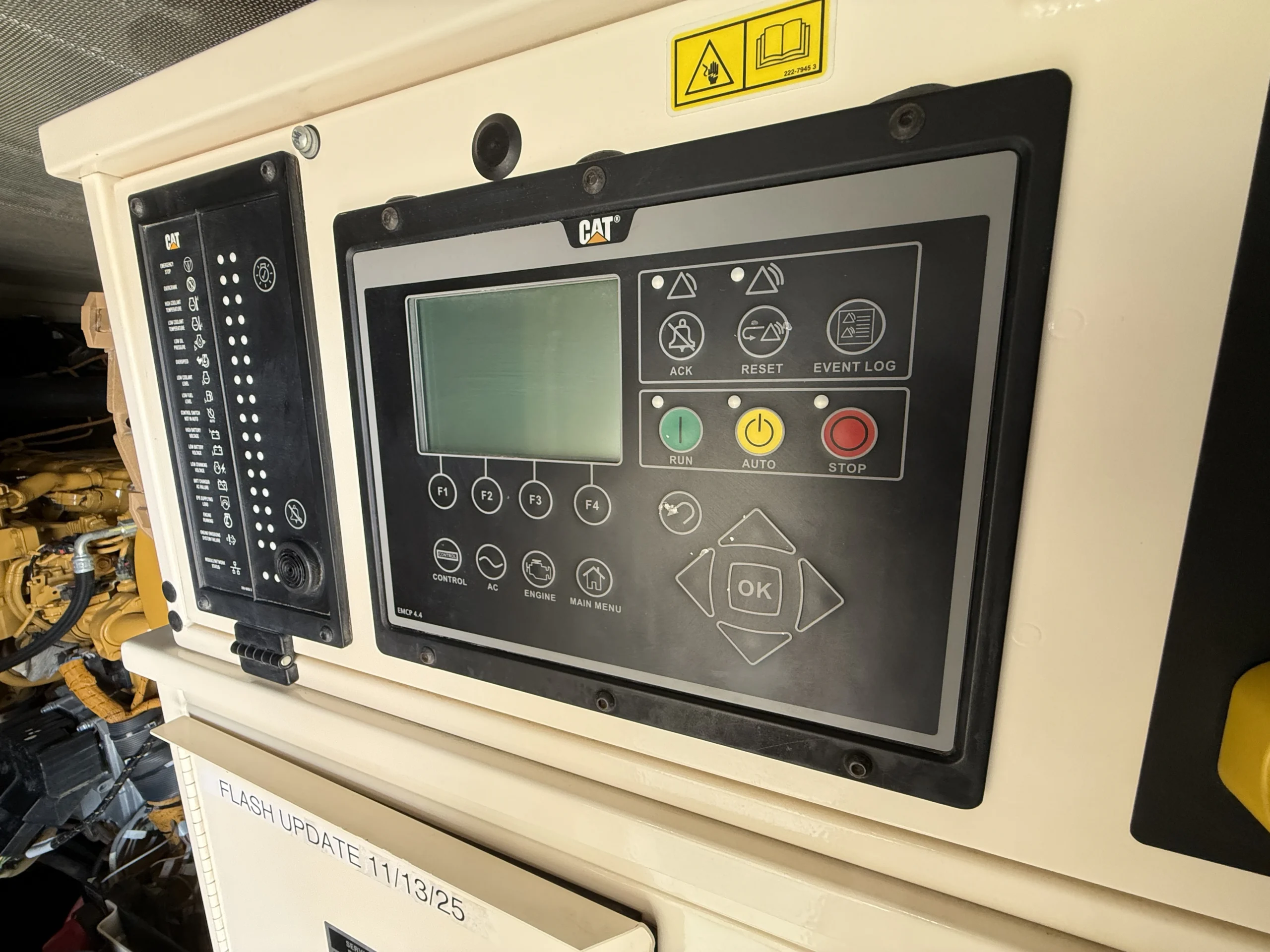

- Control Panel:Caterpillar EMCP 4.4 with annunciator panel
- Phase Type:Three Phase
- Power Rating:Standby

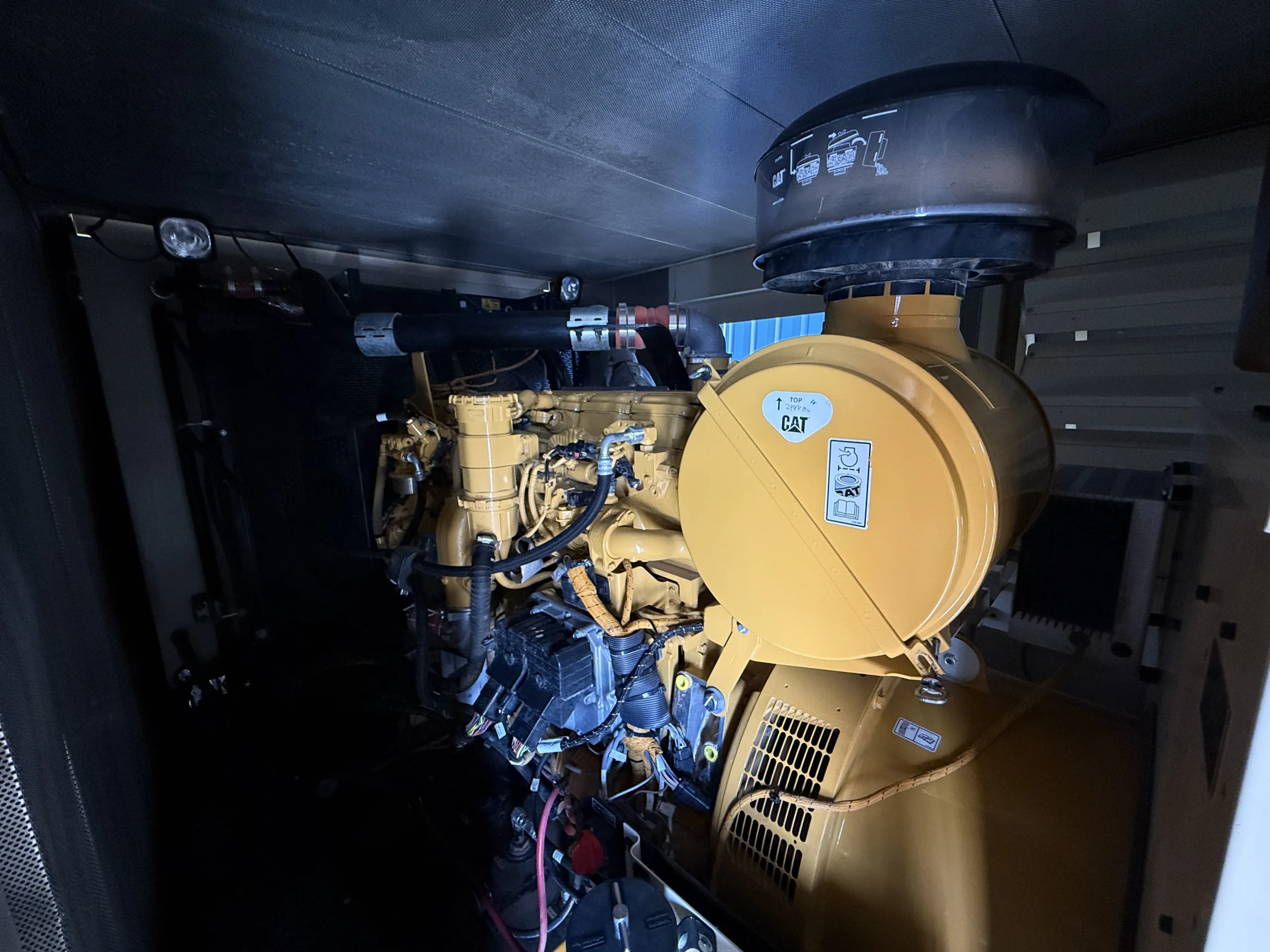

- Engine
- Fuel Type:Diesel
- Engine Manufacturer:Caterpillar

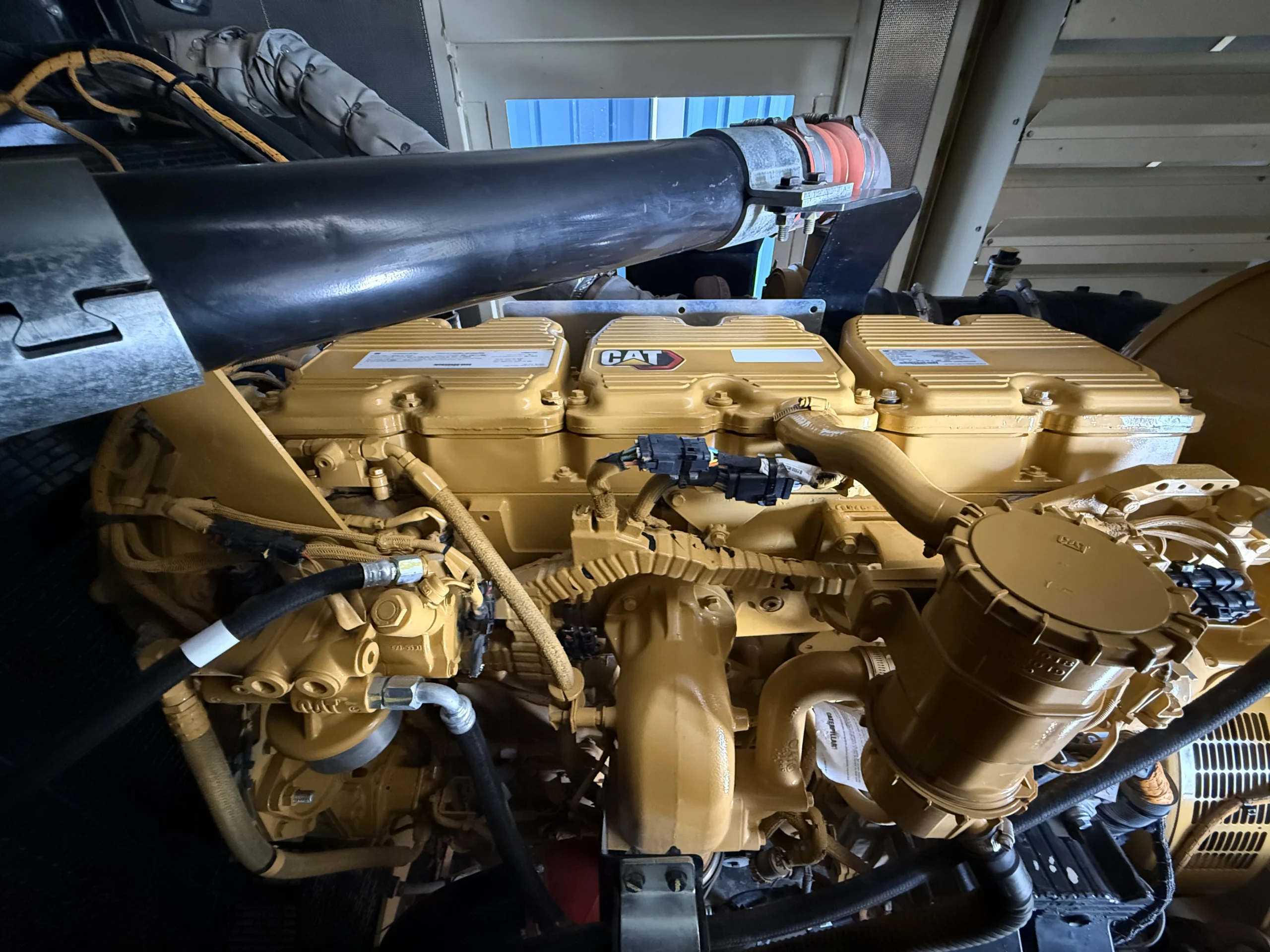

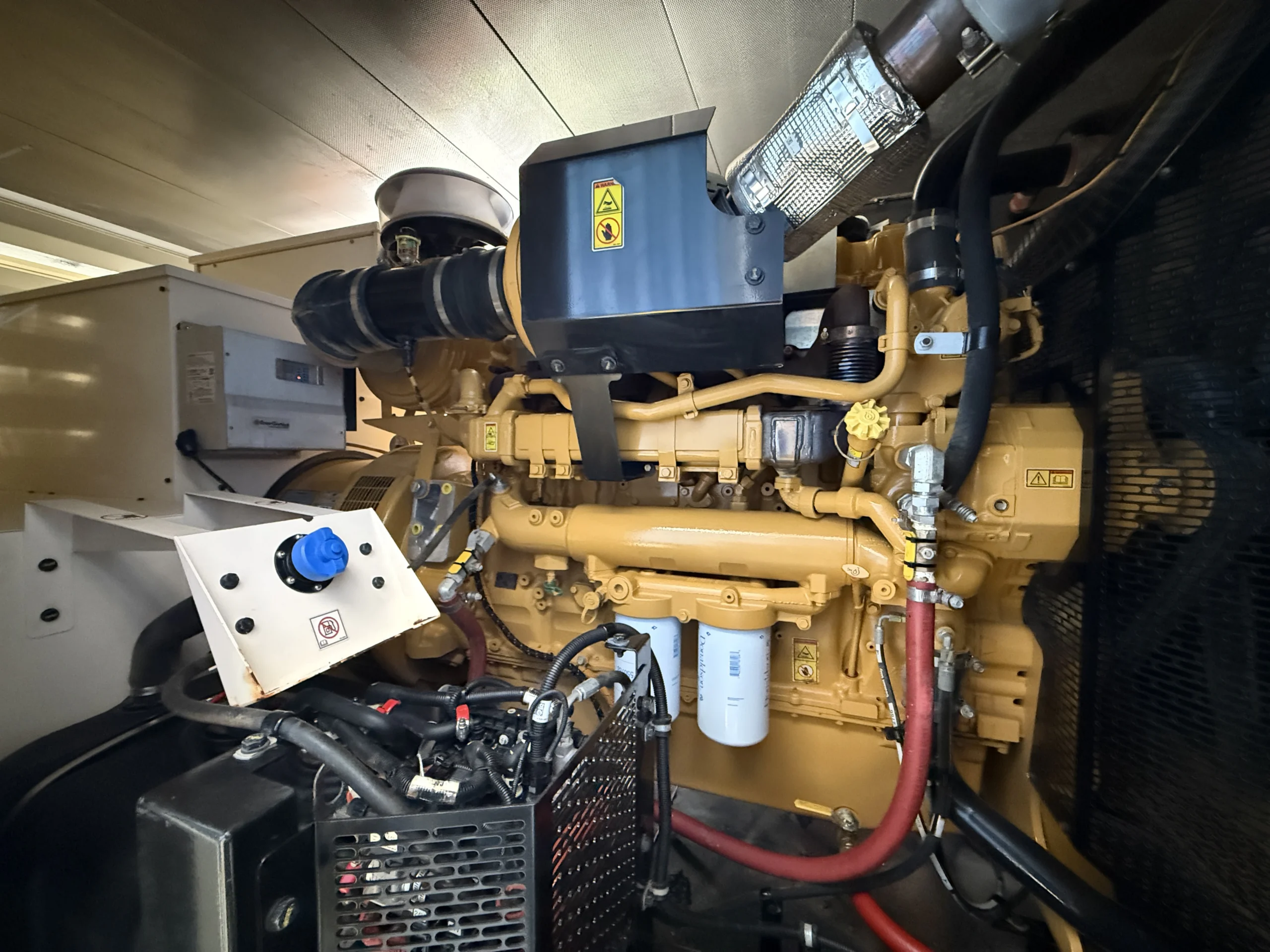

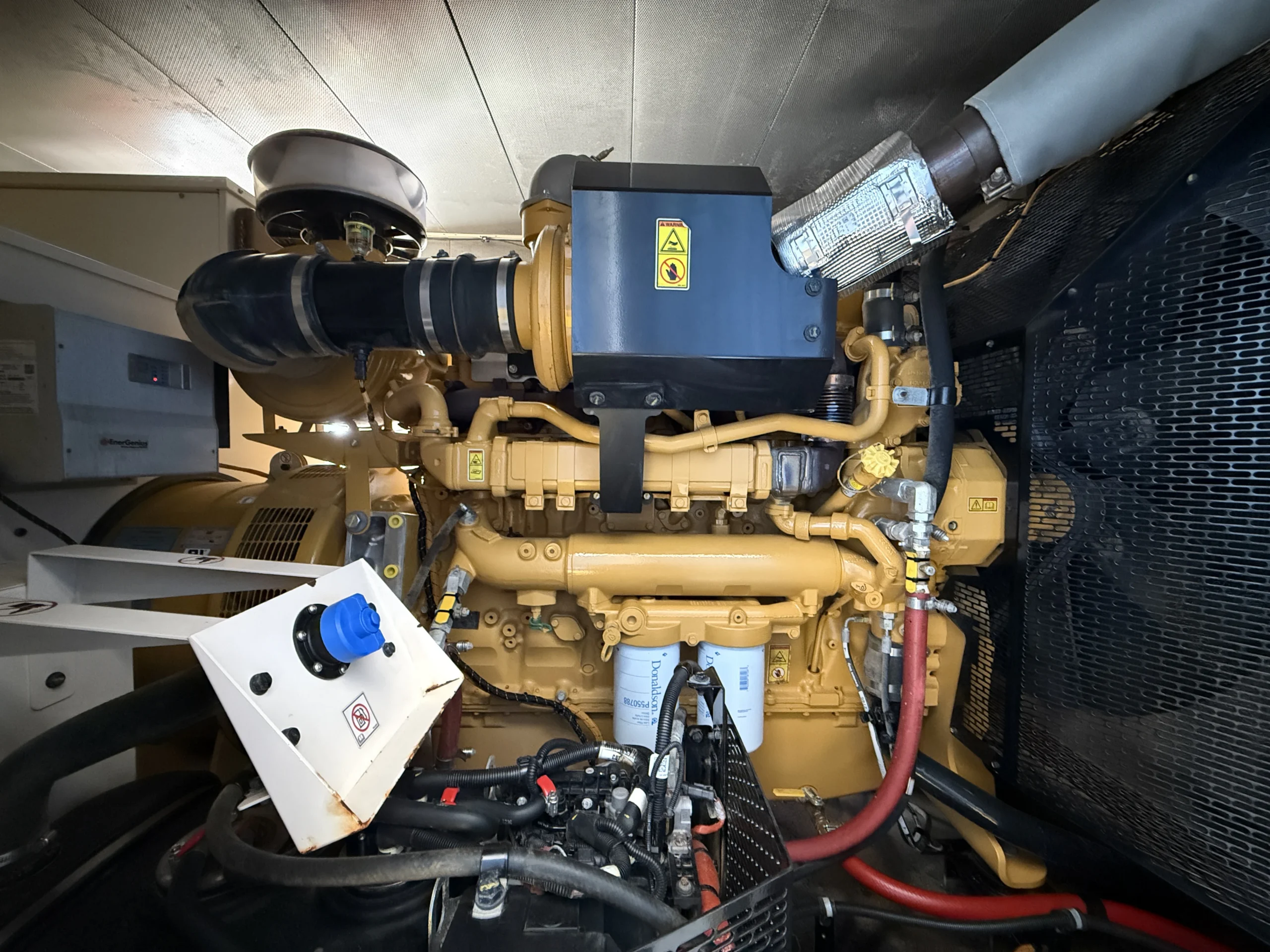

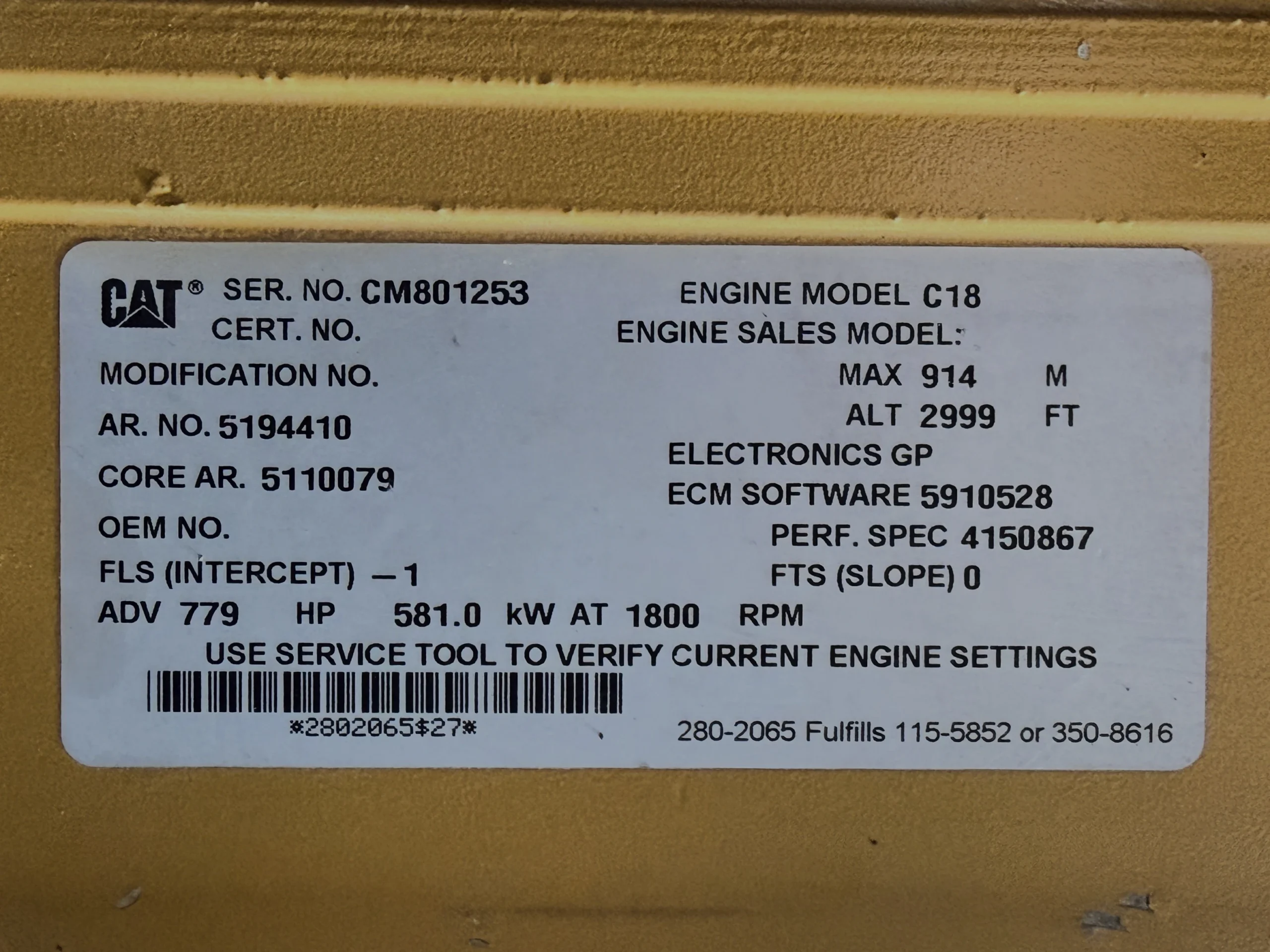

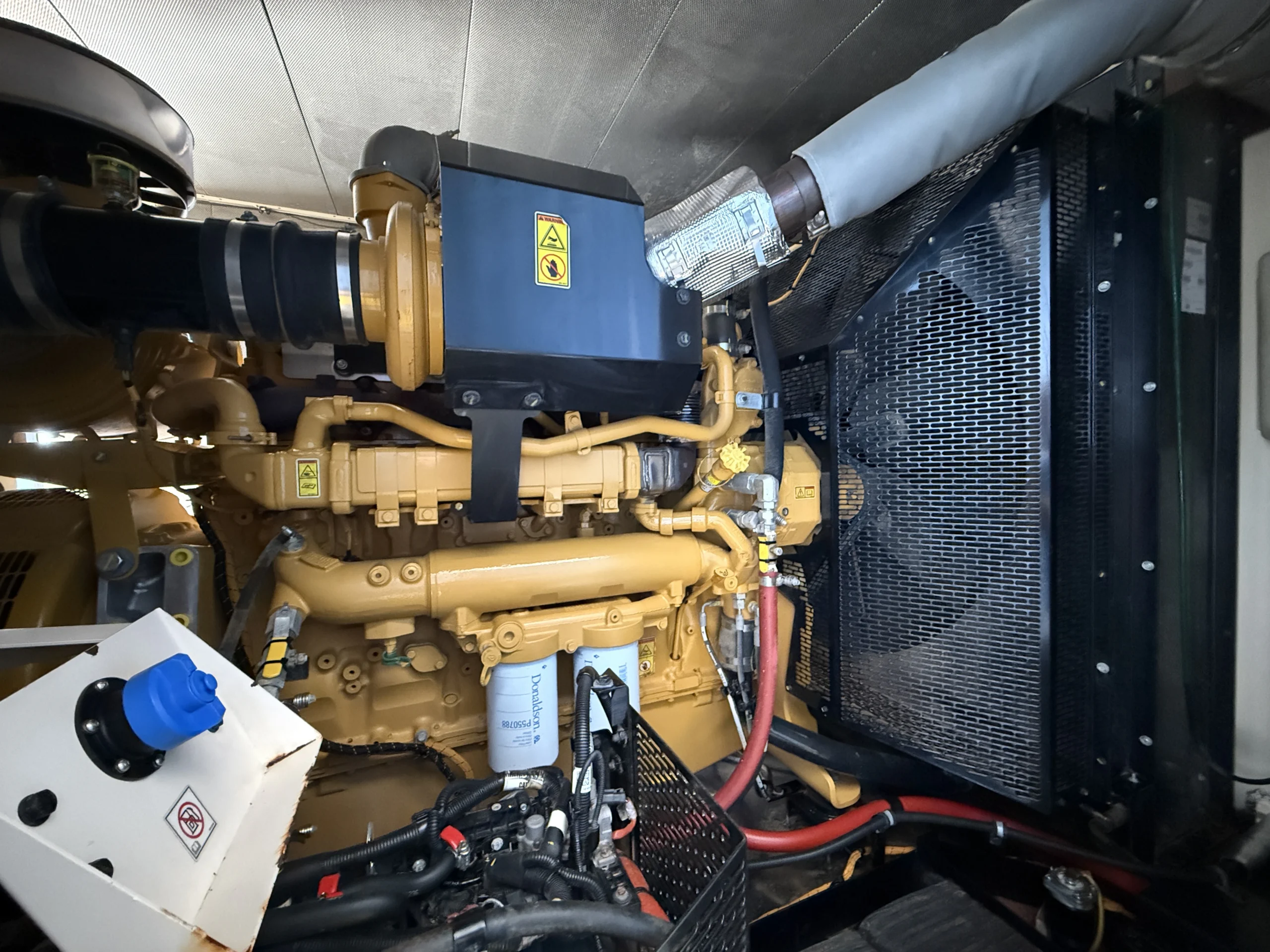

- Engine Model:C18
- Engine S/N:CM801253

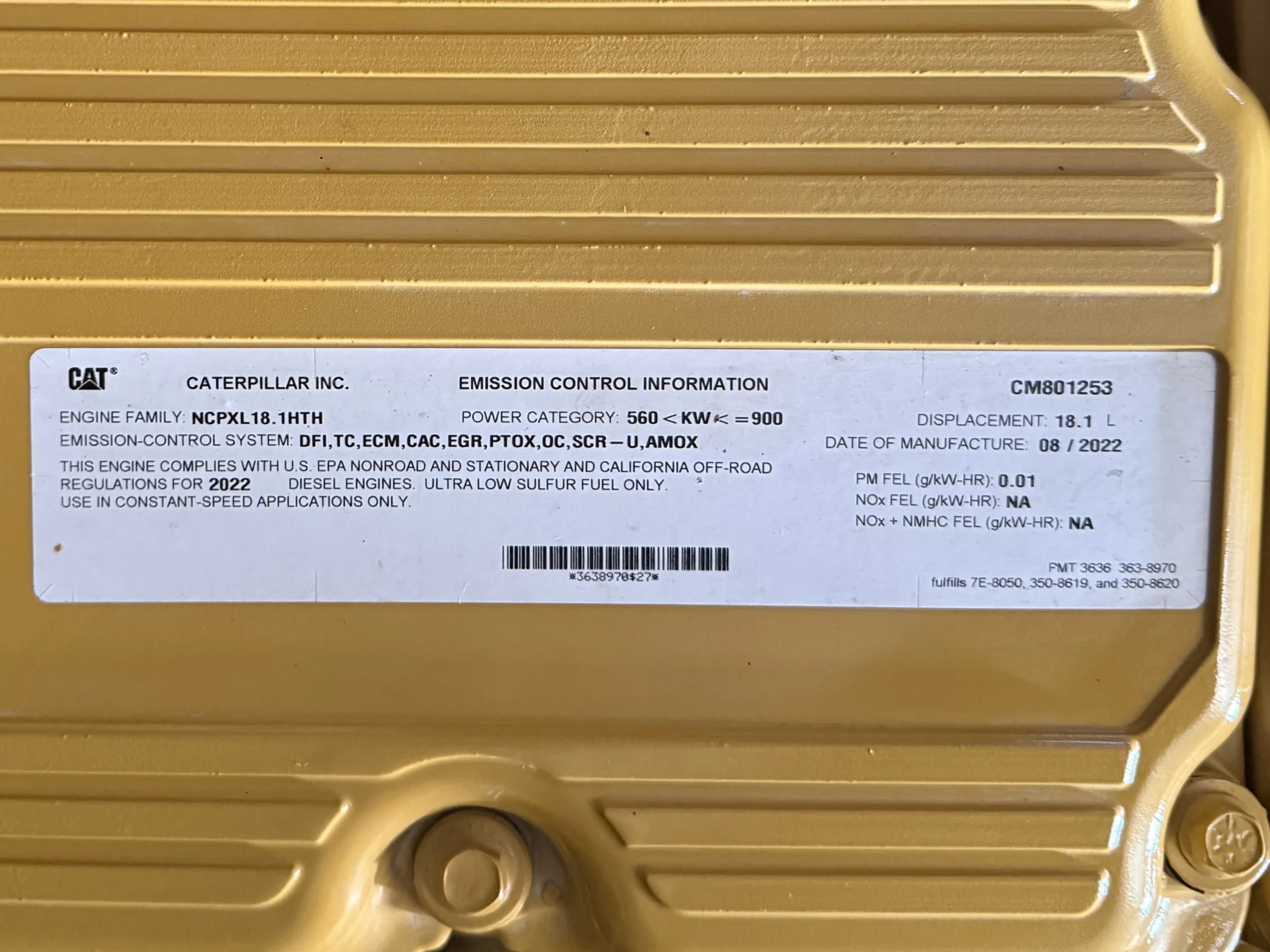

- Emissions Tier:EPA Tier 4 Final
- Horsepower:779 HP
- Displacement:18.1 L

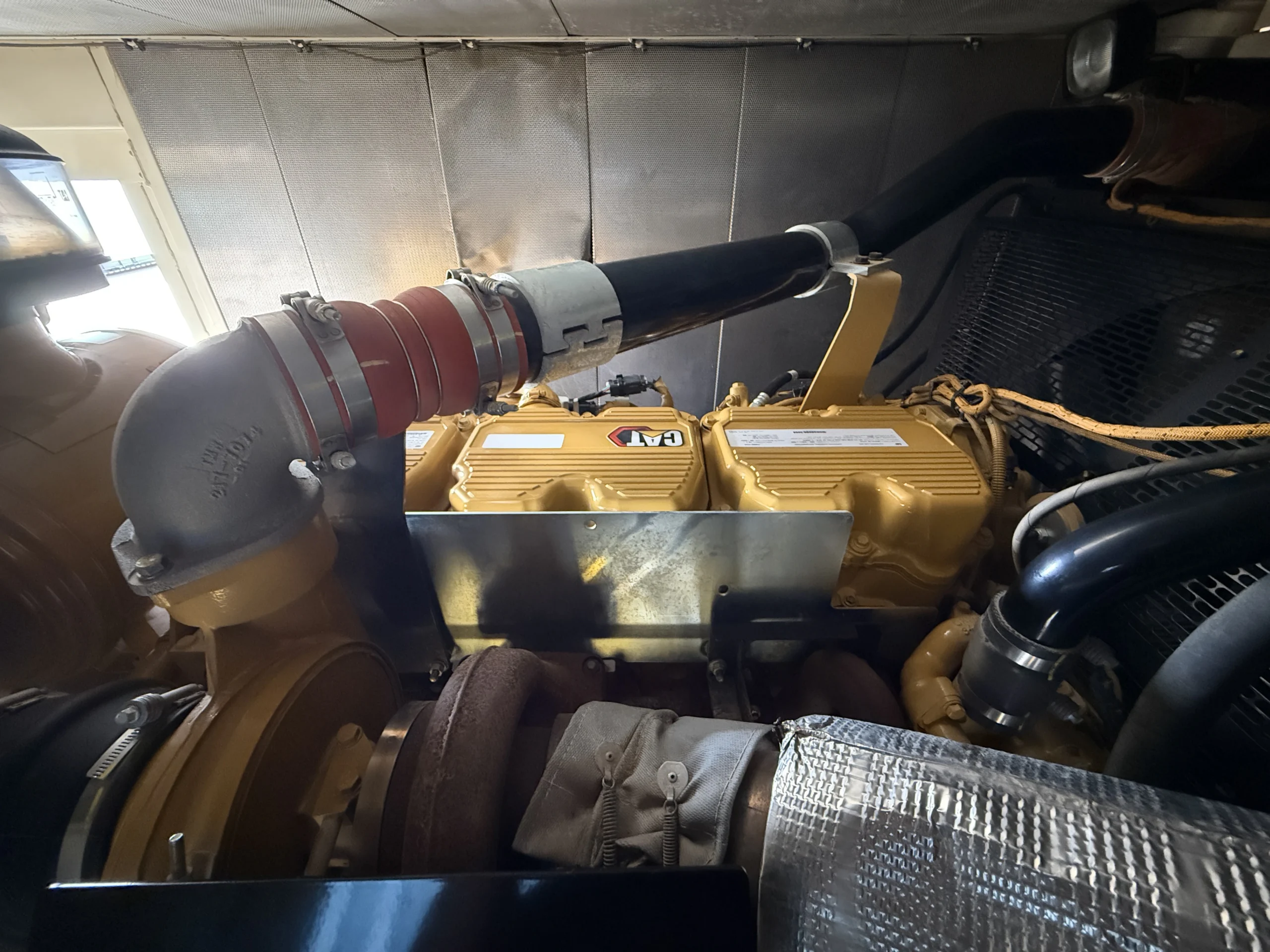

- Aspiration:Turbocharged Aftercooled
- Governor Type:Electronic
- Generator / Package
- Generator Insulation Class:Class H
- Reconnectable:Yes

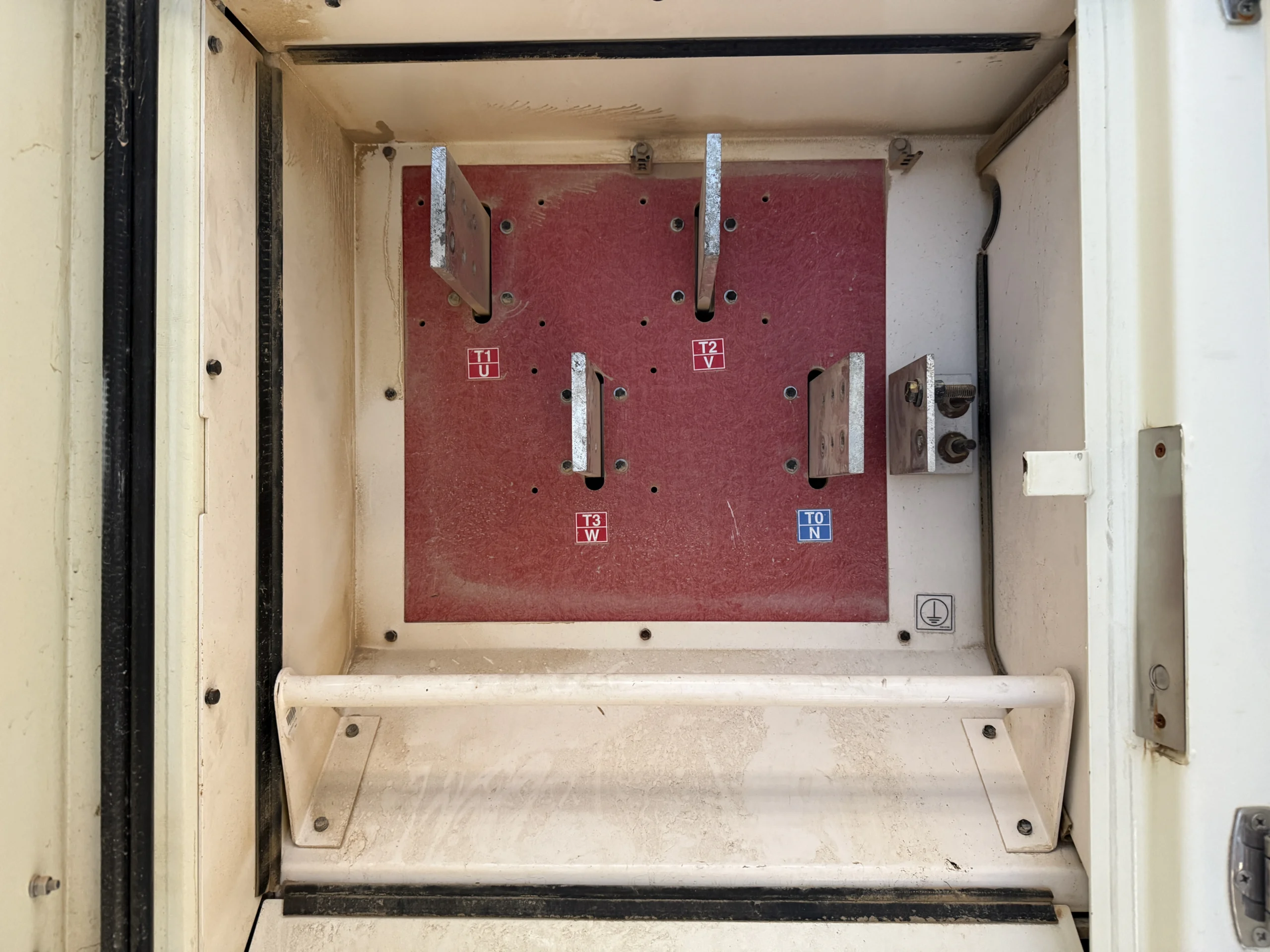

- Leads:12
- Voltage Configuration:208/240/440/480 V, 3-phase, reconnectable
- Excitation Type:PMG (Permanent Magnet Generator)

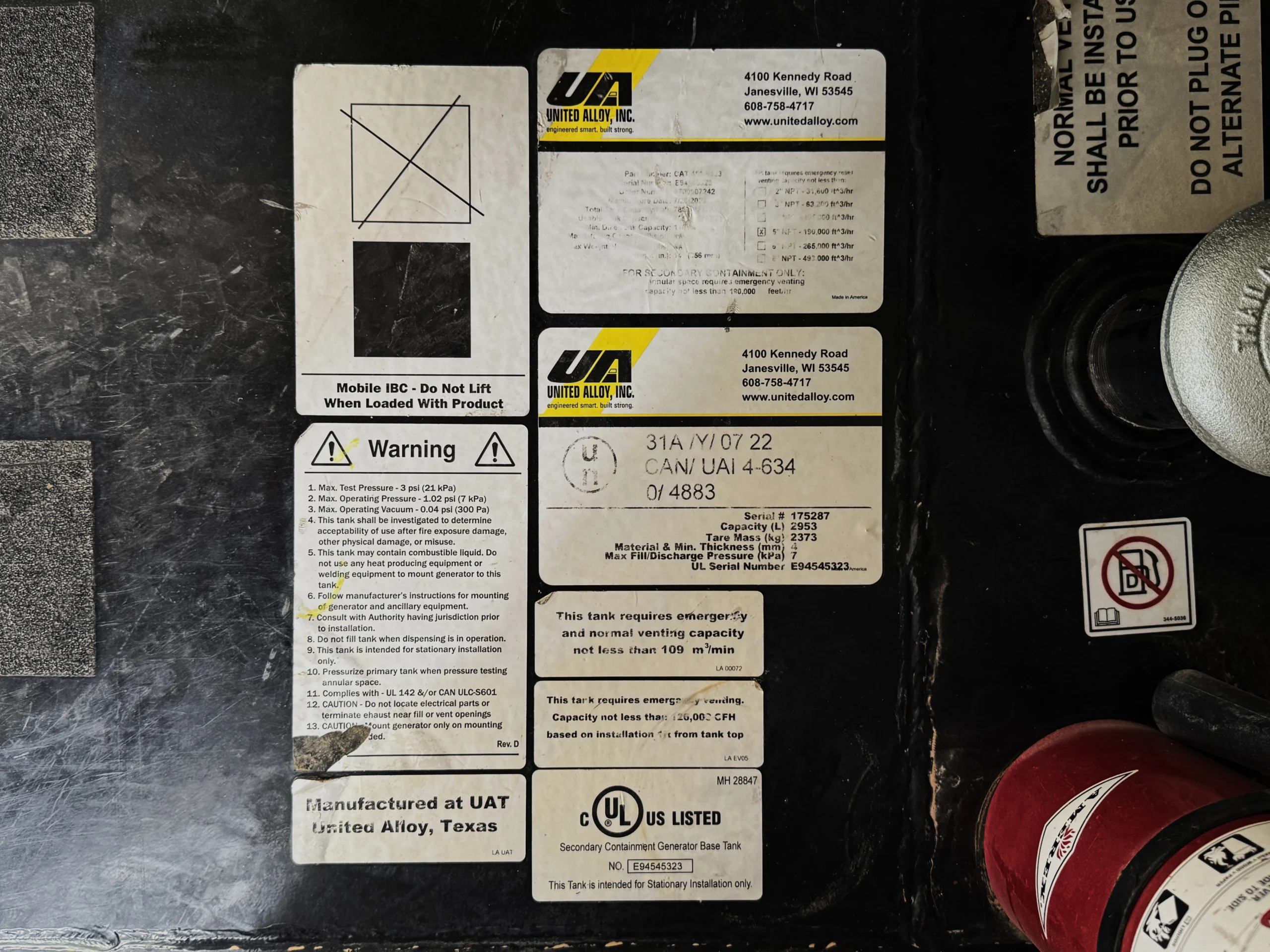

- Fuel Tank Capacity:780 Gallons
- Enclosure Type:Sound Attenuated Enclosure
- Mounting Type:Trailer Mounted
- Accessories / Components

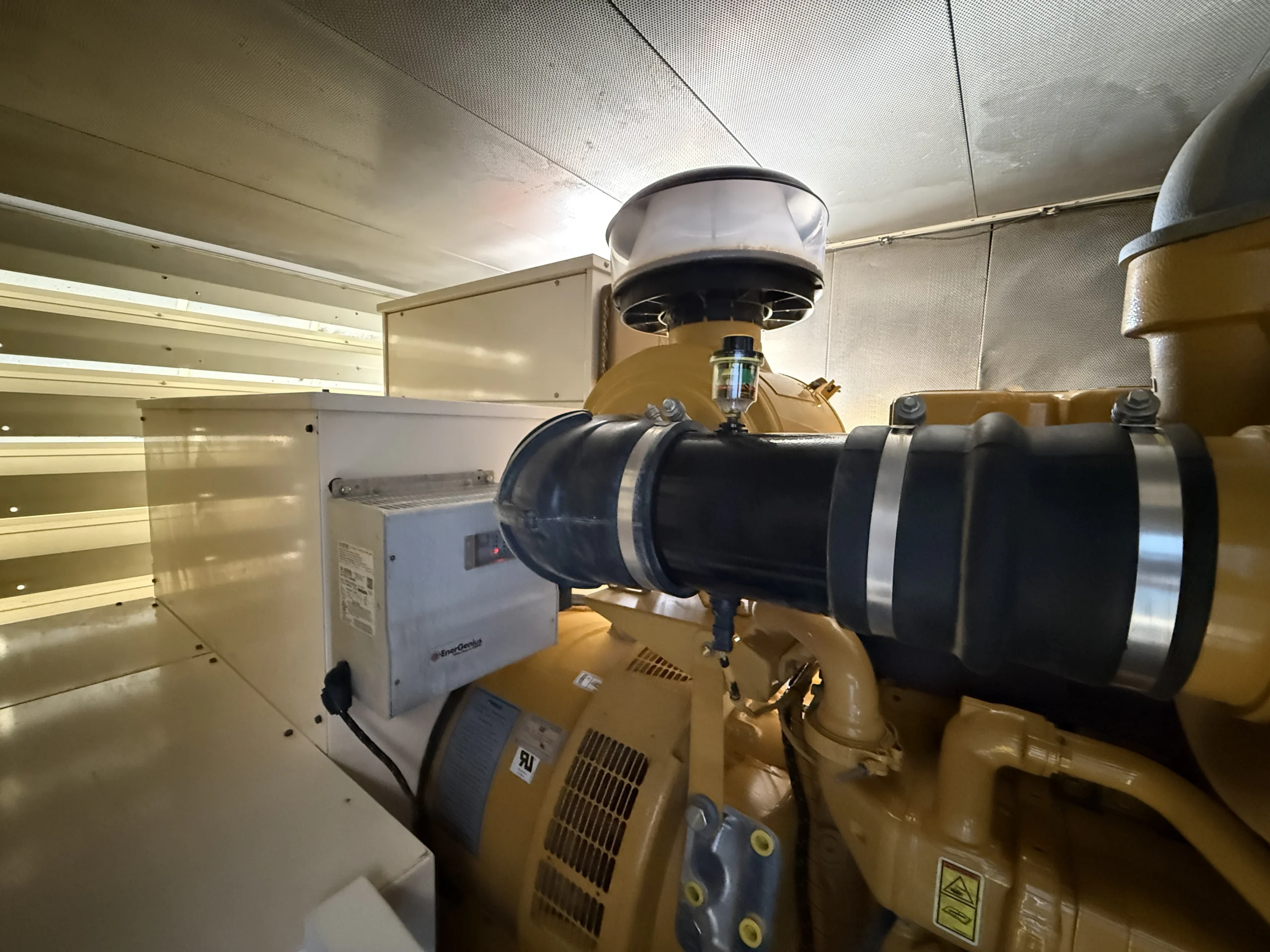

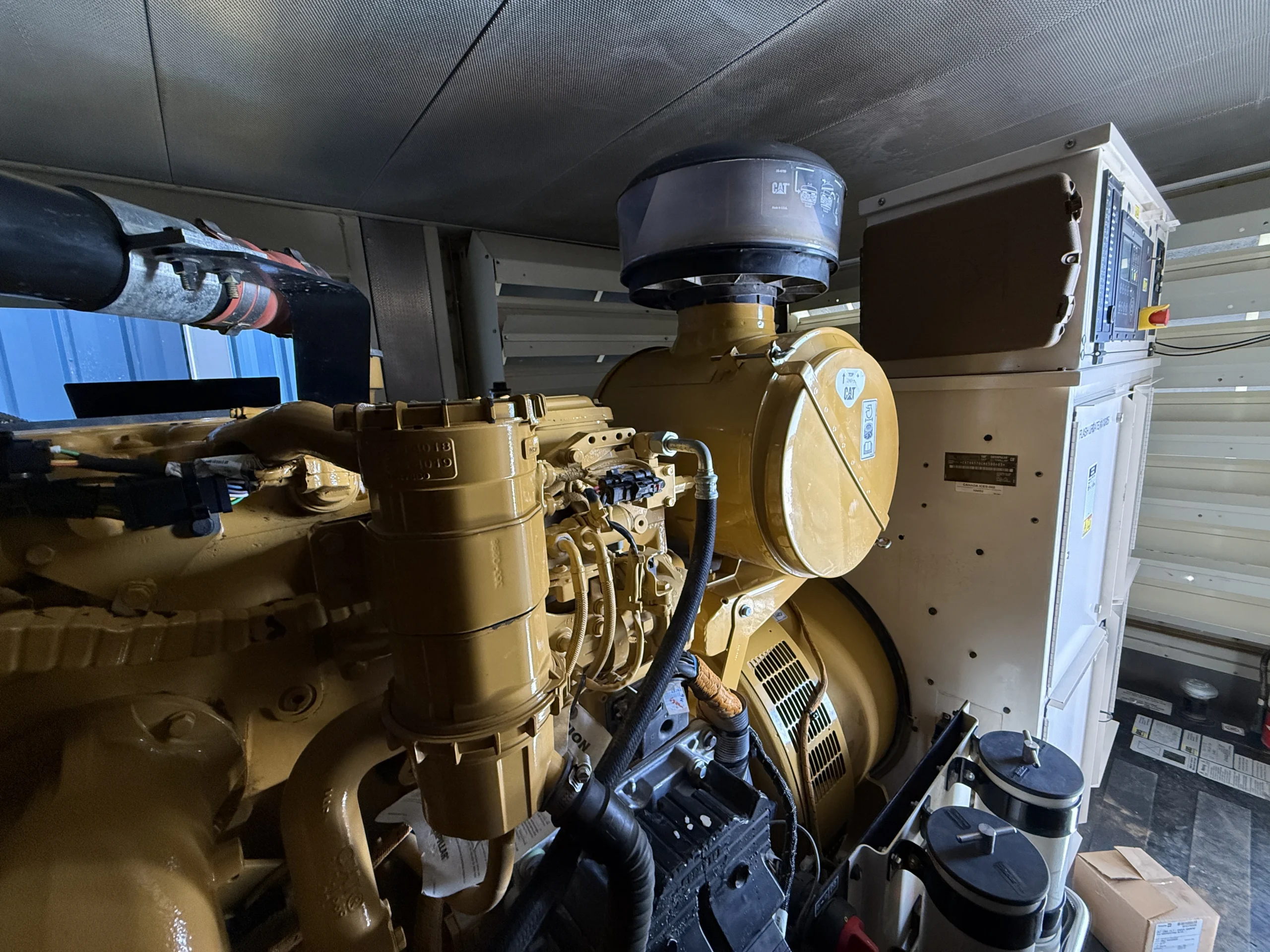

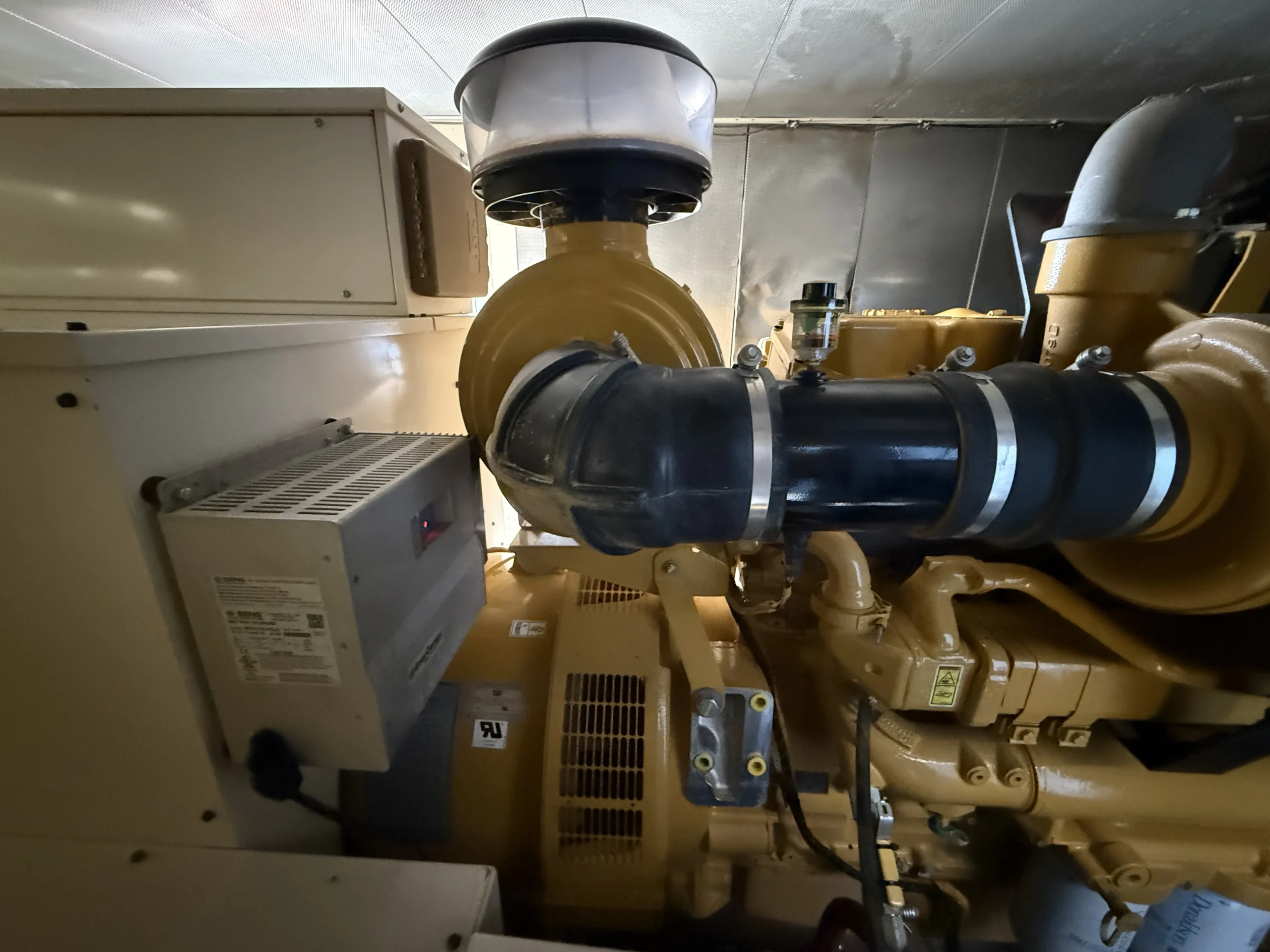

- Air Cleaner:Heavy-duty dry-type air cleaner with precleaner and service indicator

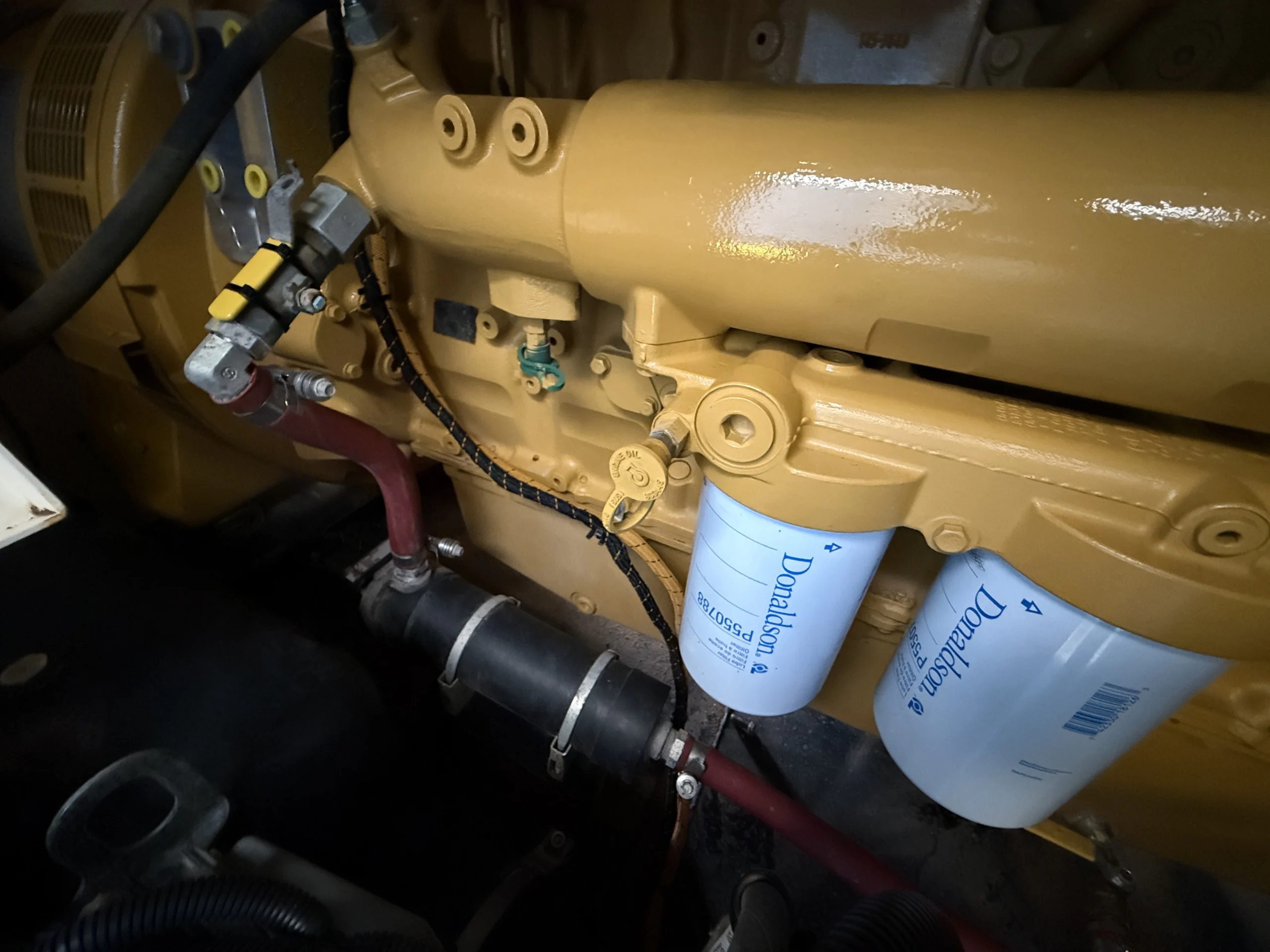

- Jacket Water Heater:CAT 336-8594, 3,000 W, 120/240 VAC, single-phase, 50/60 Hz

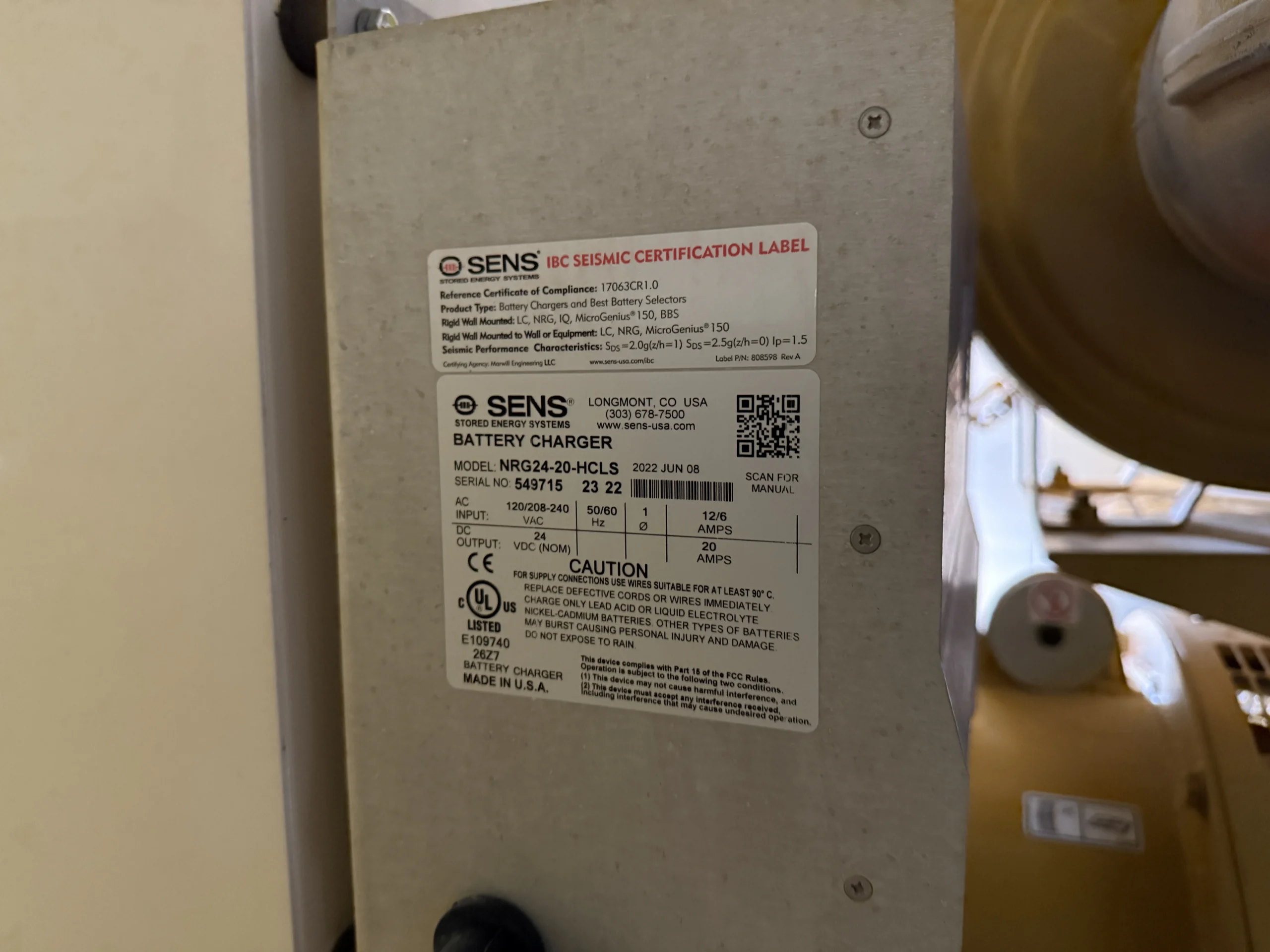

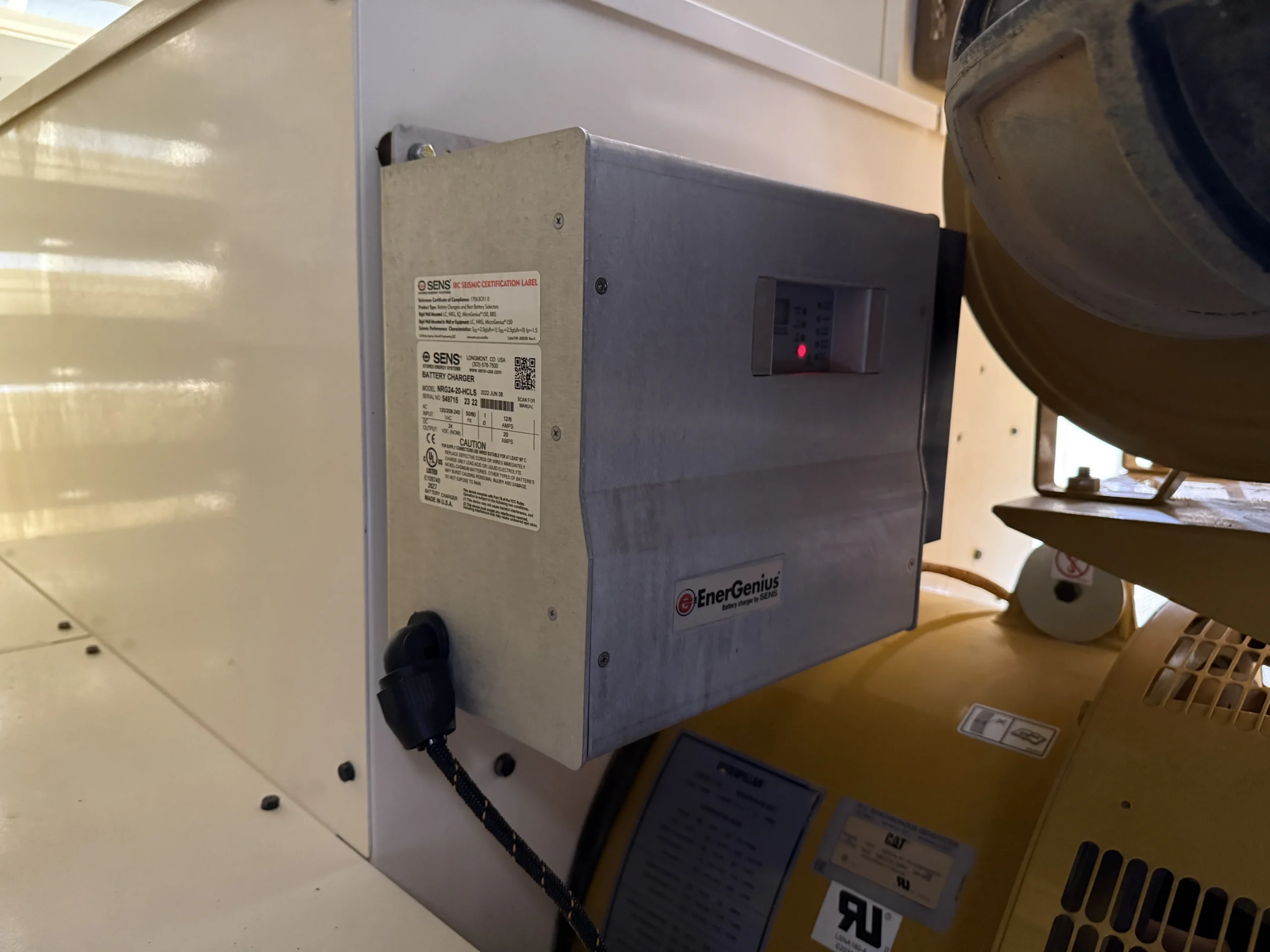

- Battery Charger:SENS NRG24-20-HCLS, 24 VDC, 20 A
- Starting System:24 VDC electric start
- Exhaust System:CAT Clean Emissions Module with DOC, DPF, SCR and DEF system
- Shipping / Reference
- Dimensions (L × W × H):291" × 101" × 153"
- Weight:40,000 lbs
- Stock Number:MEG1476
