2006 CAT C9 250kW Diesel Generator Set
$59,500
- 250 kW
- Diesel
- Used
Stock #: MEG1484
Click the button below to email our Sales Manager about this unit.
Details
Resources
Details
Technical Specifications
- Overview
- Year:2006
- Manufacturer:Caterpillar
- Package Model:C9

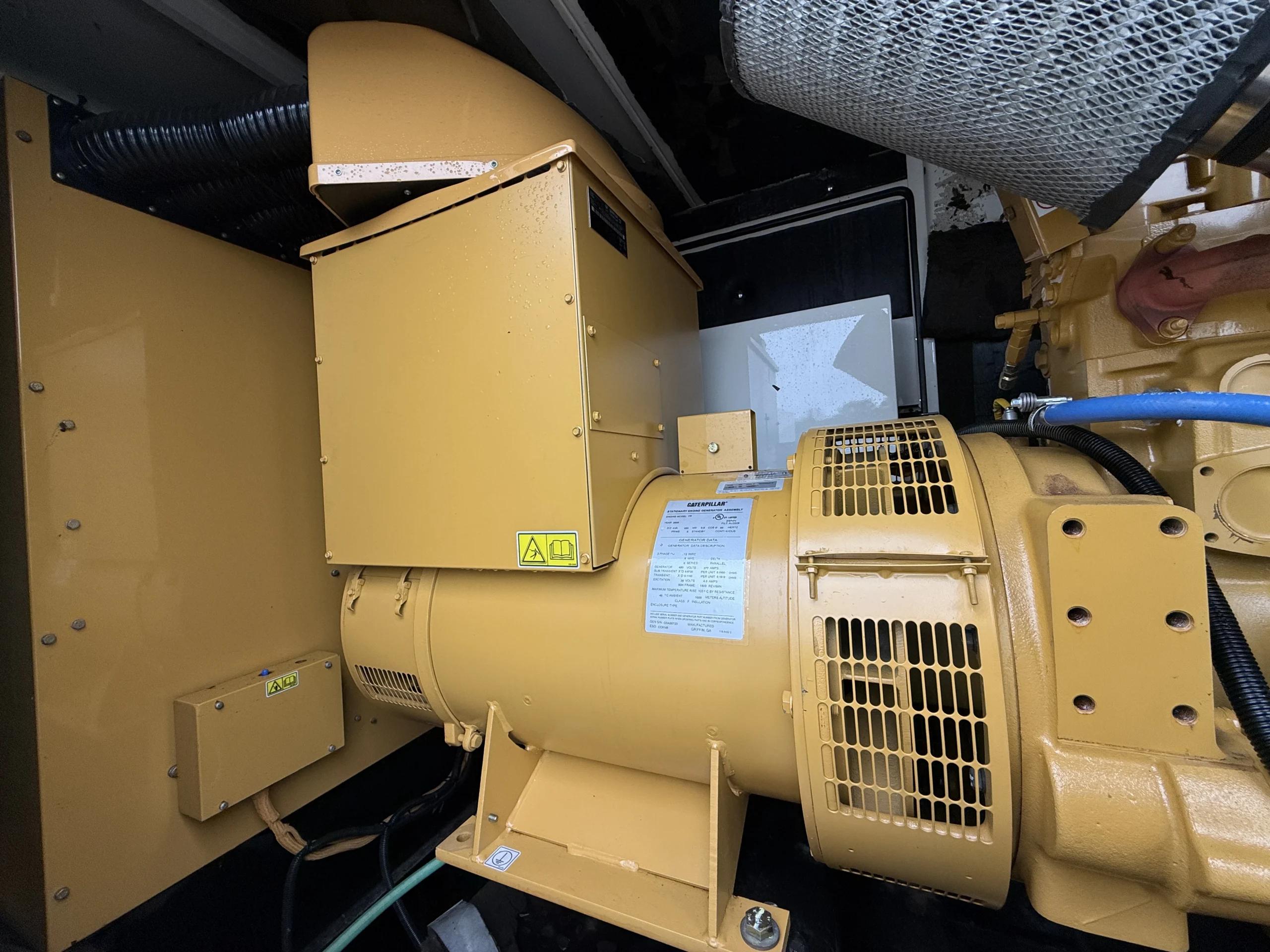

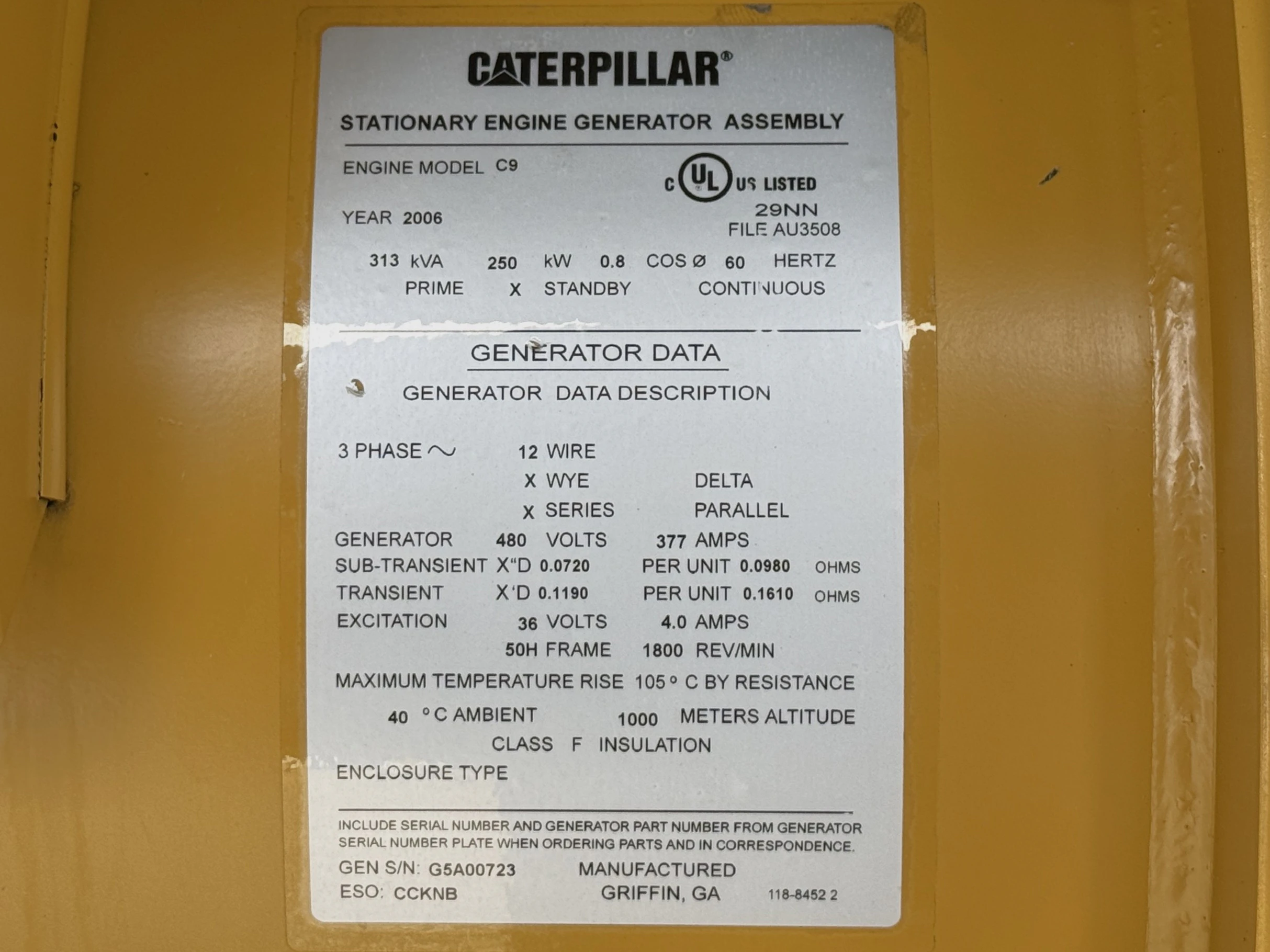

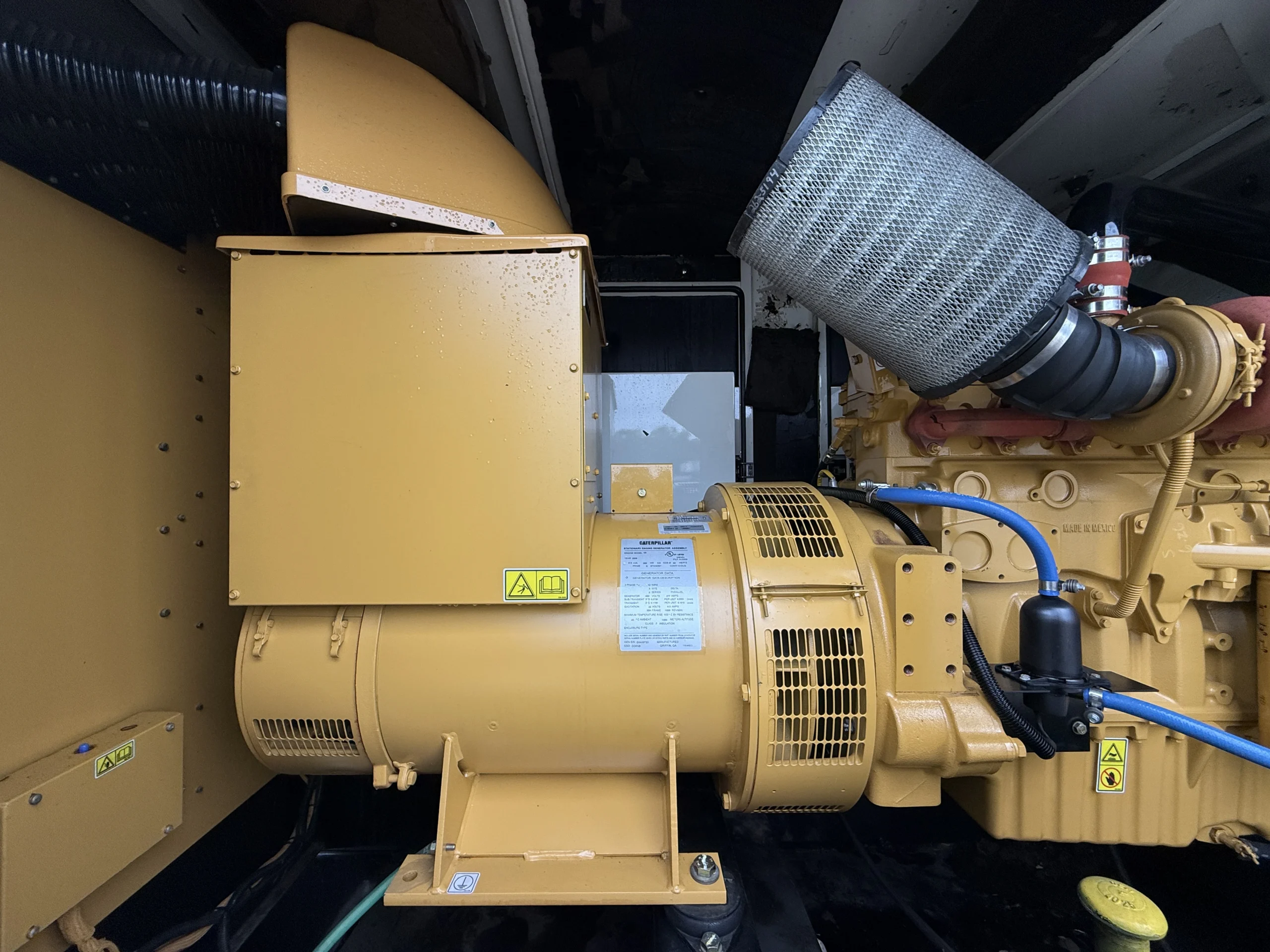

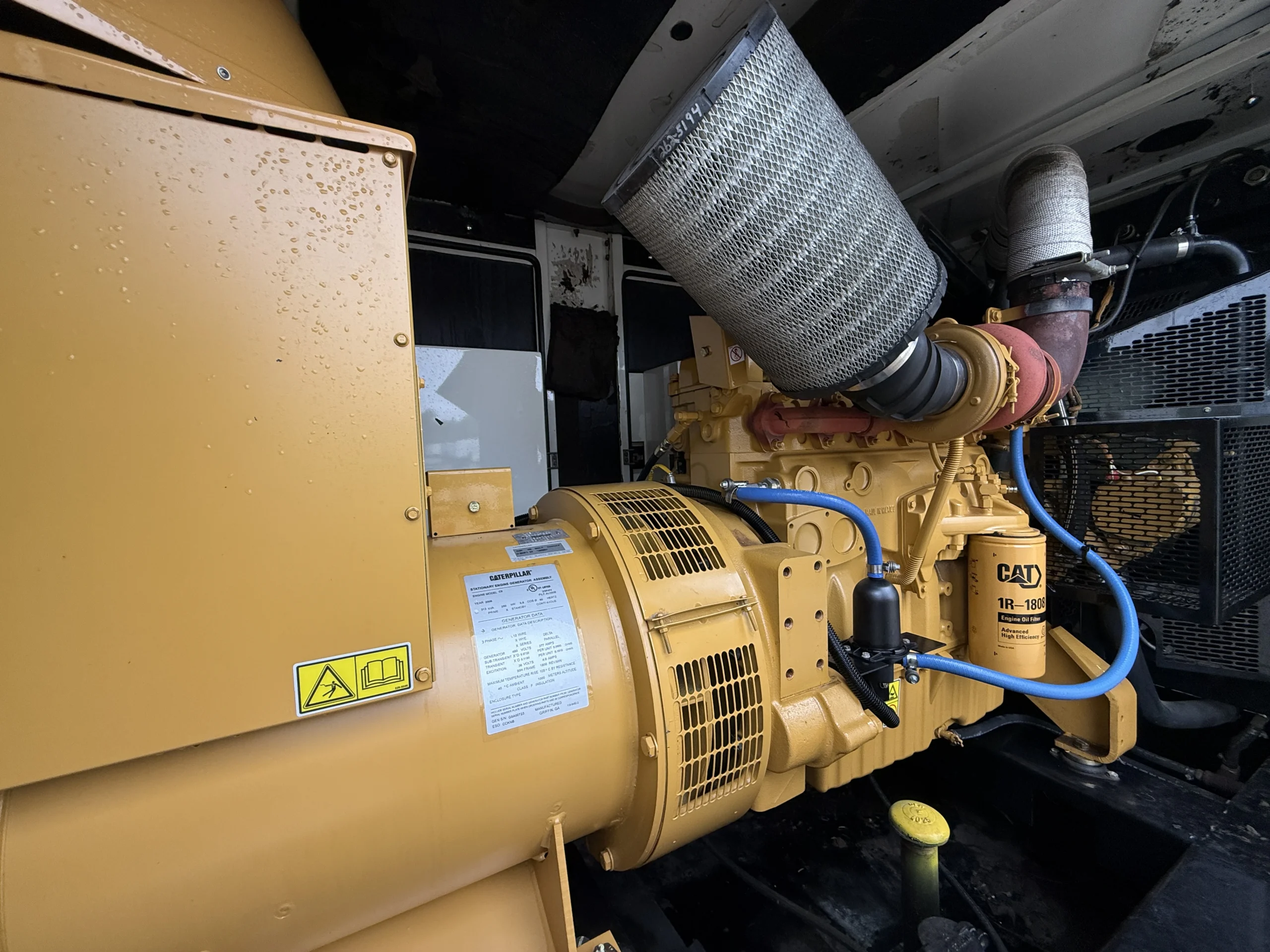

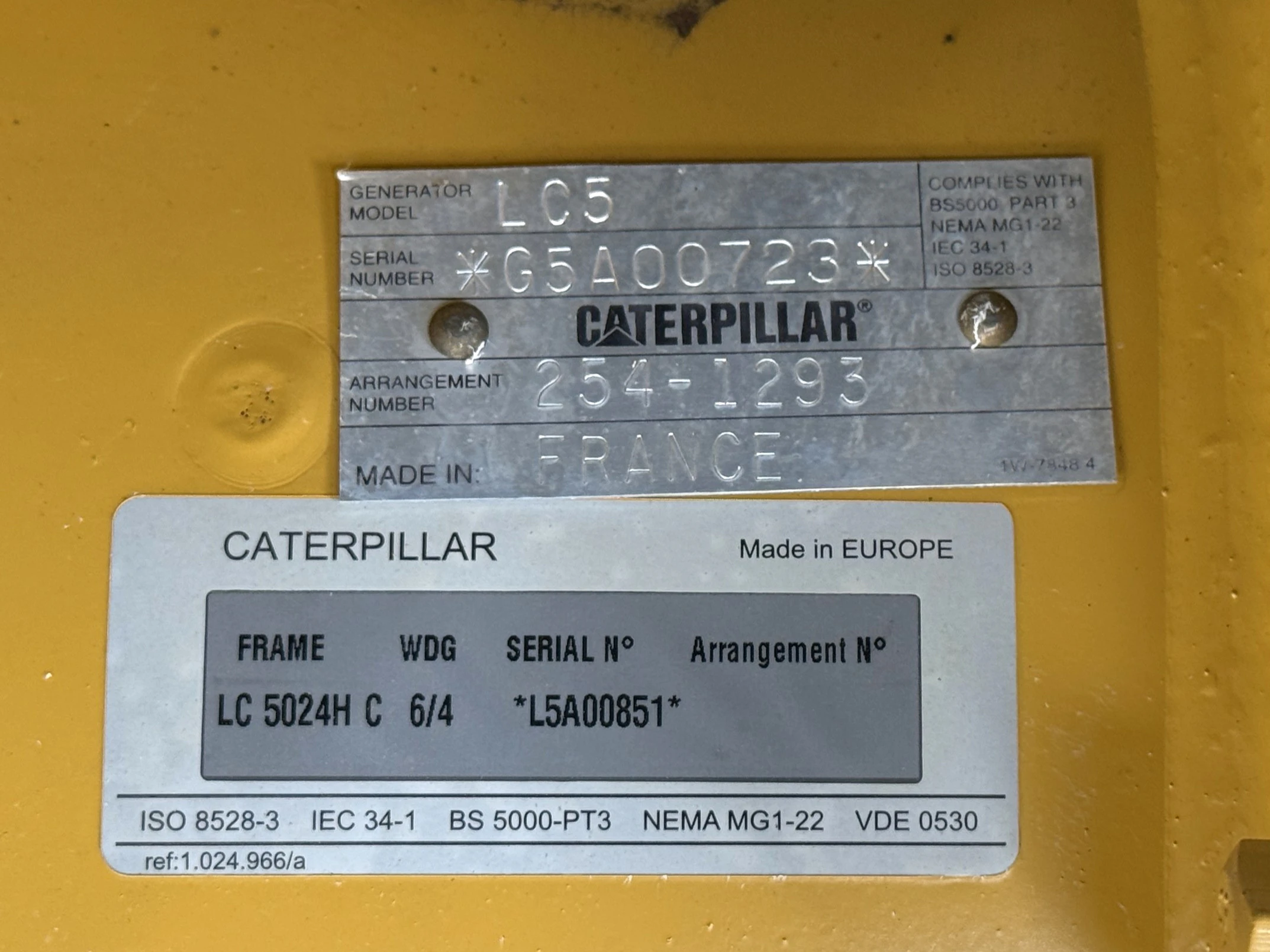

- Generator Model:LC5024H

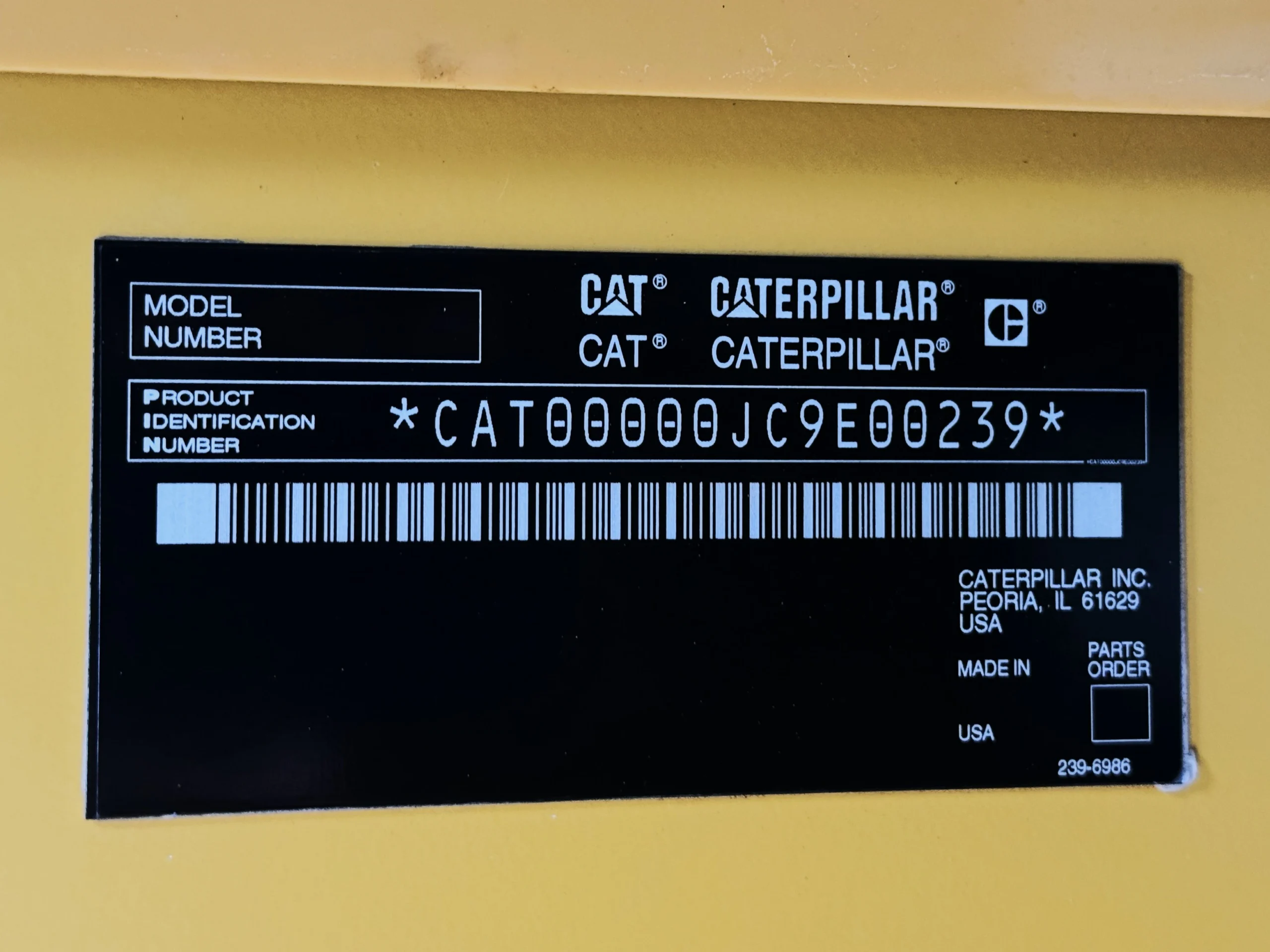

- Serial Number:C9E00239
- Condition:Used
- Electrical
- kW:250
- kVA:312.5
- Voltage:480
- Amperage:377.0
- Frequency:60 Hz
- RPM:1,800

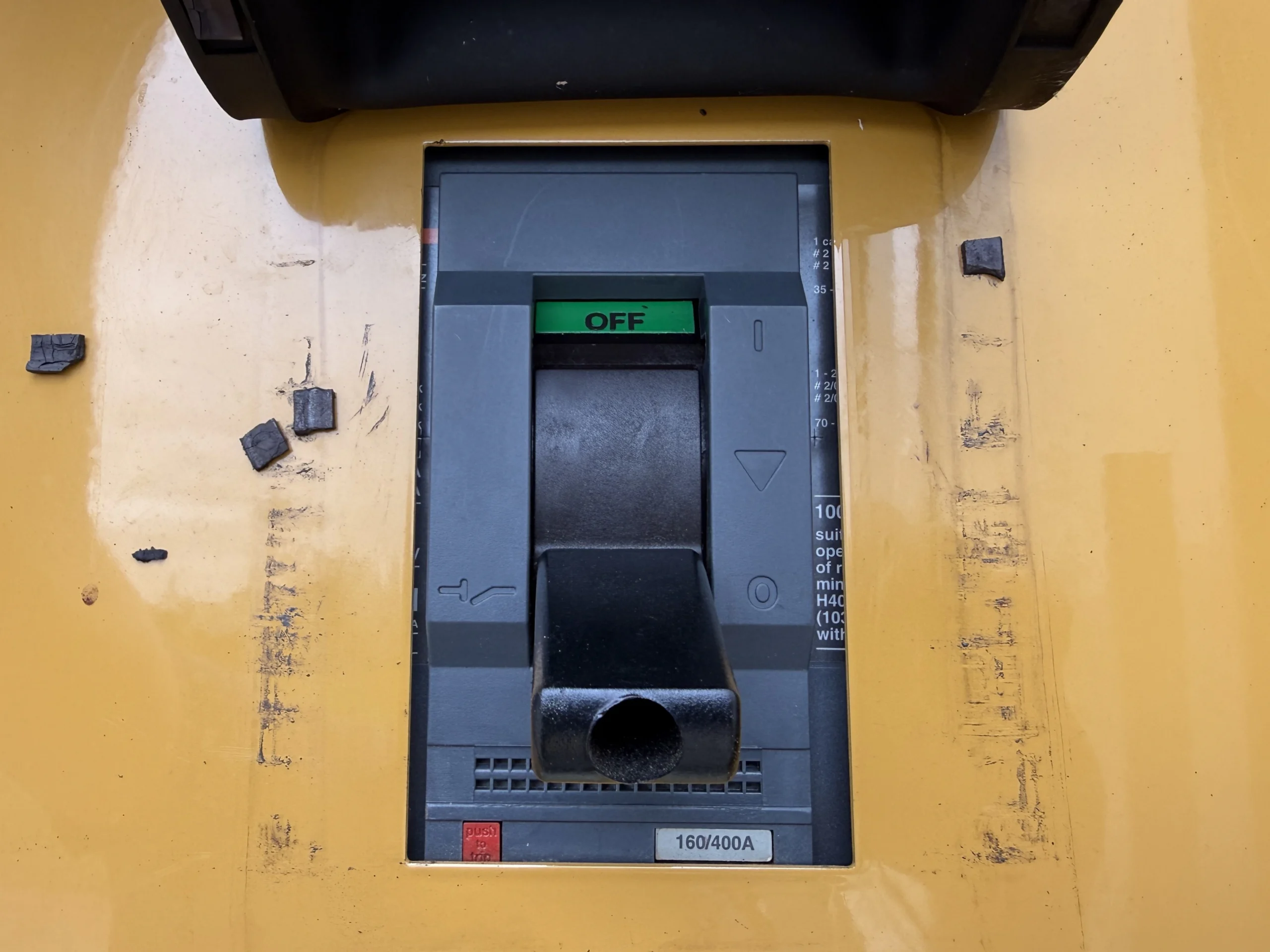

- Breaker:400A, 3-Pole, 100% Rated UL

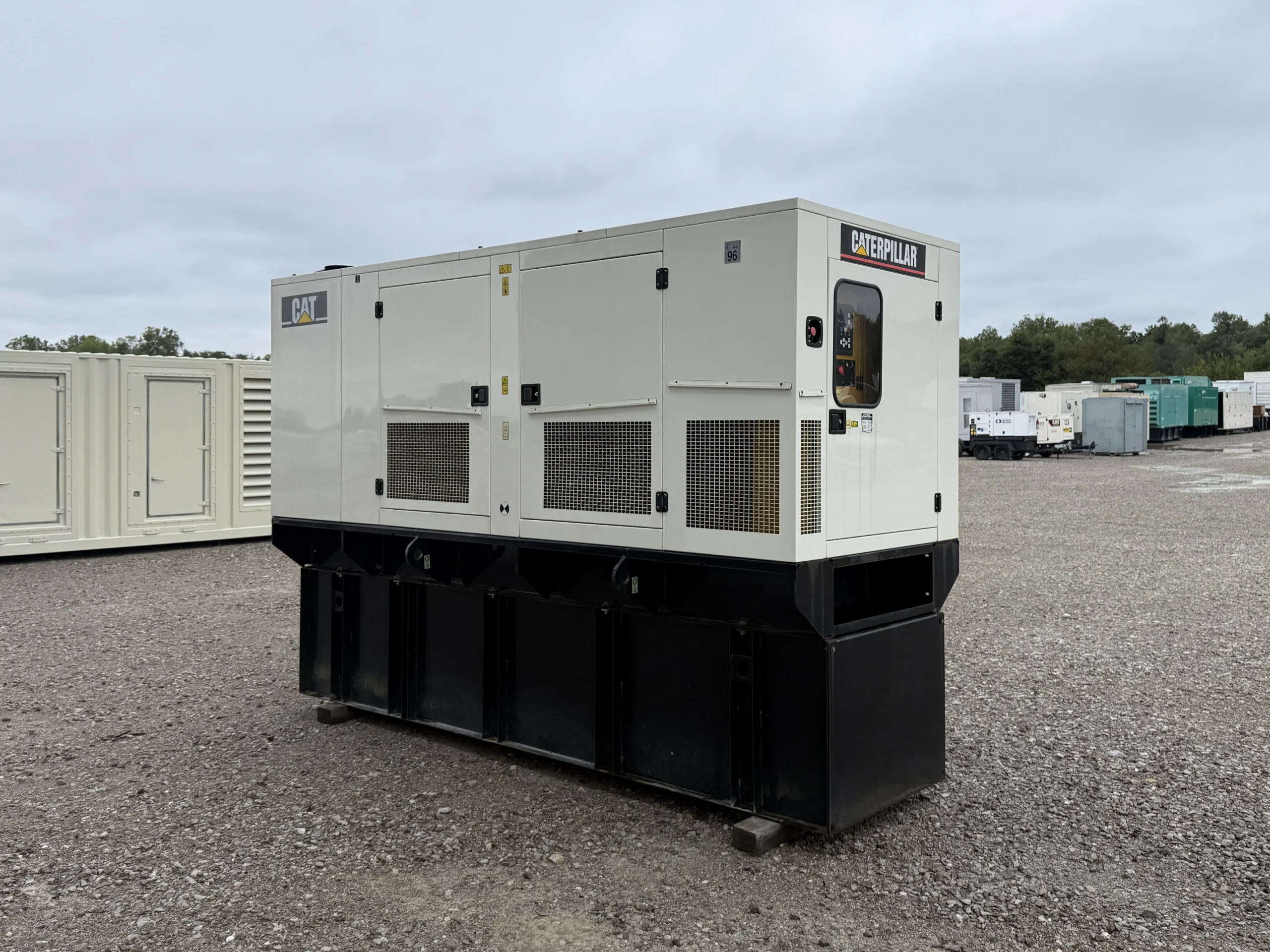

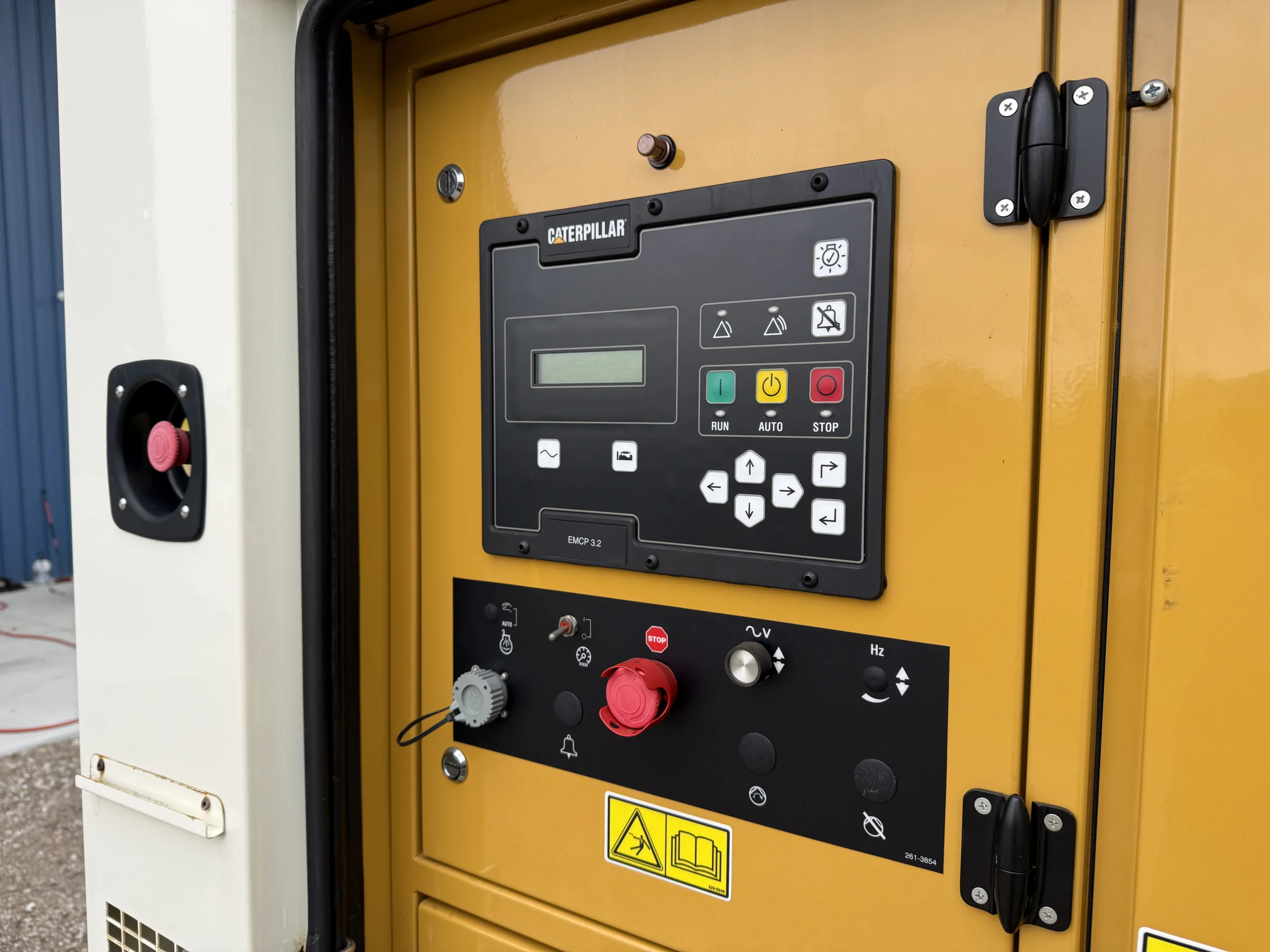

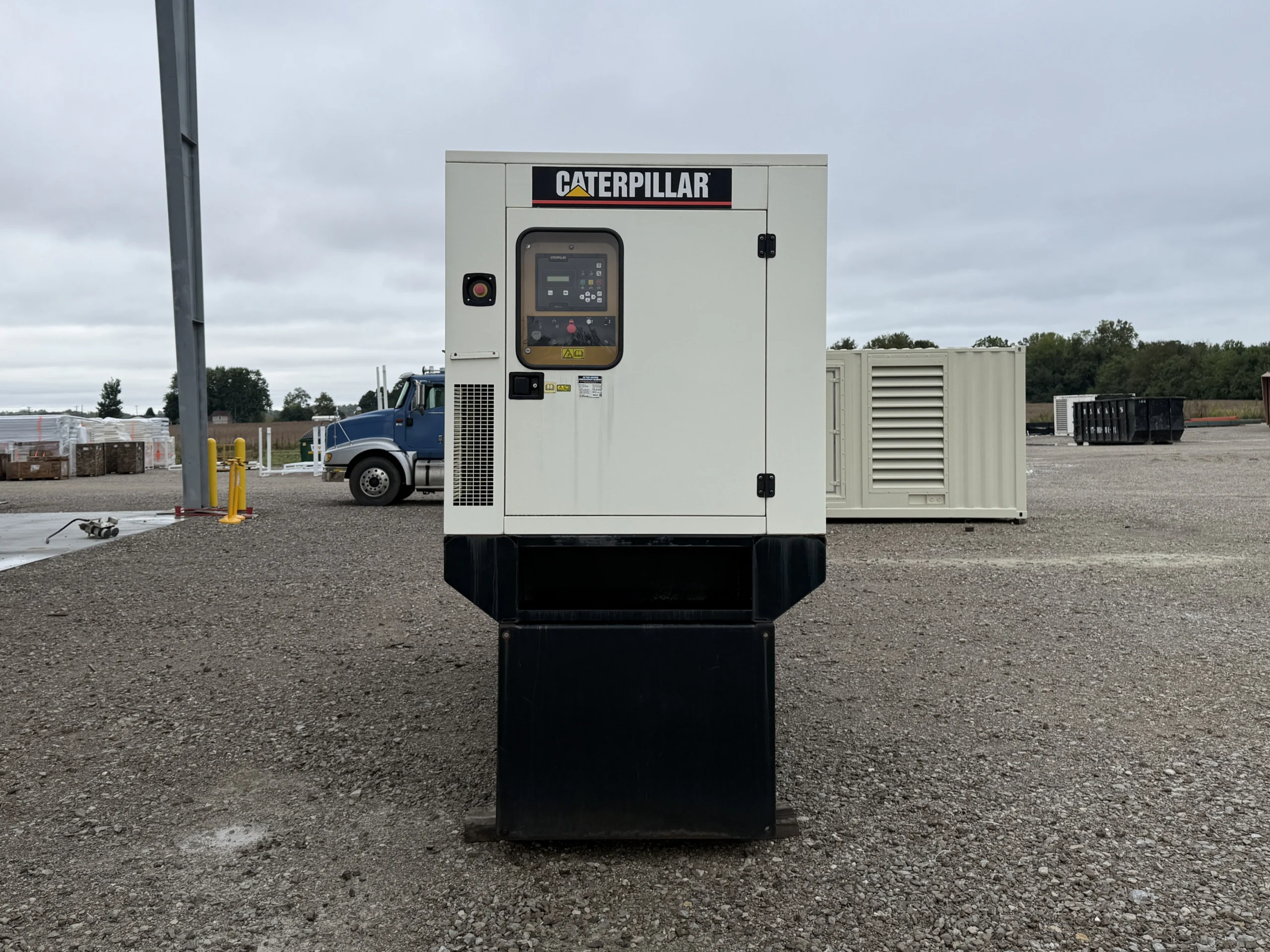

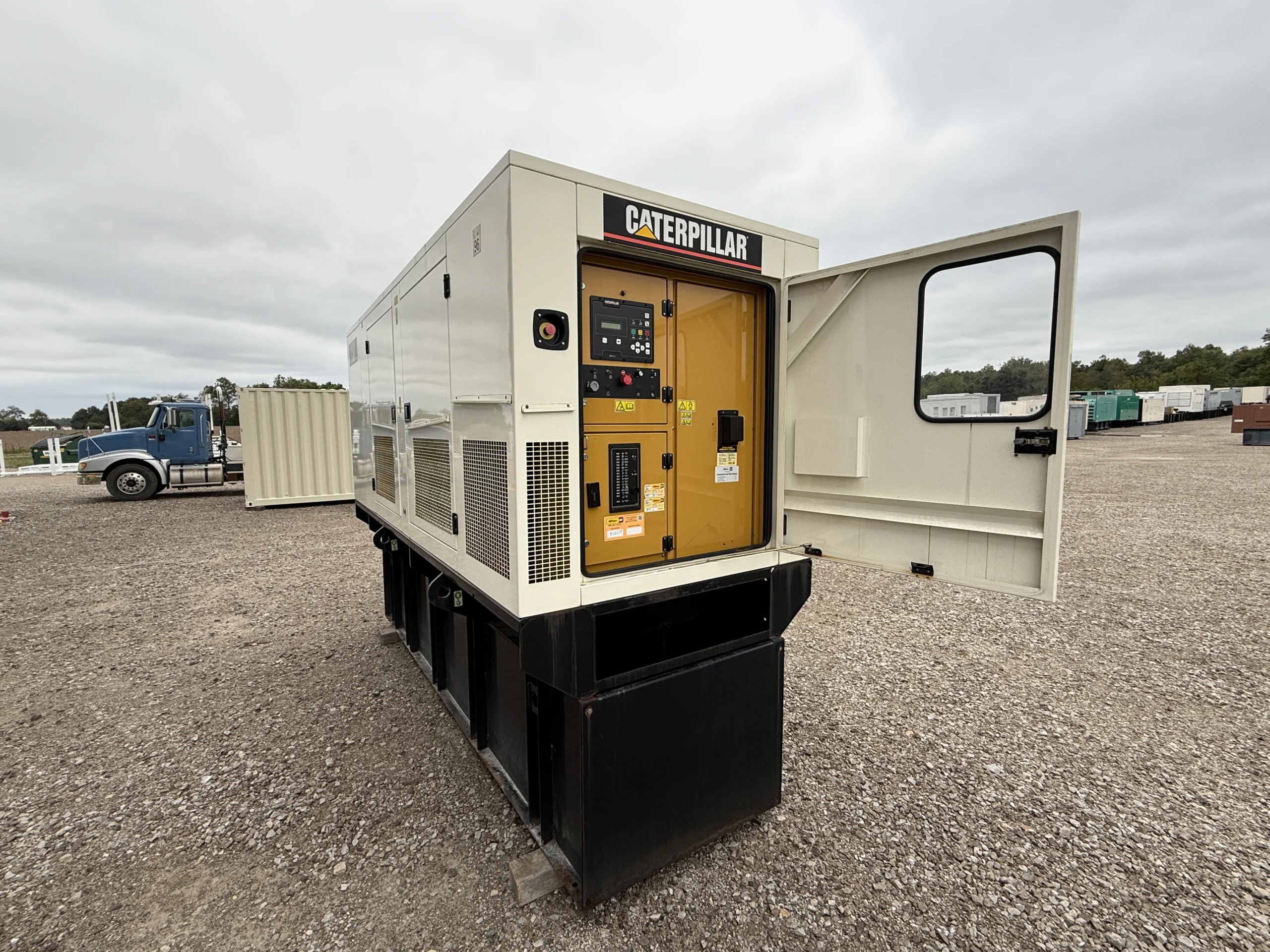

- Control Panel:EMCP 3.2
- Phase Type:Three Phase
- Power Rating:Standby
- Engine
- Fuel Type:Diesel
- Engine Manufacturer:Caterpillar

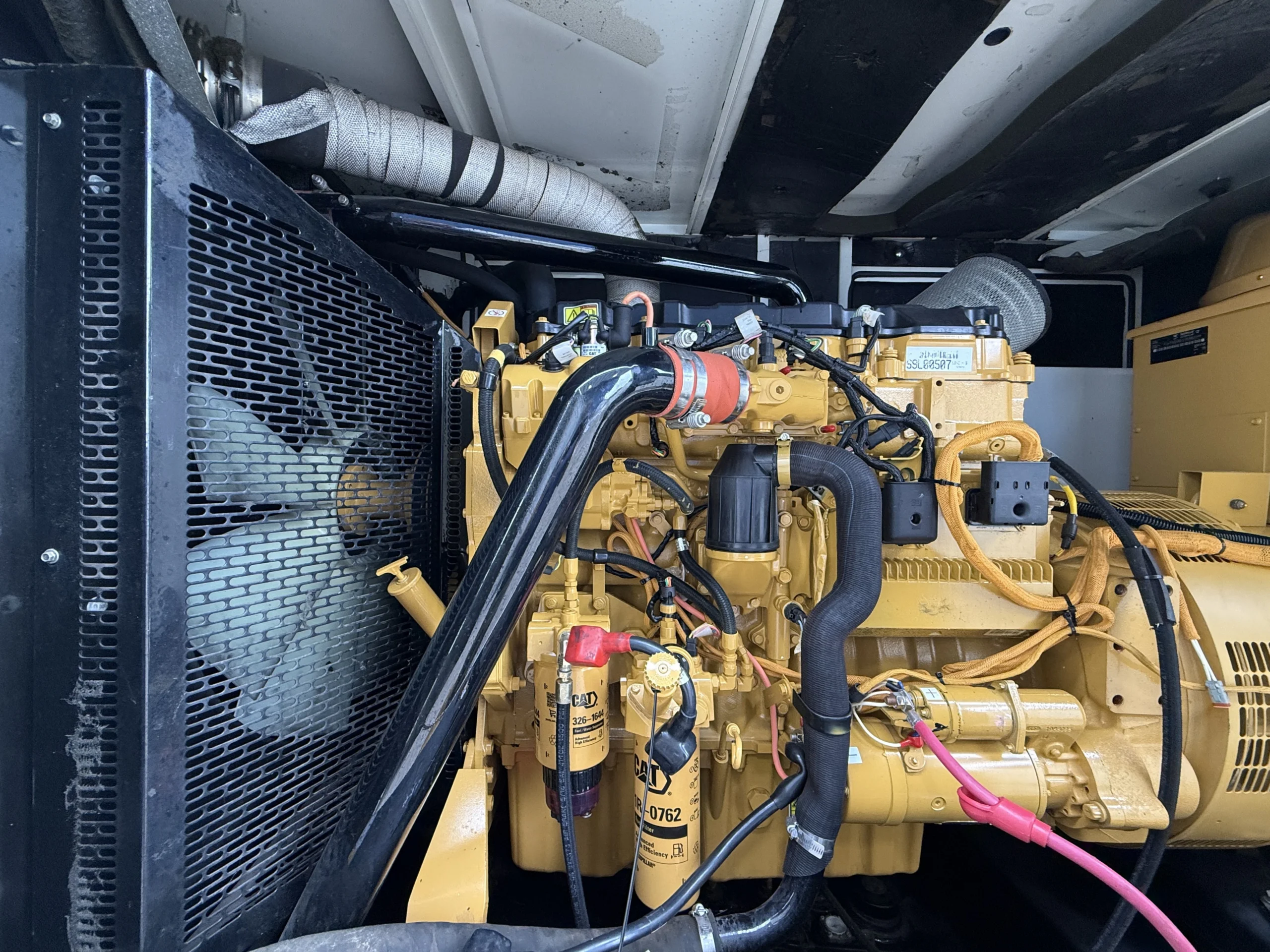

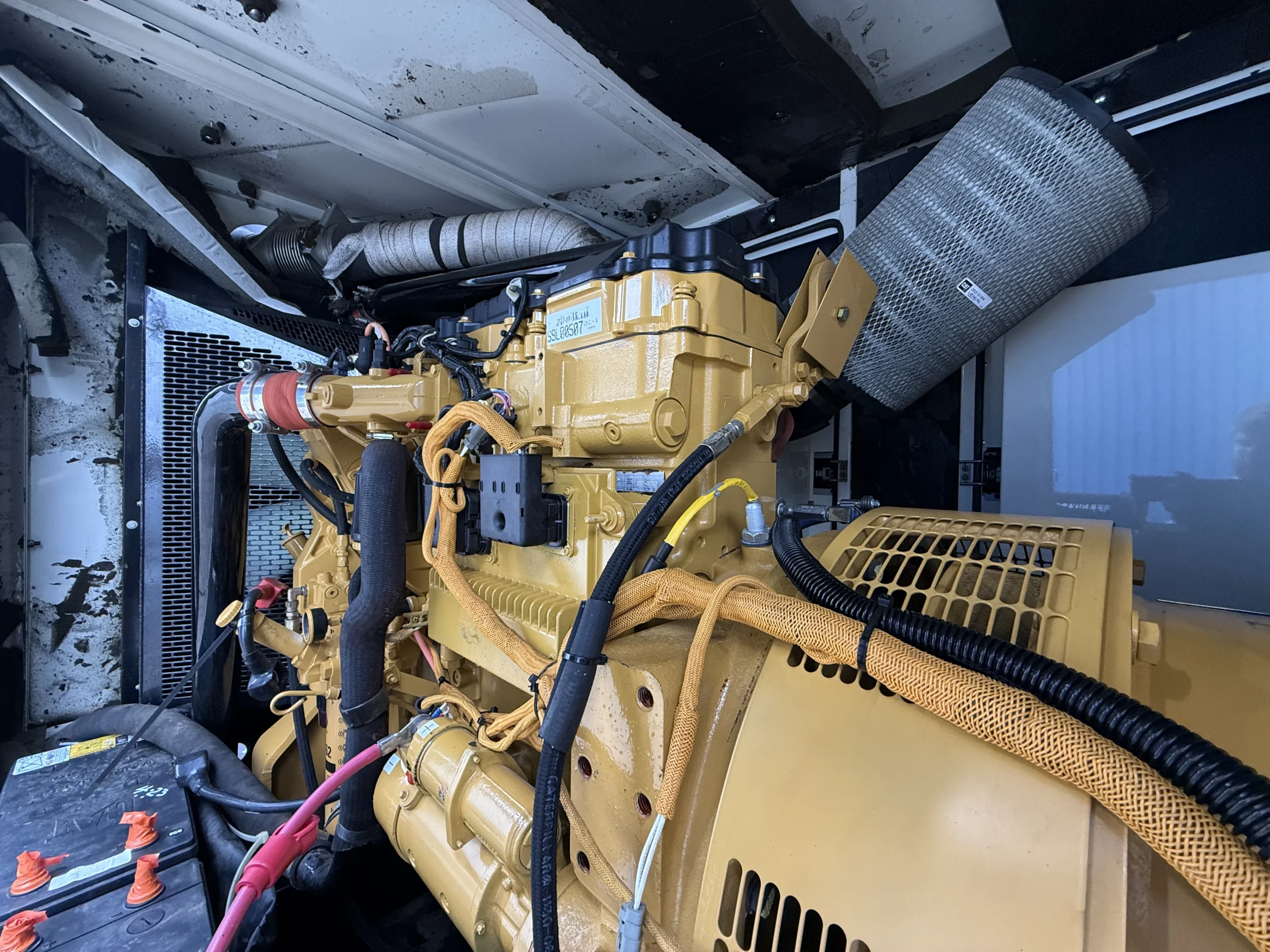

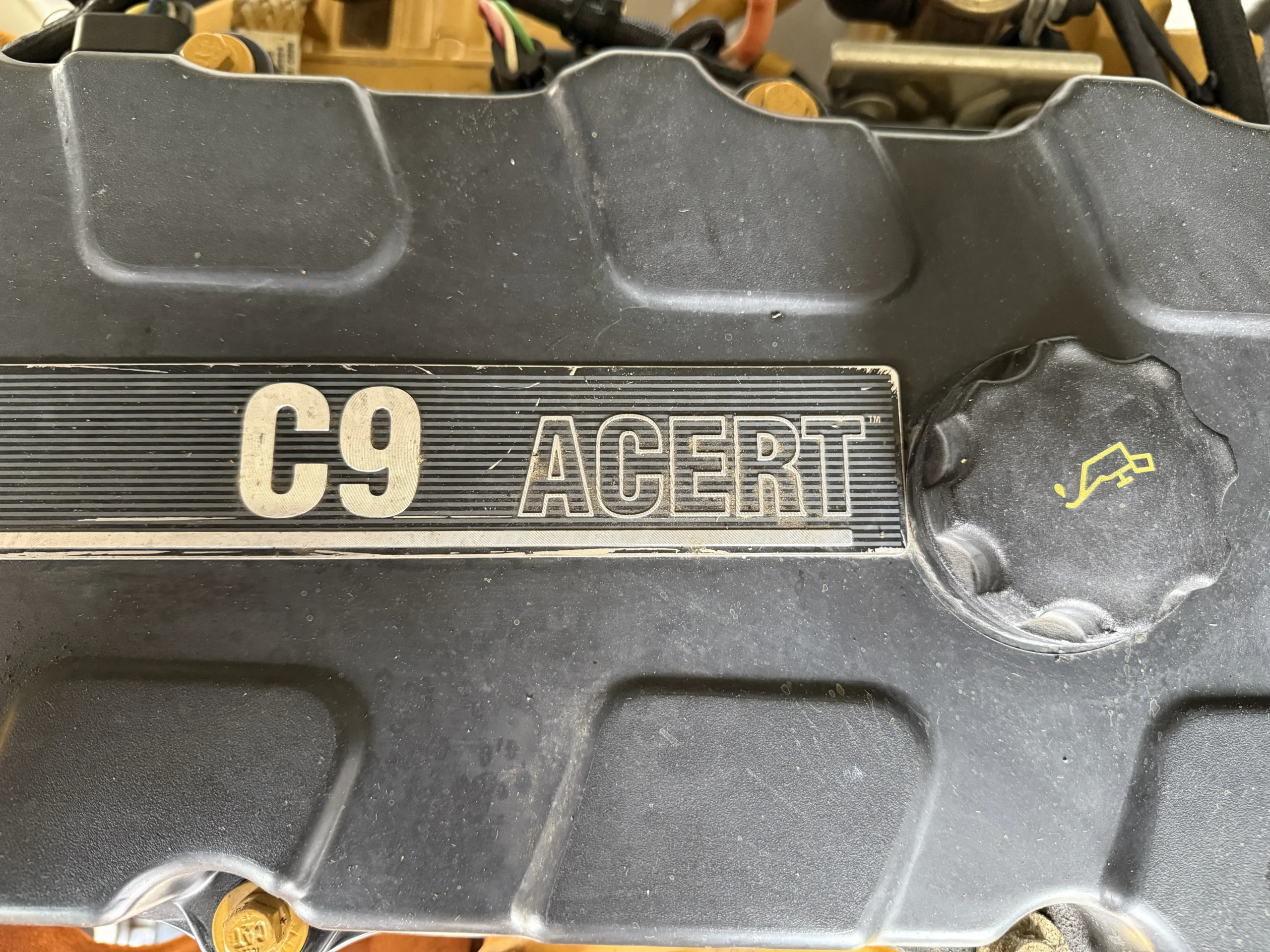

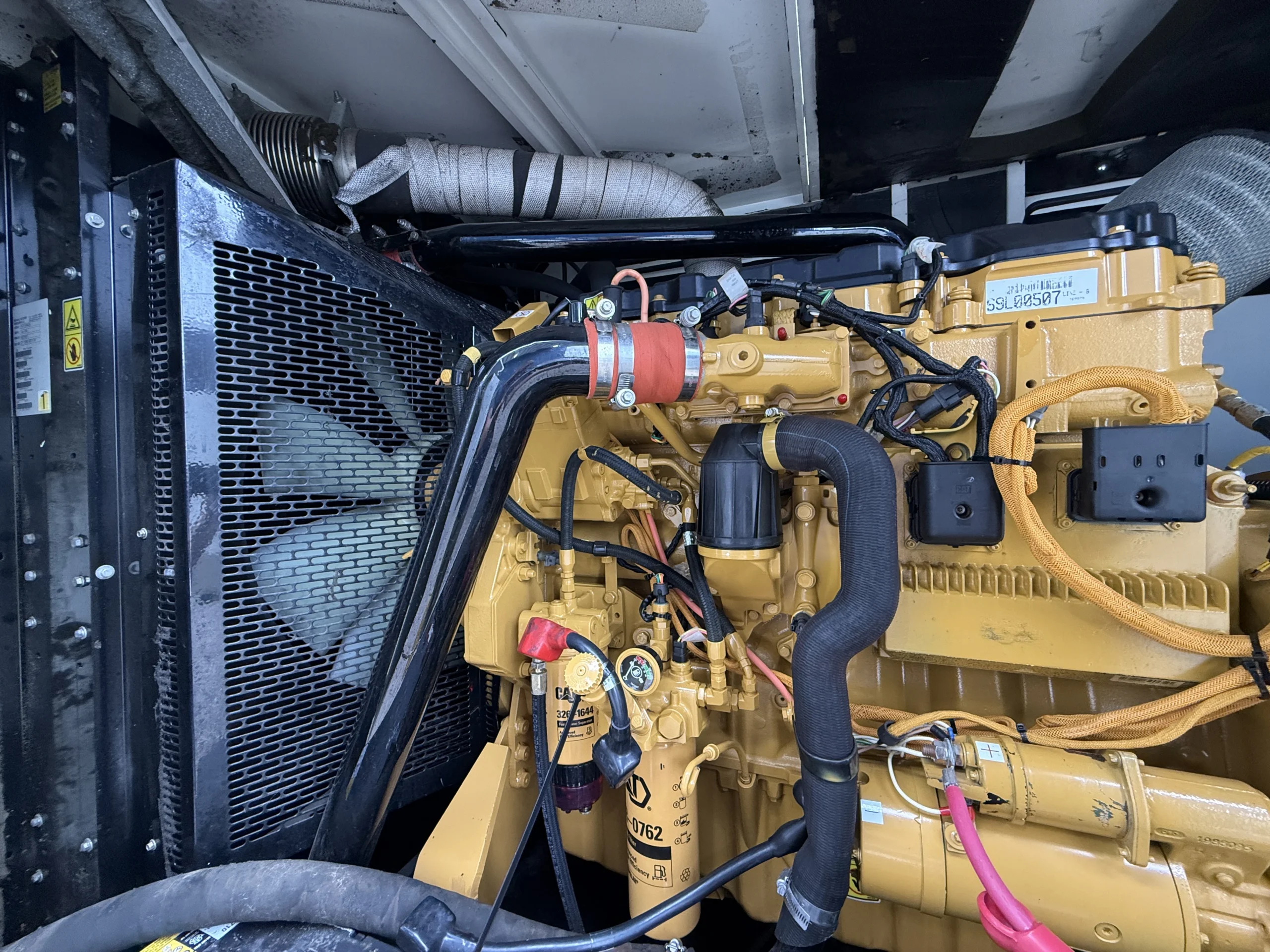

- Engine Model:C9

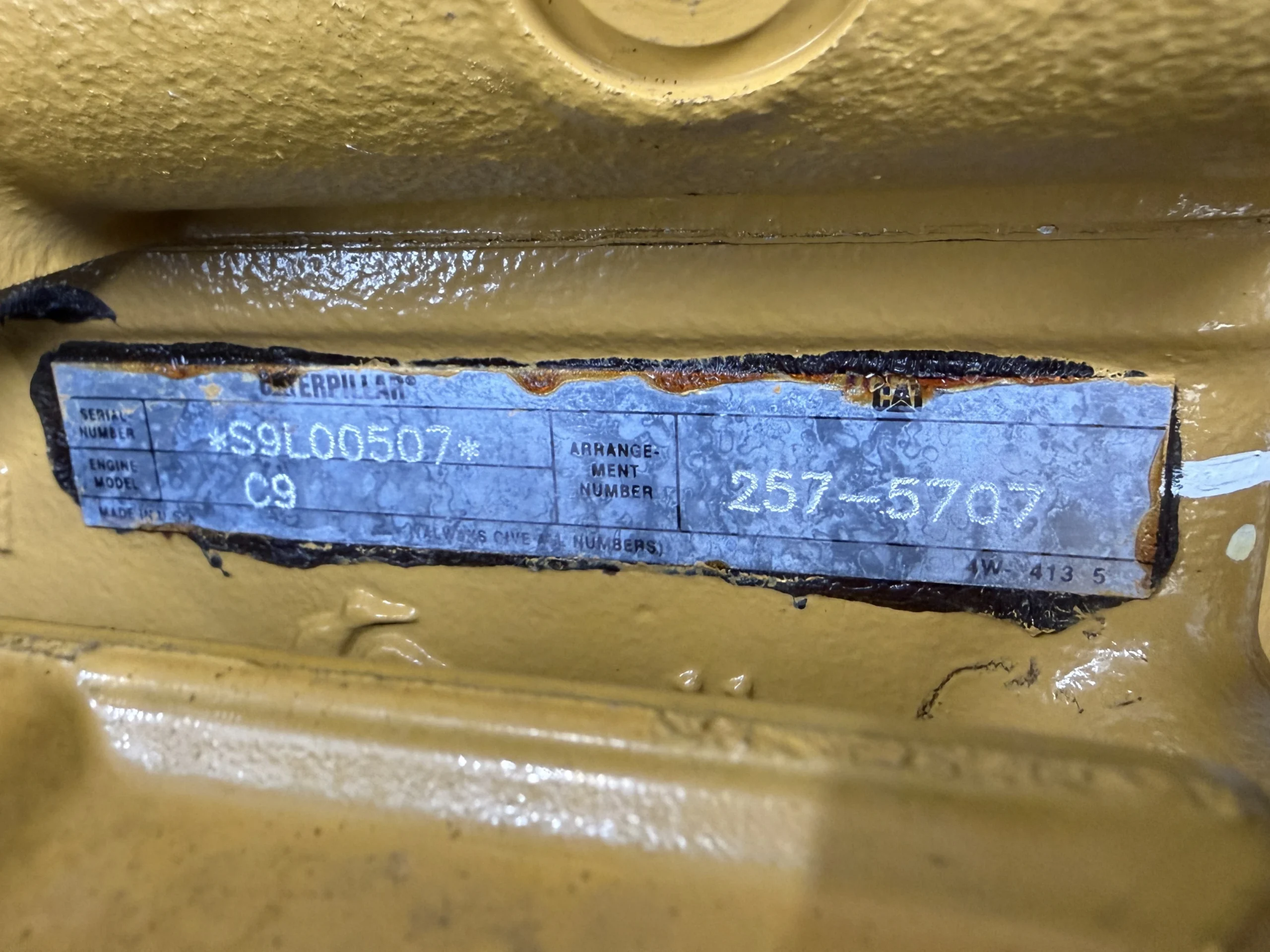

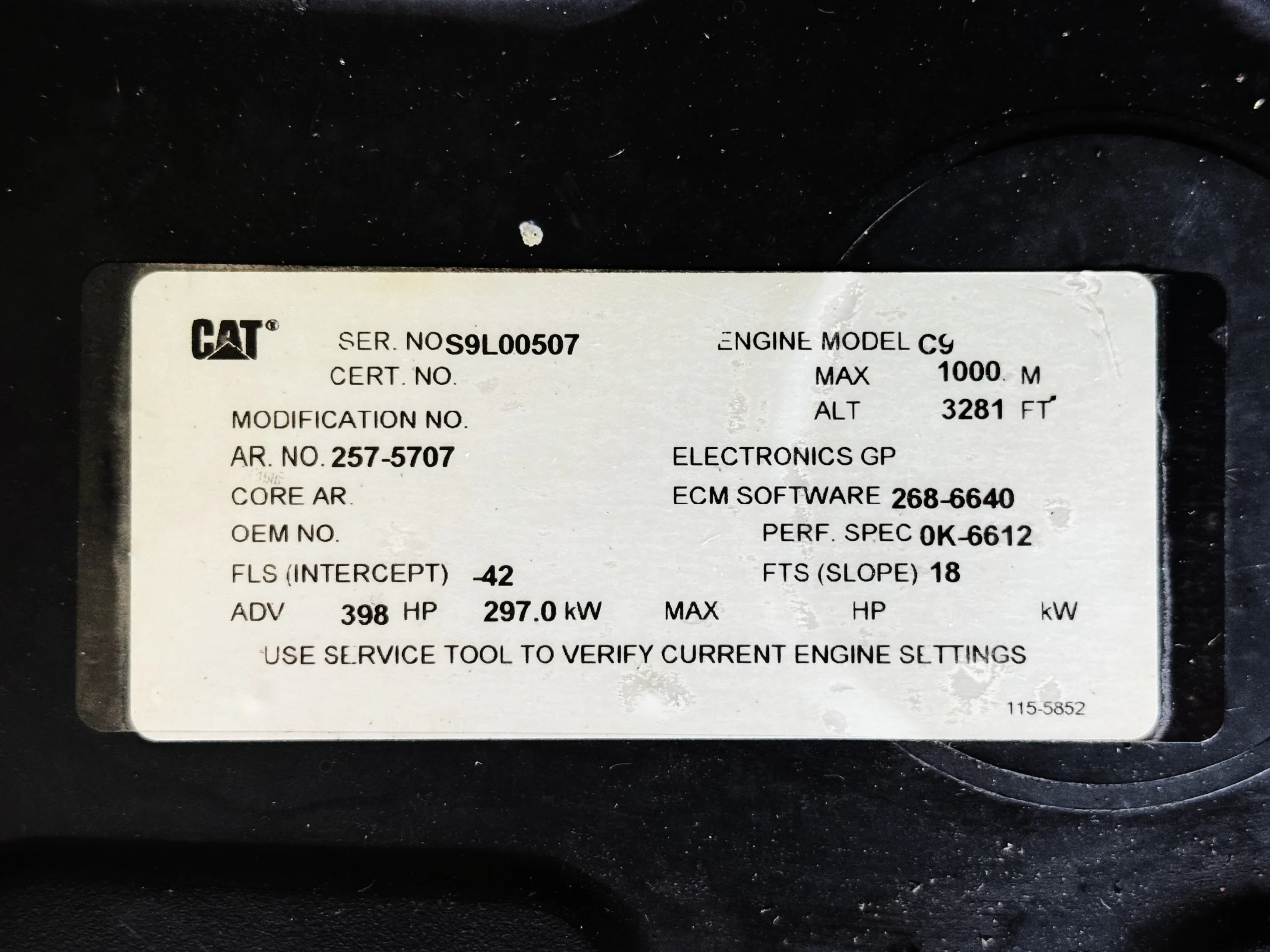

- Engine S/N:S9L00507
- Emissions Tier:EPA Tier 3
- Horsepower:398 HP
- Displacement:8.8 L

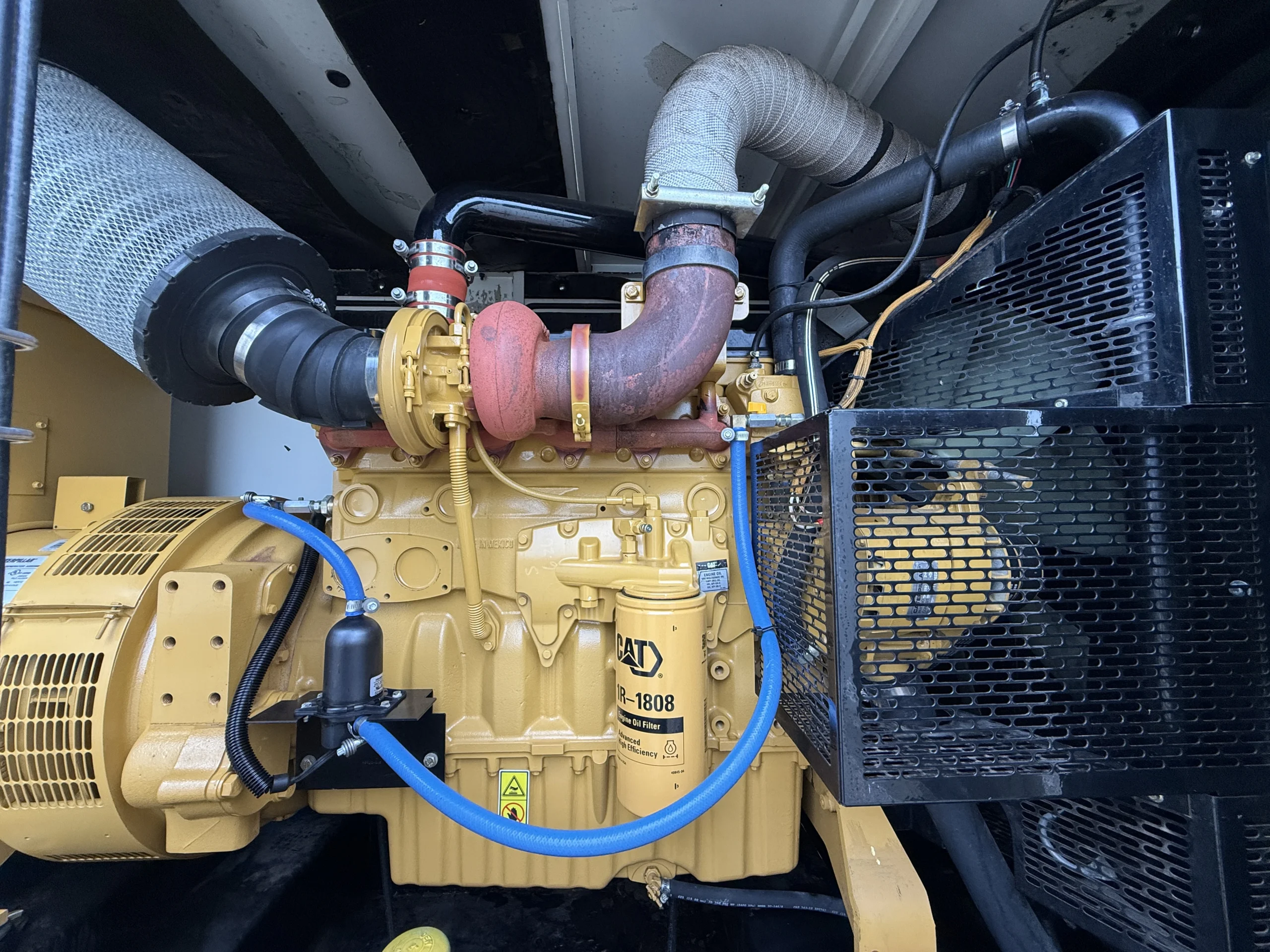

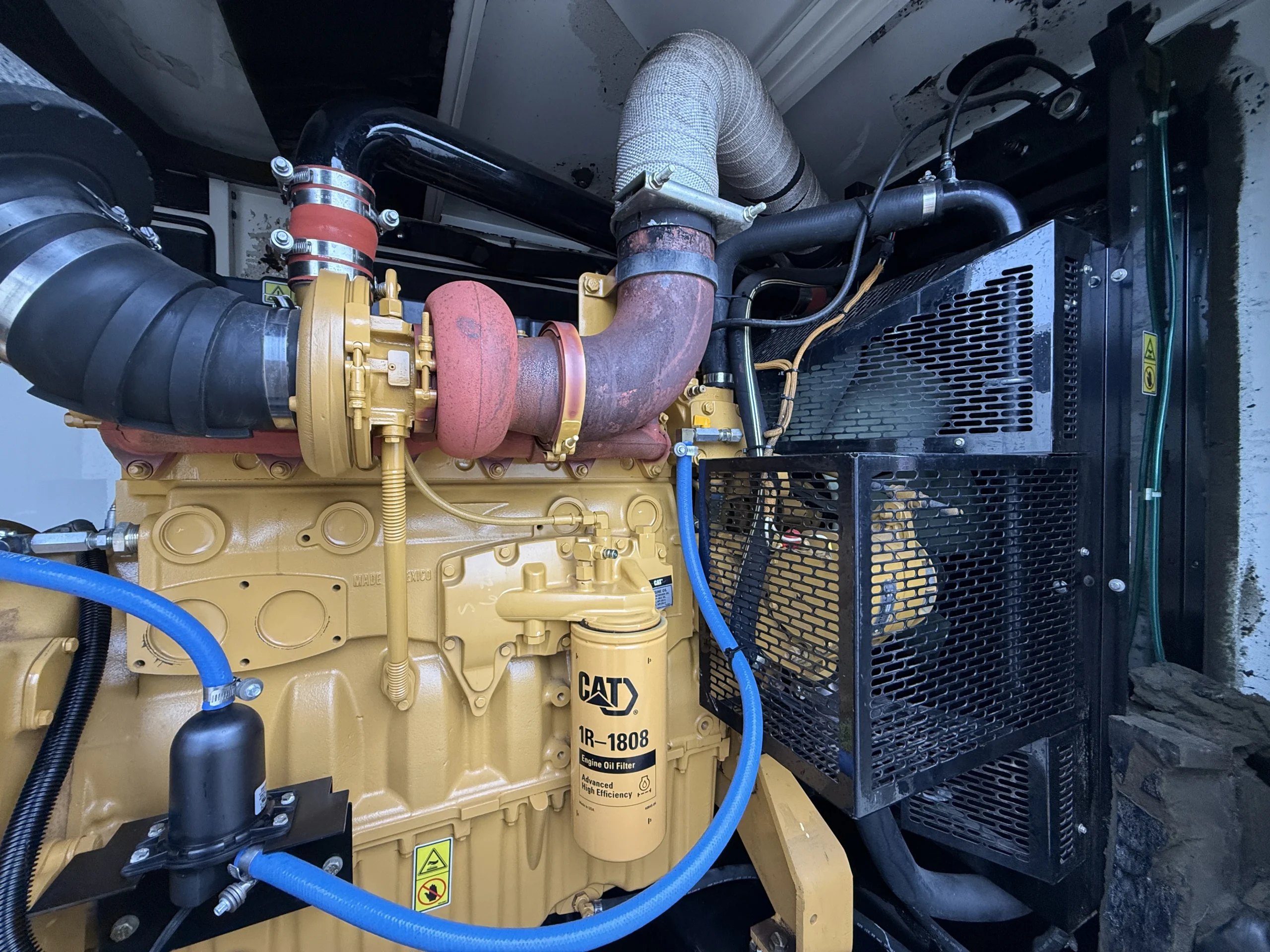

- Aspiration:Turbocharged Aftercooled
- Governor Type:Electronic
- Generator / Package
- Generator Insulation Class:Class F
- Reconnectable:Yes
- Leads:12
- Voltage Configuration:480/277V, Series Wye
- Excitation Type:AREP

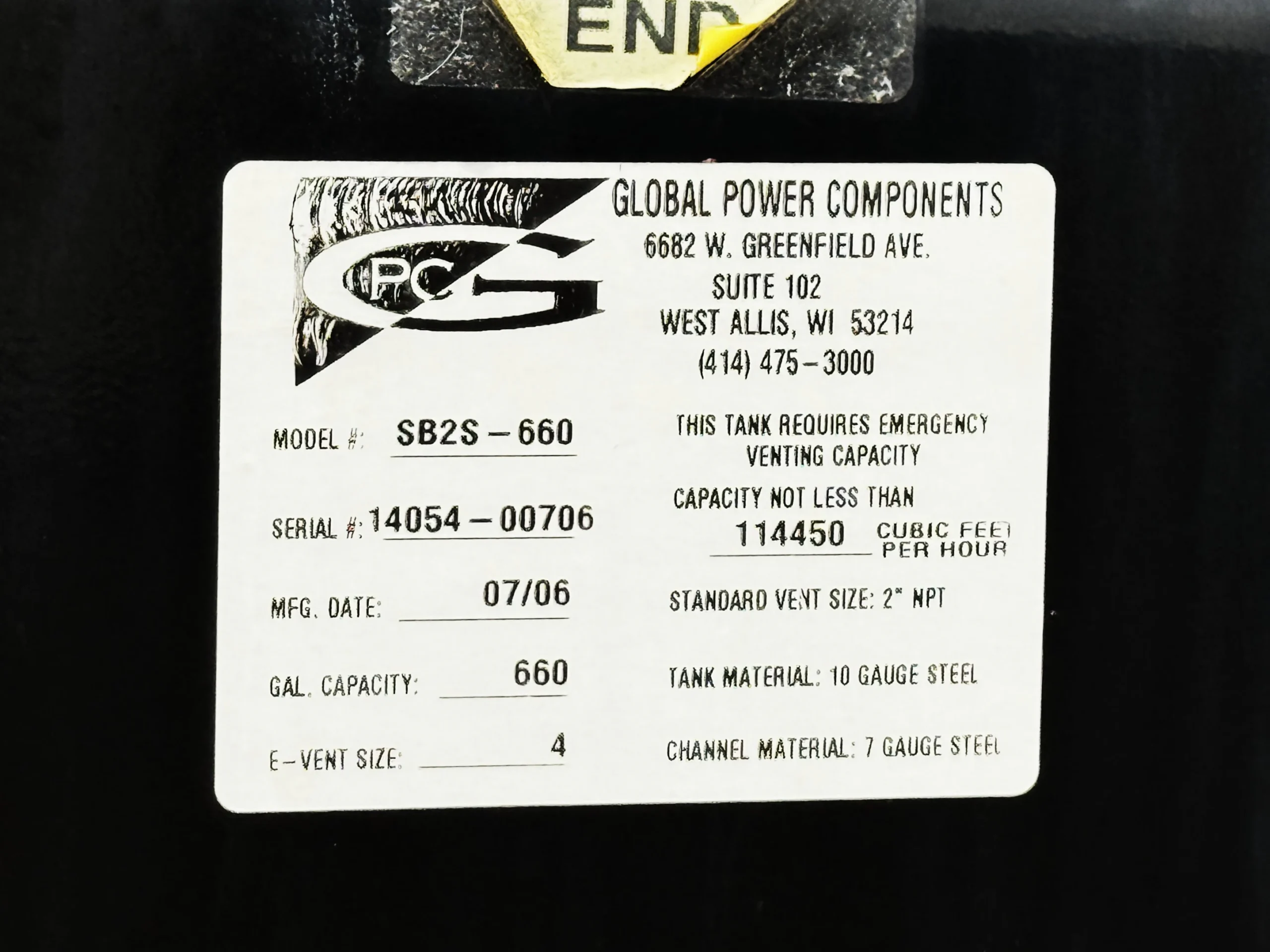

- Fuel Tank Capacity:660 Gallons

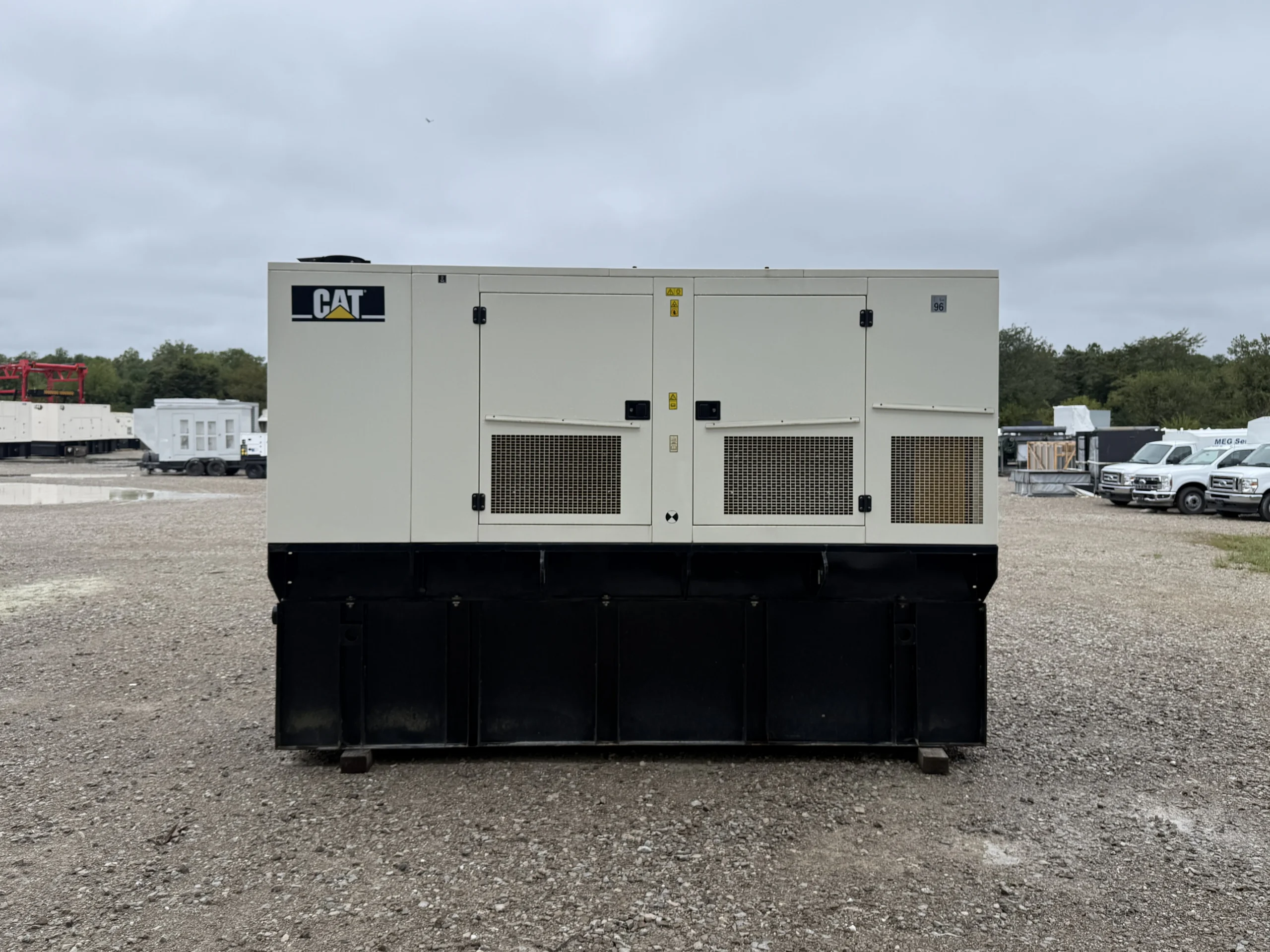

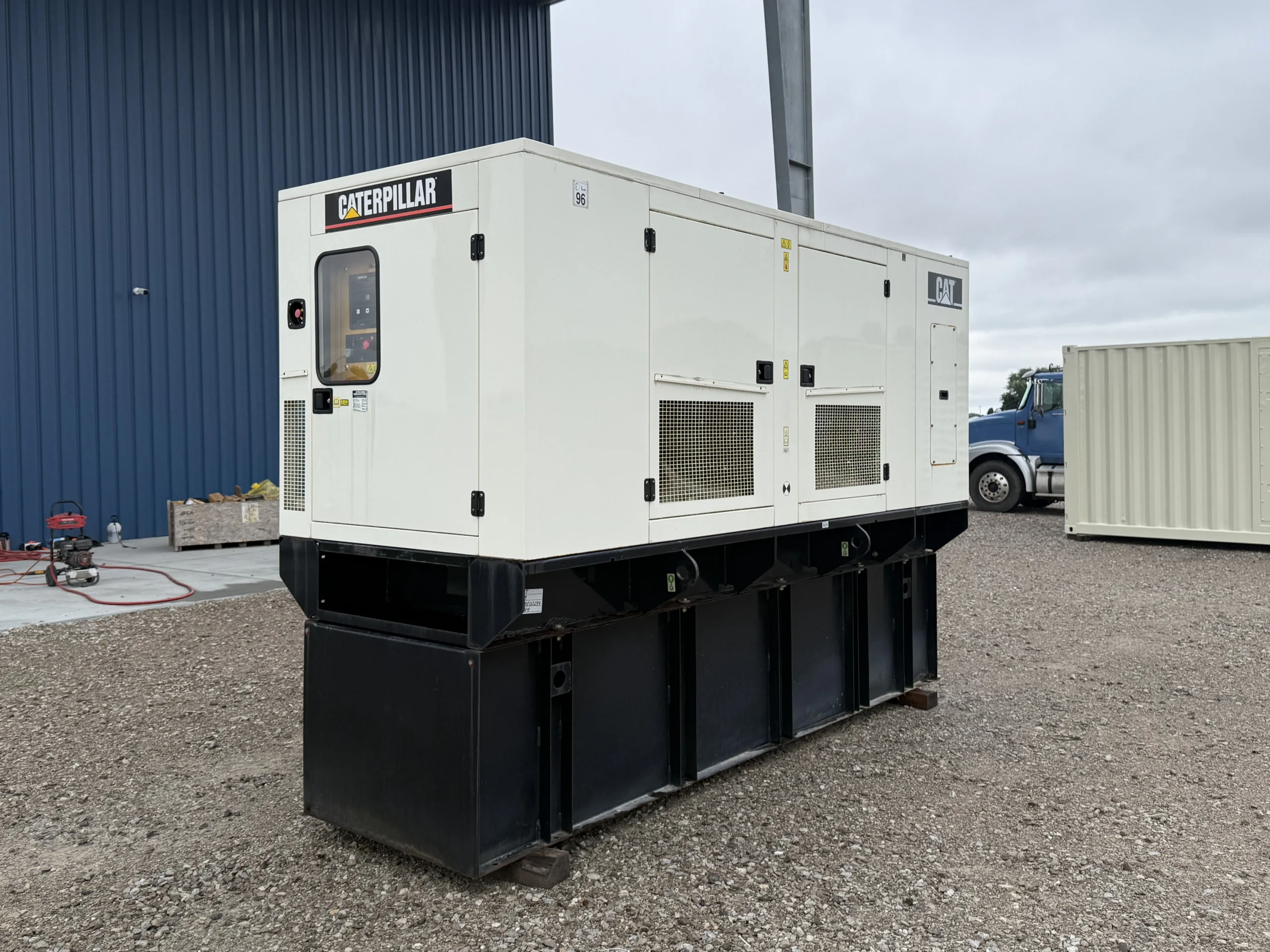

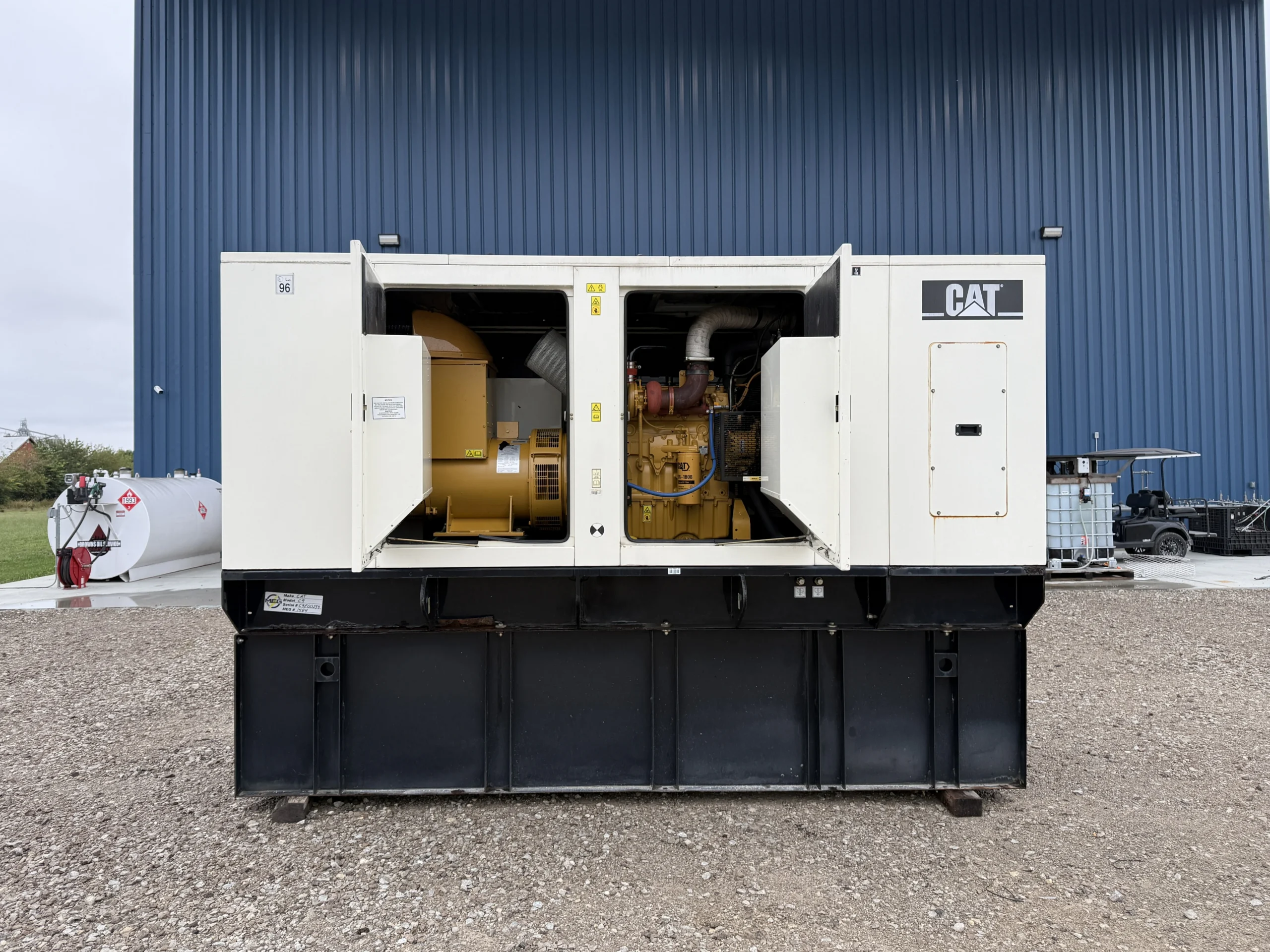

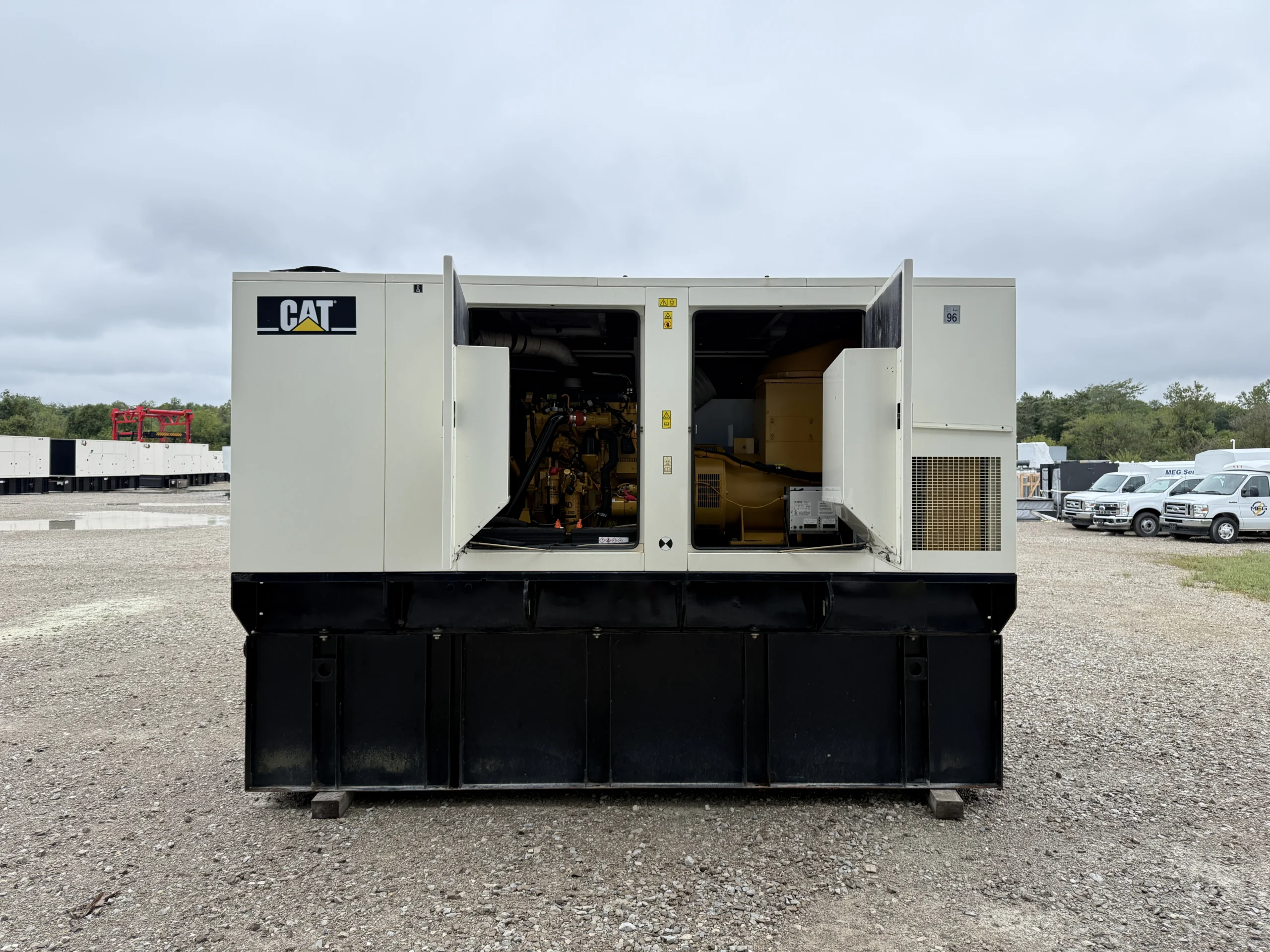

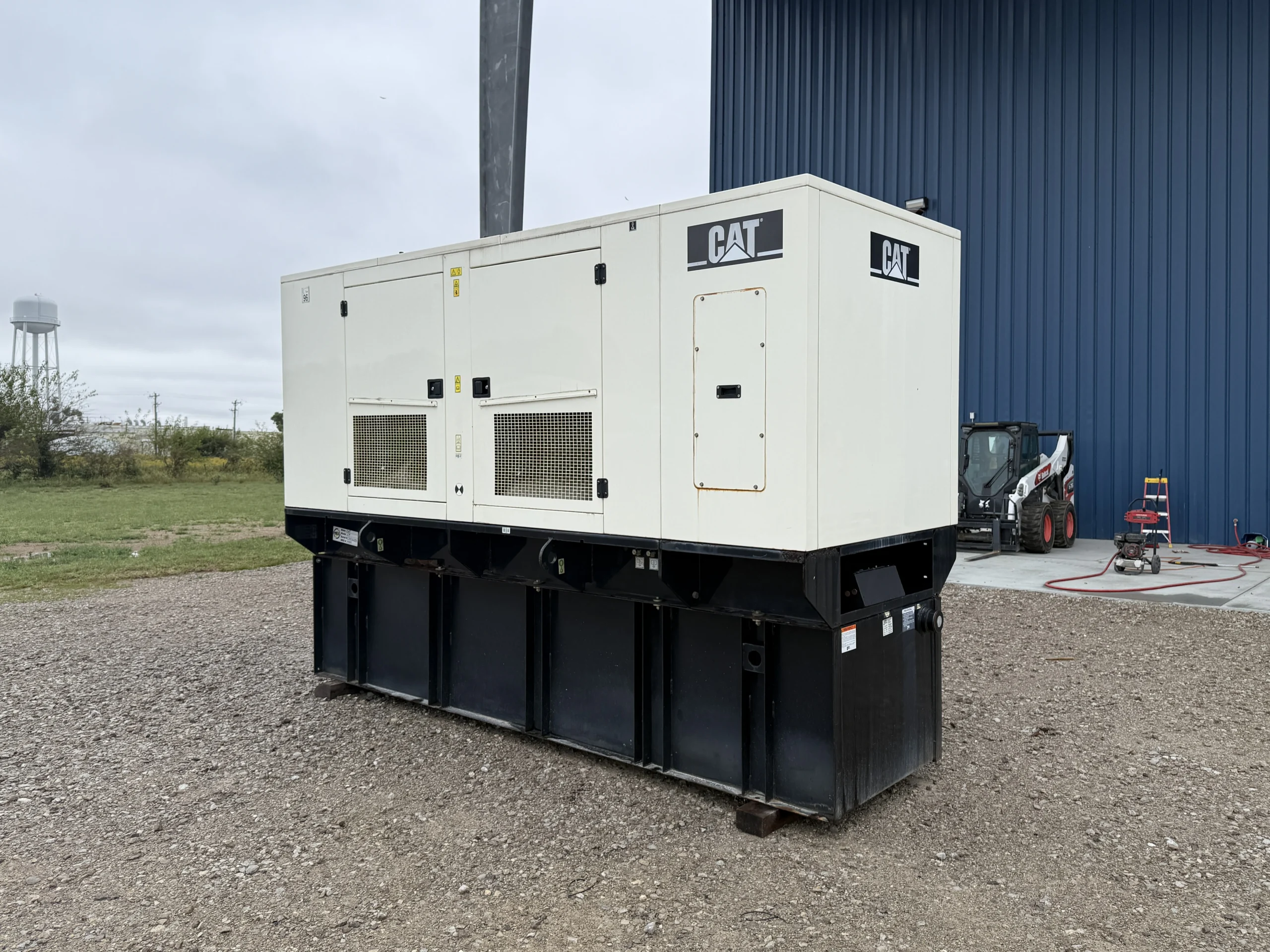

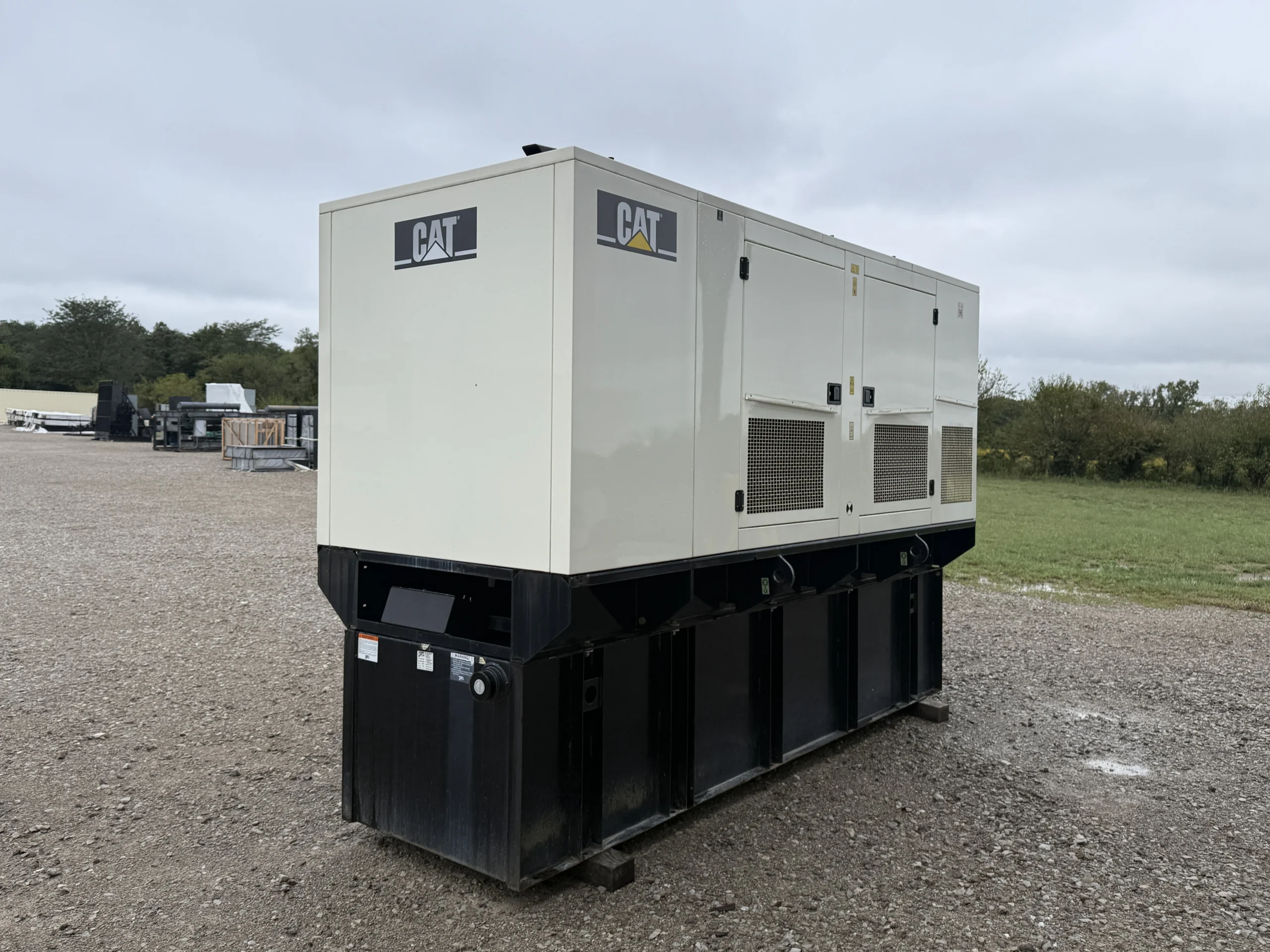

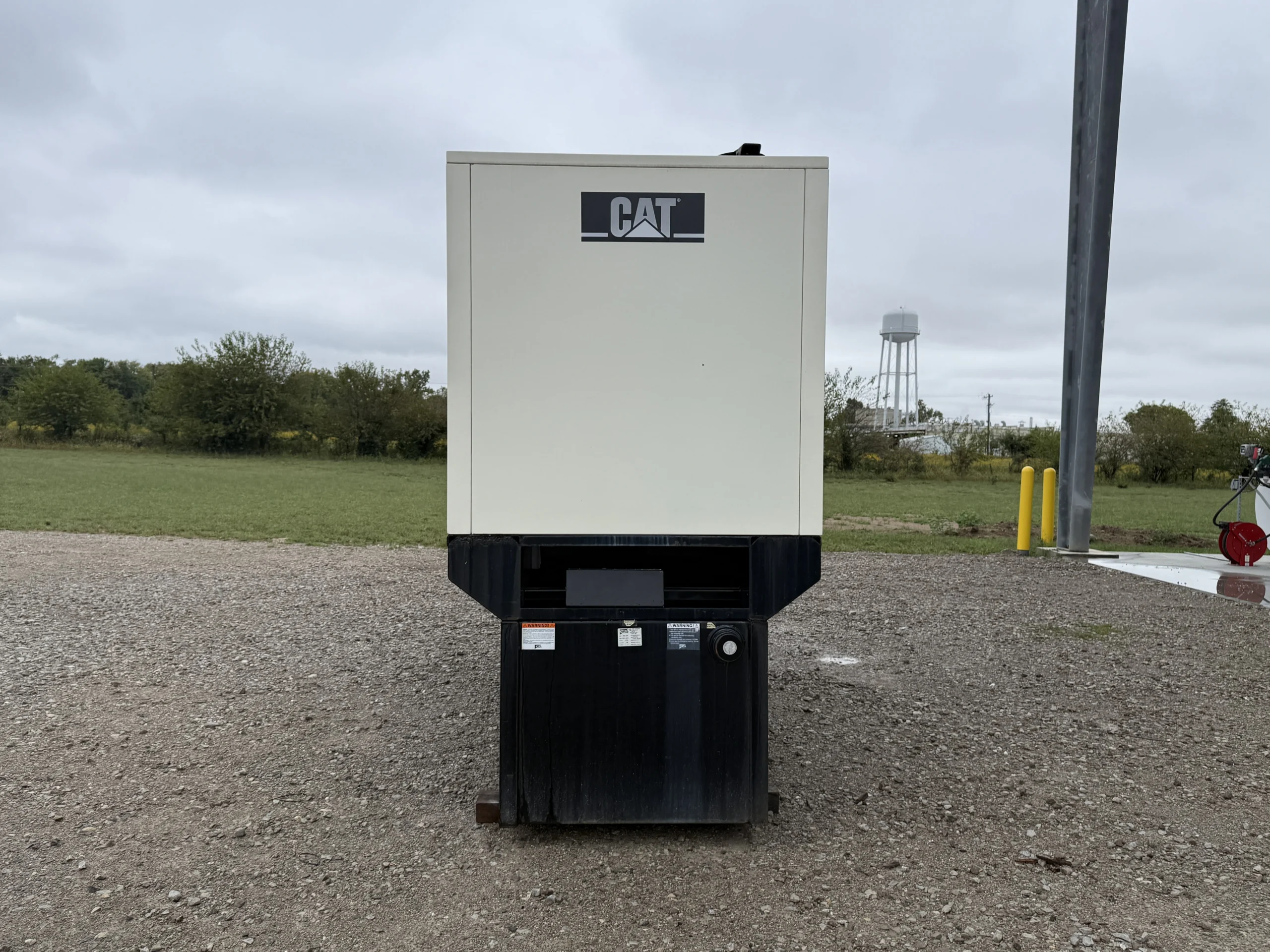

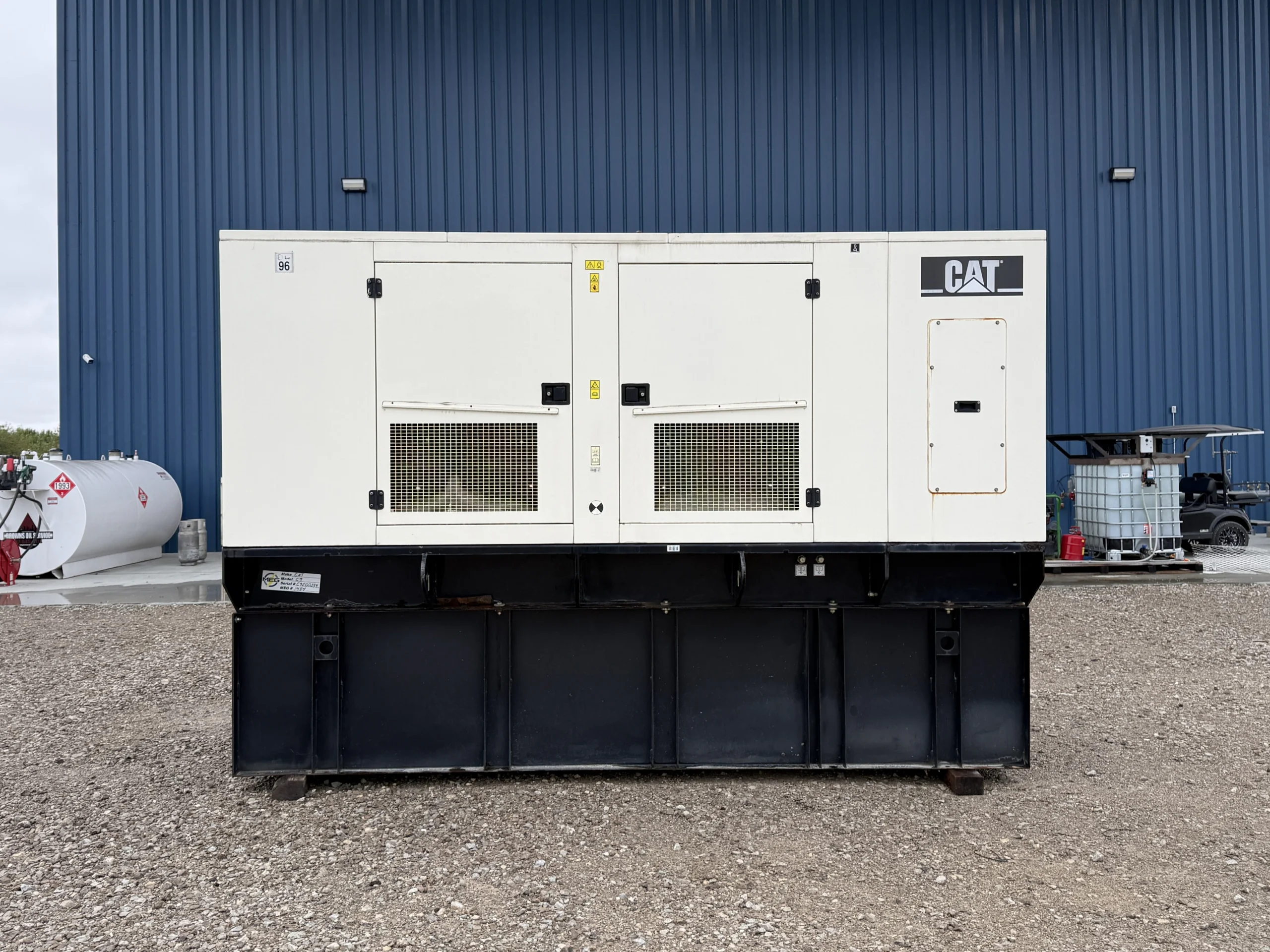

- Enclosure Type:Sound Attenuated Enclosure
- Mounting Type:Base Tank Mounted
- Accessories / Components
- Air Cleaner:Dry-Type Air Cleaner

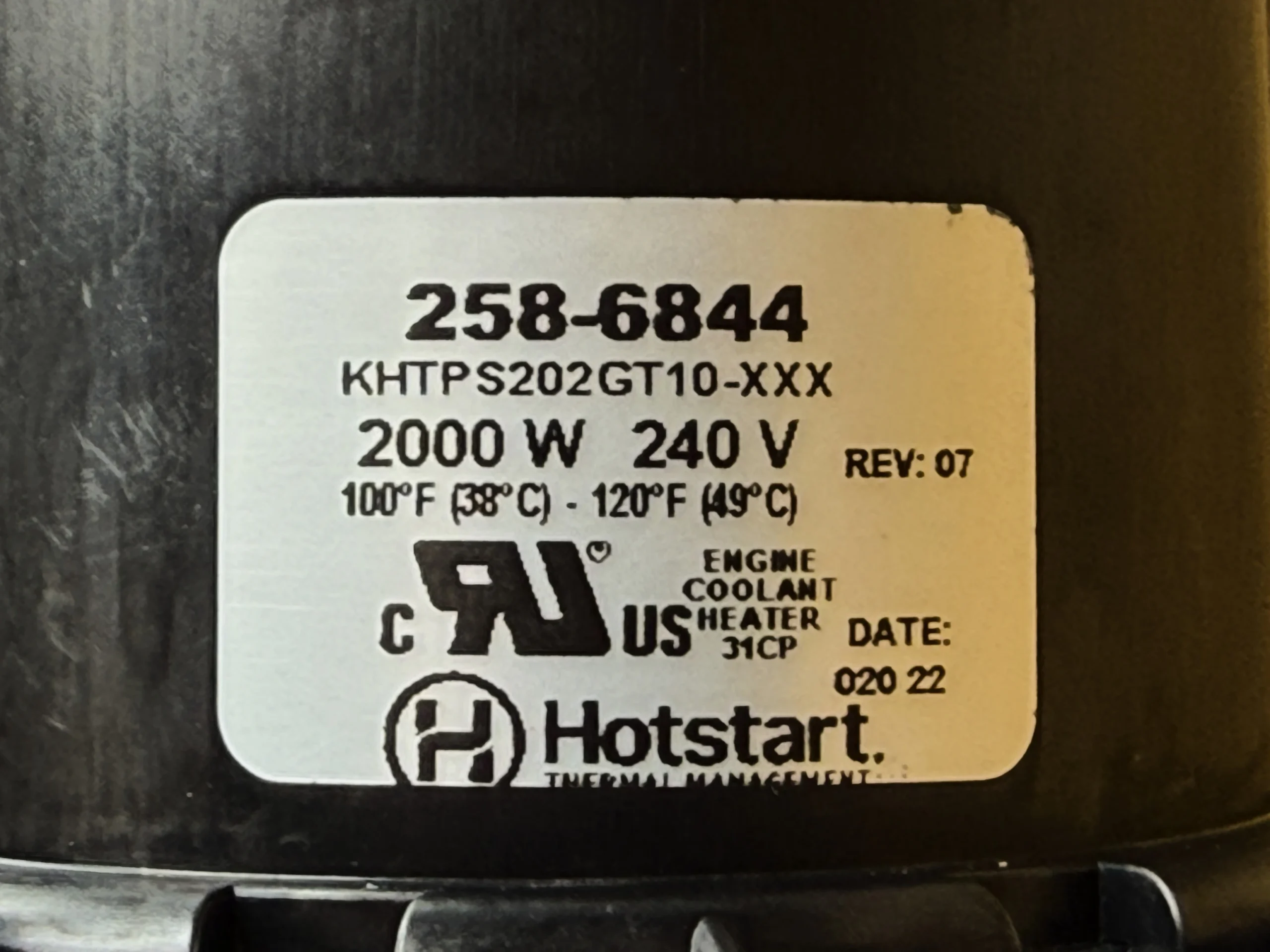

- Jacket Water Heater:Hotstart, 2,000W, 240V

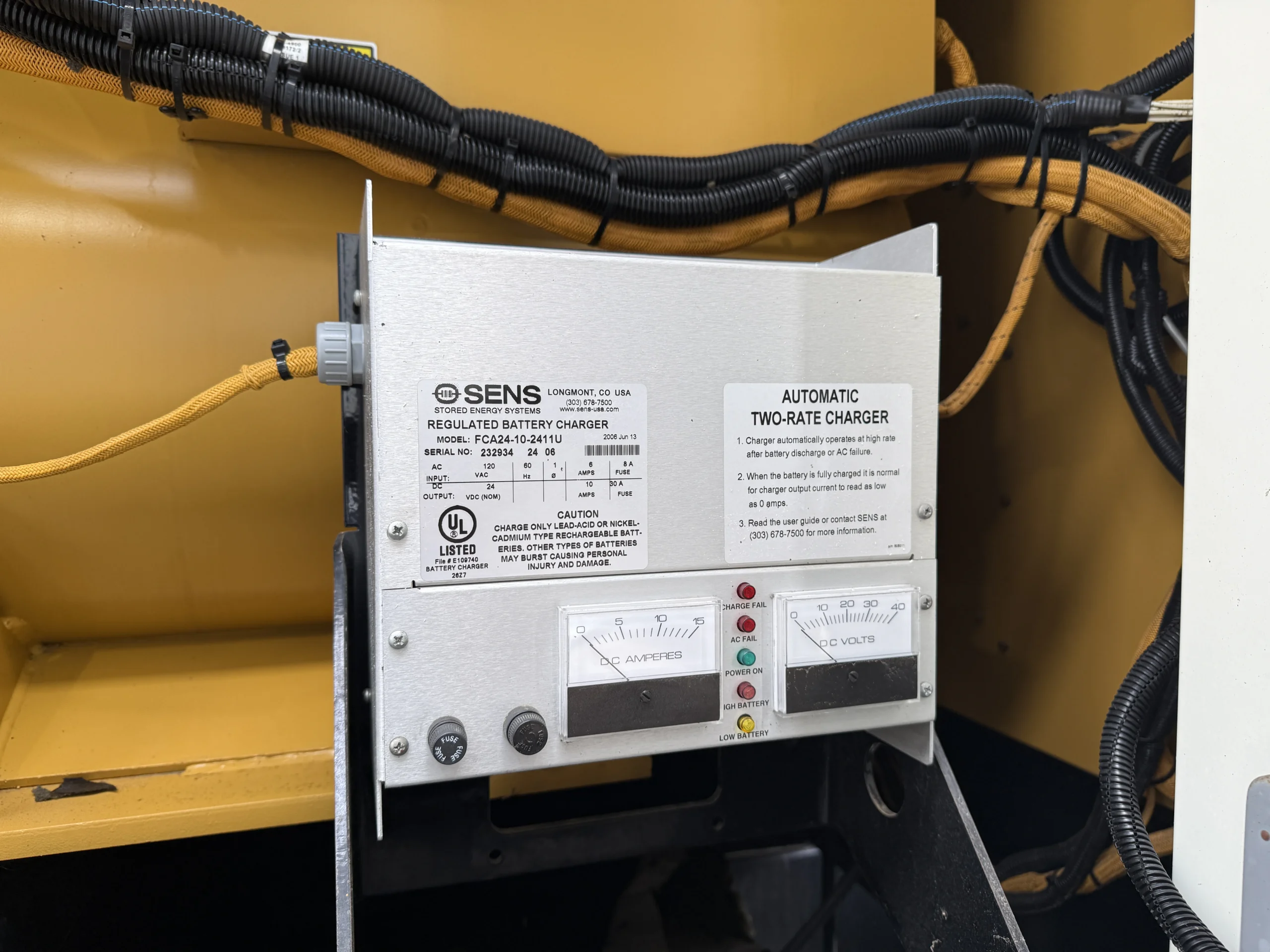

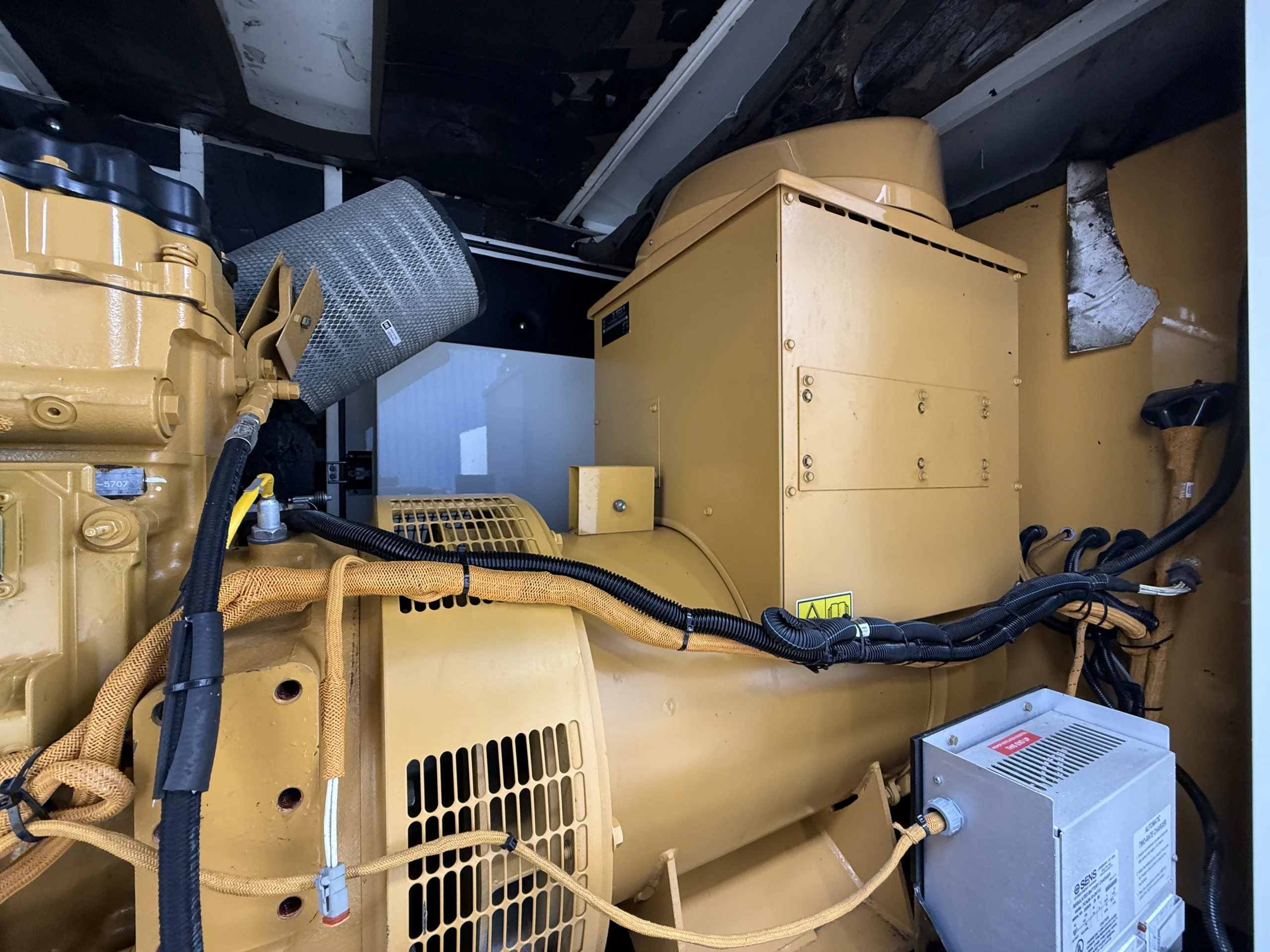

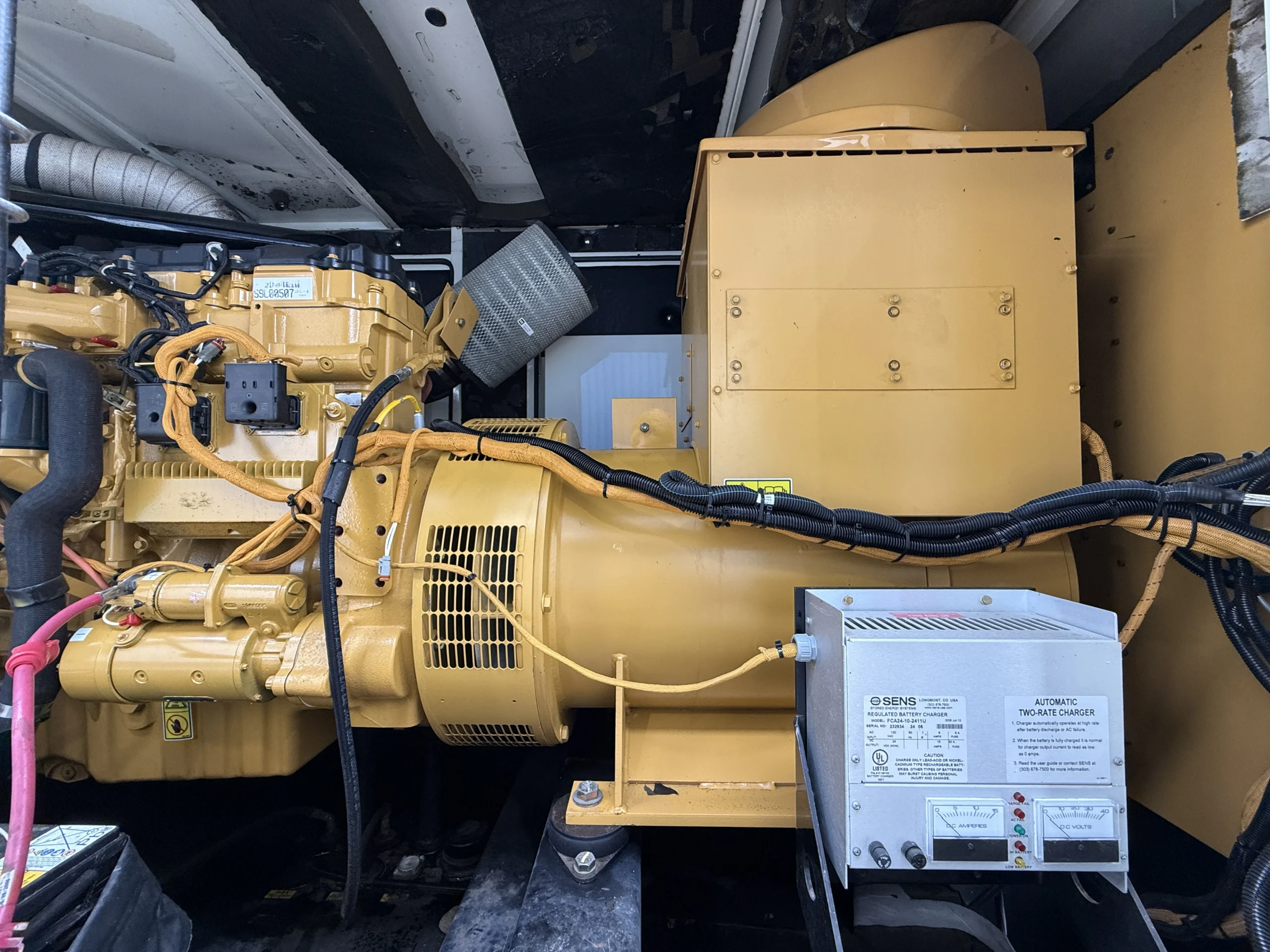

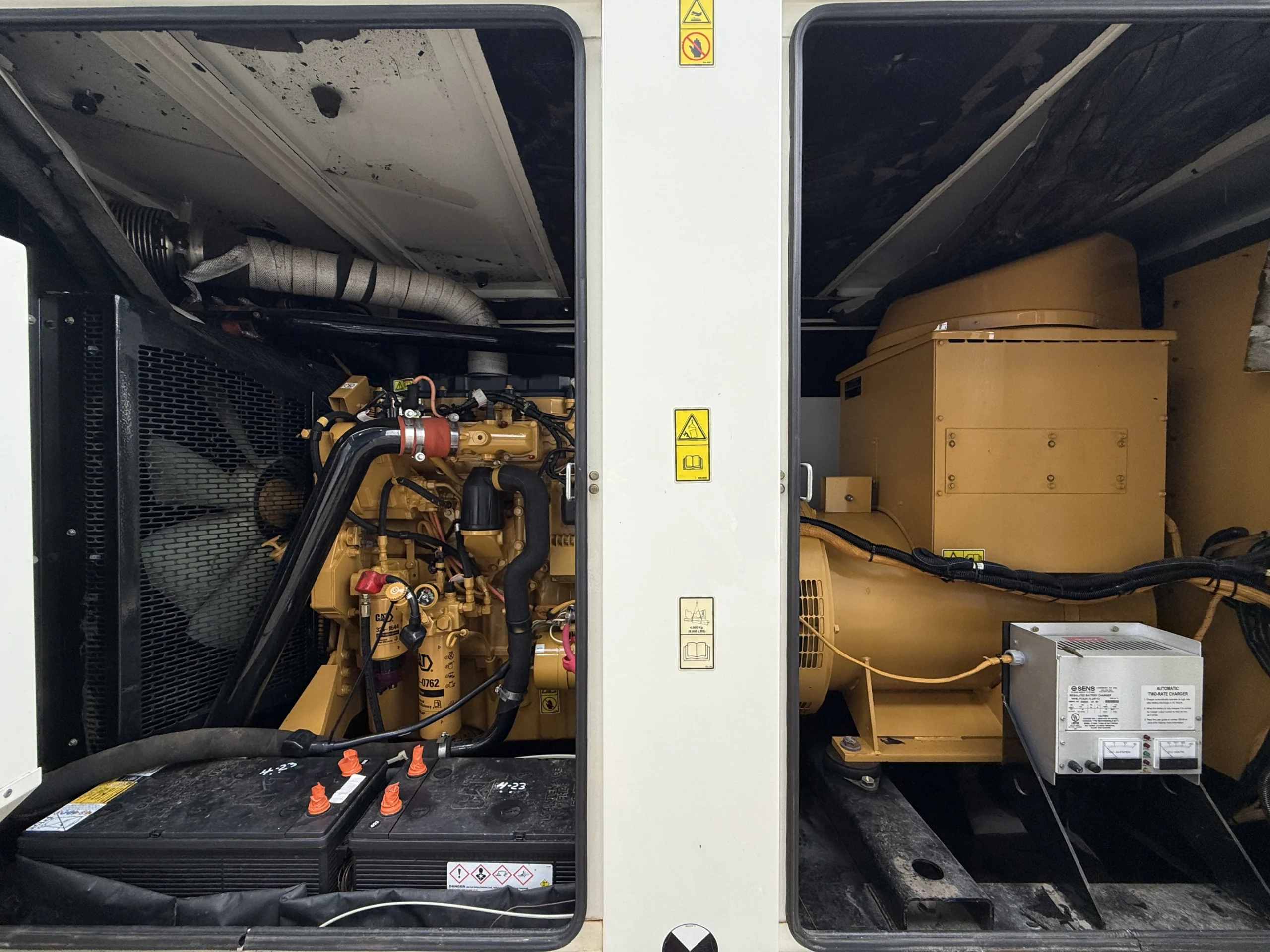

- Battery Charger:SENS 10A, 24VDC
- Starting System:24V DC Electric Start
- Exhaust System:Insulated Exhaust with Silencer
- Shipping / Reference
- Dimensions (L × W × H):170" × 72" × 118"
- Stock Number:MEG1484
