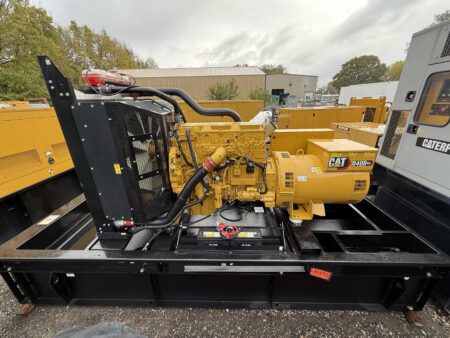

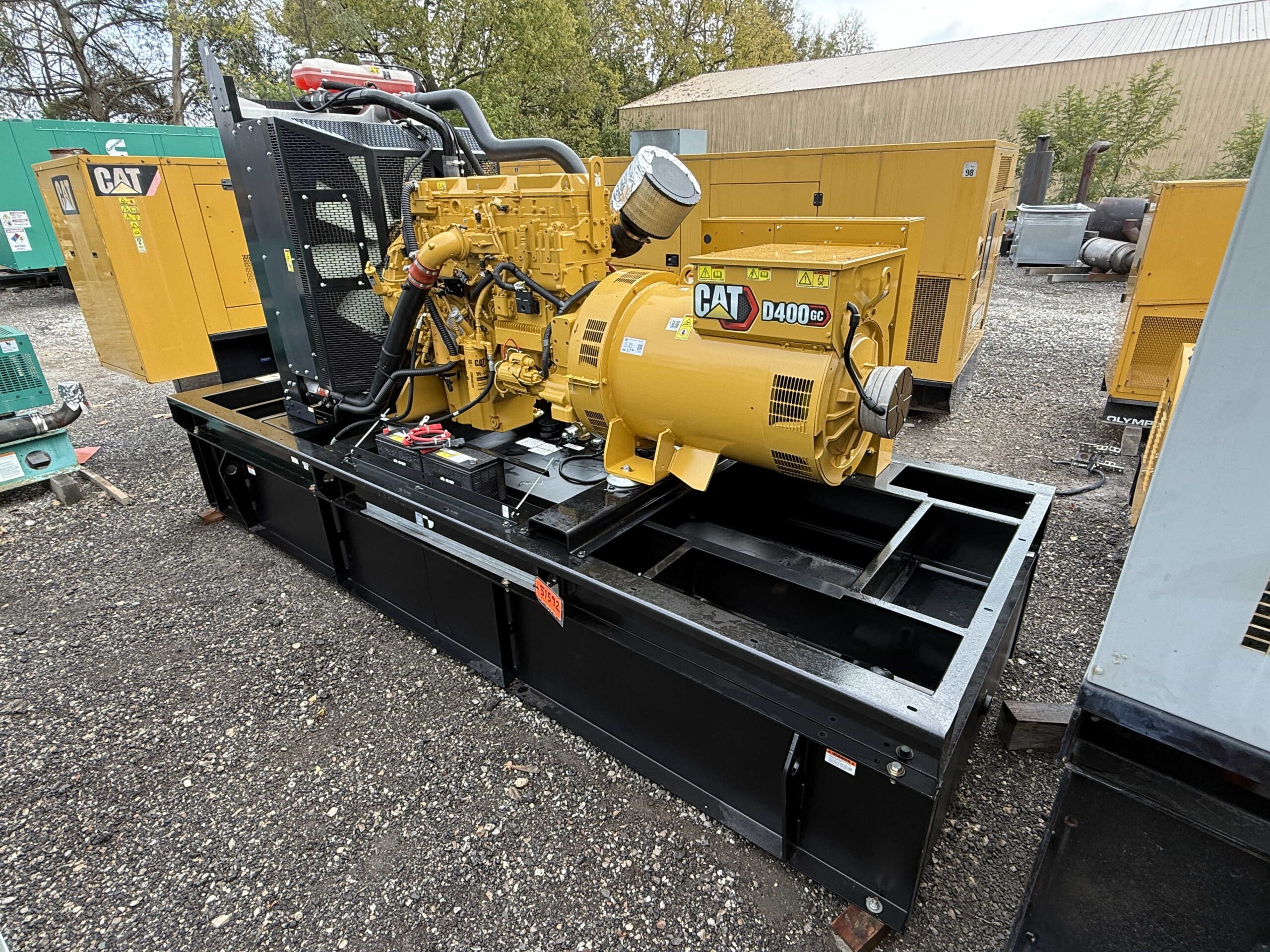

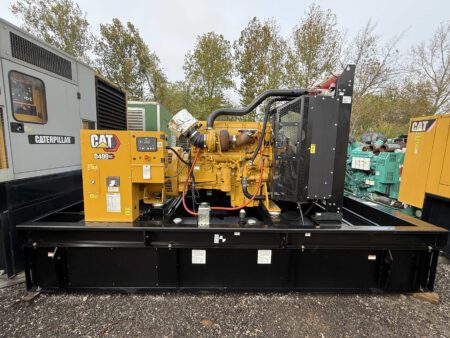

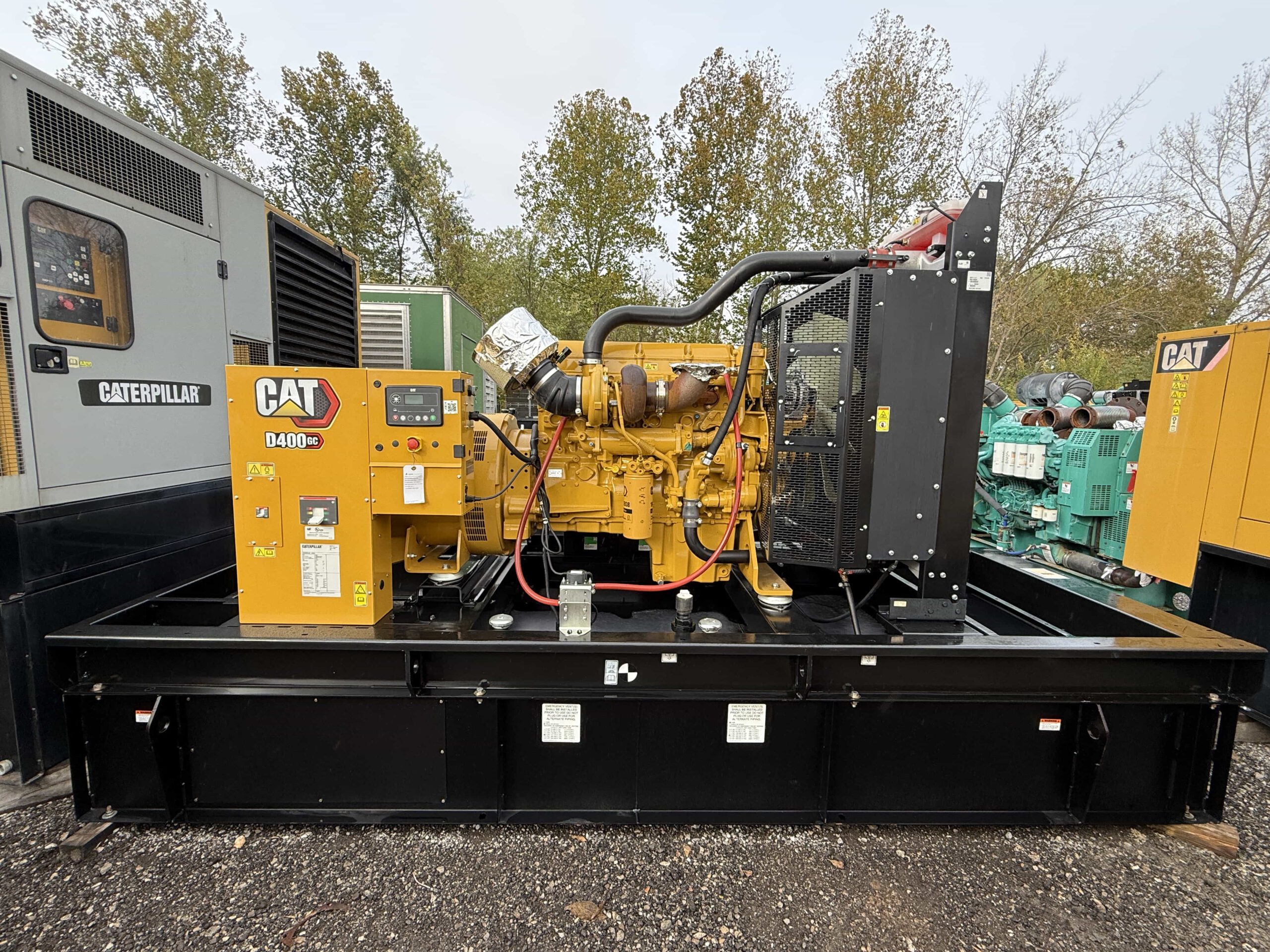

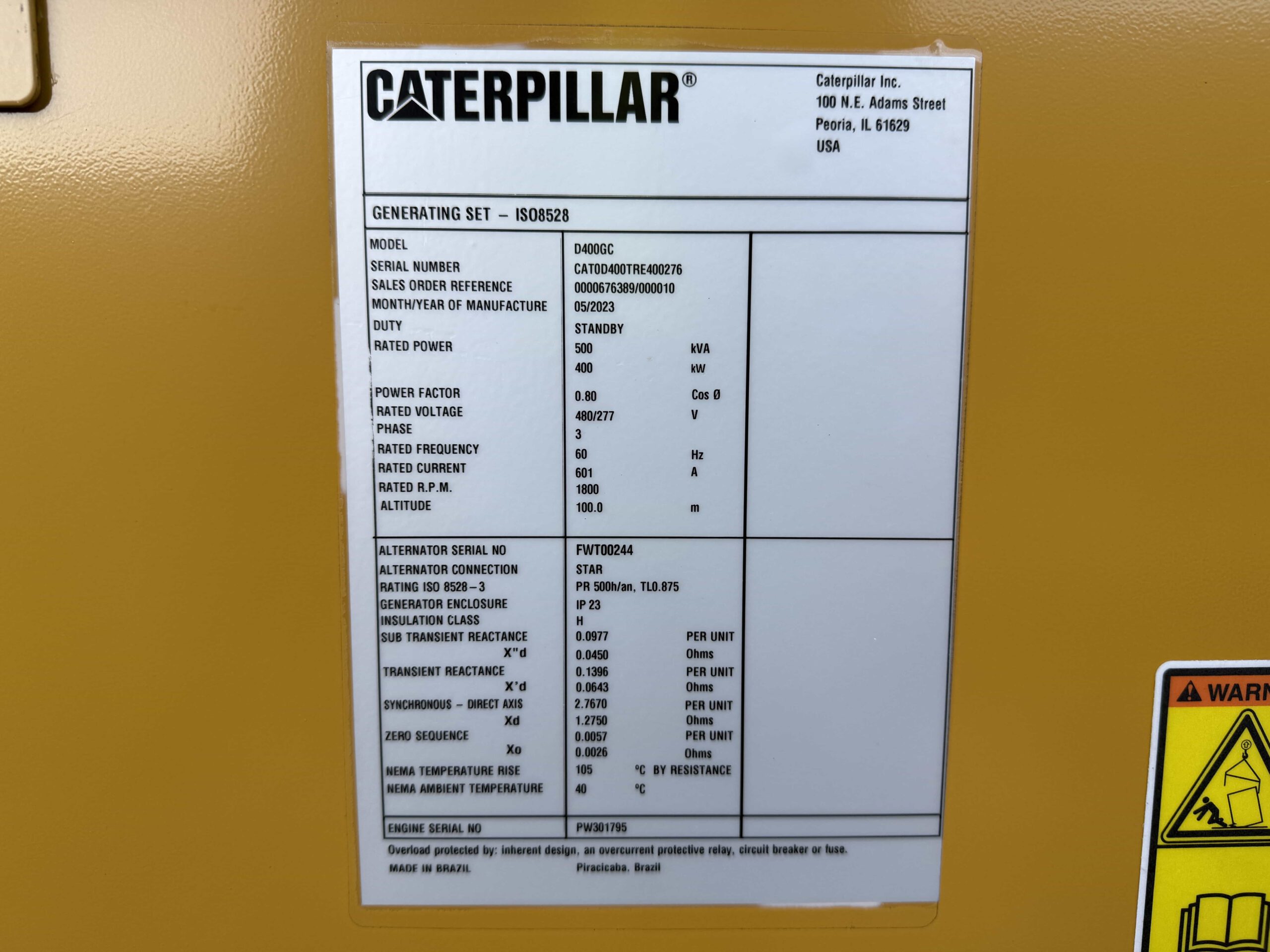

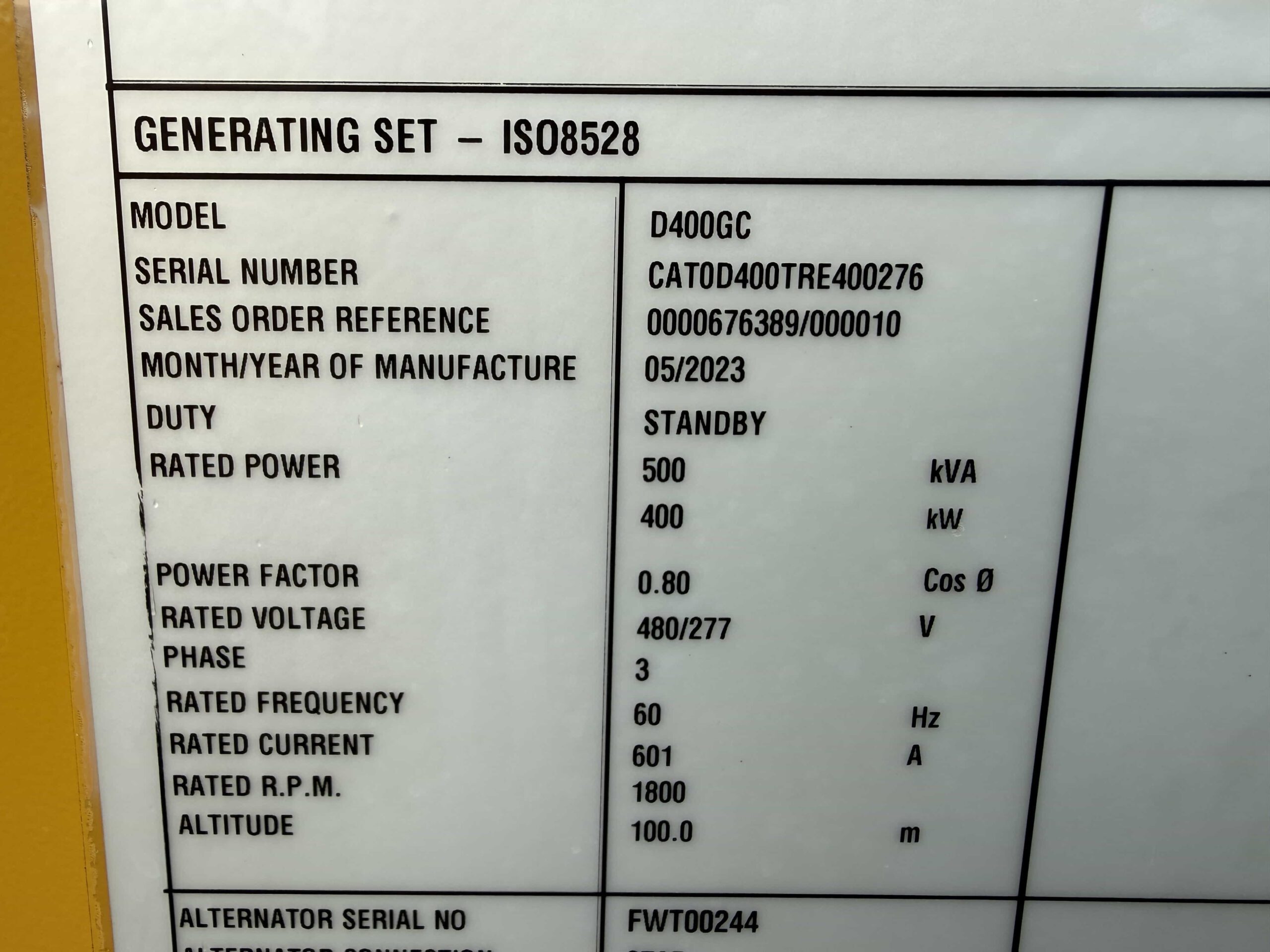

2023 CAT D400 GC 400kW Diesel Generator Set

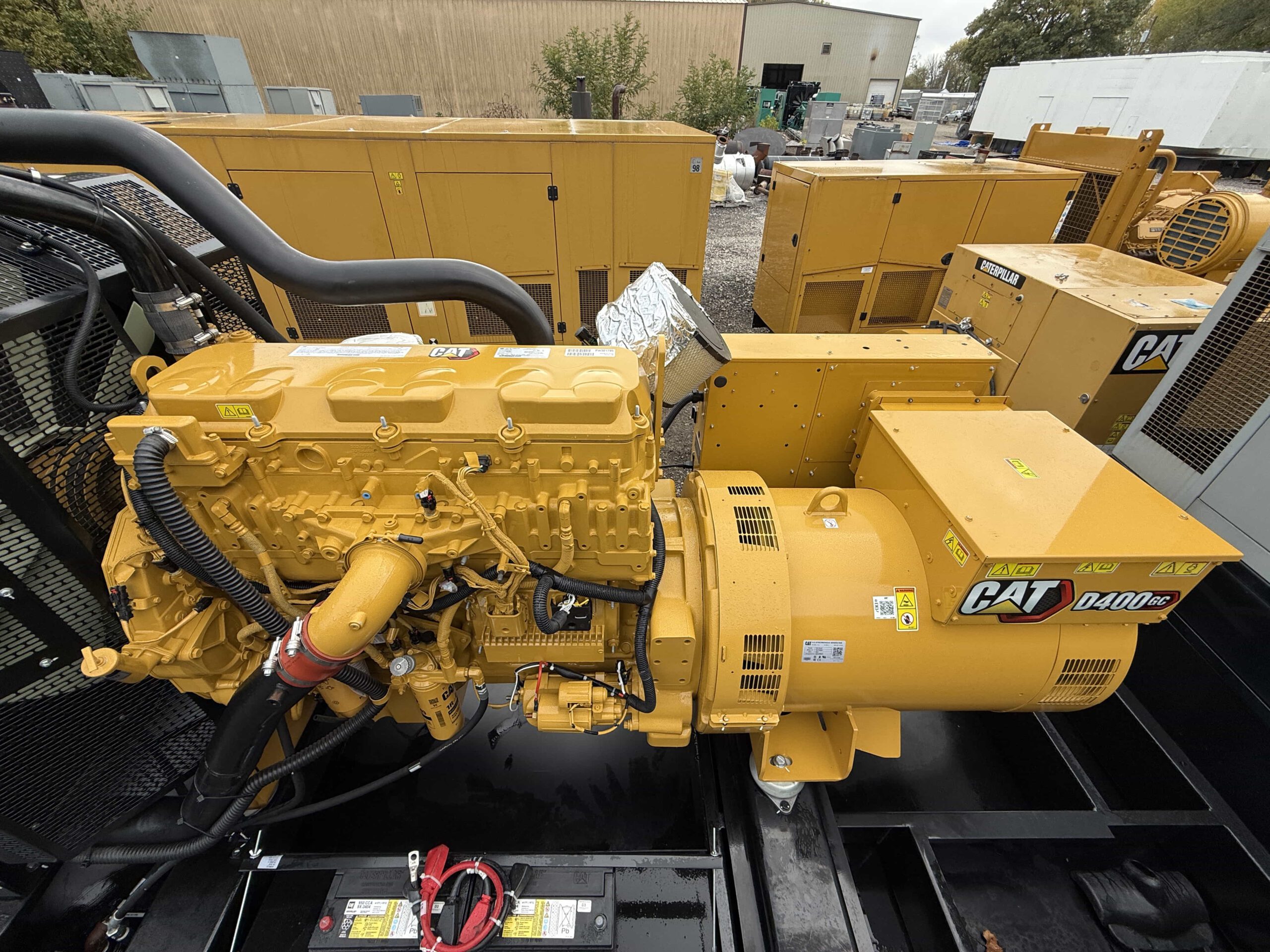

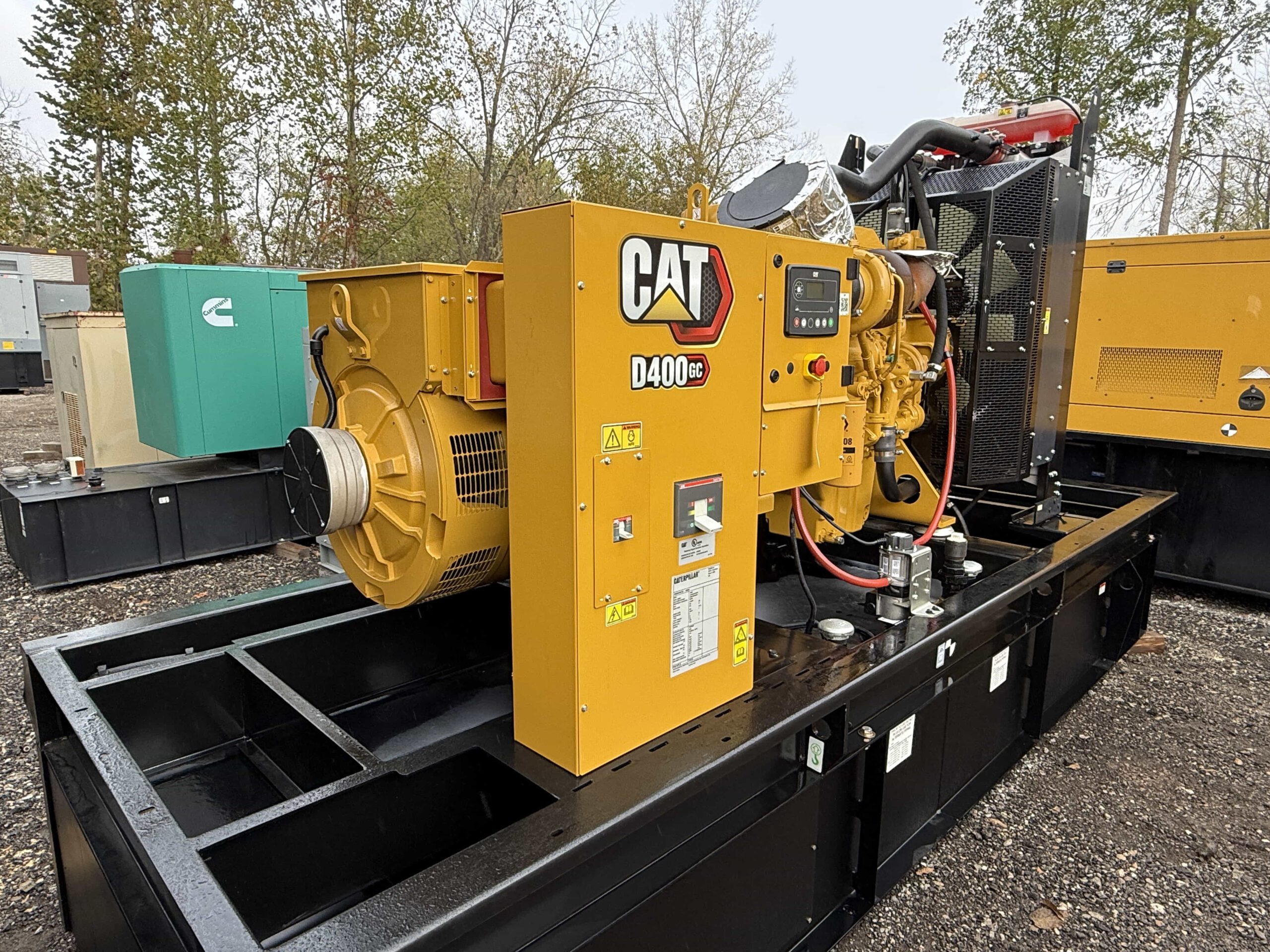

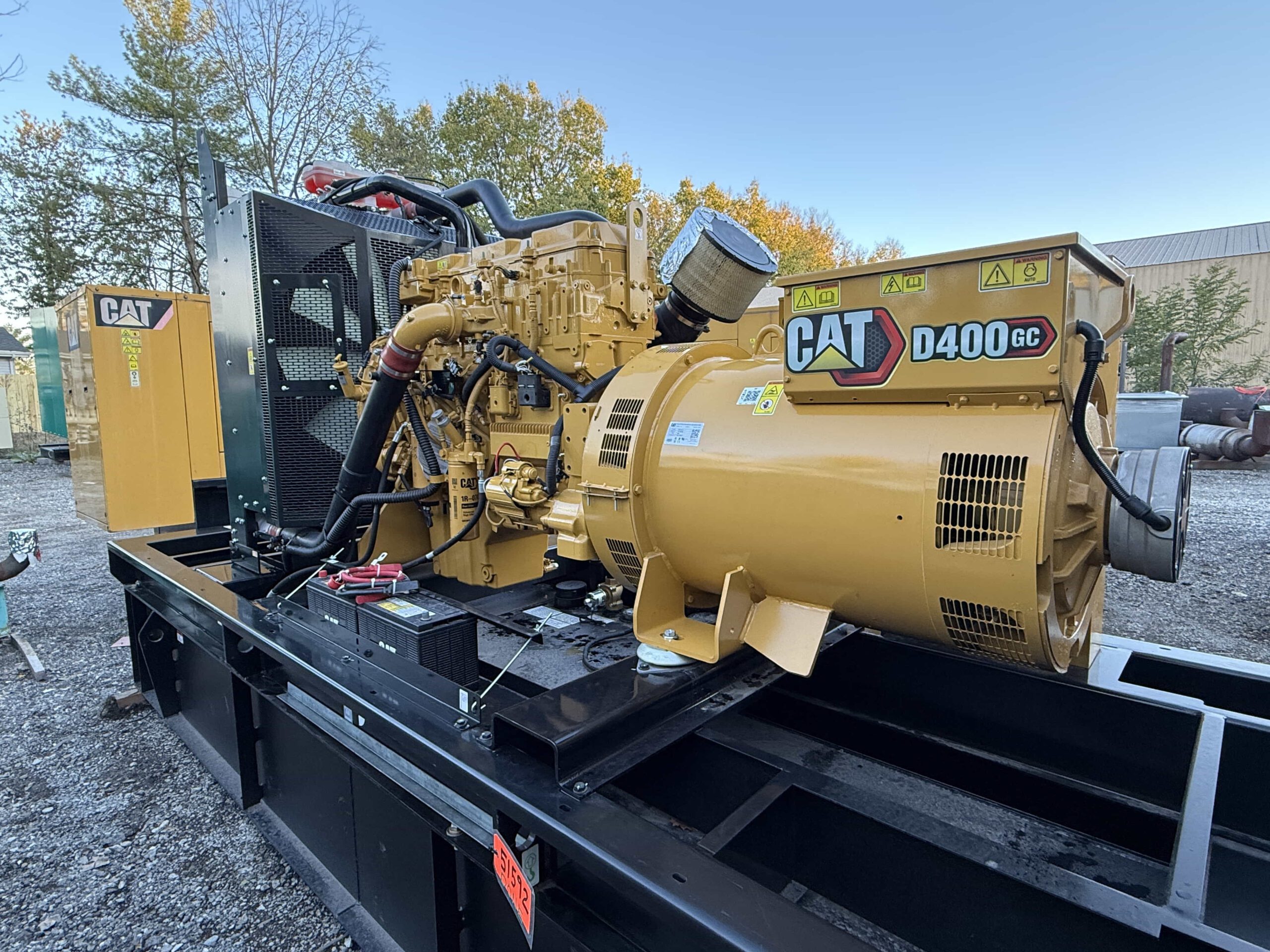

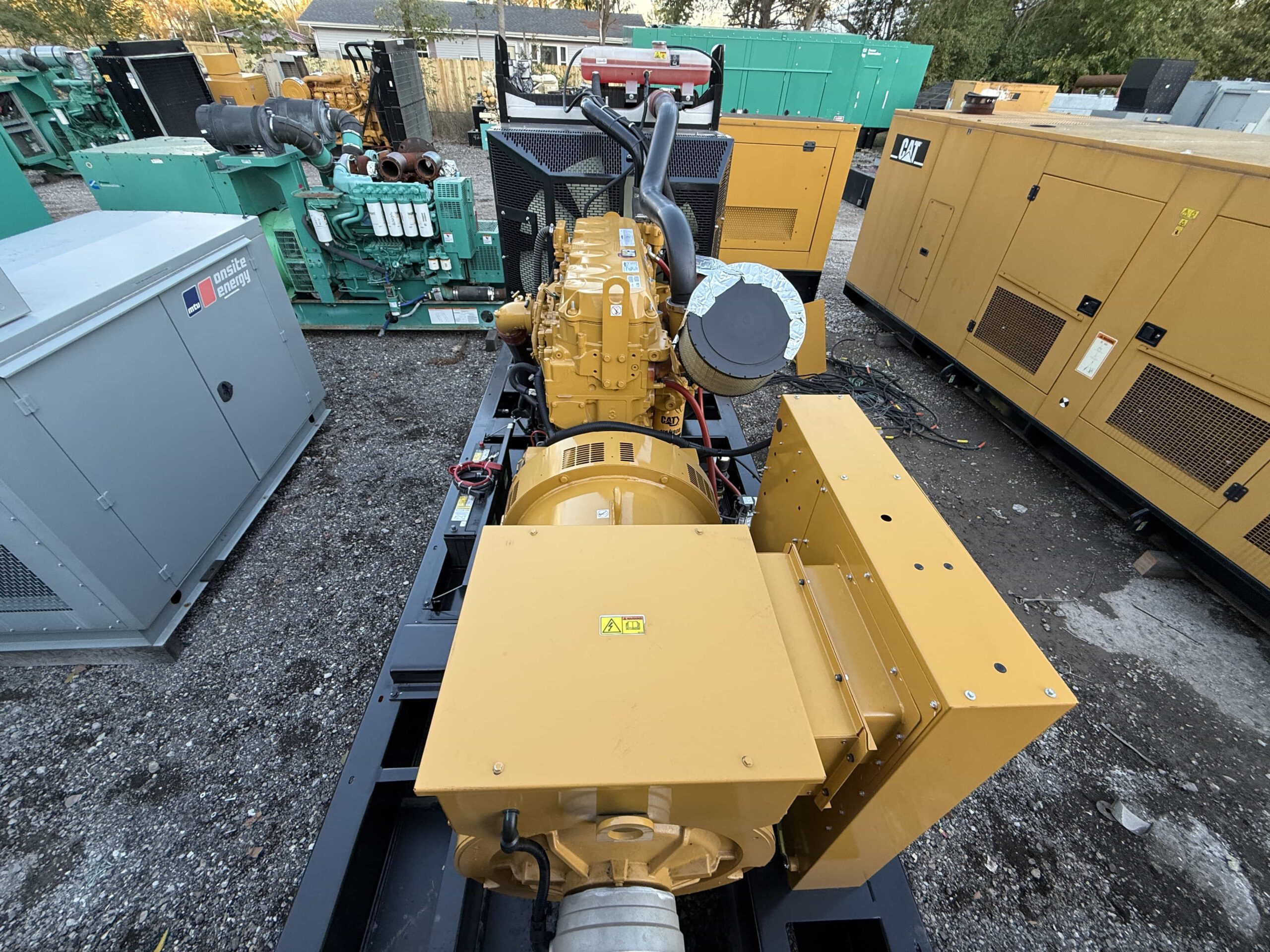

Factory-built Caterpillar D400 GC generator set

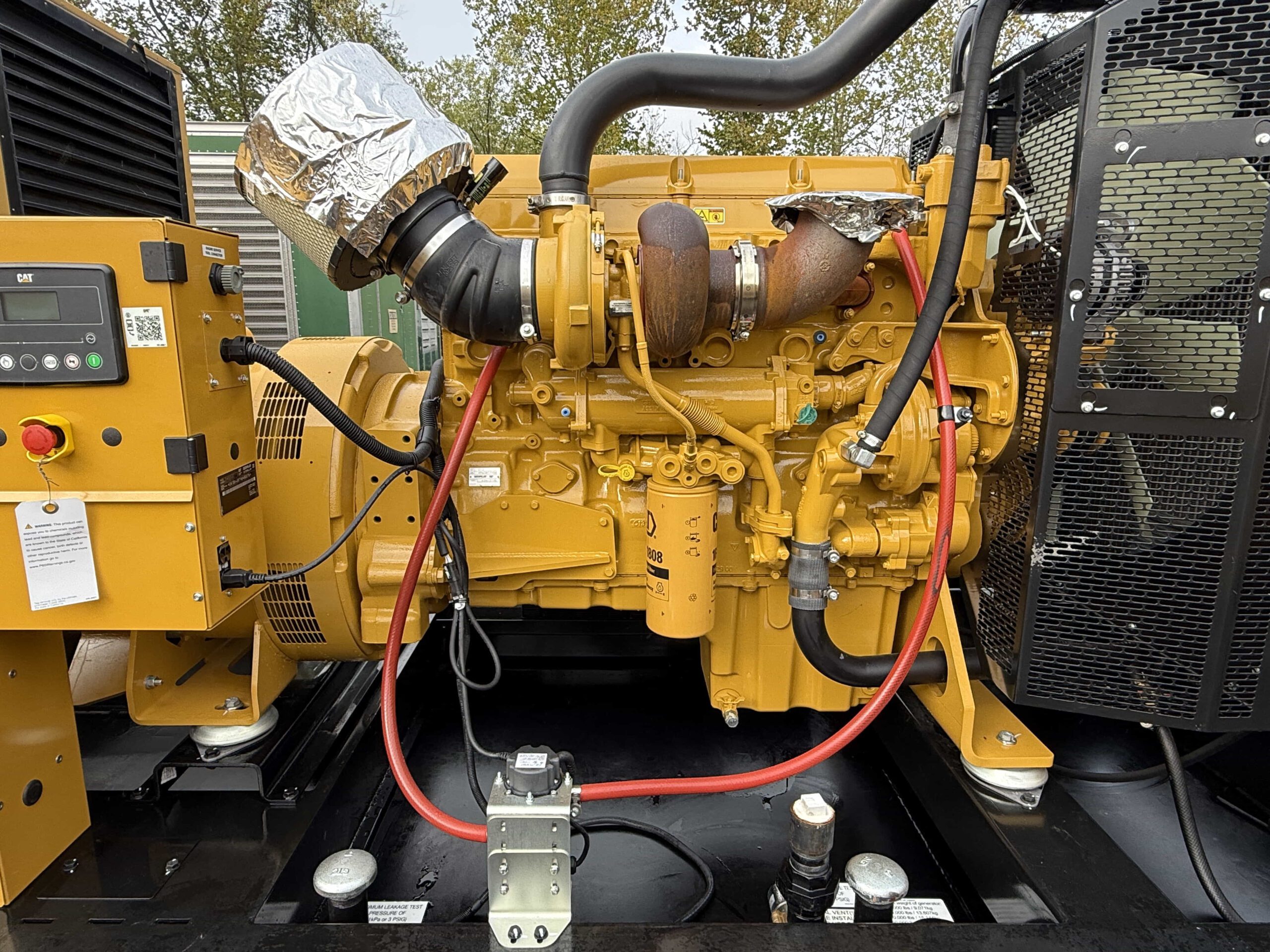

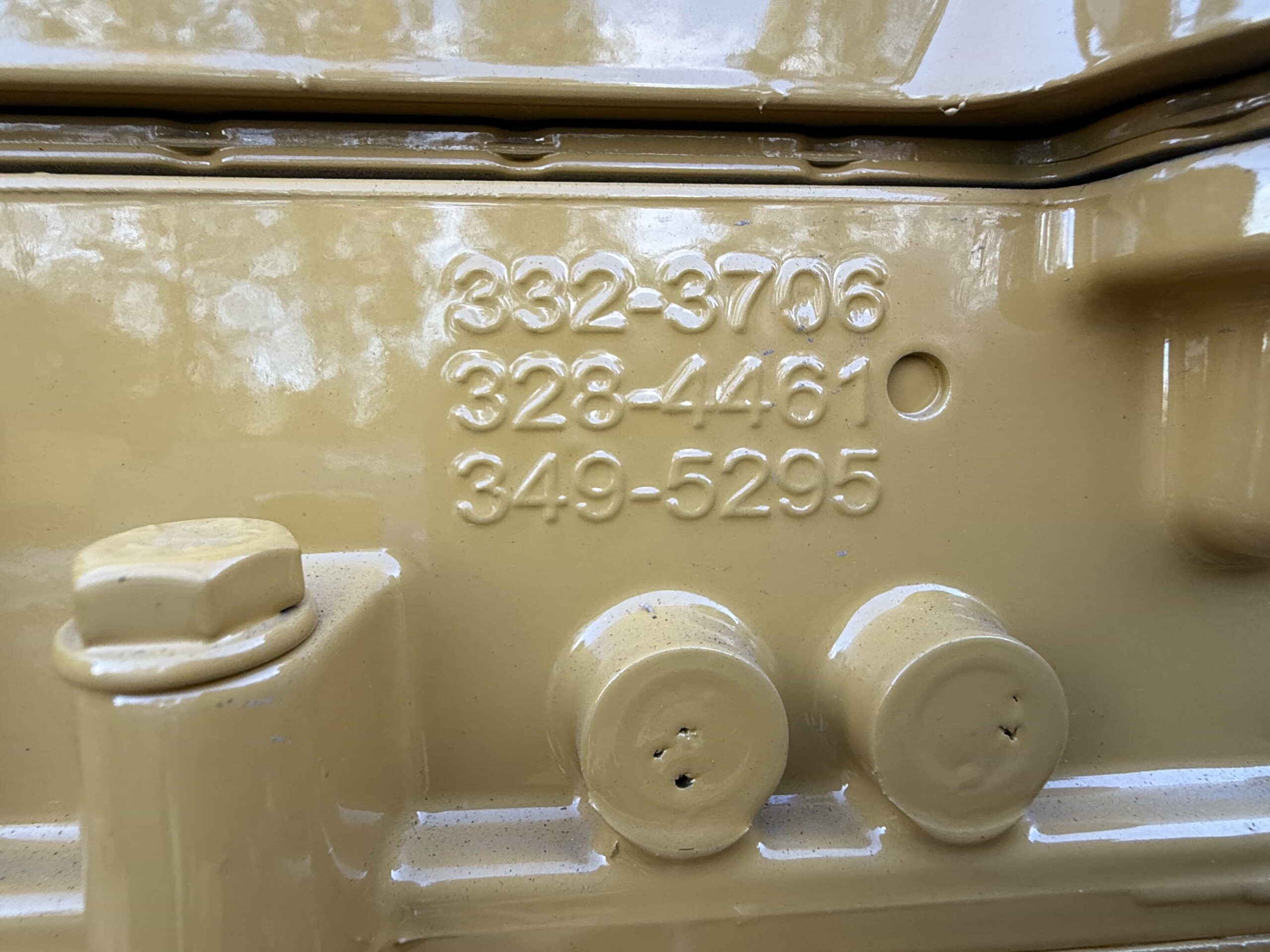

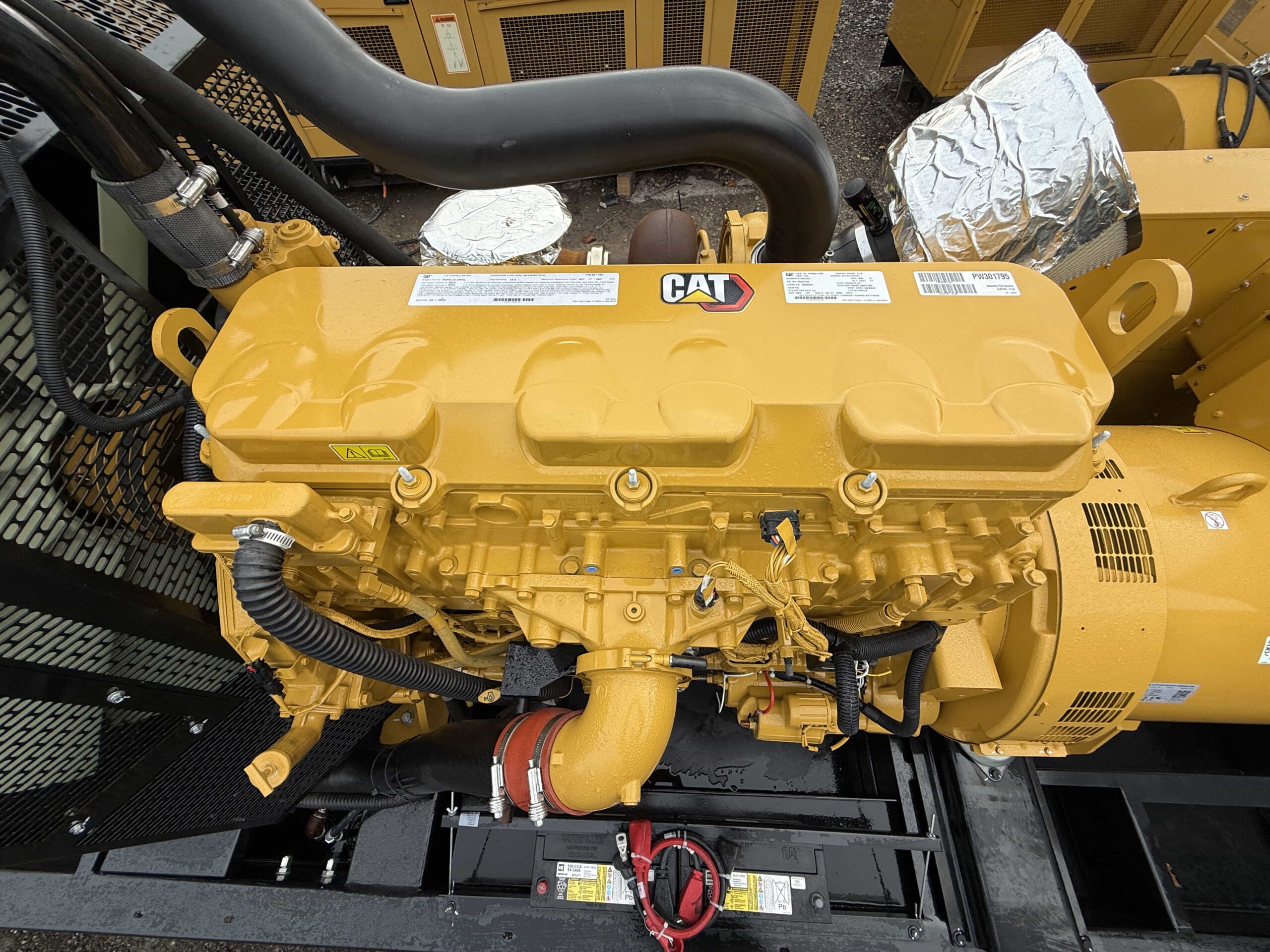

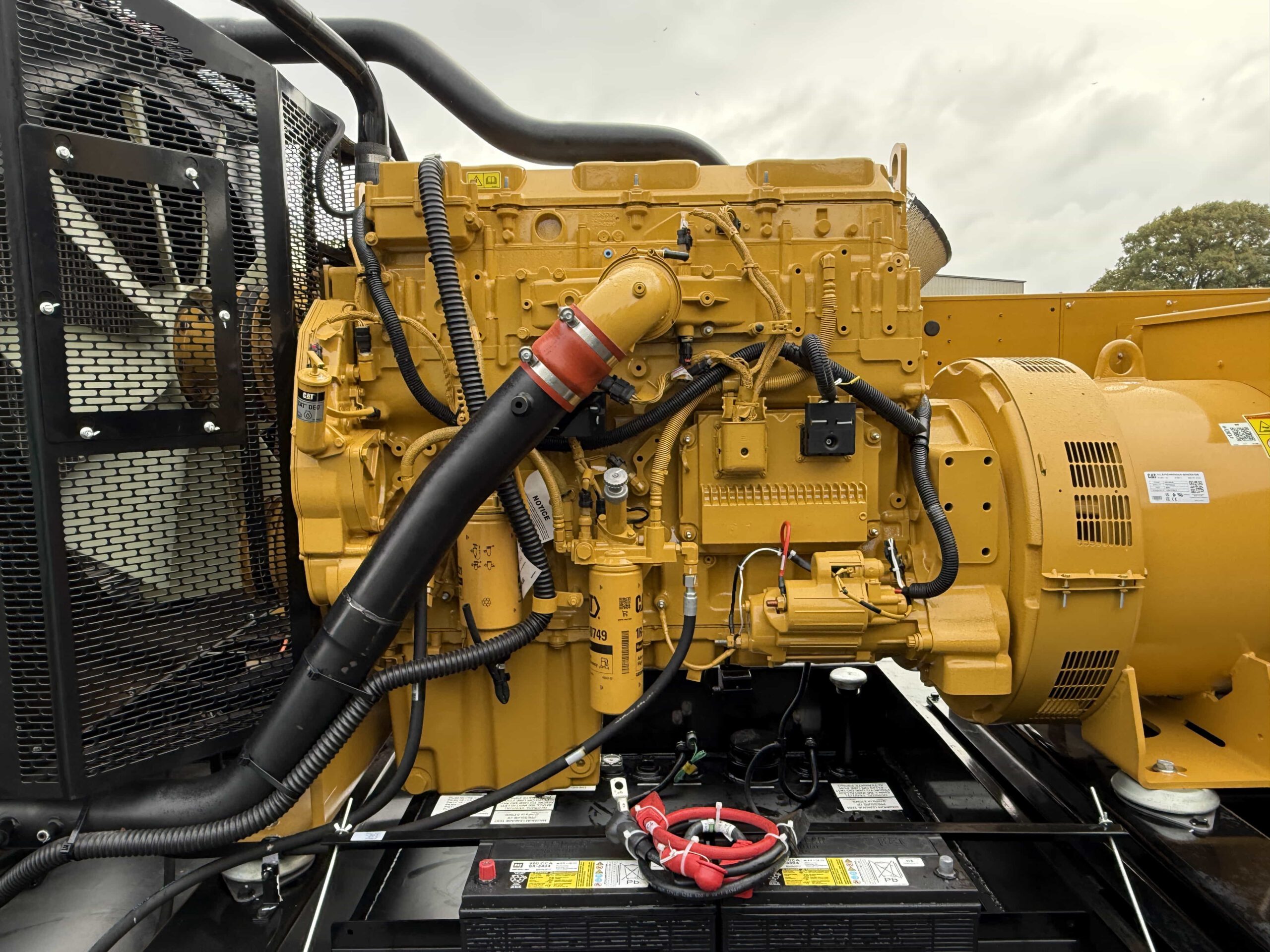

C13 12.5 L diesel engine

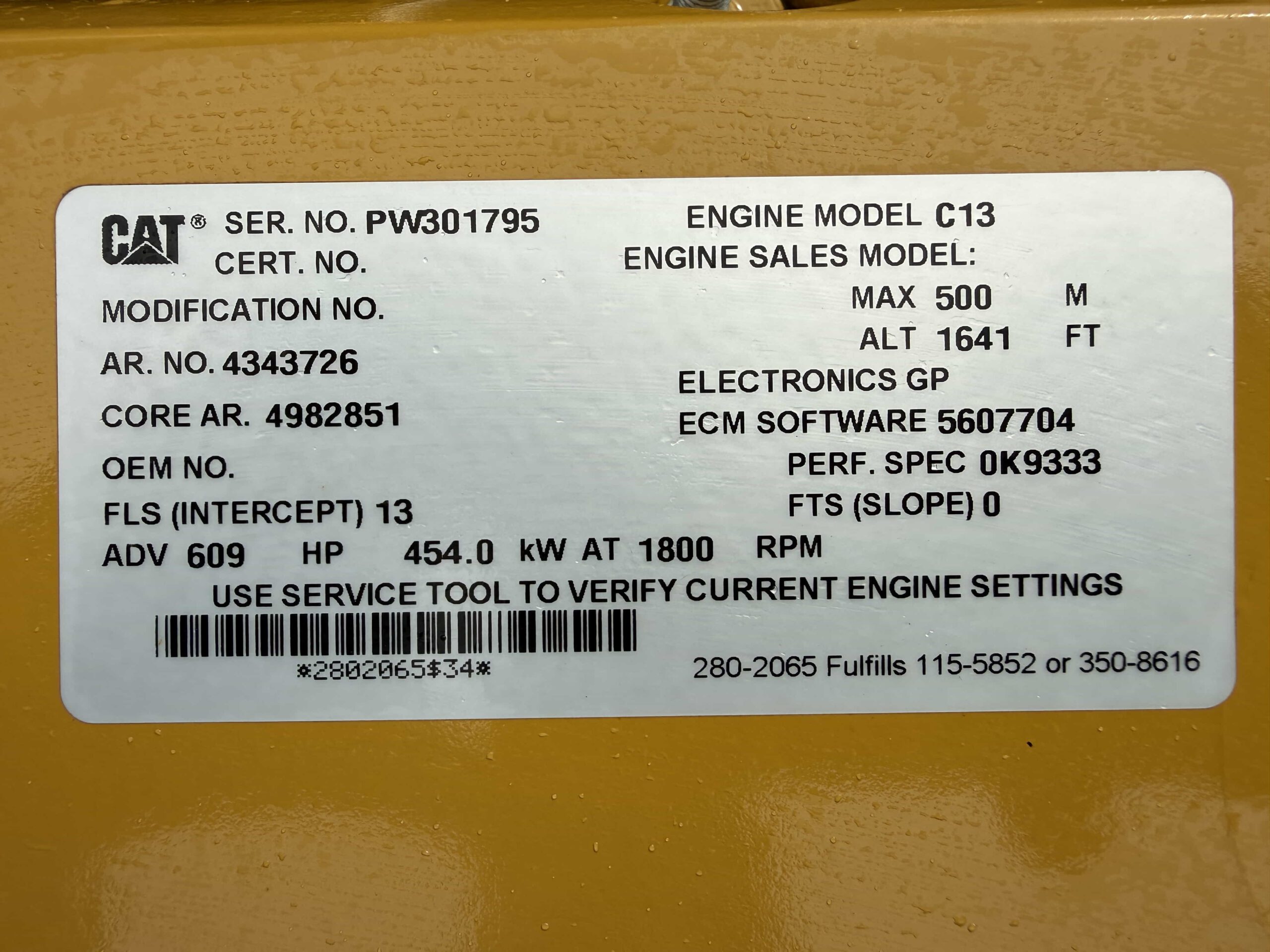

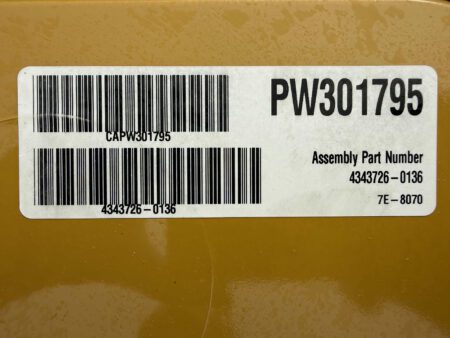

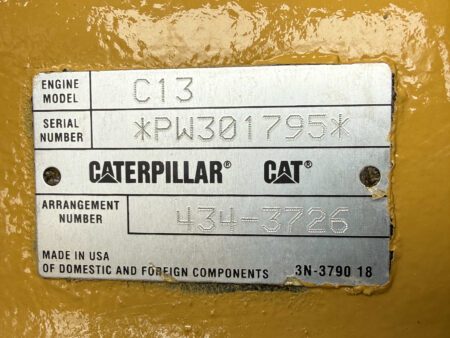

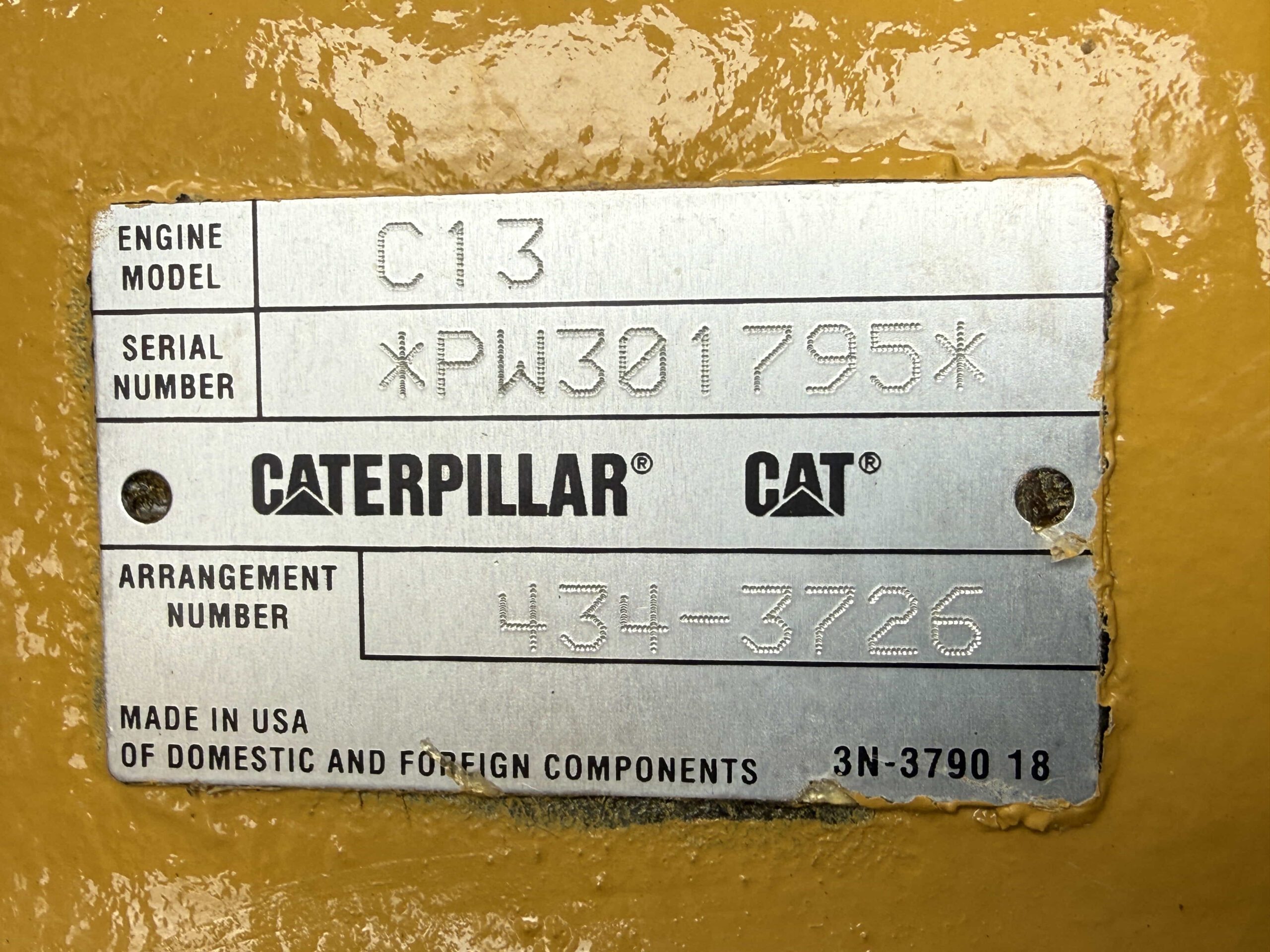

Engine Arrangement #: 4343726

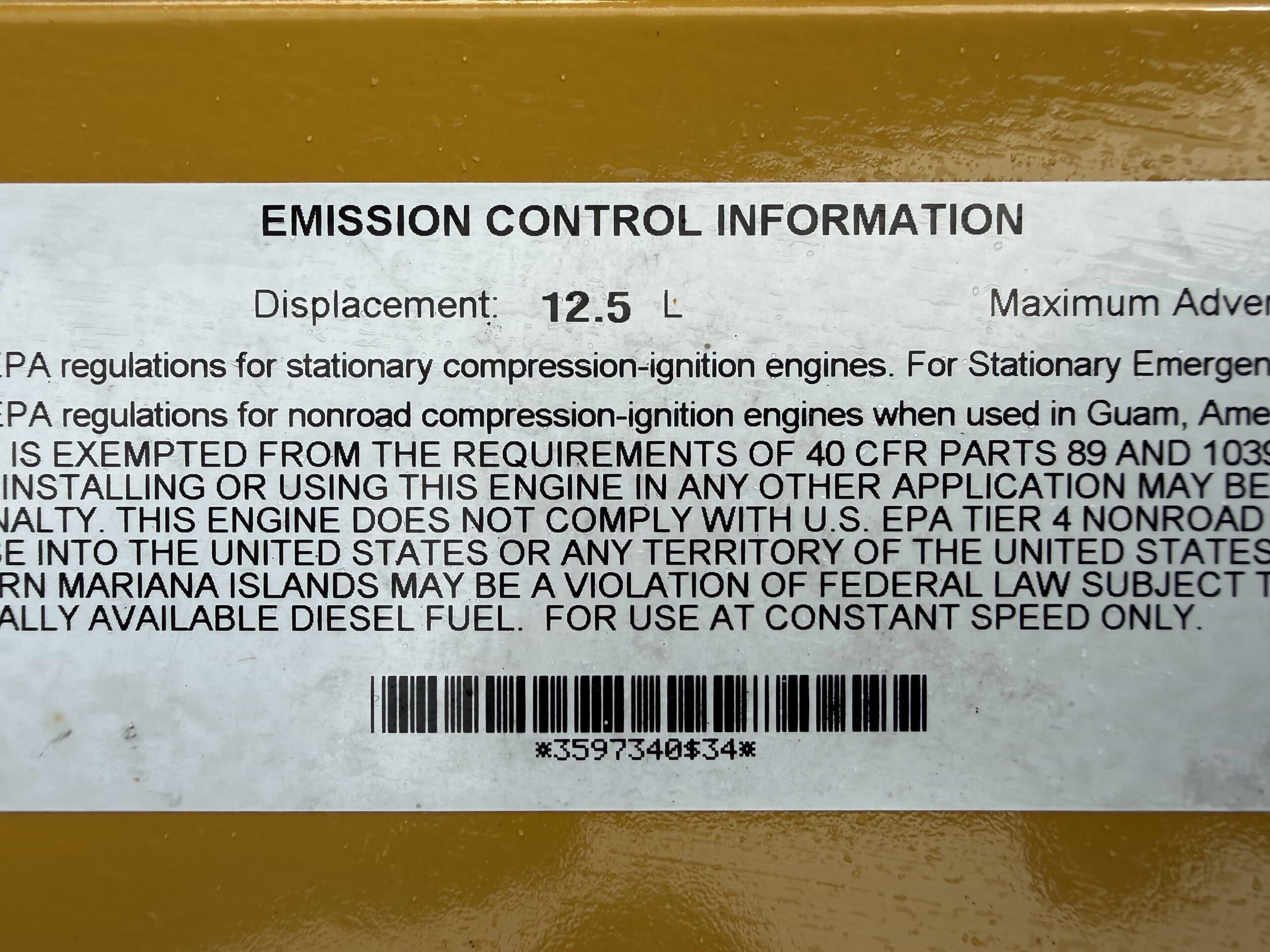

Certification Arrangement #: 3662120

ECM Software: 5607704

Test Spec #: 0K9333

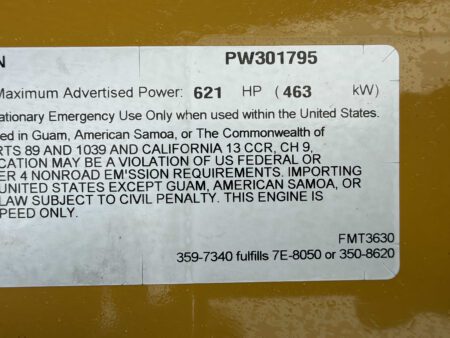

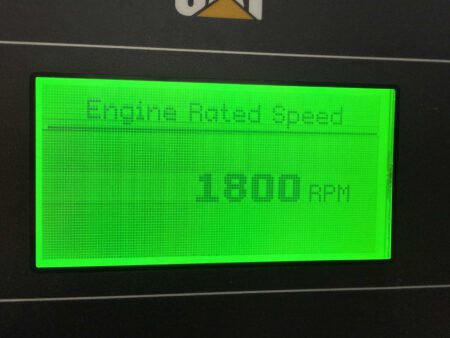

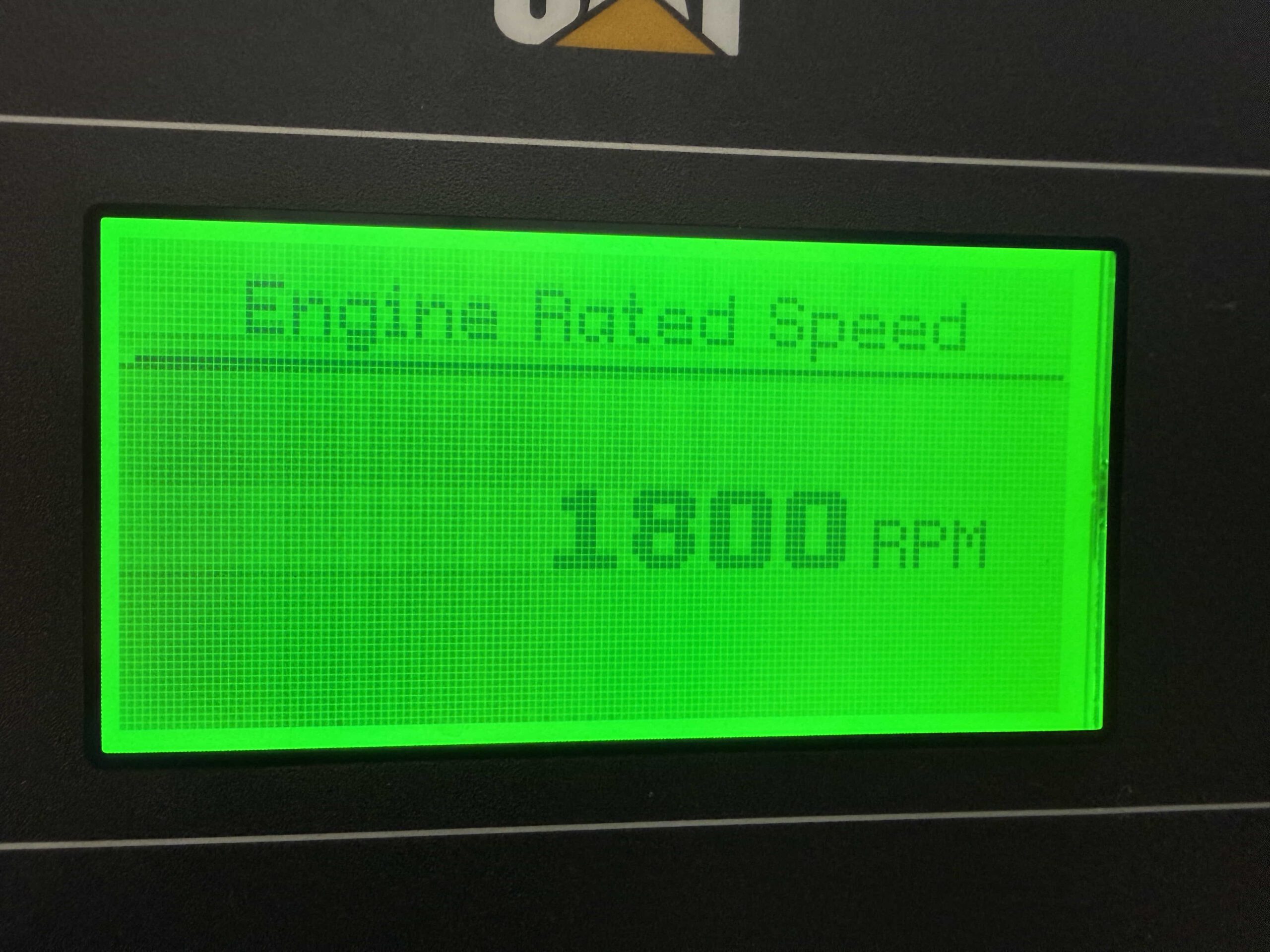

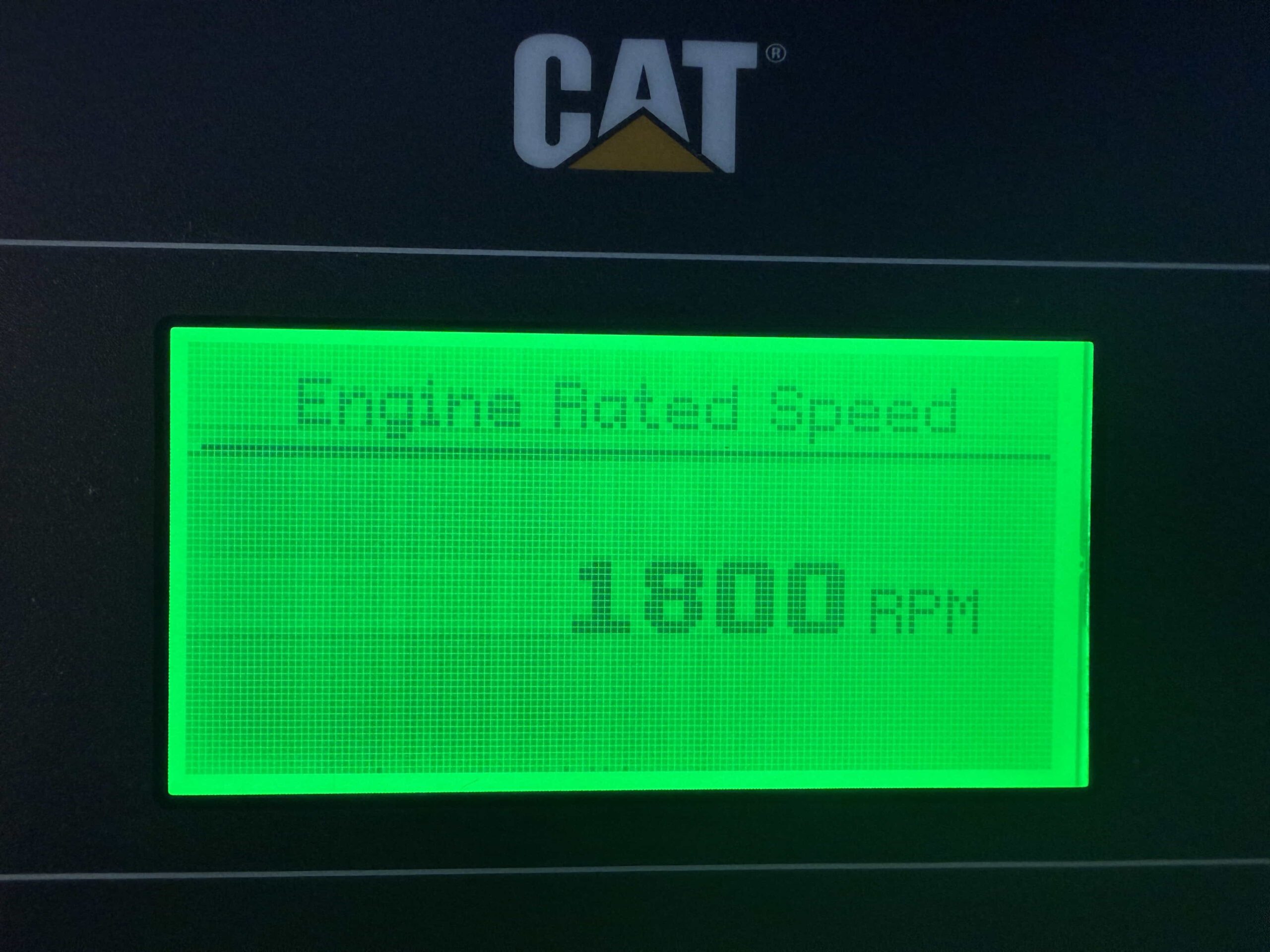

Advertised Power: 609 HP @ 1800 RPM

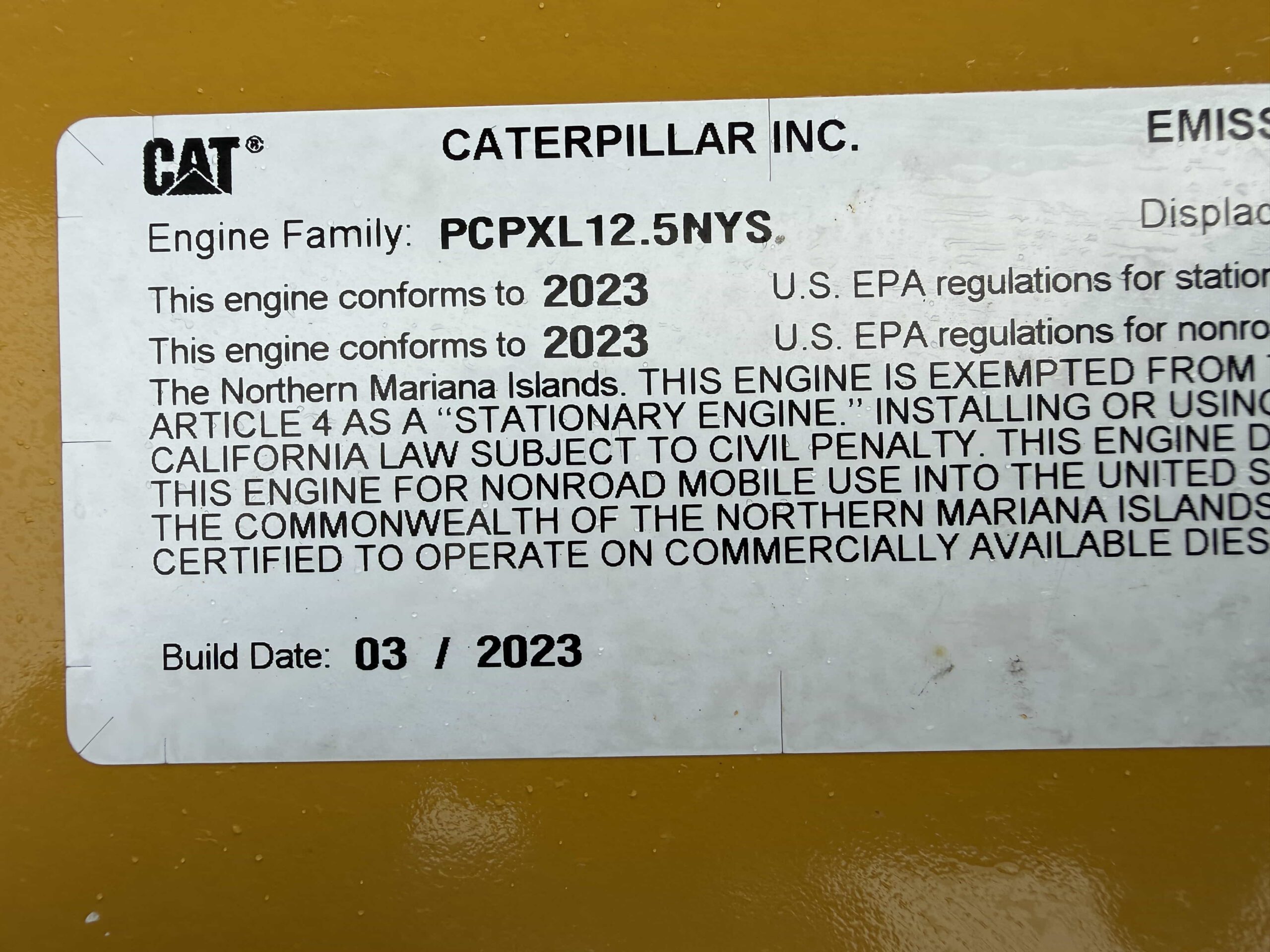

Regulatory Build Date: March 2, 2023

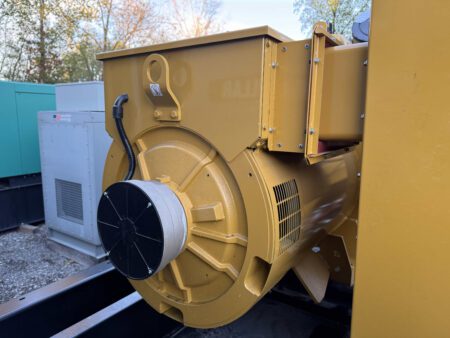

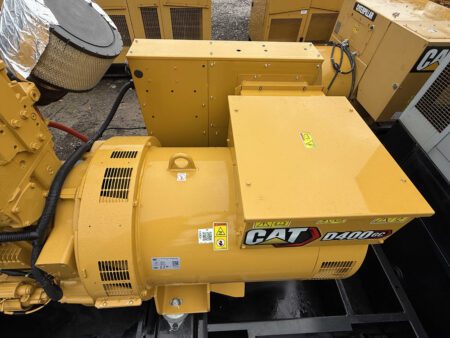

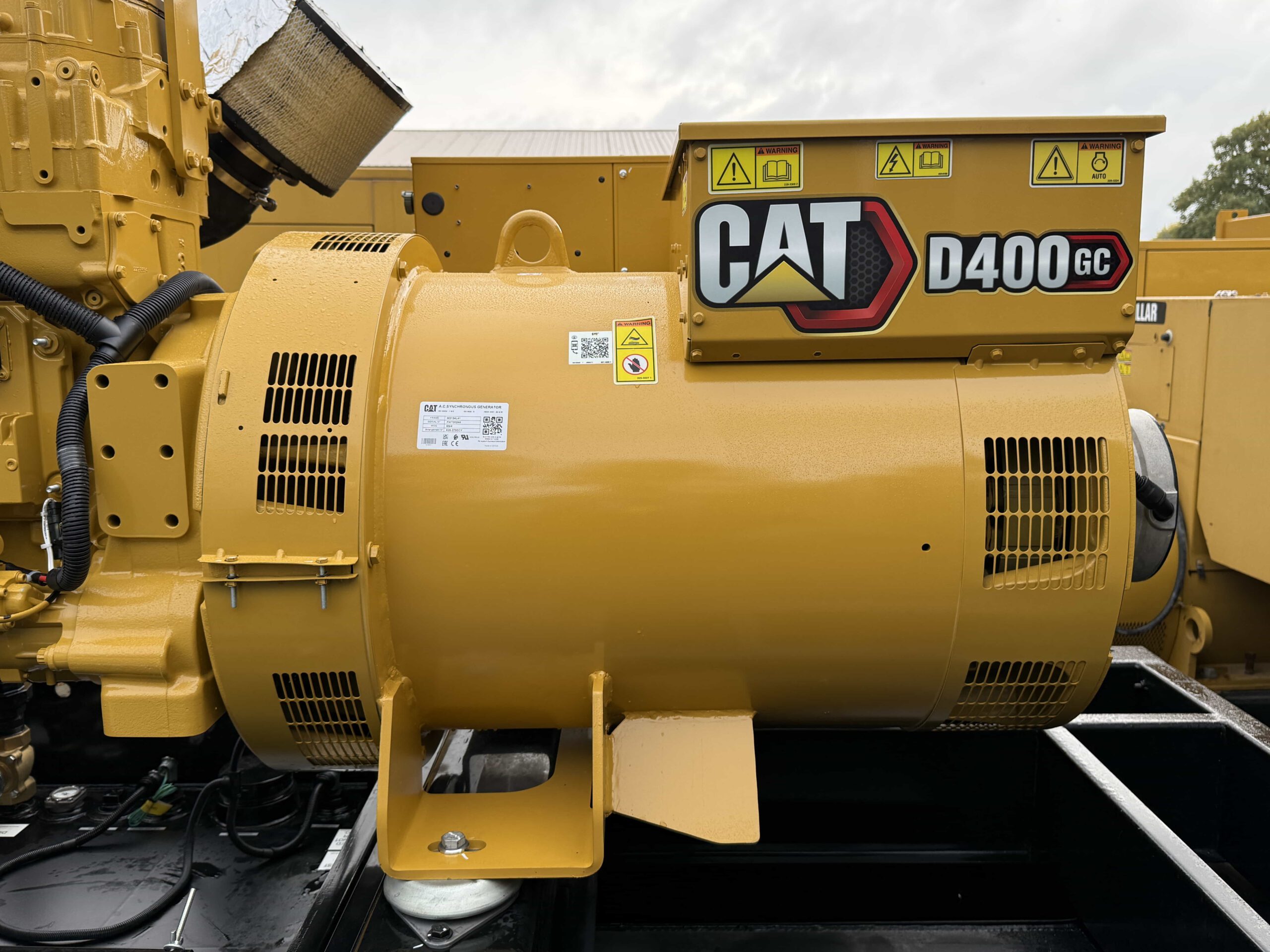

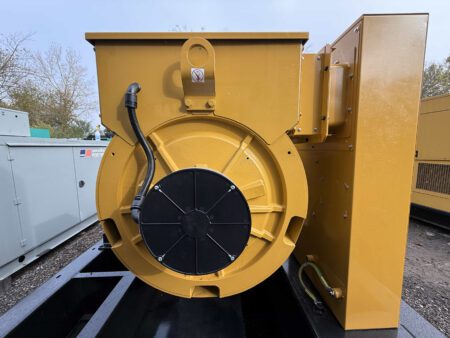

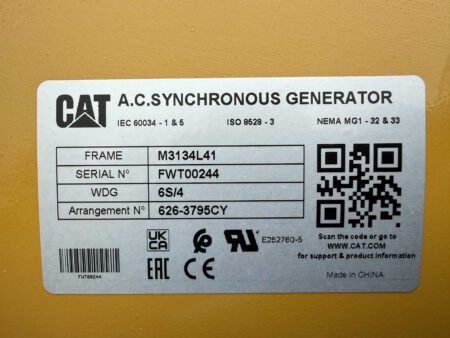

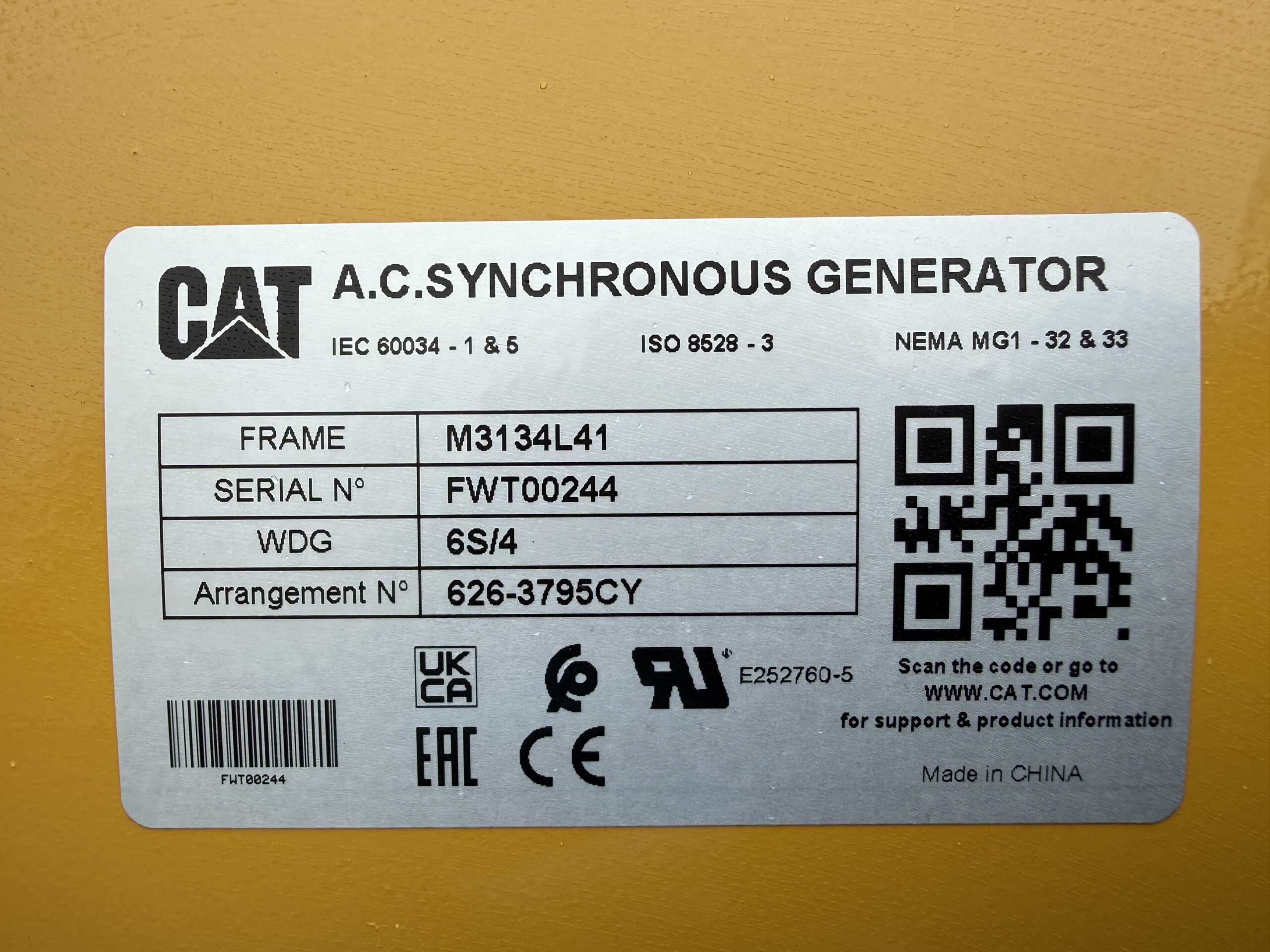

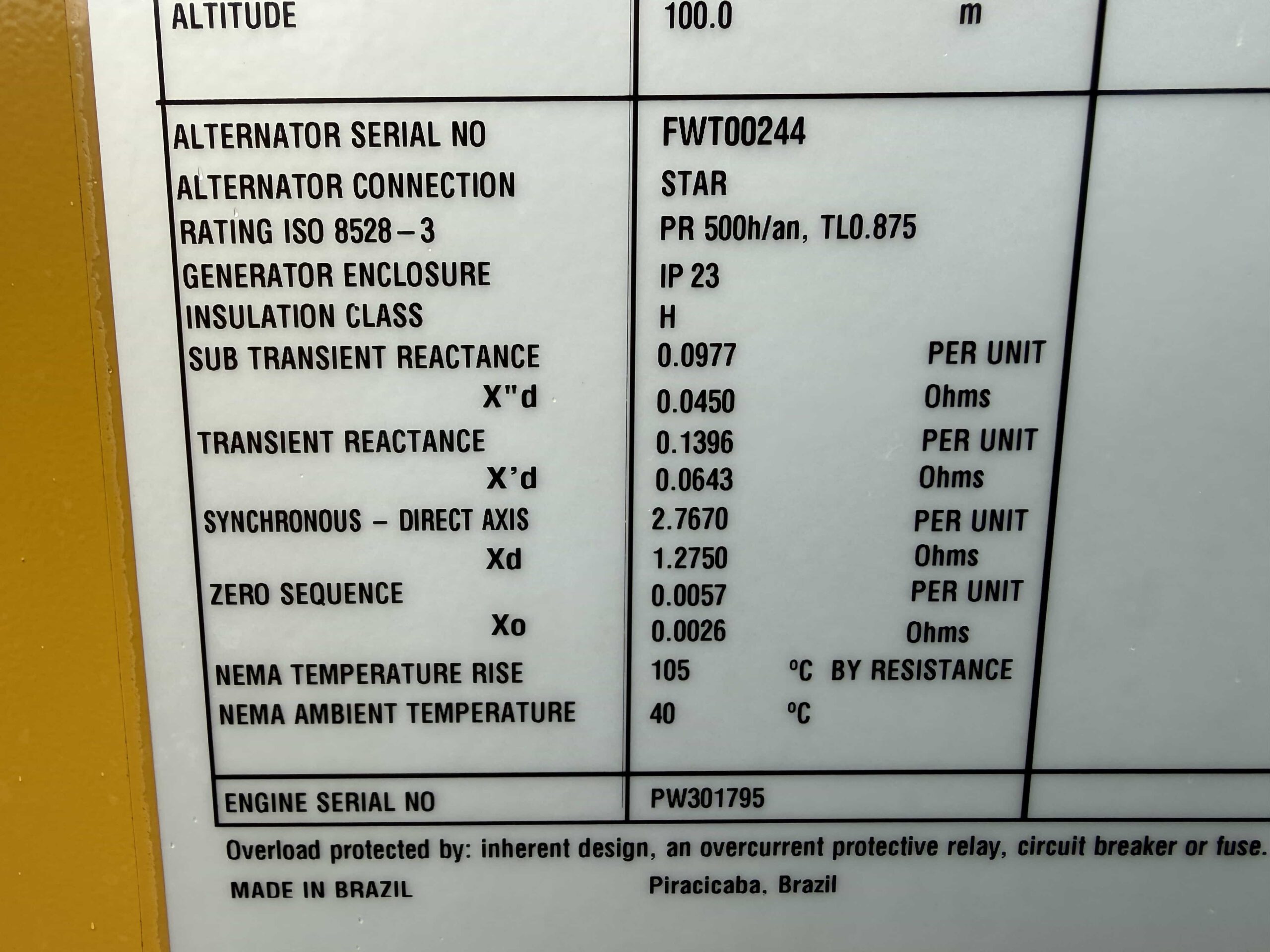

Alternator Arrangement #: 6263795 (Frame M3134L41)

Permanent Magnet Excitation (PM) for EMCP 4.2 control

Alternator Insulation Class H / 125 °C Standby Temperature Rise

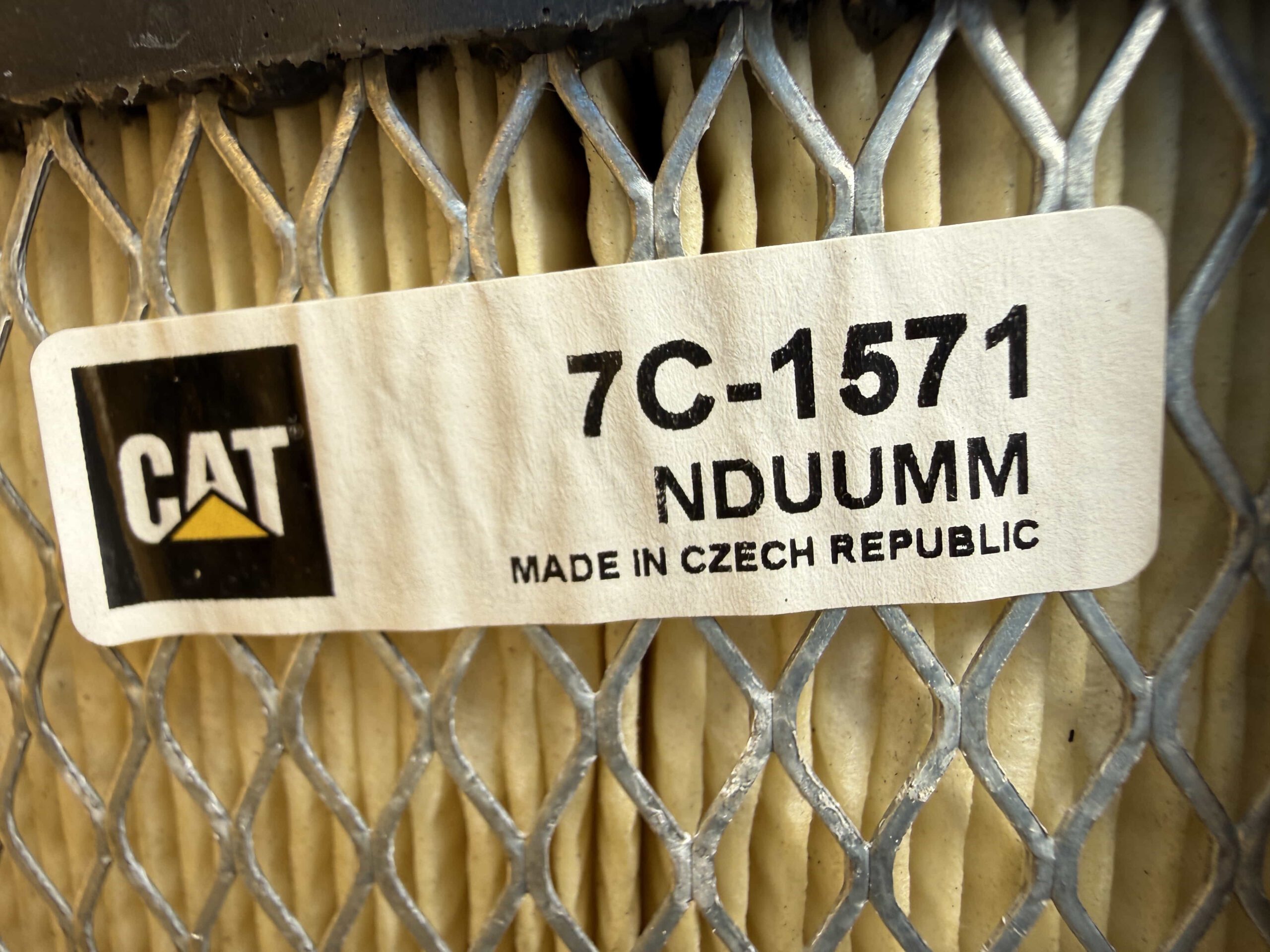

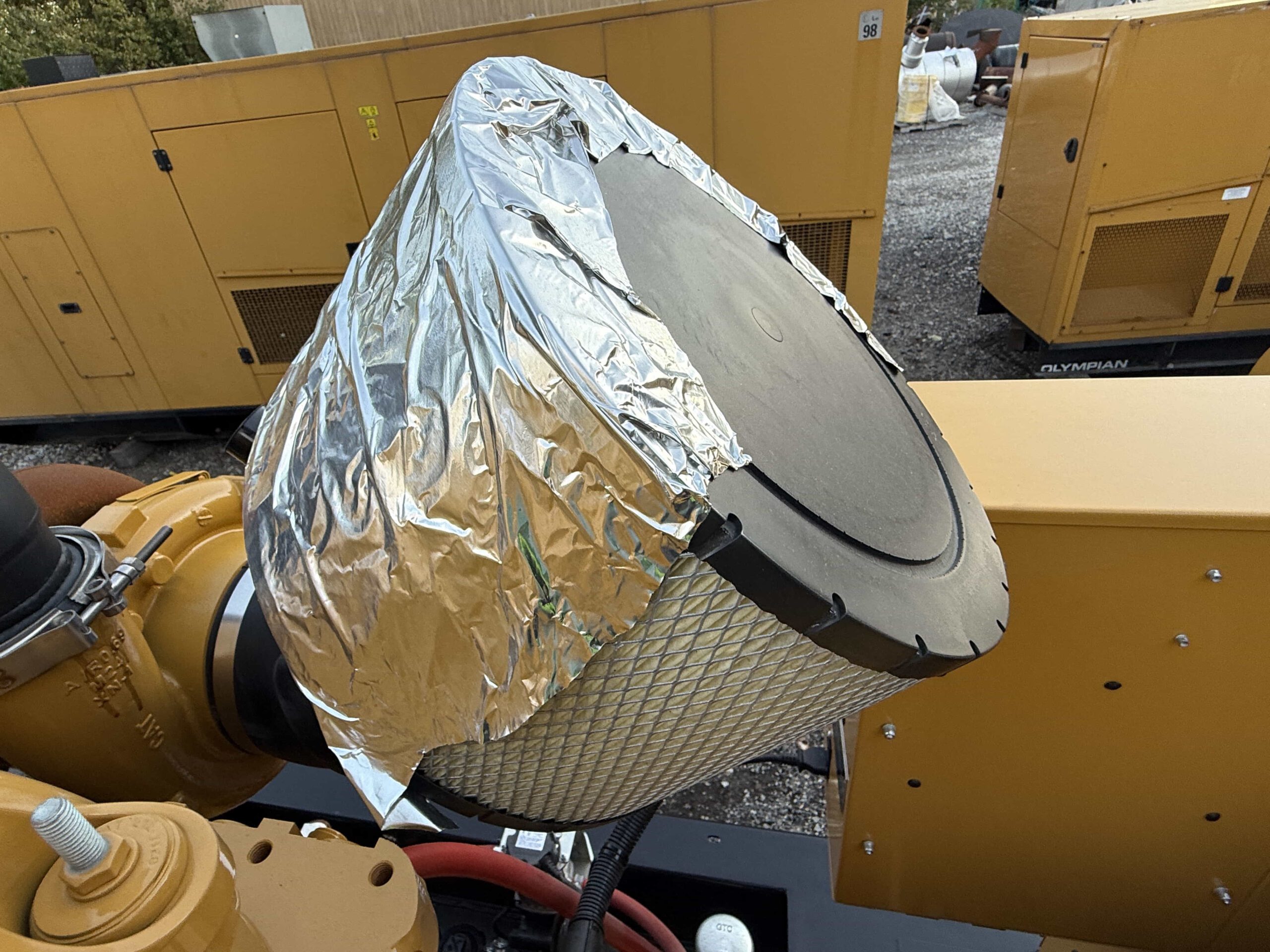

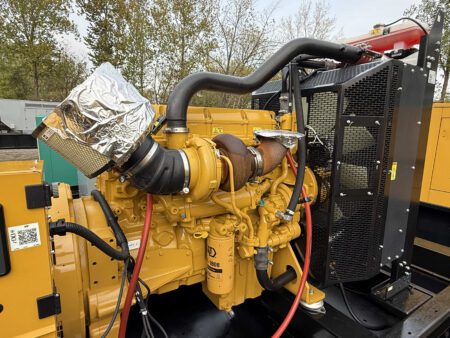

Air Cleaner: Heavy-duty dry element (filter protected for storage)

Jacket Water Heater: Dual-element 120 V AC

Battery Cables & Hold-Downs: Factory-installed

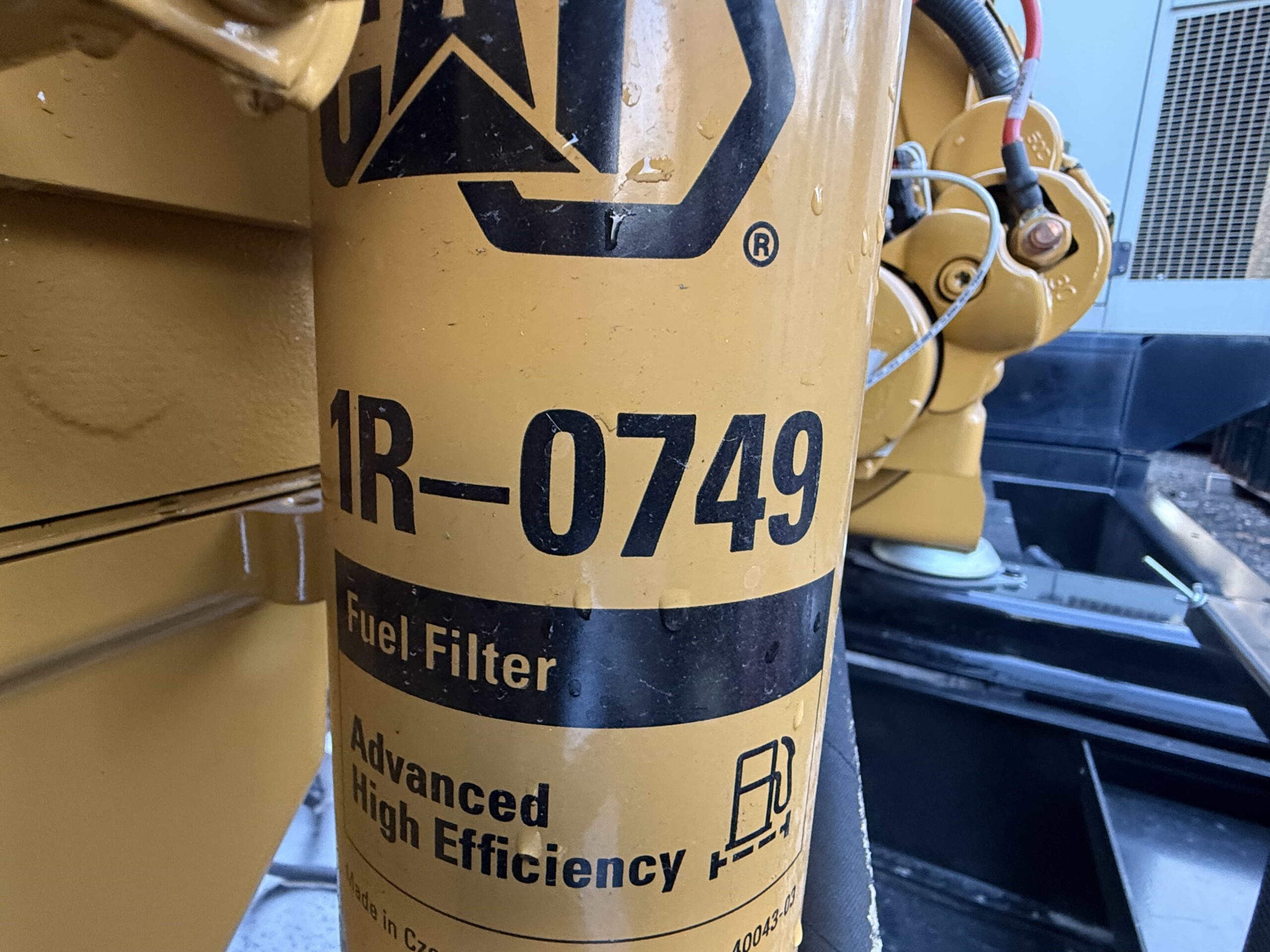

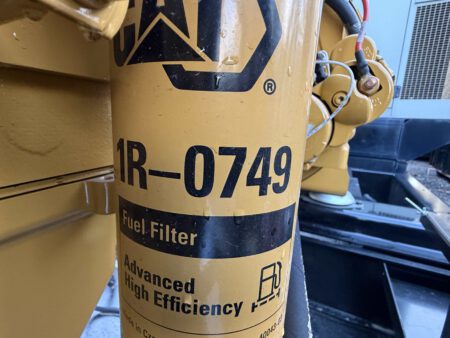

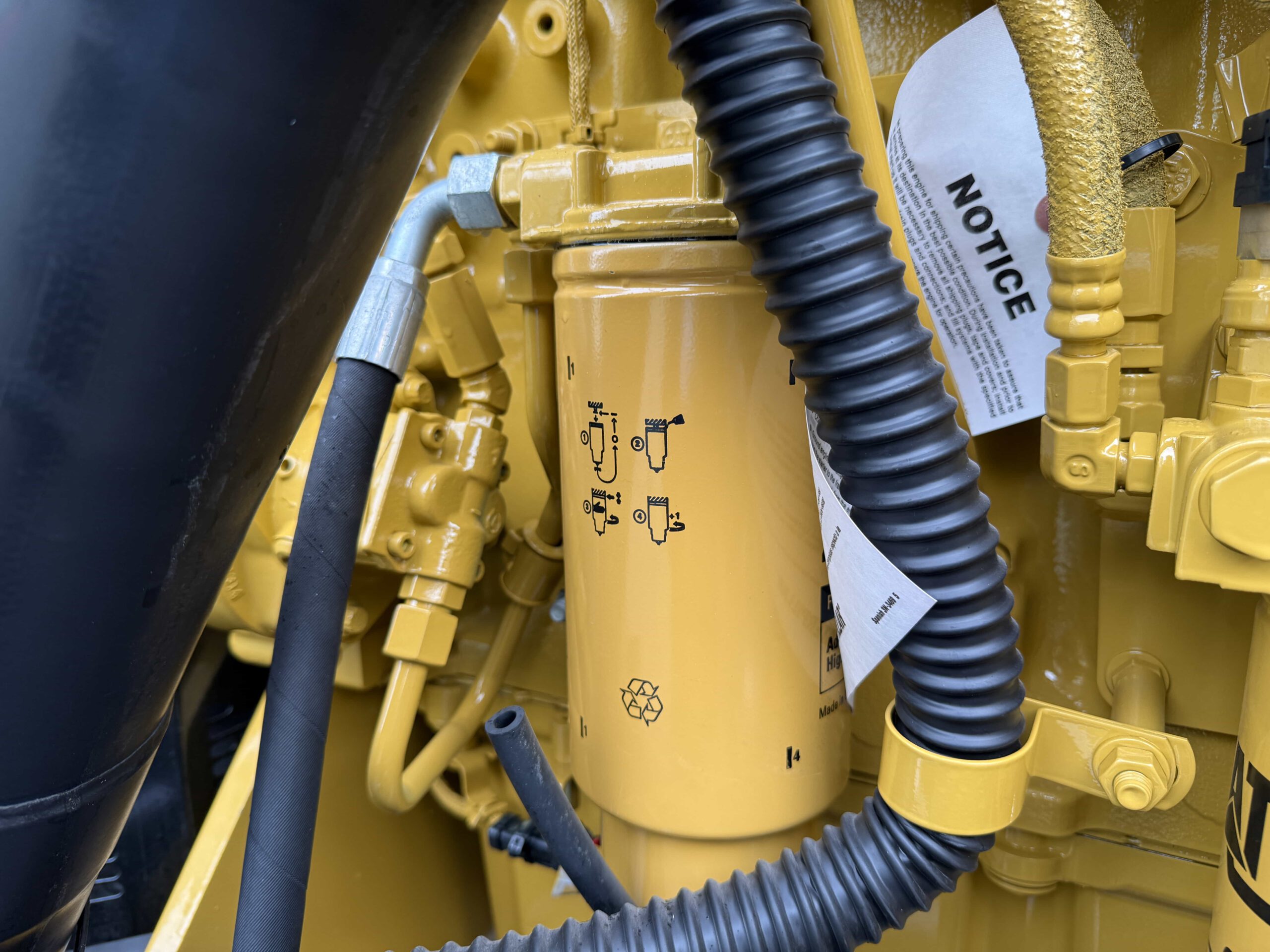

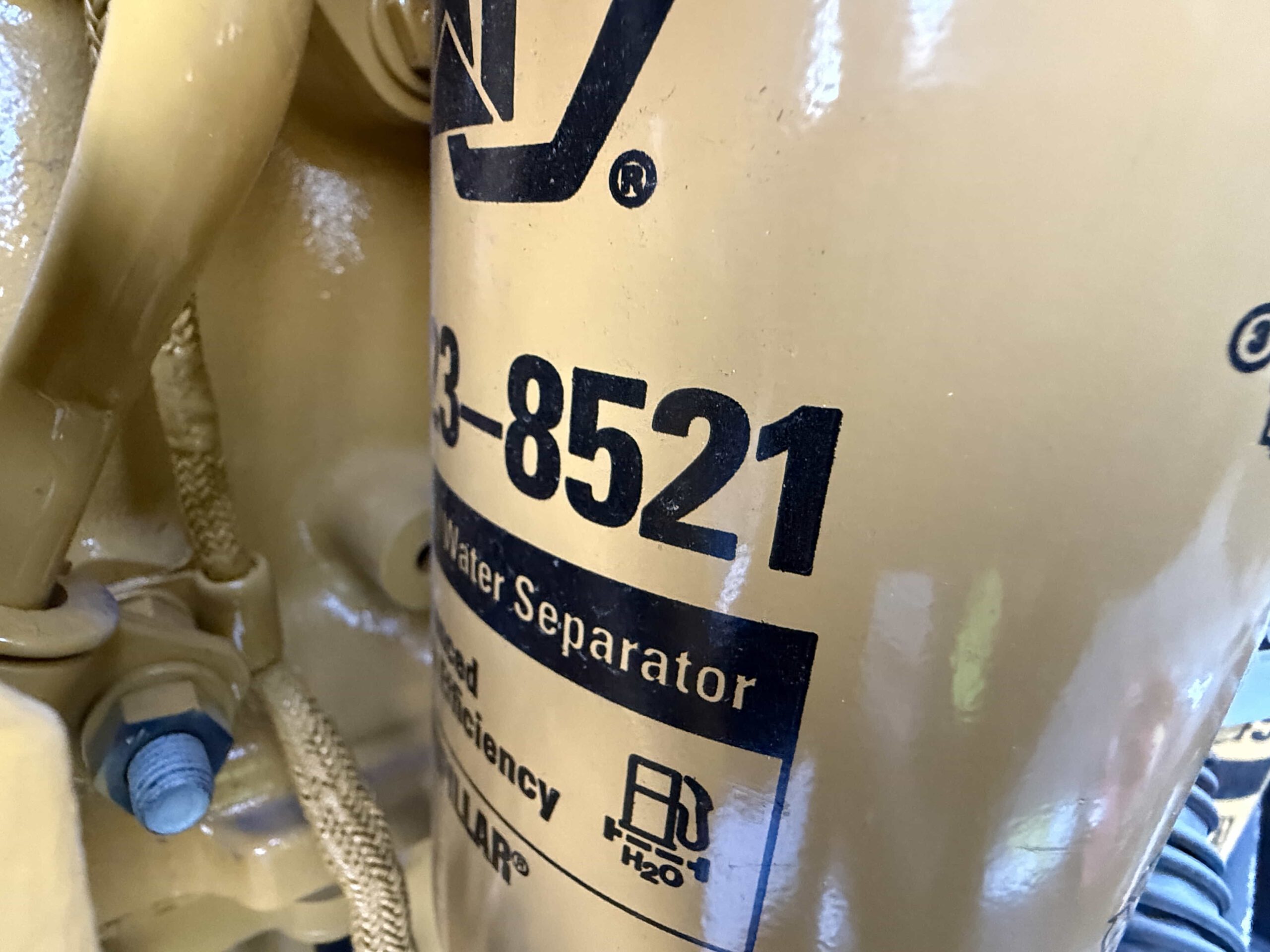

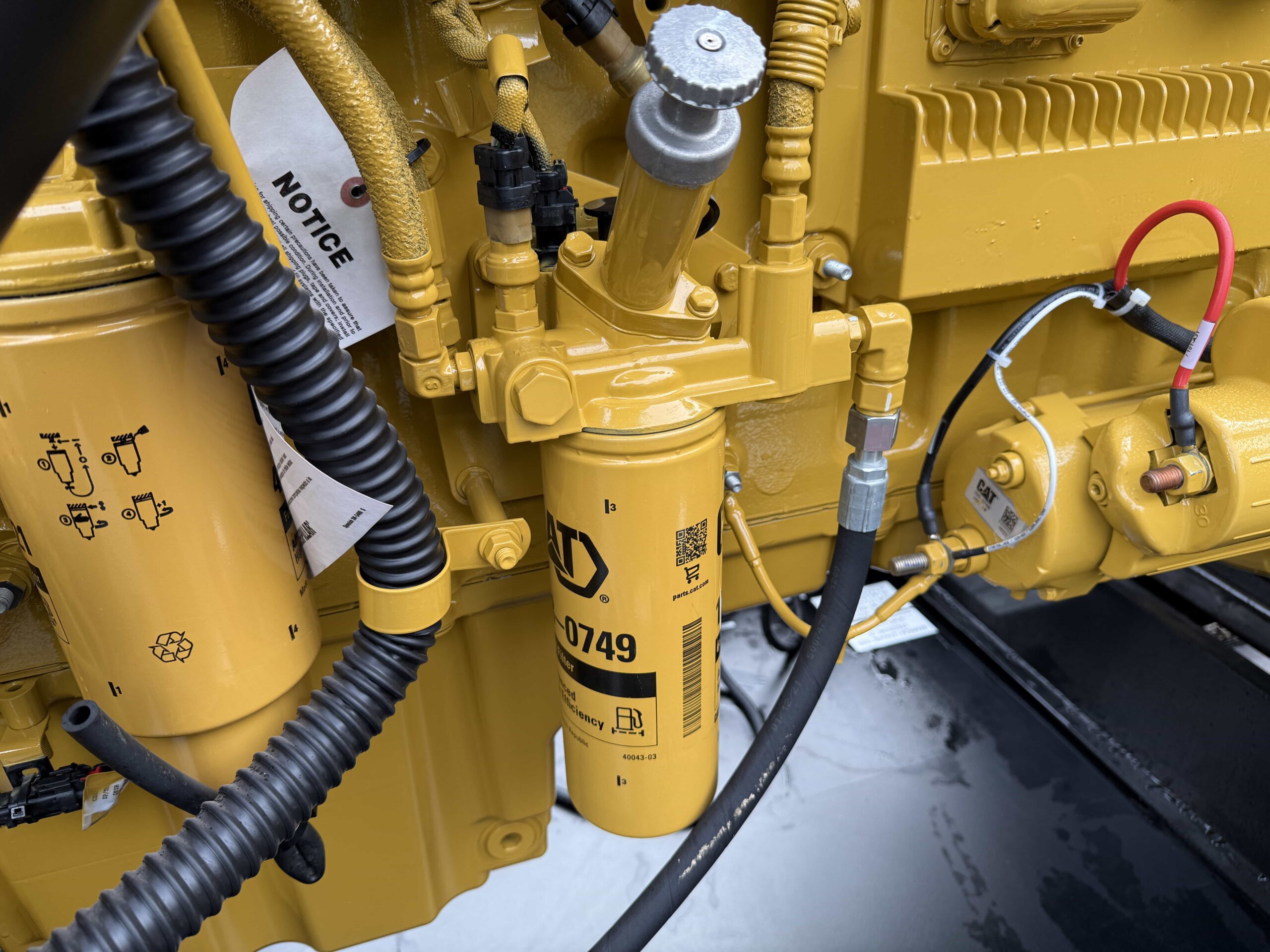

Fuel System: CAT 1R-0749 fuel filters & 343-8521 fuel/water separator

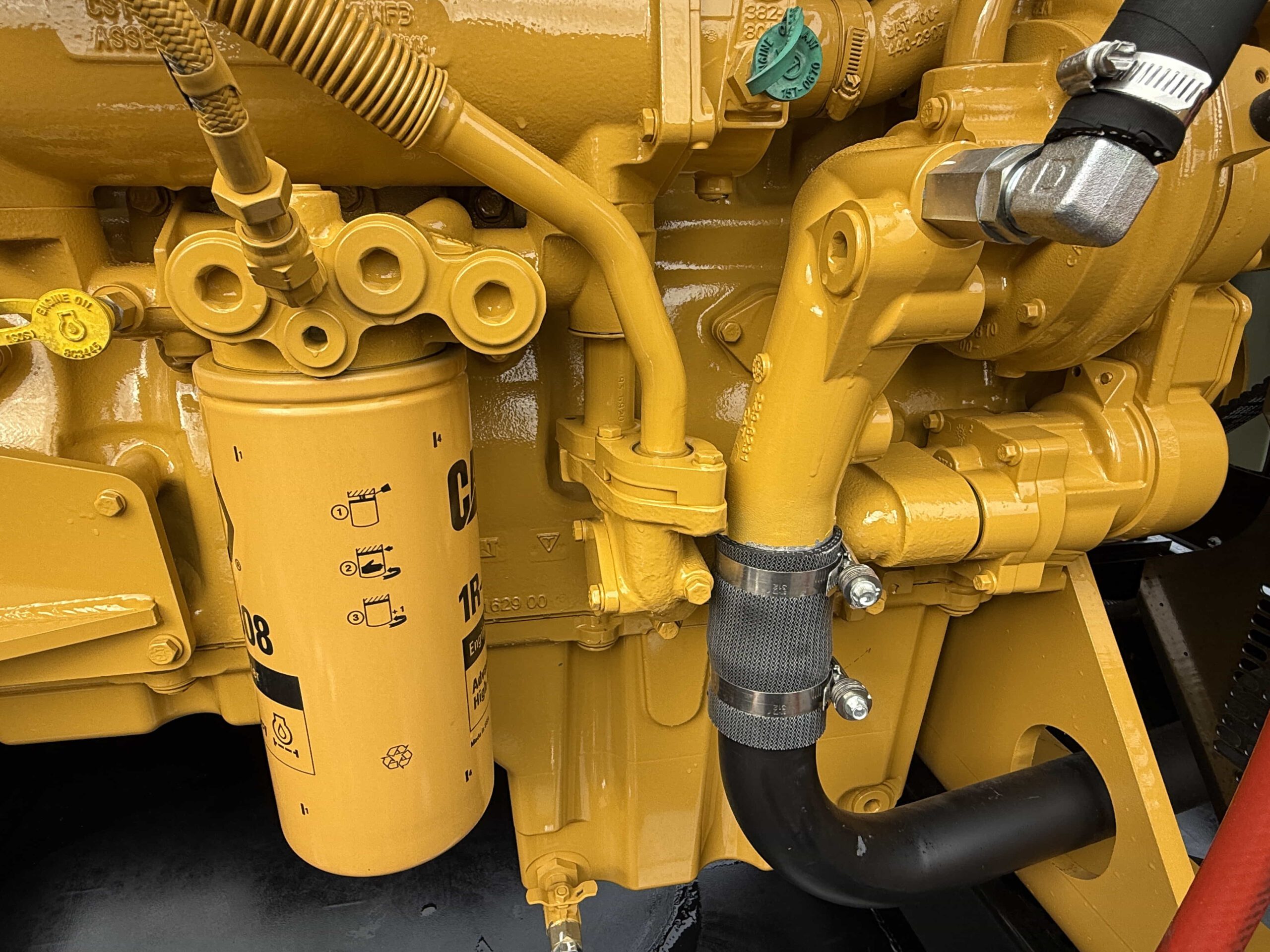

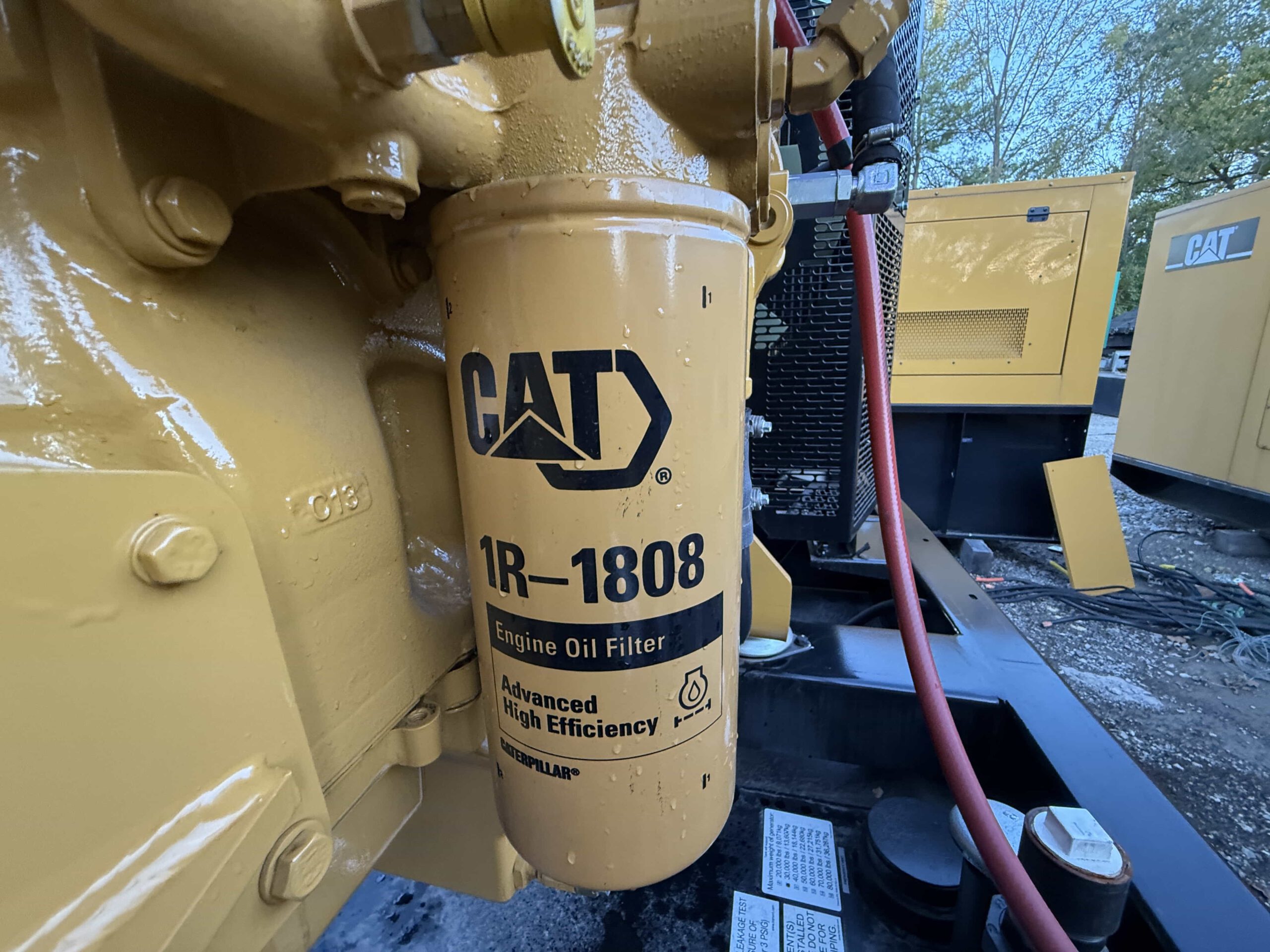

Oil Filter: CAT 1R-1808 Advanced High Efficiency

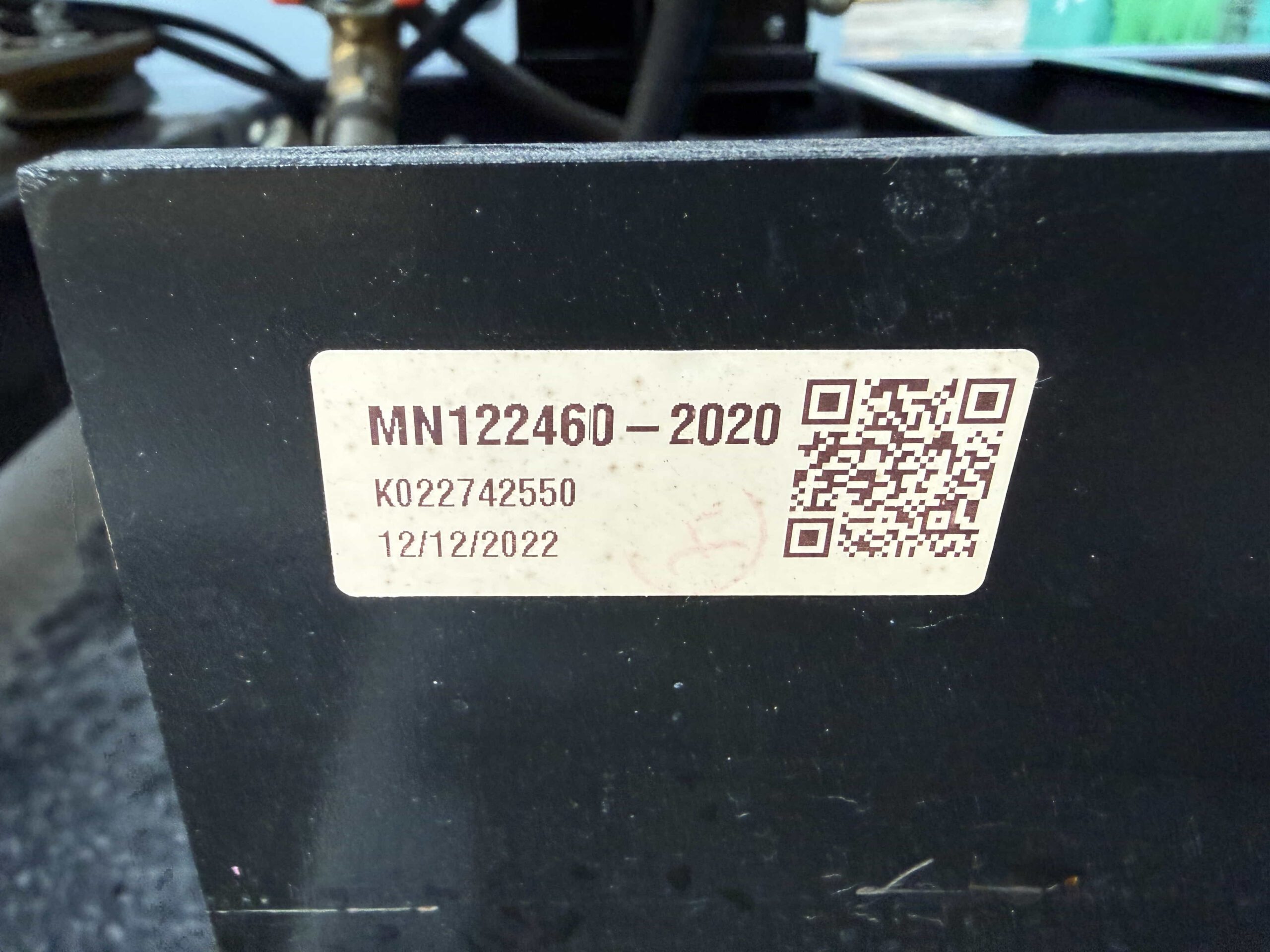

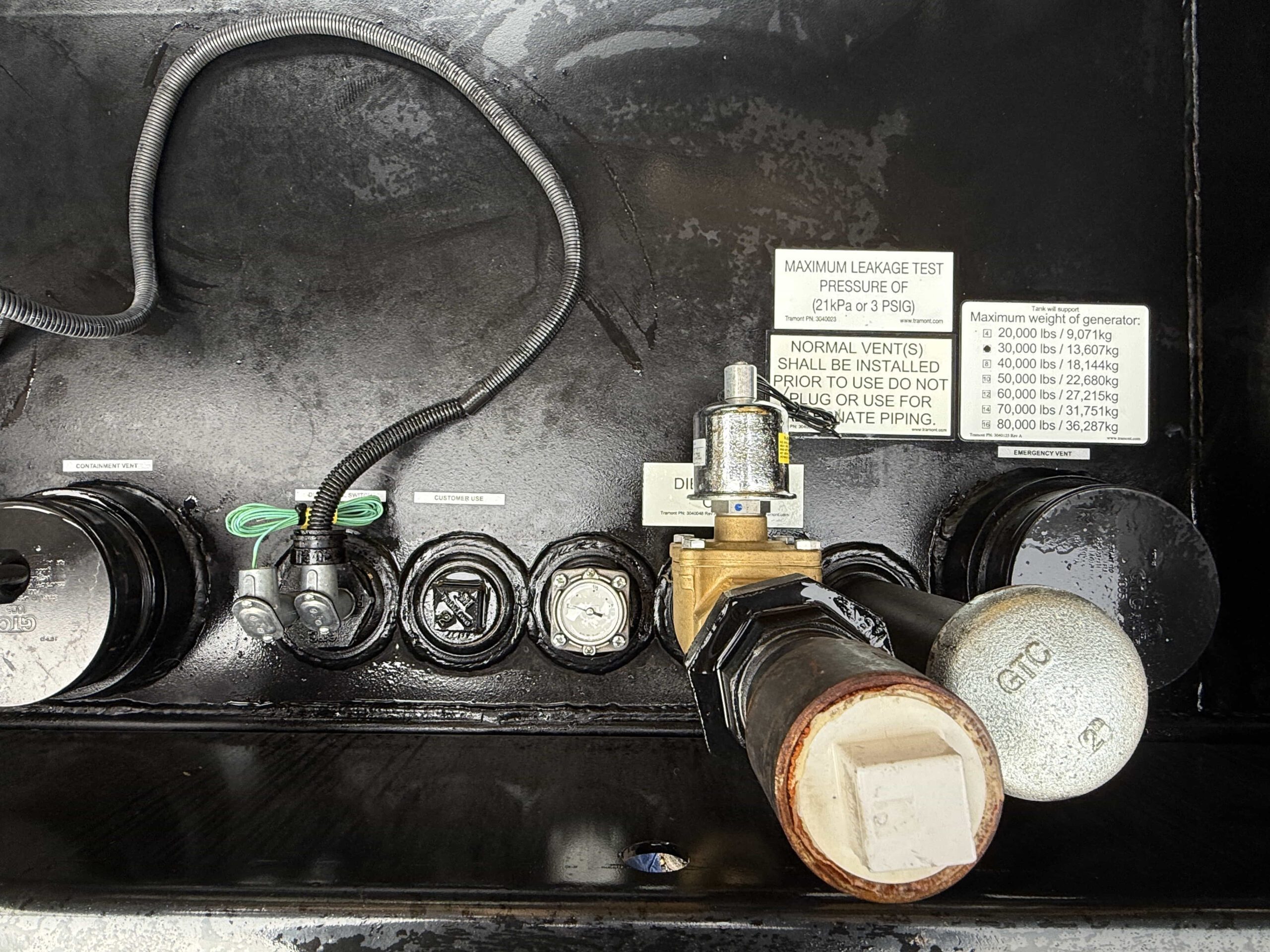

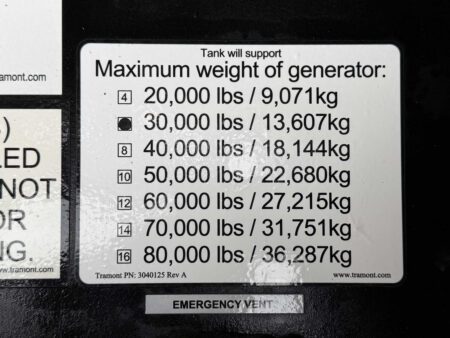

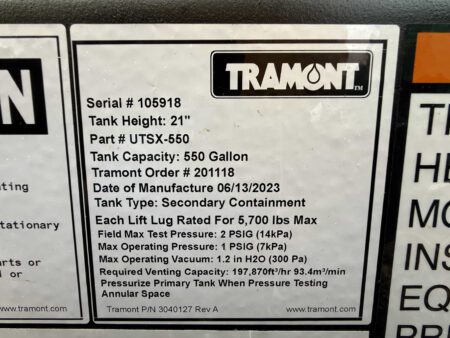

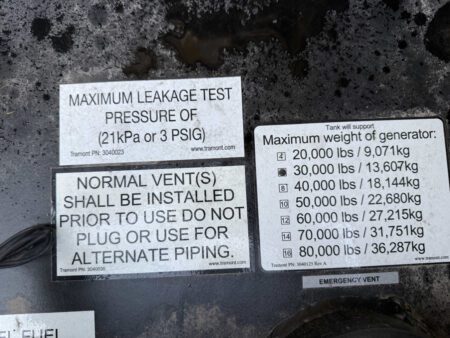

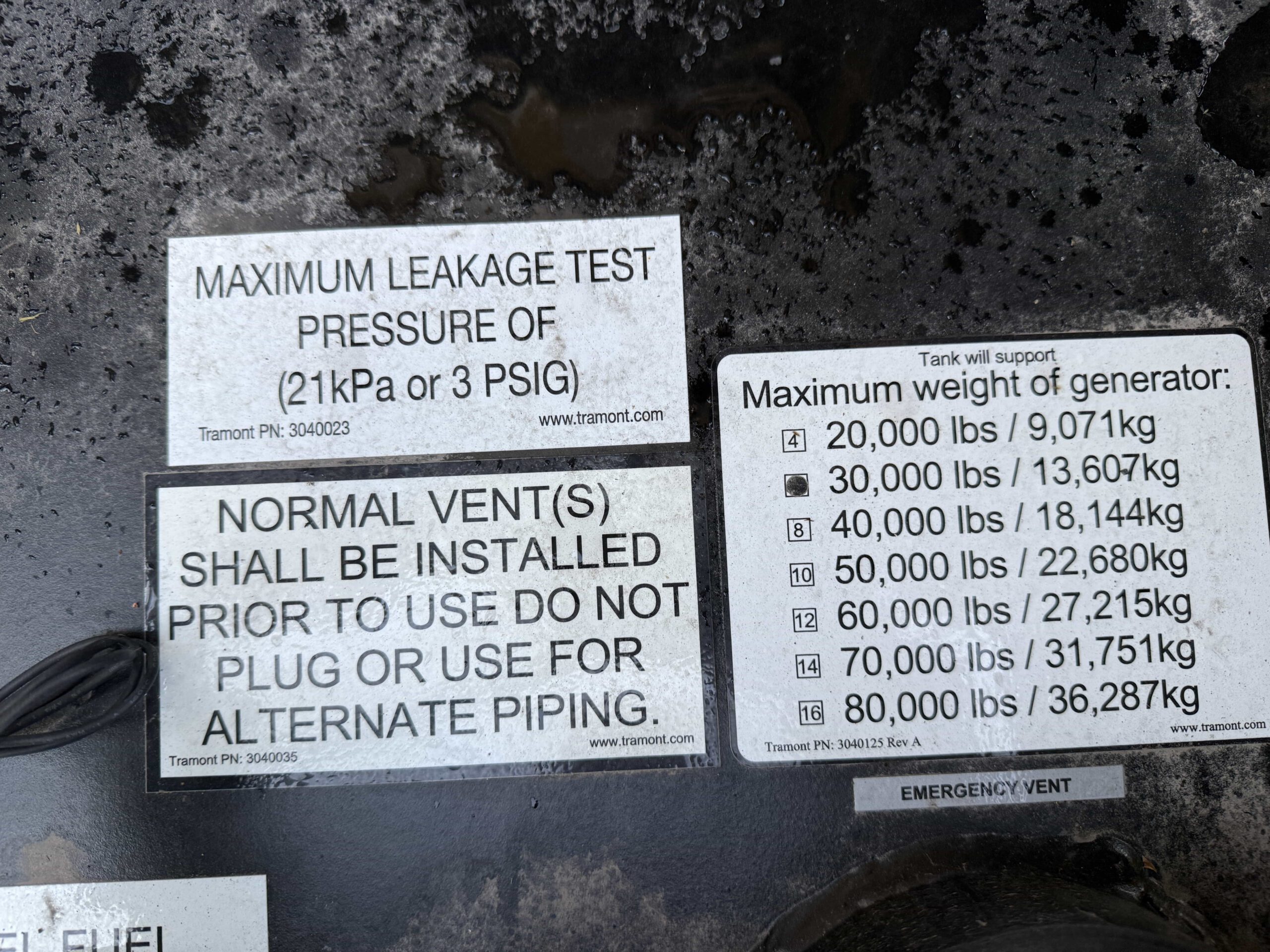

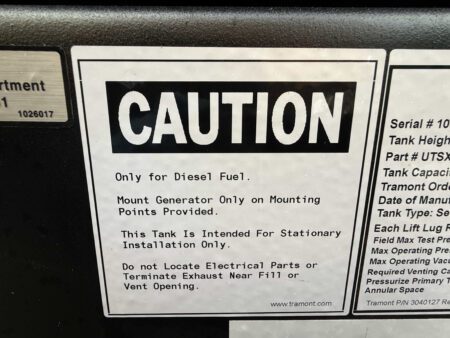

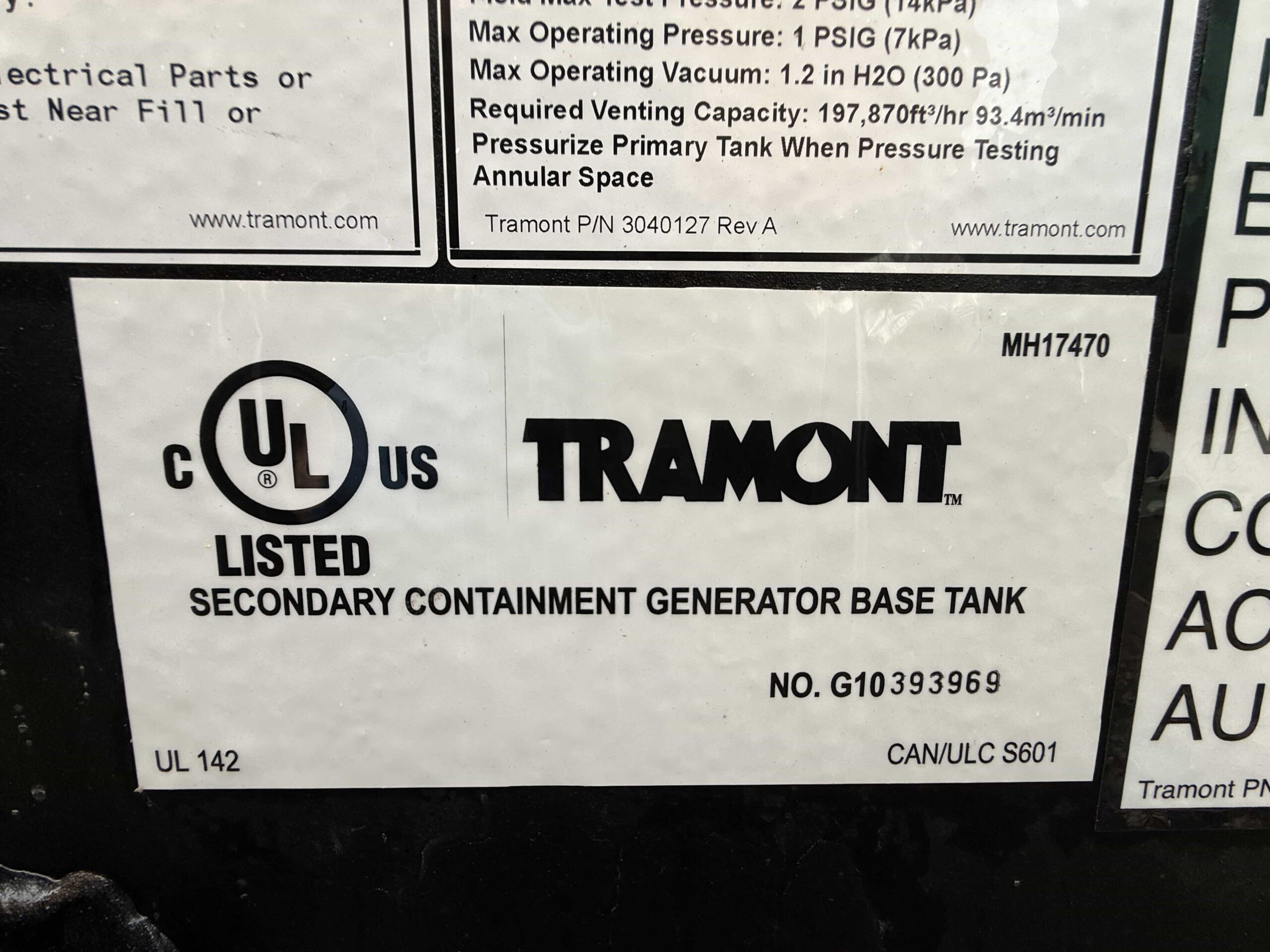

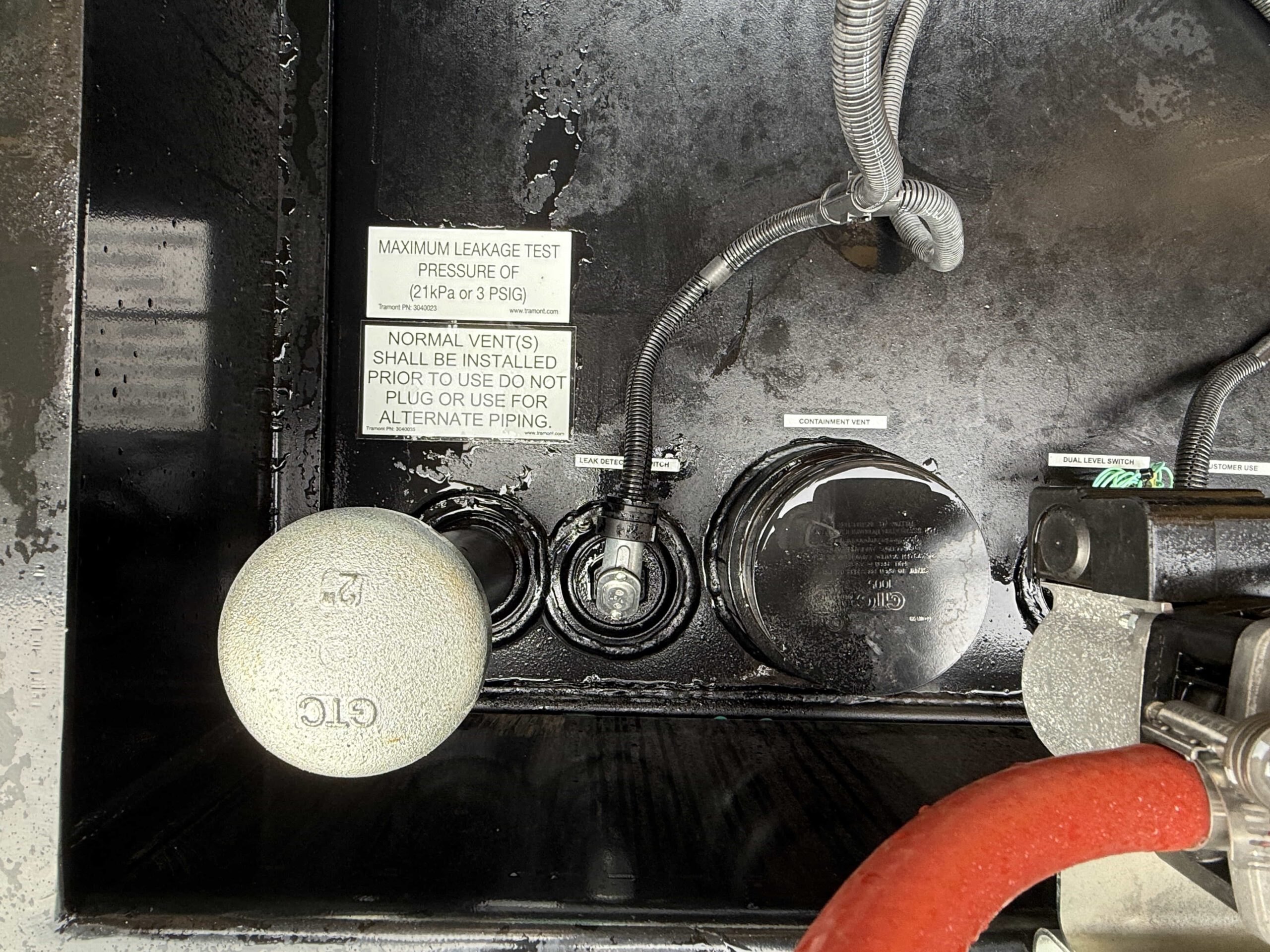

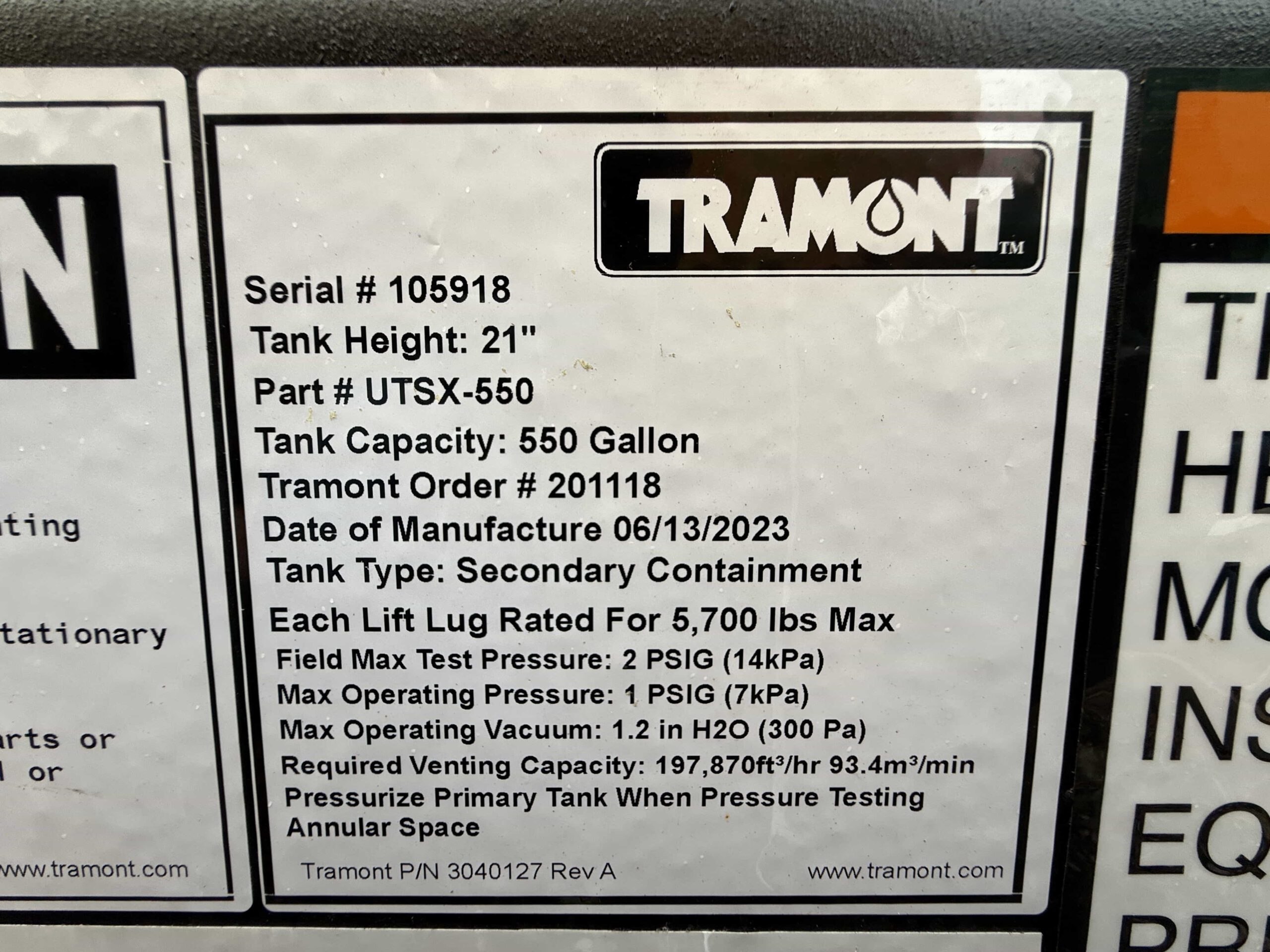

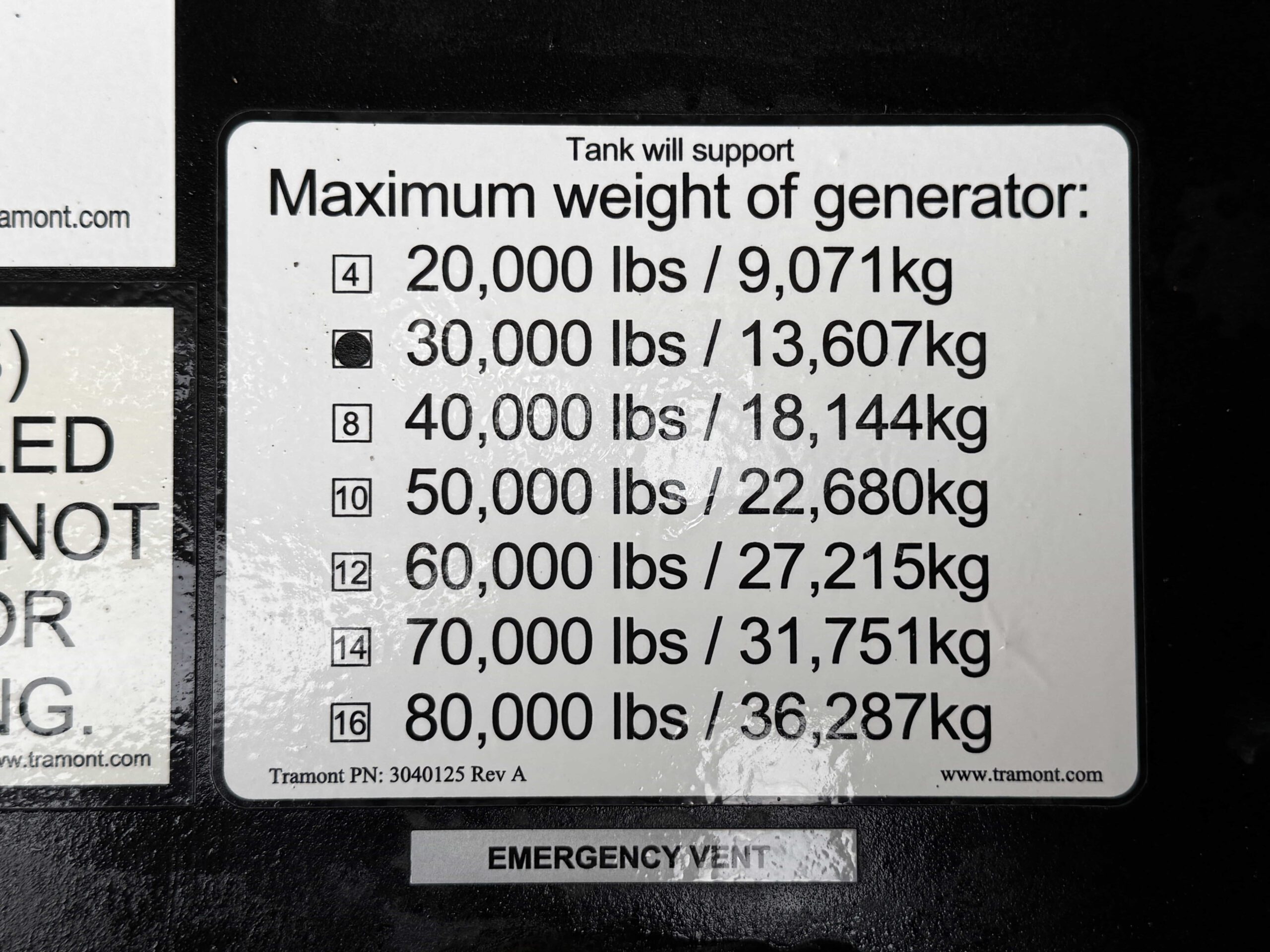

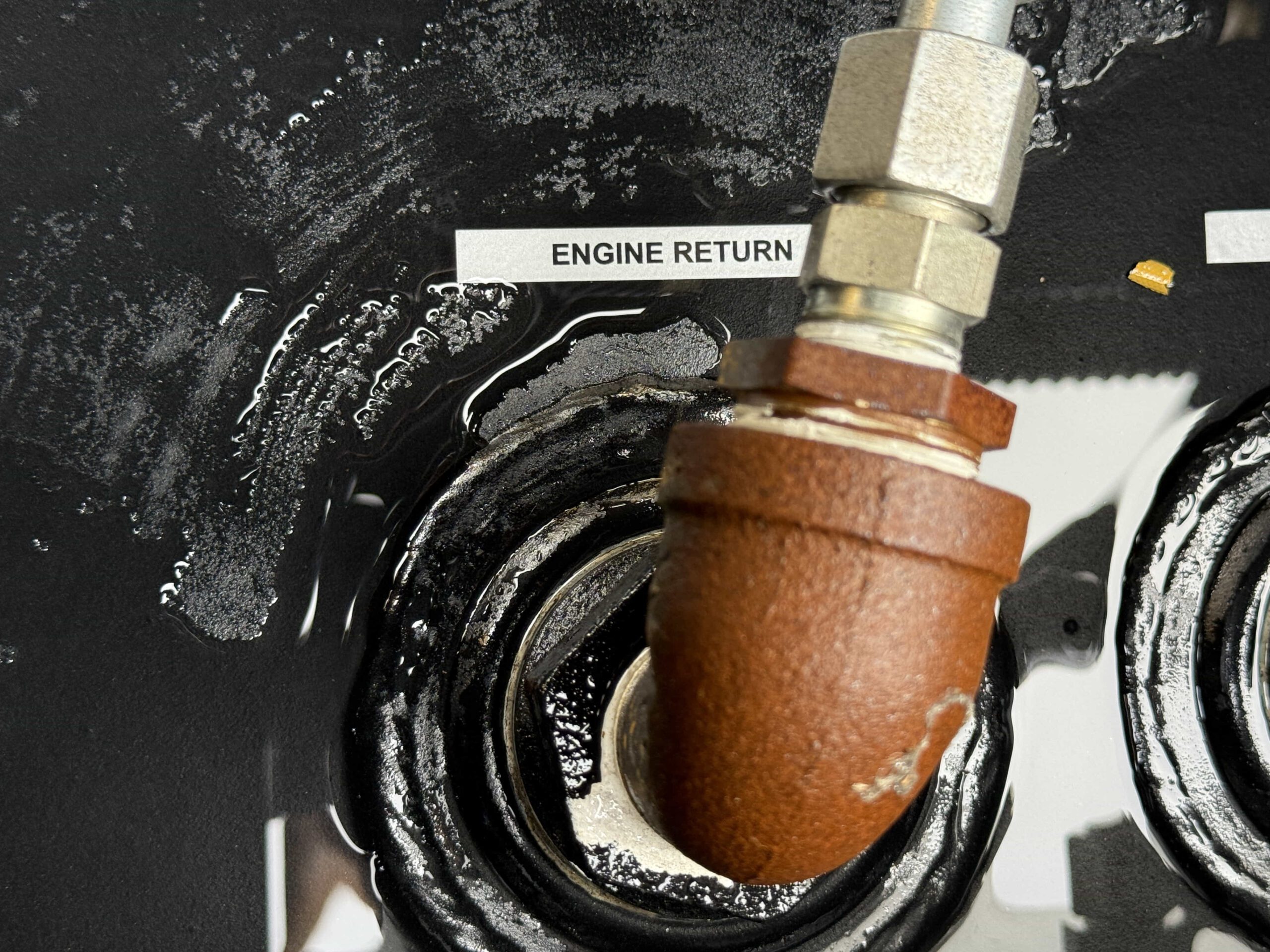

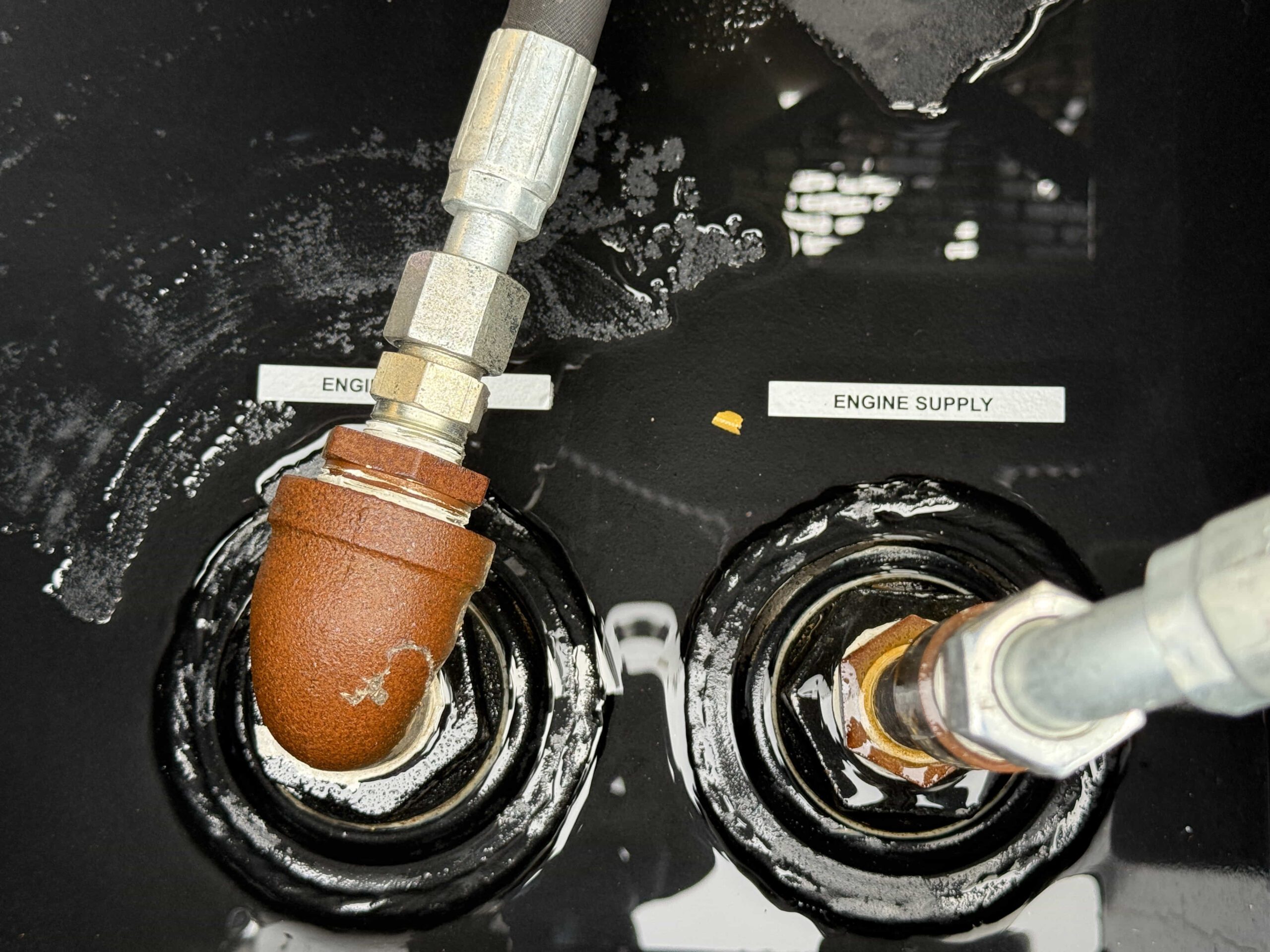

Base Tank: Tramont UTSX-550 UL-142 double-wall 550 gal with secondary containment

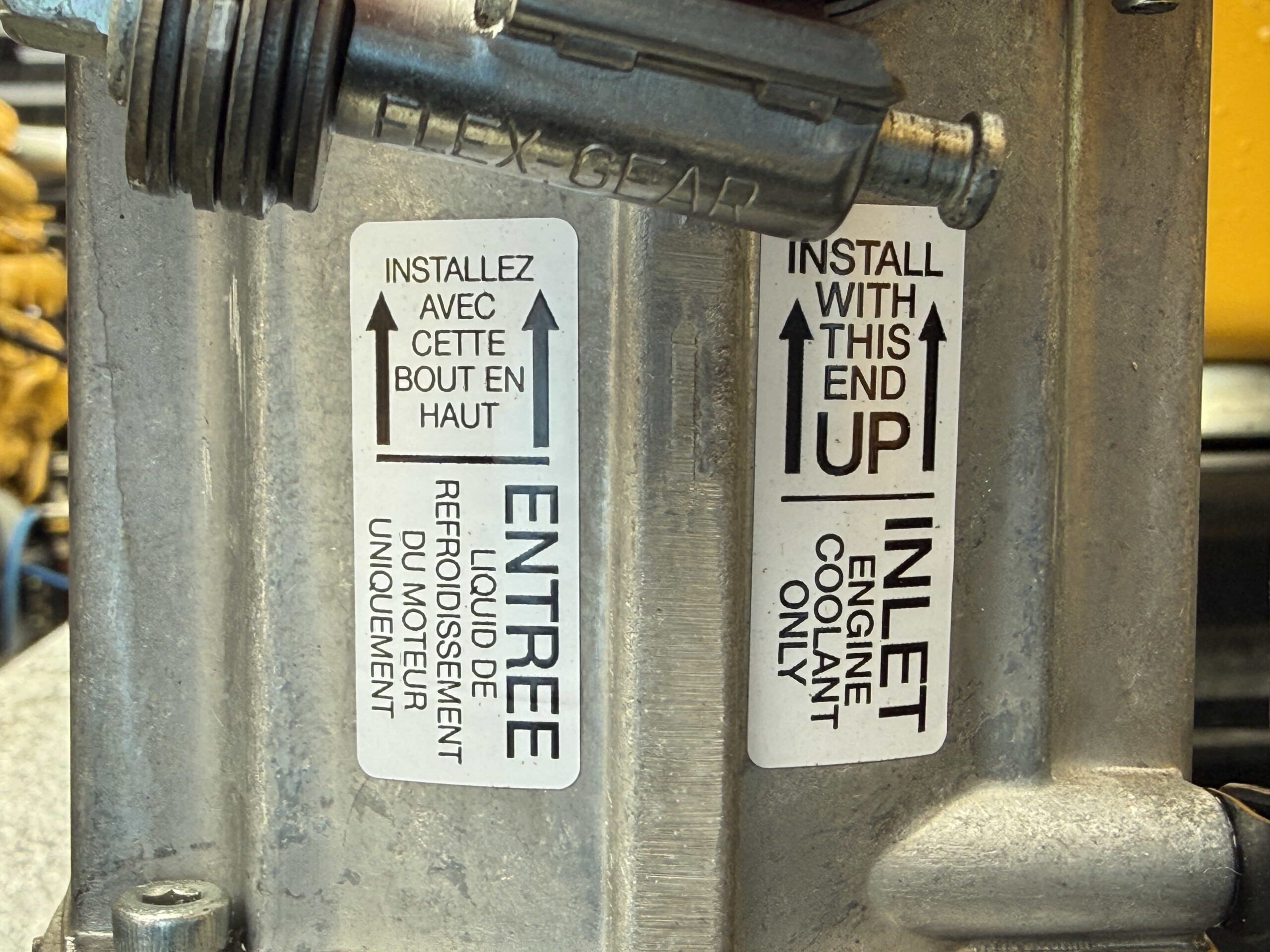

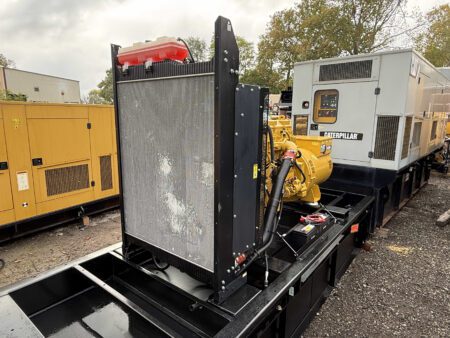

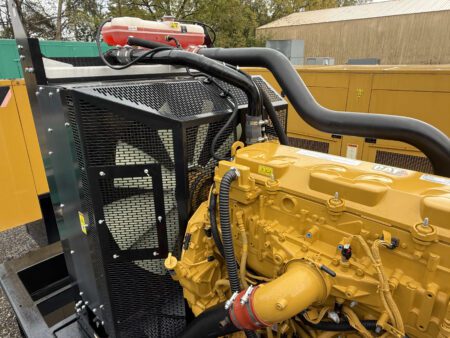

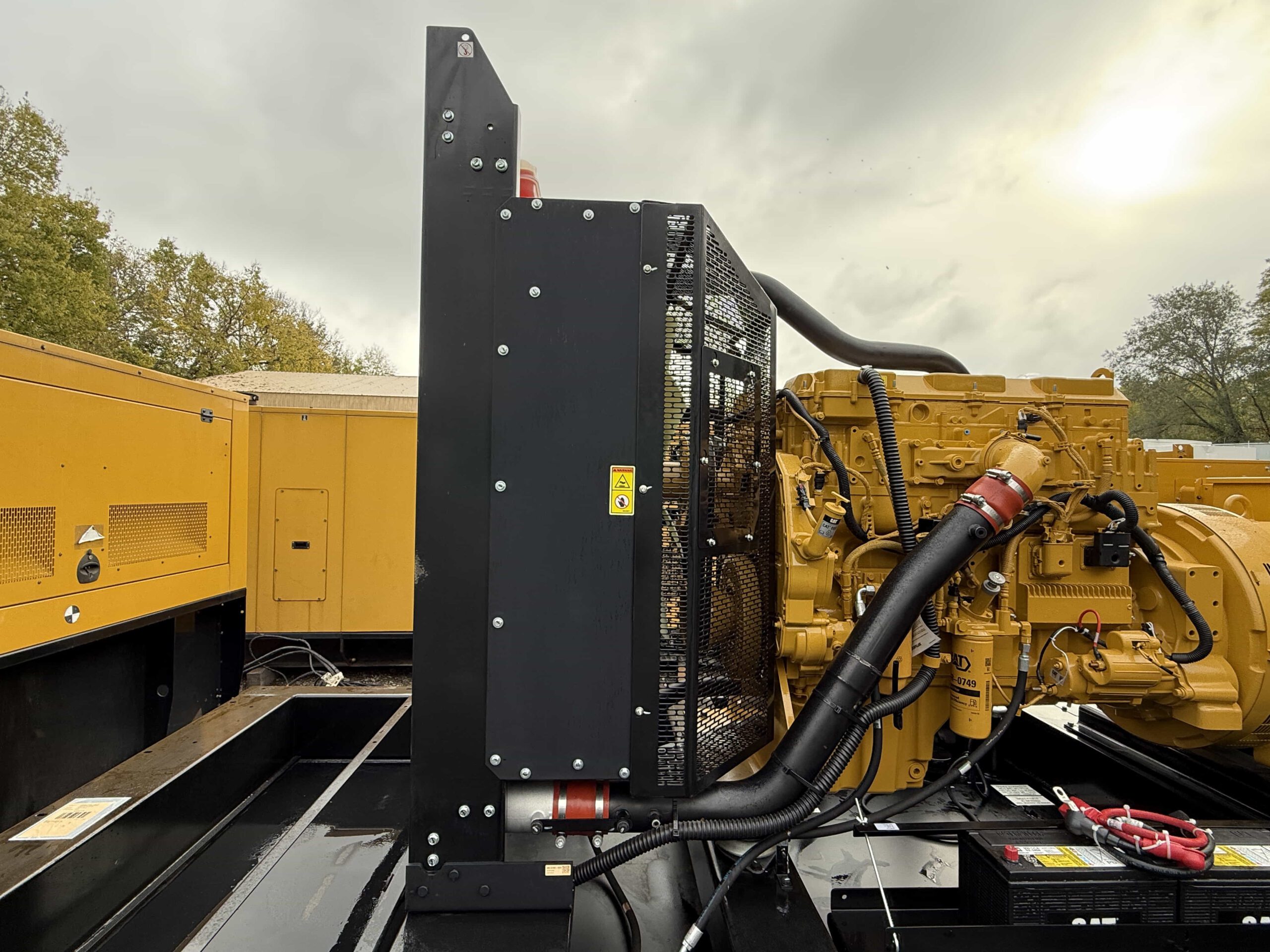

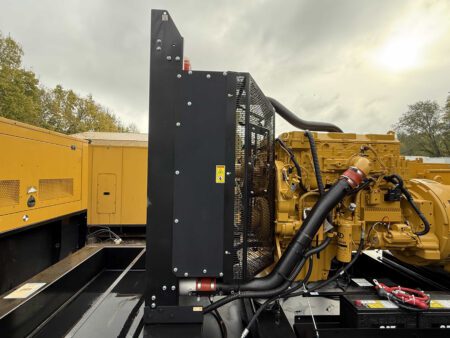

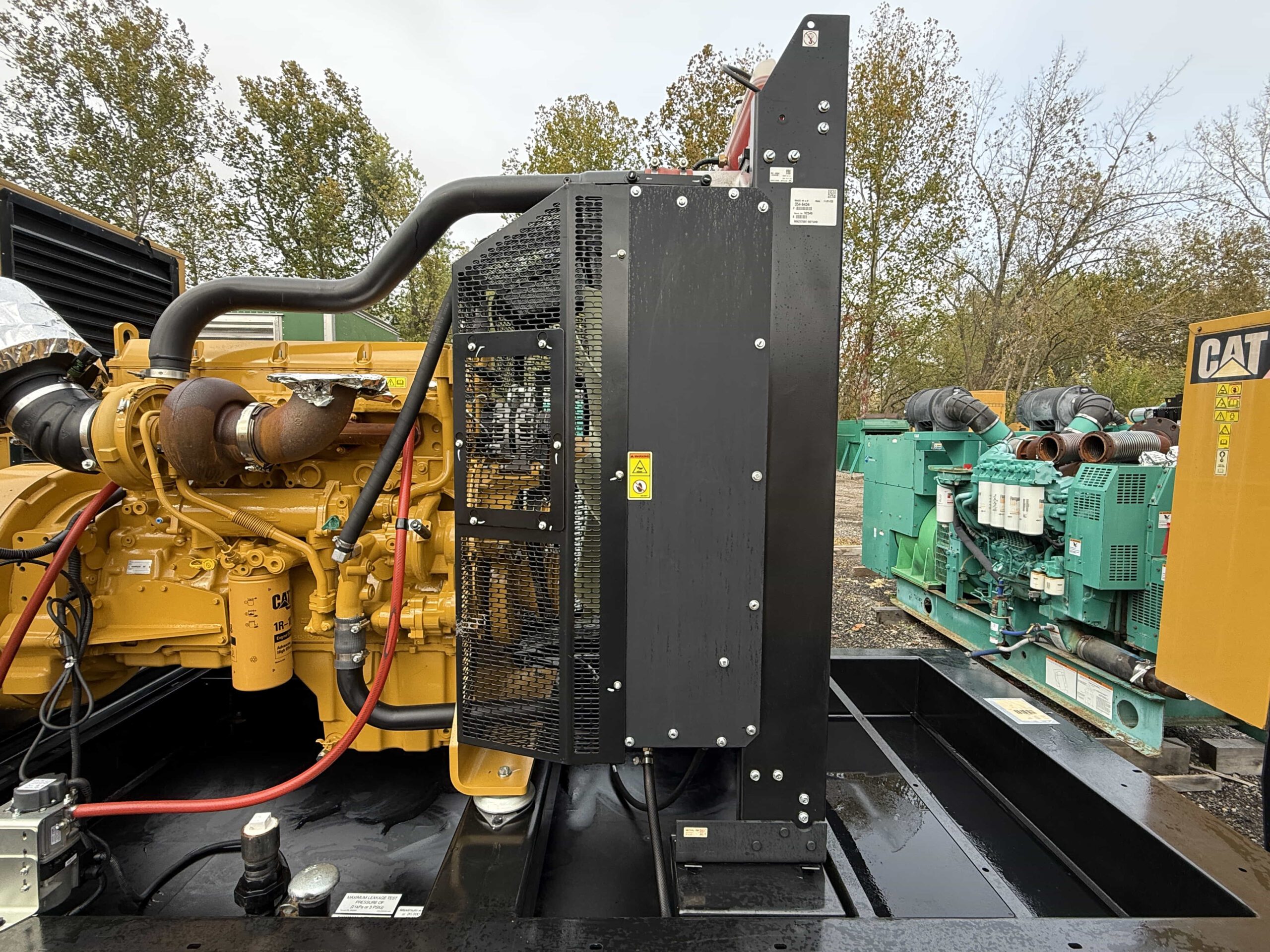

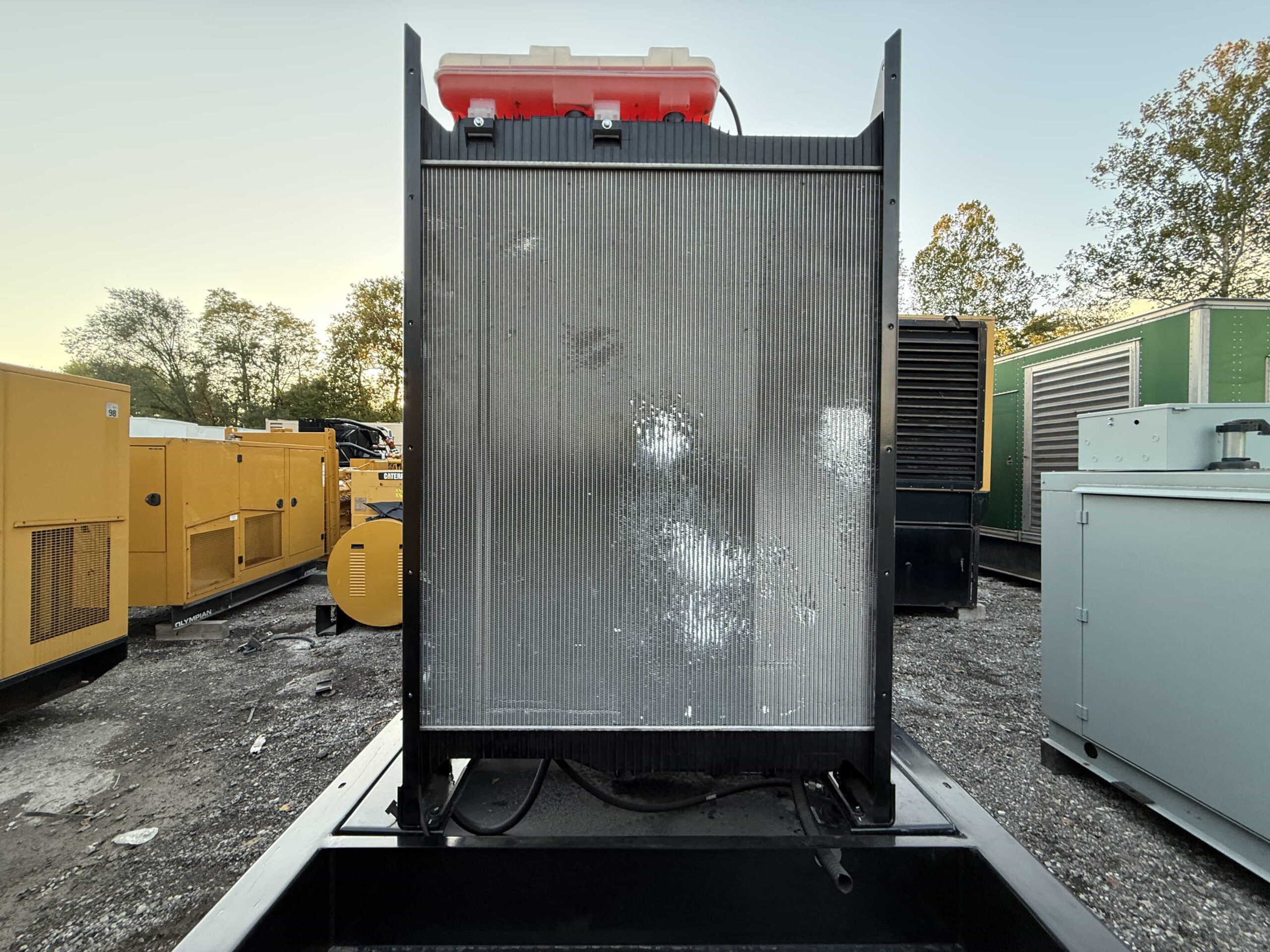

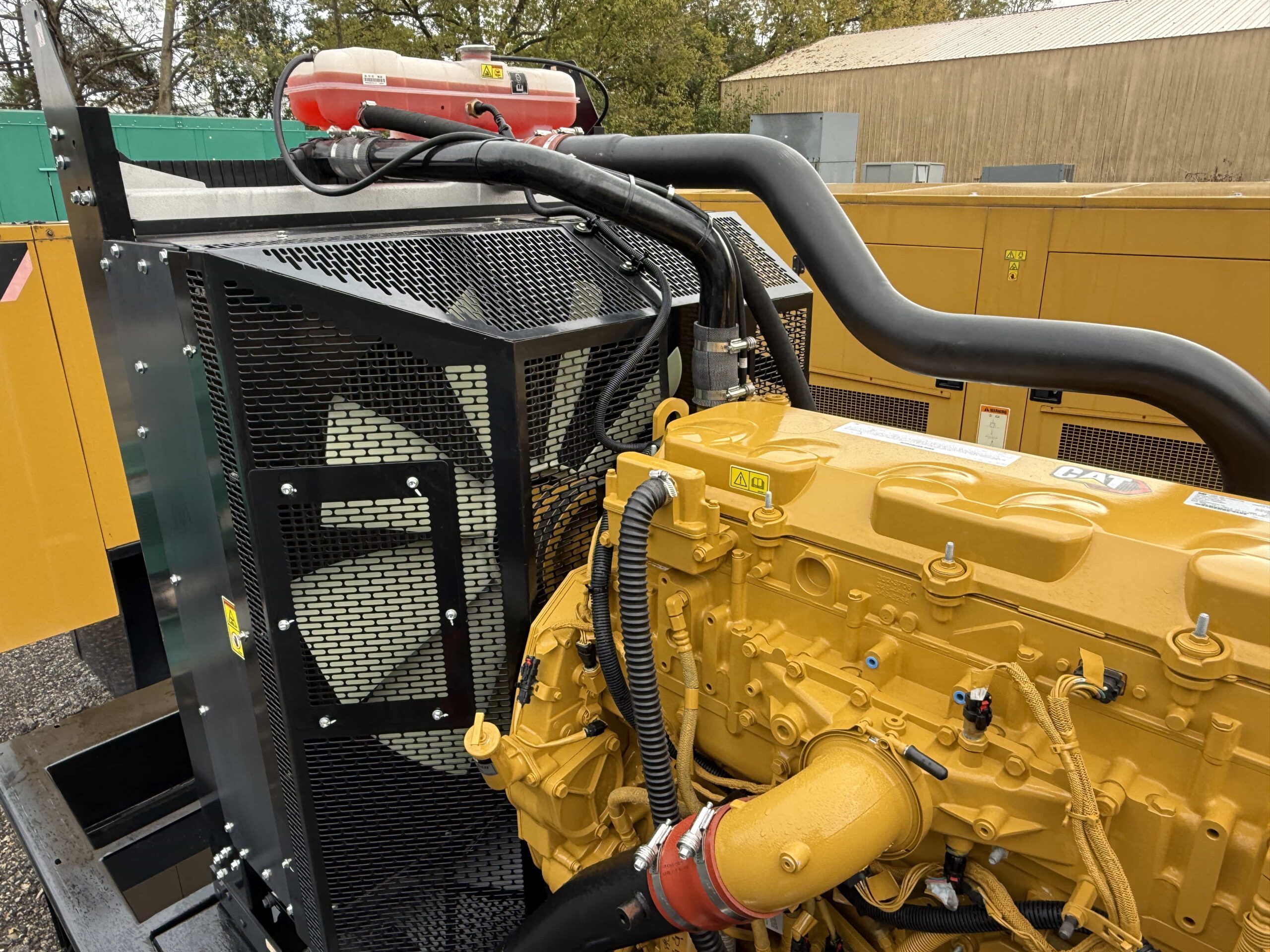

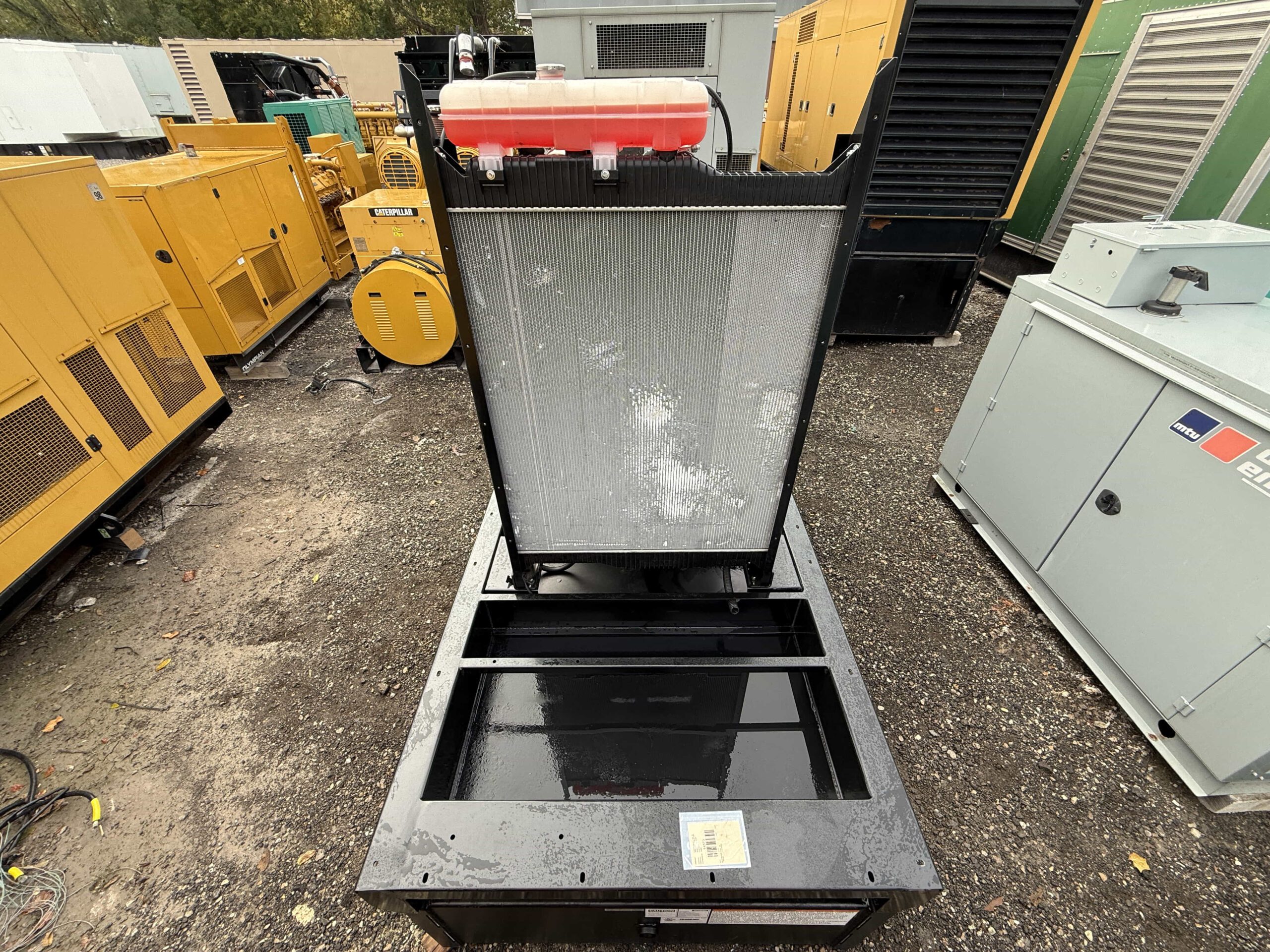

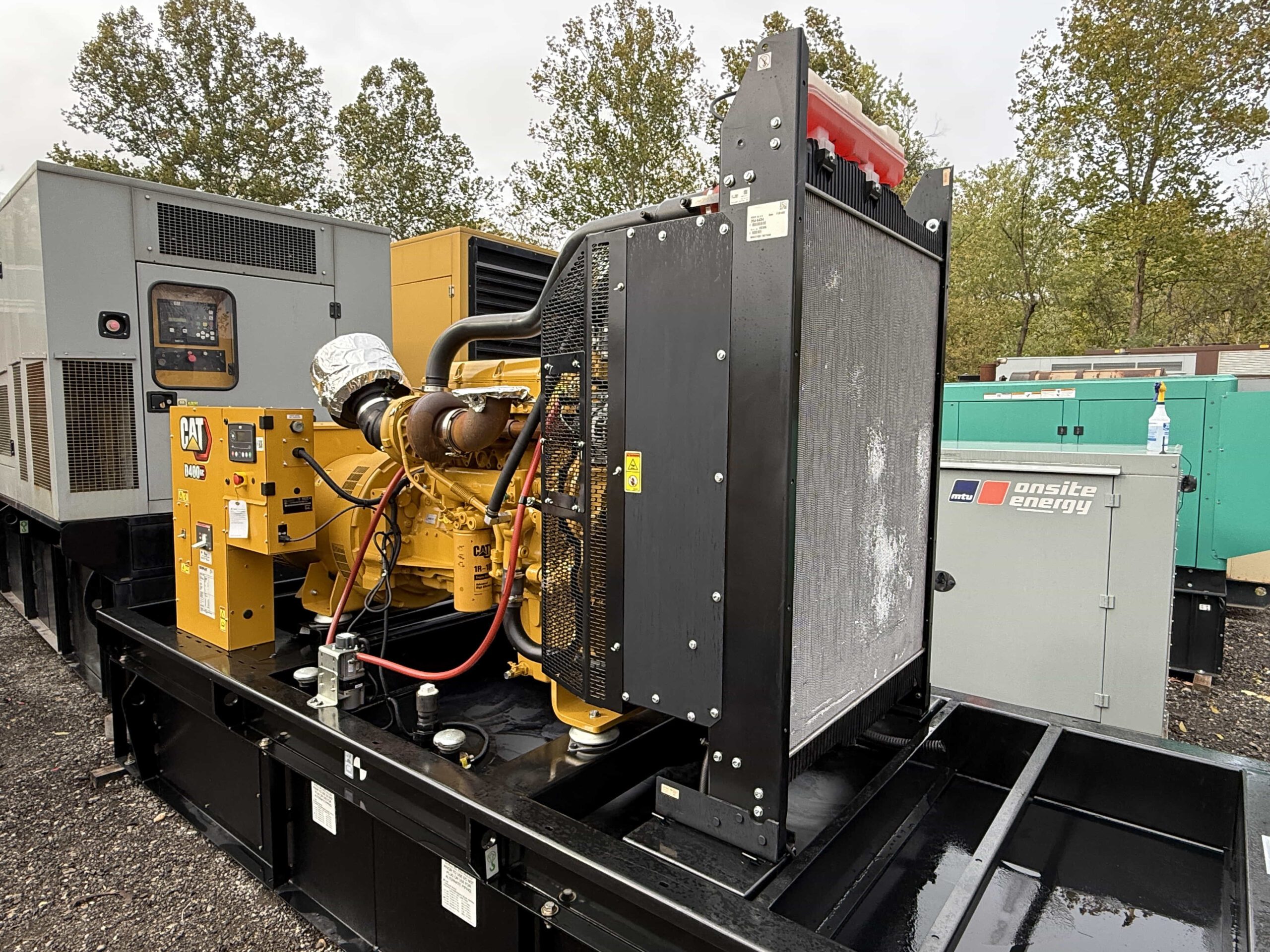

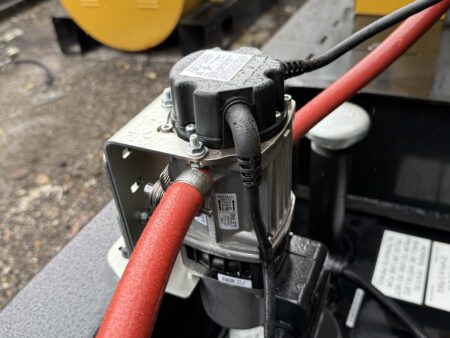

Cooling System: Heavy-duty radiator with integrated coolant circulation pump

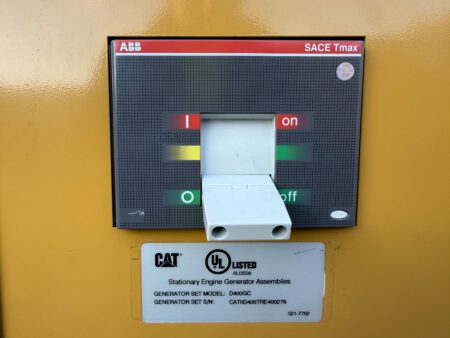

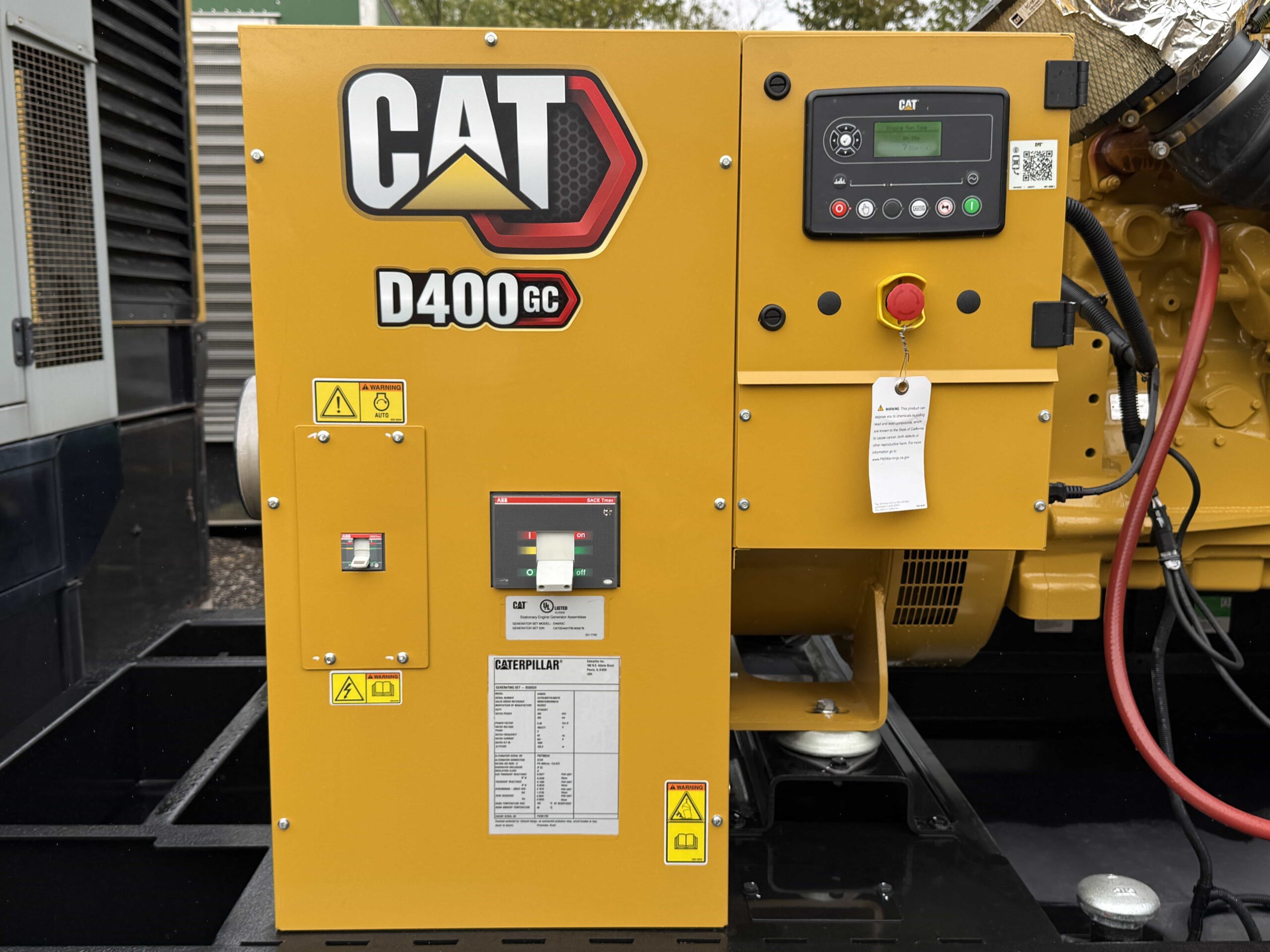

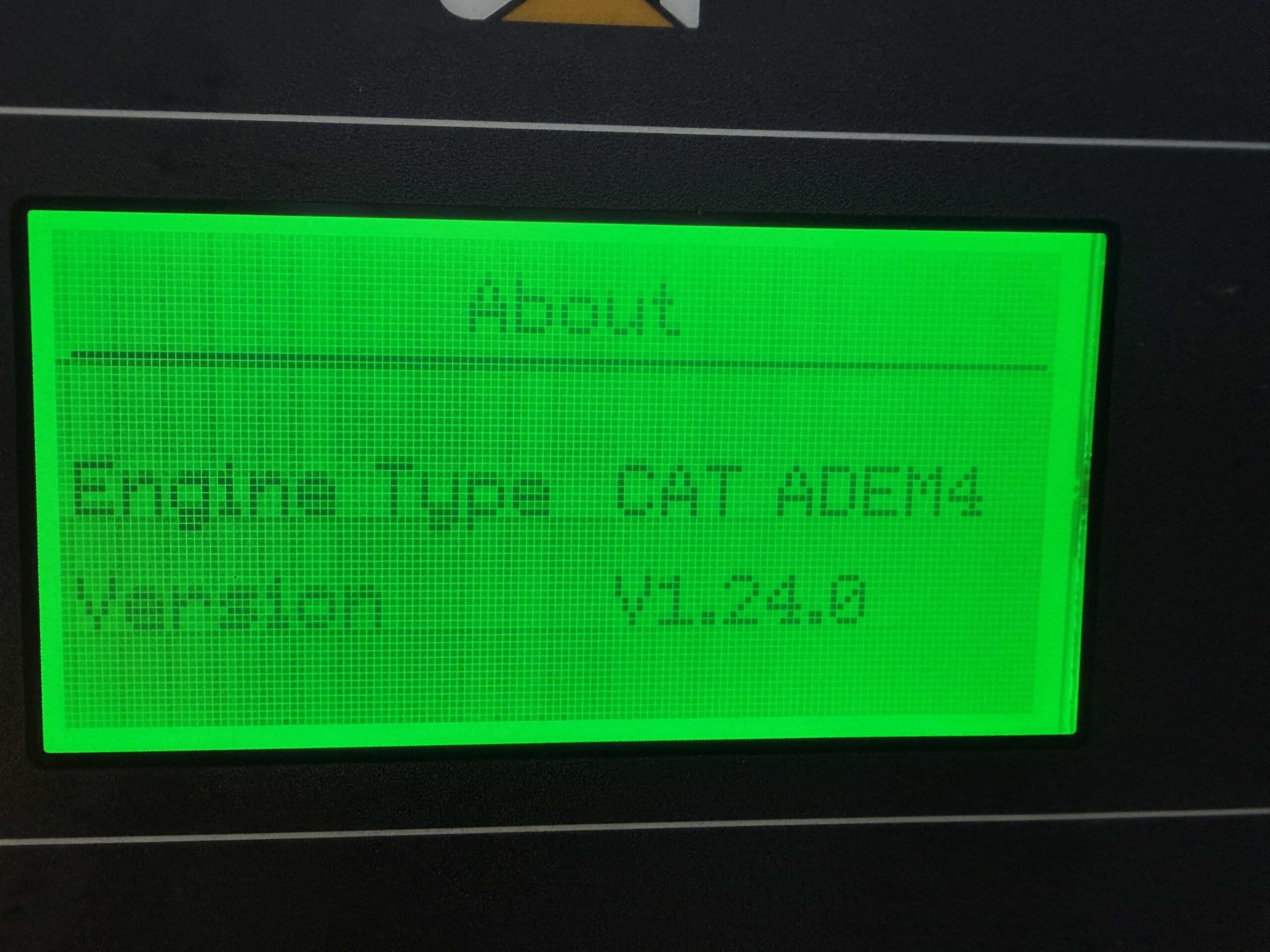

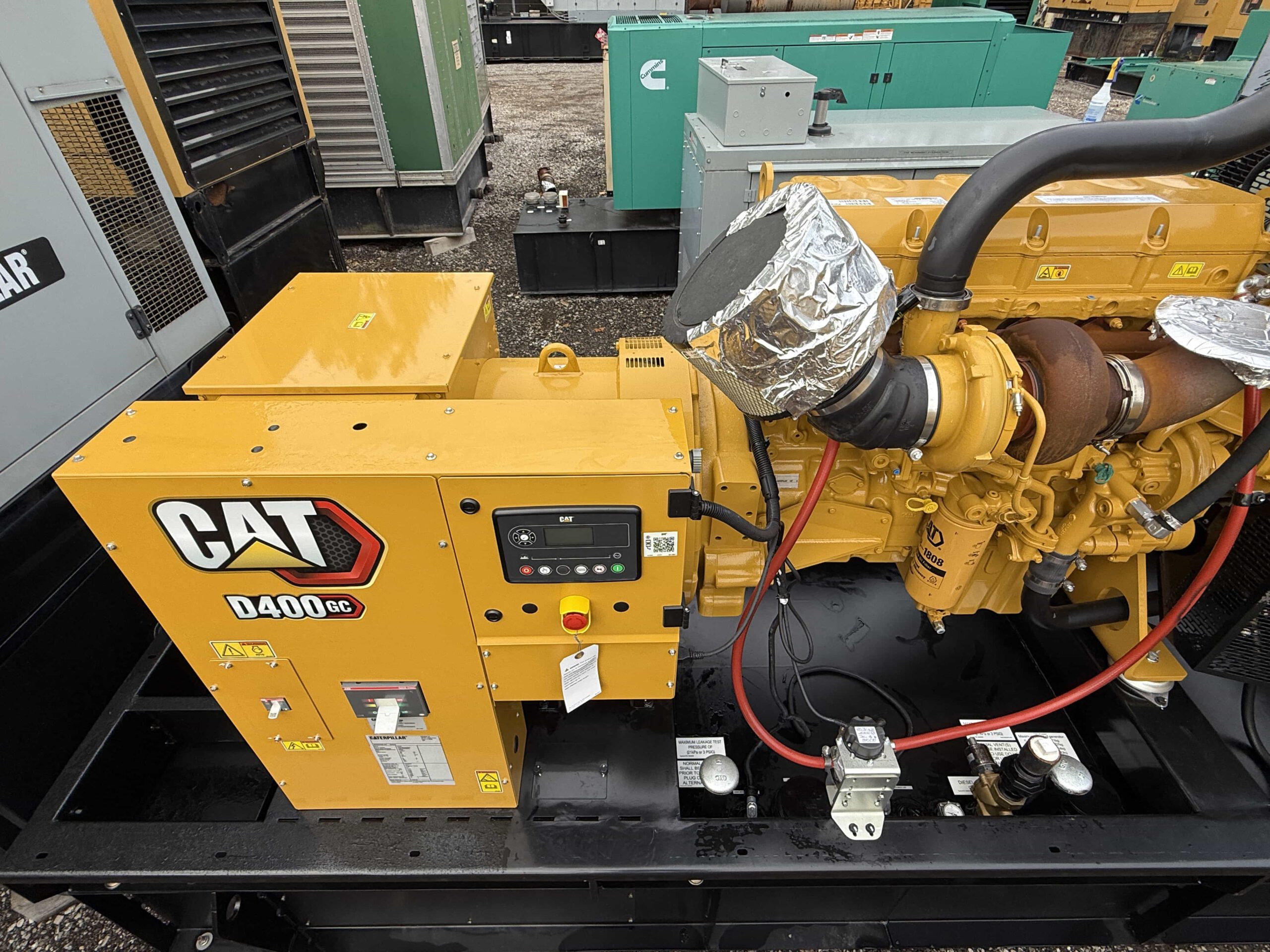

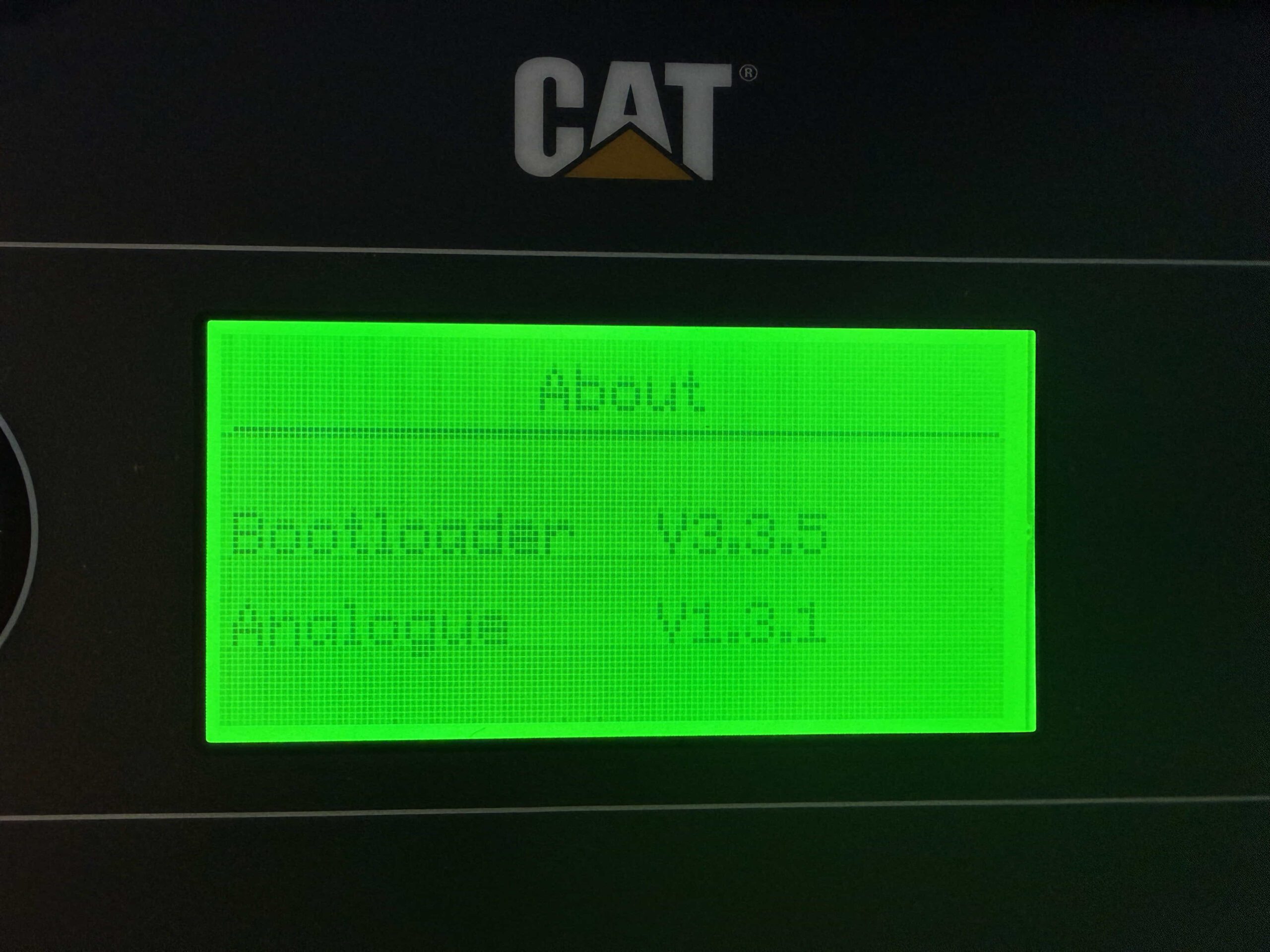

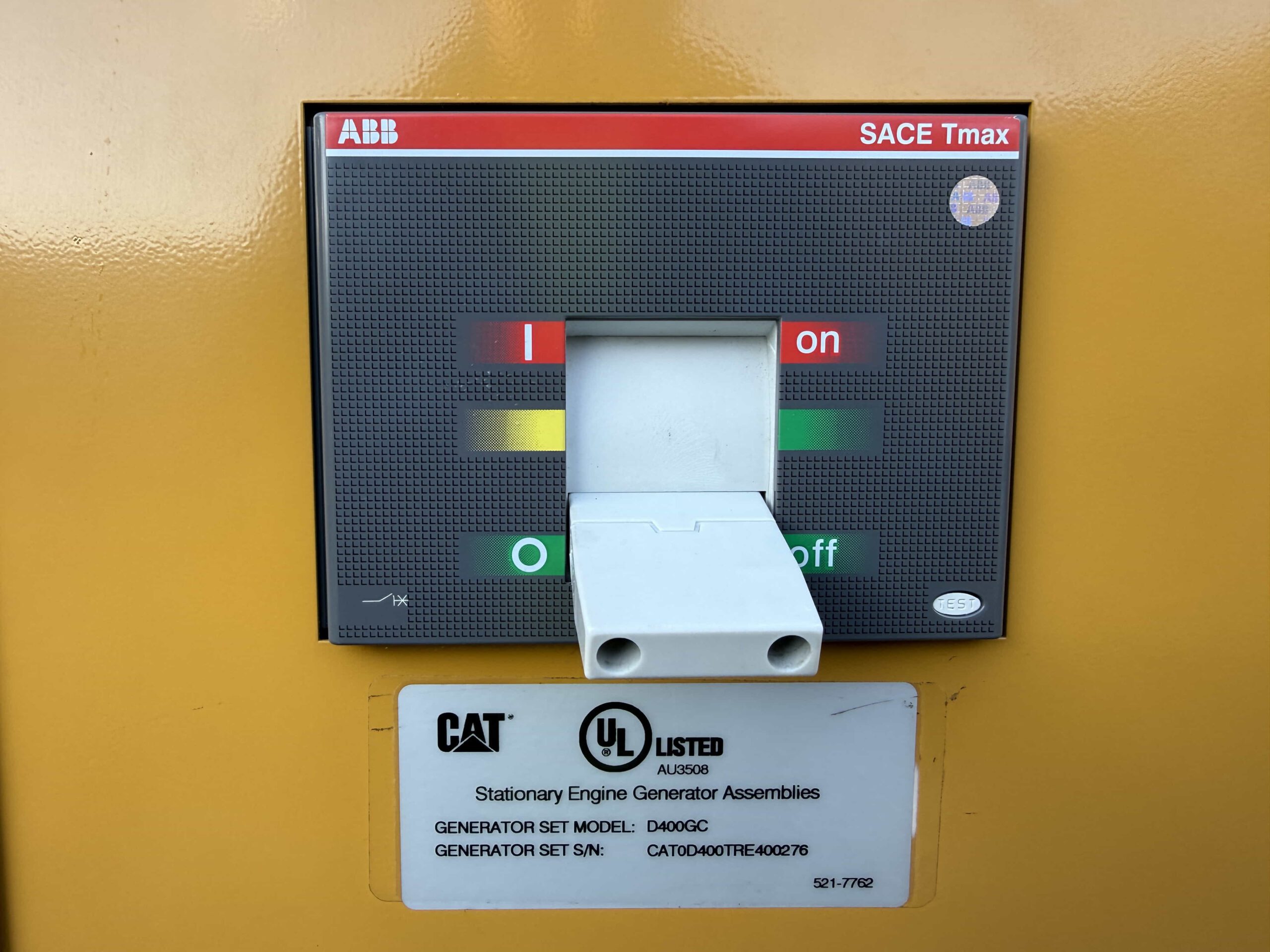

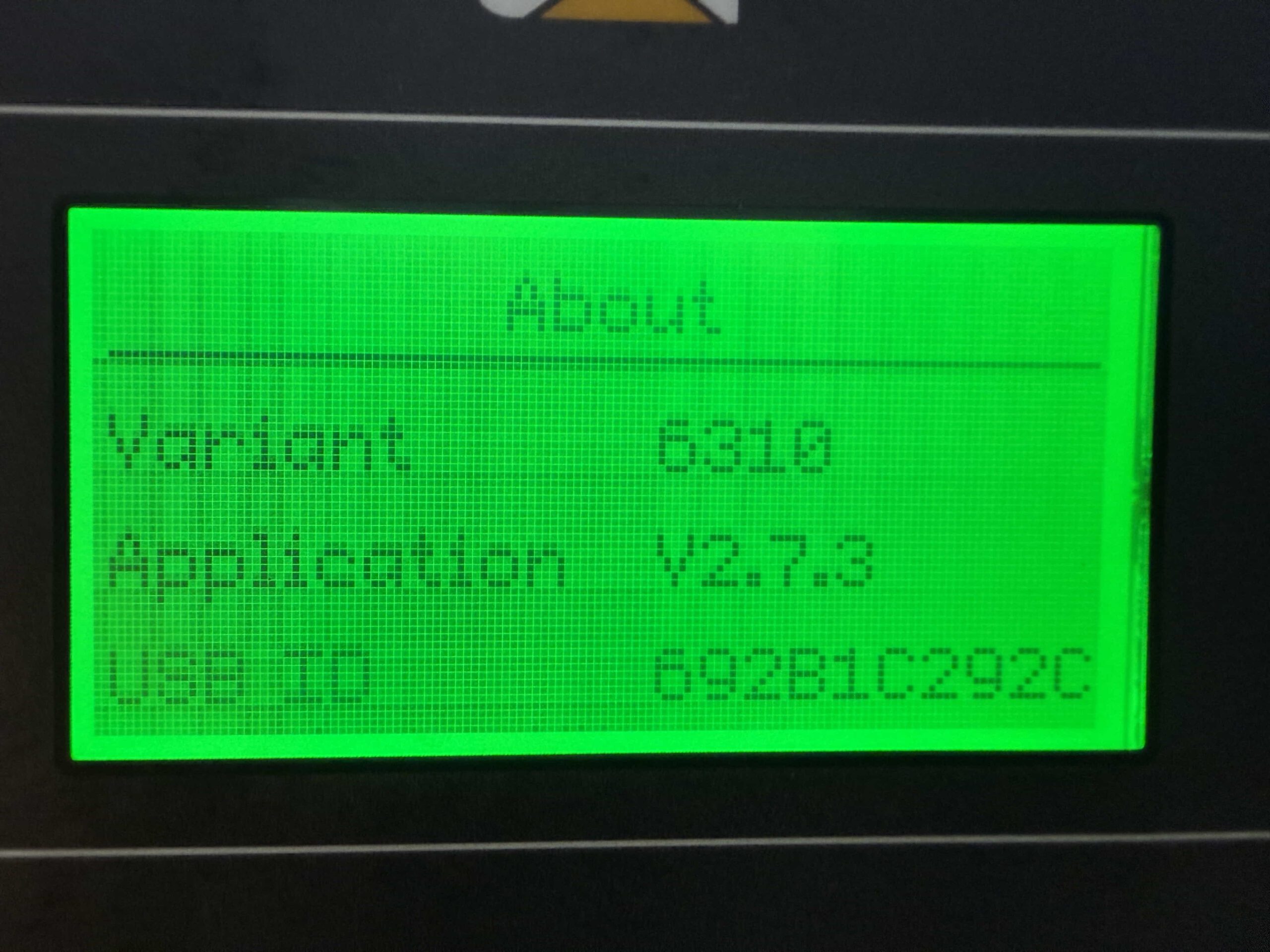

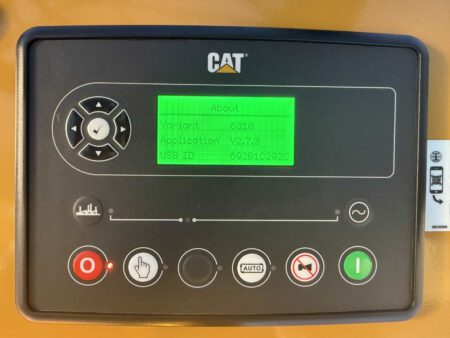

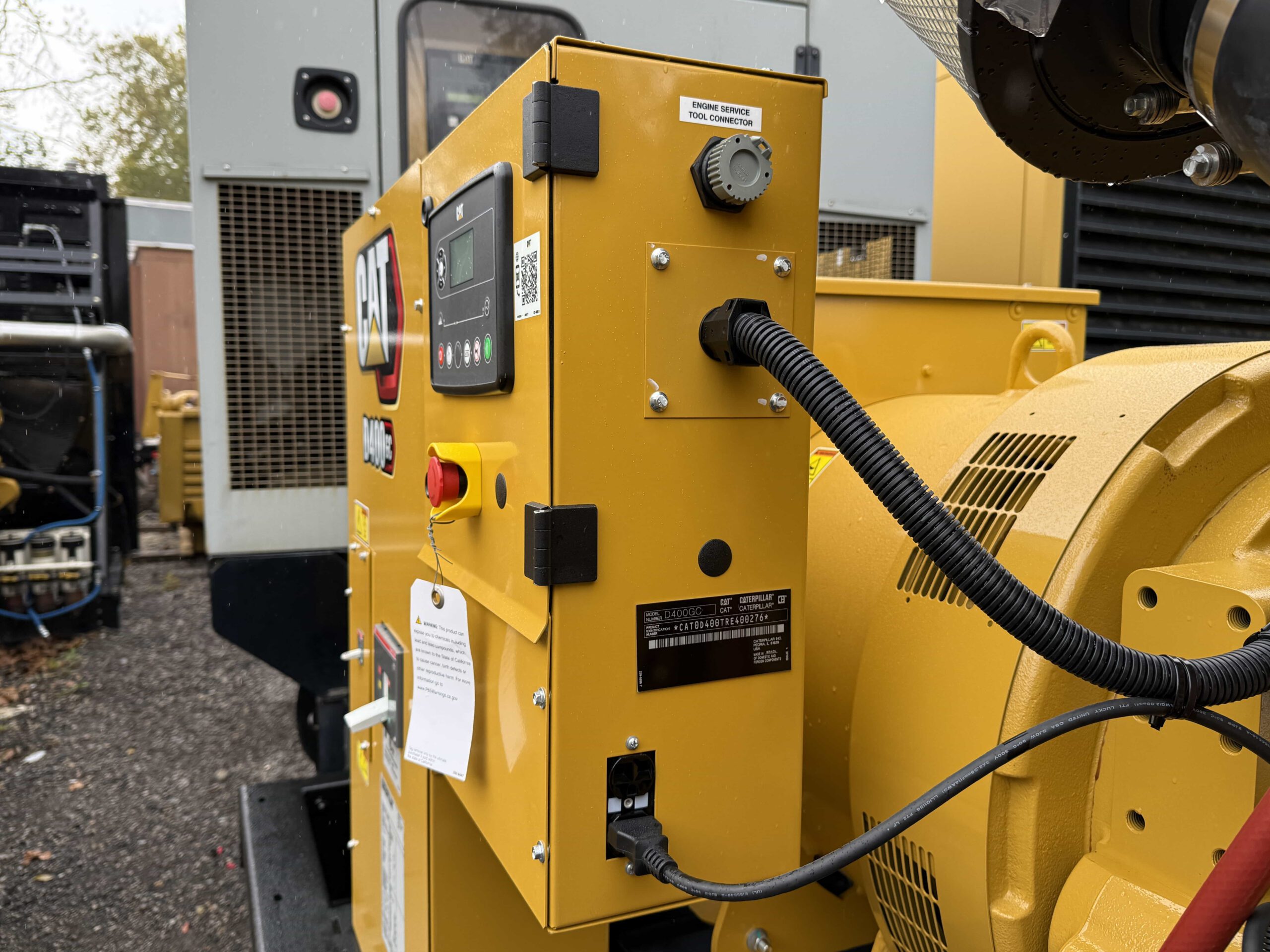

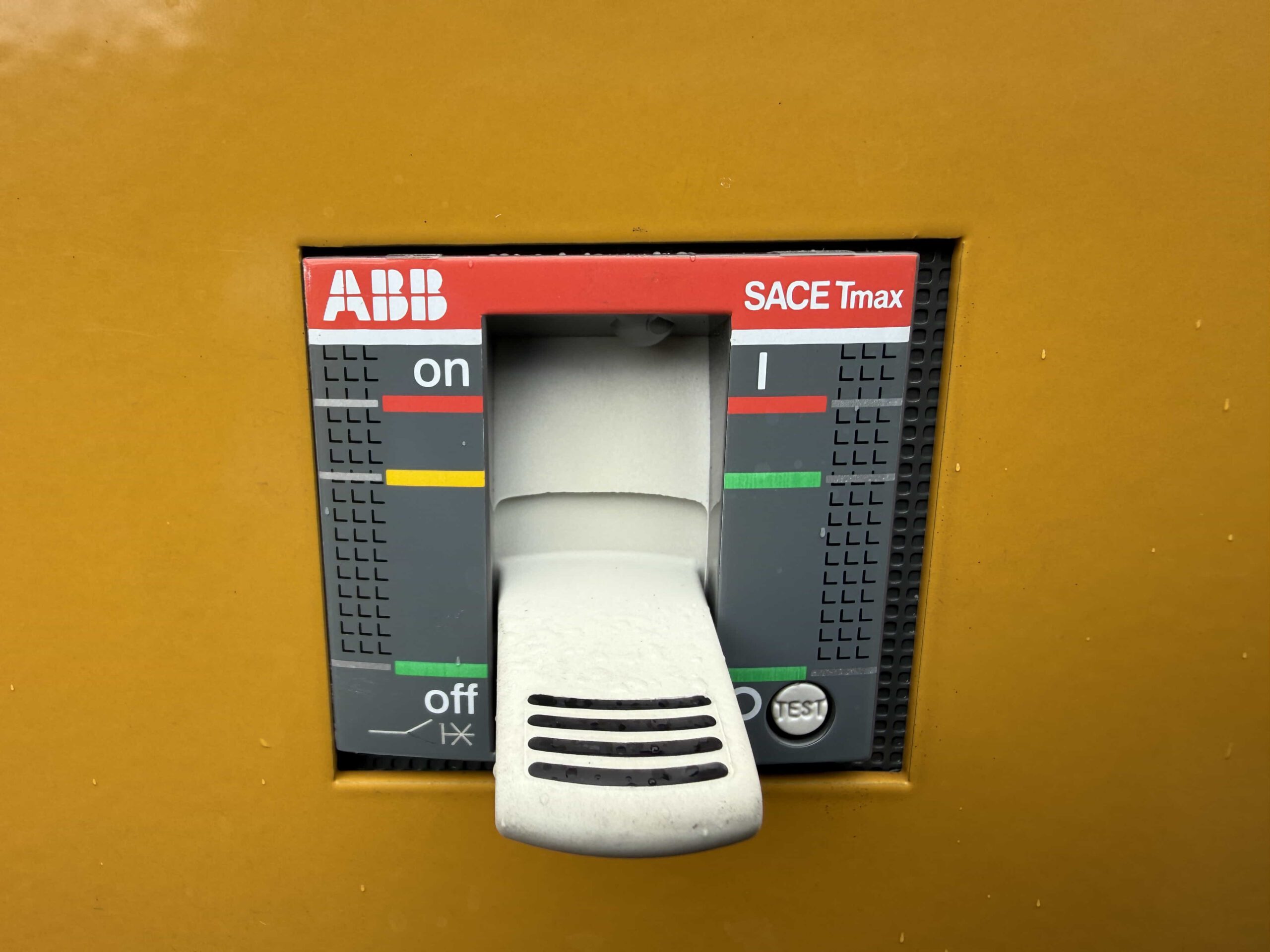

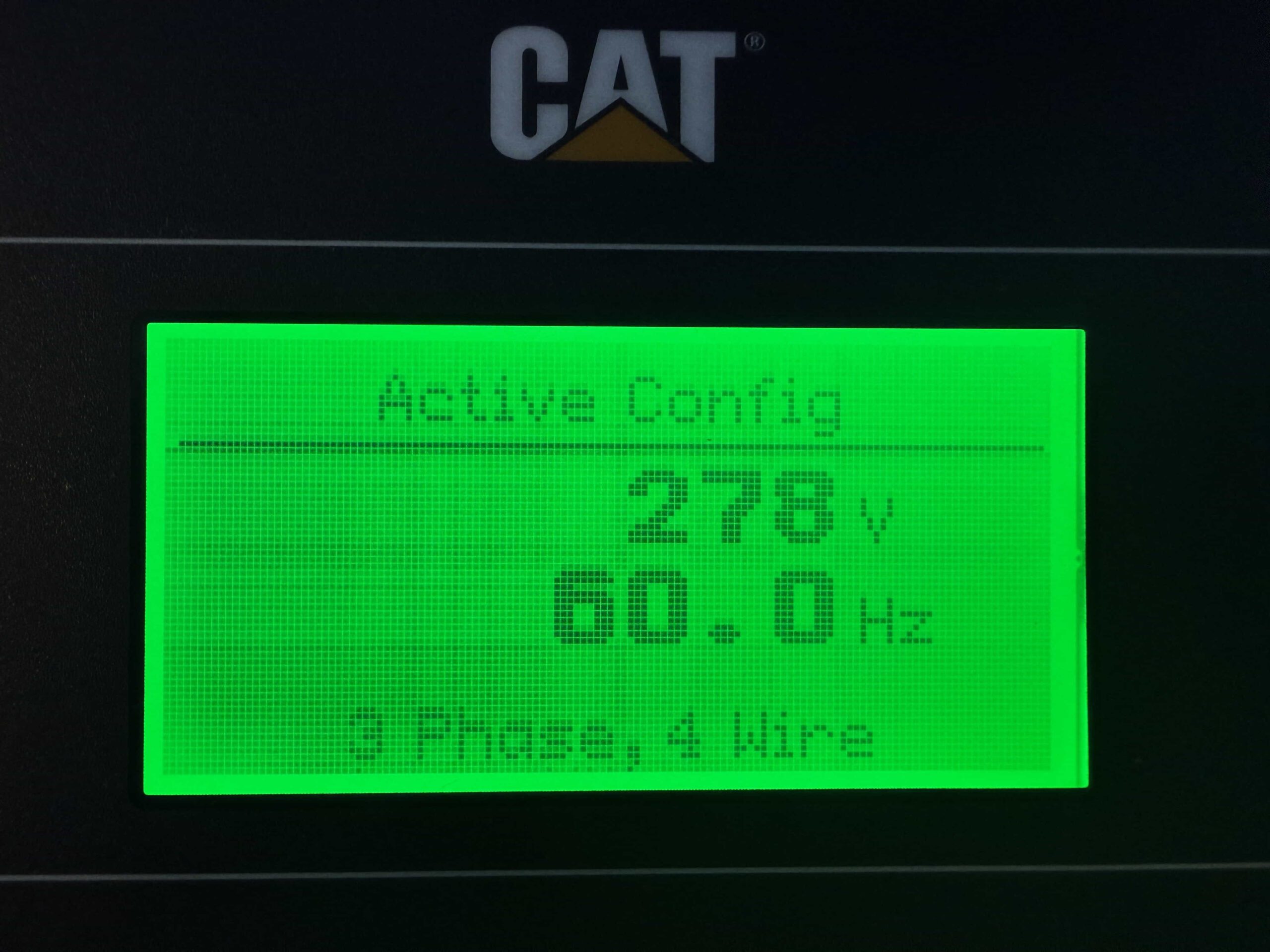

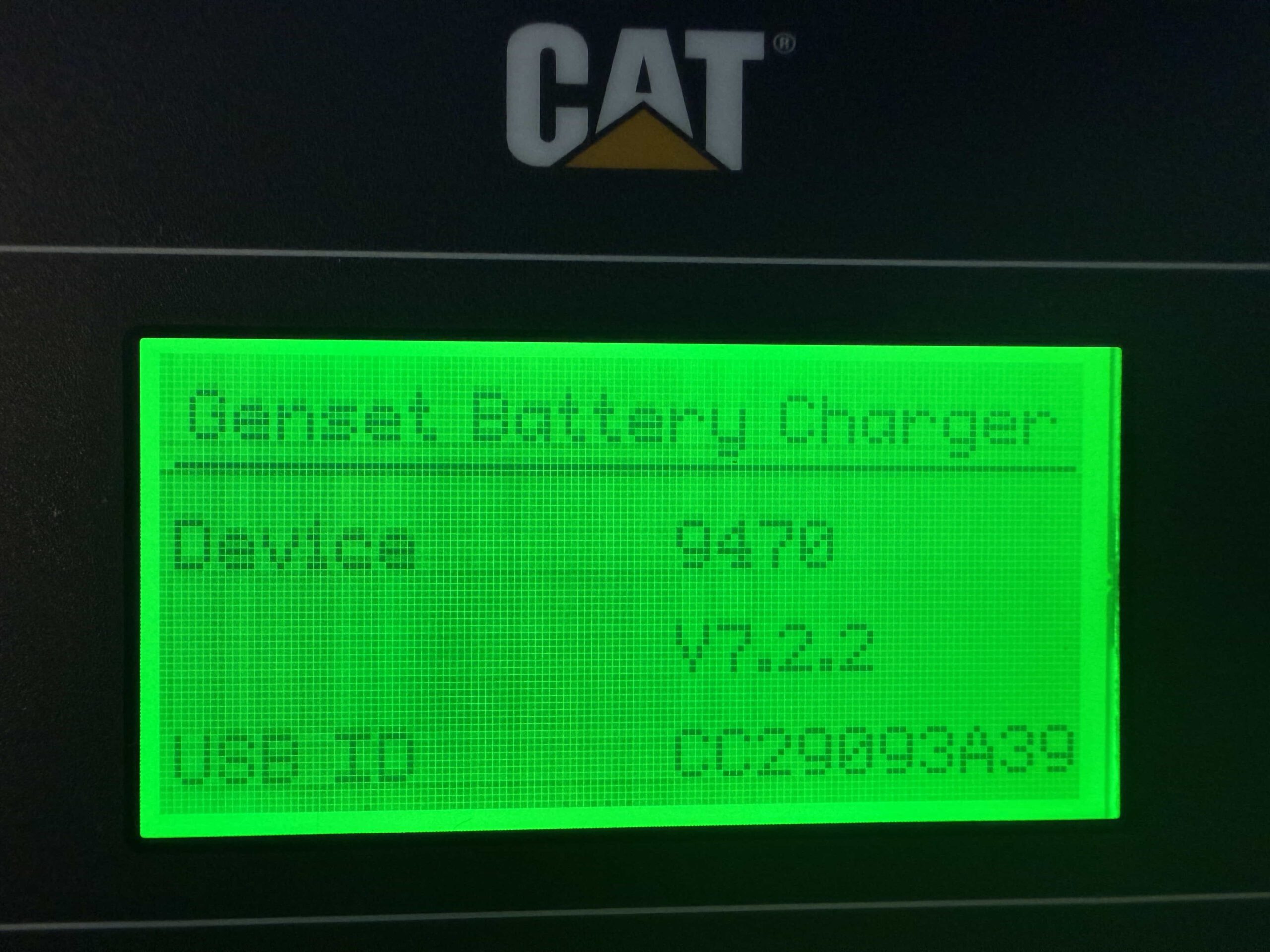

Control Panel: Caterpillar EMCP 4.2 digital controller with ABB main breaker

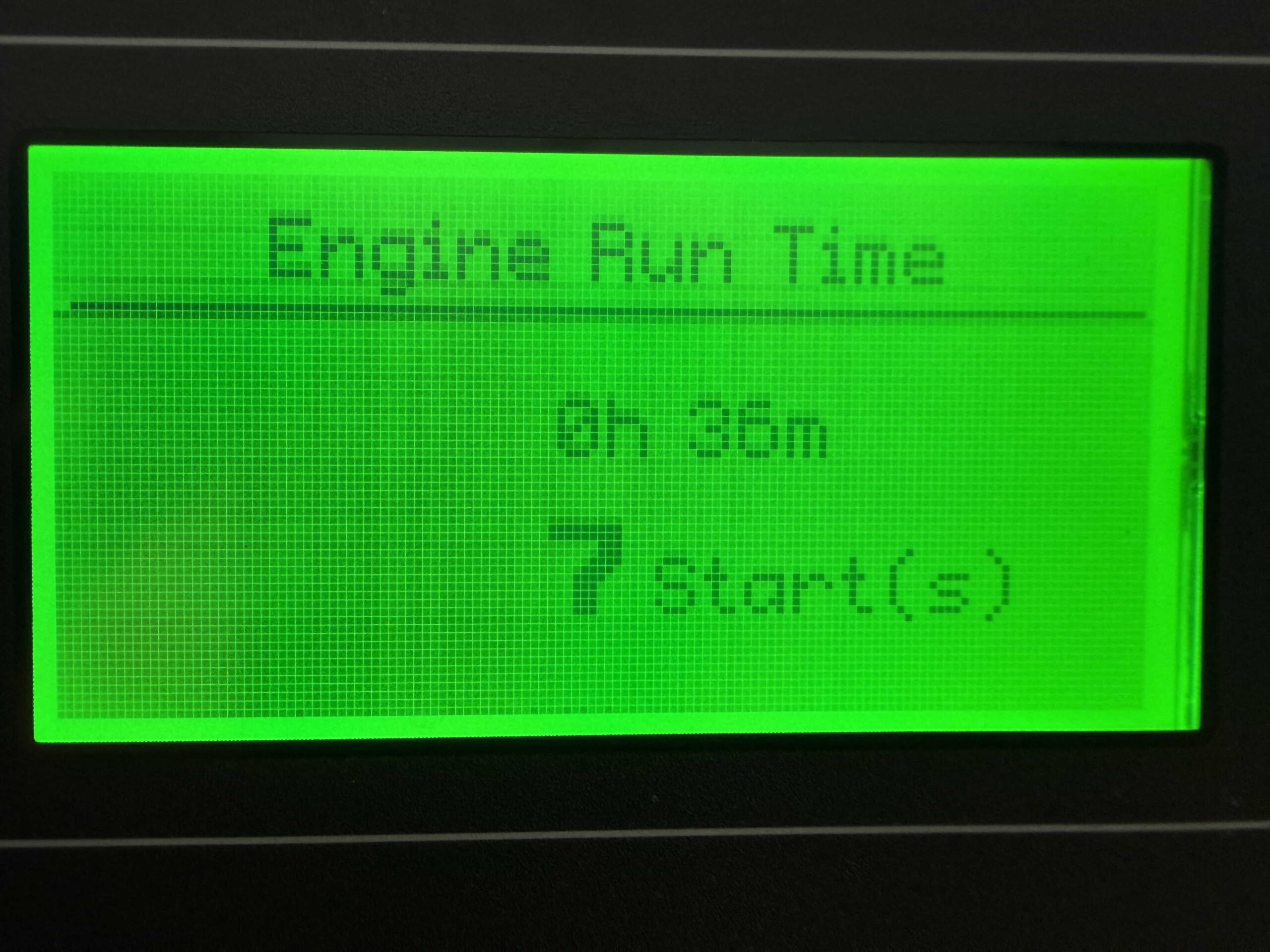

Warranty: Caterpillar Factory Warranty (eligible unit < 100 hours)
