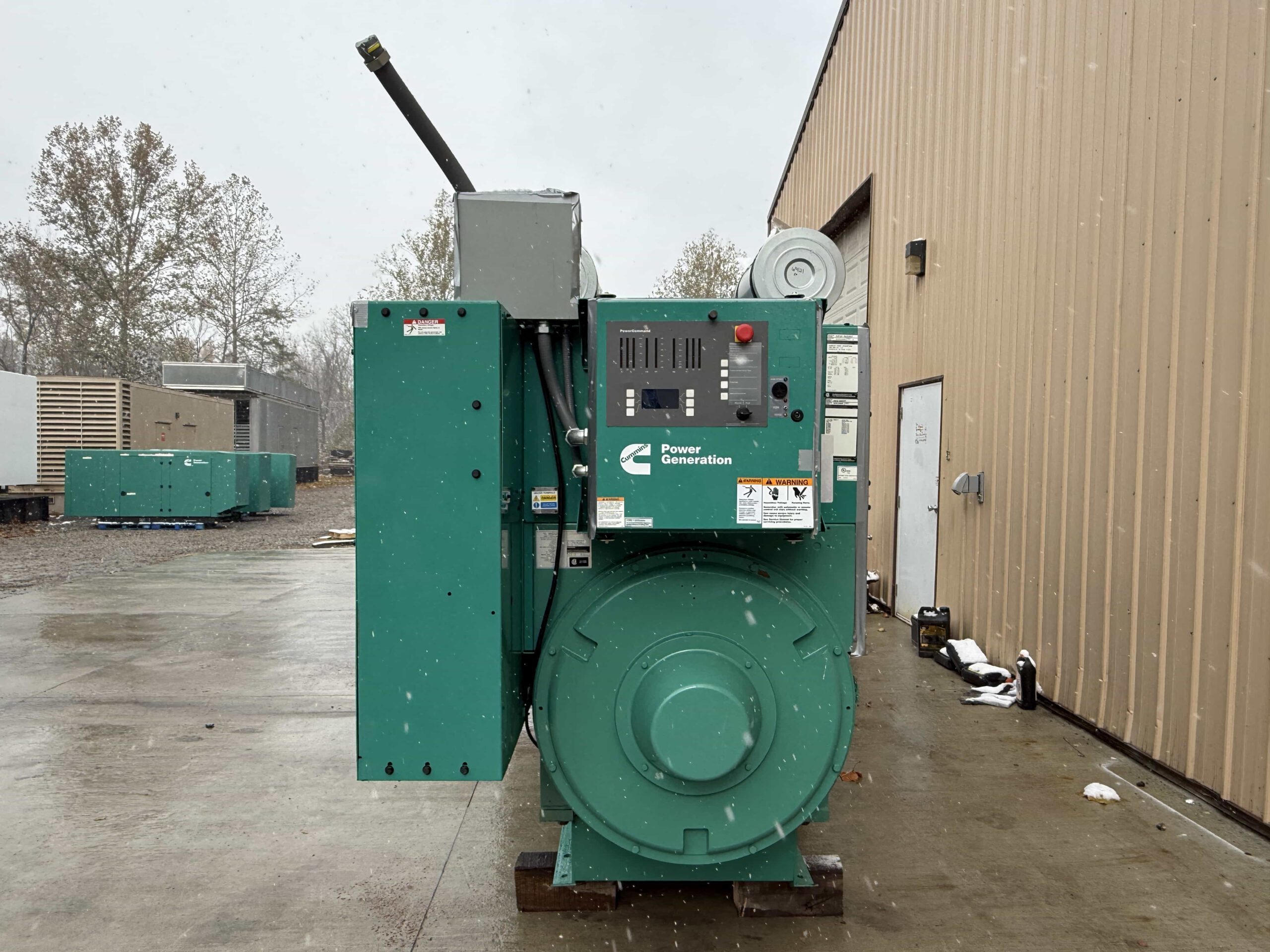

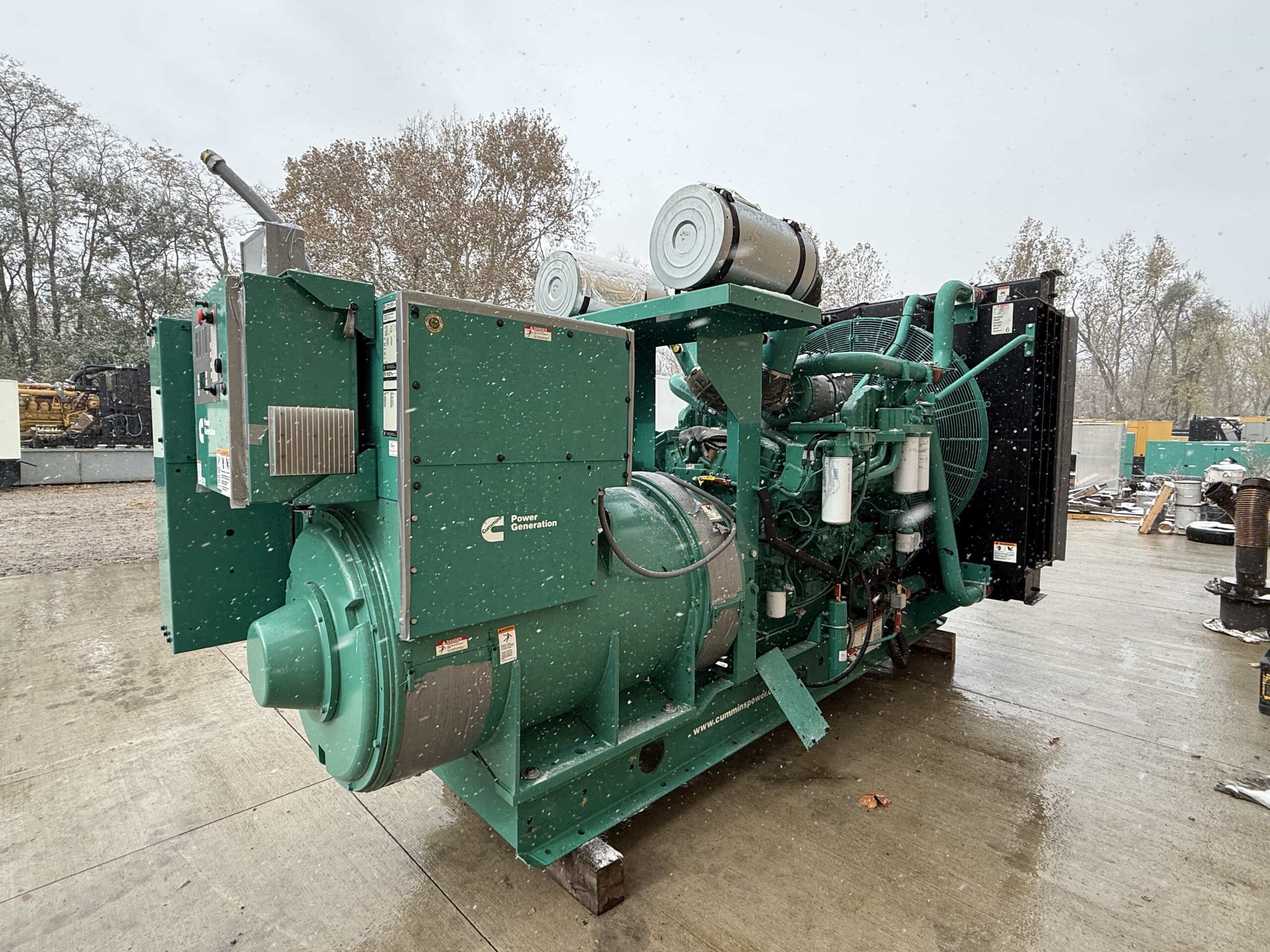

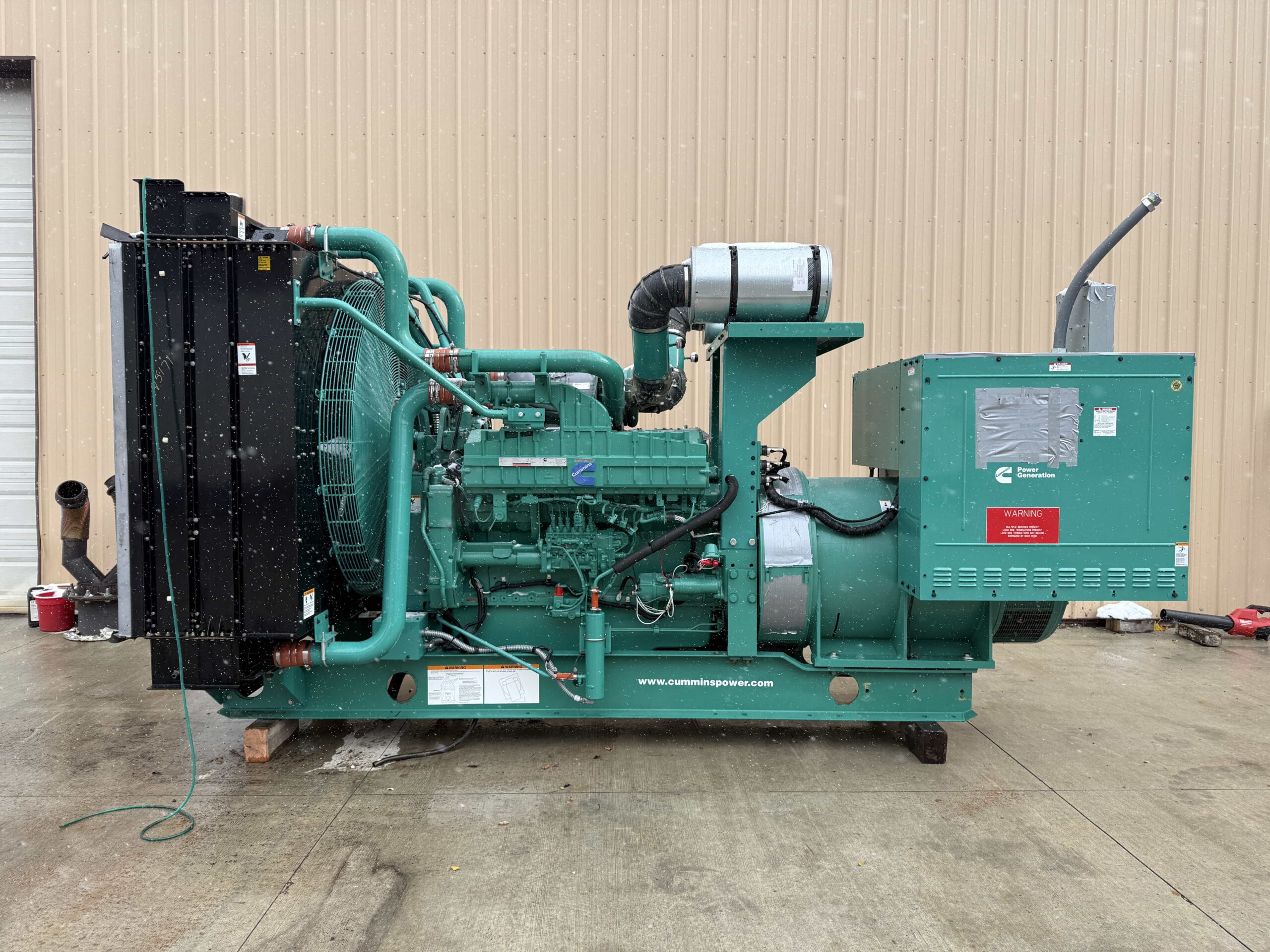

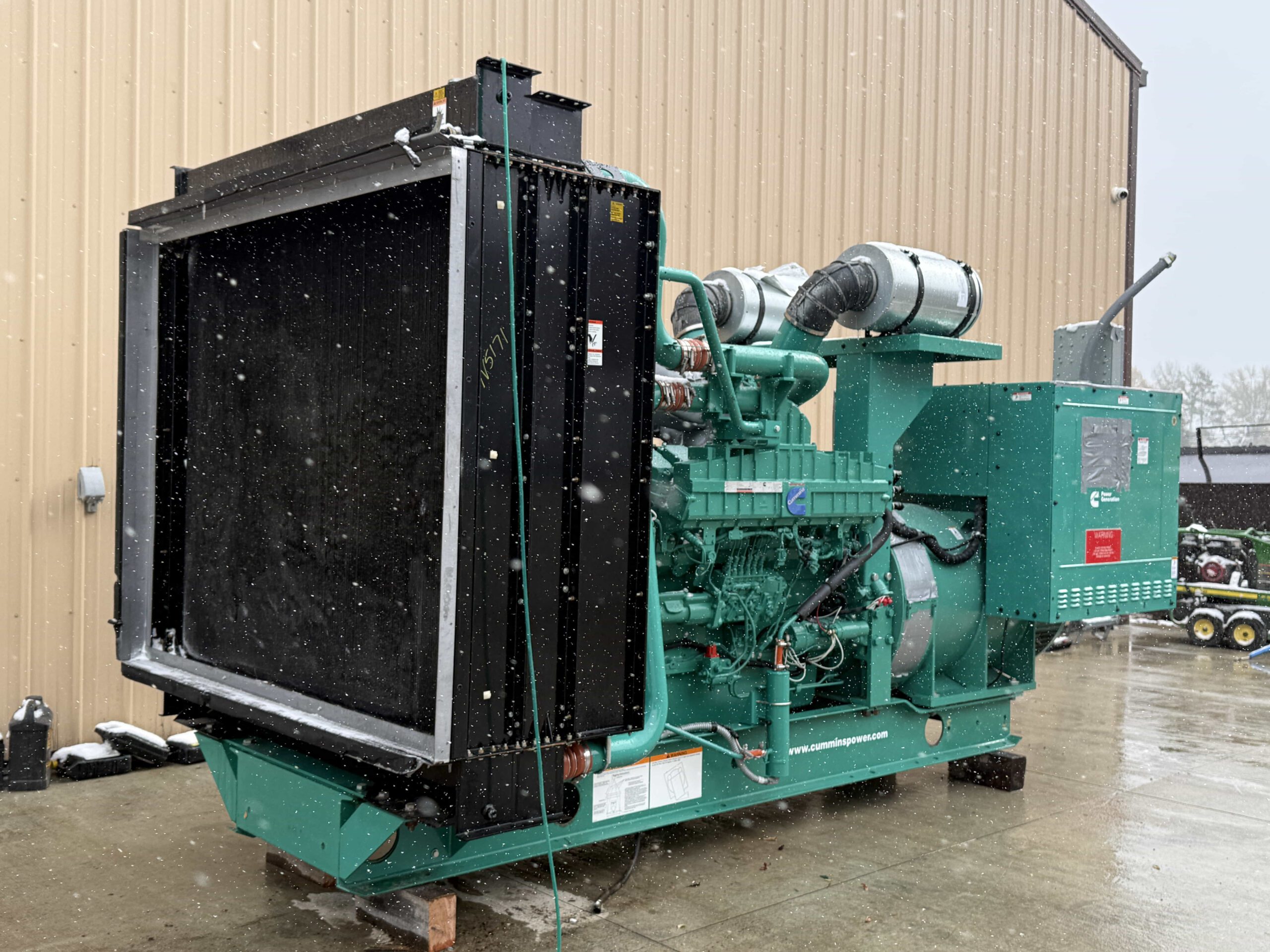

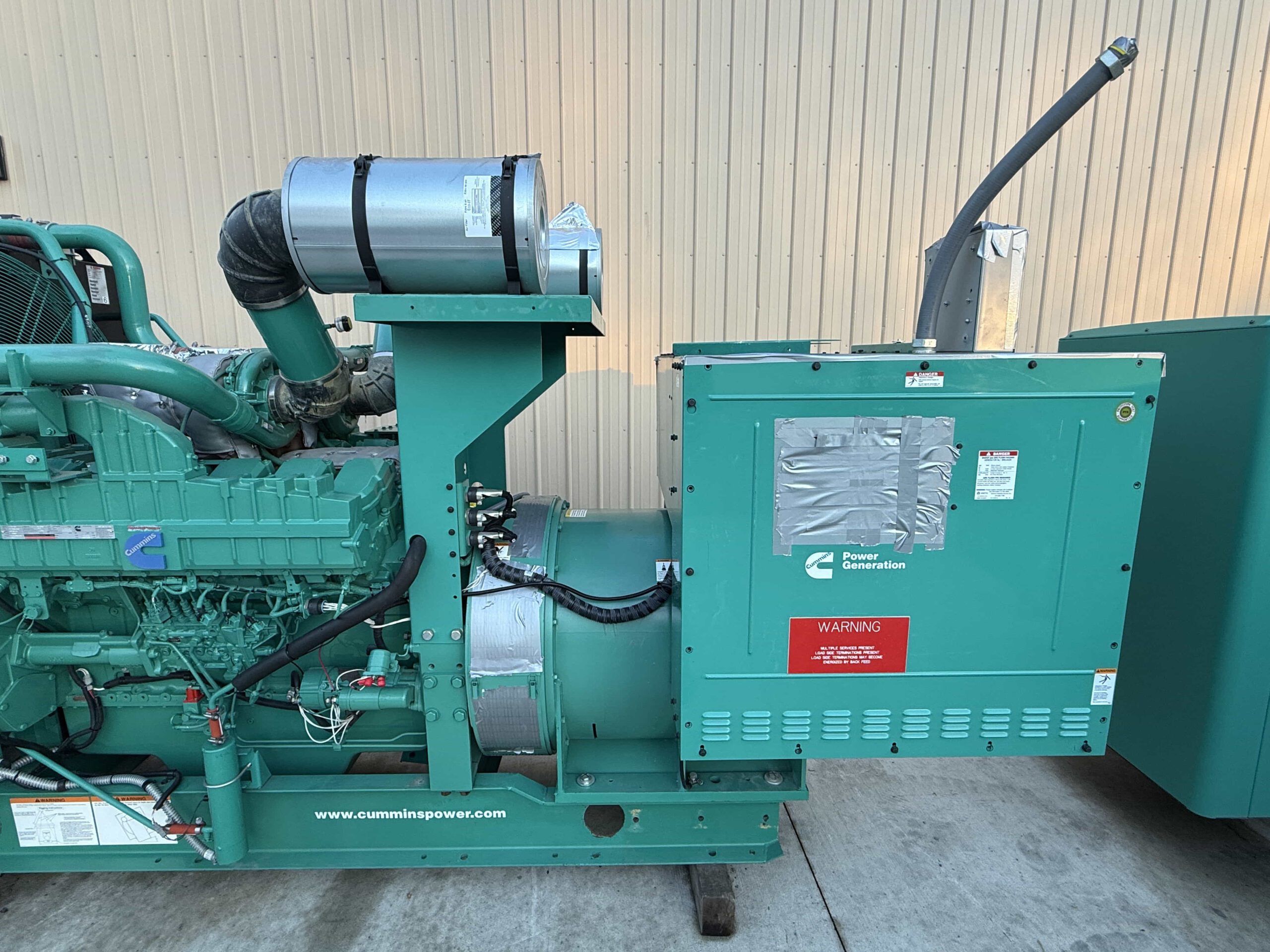

2007 Cummins DGFAD 1000kW Diesel Generator Set

Model:

DGFAD

$179,900

SKU: MEG1198 Categories 1000-1999KW Generators, Diesel Generators, Used Diesel Generators Tag 1000KW

For immediate help from an expert:

Description

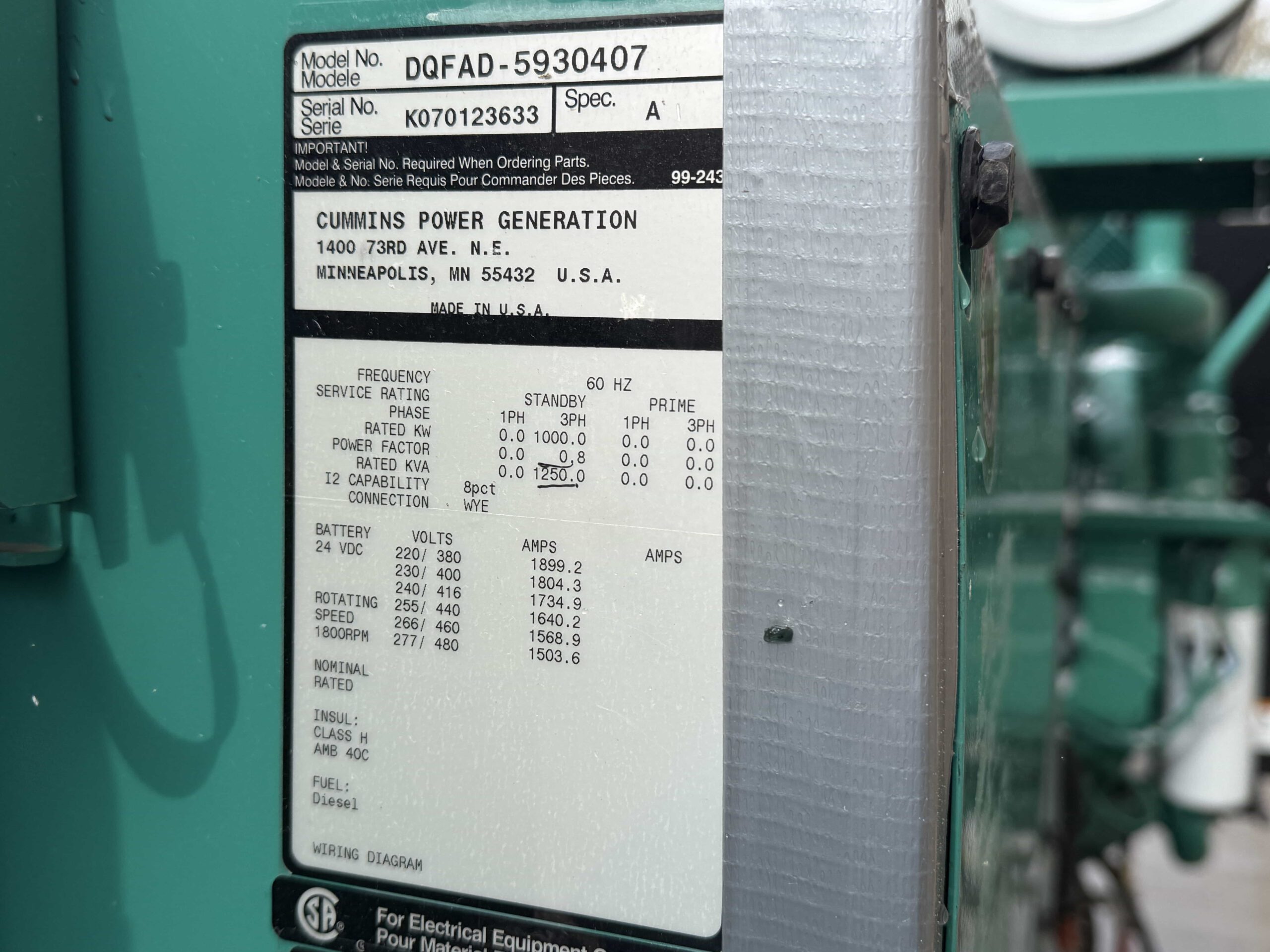

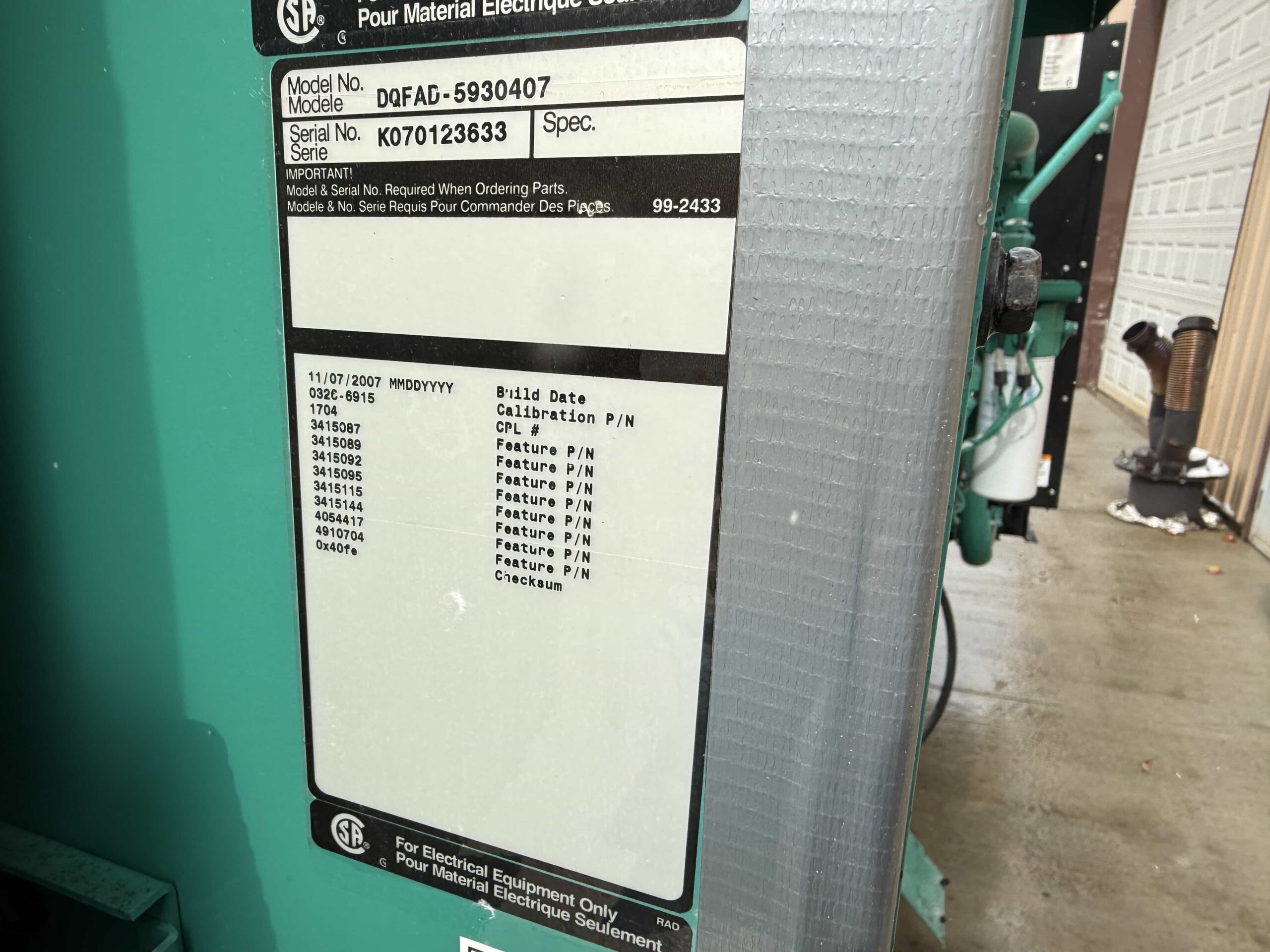

Year	2007
Manufacturer	Cummins
Generator Model	DQFAD
Serial Number	K070123633
kW	1000 kW
kVA	1250 kVA
Voltage	277/480 V
Amperage	1503 A
Frequency	60 Hz
RPM	1800
Hours	333
Phase Type	3-Phase Wye
Power Rating	Standby
Generator Insulation Class	Class H
Fuel Tank Capacity	–
Control Panel	Cummins PowerCommand Digital Control Panel
Engine Manufacturer	Cummins

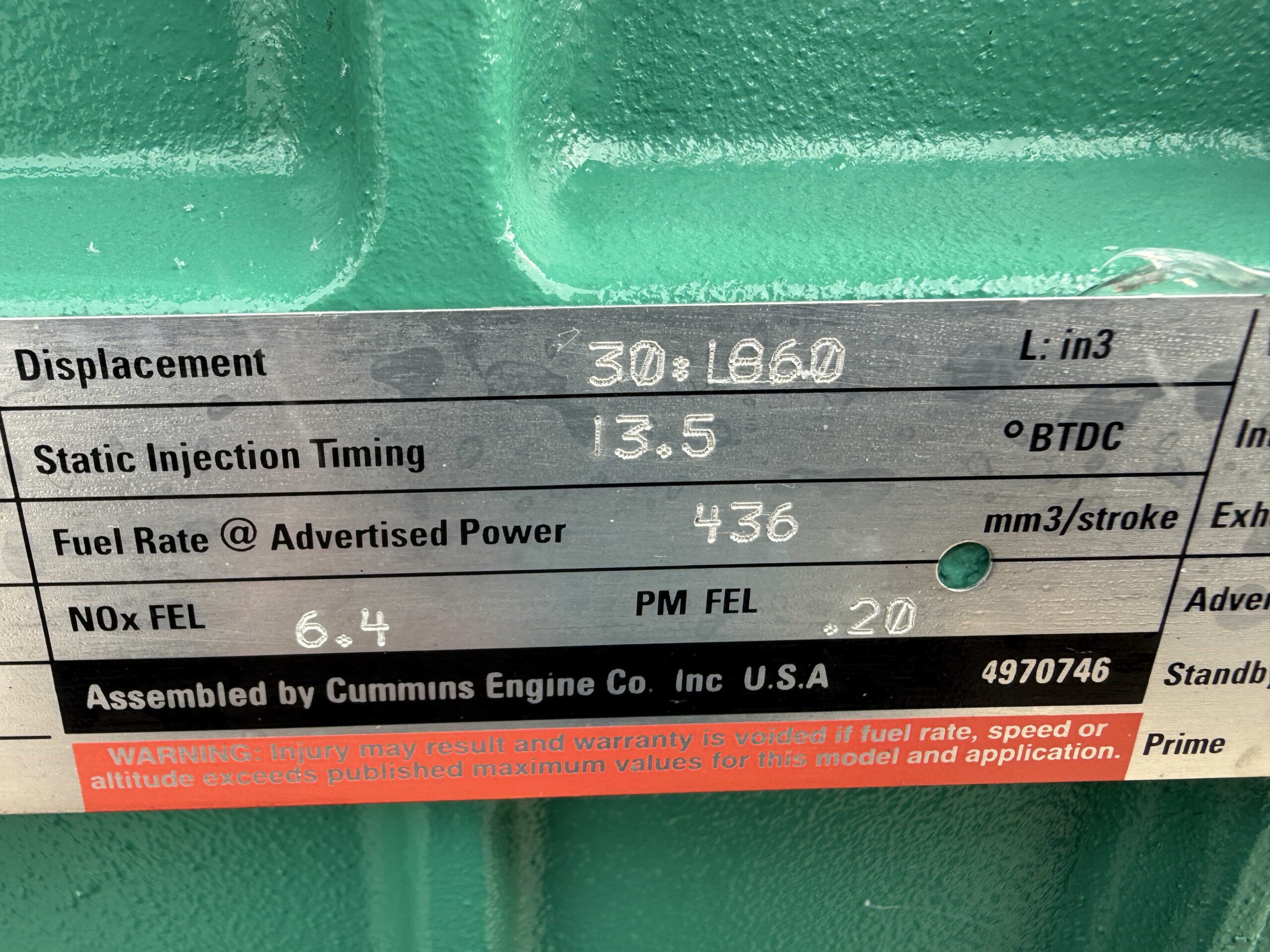

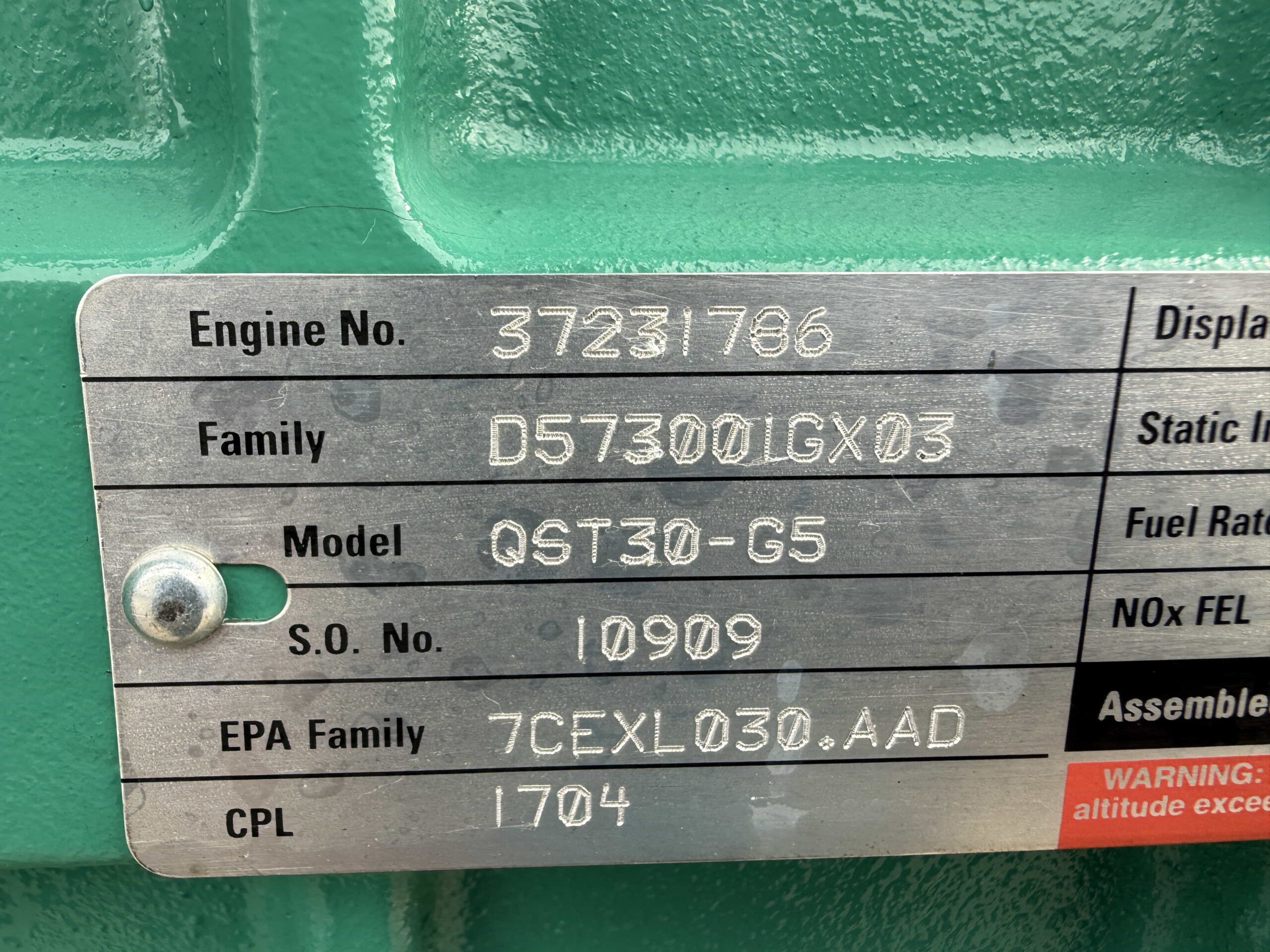

Engine Model	QST30-G5
Engine S/N	37231786

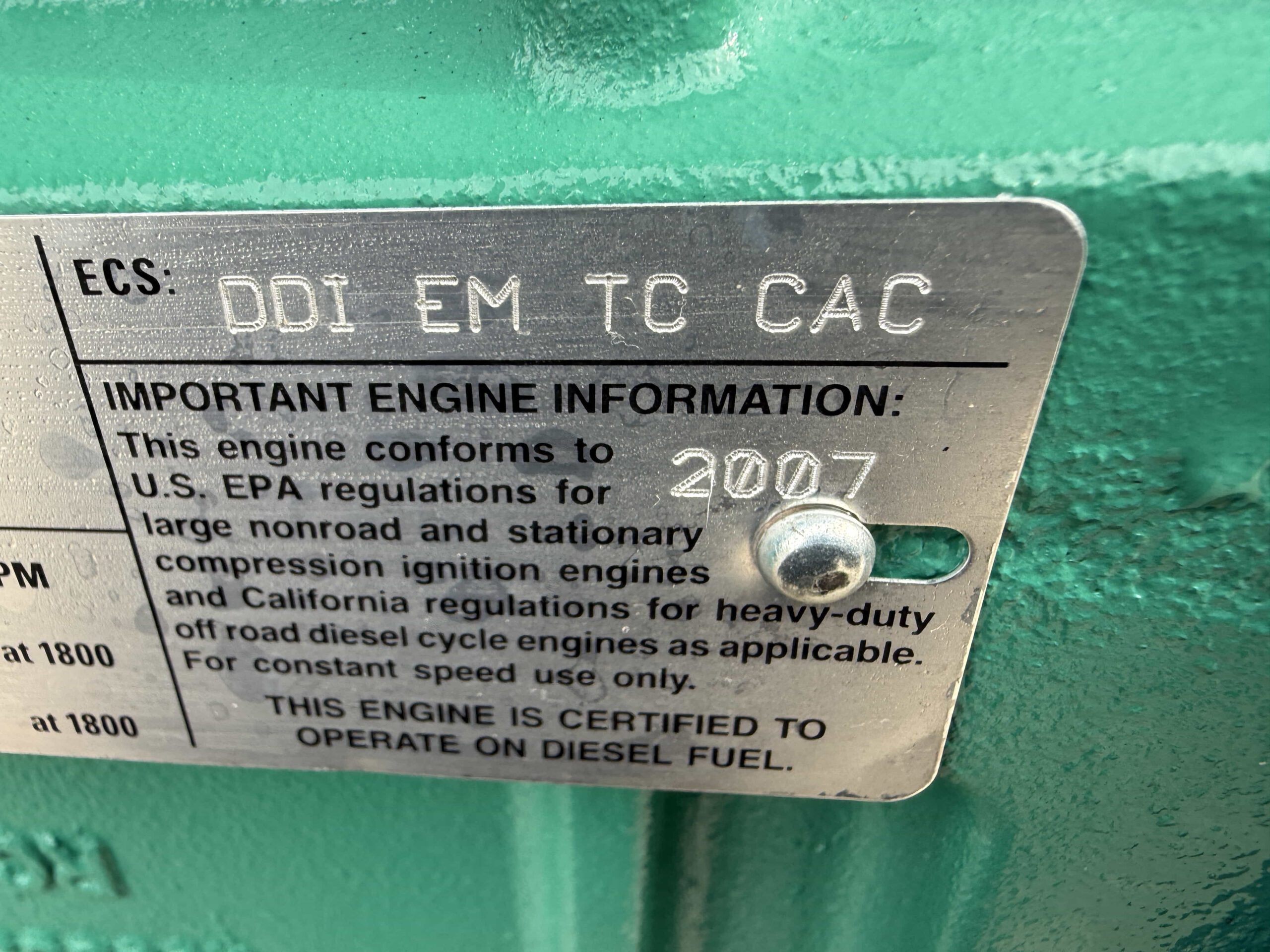

Emissions Tier	EPA Tier 2 (Certified Family 7CEXL030.AAD)
Dimensions (L x W x H)	178″ x 84″ x 99″
Weight (lbs.)	–
Stock Number	MEG1198

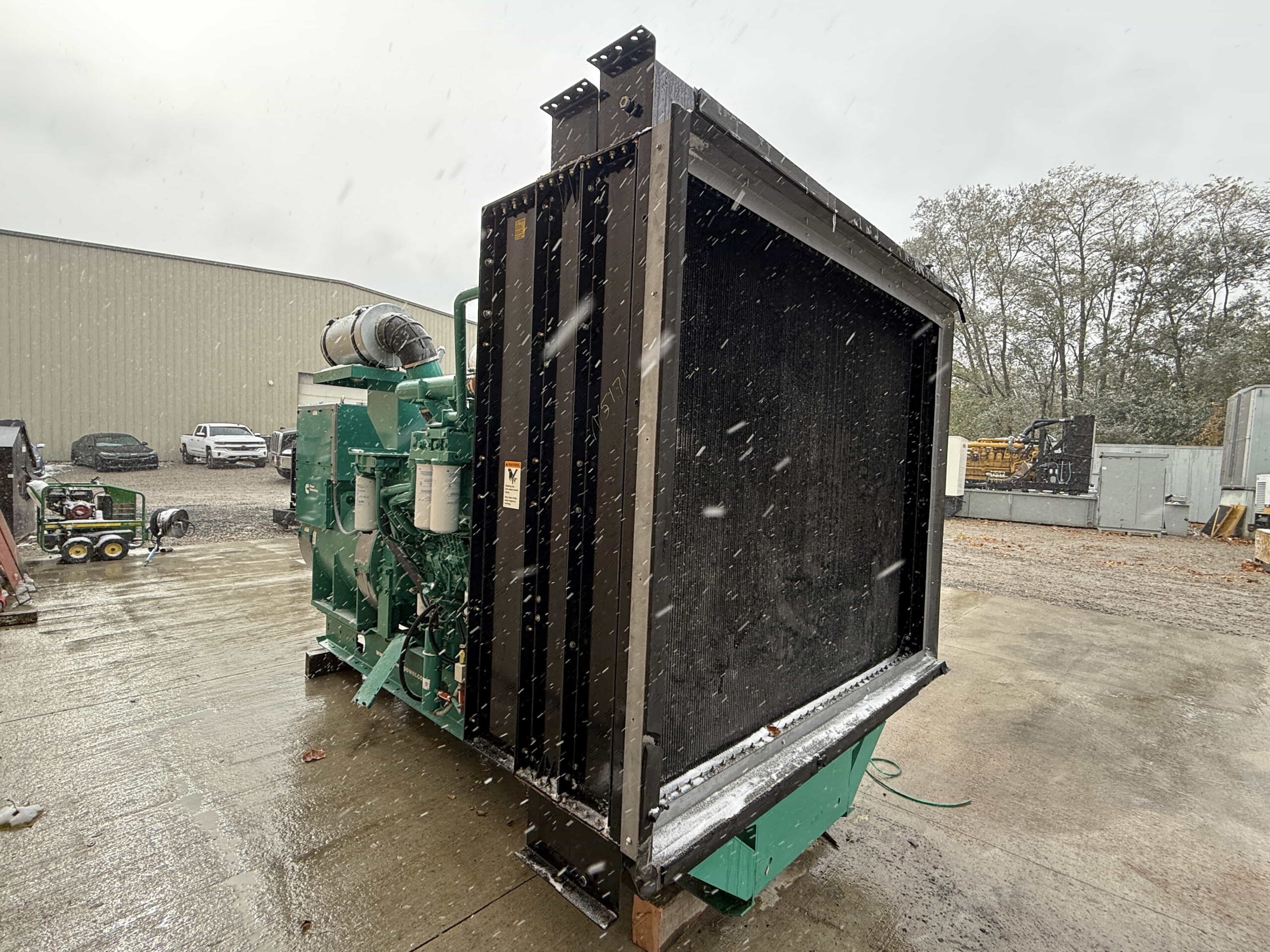

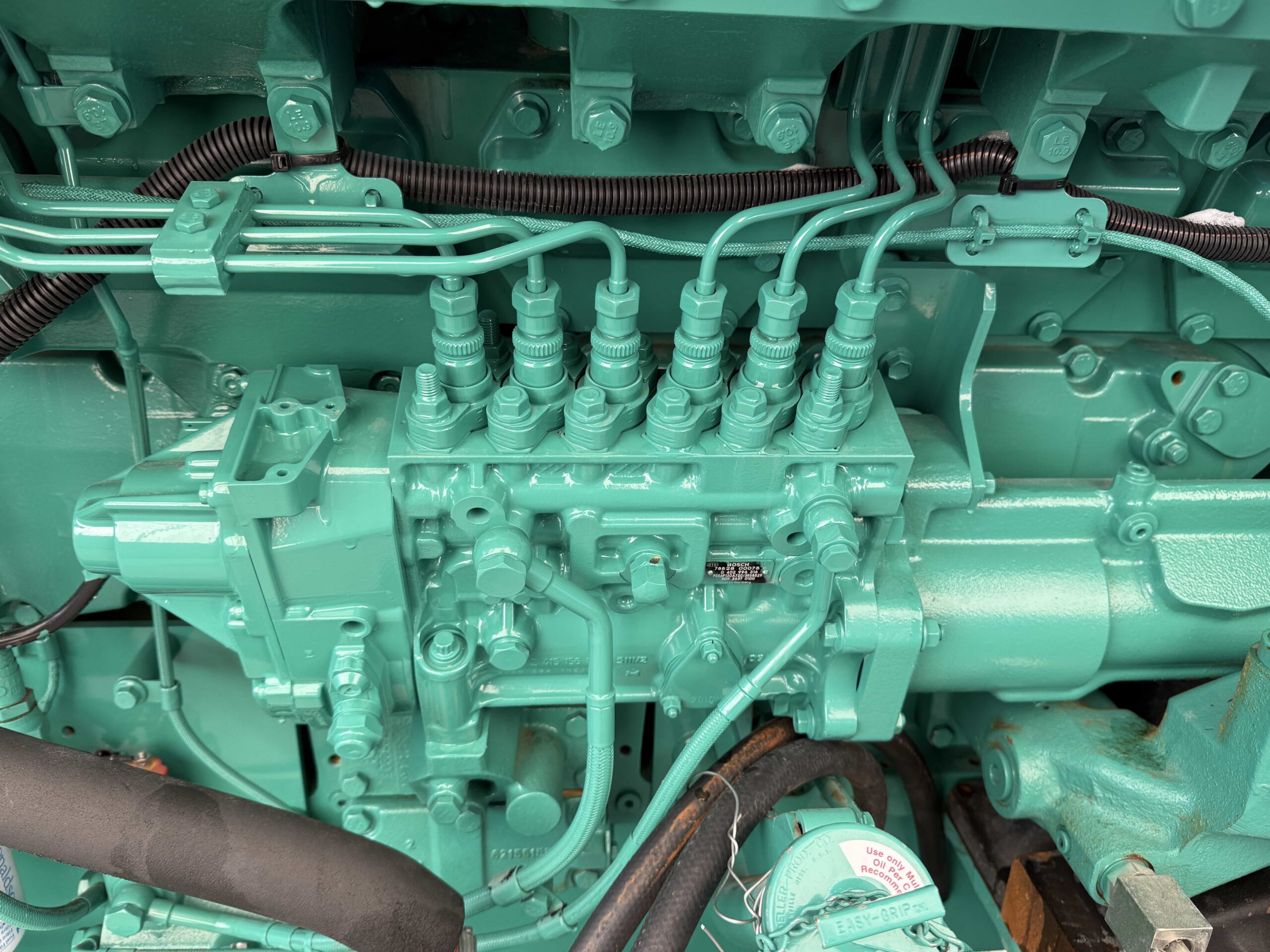

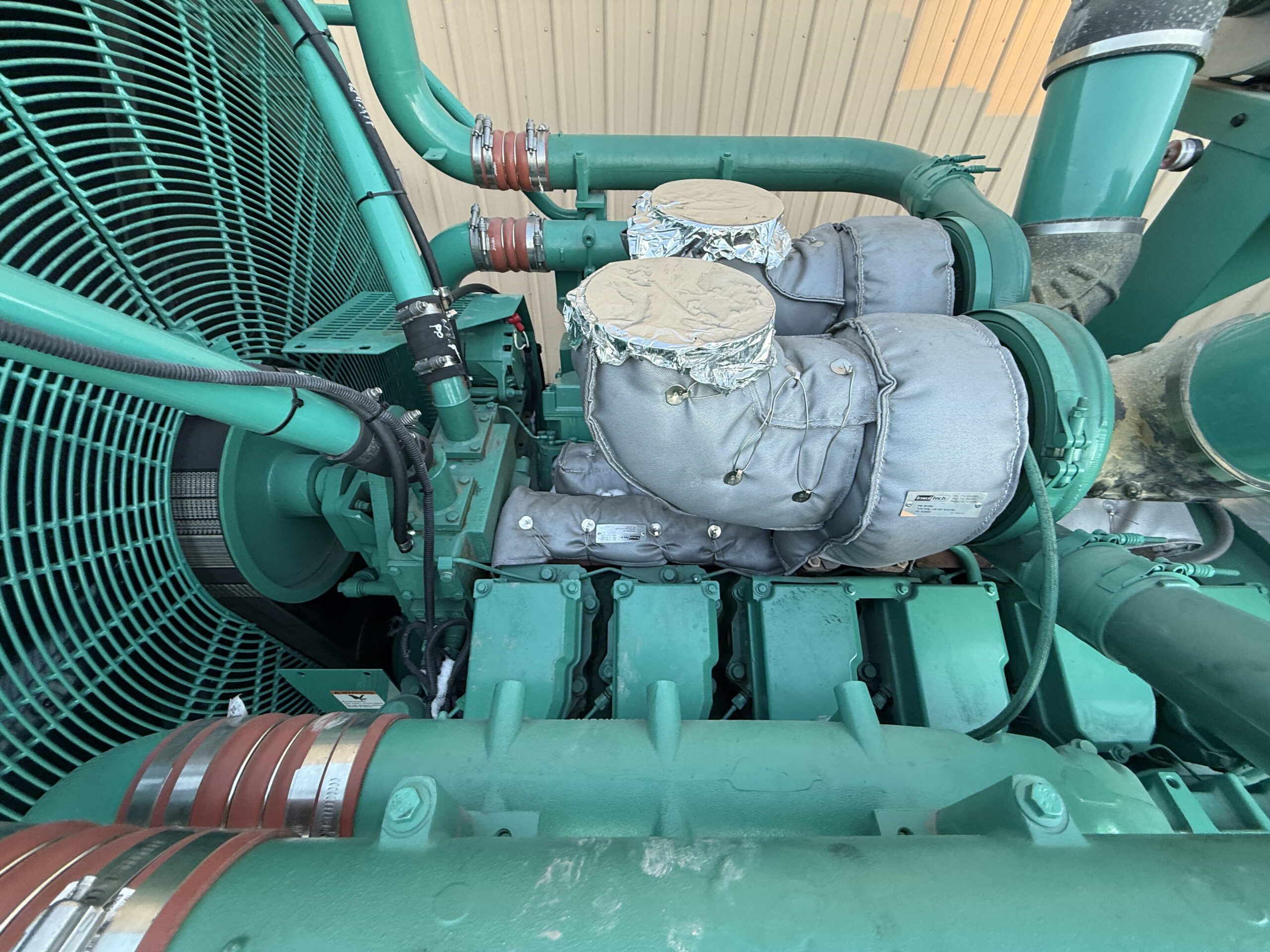

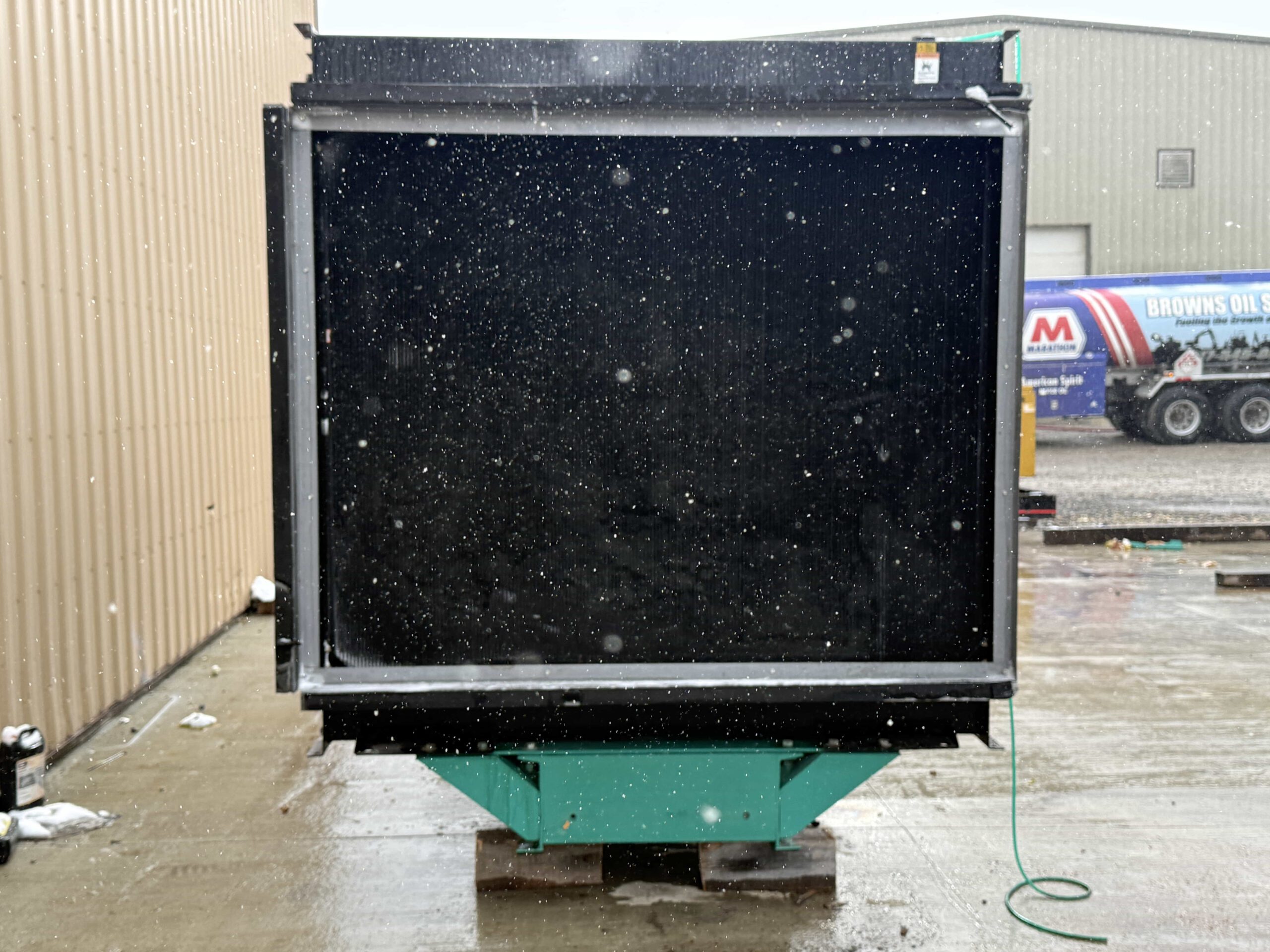

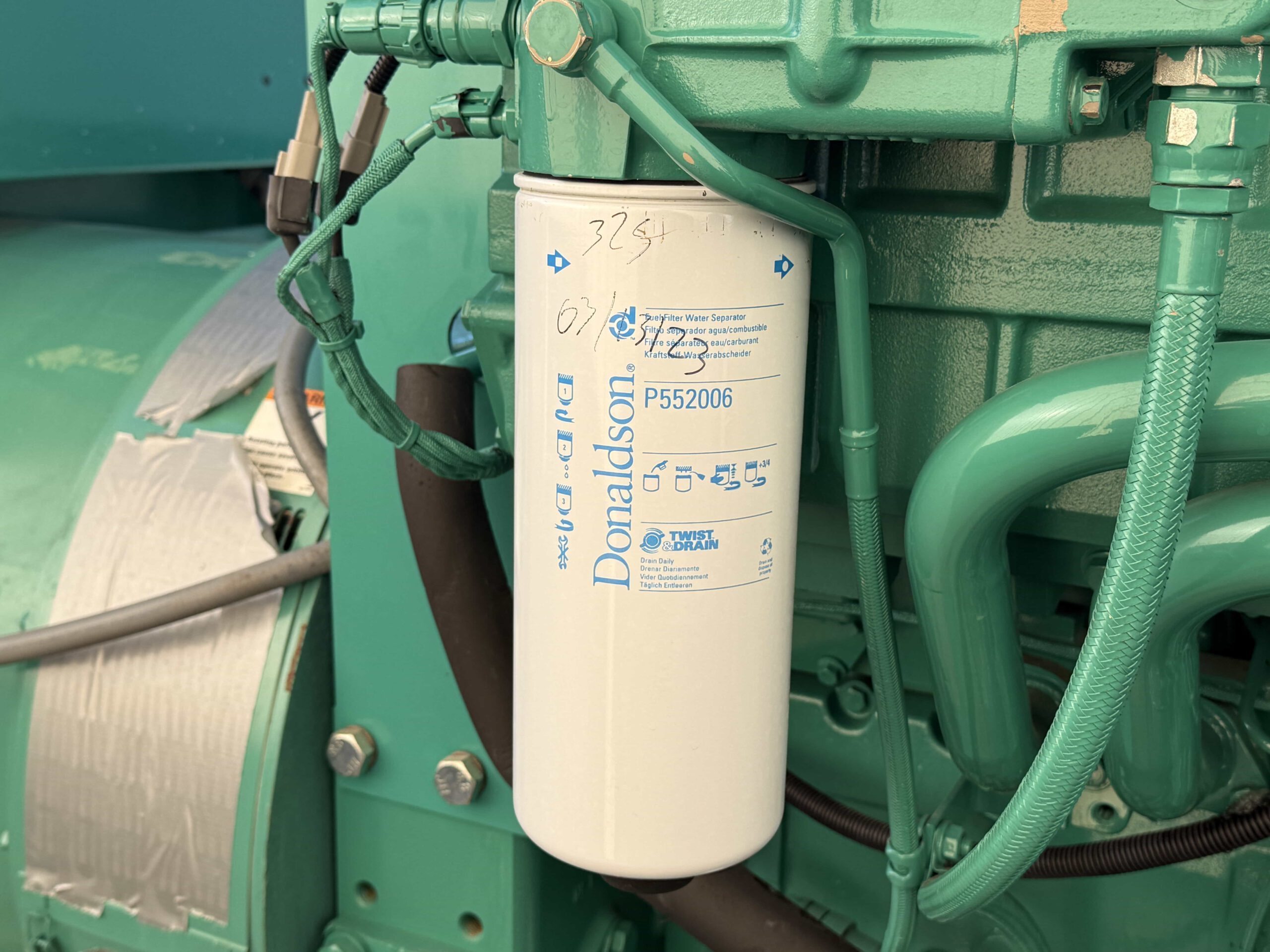

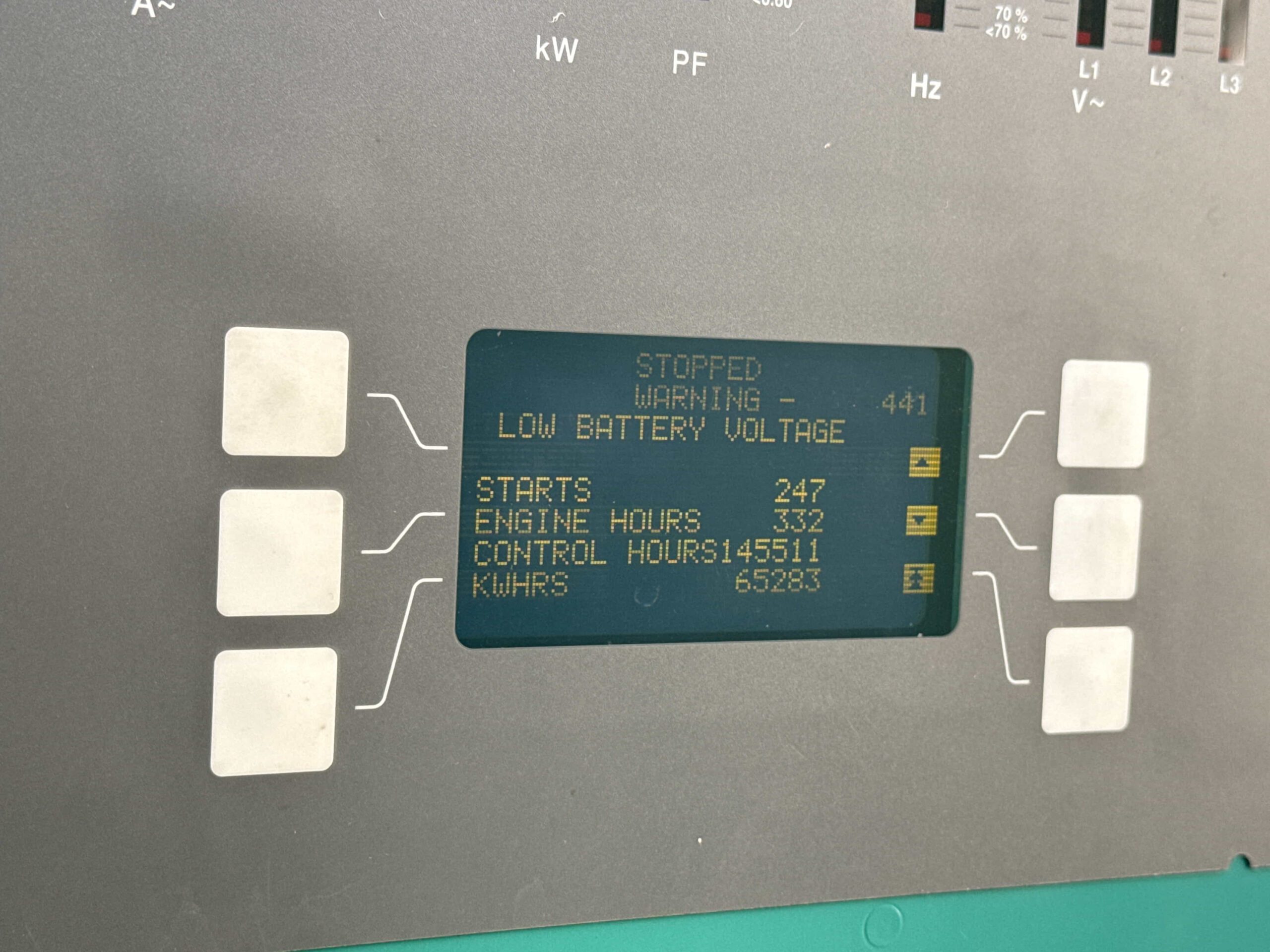

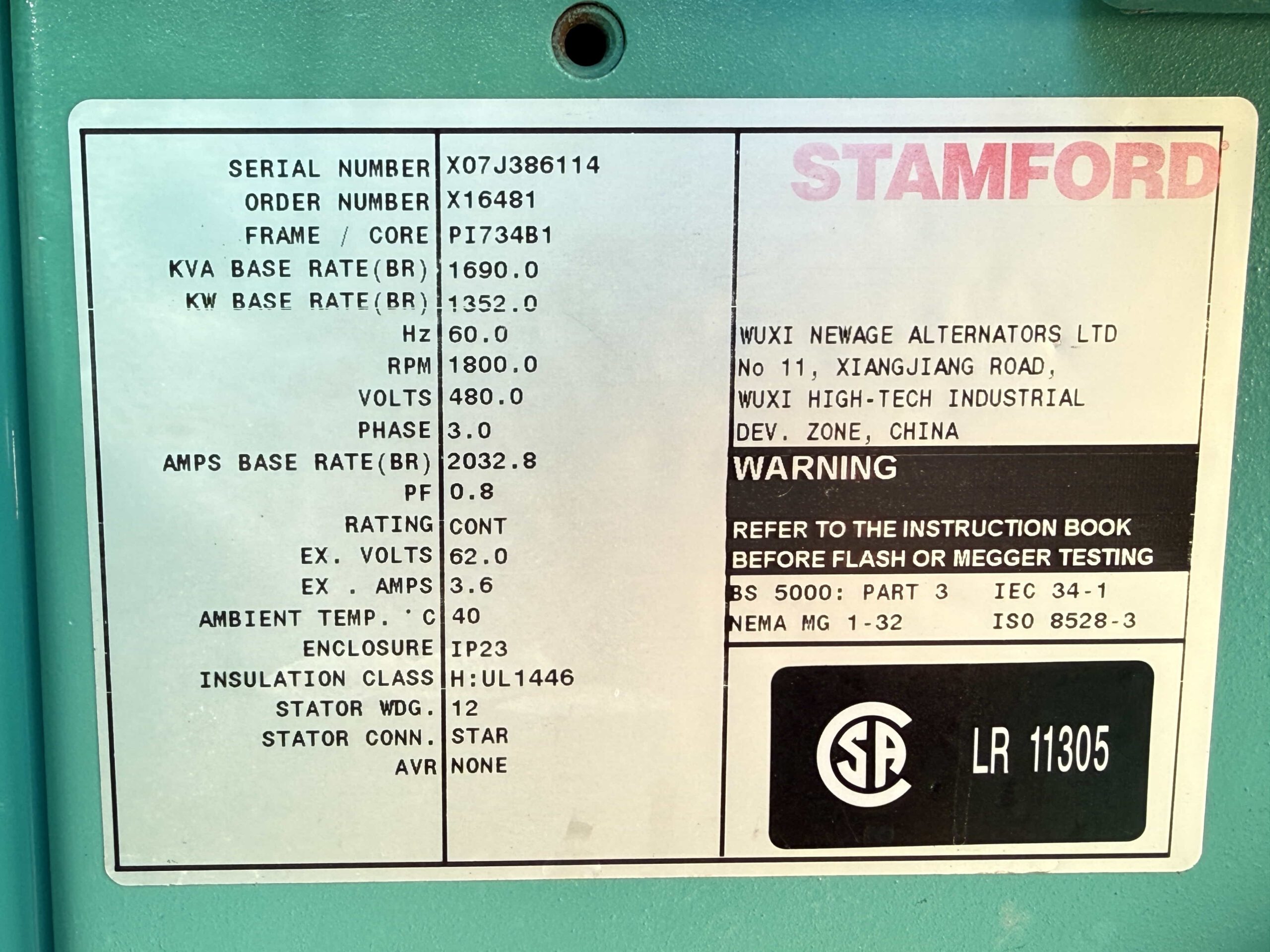

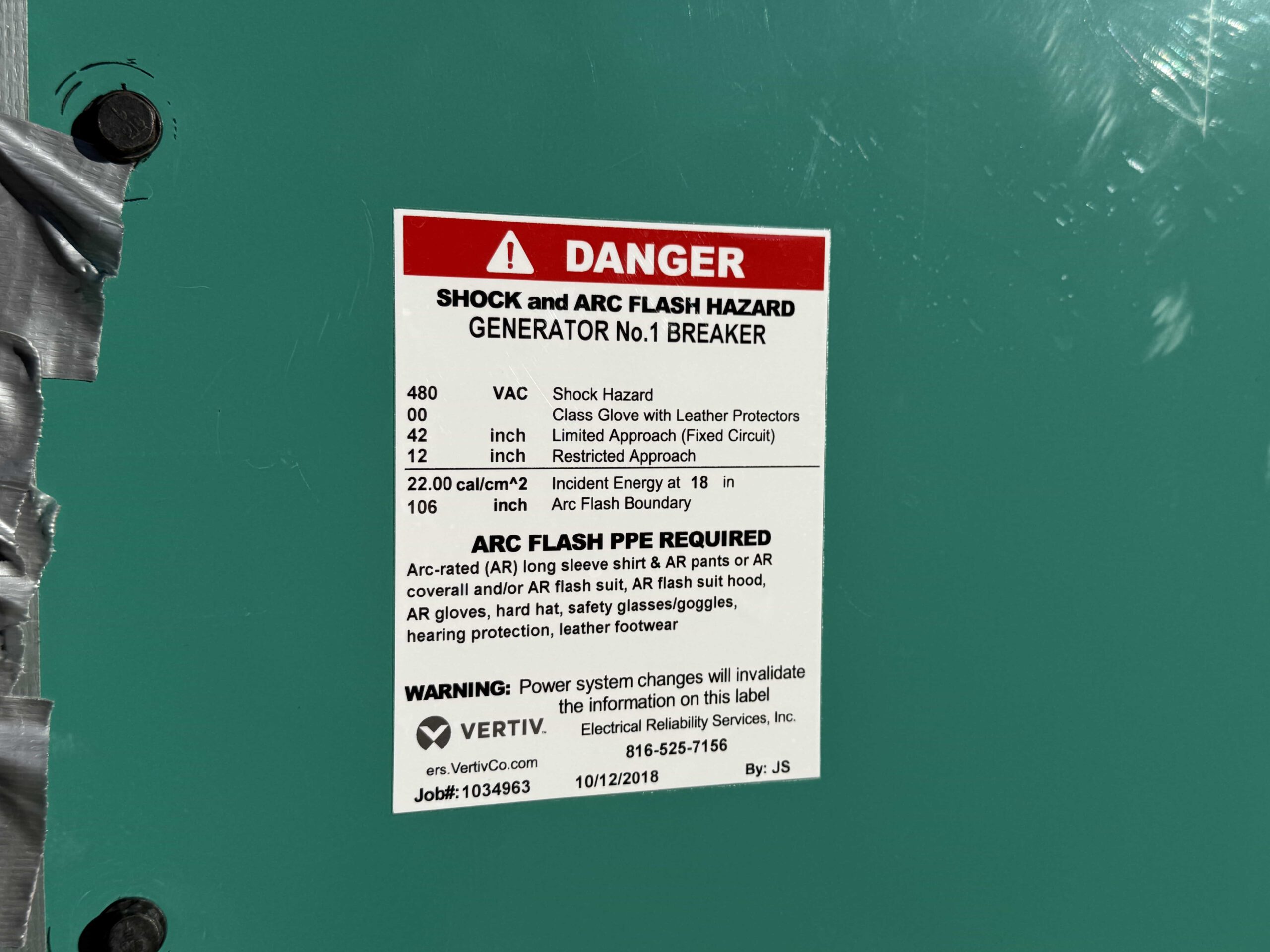

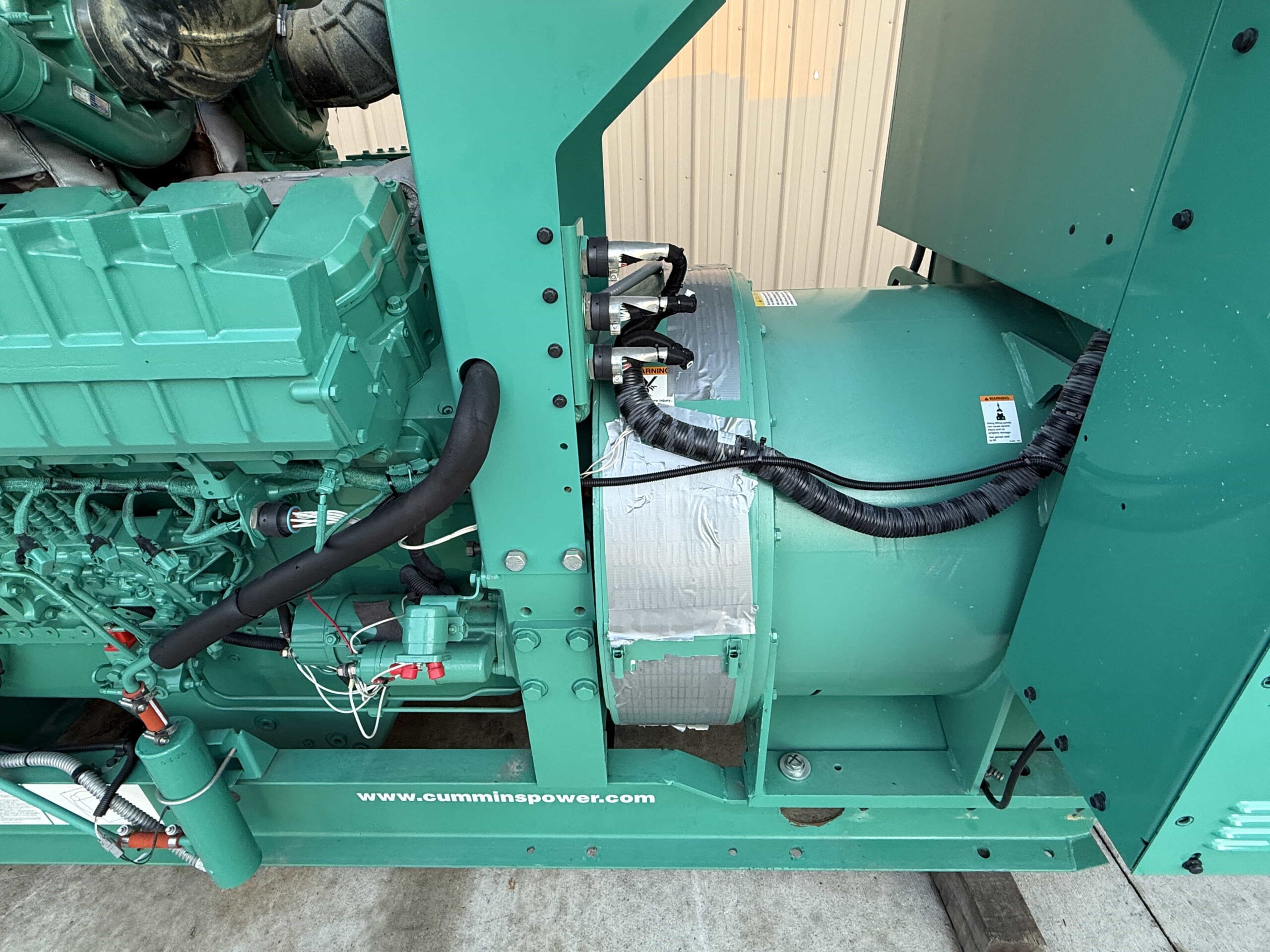

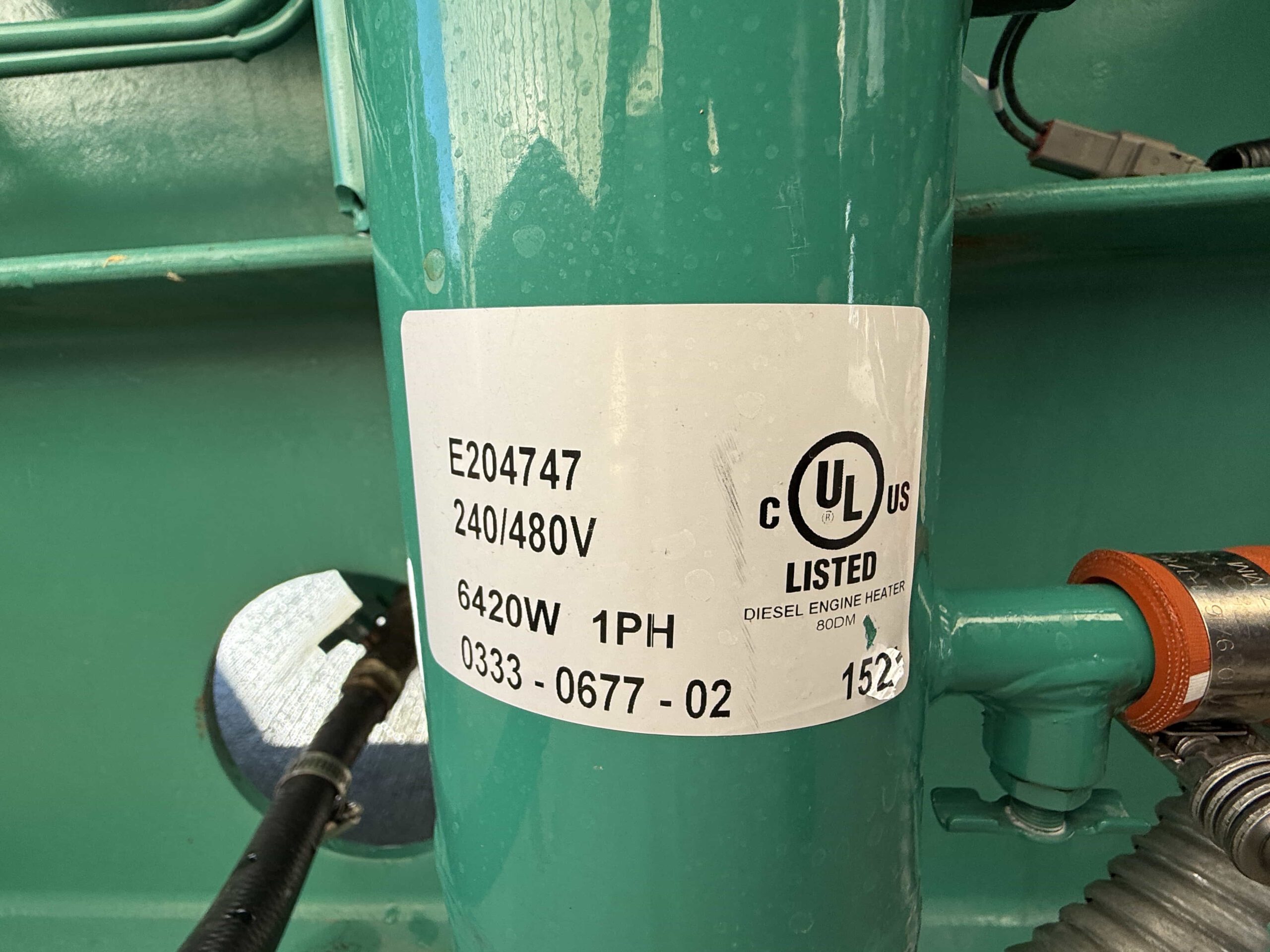

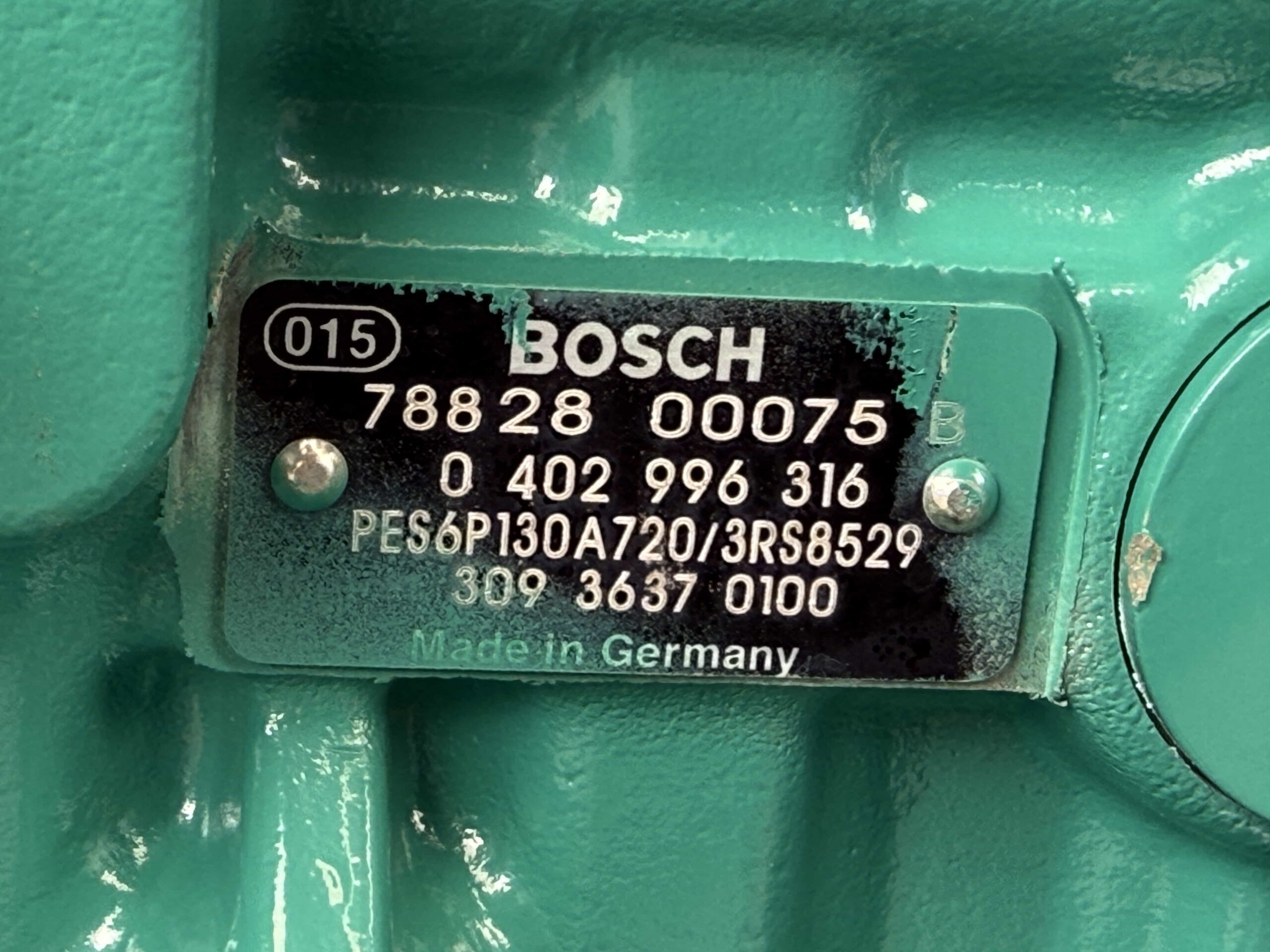

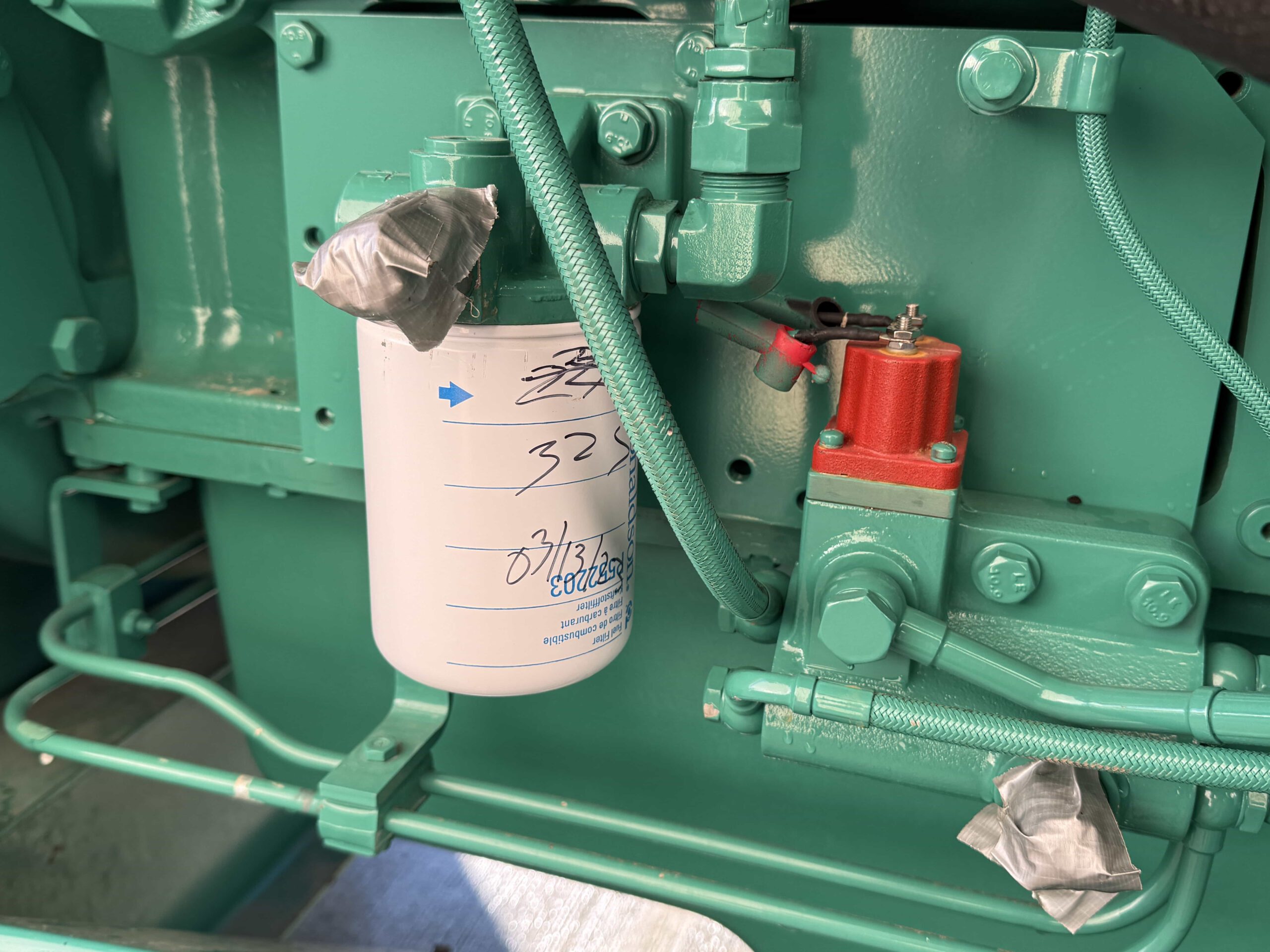

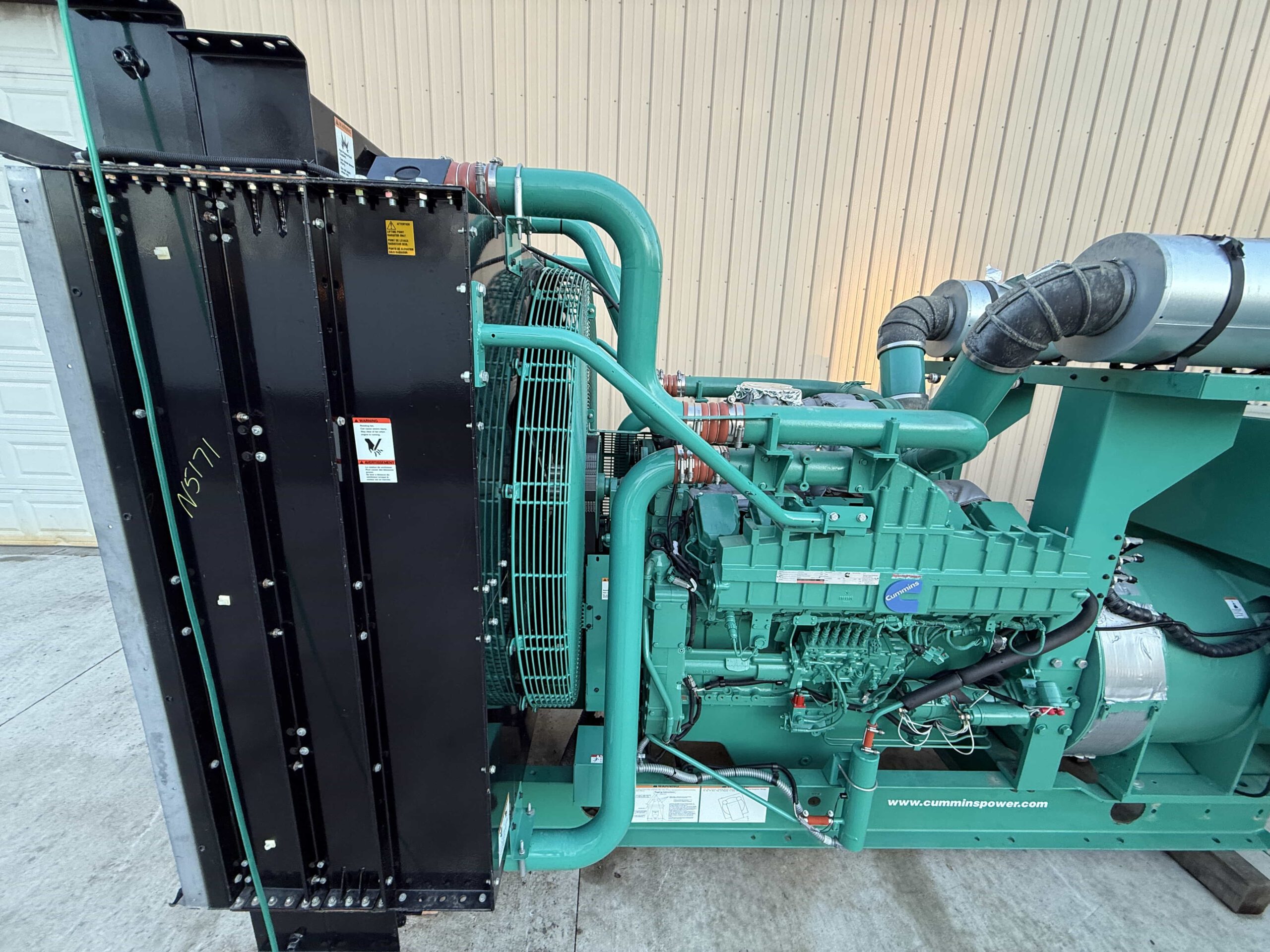

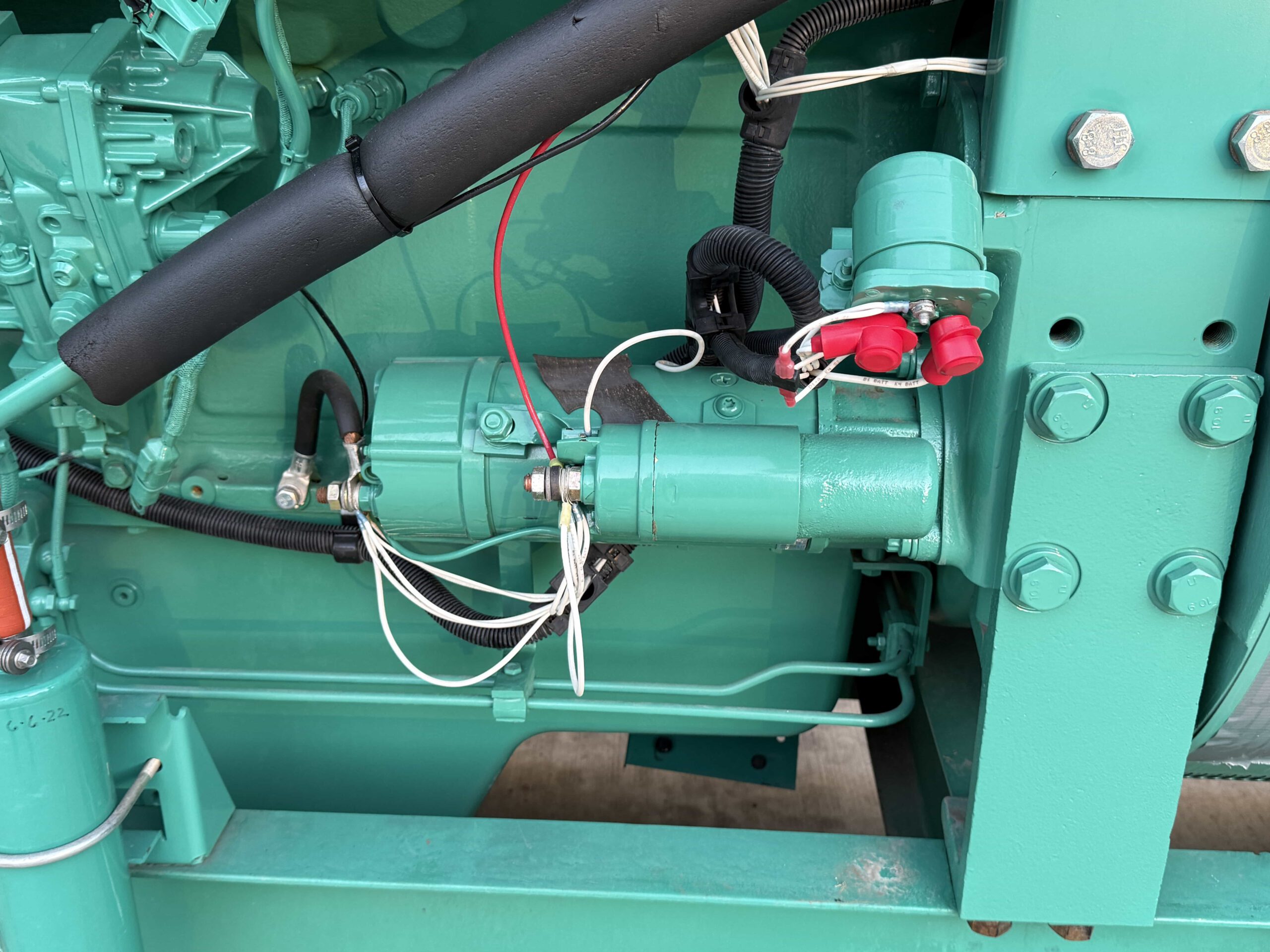

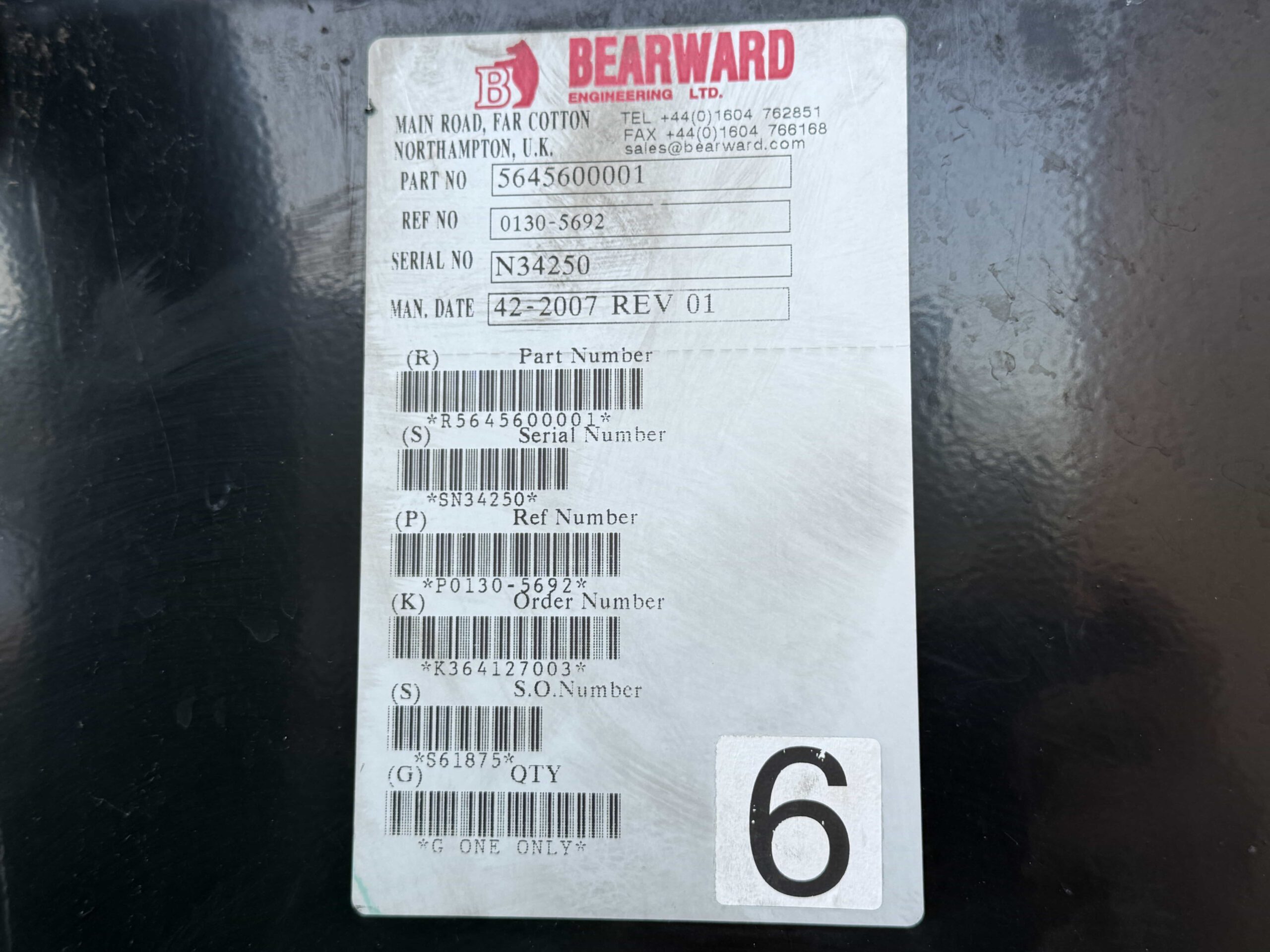

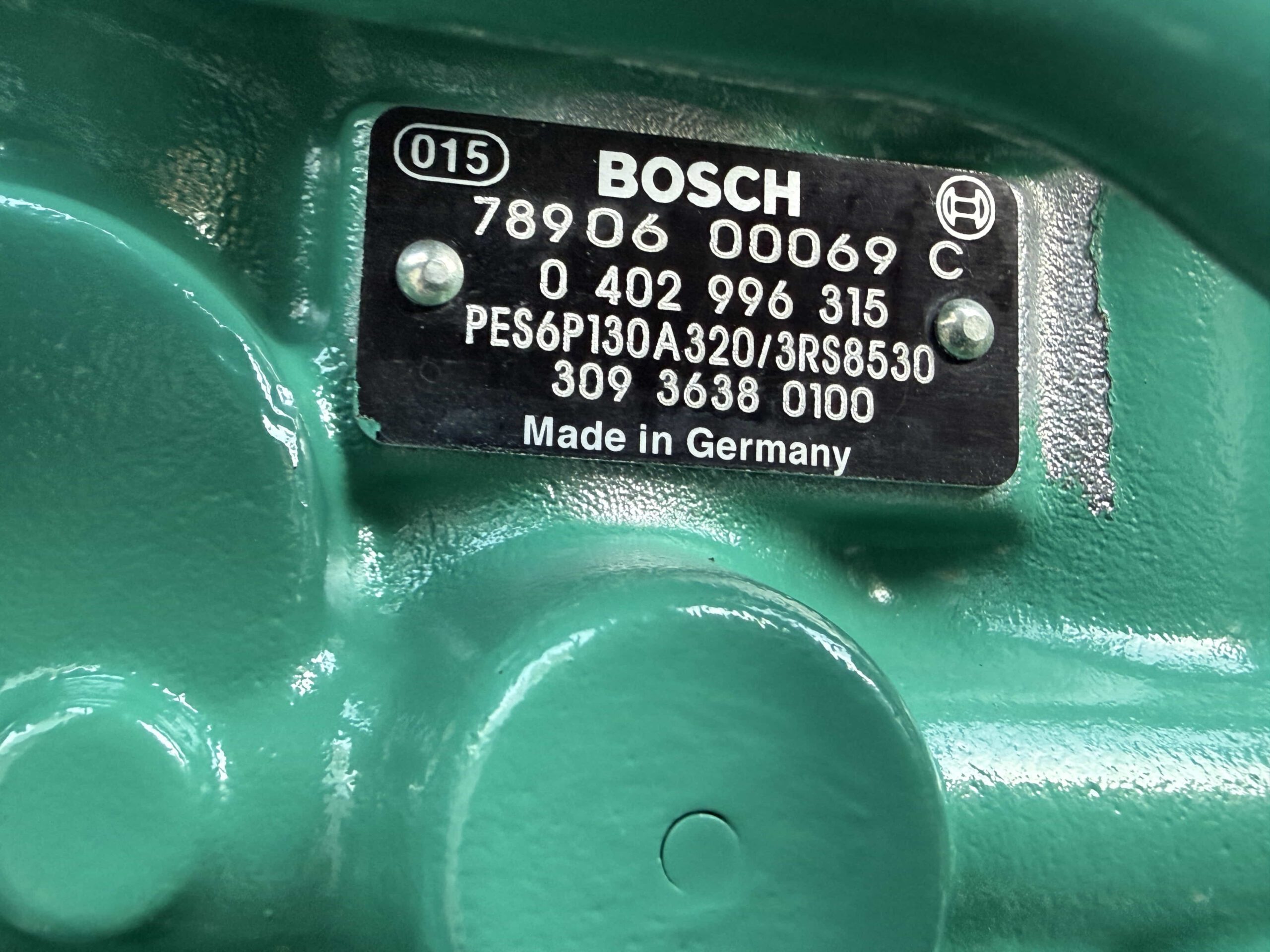

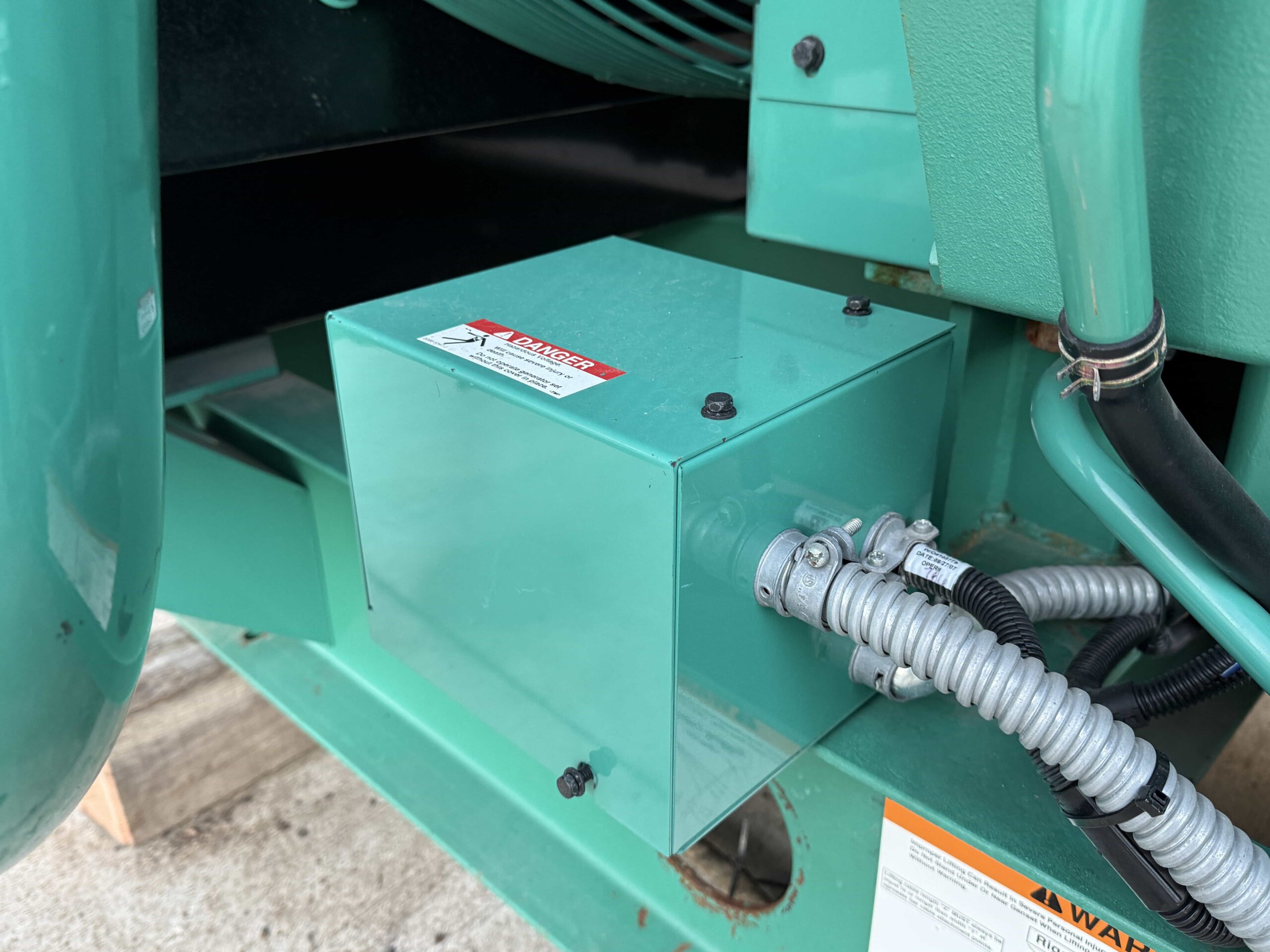

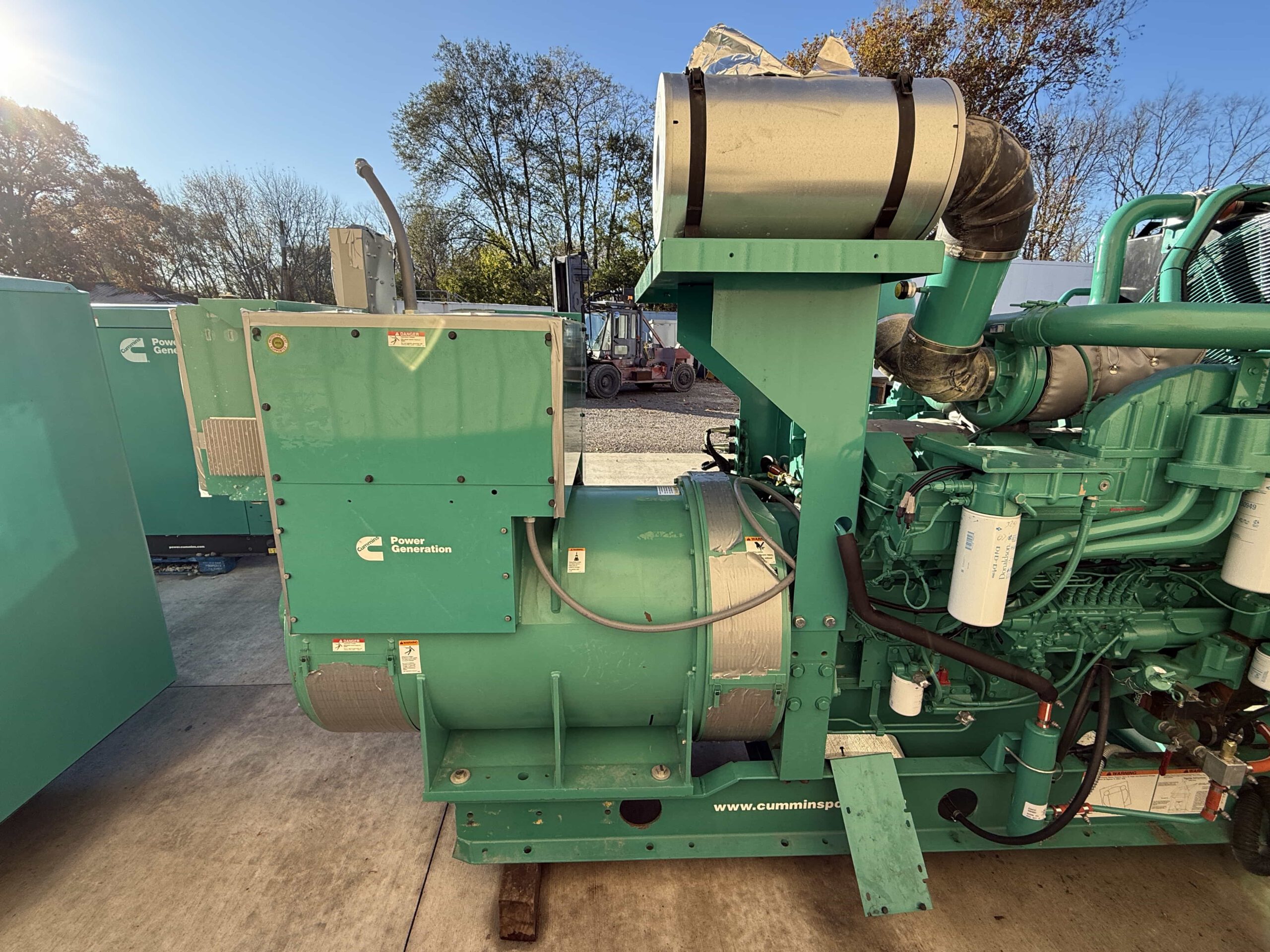

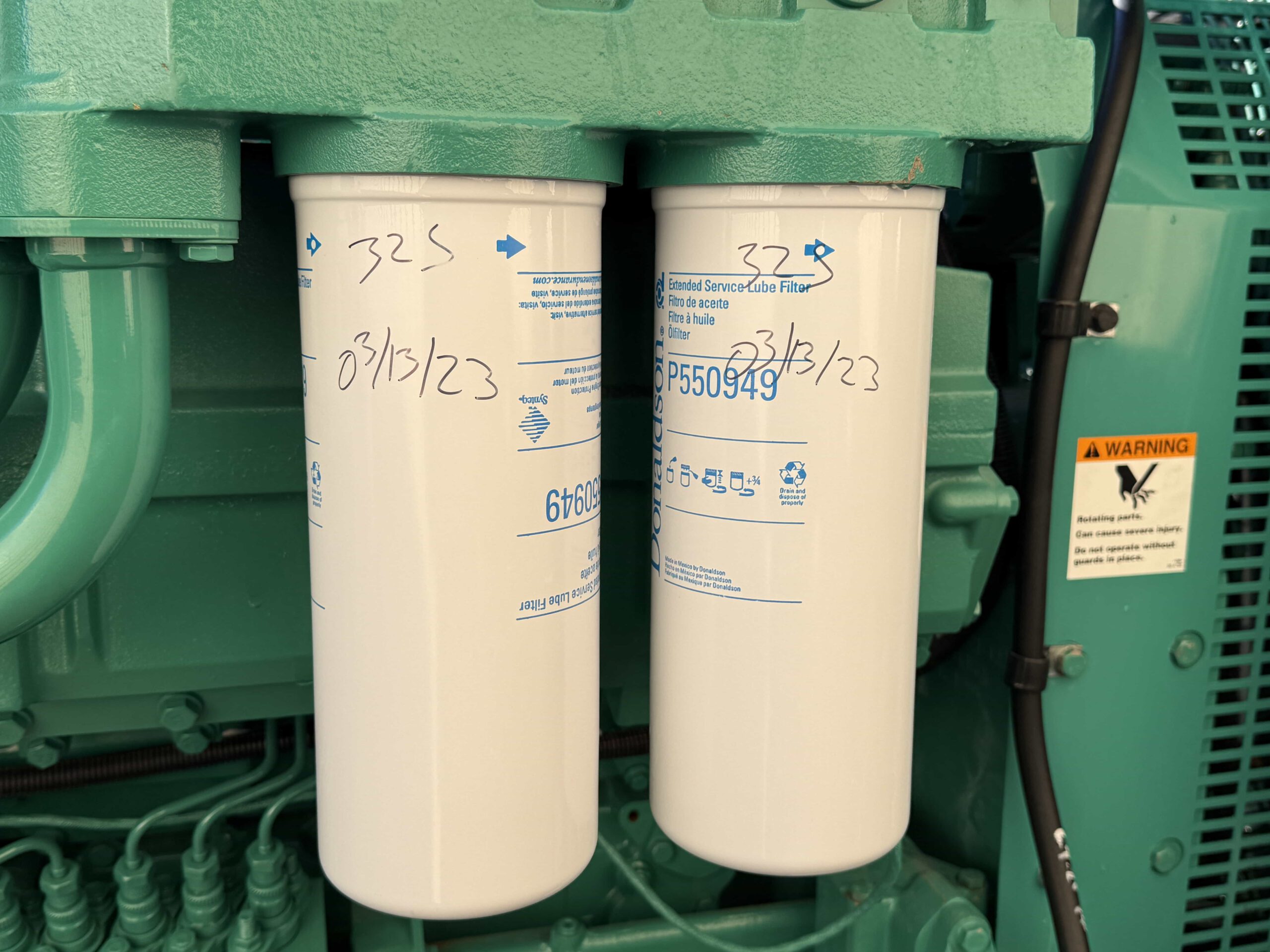

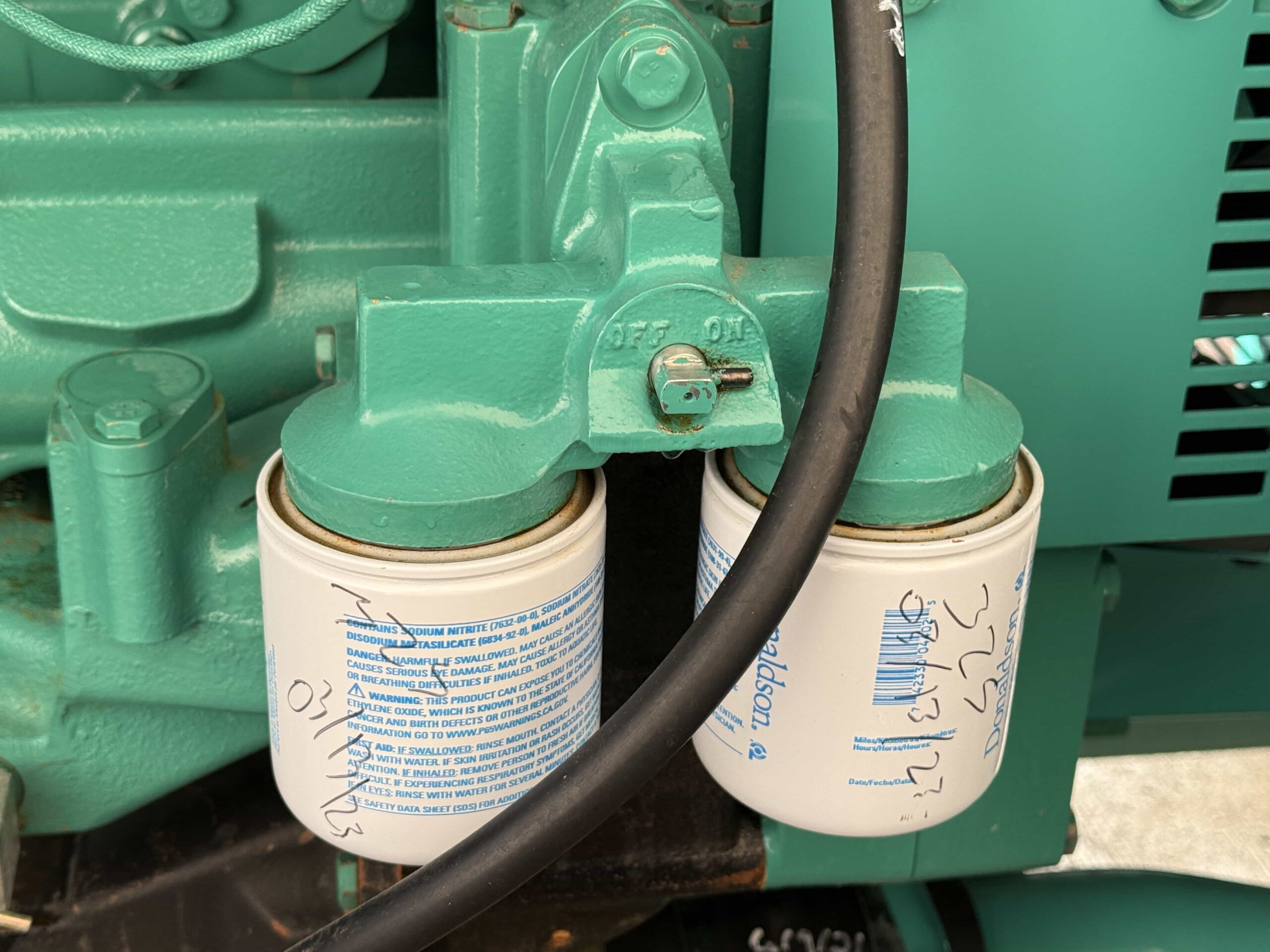

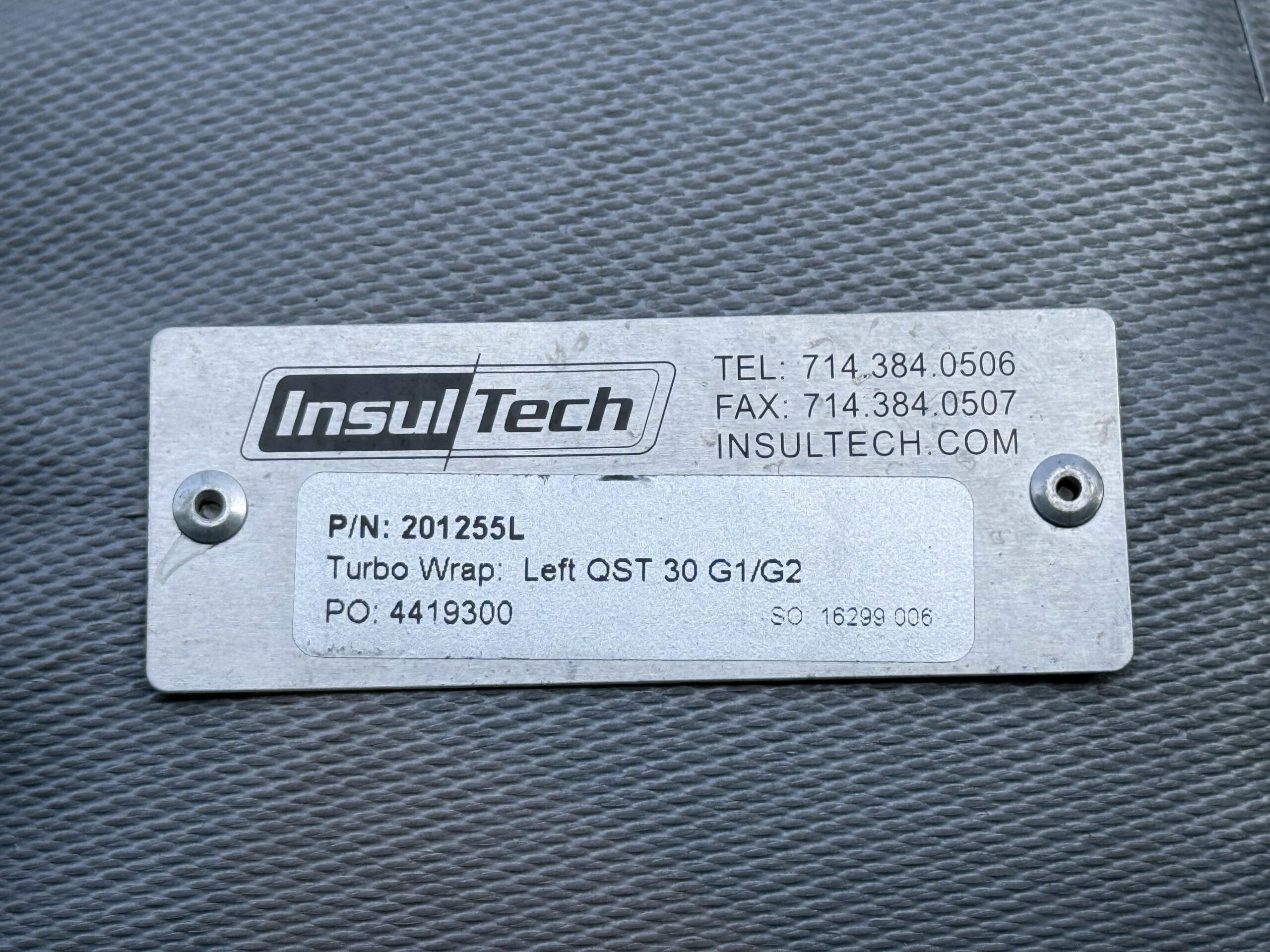

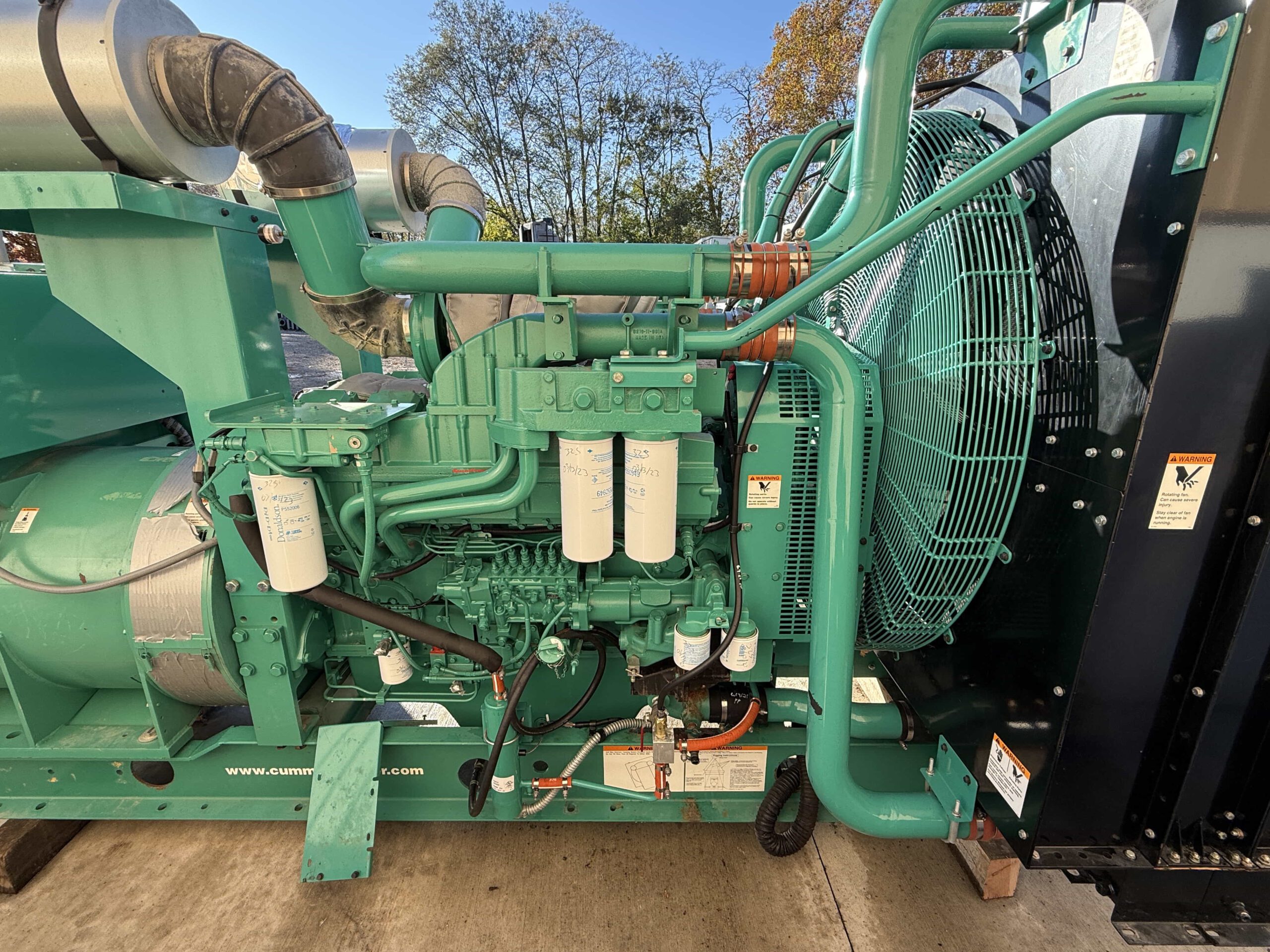

Additional Features: Cummins QST30-G5 30.6L V12 turbocharged and aftercooled diesel engine Stamford PI734B1 alternator – 1250 kVA, Class H insulation, Wye-connected, 0.8 PF Bosch PES6P130A720/3RS8529 mechanical fuel injection pump (Made in Germany) Bearward Engineering radiator, P/N 5645600001 (S/N N34250 REV 01) Dual 24 V electric starters with solenoids and shielded leads UL-listed 6.42 kW block heater (240/480 V, 1 Phase, E204747) Donaldson heavy-duty filtration system – oil (P550949), fuel (P552006), coolant (P554407) Factory radiator-cooled configuration with guarded fan and safety mesh InsulTech turbo and manifold blankets (P/N 201255R – Right QST30 G1/G) Heavy-duty industrial base with vibration isolators and integrated flex conduits Arc-flash rated breaker enclosure (Vertiv label 22 cal/cm² tested) UL 2200 stationary listing, File AU3044 / UL E204747 engine heater Serviced and load-tested, 03/2023 filter service and August 2023 inspection (247 starts, 333 engine hours)
