2001 Cummins DFHA 750kw Diesel Generator Set

Price

$79,900.00

Inquire Now

Product Details

Year 2001
Manufacturer Cummins
Generator Model DFHA
Serial Number A010198545
kW 750 Standby / 675 Prime
kVA 937.5 Standby / 850 Prime
Voltage 277/480V
12-lead reconnectable
Amperage 1128A Standby / 1022A Prime
Frequency 60 Hz
RPM 1800
Hours 553
Phase Type 3-Phase
Power Rating Standby / Prime
Generator Insulation Class Class H
Fuel Tank Capacity 700 Gallons
Sub-base, w/ secondary containment

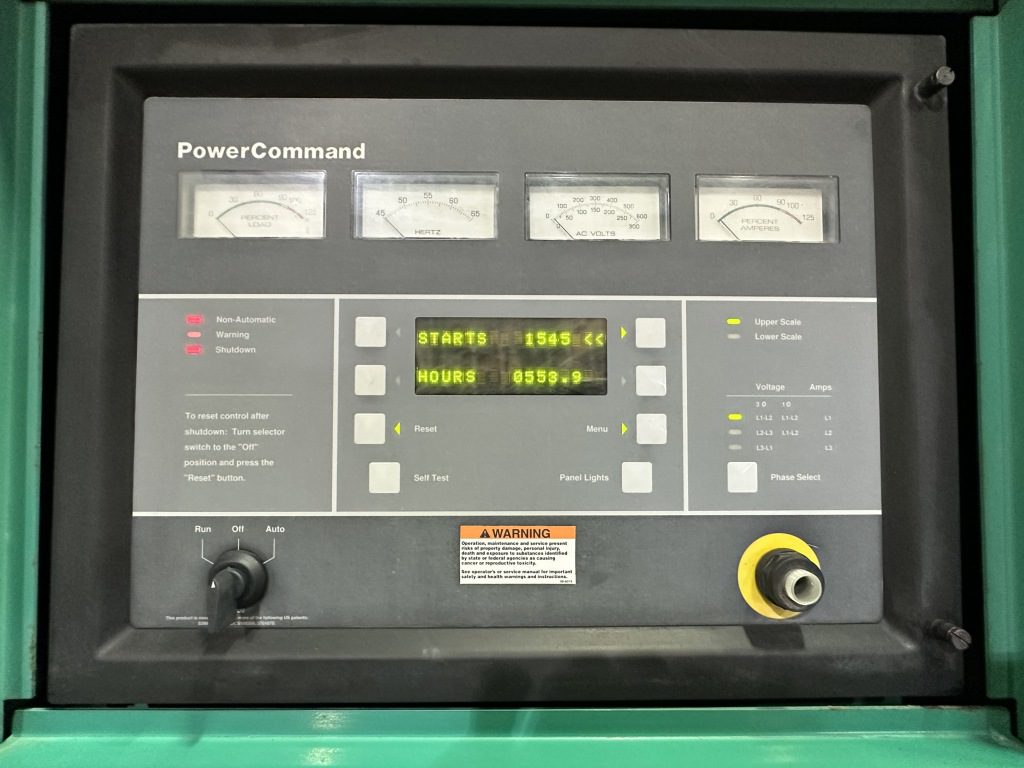

Control Panel PowerCommand Digital
Engine Manufacturer Cummins

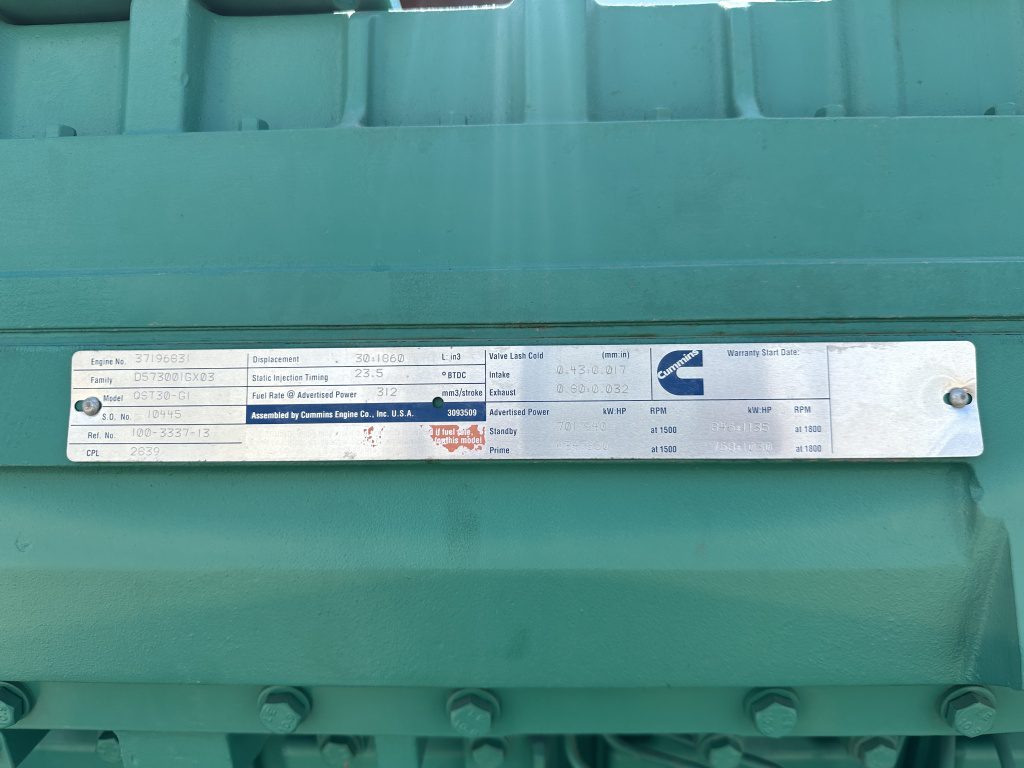

Engine Model QST30-G1
Engine S/N 37196831
Emissions Tier Non-Tier
Pre-EPA
Dimensions (L x W x H) 168″ x 69″ x 131″ (on 6H blocks)
Weight (lbs.) 20,000
Stock Number MEG1080
Additional Features:

  • Diesel fuel

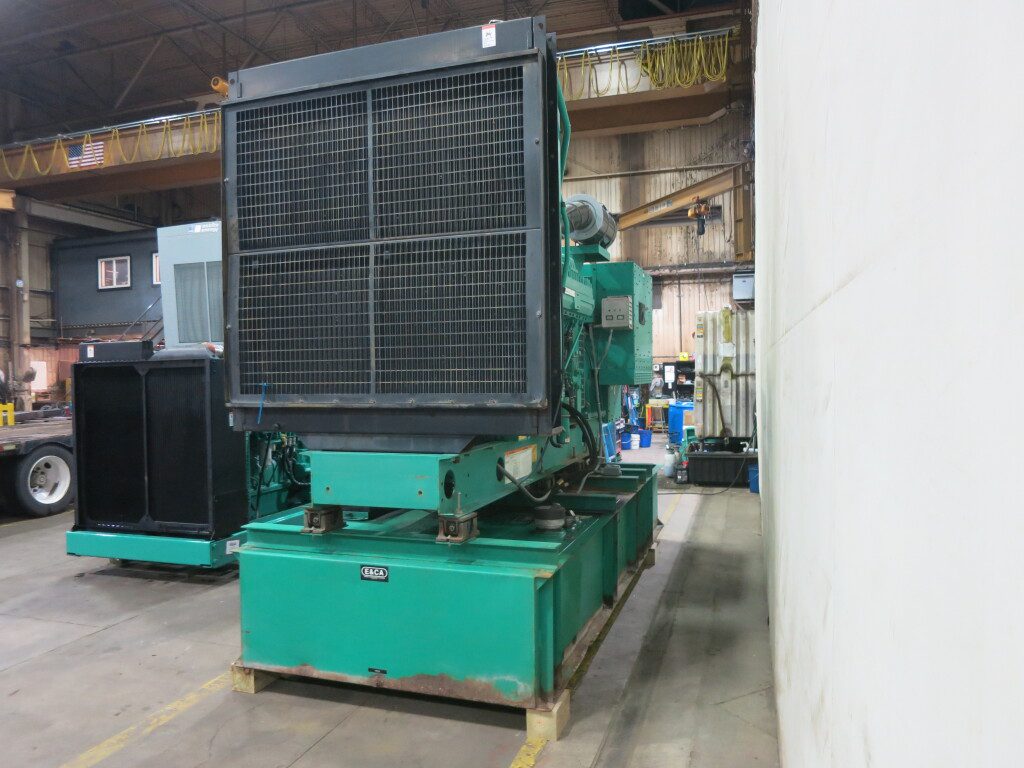

  • Open power unit with an engine-driven radiator
  • Dual coolant heaters

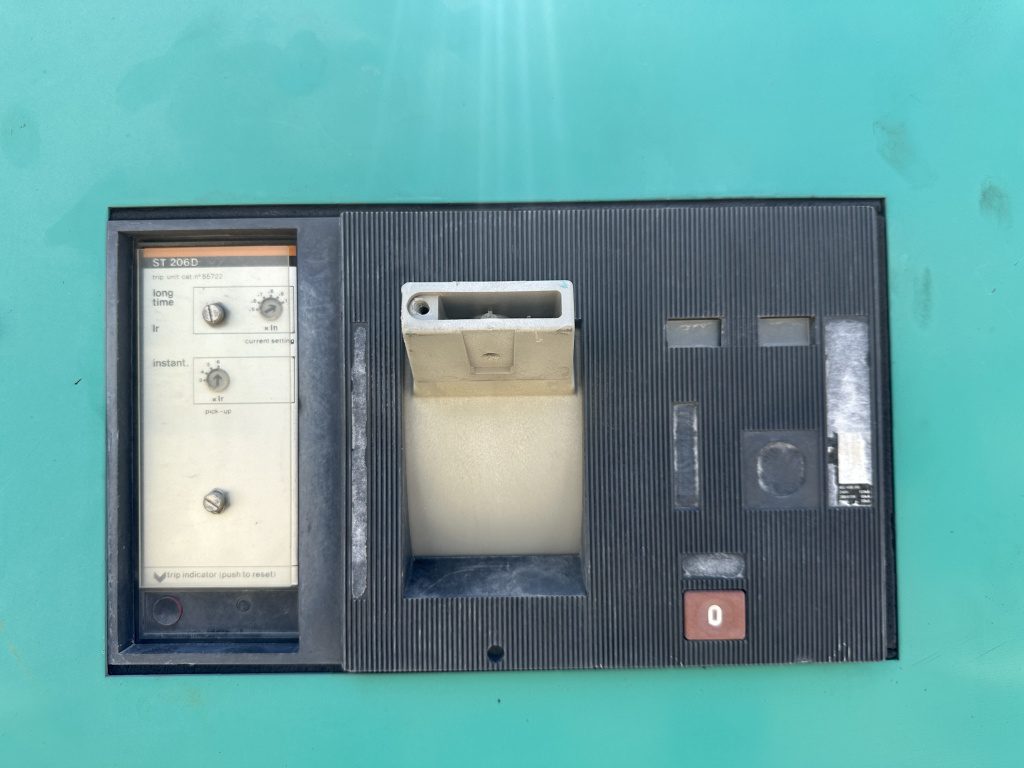

  • 1200A main-line circuit breaker
  • Heavy-duty air cleaner
  • Jacket water heater
  • 12-lead reconnectable to other voltages
  • Low-hour unit (553 hours)
  • Unit will be tested & serviced before sale
  • Load test pending
  • No batteries included
MEG1080
2001
Cummins
DFHA
A010198545
750
480
553
Power Command
Diesel
QST30-G1
Non Tier
1200
Yes
Yes
None
700

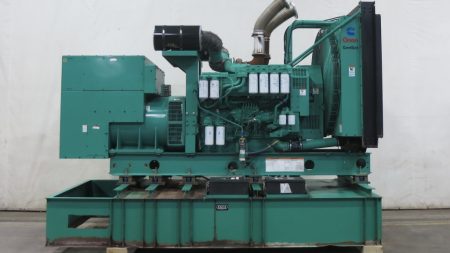

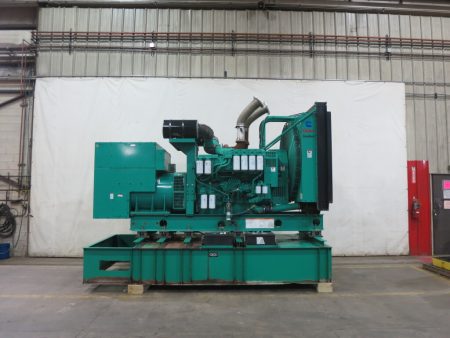

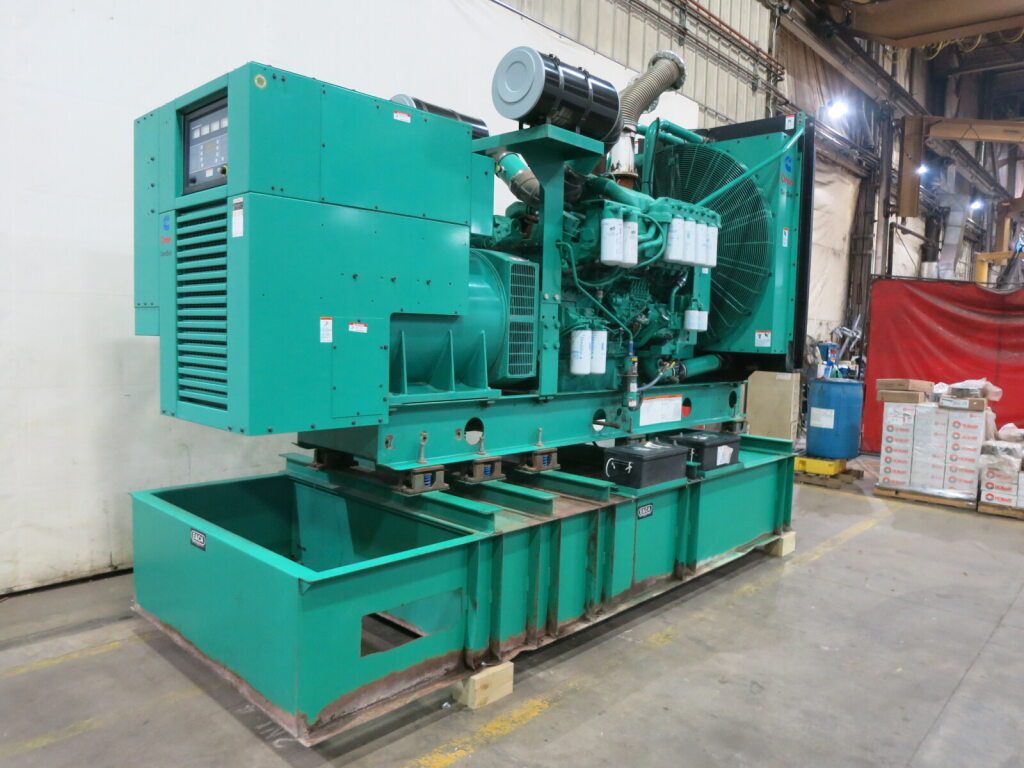

Cummins 750 kW standby (680 kW prime) diesel generator set model 750DFHA, SN-A010198545. Cummins QST30-G1 engine rated 1435 HP at 1800 RPM, SN-37196831. 3/60/277/480V, 12 lead reconnectable to other voltages. 1200 Amp main-line circuit breaker. PowerCommand digital control panel. Dual coolant heaters. No batteries. Open power unit with engine driven radiator. 700 gallon sub-base fuel tank with secondary containment. 553 Hours. Yr 2001. Overall dimensions genset 69W x 168L x 131H on 6H blocks, 20,000 lbs. Load test pending.
No files available to download.
