2000 CAT 3508B 1000kW Diesel Generator Set

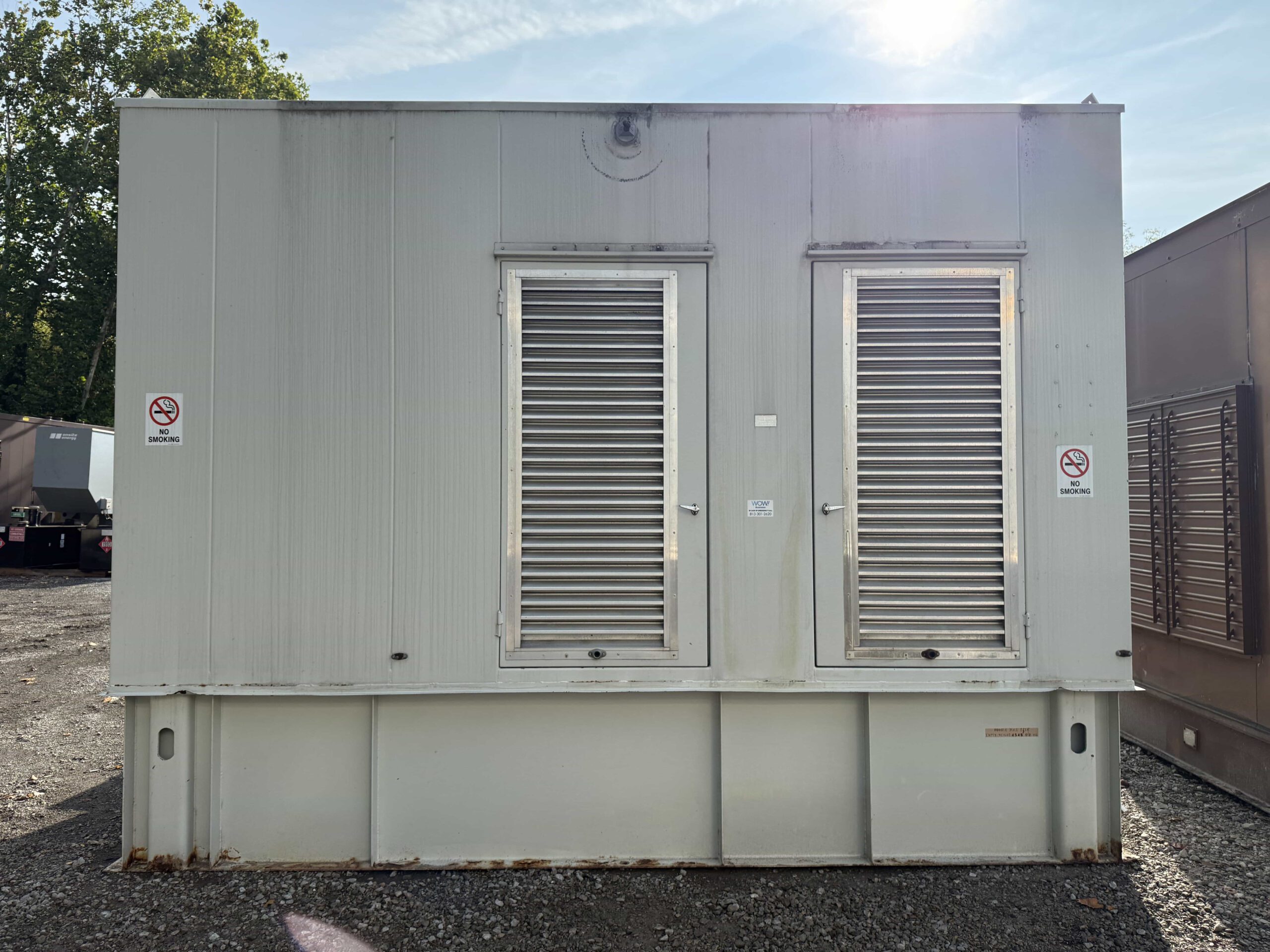

Caterpillar 3508B generator enclosure front view with doors closed.

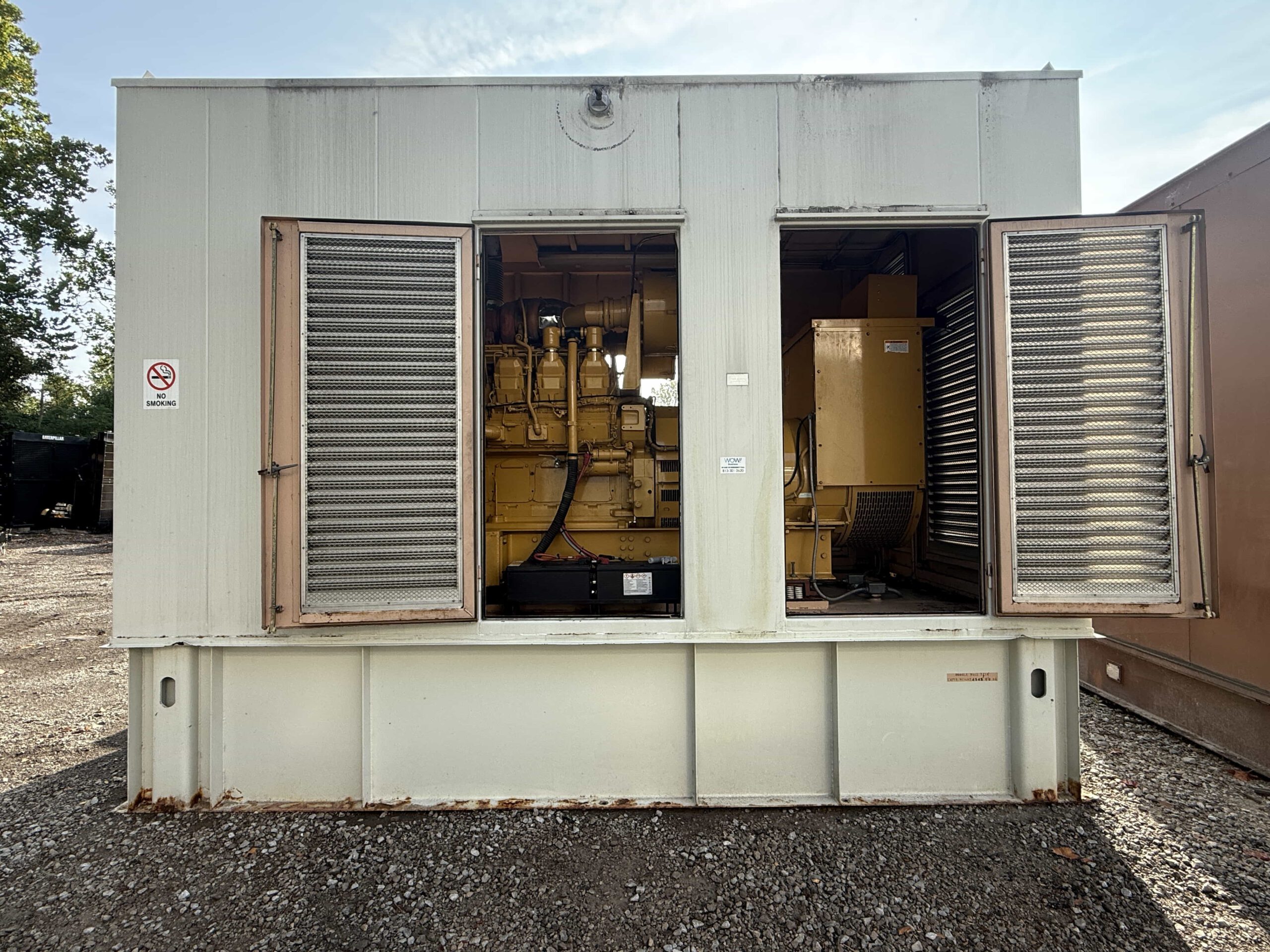

Caterpillar 3508B generator enclosure front view with doors open.

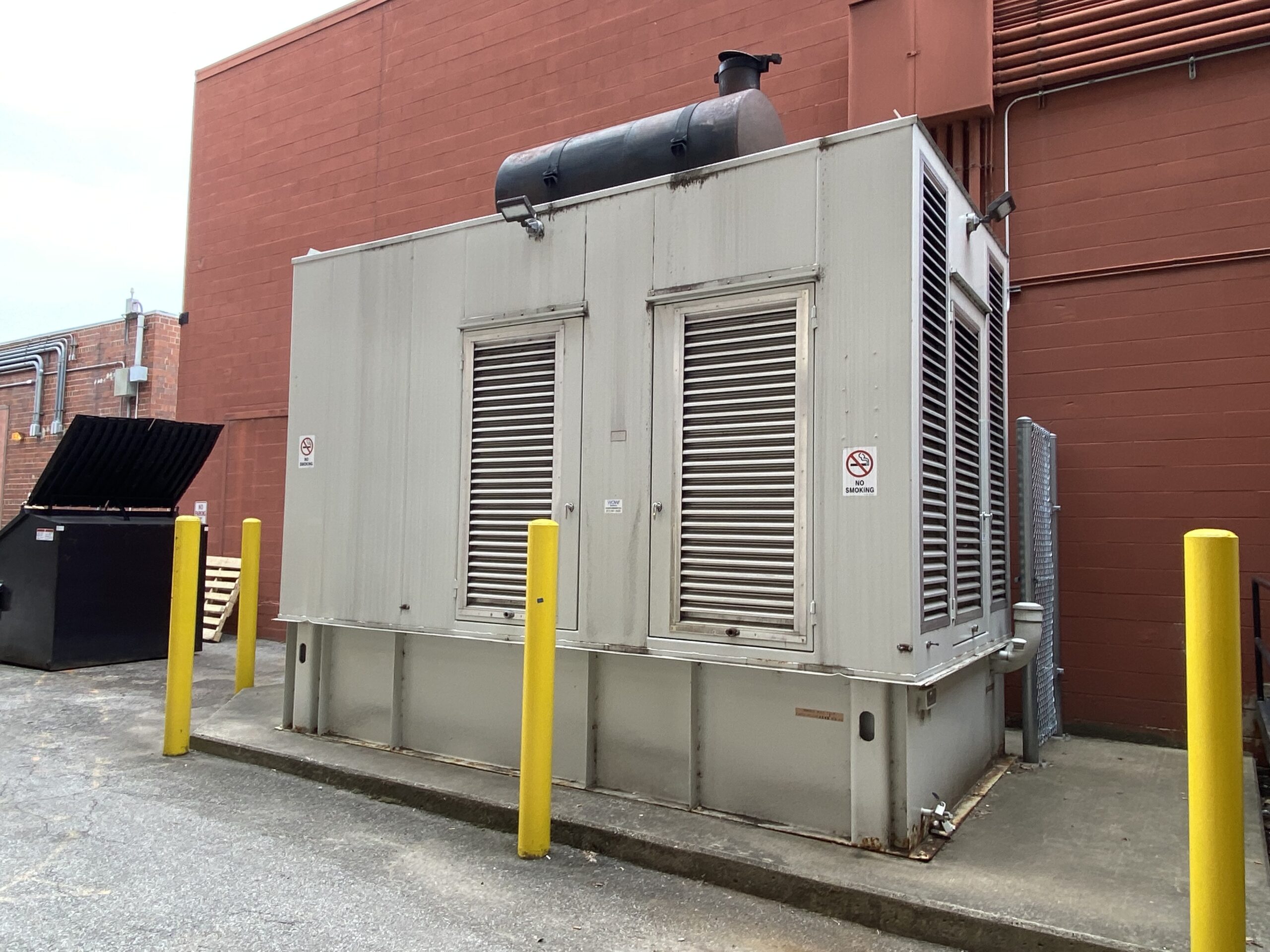

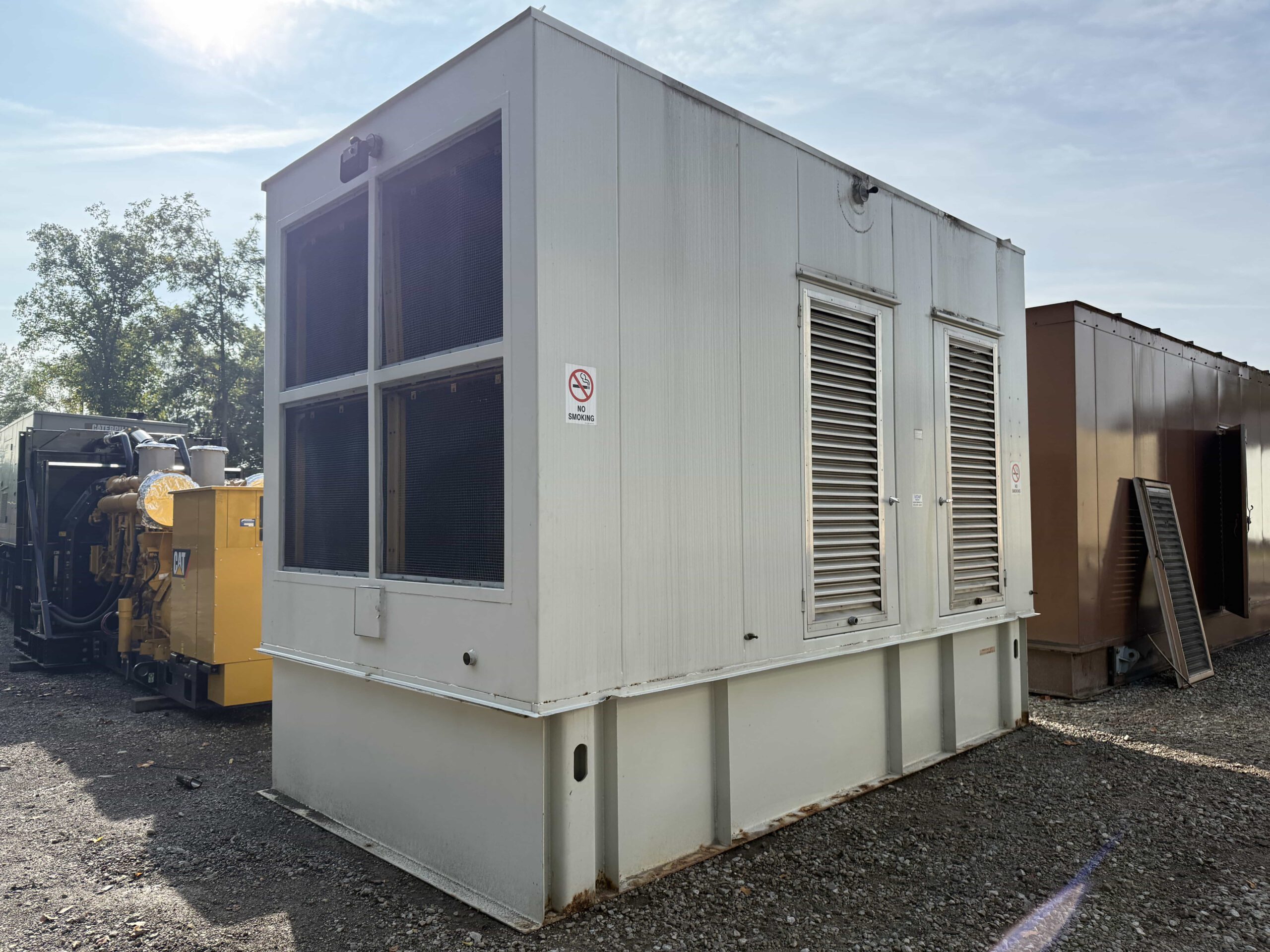

Caterpillar 3508B generator enclosure front-left corner, doors closed.

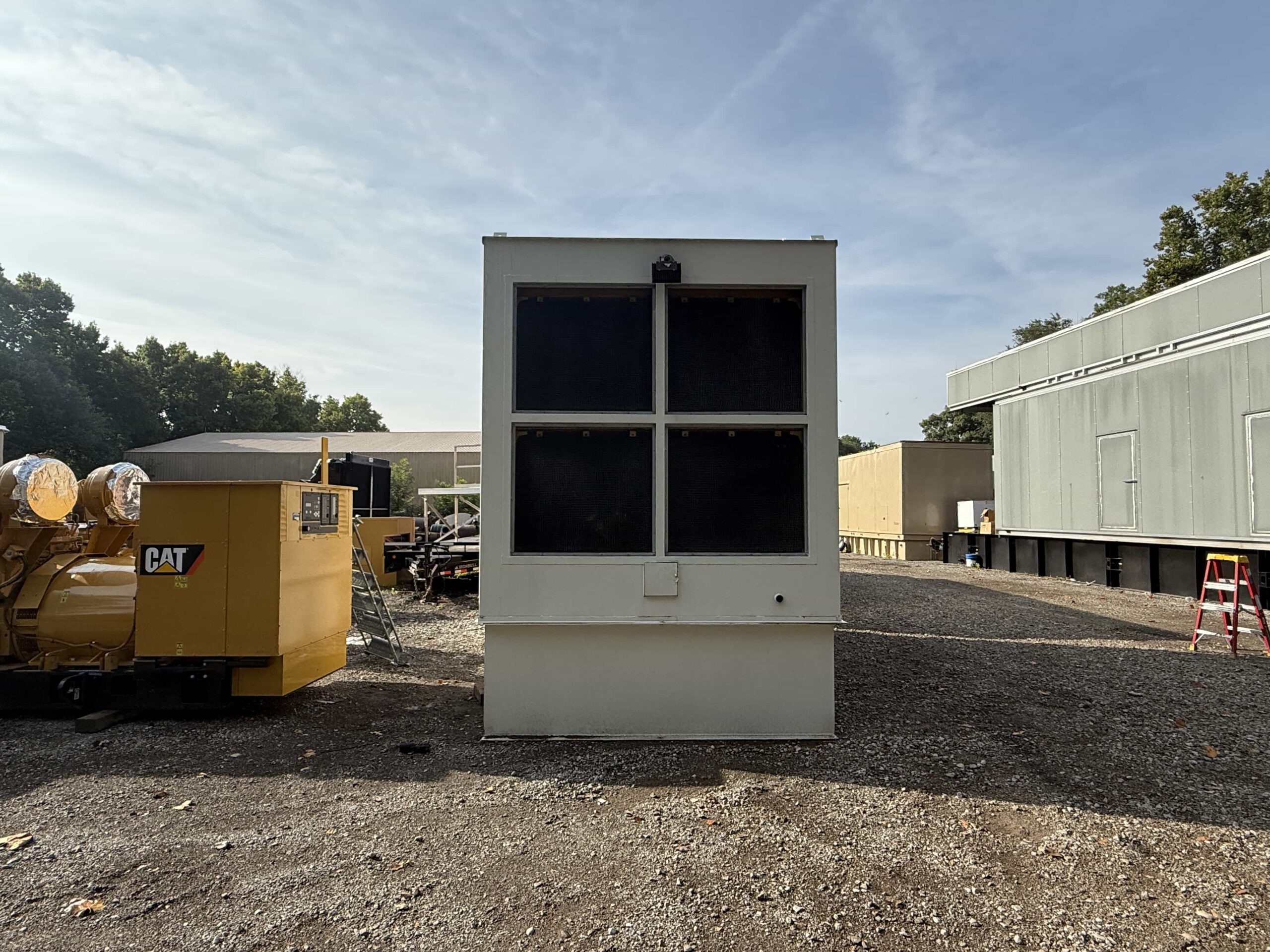

Caterpillar 3508B generator enclosure left side view.

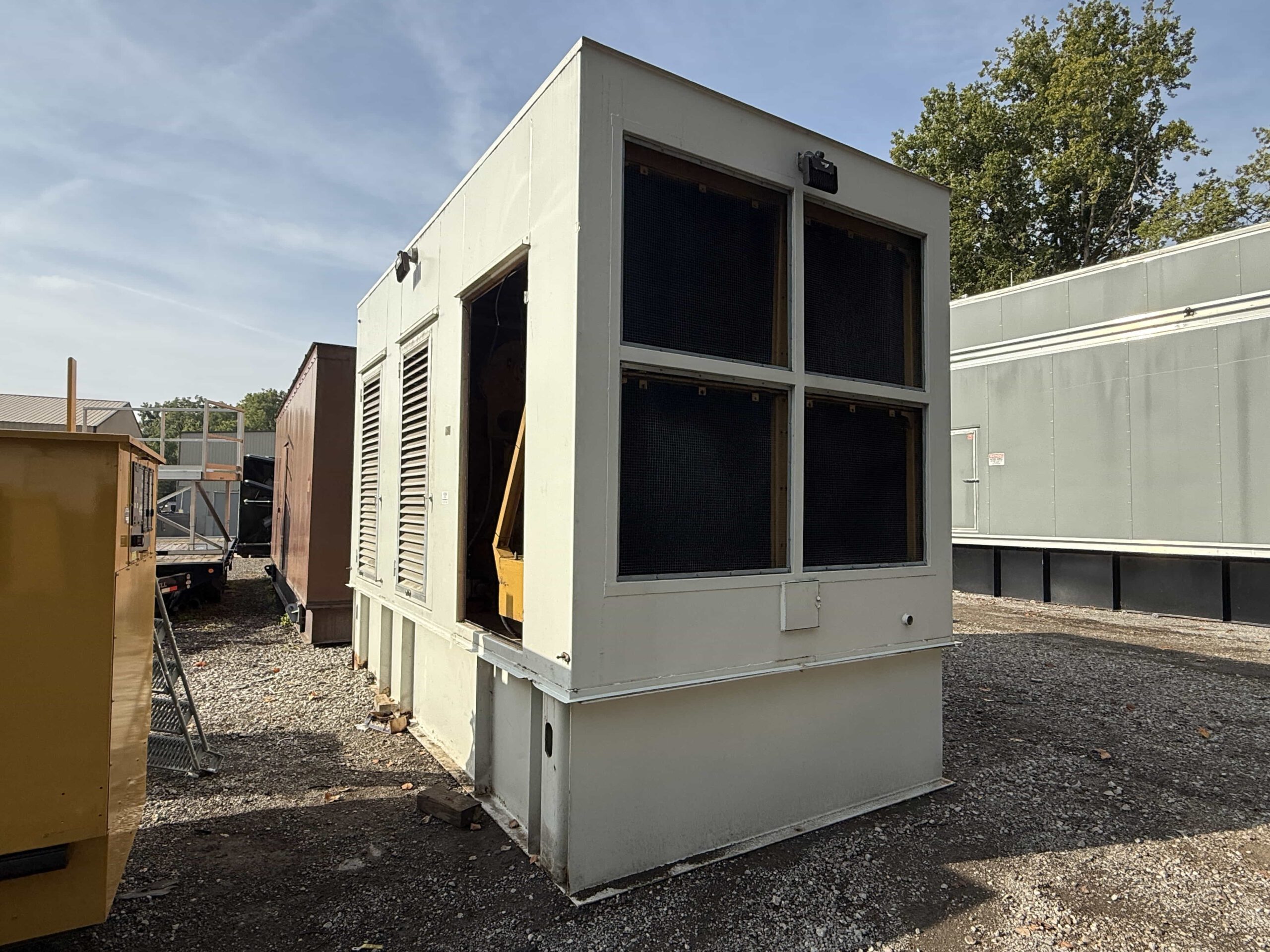

Caterpillar 3508B generator enclosure back-left corner view.

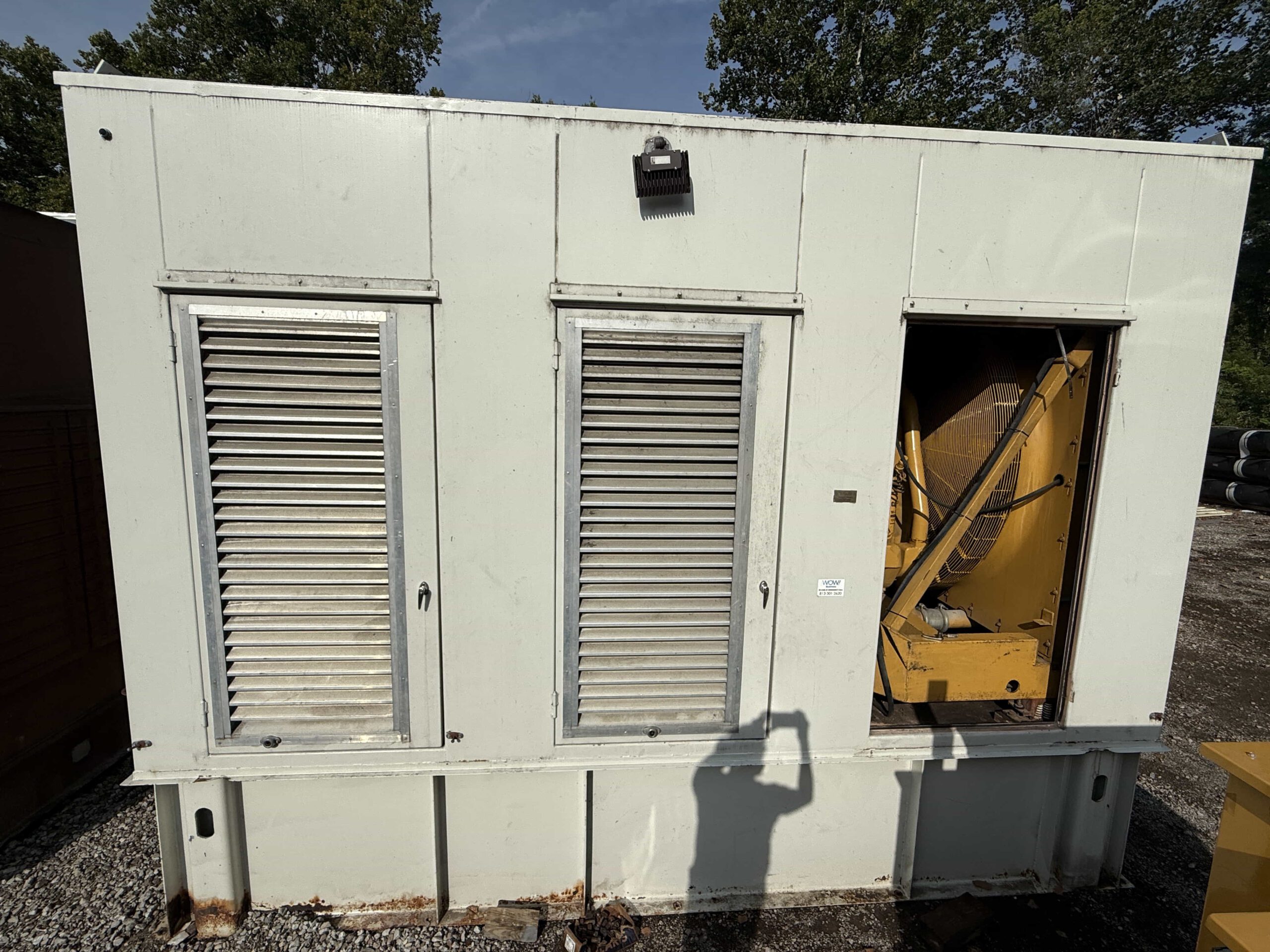

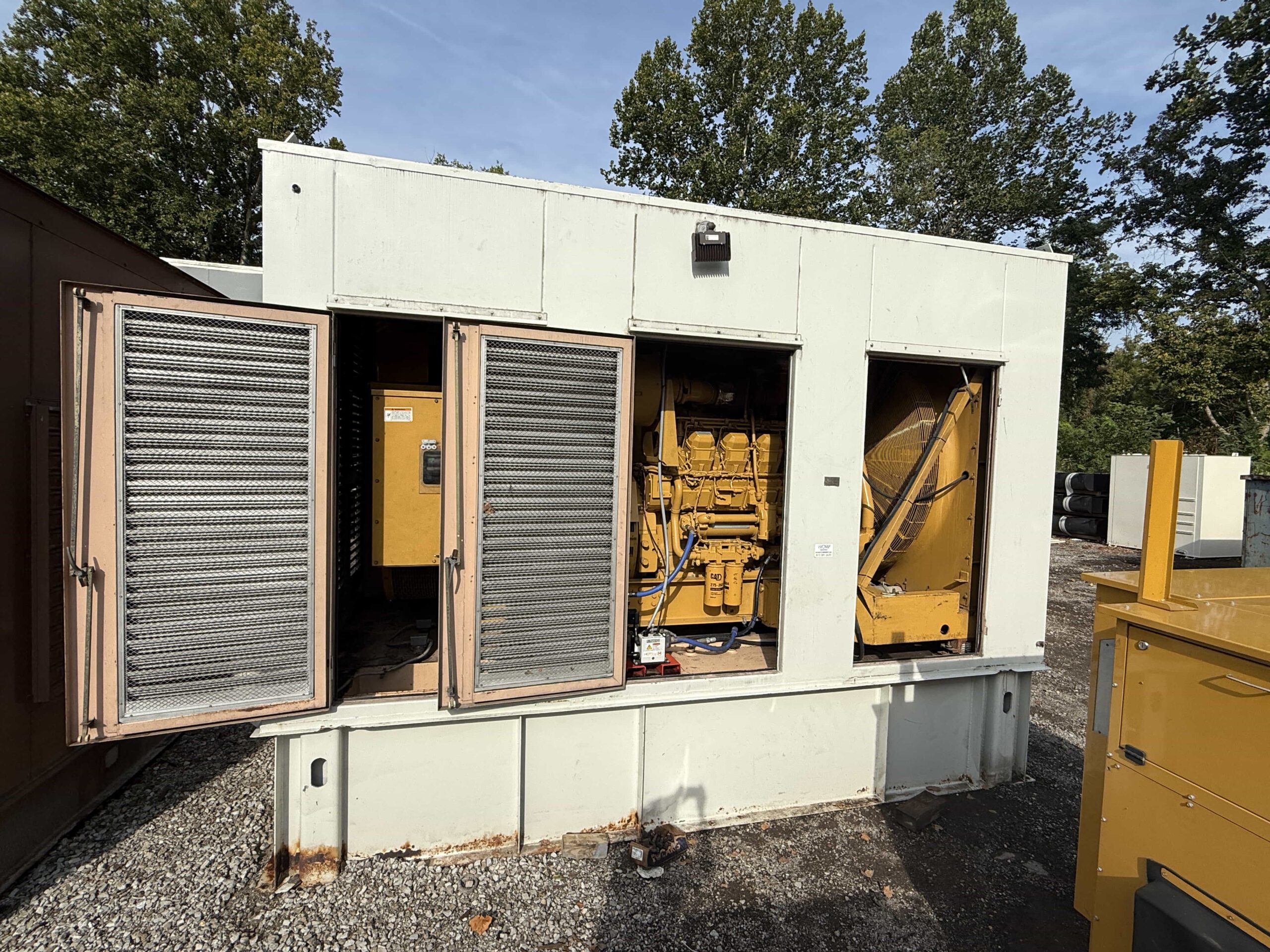

Caterpillar 3508B generator enclosure back view with doors open.
Caterpillar 3508B generator enclosure rear view.

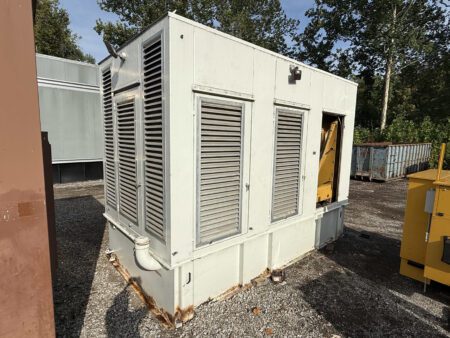

Caterpillar 3508B generator enclosure back-right corner view.

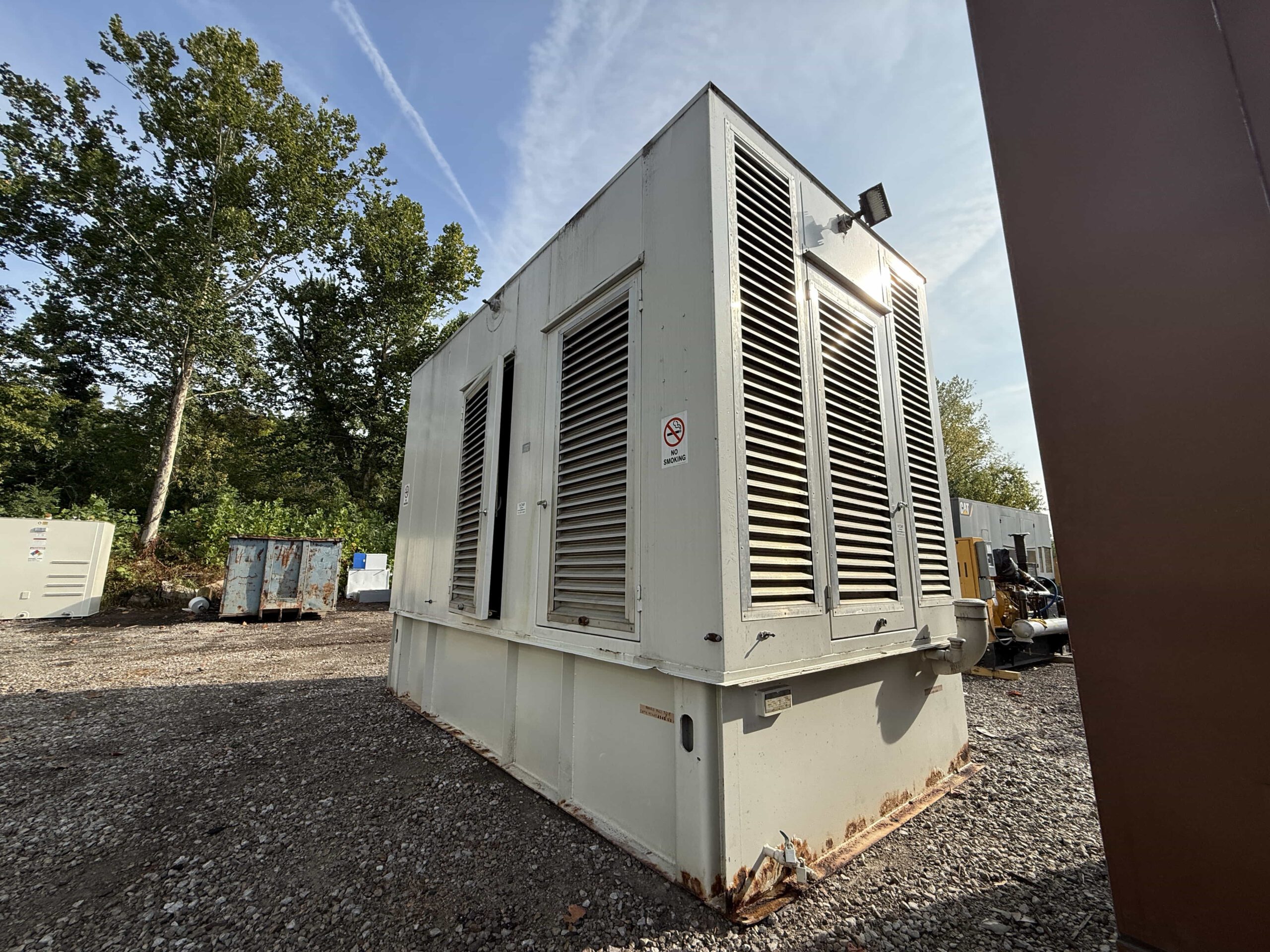

Caterpillar 3508B generator enclosure front-right corner view.

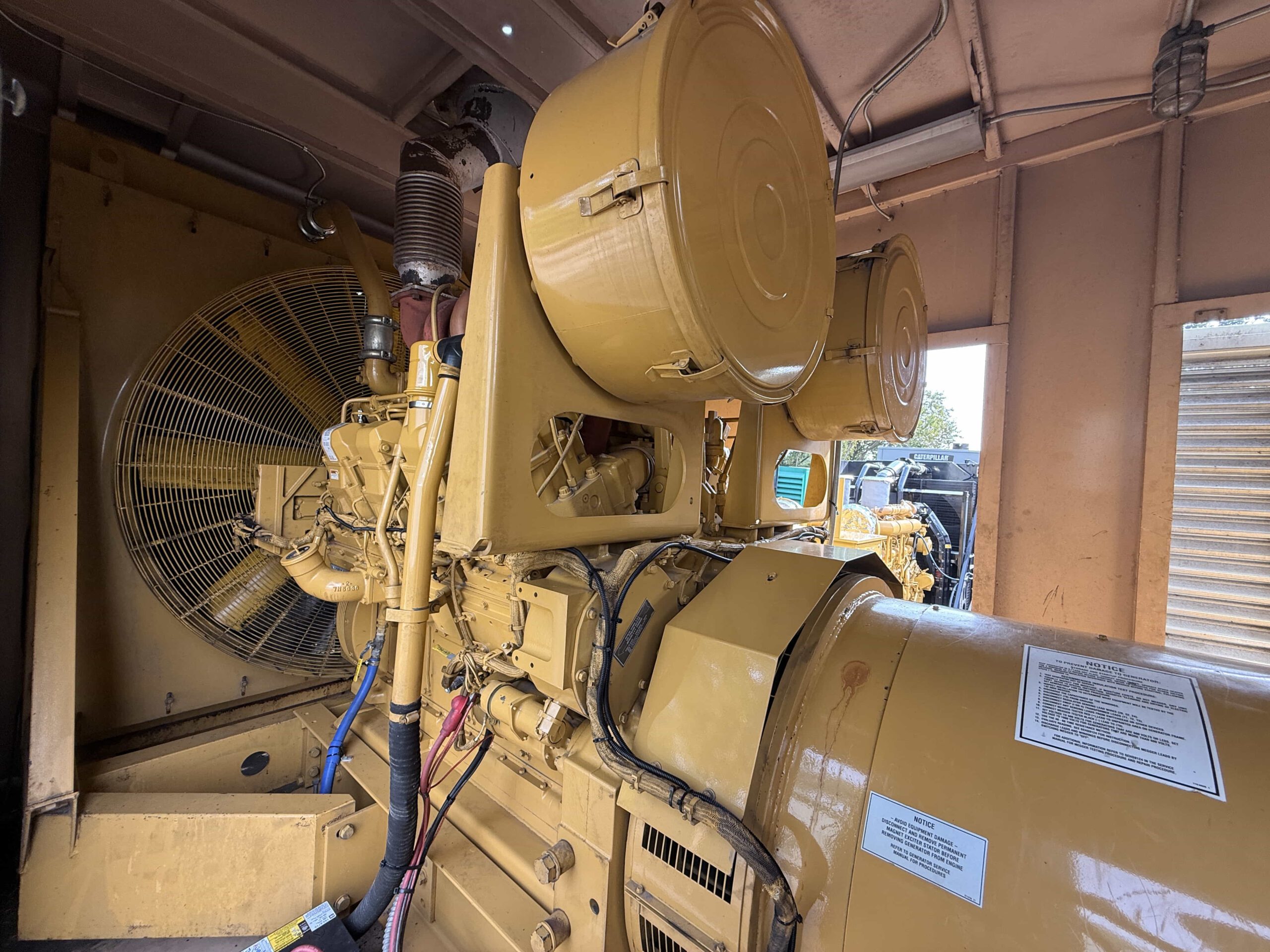

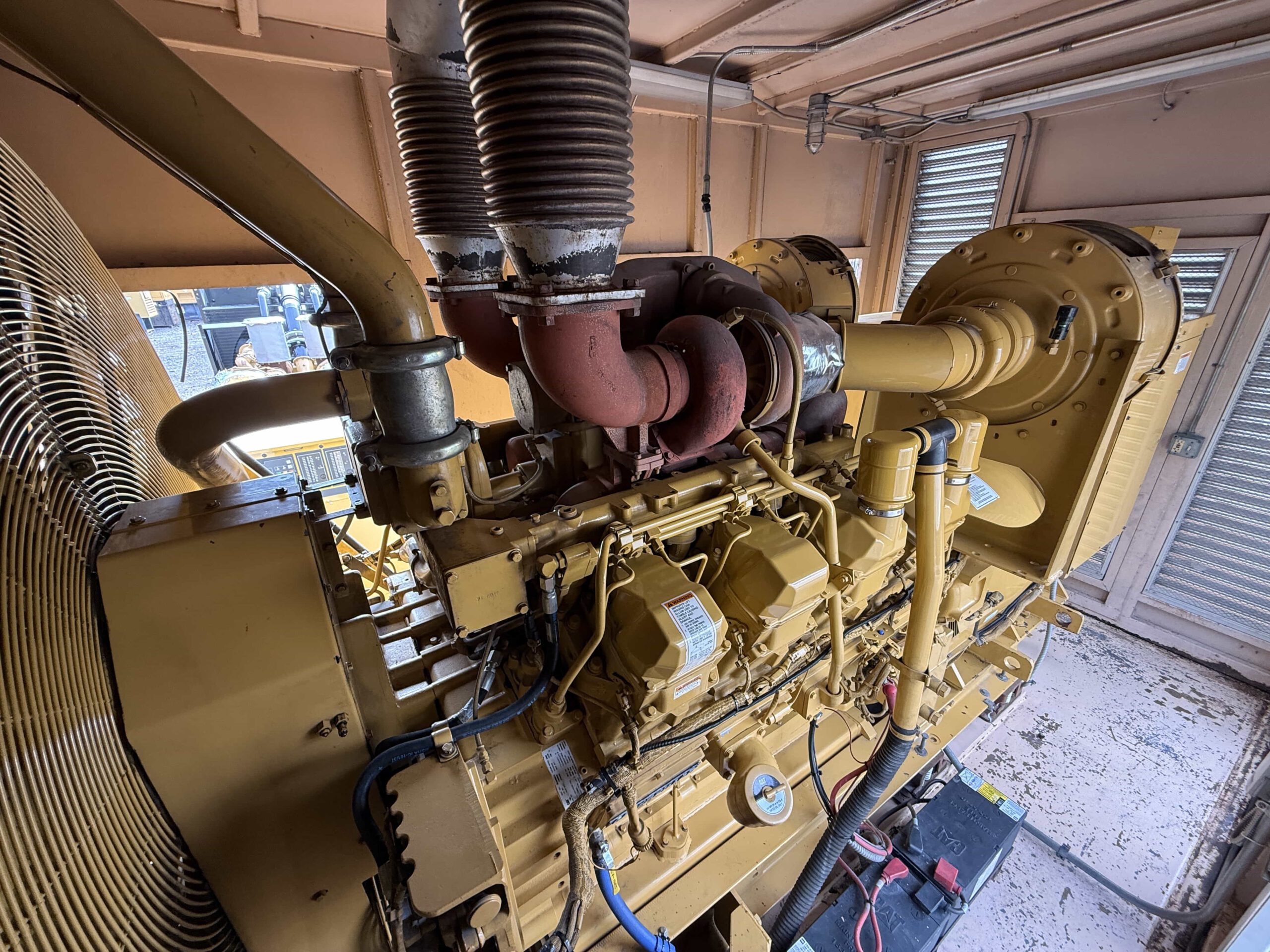

Caterpillar 3508B engine block, radiator, and dual air cleaners.

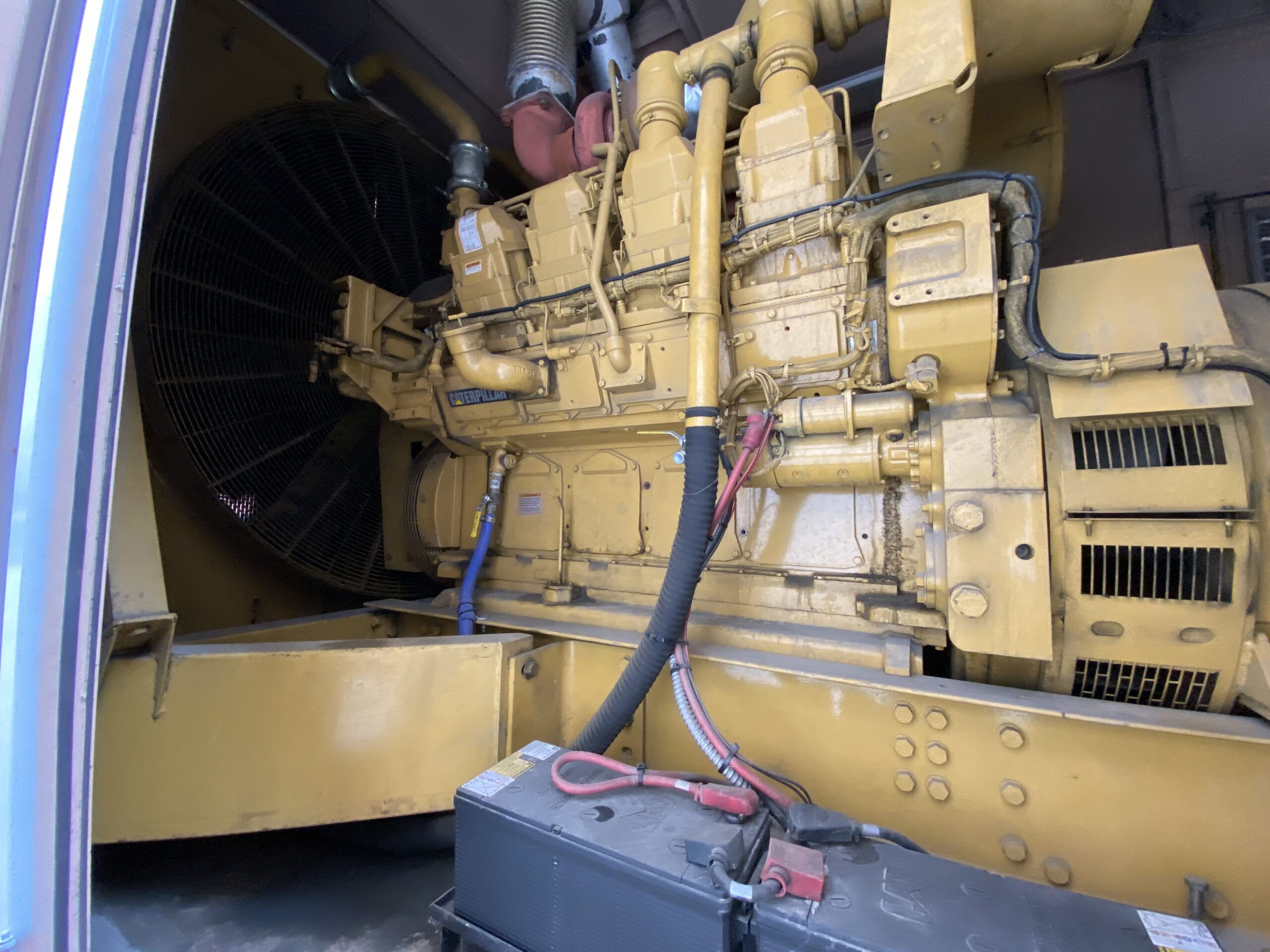

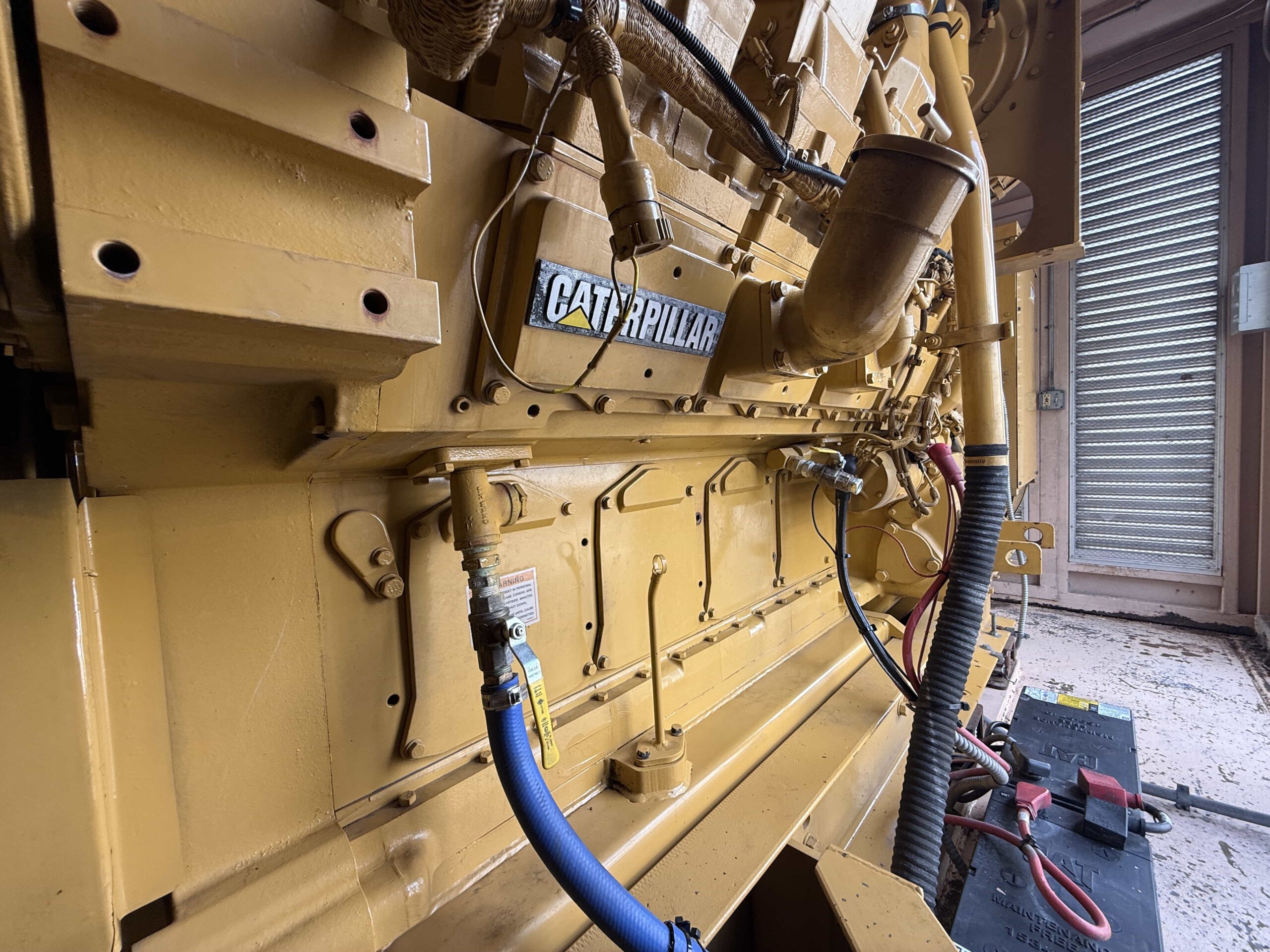

Caterpillar 3508B diesel engine side view.

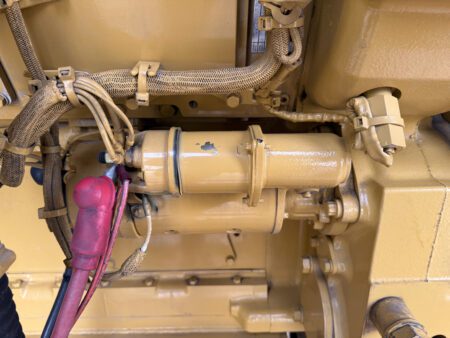

Caterpillar 3508B diesel engine starter motor assembly.
Caterpillar 3508B generator engine front side with radiator and alternator.

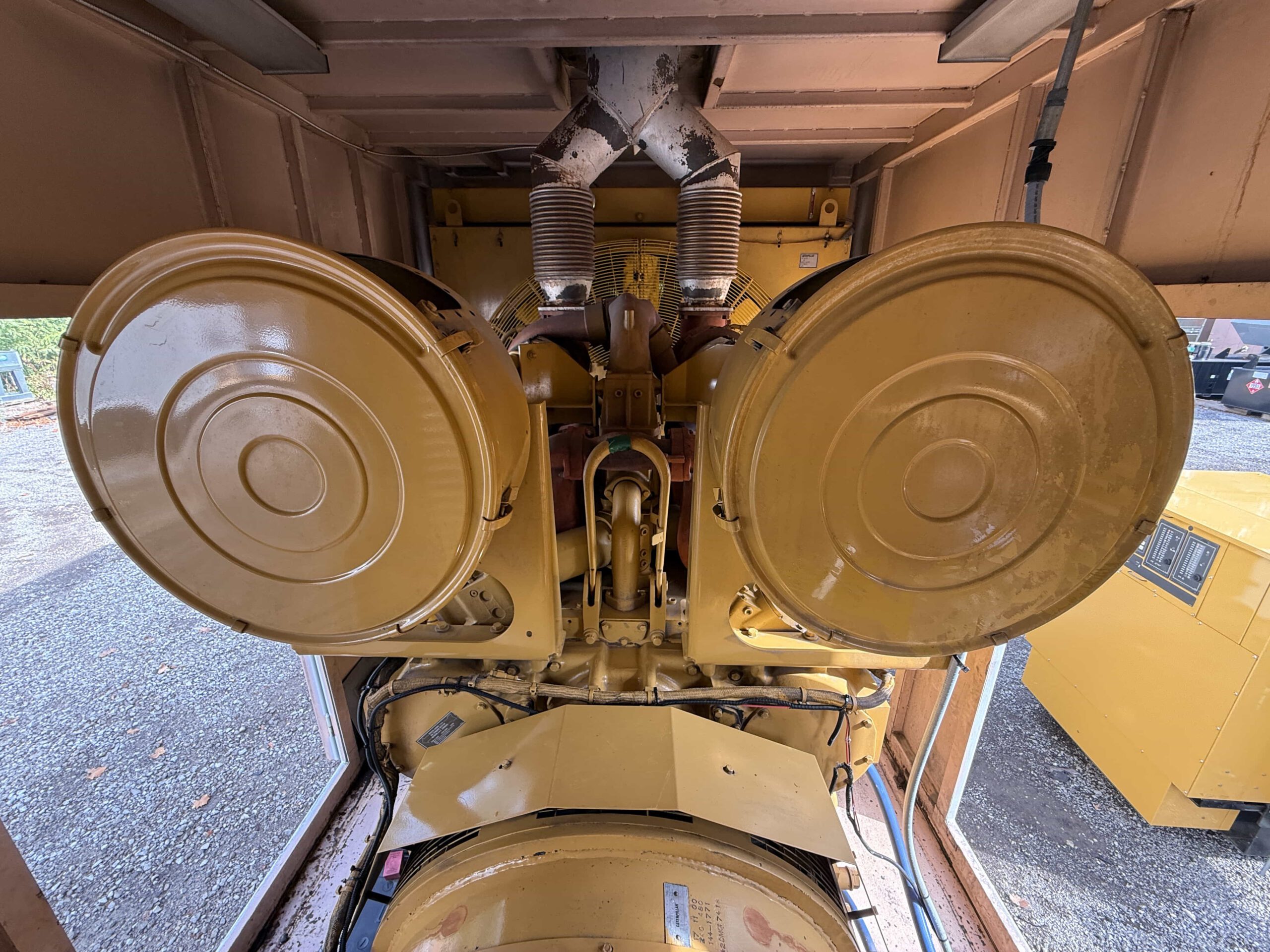

Caterpillar 3508B dual air cleaners.

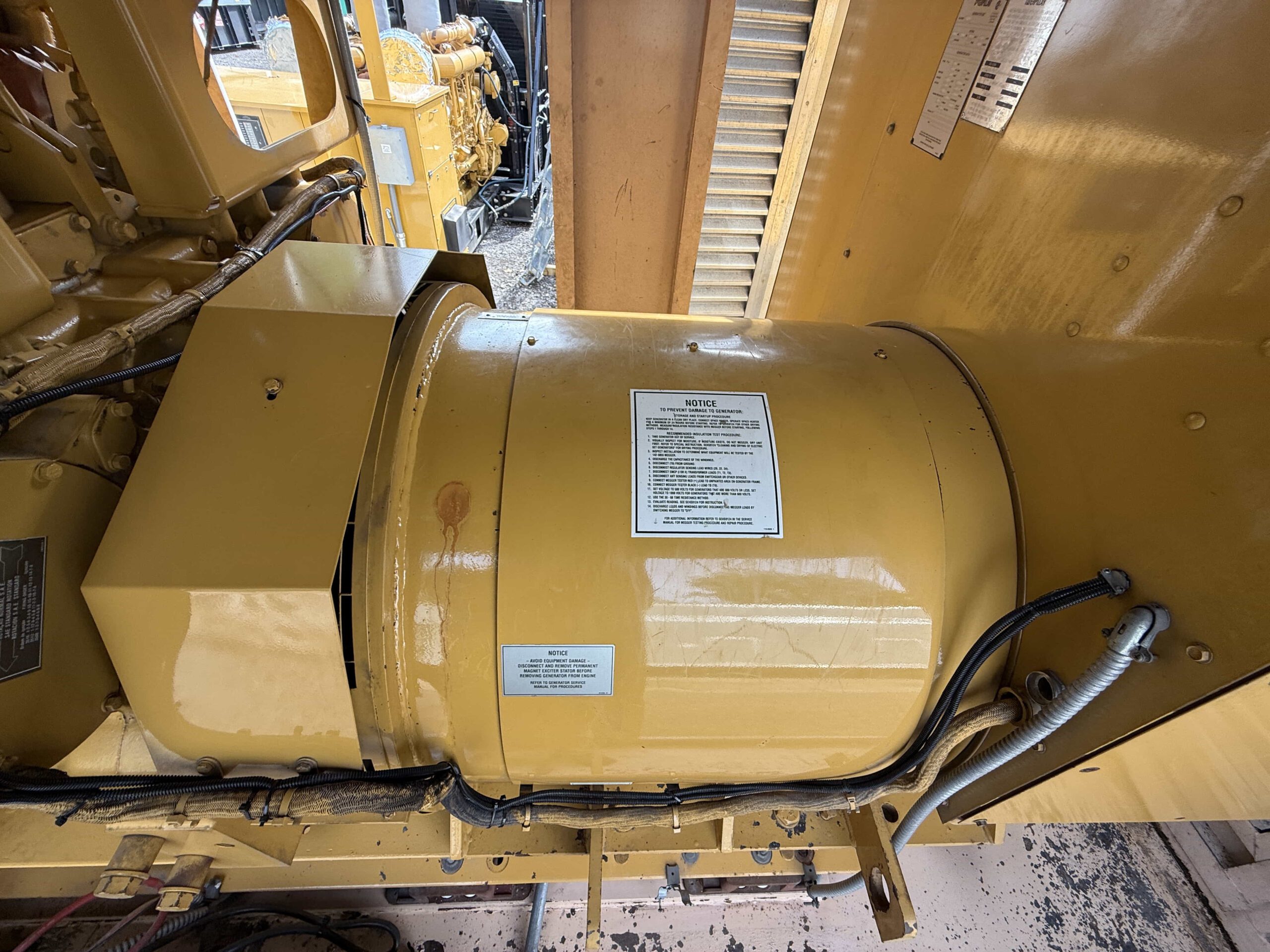

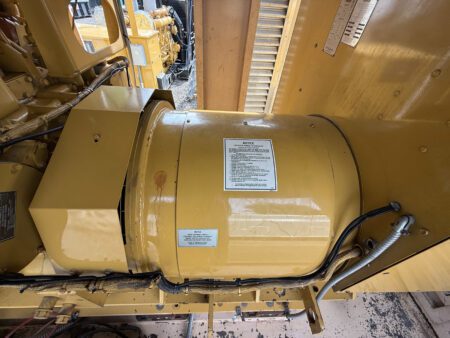

Caterpillar SR4B generator end front view.

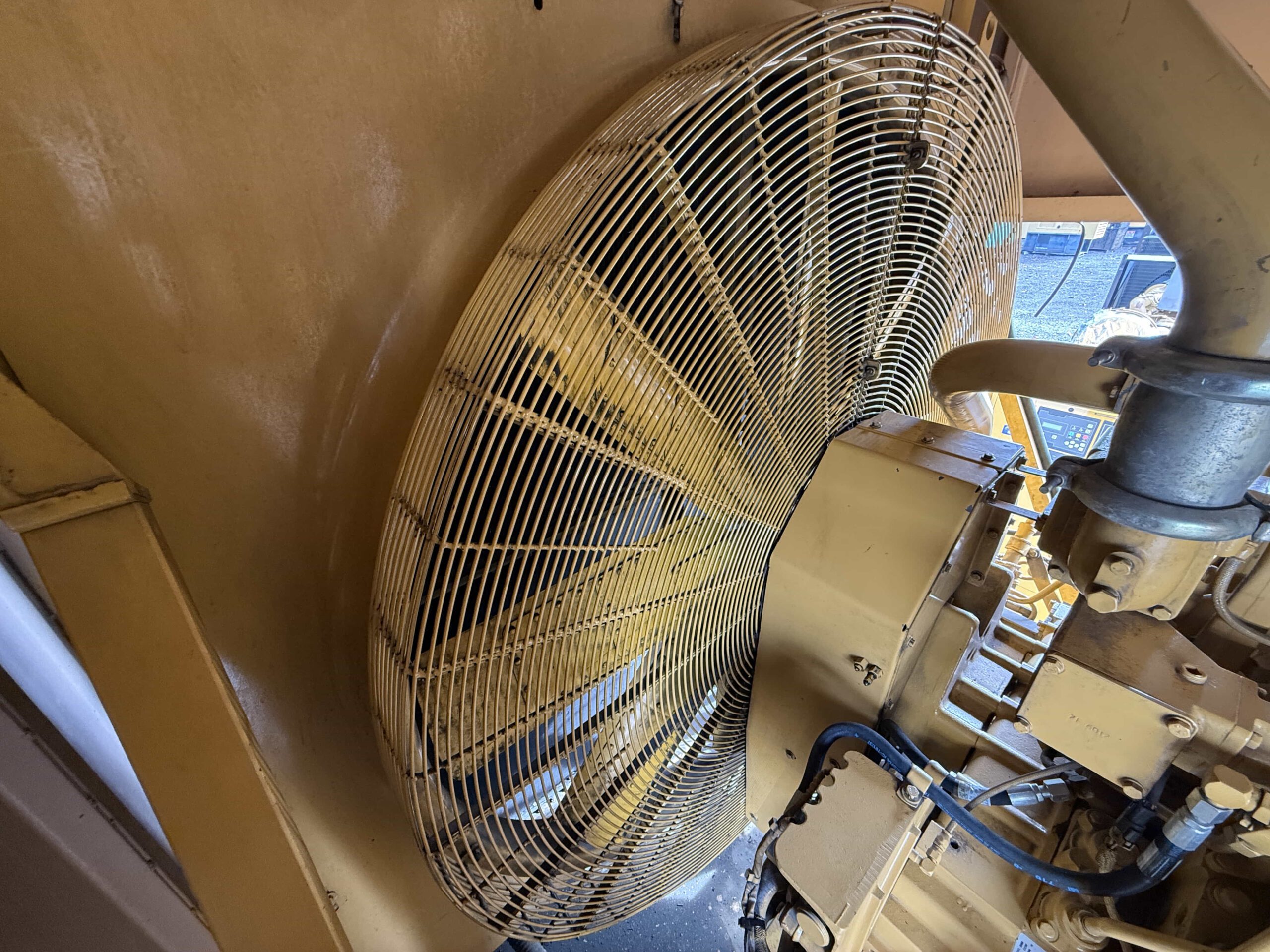

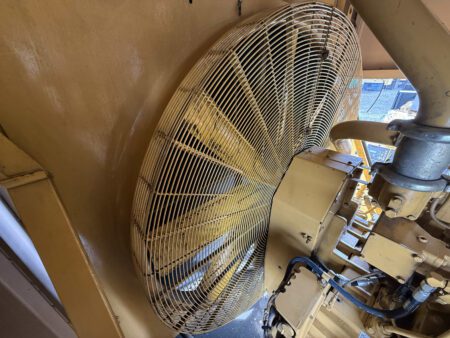

Caterpillar 3508B radiator fan and engine block.

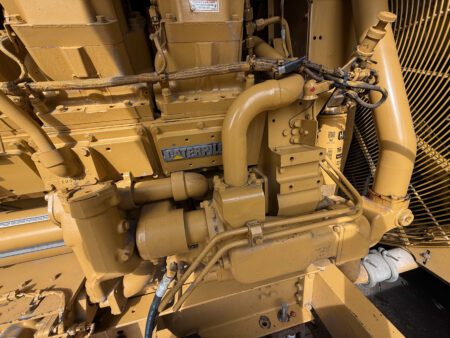

Caterpillar 3508B water pump and coolant piping assembly.

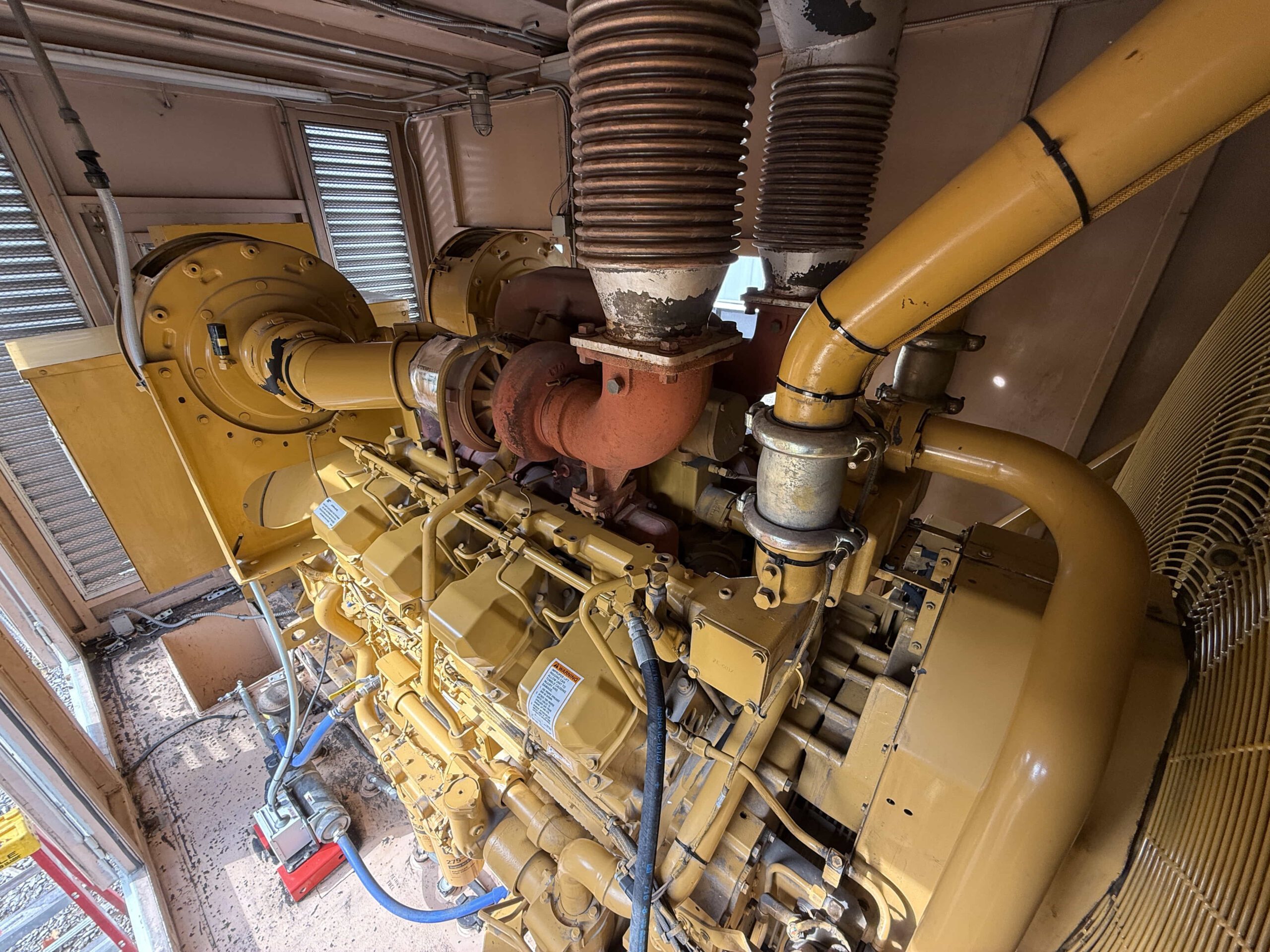

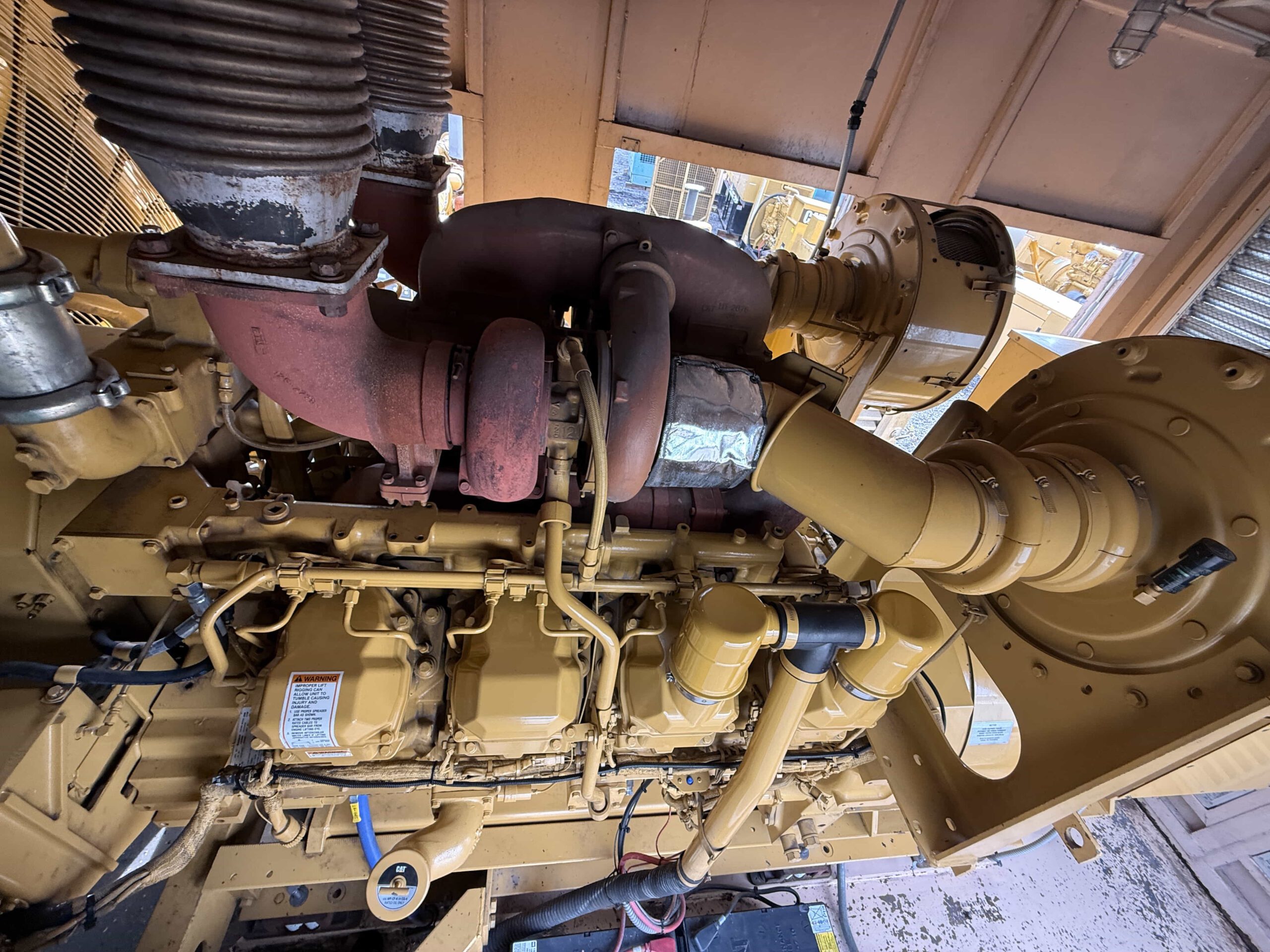

Caterpillar 3508B turbochargers and cooling fan housing.
Caterpillar 3508B engine turbochargers with cooling fan view.

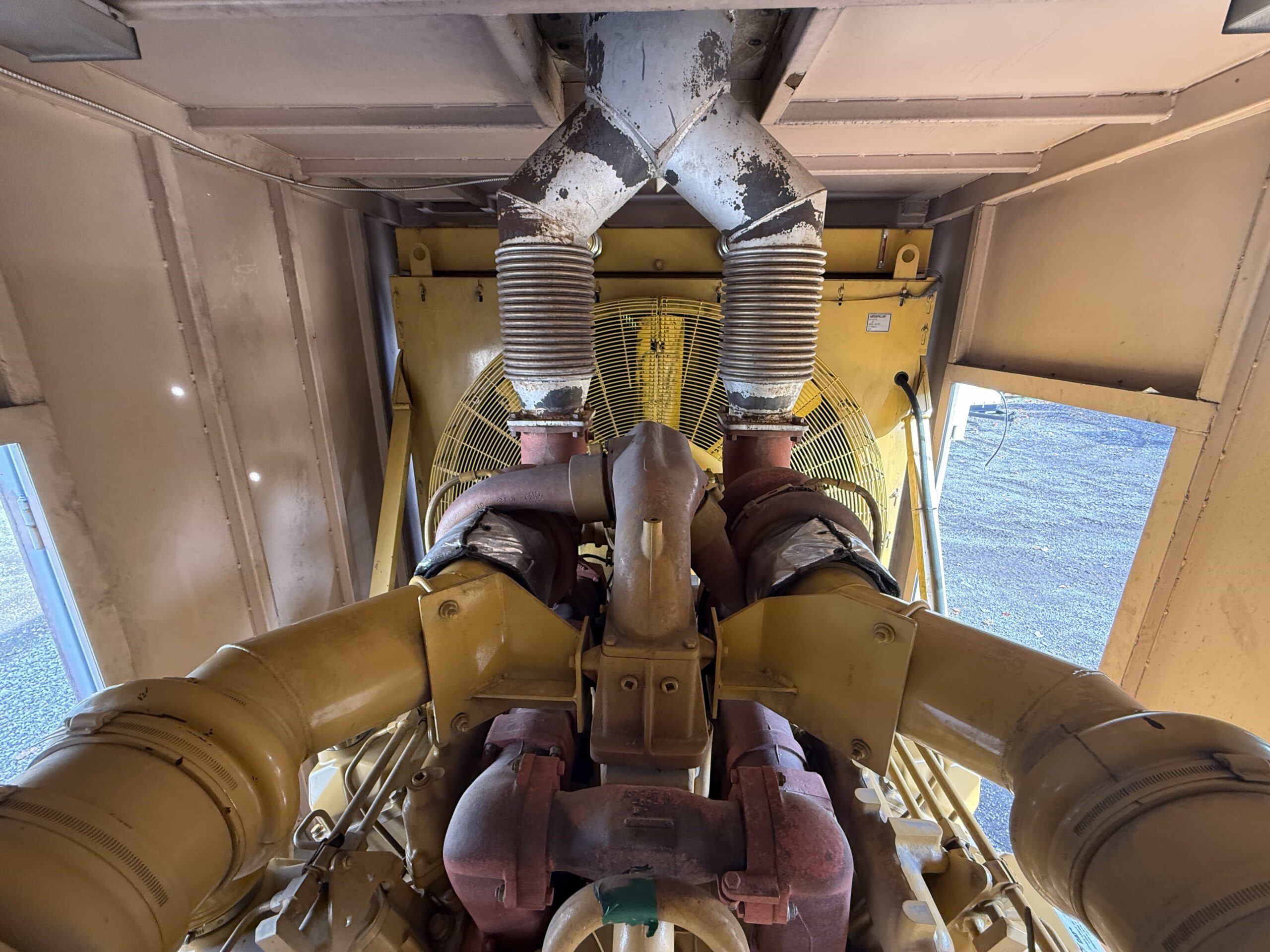

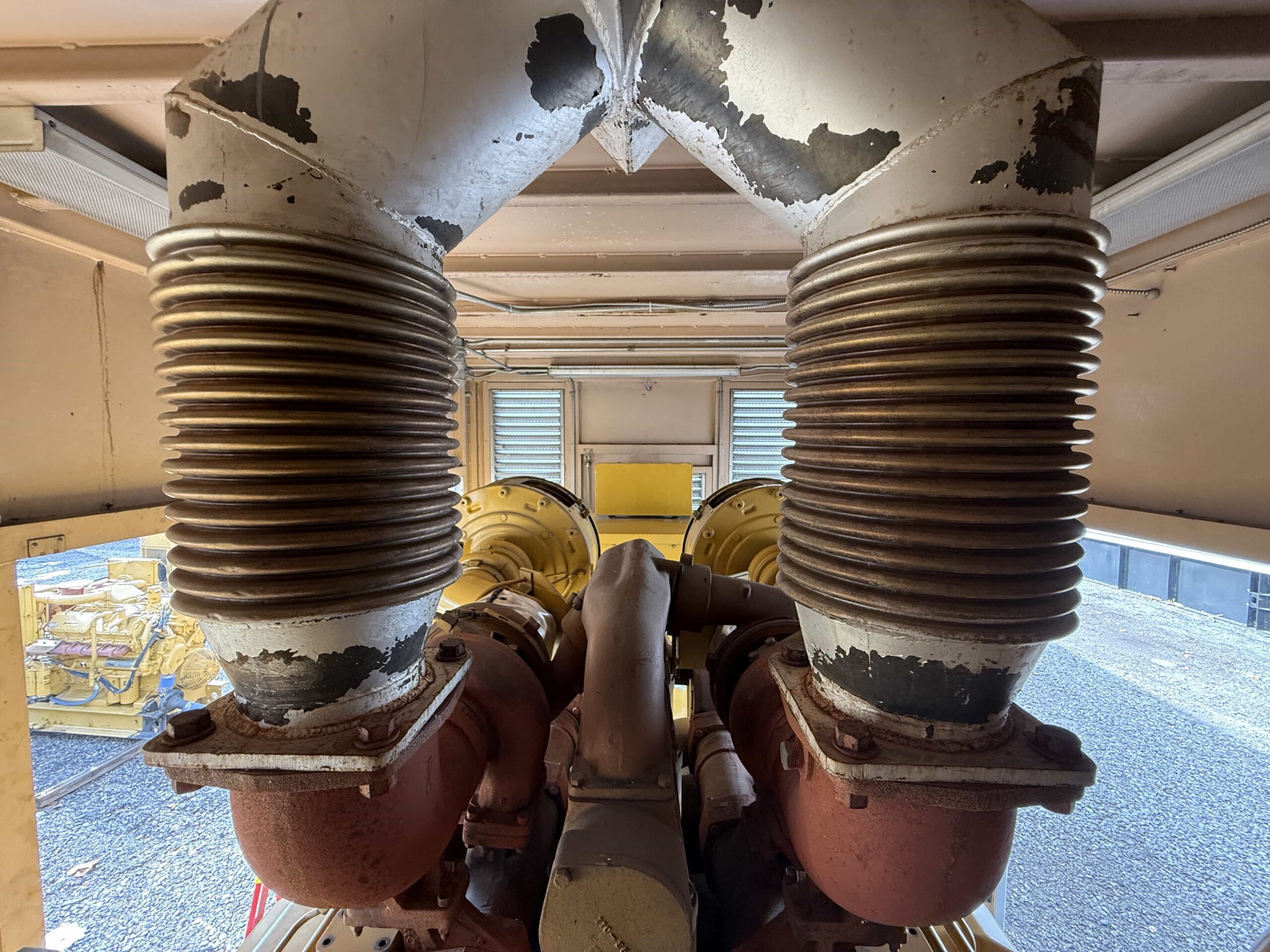

Caterpillar 3508B exhaust bellows and manifolds.

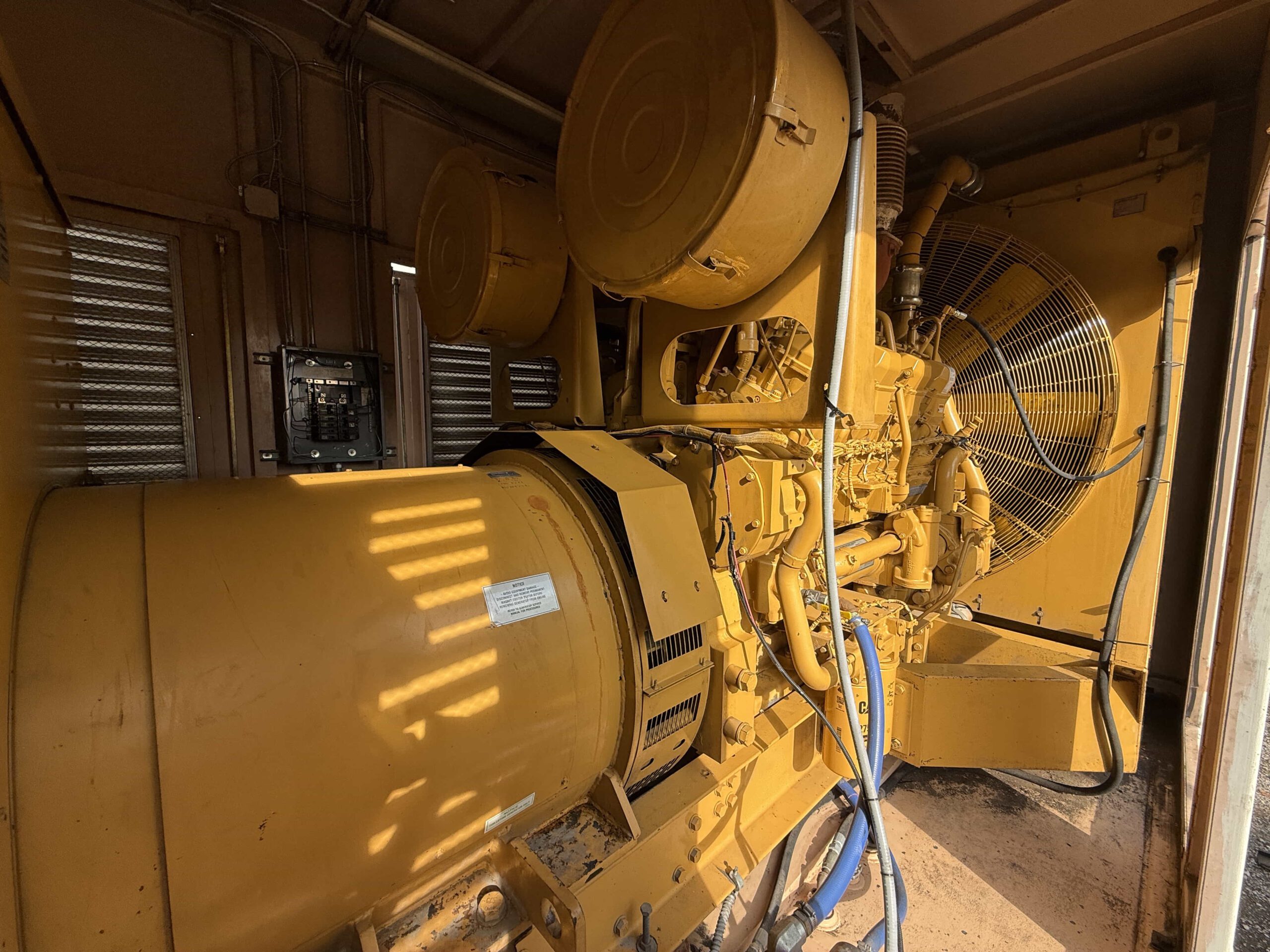

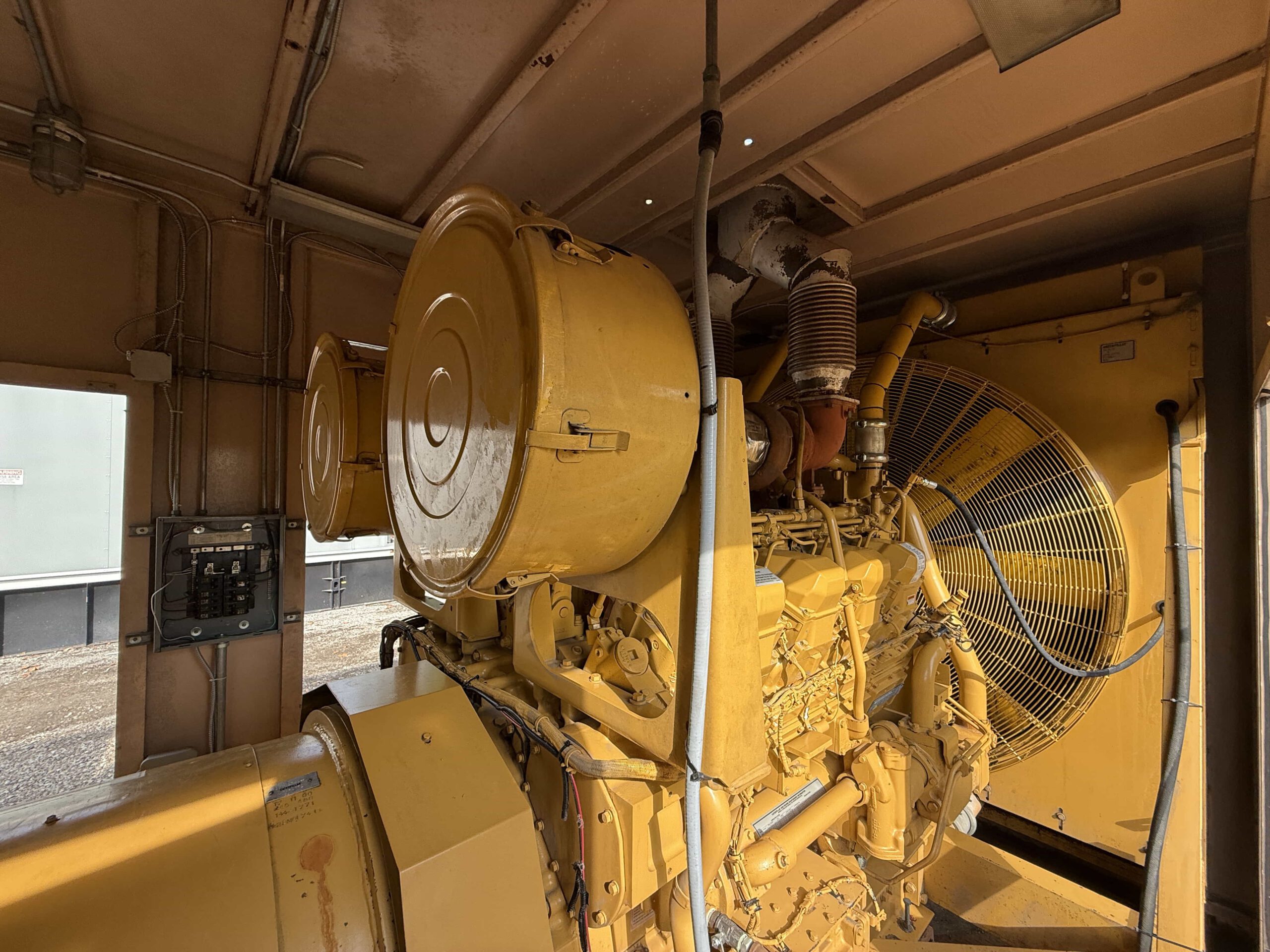

Caterpillar SR4B generator end with air cleaners and radiator housing.
SR4B generator end with dual air cleaners and radiator fan—back side view.

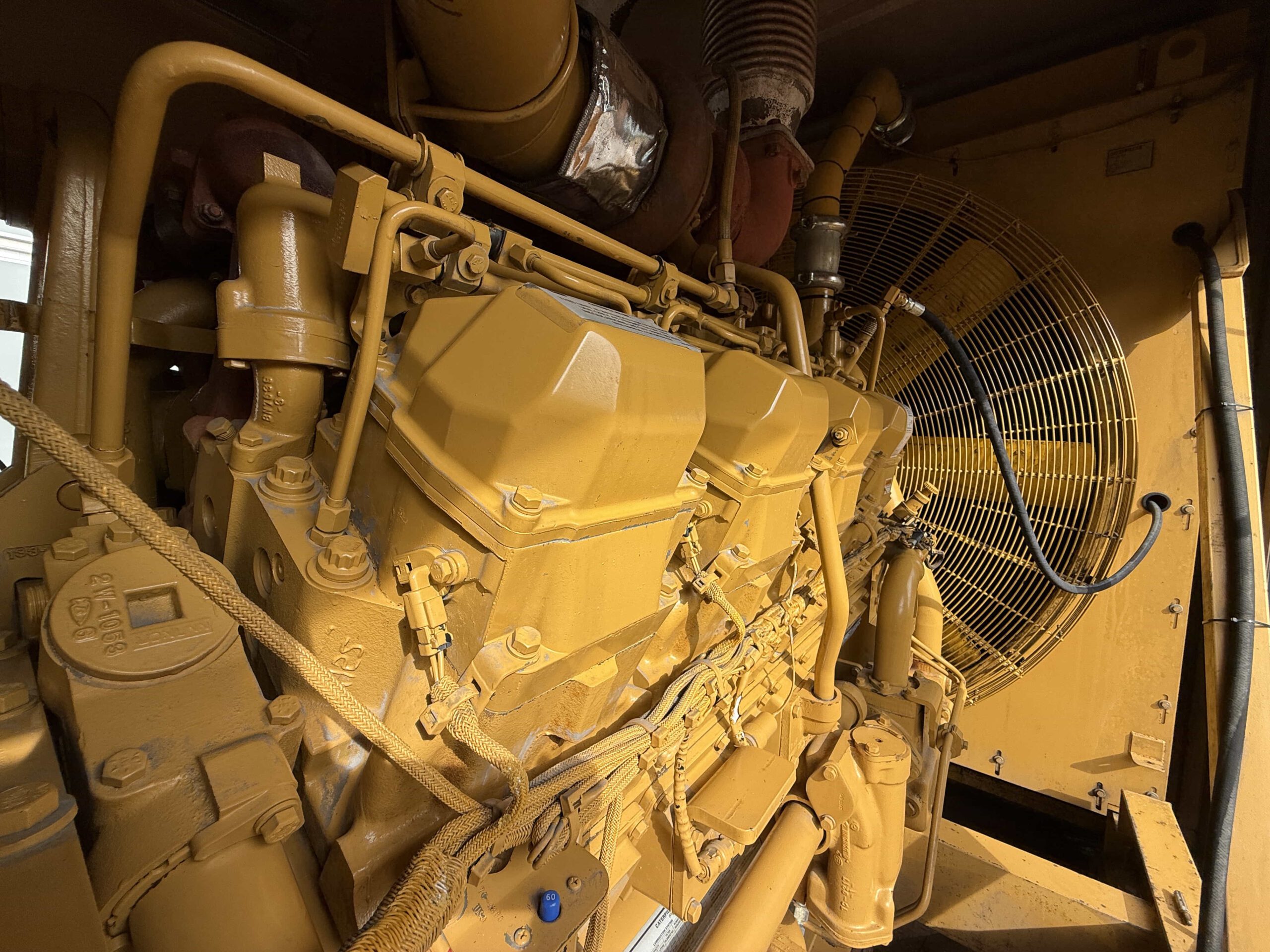

Caterpillar 3508B engine block back side with coolant piping and filter bases.

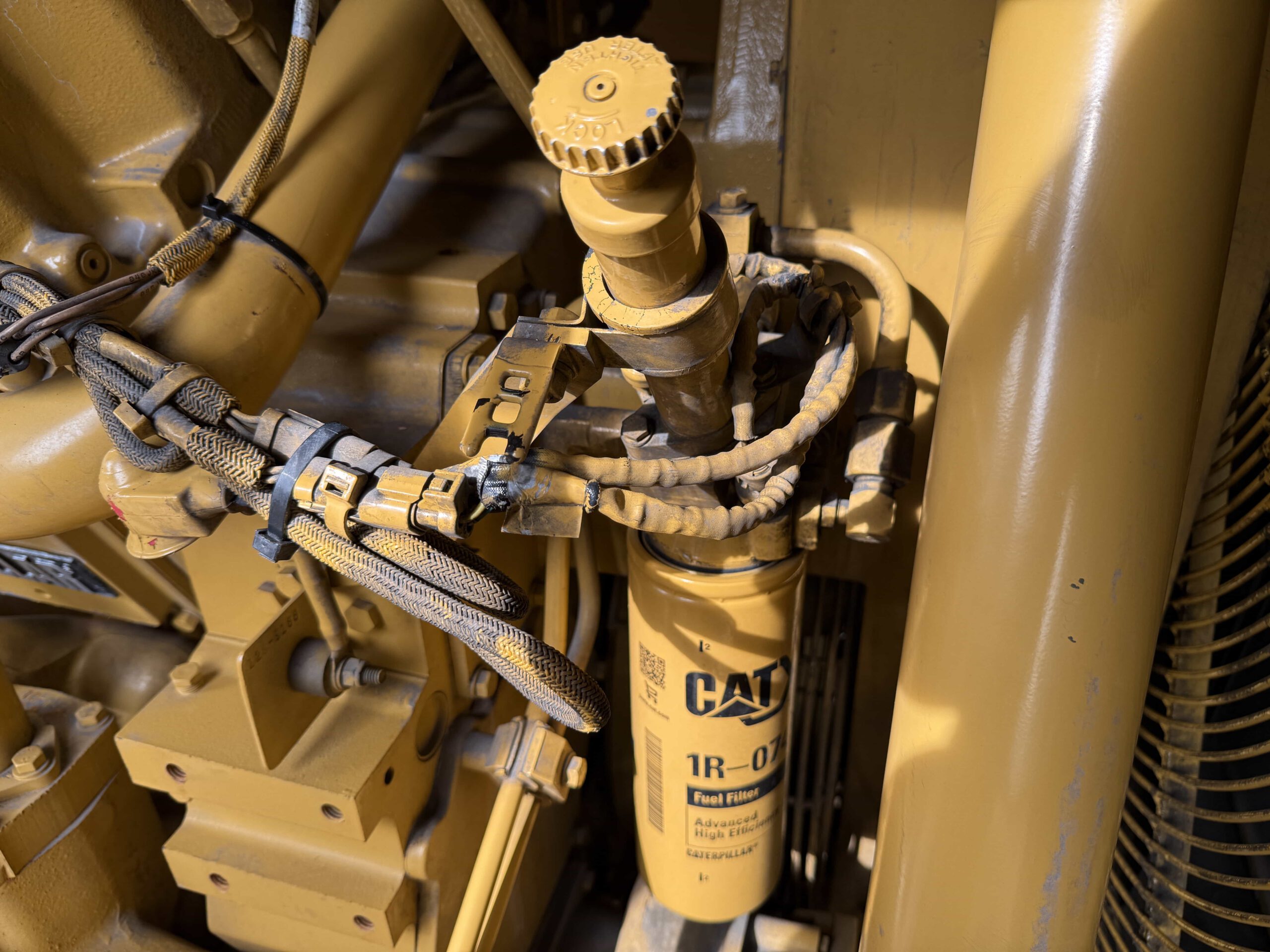

Caterpillar 3508B diesel engine fuel filter assembly.

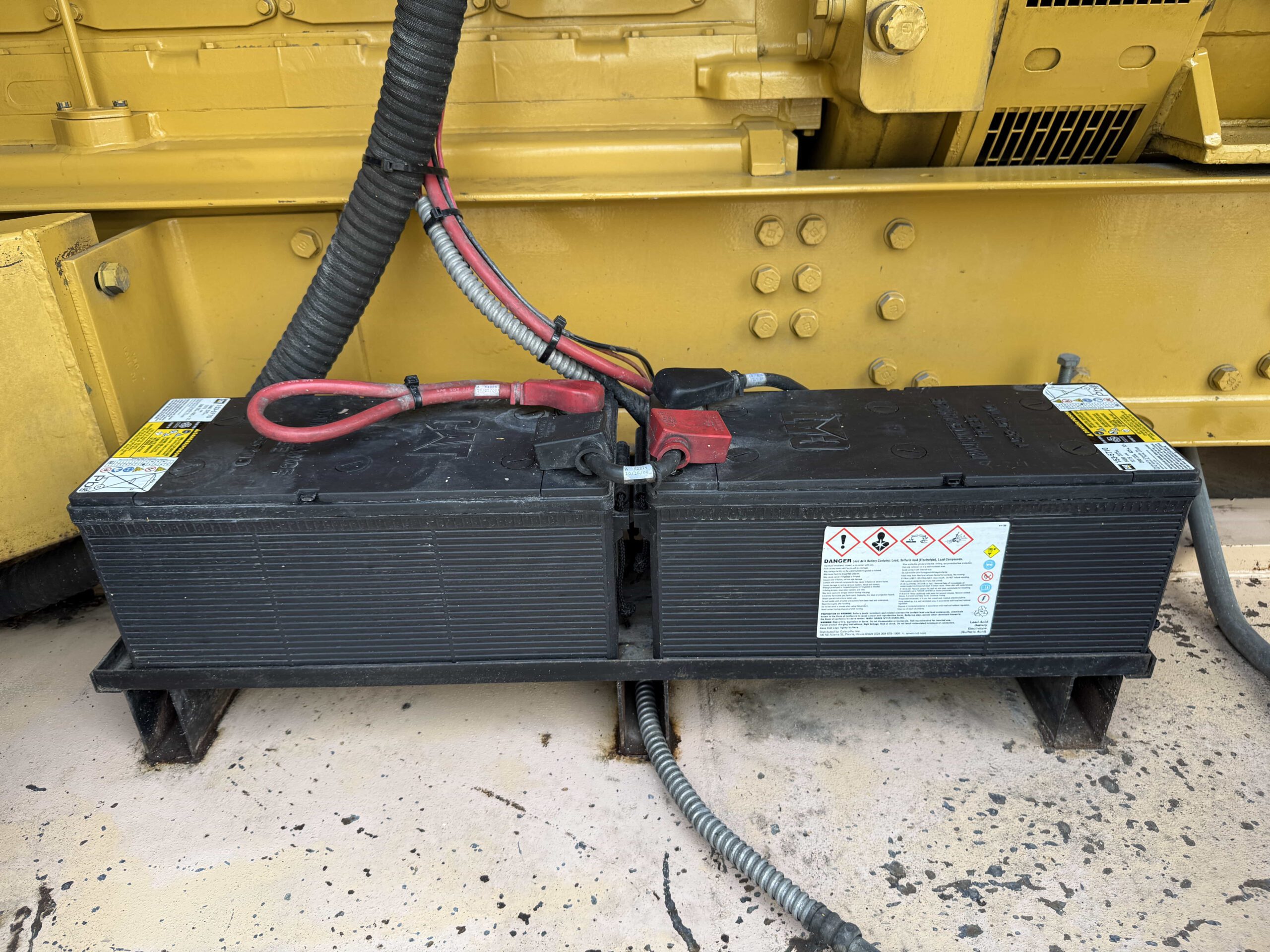

Generator starting batteries on mounting rack.

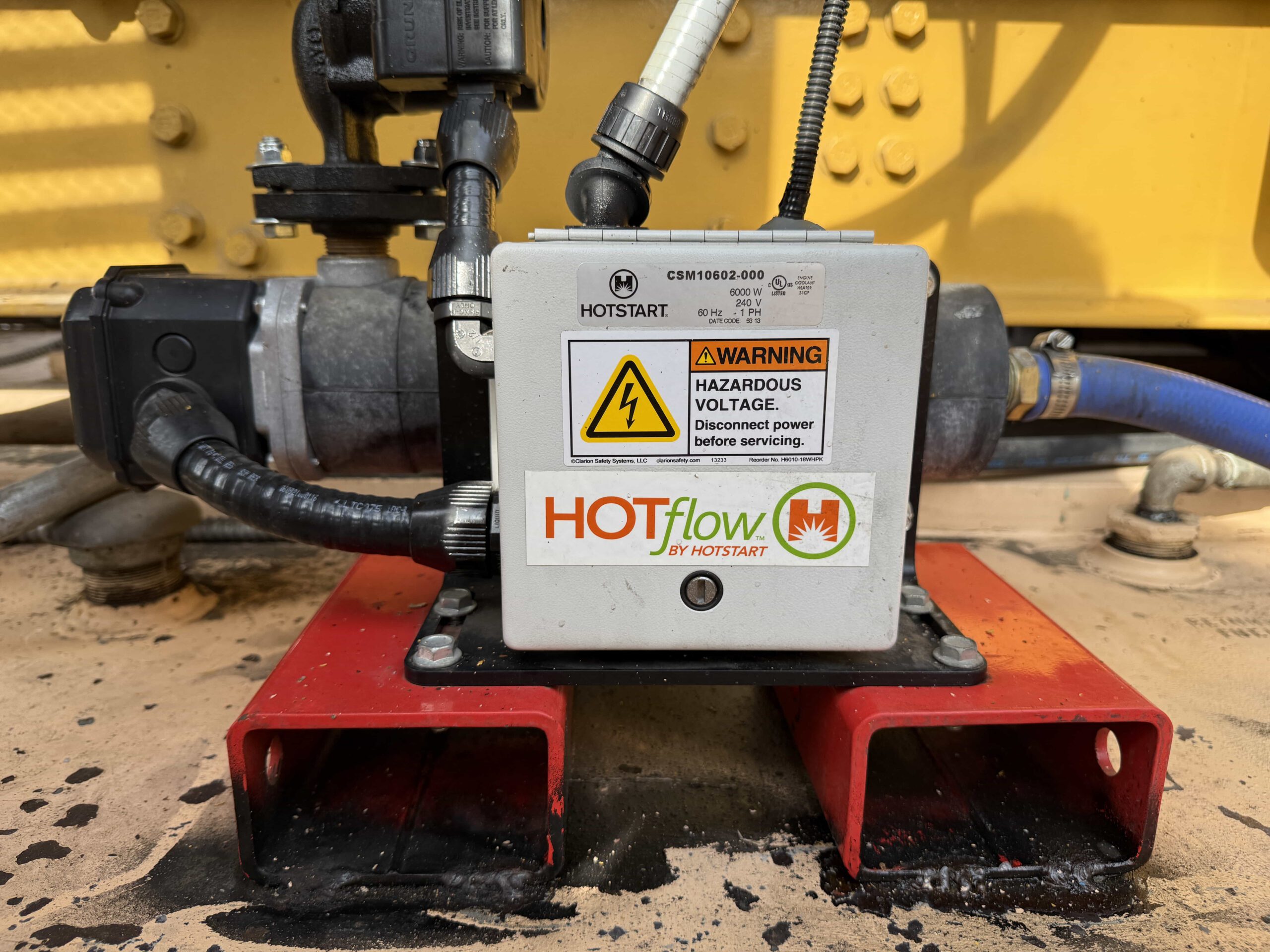

HotStart 31CP engine coolant heater.

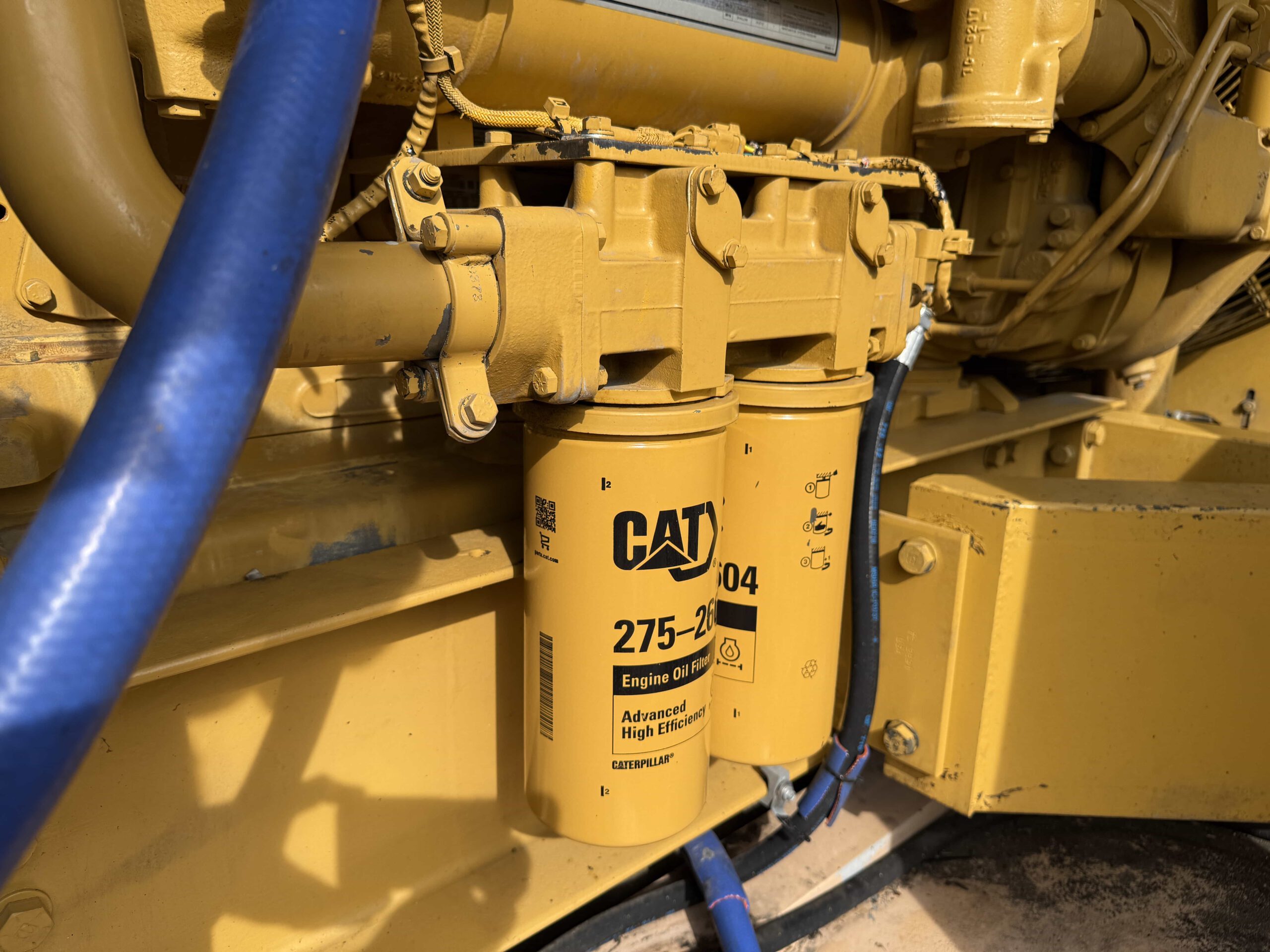

Caterpillar 275-2604 engine oil filters.

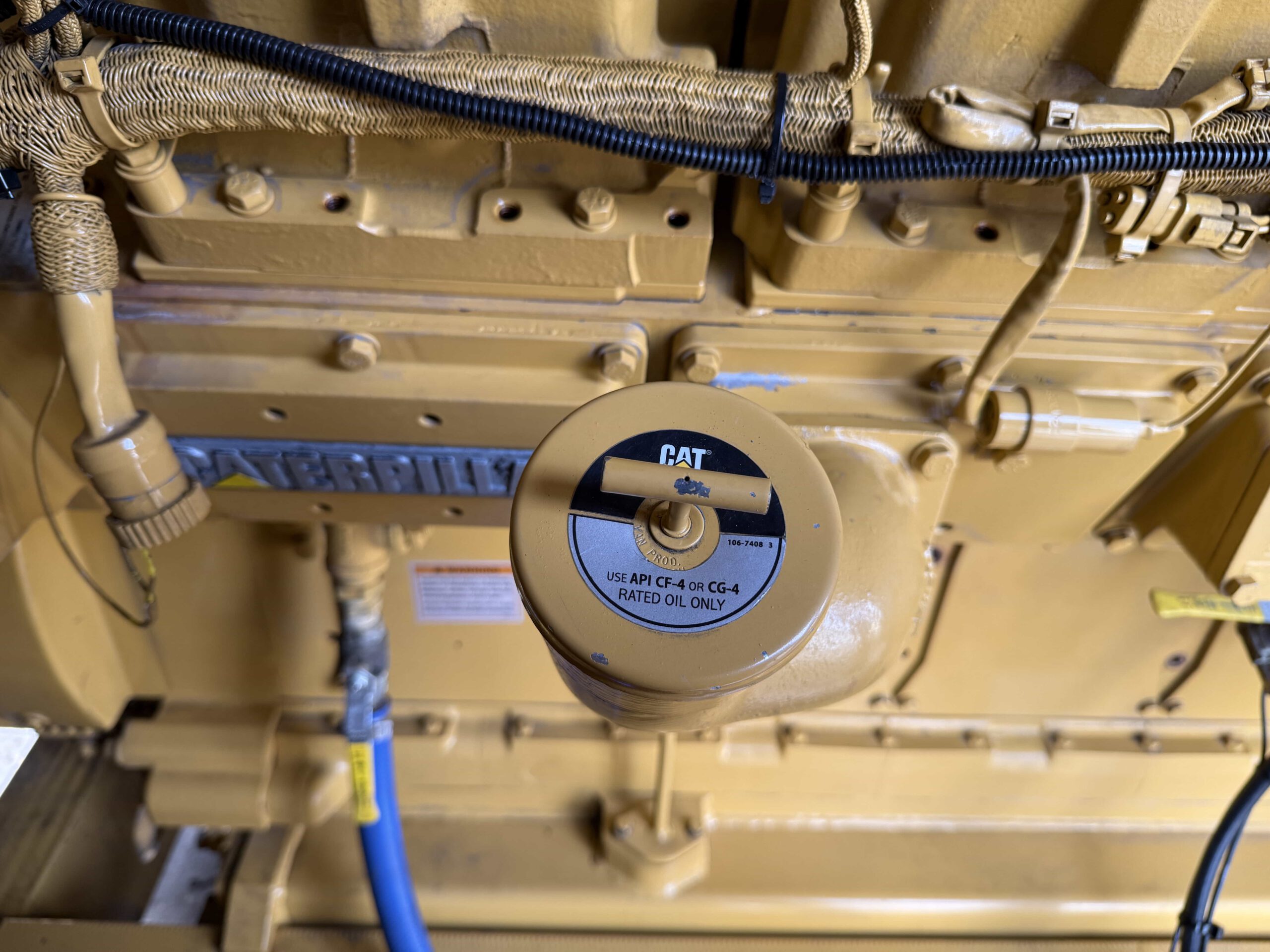

Caterpillar engine oil fill cap.

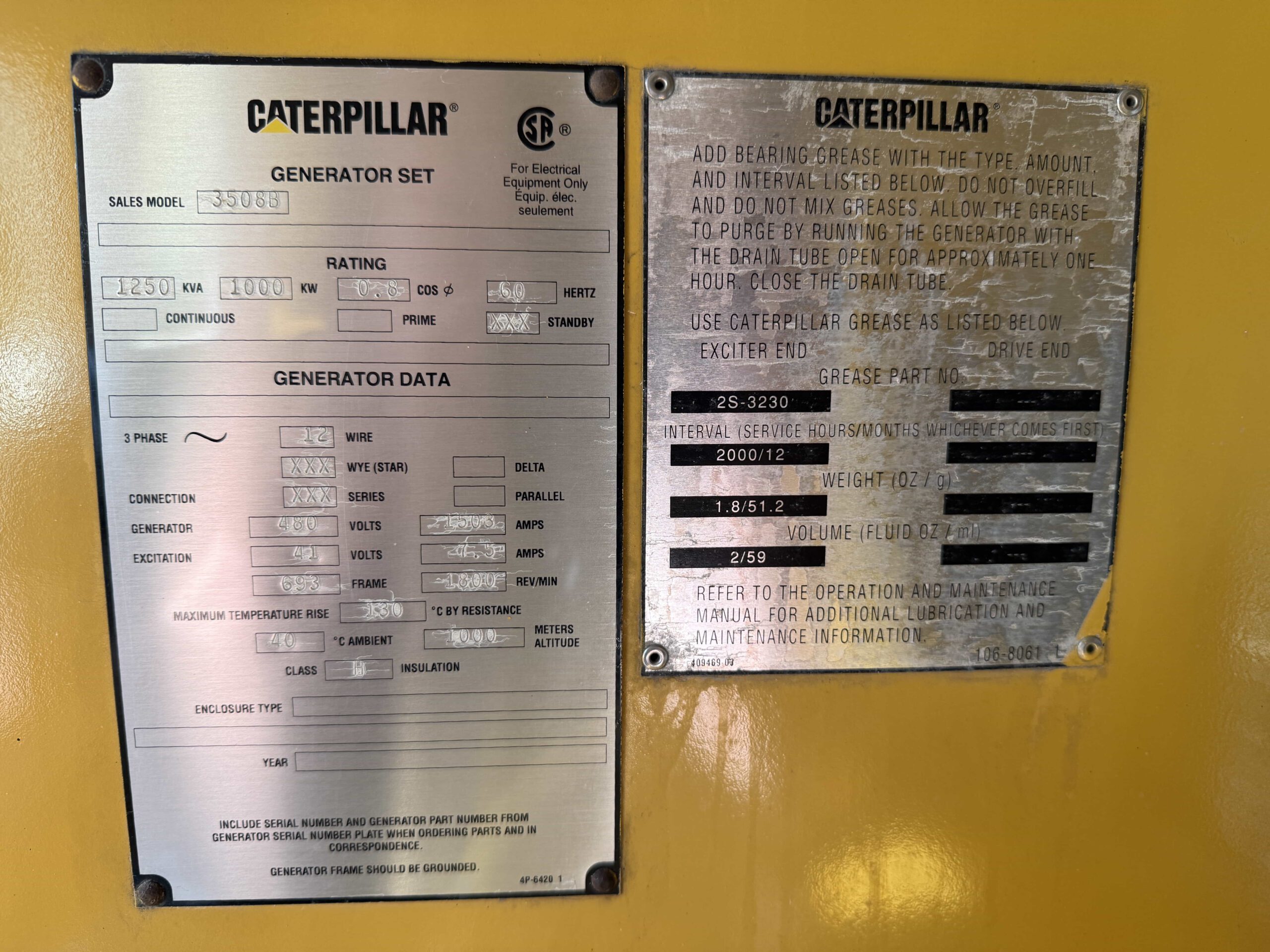

Caterpillar 3508B generator set dataplate.

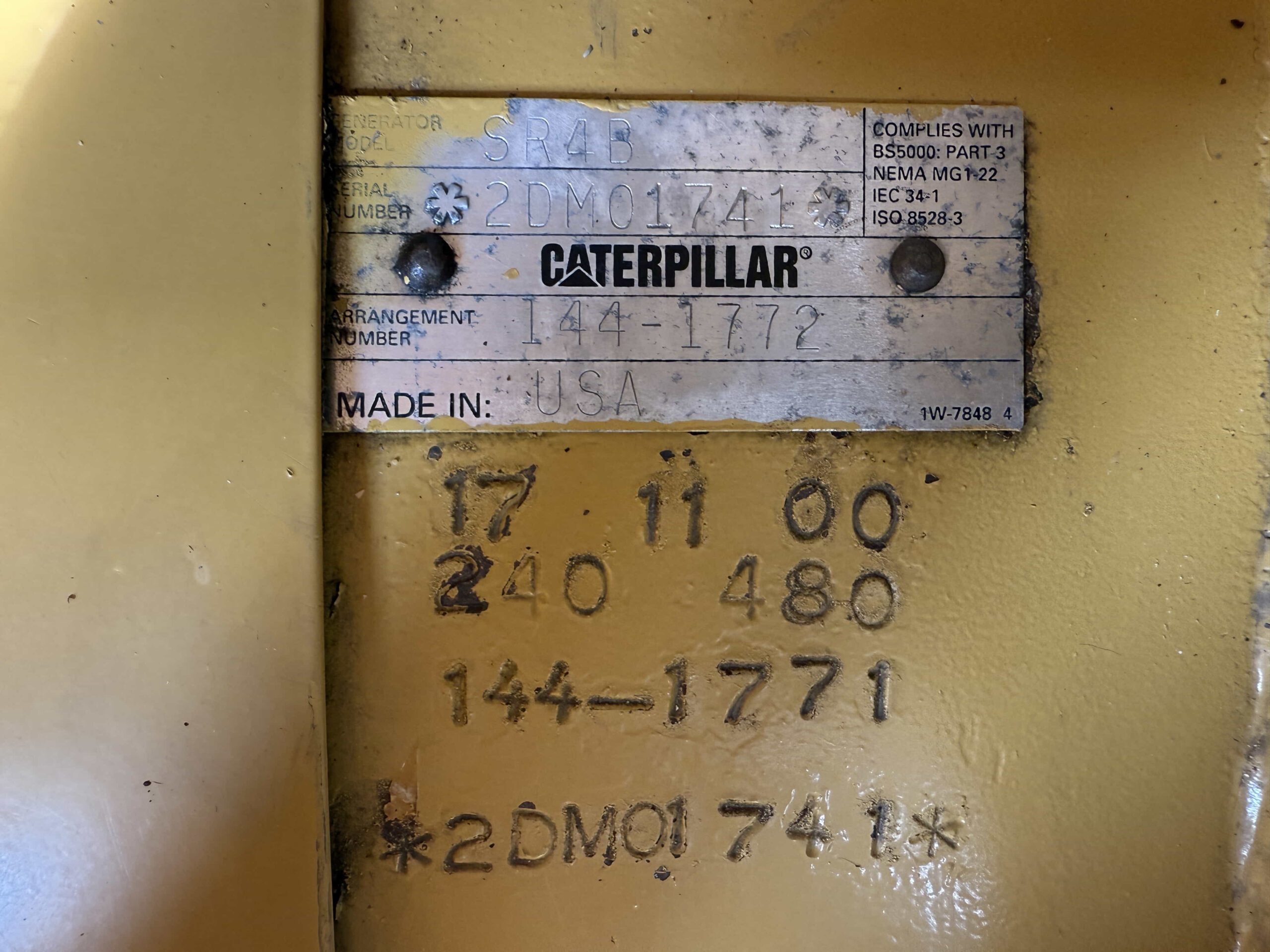

Caterpillar SR4B generator end nameplate.

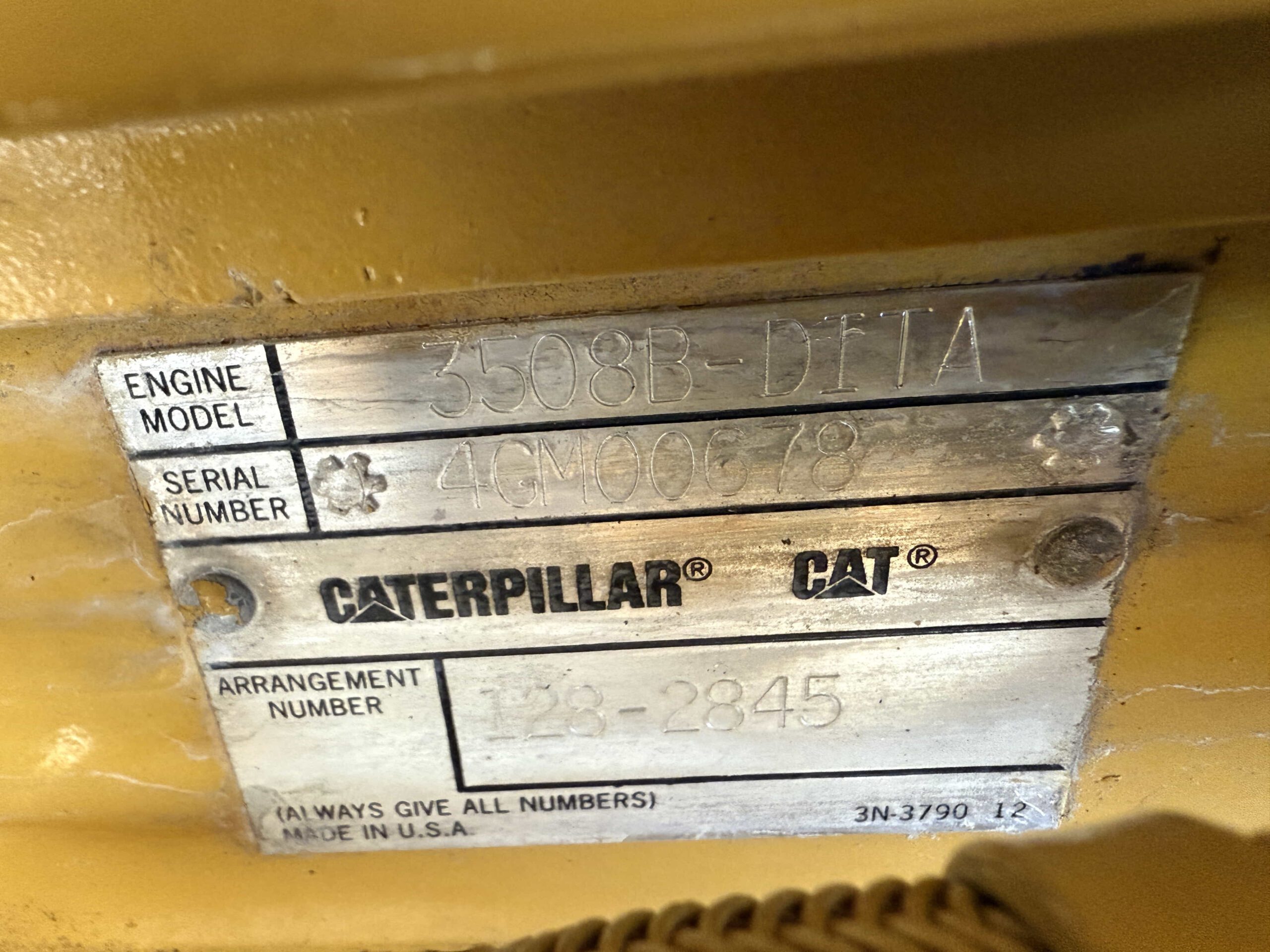

Caterpillar 3508B-DITA engine identification tag.
Caterpillar 3508 engine performance specification plate.

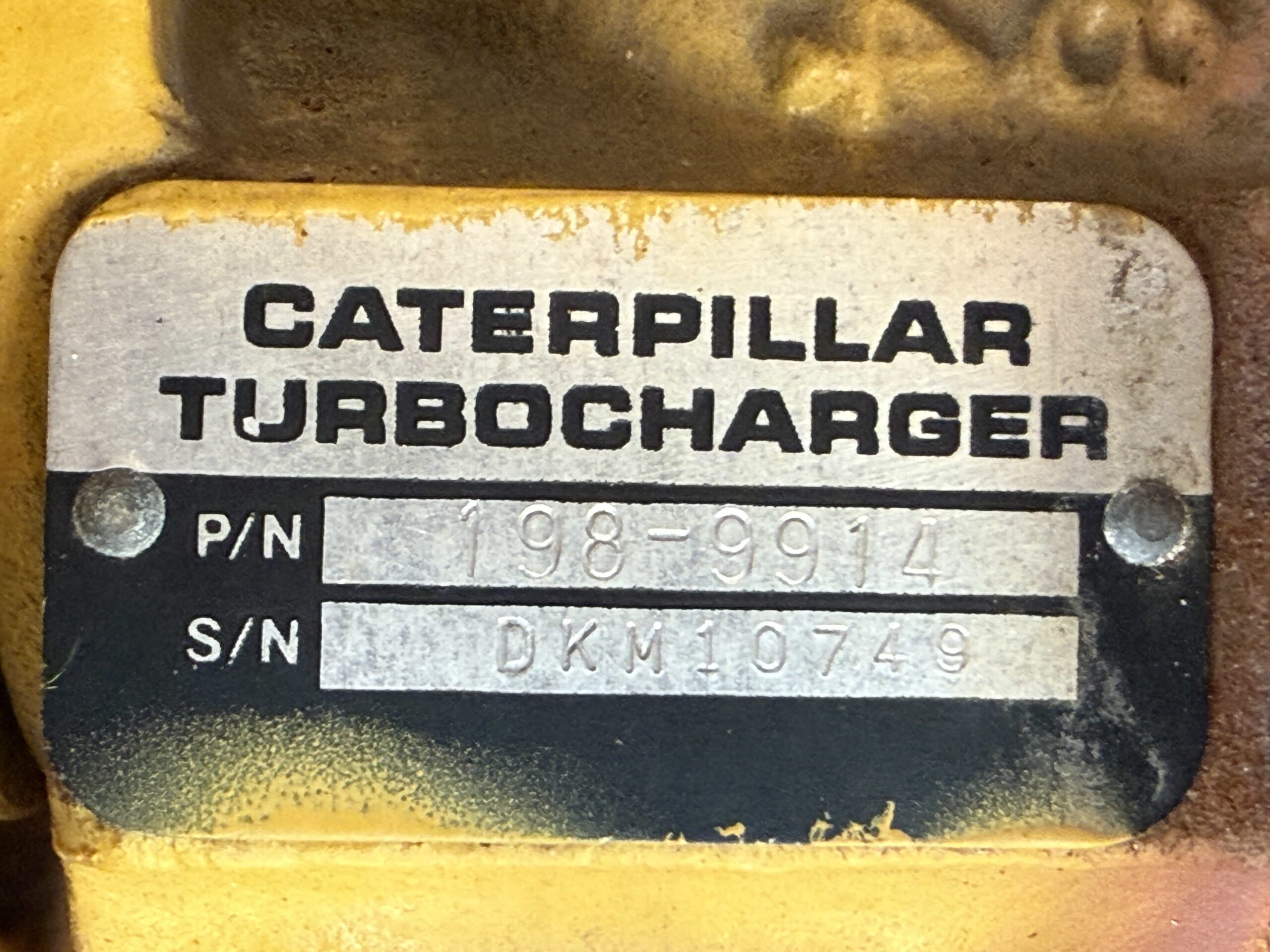

Caterpillar turbocharger tag with P/N 198-9914.

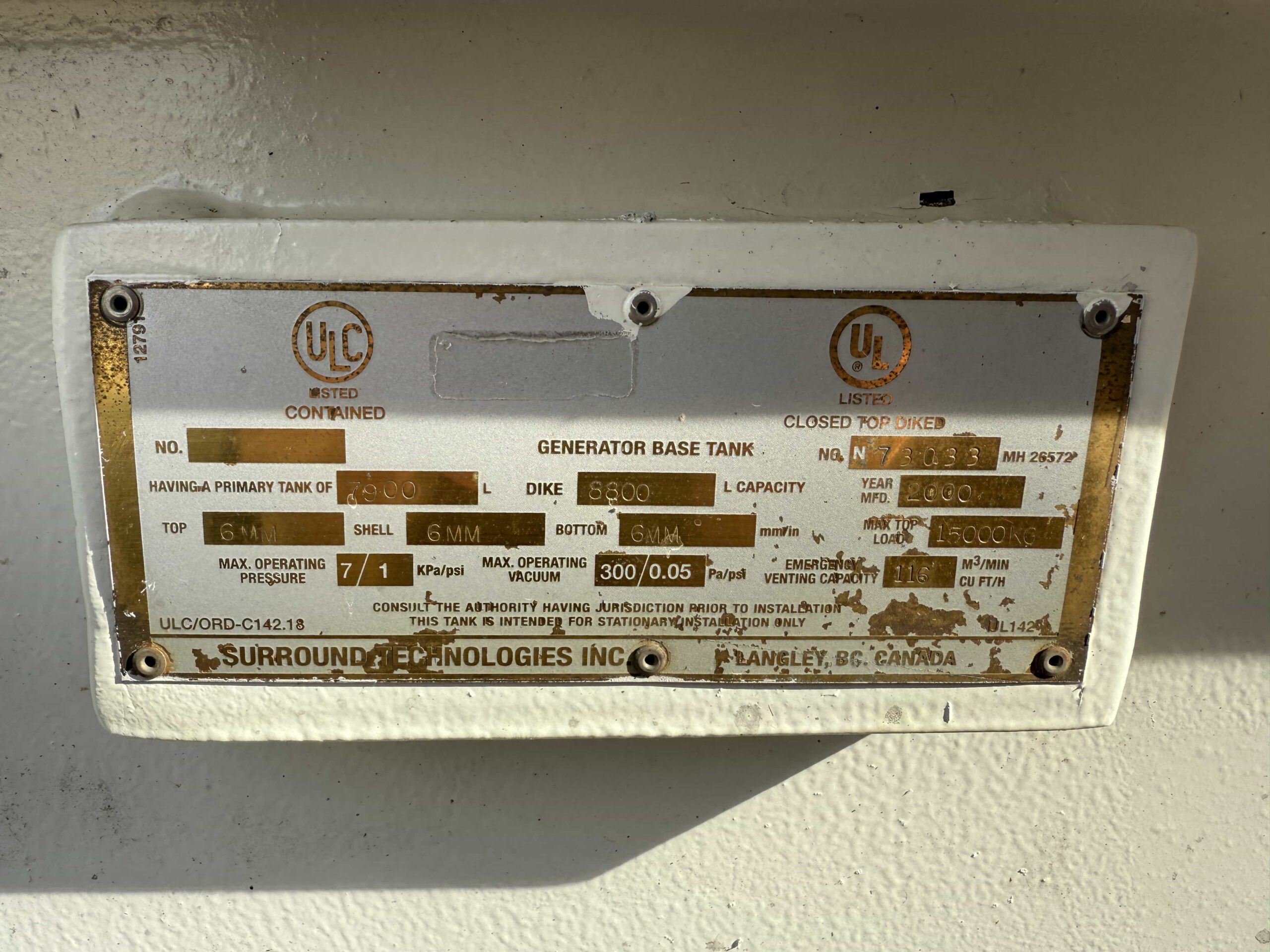

Generator base fuel tank label showing 7900L capacity.

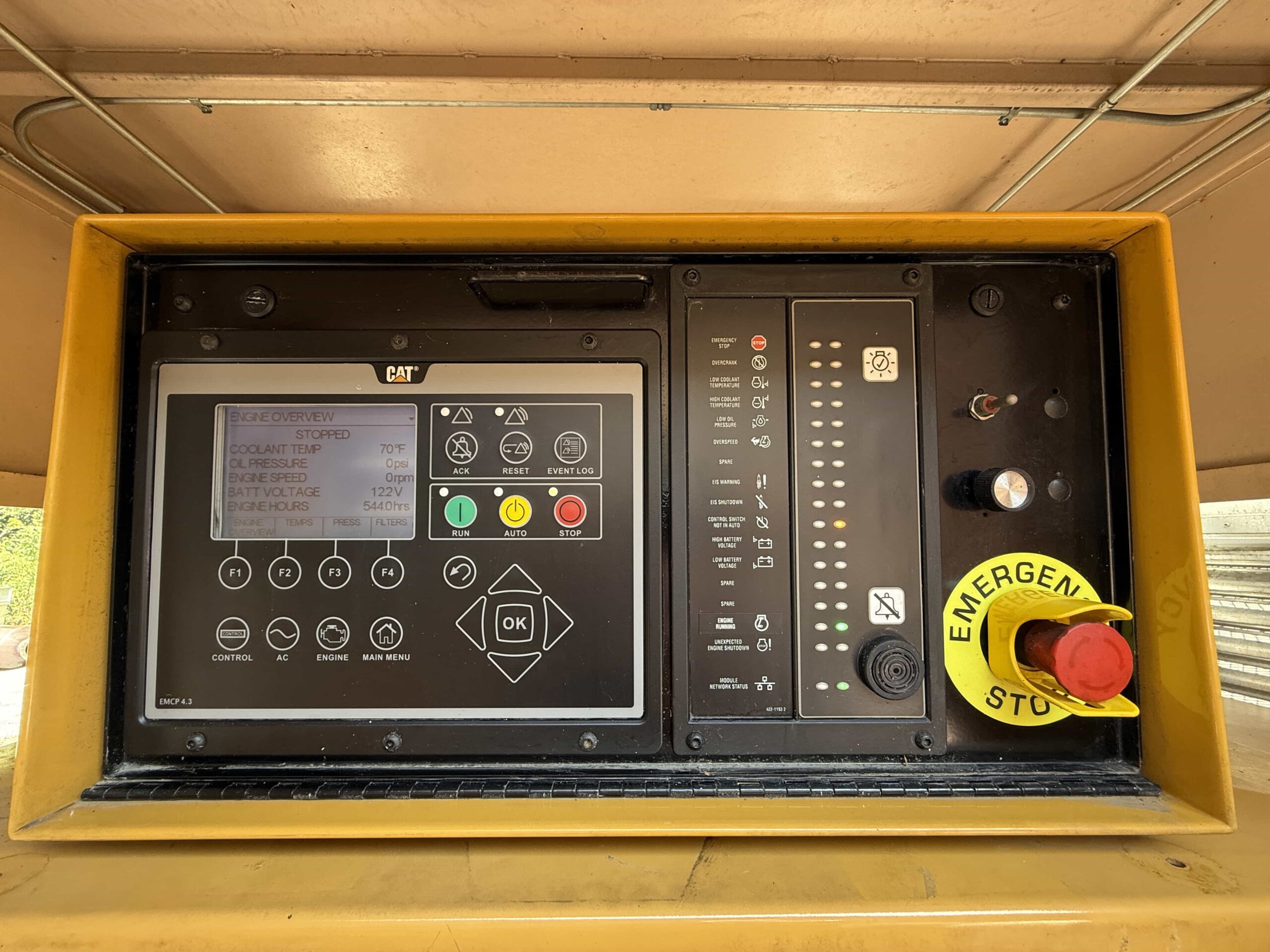

Caterpillar EMCP 4.3 digital generator control panel.

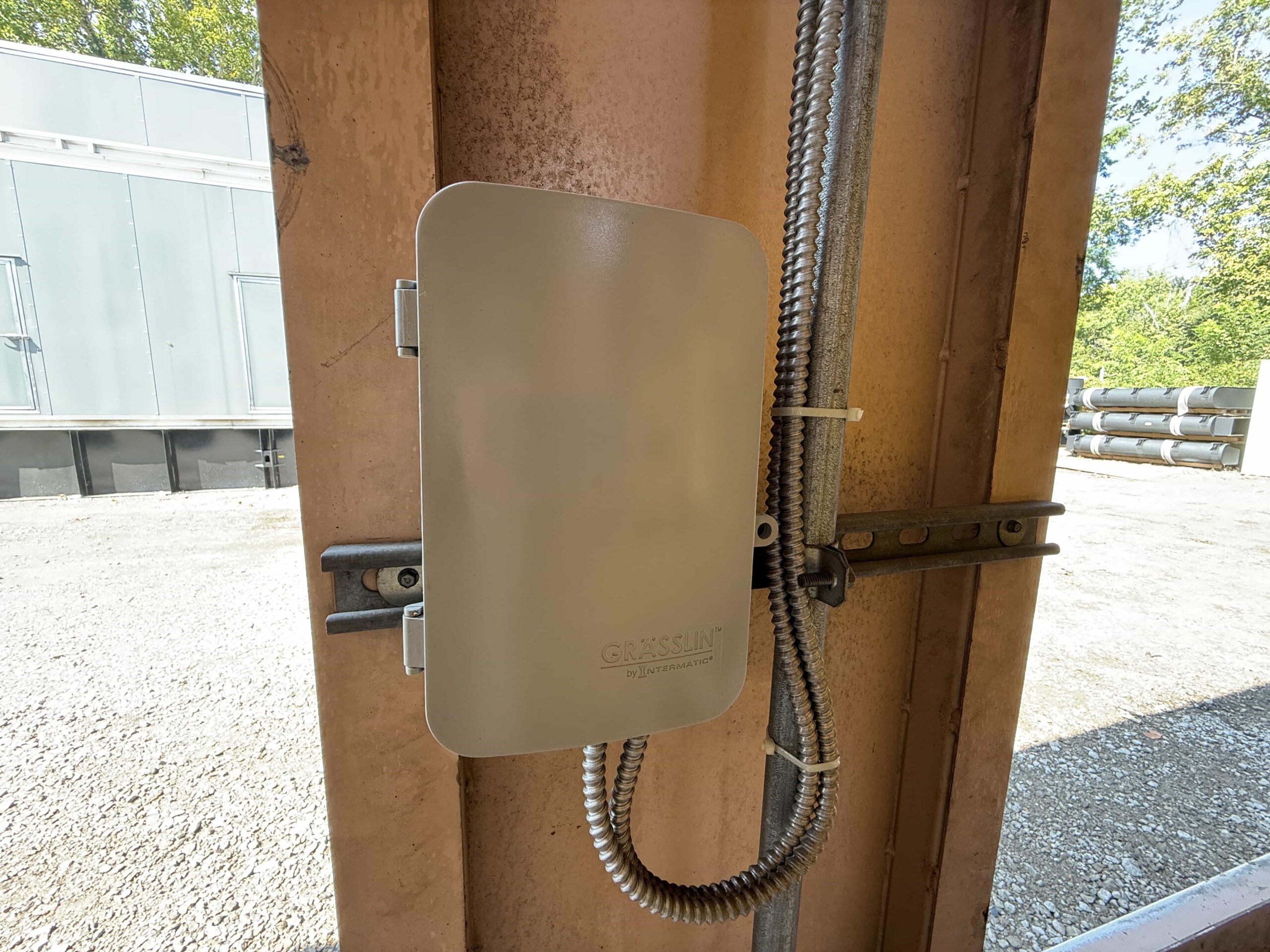

Grasslin by Intermatic electrical timer switch.

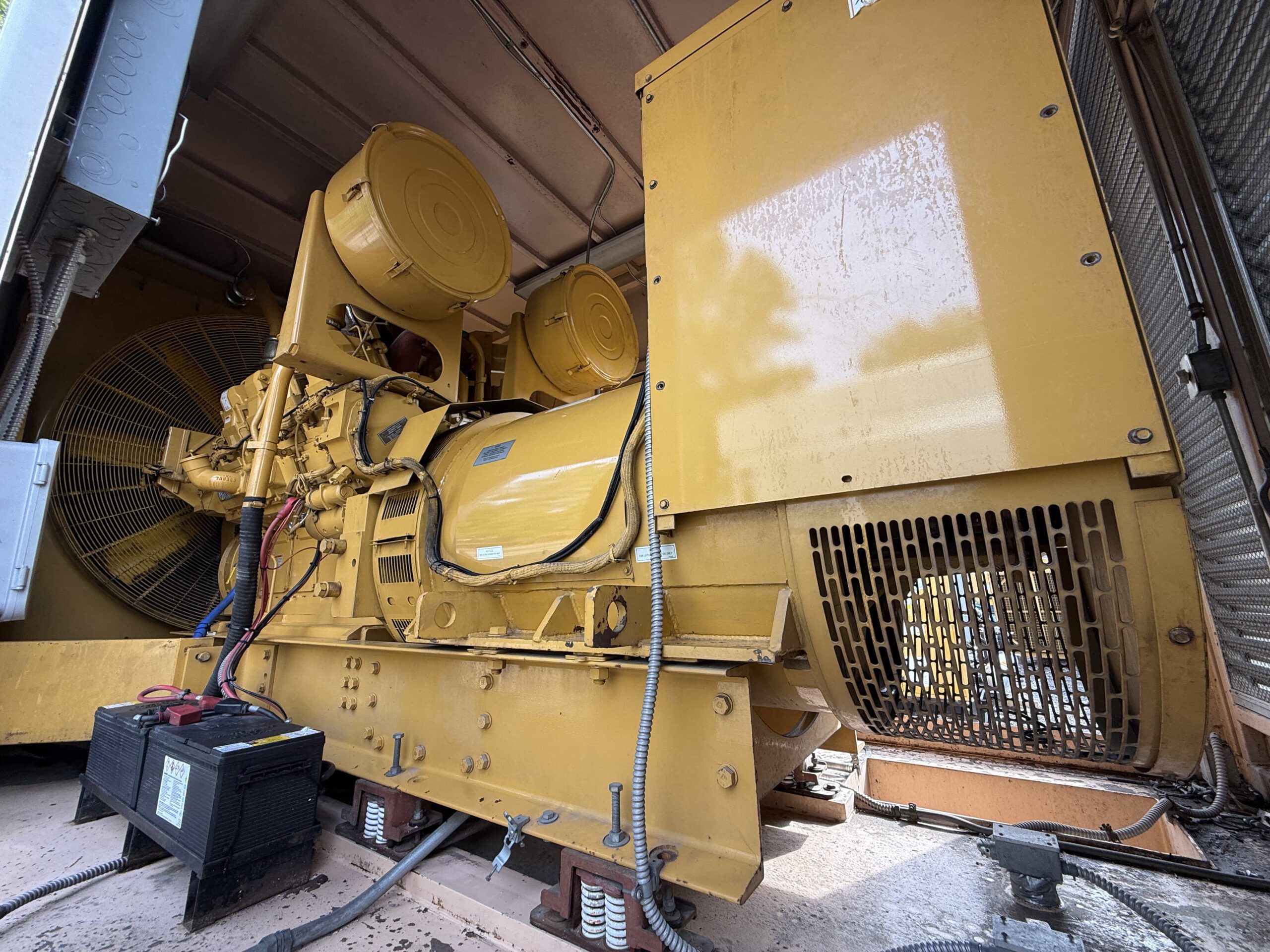

Caterpillar SR4B generator alternator housing.

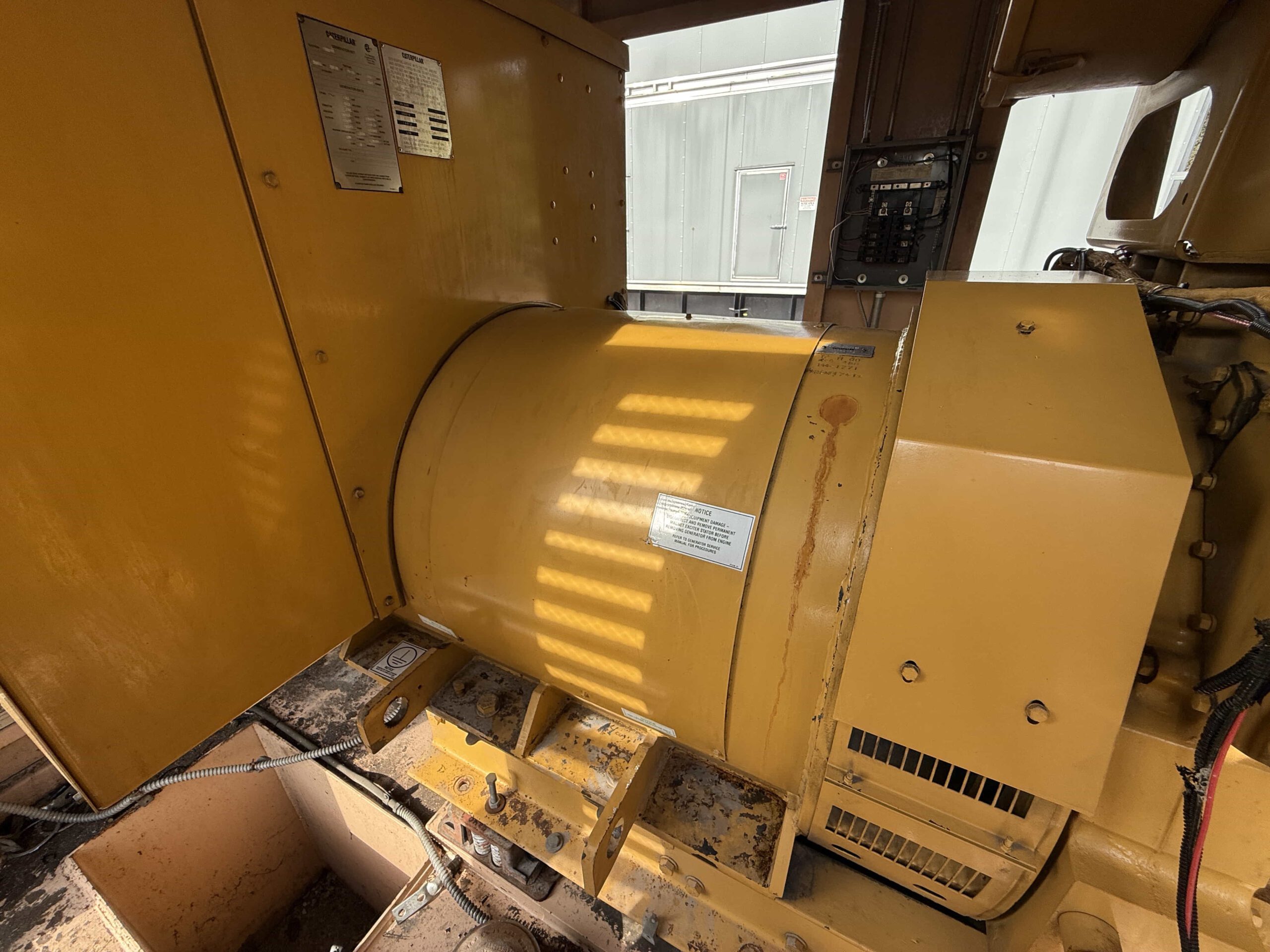

Caterpillar SR4B generator end back side.
Generator-mounted RG1600 circuit breaker.

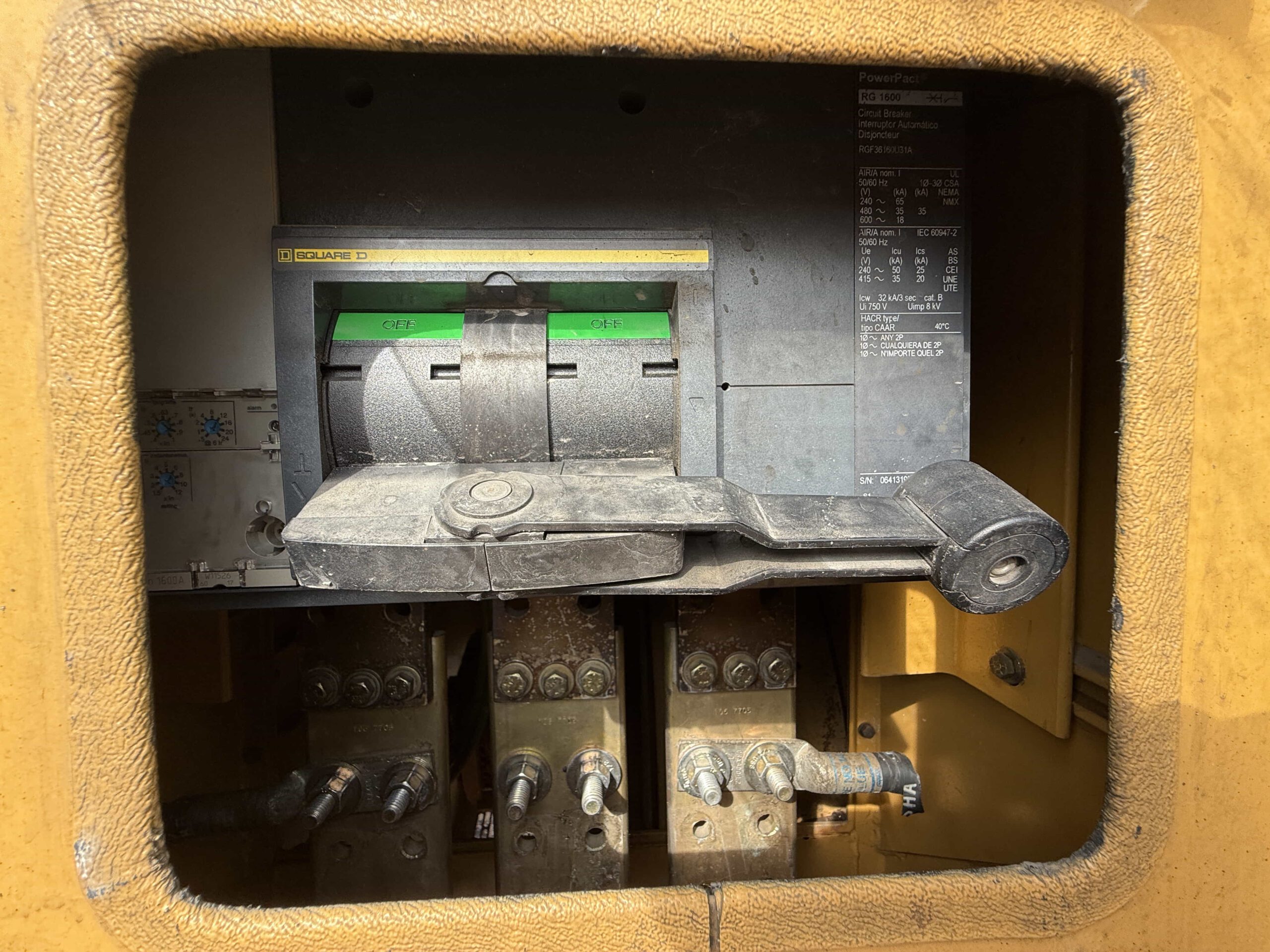

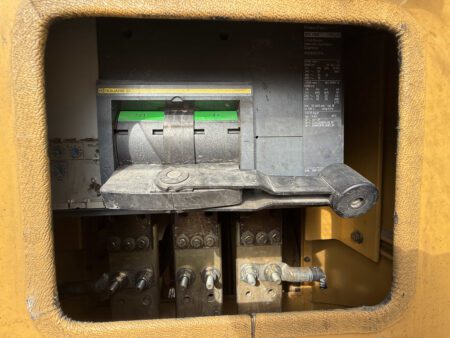

PowerPack RG1600 generator-mounted circuit breaker.
Caterpillar generator breaker housing side view.

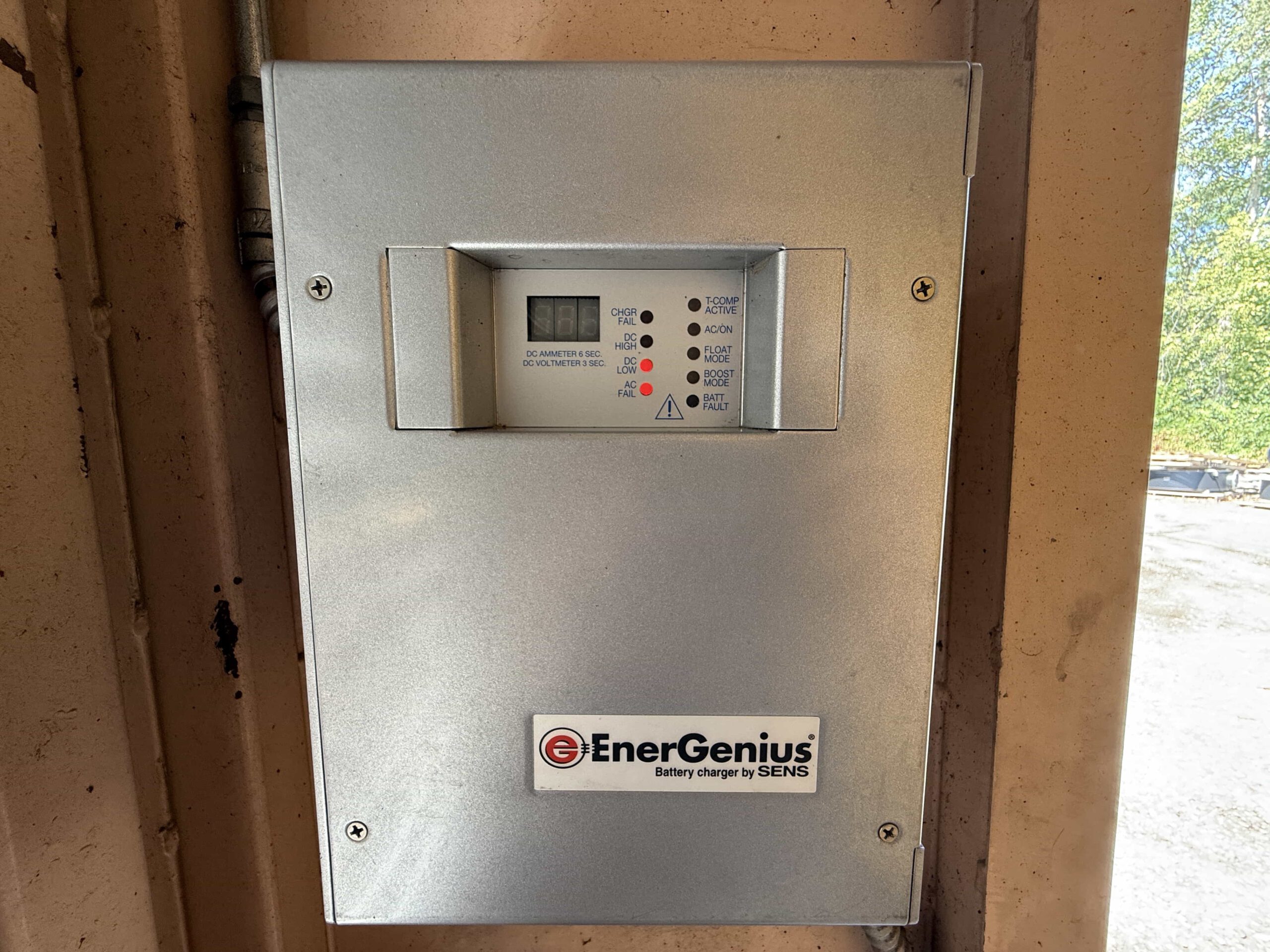

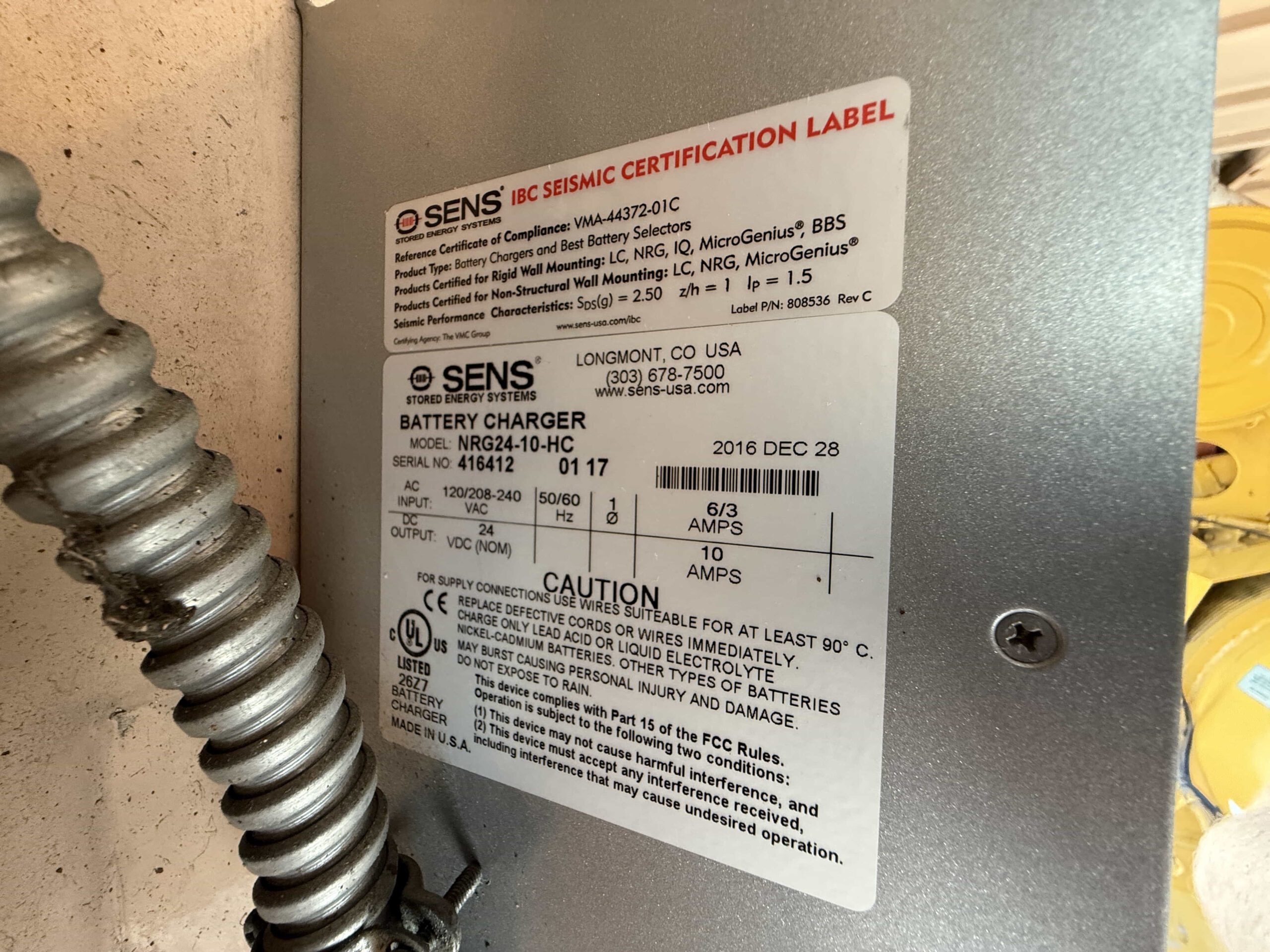

SENS EnerGenius battery charger unit.
SENS EnerGenius battery charger unit.
Caterpillar 3508B generator enclosure front view with doors closed.
Caterpillar 3508B generator enclosure front view with doors open.
Caterpillar 3508B generator enclosure front-left corner, doors closed.
Caterpillar 3508B generator enclosure left side view.
Caterpillar 3508B generator enclosure back-left corner view.
Caterpillar 3508B generator enclosure back view with doors open.
Caterpillar 3508B generator enclosure rear view.
Caterpillar 3508B generator enclosure back-right corner view.
Caterpillar 3508B generator enclosure front-right corner view.
Caterpillar 3508B engine block, radiator, and dual air cleaners.
Caterpillar 3508B diesel engine side view.
Caterpillar 3508B diesel engine starter motor assembly.
Caterpillar 3508B generator engine front side with radiator and alternator.
Caterpillar 3508B dual air cleaners.
Caterpillar SR4B generator end front view.
Caterpillar 3508B radiator fan and engine block.
Caterpillar 3508B water pump and coolant piping assembly.
Caterpillar 3508B turbochargers and cooling fan housing.
Caterpillar 3508B engine turbochargers with cooling fan view.
Caterpillar 3508B exhaust bellows and manifolds.
Caterpillar SR4B generator end with air cleaners and radiator housing.
SR4B generator end with dual air cleaners and radiator fan—back side view.
Caterpillar 3508B engine block back side with coolant piping and filter bases.
Caterpillar 3508B diesel engine fuel filter assembly.
Generator starting batteries on mounting rack.
HotStart 31CP engine coolant heater.
Caterpillar 275-2604 engine oil filters.
Caterpillar engine oil fill cap.
Caterpillar 3508B generator set dataplate.
Caterpillar SR4B generator end nameplate.
Caterpillar 3508B-DITA engine identification tag.
Caterpillar 3508 engine performance specification plate.
Caterpillar turbocharger tag with P/N 198-9914.
Generator base fuel tank label showing 7900L capacity.
Caterpillar EMCP 4.3 digital generator control panel.
Grasslin by Intermatic electrical timer switch.
Caterpillar SR4B generator alternator housing.
Caterpillar SR4B generator end back side.
Generator-mounted RG1600 circuit breaker.
PowerPack RG1600 generator-mounted circuit breaker.
Caterpillar generator breaker housing side view.
SENS EnerGenius battery charger unit.
SENS EnerGenius battery charger unit.

Price

Inquire Now

Product Details

Year 2000
Manufacturer Caterpillar
Generator Model 3508B
Generator End S/N 2DM01741
kW 1000 kW
kVA 1250 kVA
Voltage 480 V
Amperage 1503 A
Frequency 60 Hz
RPM 1800
Hours 545
Phase Type 3-phase
12-wire reconnectable
(Wye or Delta)
Power Rating Prime Rated
Generator Insulation Class Class H
Fuel Tank Capacity 7,900 L (≈ 2,087 gal)
UL-listed double-wall
closed-top dike
Control Panel Caterpillar EMCP 4.3
Engine Manufacturer Caterpillar
Engine Model 3508B
Engine S/N 4GM00678
Emissions Tier –
Dimensions (L x W x H) 395″ x 115″ x 150″
Weight (lbs.) –
Stock Number MEG1137
Additional Features:

  • Caterpillar SR4B generator end, 1000 kW prime, 1250 kVA capacity

  • EMCP 4.3 digital control panel with monitoring and safety shutdowns

  • Dual heavy-duty starting batteries with SENS EnerGenius charger

  • HotStart 31CP engine coolant heater for cold-weather readiness

  • UL-listed 2,087-gallon (7,900 L) double-wall base fuel tank

  • Sound-attenuated and weatherproof steel enclosure with louvered panels

  • Dual air cleaners and a heavy-duty radiator cooling system

  • Turbocharged and aftercooled (DITA) Caterpillar 3508B engine

  • Equipped with a PowerPack RG1600 breaker for electrical protection
