2000 CAT 3412 500kW Generator Set

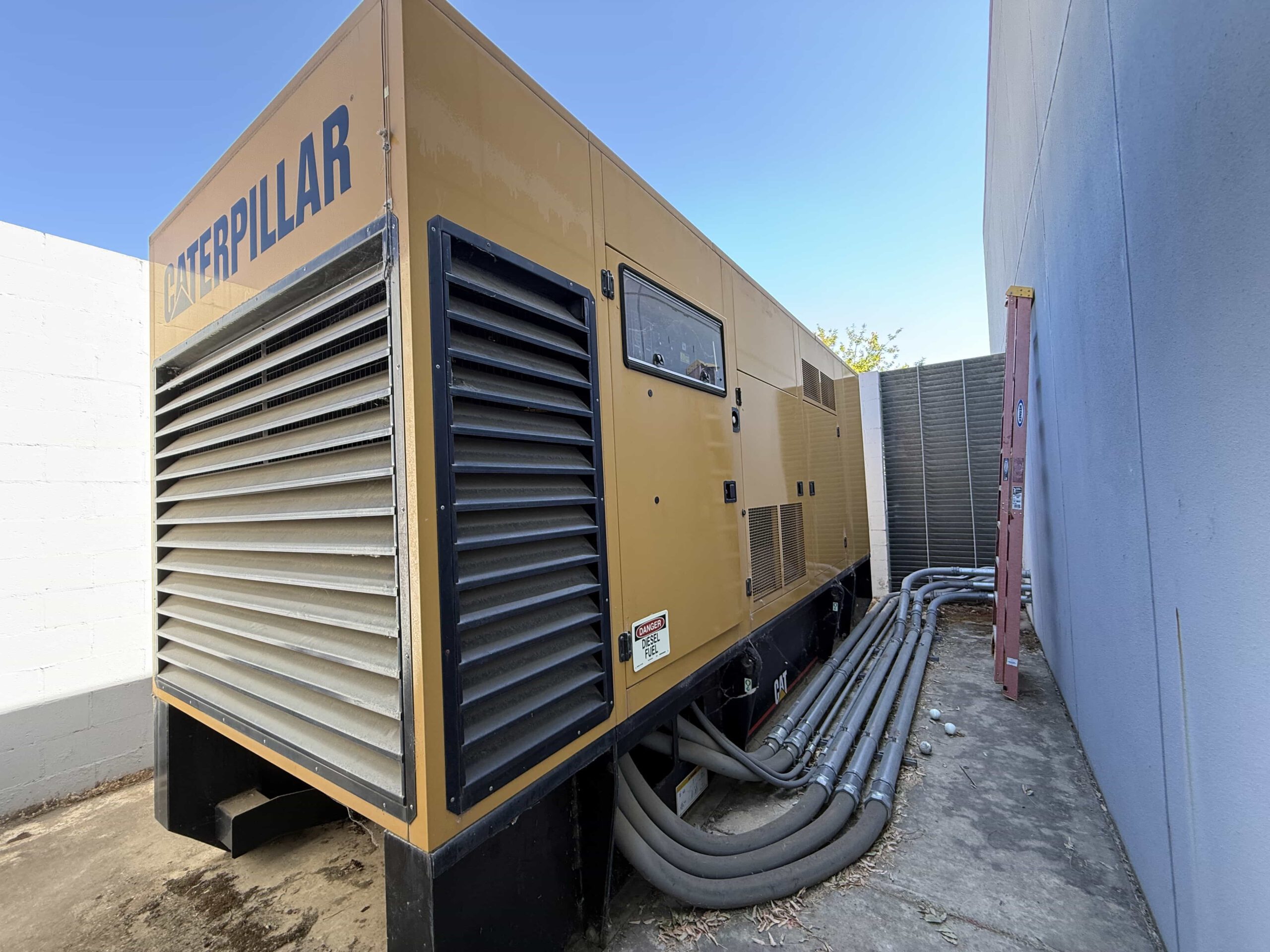

Exterior of 2000 Caterpillar 3412 500 kW generator—sound-attenuated enclosure with louvered end and conduit runs (S/N BPG00168).

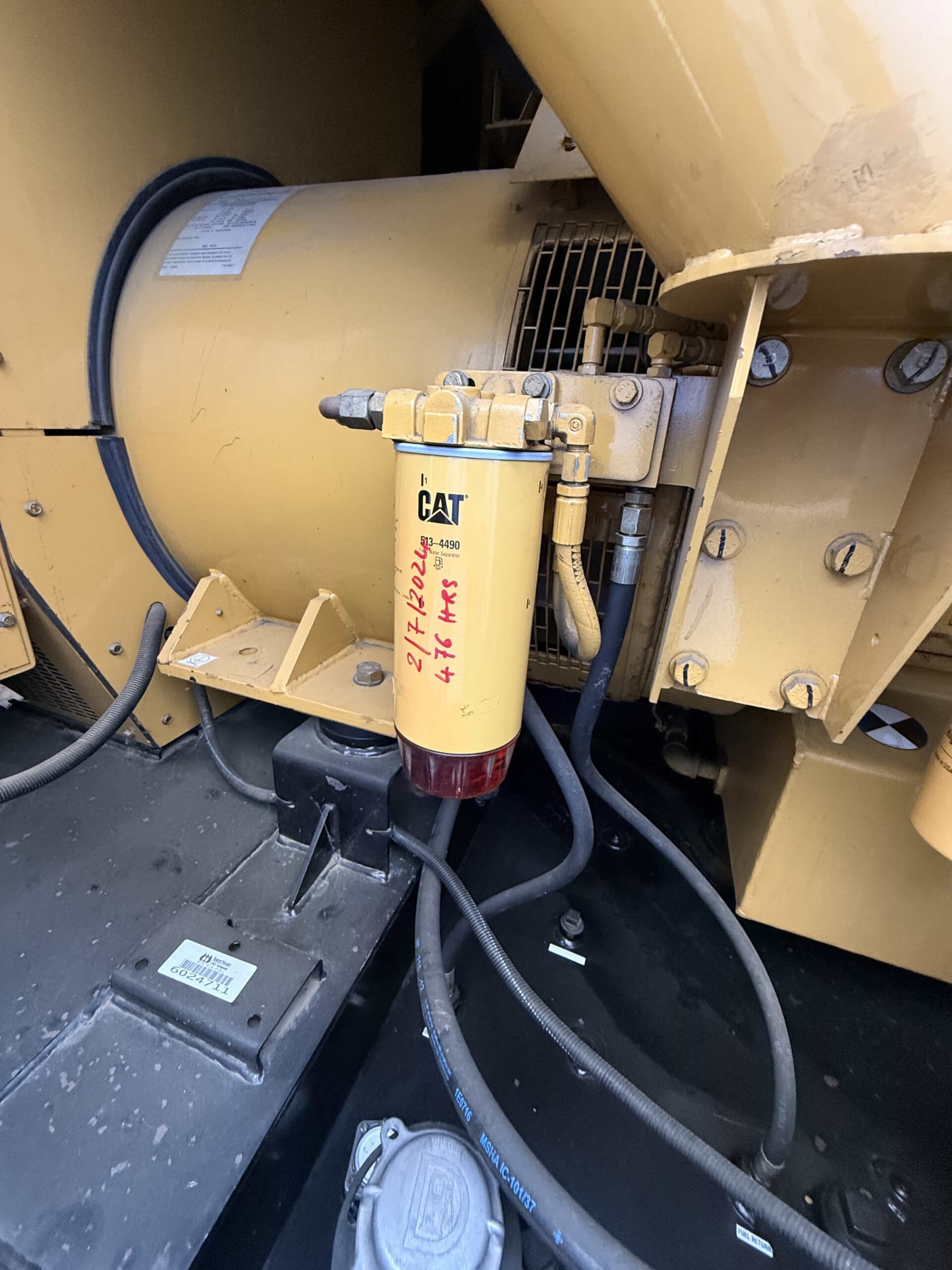

Fuel filter with clear water-separator bowl on 2000 CAT 3412 500 kW generator (S/N BPG00168); handwritten service/date note visible.

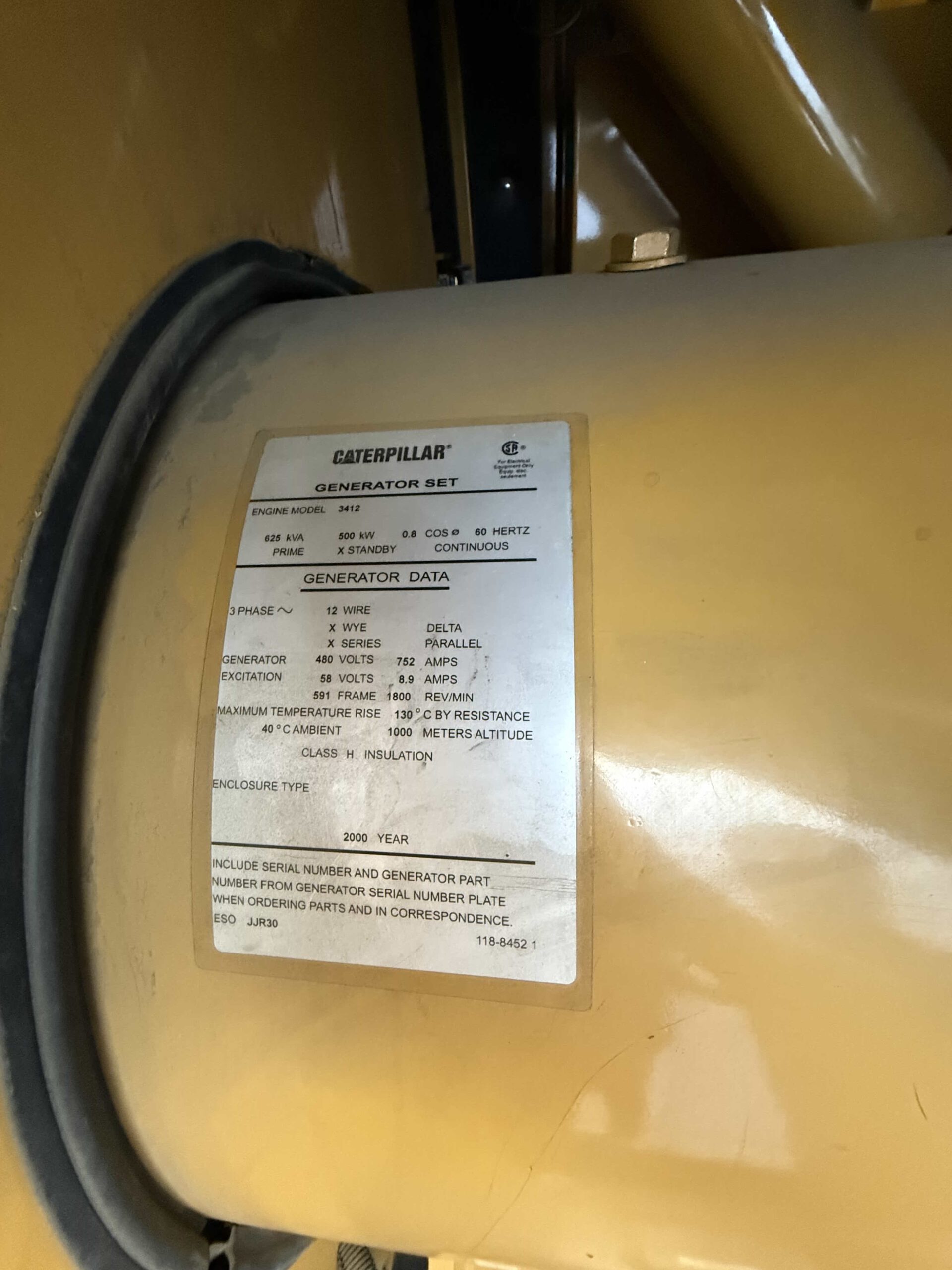

Generator nameplate on 2000 CAT 3412 set showing 500 kW / 625 kVA, 480/277 V, 60 Hz, 3-phase 12-wire, 752 A, Class H, year 2000.

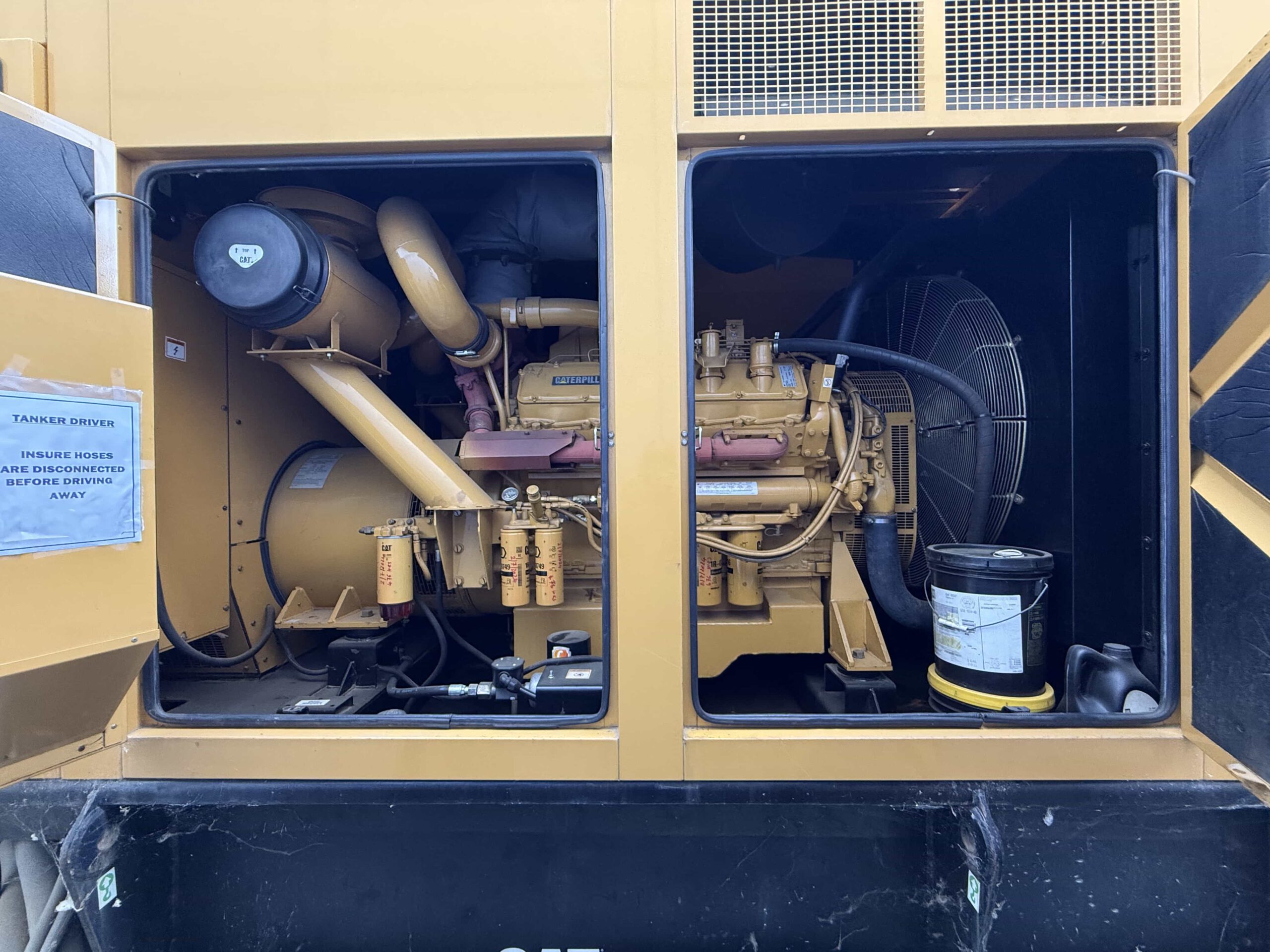

Engine compartment with both access bays open on 2000 CAT 3412 500 kW generator showing air intake canister, dual filters, engine, and large cooling fan (S/N BPG00168).

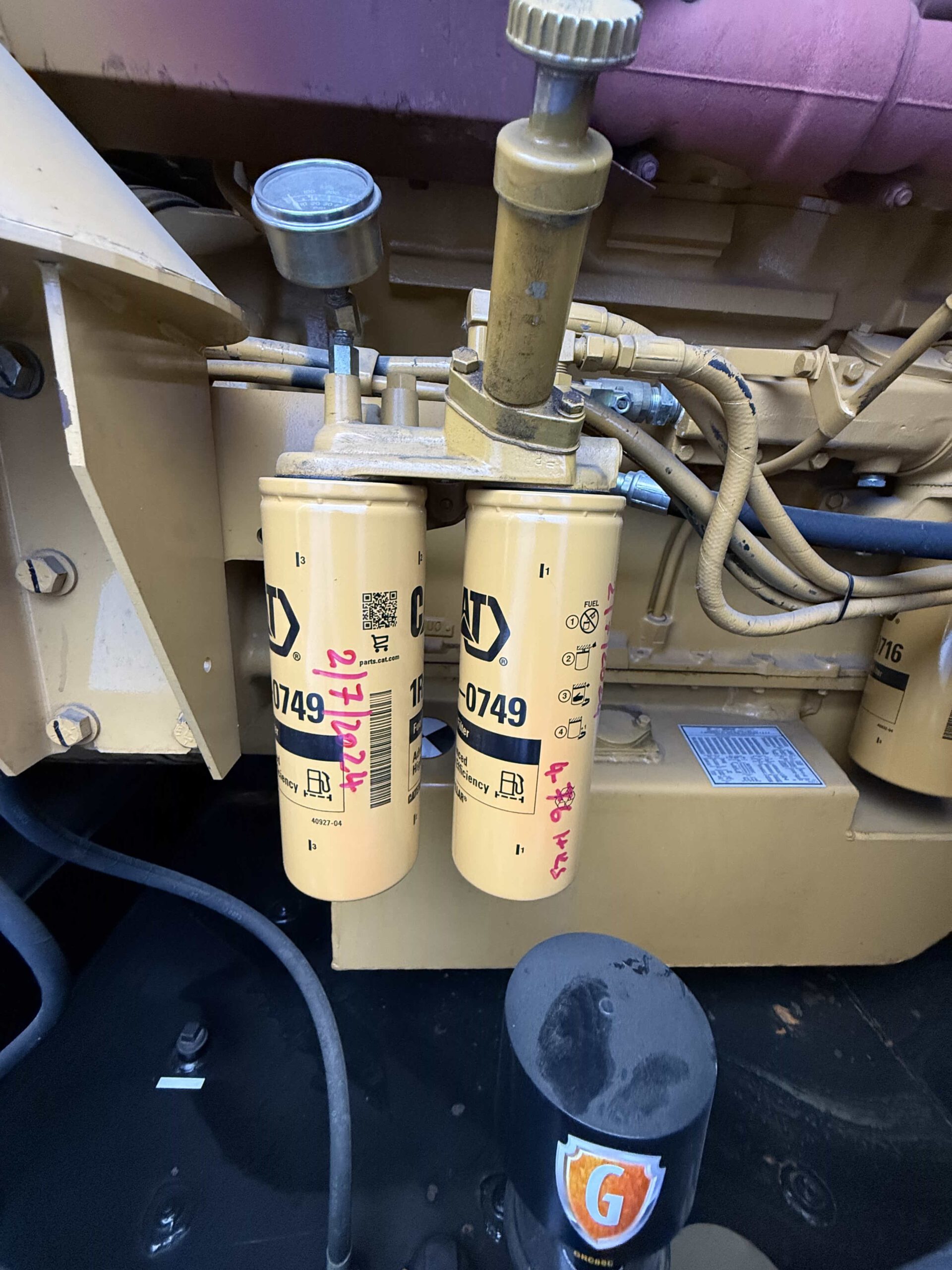

Dual CAT 1R-0749 fuel filters with hand priming pump on 2000 CAT 3412 500 kW generator (S/N BPG00168); service date marked on cans.

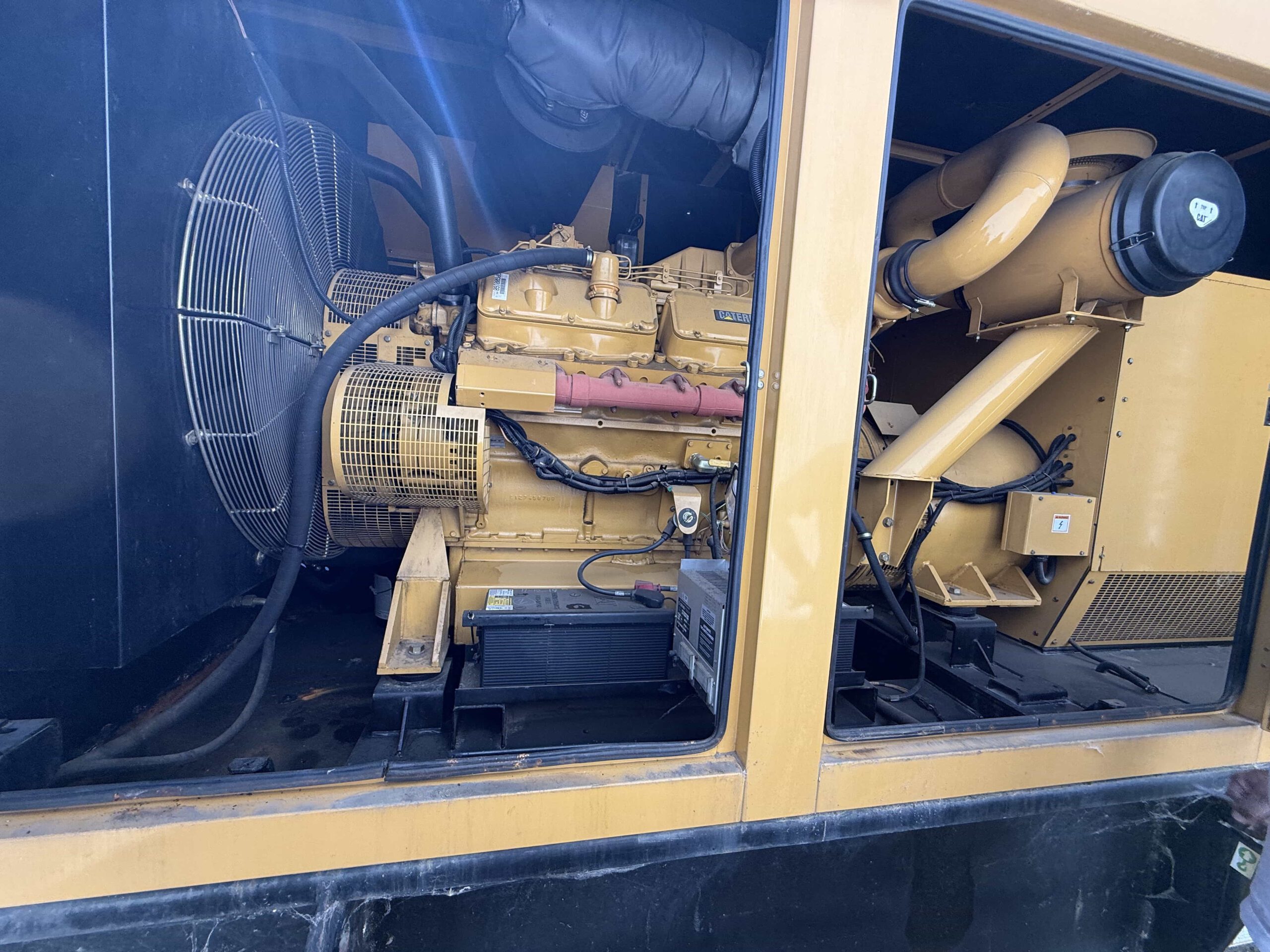

Right-side bay open on 2000 CAT 3412 500 kW generator (S/N BPG00168) showing 3412 engine, cooling fan, battery bank with charger, and air-intake canister/ducting.

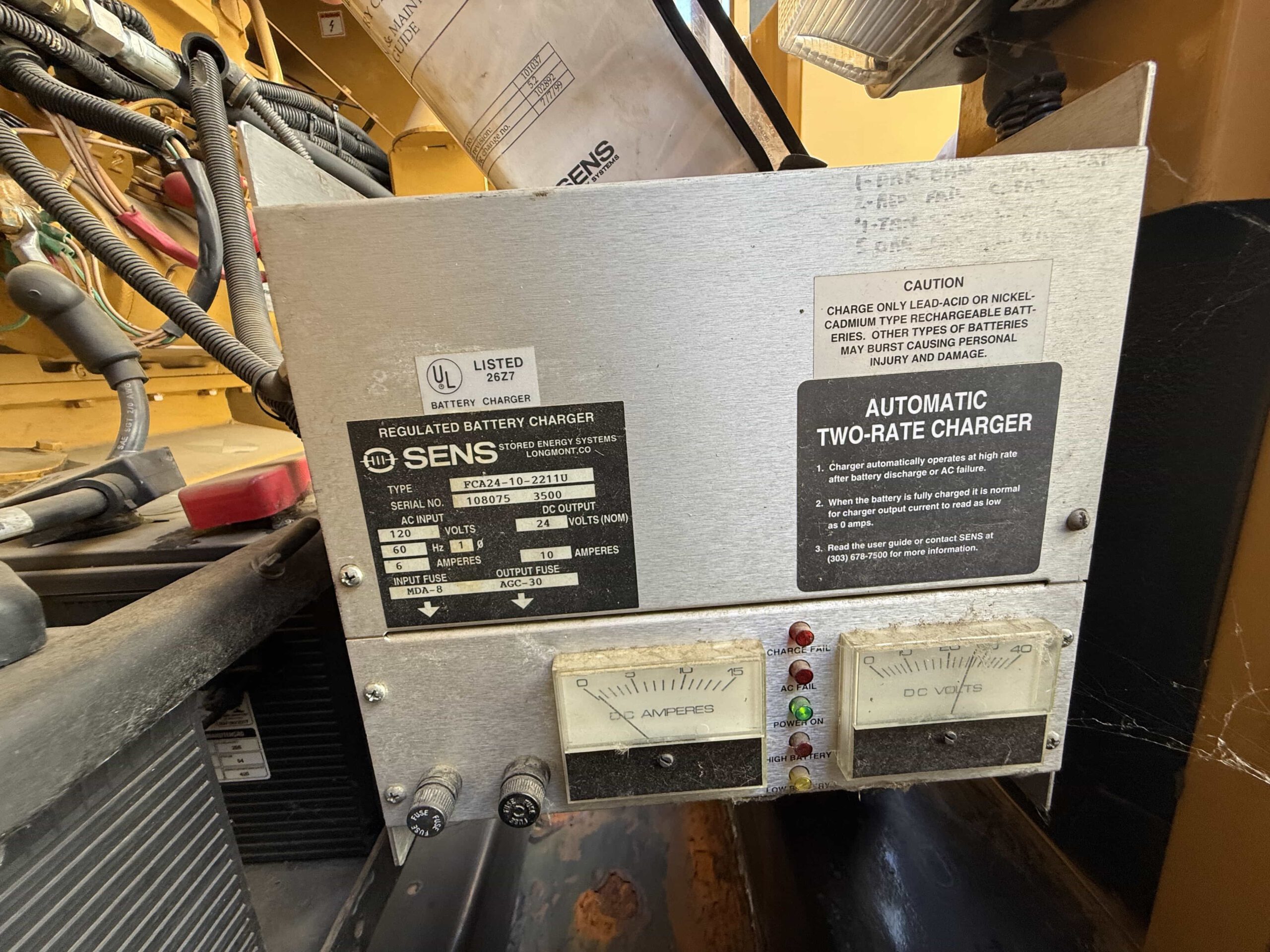

SENS regulated battery charger on 2000 CAT 3412 500 kW generator (S/N BPG00168) with analog amp/volt meters; 24 VDC, 10 A output.

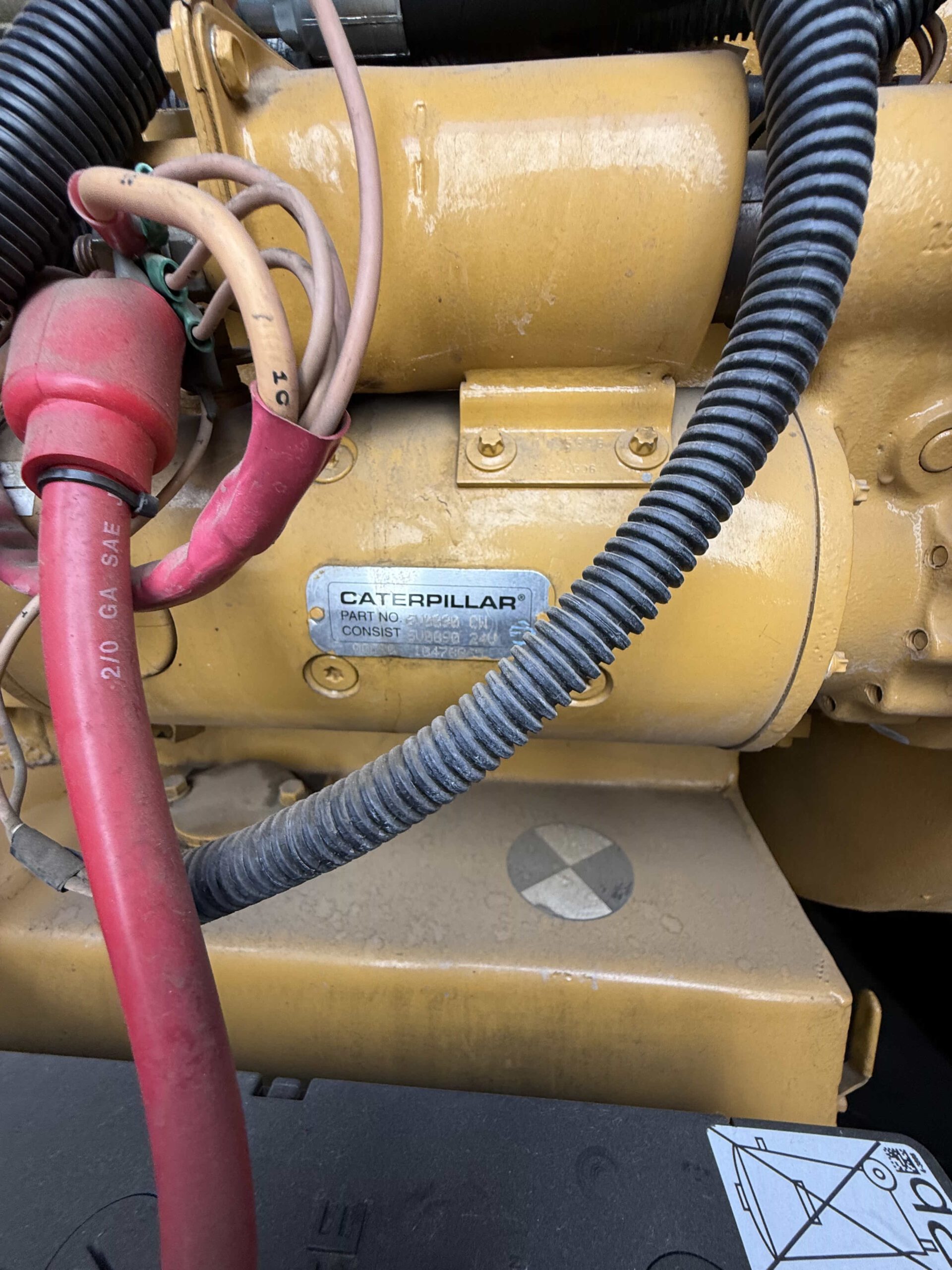

Starter motor assembly with Caterpillar part tag and heavy-gauge battery cables on 2000 CAT 3412 500 kW generator (S/N BPG00168).

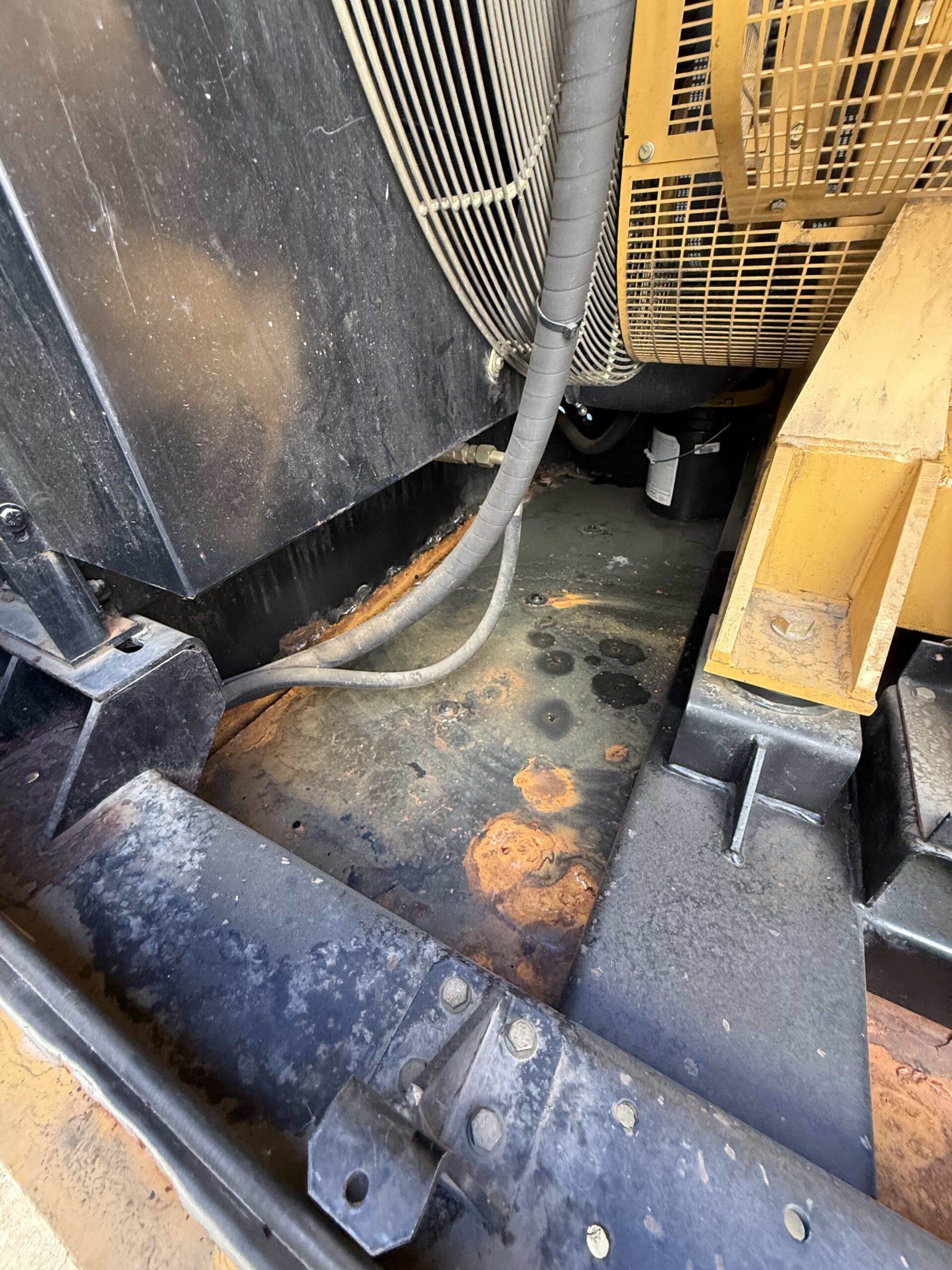

Base pan near radiator on 2000 CAT 3412 500kW generator (S/N BPG00168) showing surface rust/staining inside the enclosure.

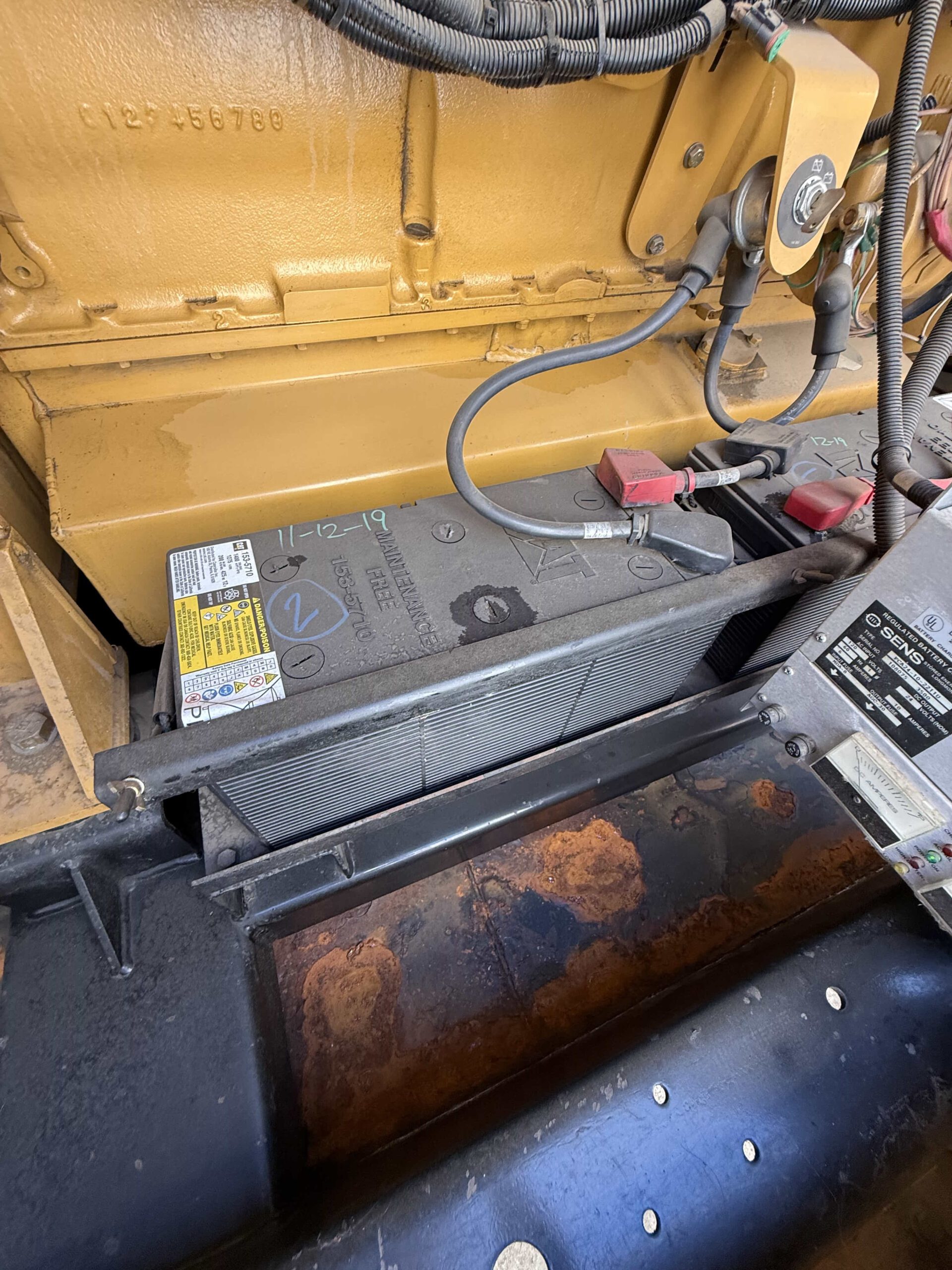

Starting battery bank and tray inside 2000 CAT 3412 500kW generator (S/N BPG00168) with cables; surface rust visible on base pan.

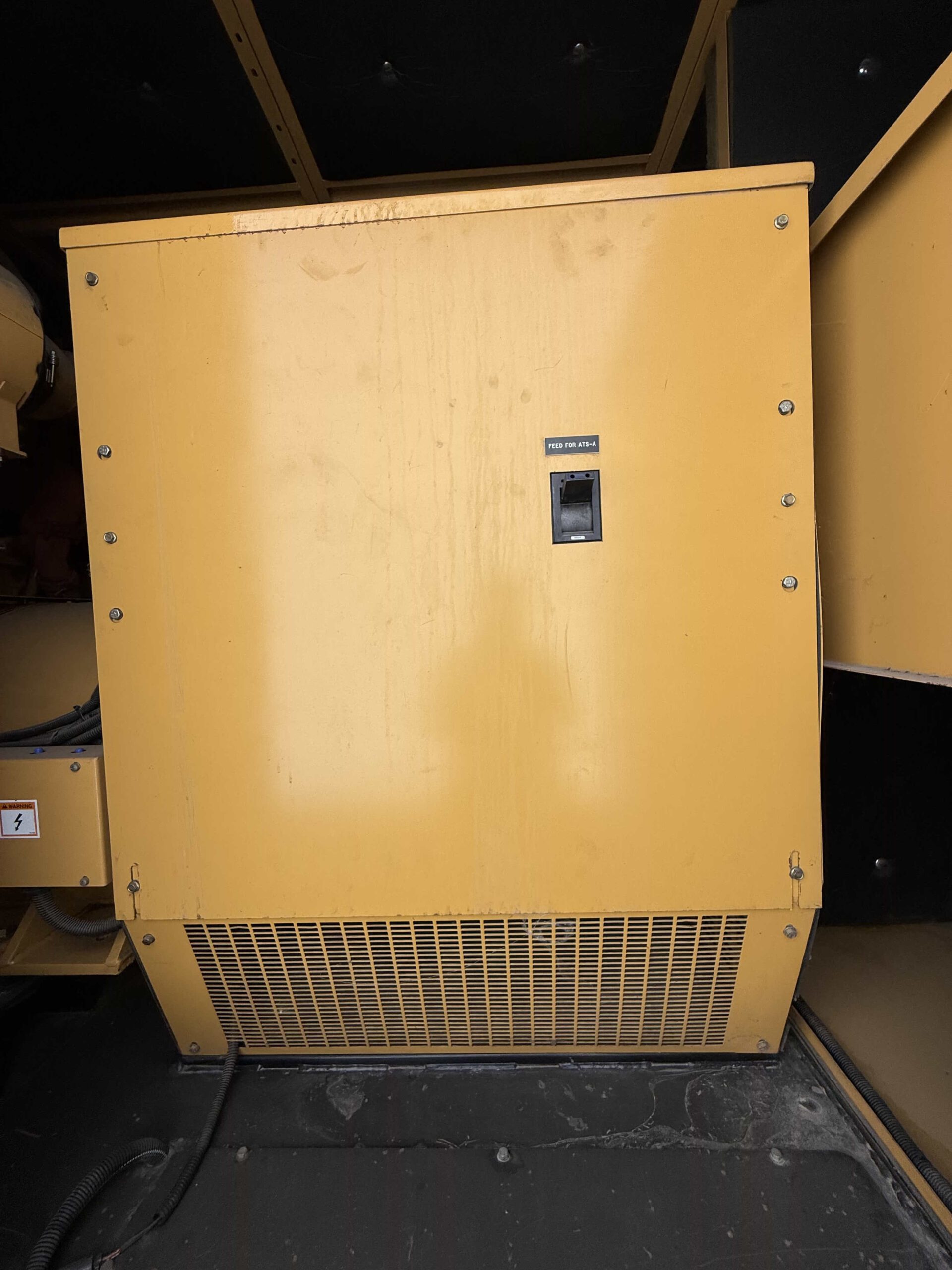

Output breaker cabinet inside 2000 CAT 3412 500kW generator enclosure; handle labeled “FEED FOR ATS-A,” louvered vent at bottom.

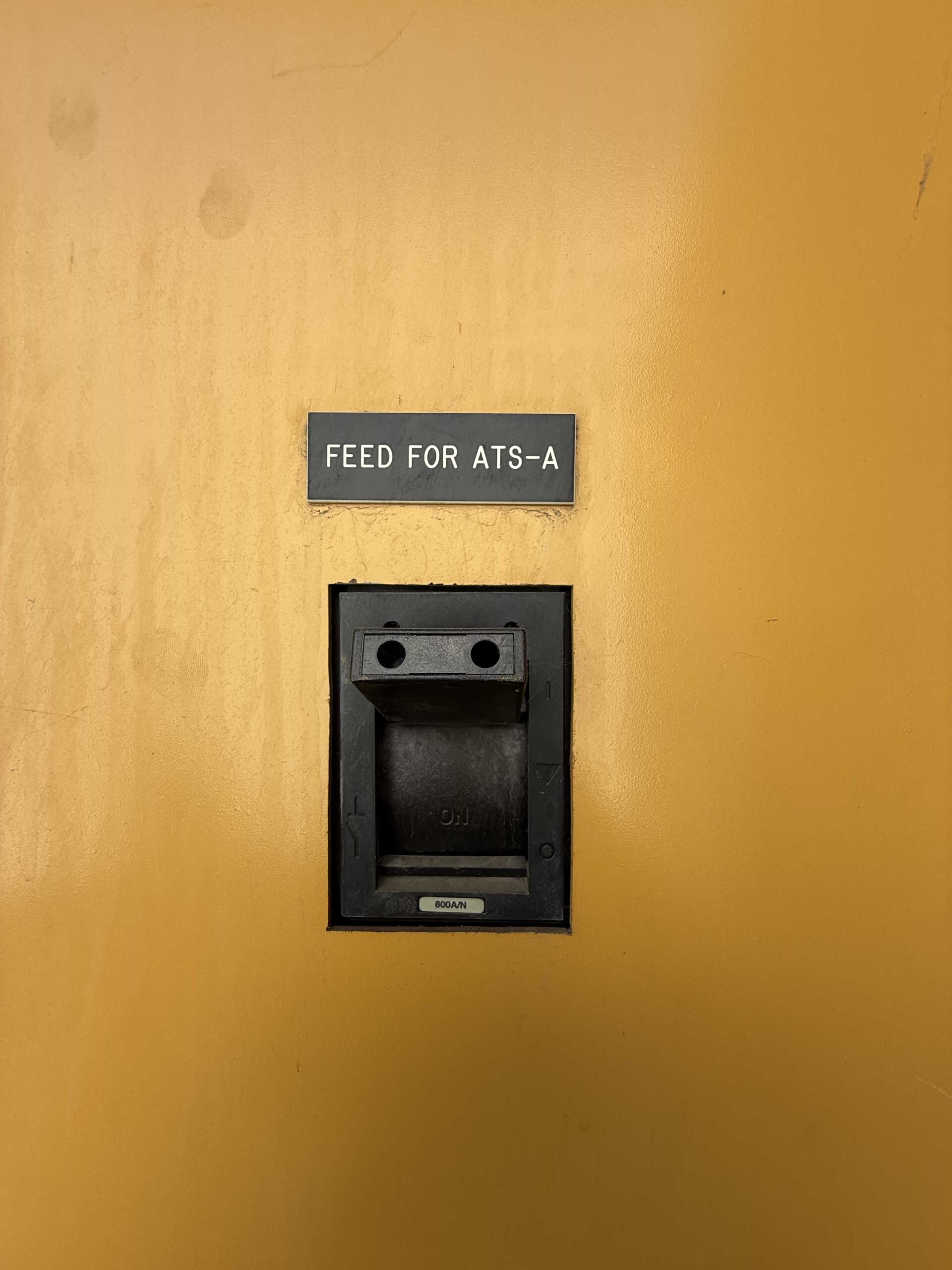

Close-up of output breaker handle labeled “FEED FOR ATS-A” inside 2000 CAT 3412 500 kW generator; small tag shows 800A.
Caterpillar patents/trademarks decal on base of 2000 CAT 3412 500 kW generator (S/N BPG00168).

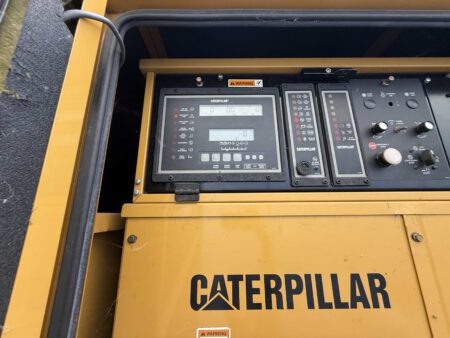

Caterpillar EMCP II control panel with annunciator modules inside 2000 CAT 3412 500 kW generator (S/N BPG00168).

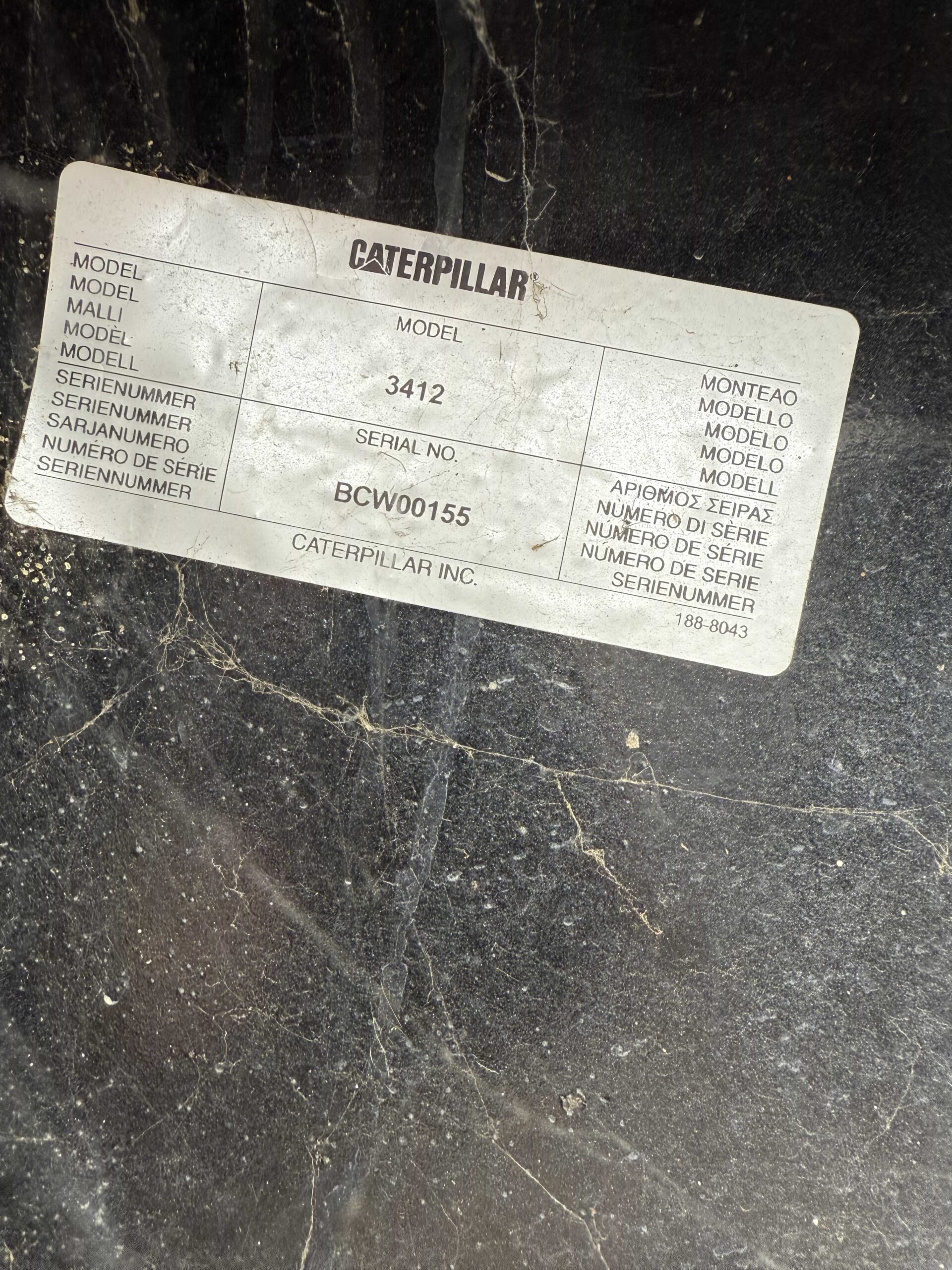

Engine identification plate—Caterpillar 3412, serial BCW00155 (2000 CAT 3412 500 kW genset).

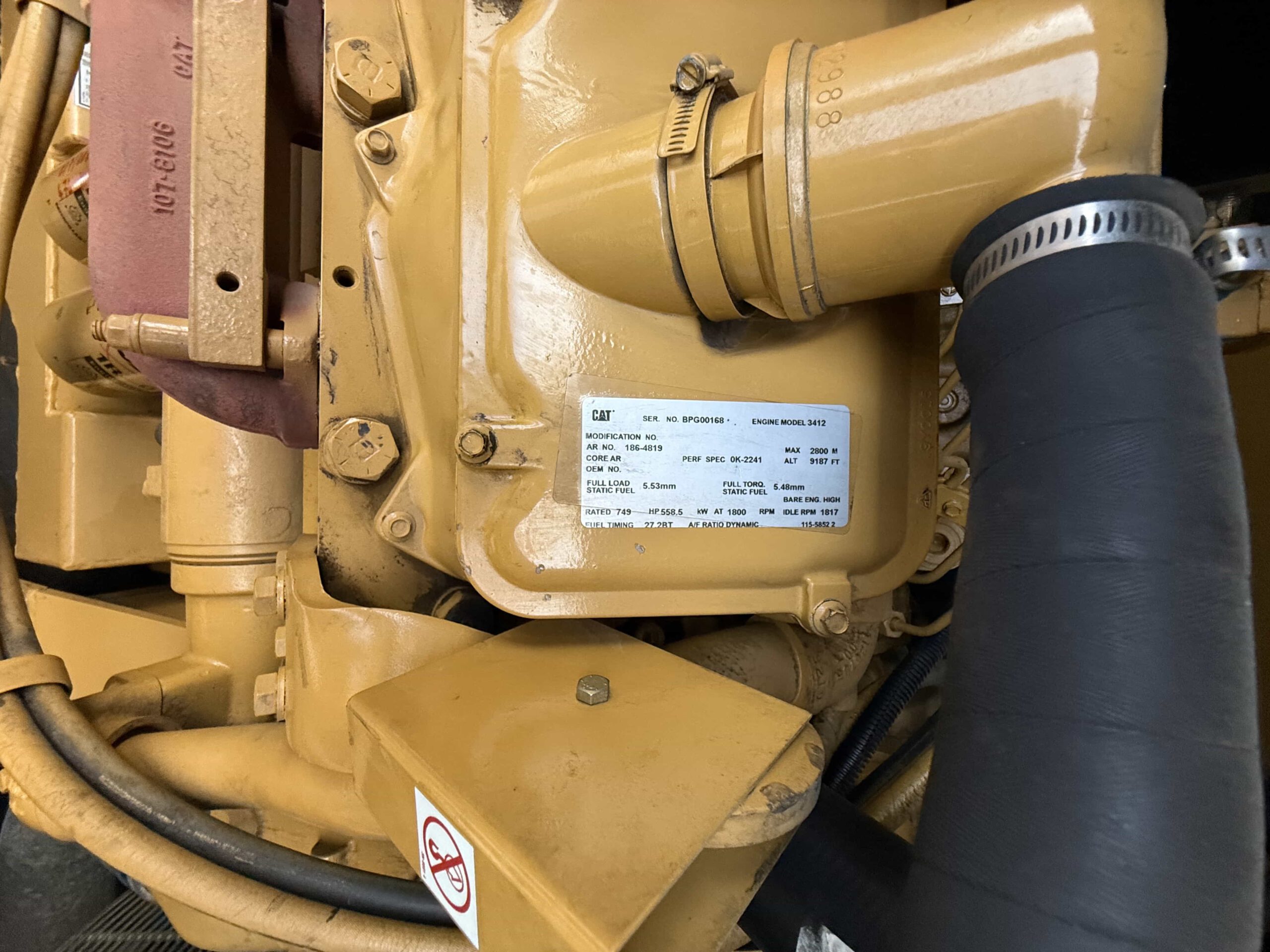

Engine information plate on 2000 CAT 3412 generator showing Model 3412 and genset S/N BPG00168.

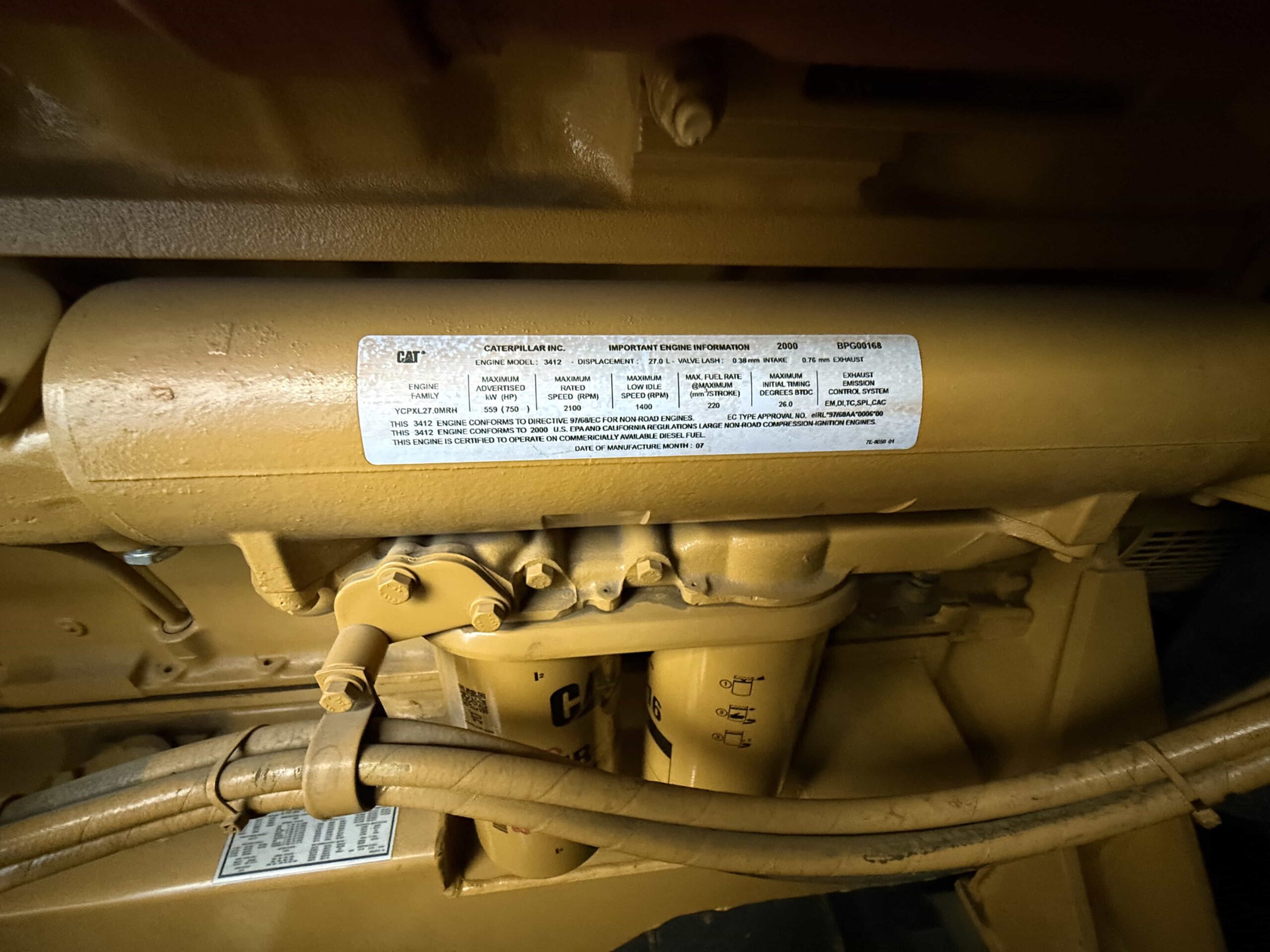

“Important Engine Information” emissions label on 2000 CAT 3412 generator—engine model 3412 tag mounted above the oil filters.

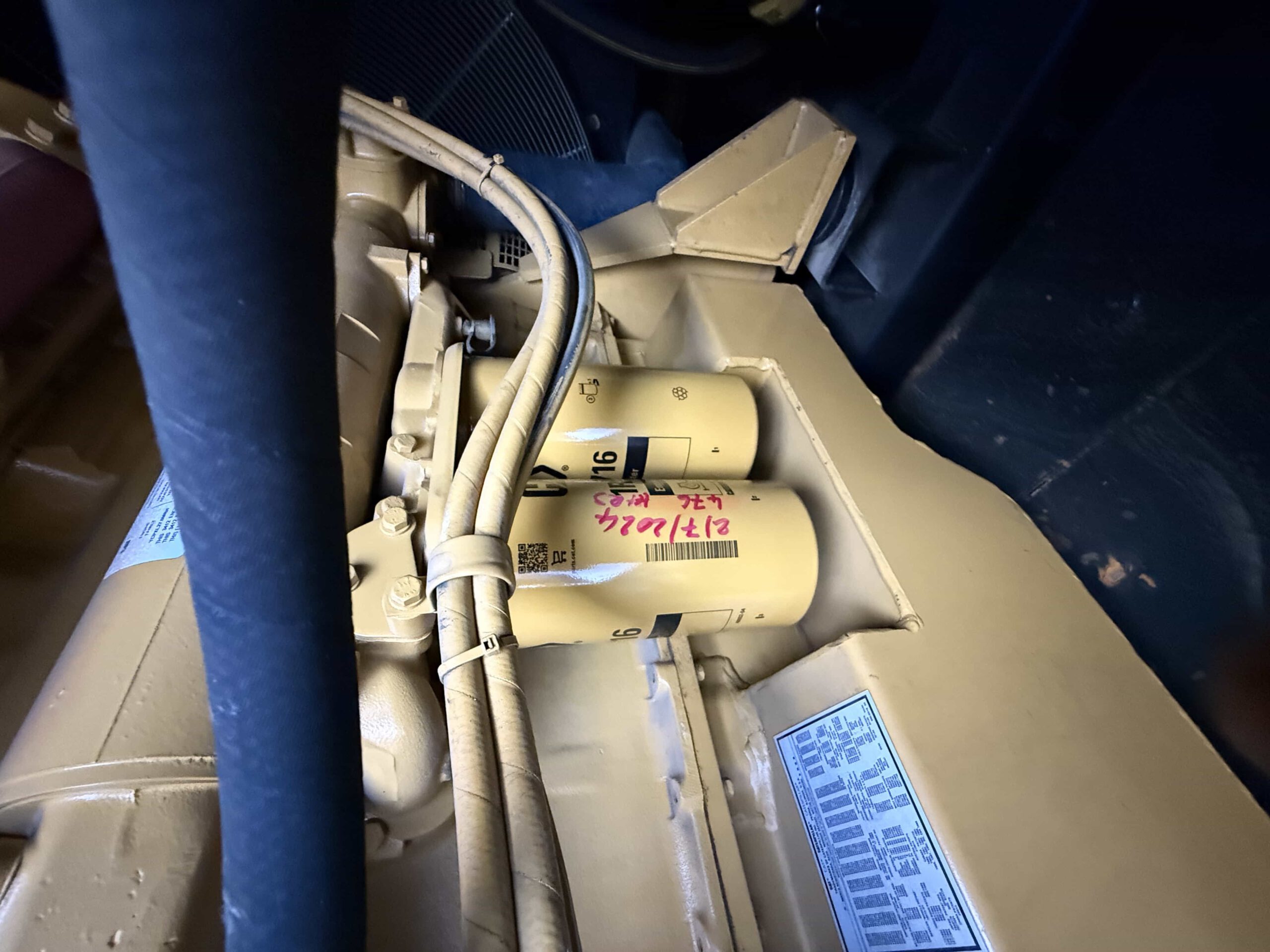

Dual engine oil filters on 2000 CAT 3412 500 kW generator (S/N BPG00168) with handwritten service/date note.
Exterior of 2000 Caterpillar 3412 500 kW generator—sound-attenuated enclosure with louvered end and conduit runs (S/N BPG00168).
Fuel filter with clear water-separator bowl on 2000 CAT 3412 500 kW generator (S/N BPG00168); handwritten service/date note visible.
Generator nameplate on 2000 CAT 3412 set showing 500 kW / 625 kVA, 480/277 V, 60 Hz, 3-phase 12-wire, 752 A, Class H, year 2000.
Engine compartment with both access bays open on 2000 CAT 3412 500 kW generator showing air intake canister, dual filters, engine, and large cooling fan (S/N BPG00168).
Dual CAT 1R-0749 fuel filters with hand priming pump on 2000 CAT 3412 500 kW generator (S/N BPG00168); service date marked on cans.
Right-side bay open on 2000 CAT 3412 500 kW generator (S/N BPG00168) showing 3412 engine, cooling fan, battery bank with charger, and air-intake canister/ducting.
SENS regulated battery charger on 2000 CAT 3412 500 kW generator (S/N BPG00168) with analog amp/volt meters; 24 VDC, 10 A output.
Starter motor assembly with Caterpillar part tag and heavy-gauge battery cables on 2000 CAT 3412 500 kW generator (S/N BPG00168).
Base pan near radiator on 2000 CAT 3412 500kW generator (S/N BPG00168) showing surface rust/staining inside the enclosure.
Starting battery bank and tray inside 2000 CAT 3412 500kW generator (S/N BPG00168) with cables; surface rust visible on base pan.
Output breaker cabinet inside 2000 CAT 3412 500kW generator enclosure; handle labeled “FEED FOR ATS-A,” louvered vent at bottom.
Close-up of output breaker handle labeled “FEED FOR ATS-A” inside 2000 CAT 3412 500 kW generator; small tag shows 800A.
Caterpillar patents/trademarks decal on base of 2000 CAT 3412 500 kW generator (S/N BPG00168).
Caterpillar EMCP II control panel with annunciator modules inside 2000 CAT 3412 500 kW generator (S/N BPG00168).
Engine identification plate—Caterpillar 3412, serial BCW00155 (2000 CAT 3412 500 kW genset).
Engine information plate on 2000 CAT 3412 generator showing Model 3412 and genset S/N BPG00168.
“Important Engine Information” emissions label on 2000 CAT 3412 generator—engine model 3412 tag mounted above the oil filters.
Dual engine oil filters on 2000 CAT 3412 500 kW generator (S/N BPG00168) with handwritten service/date note.

Price

$59,000.00

Inquire Now

Product Details

Year 2000
Manufacturer Caterpillar
Generator Model 3412
Serial Number BPG00168
kW 500 Standby / 455 Prime
kVA 625 Standby
Voltage 480/277 V
Amperage 752 A
Frequency 60 Hz
RPM 1800
Hours 476
Phase Type 3-Phase
(12-wire, re-connectable)
Power Rating Standby / Prime
Generator Insulation Class Class H
Fuel Tank Capacity 600 Gallons
(Sub-base)
Control Panel EMCP II
Engine Manufacturer Caterpillar
Engine Model 3412C
Engine S/N BCW00155
Emissions Tier EPA Tier 1
Dimensions (L x W x H) –
Weight (lbs.) –
Stock Number MEG1153
Additional Features:

  • Sound-attenuated enclosure
  • 800A output breaker (“Feed for ATS-A”)
  • SENS 24 V / 10 A battery charger with analog meters
  • Dual CAT 1R-0749 fuel filters with hand-priming pump
  • Fuel filter/water separator (clear bowl)
  • Dual engine oil filters with recent service markings
  • Canister air cleaners
  • Jacket water heater
  • Starting battery bank
  • 12-wire re-connectable alternator.
