1999 CAT 3412 750kW Diesel Generator Set

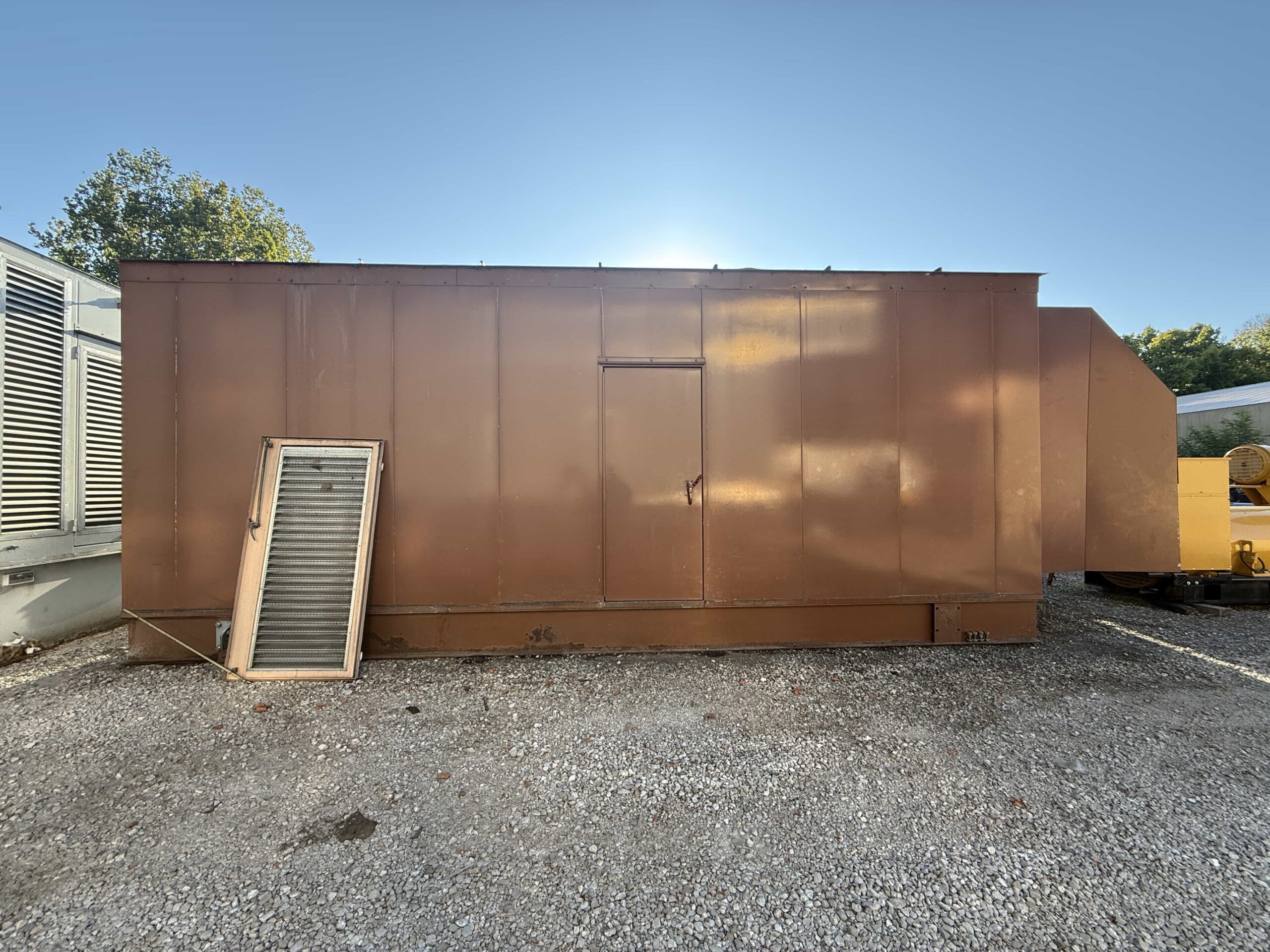

Full front view of Caterpillar generator enclosure in brown finish

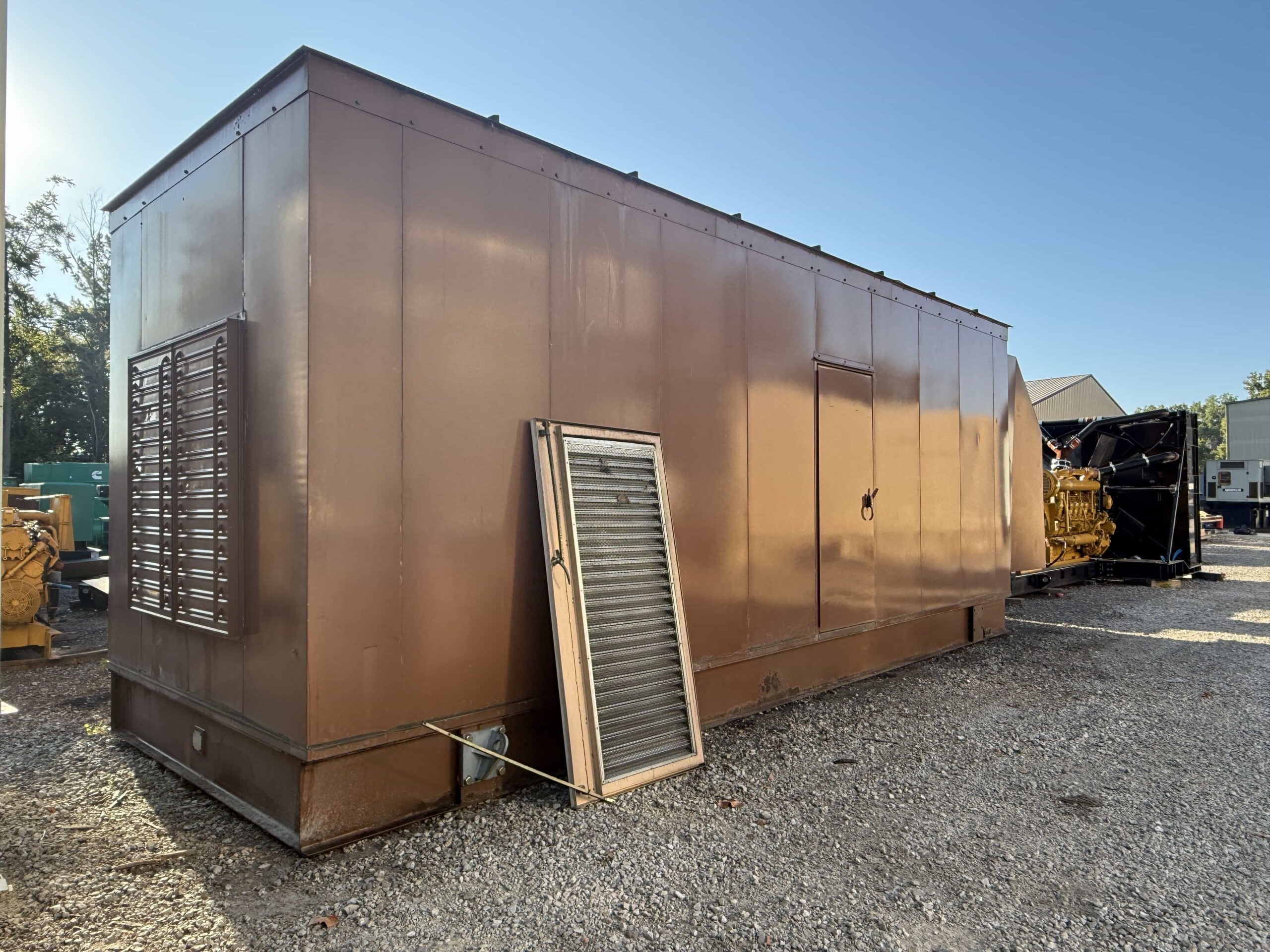

Front-left angle view of Caterpillar generator enclosure with louvers

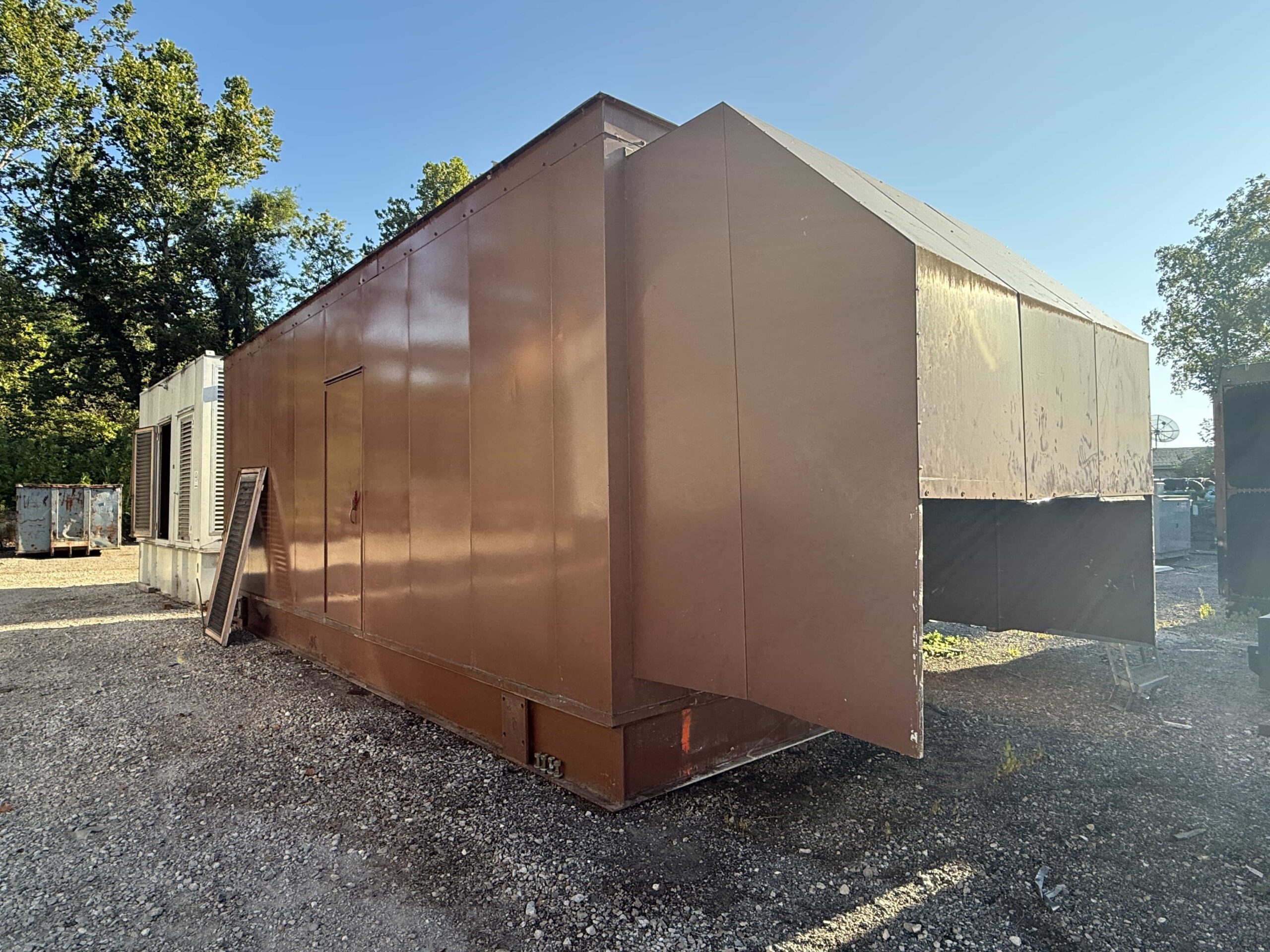

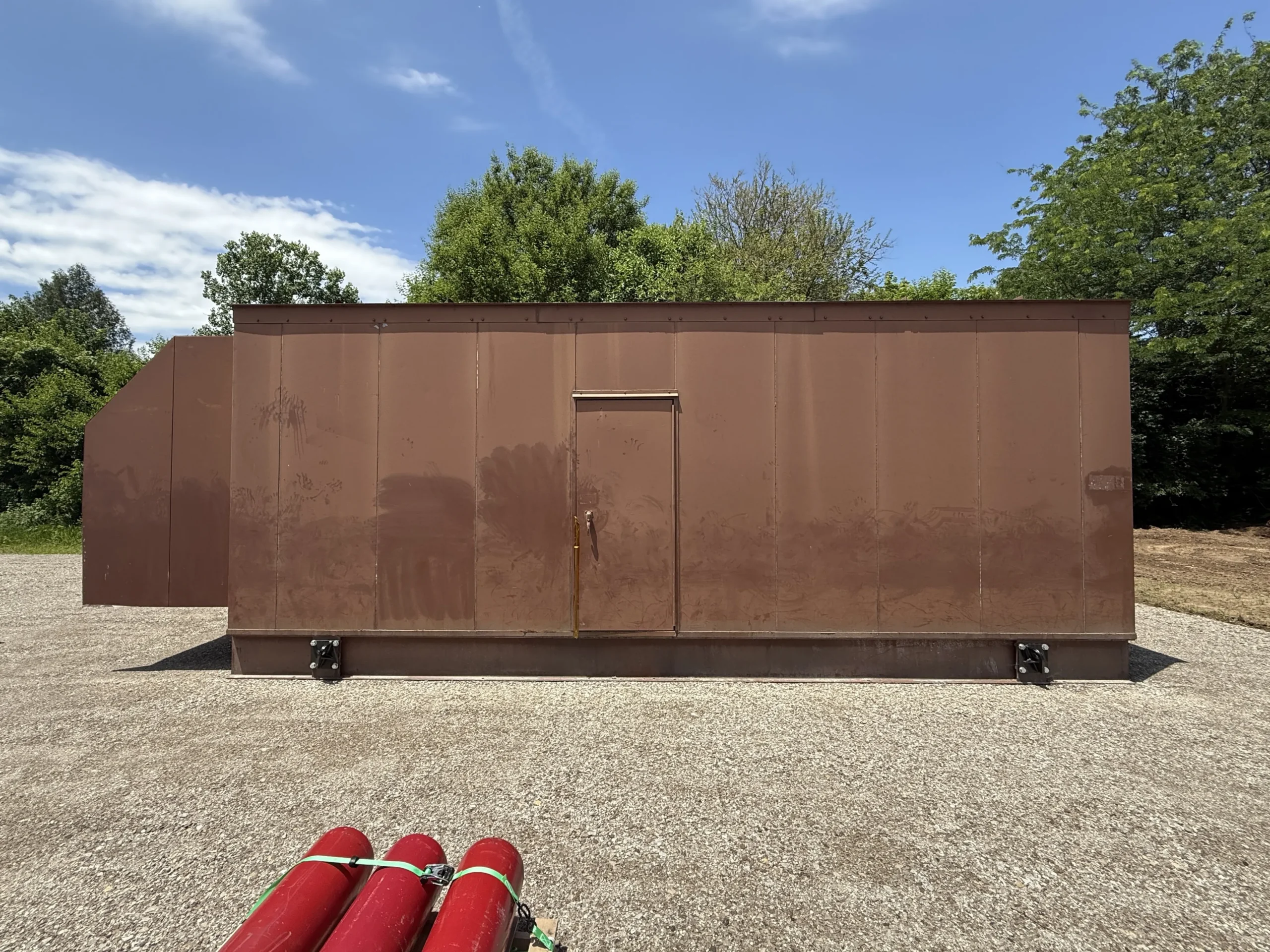

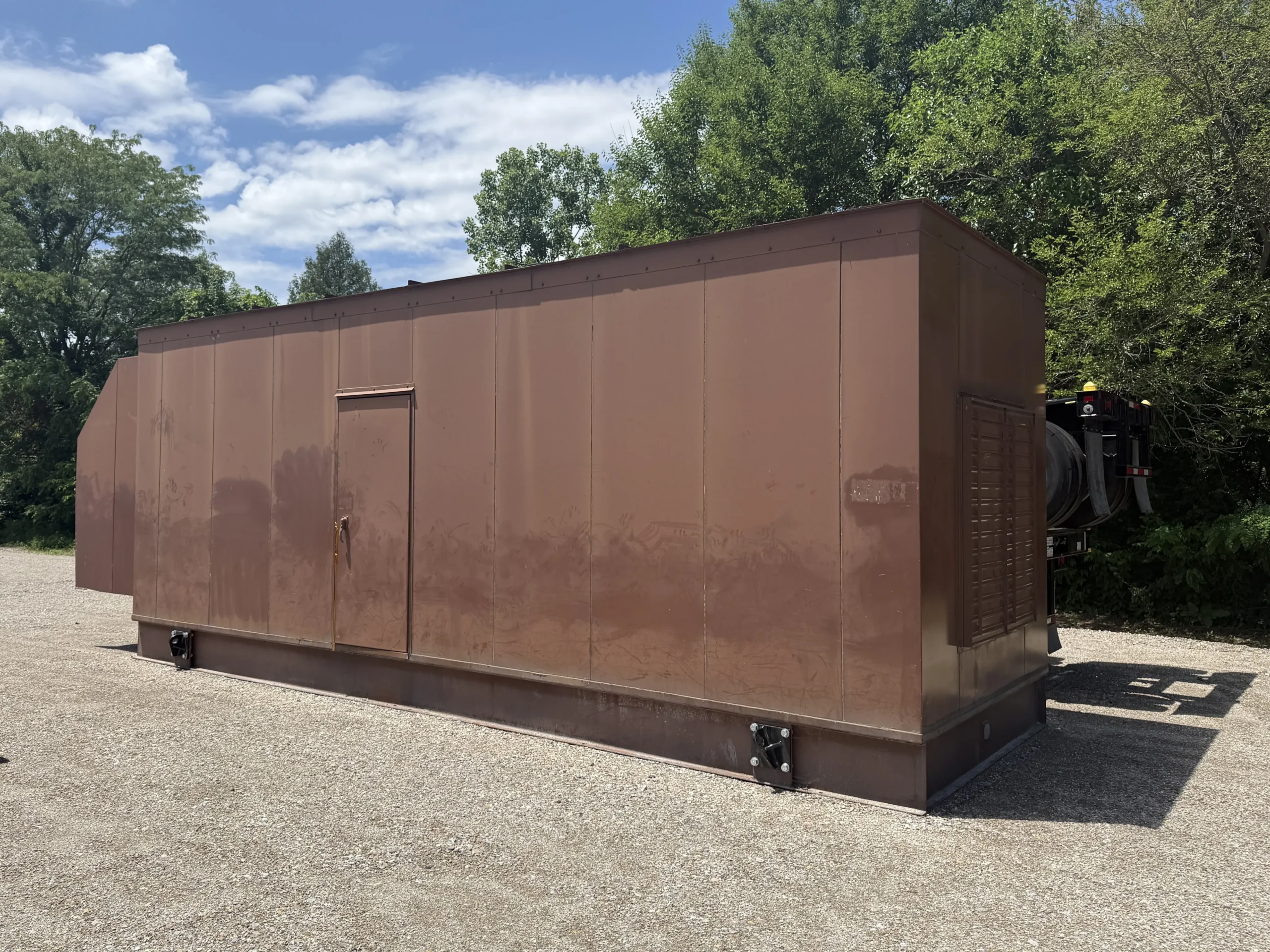

Front-right side view of Caterpillar generator enclosure outdoors

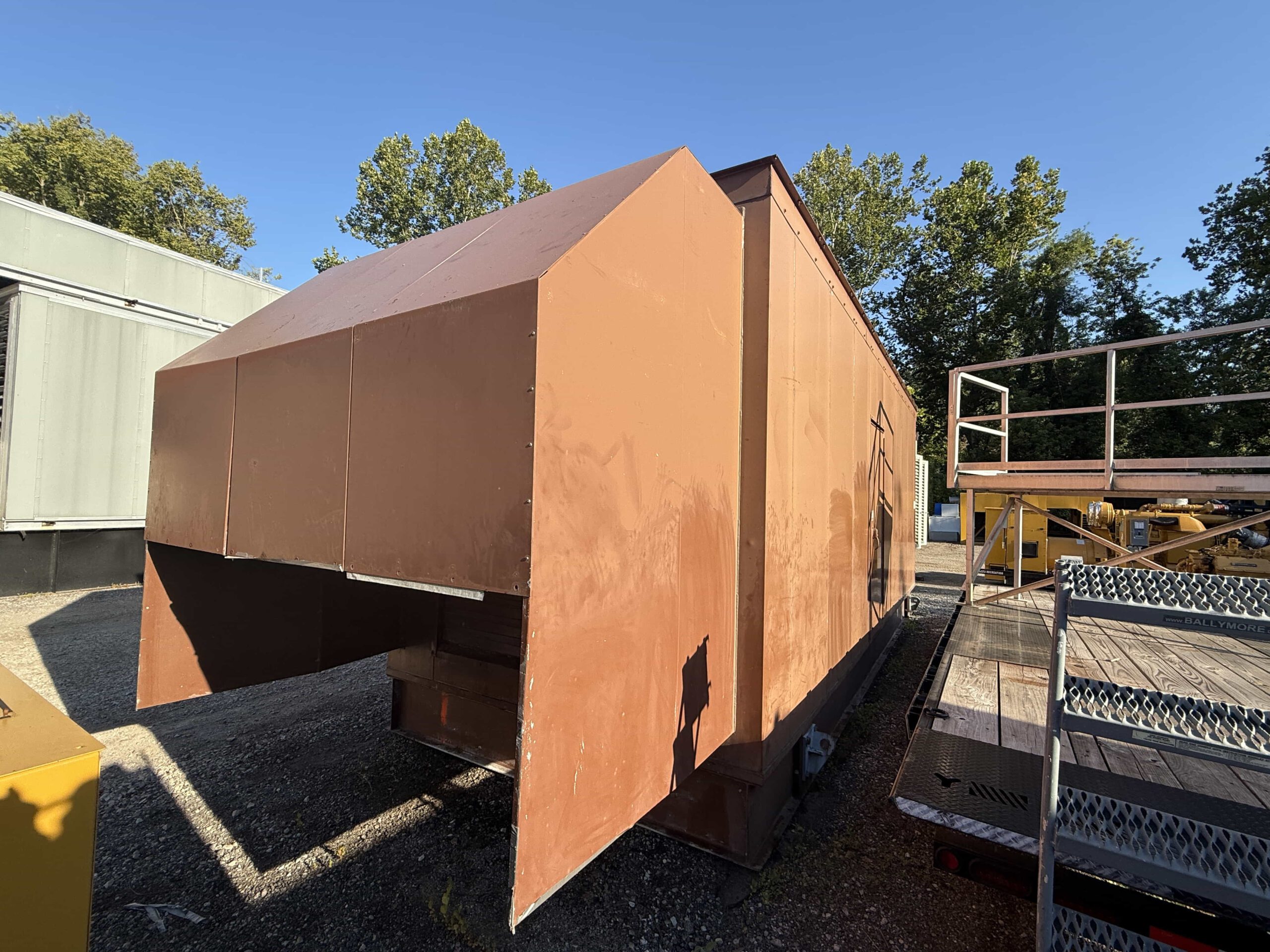

Rear-right side of Caterpillar generator enclosure with service access doors

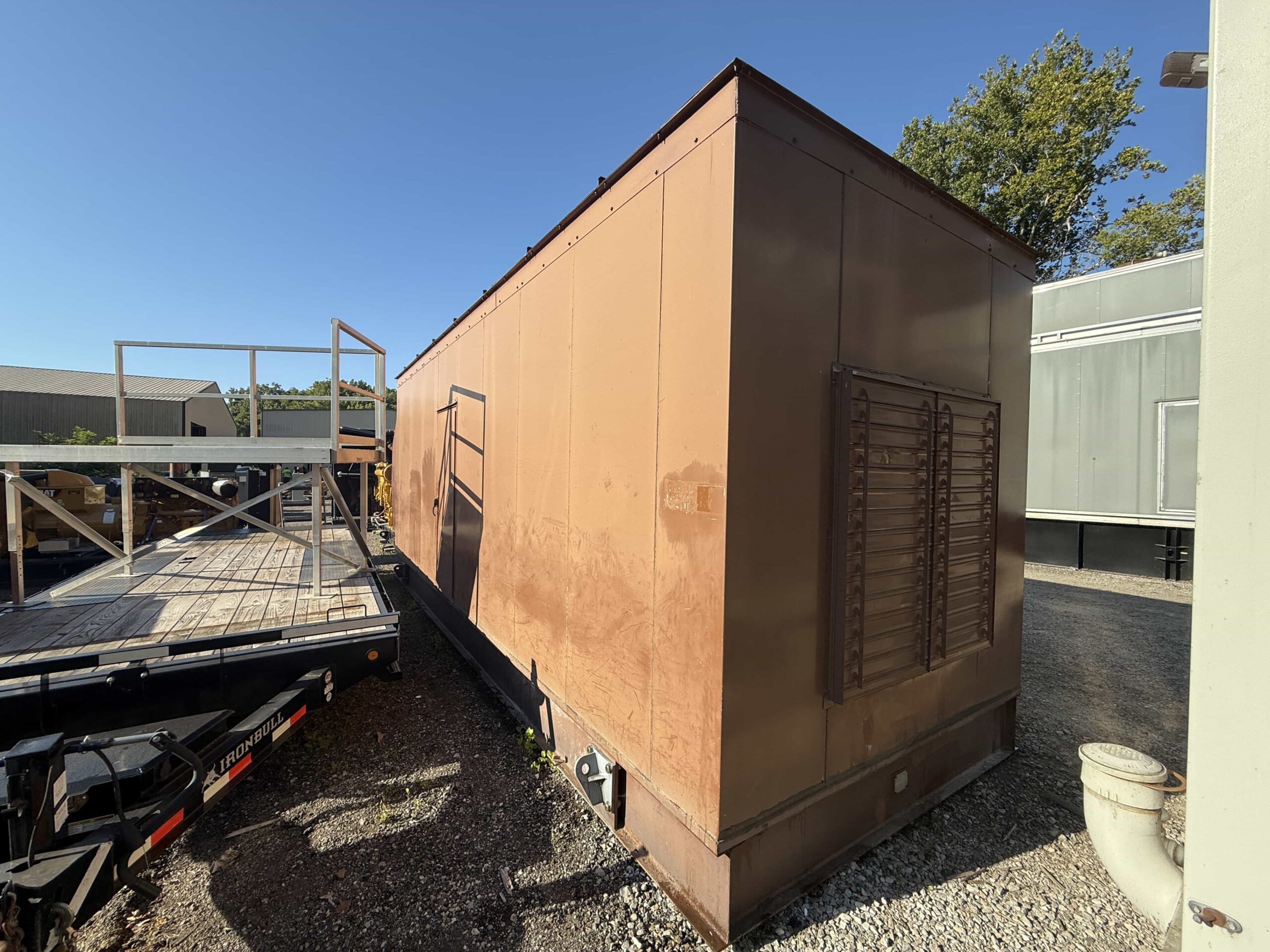

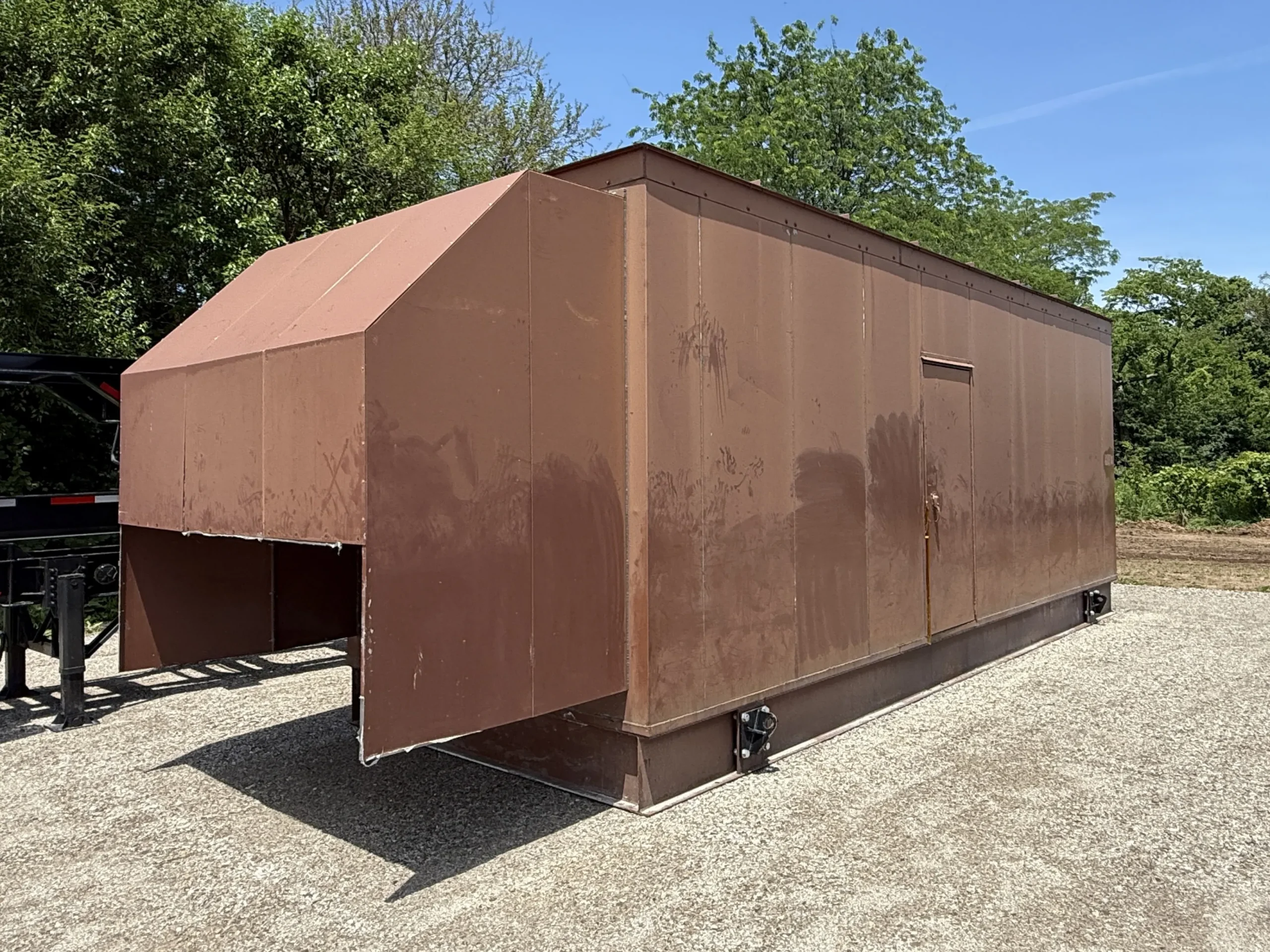

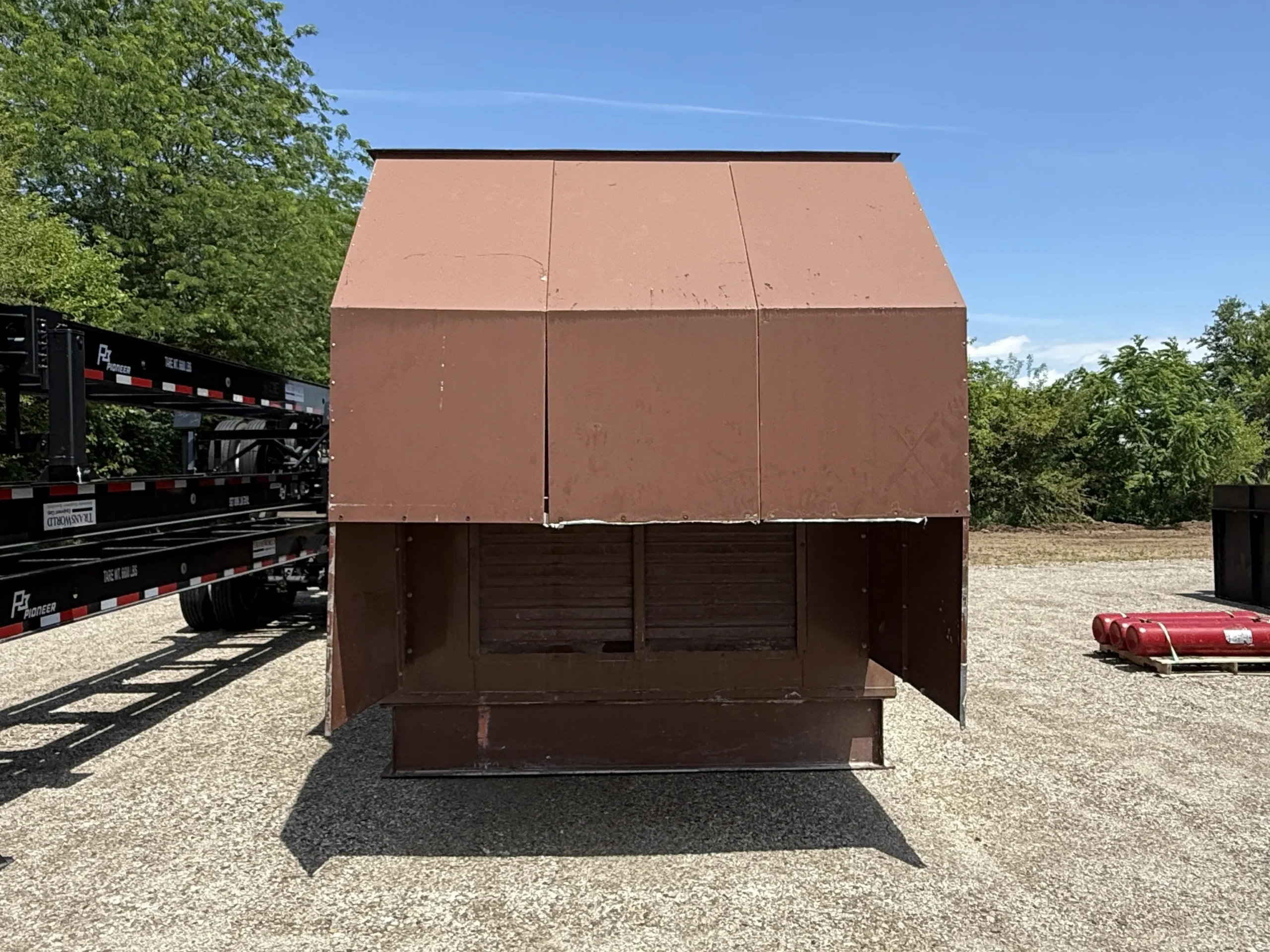

Rear-left corner of Caterpillar generator enclosure with radiator discharge opening

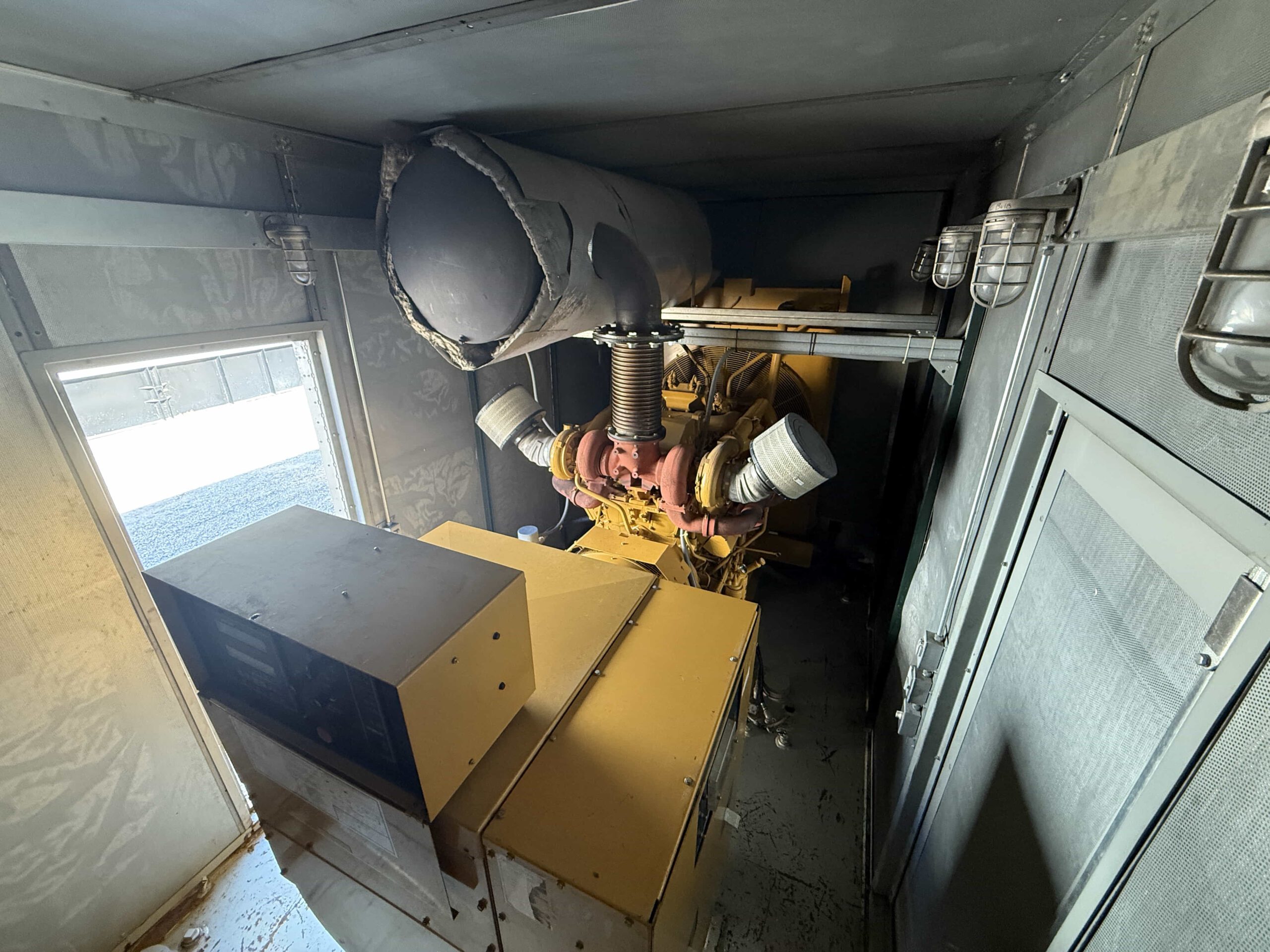

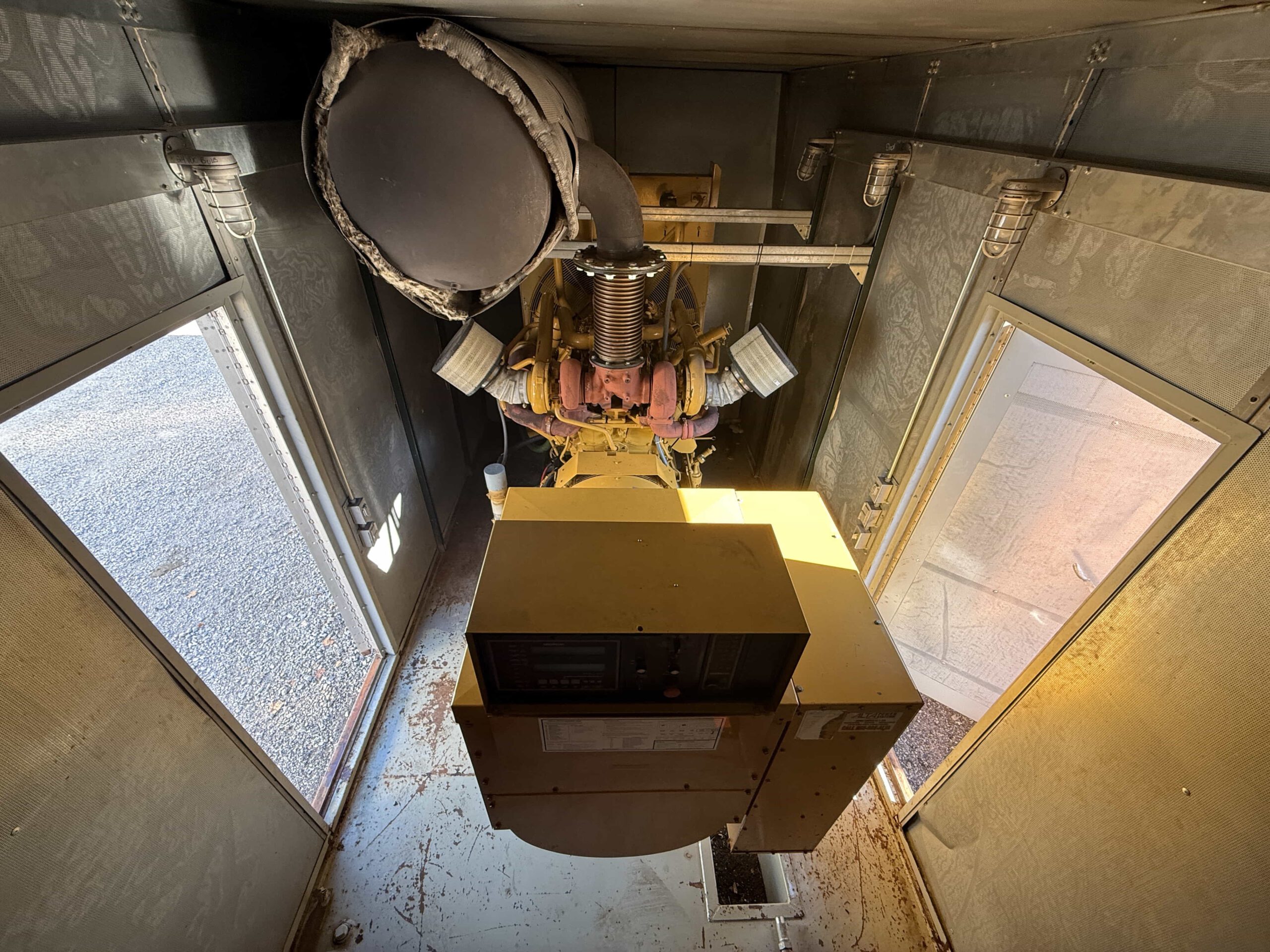

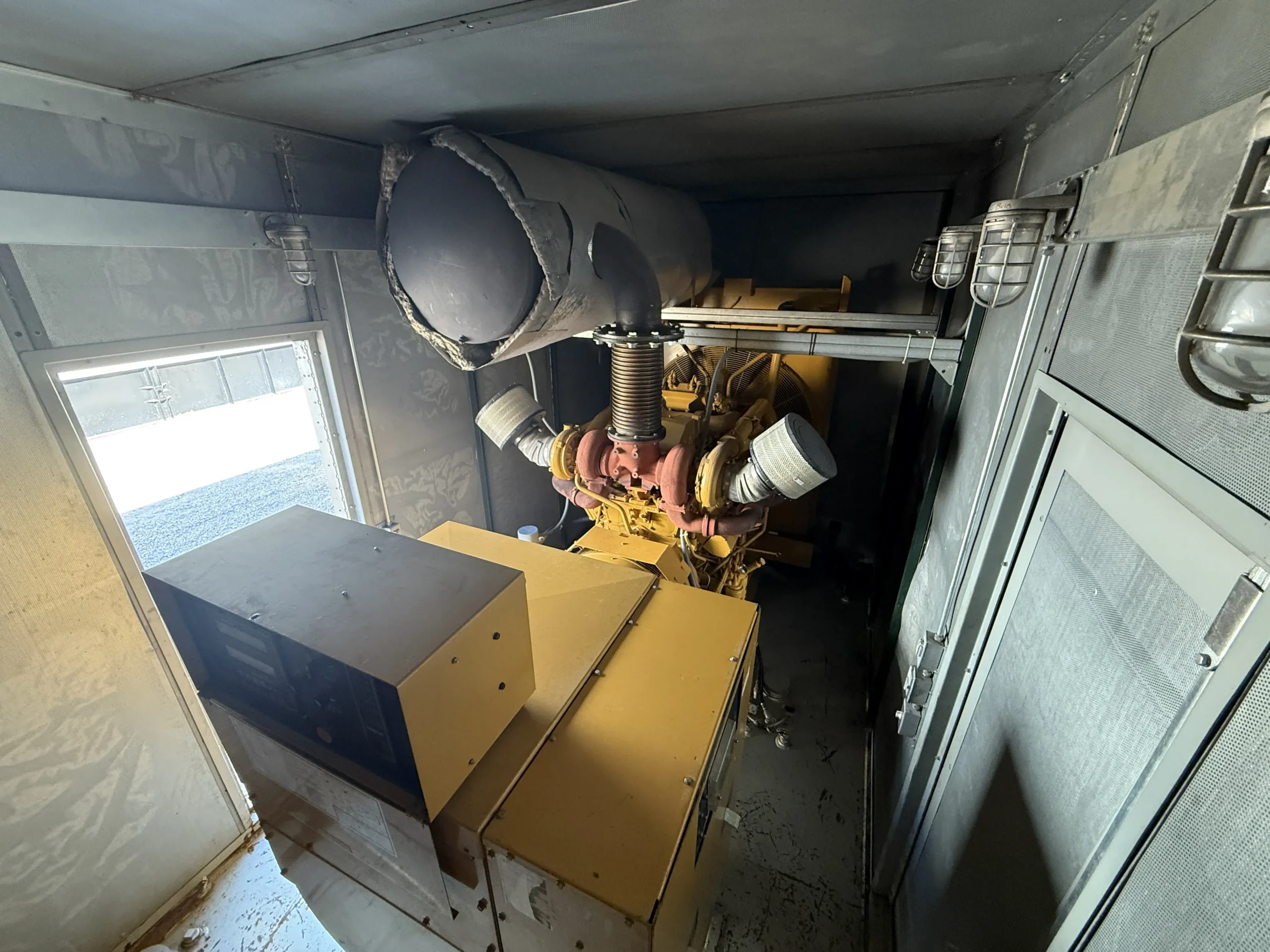

Inside Caterpillar generator enclosure showing engine and exhaust silencer

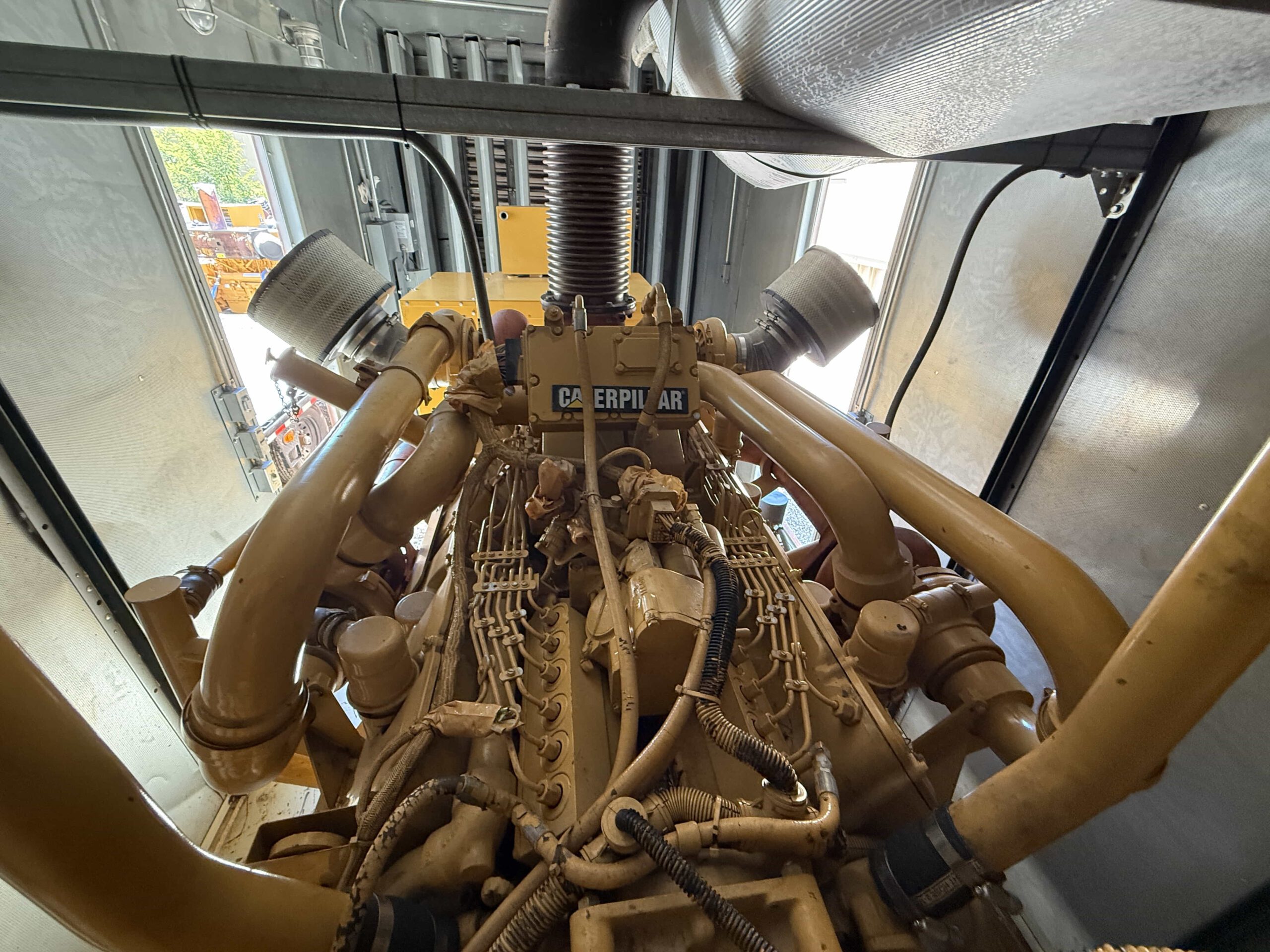

Top view of Caterpillar 3412 V-12 engine with twin turbochargers and air cleaners

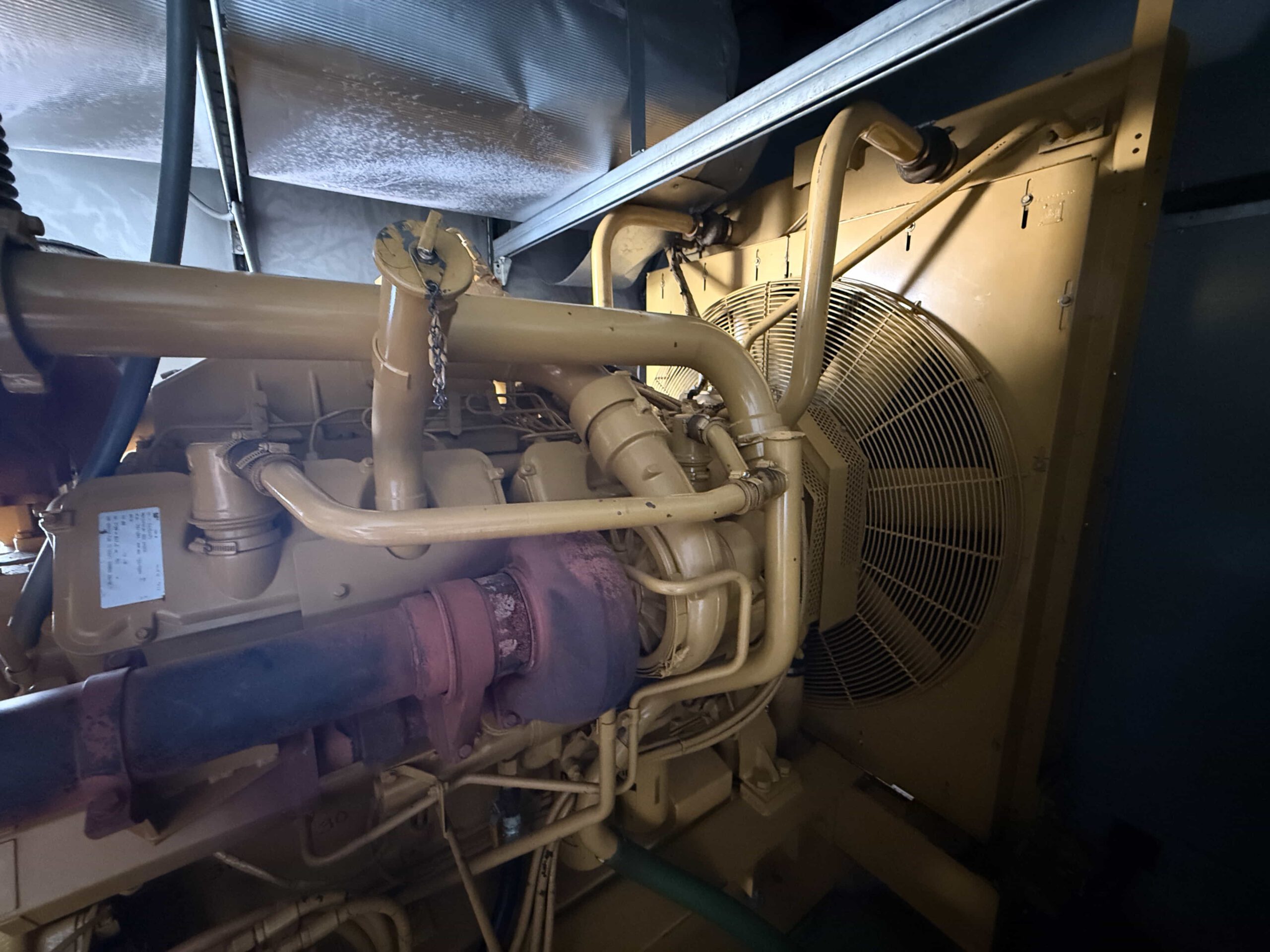

Side view of radiator and cooling fan assembly

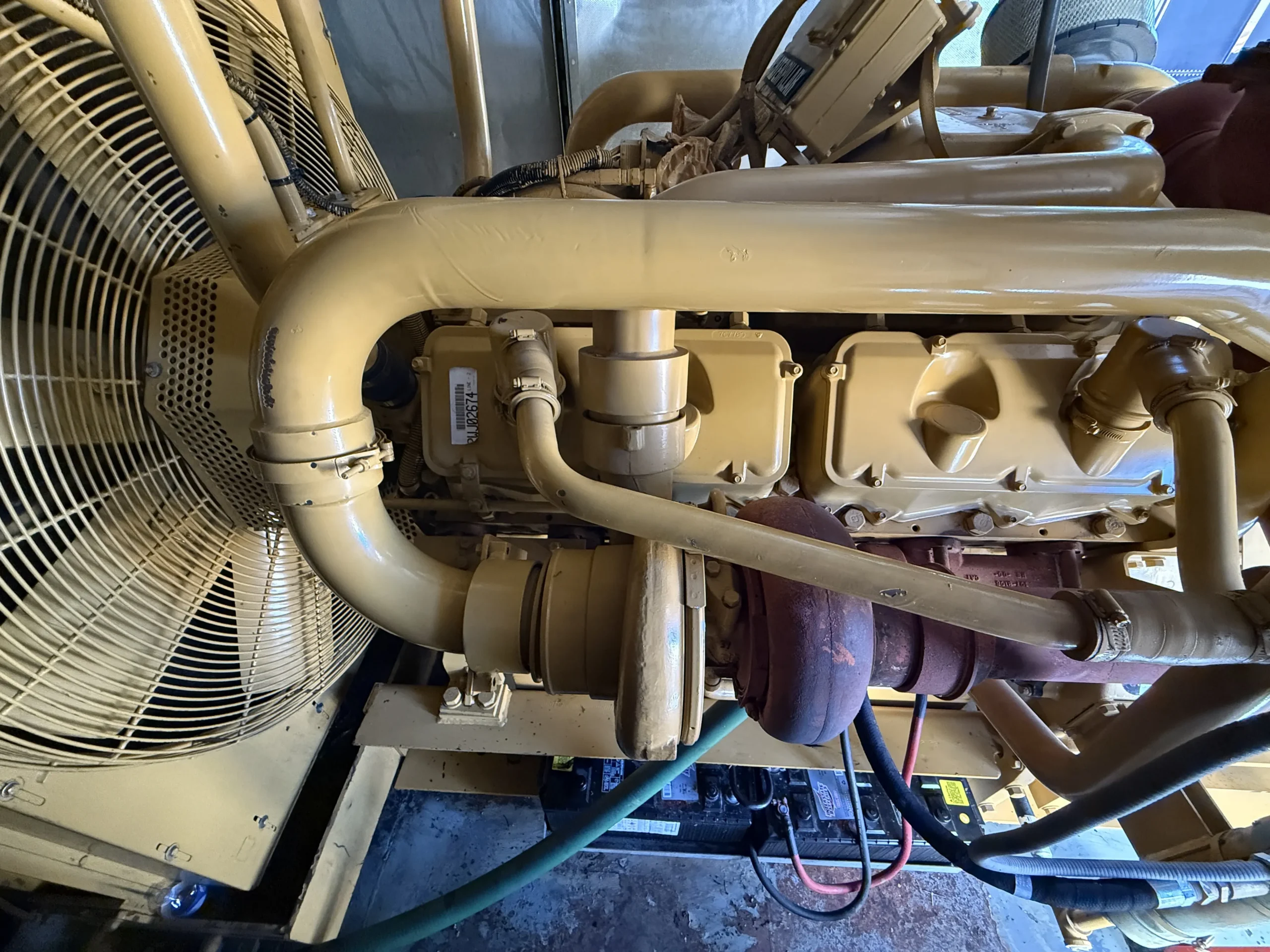

Turbocharger side of Caterpillar engine with radiator visible

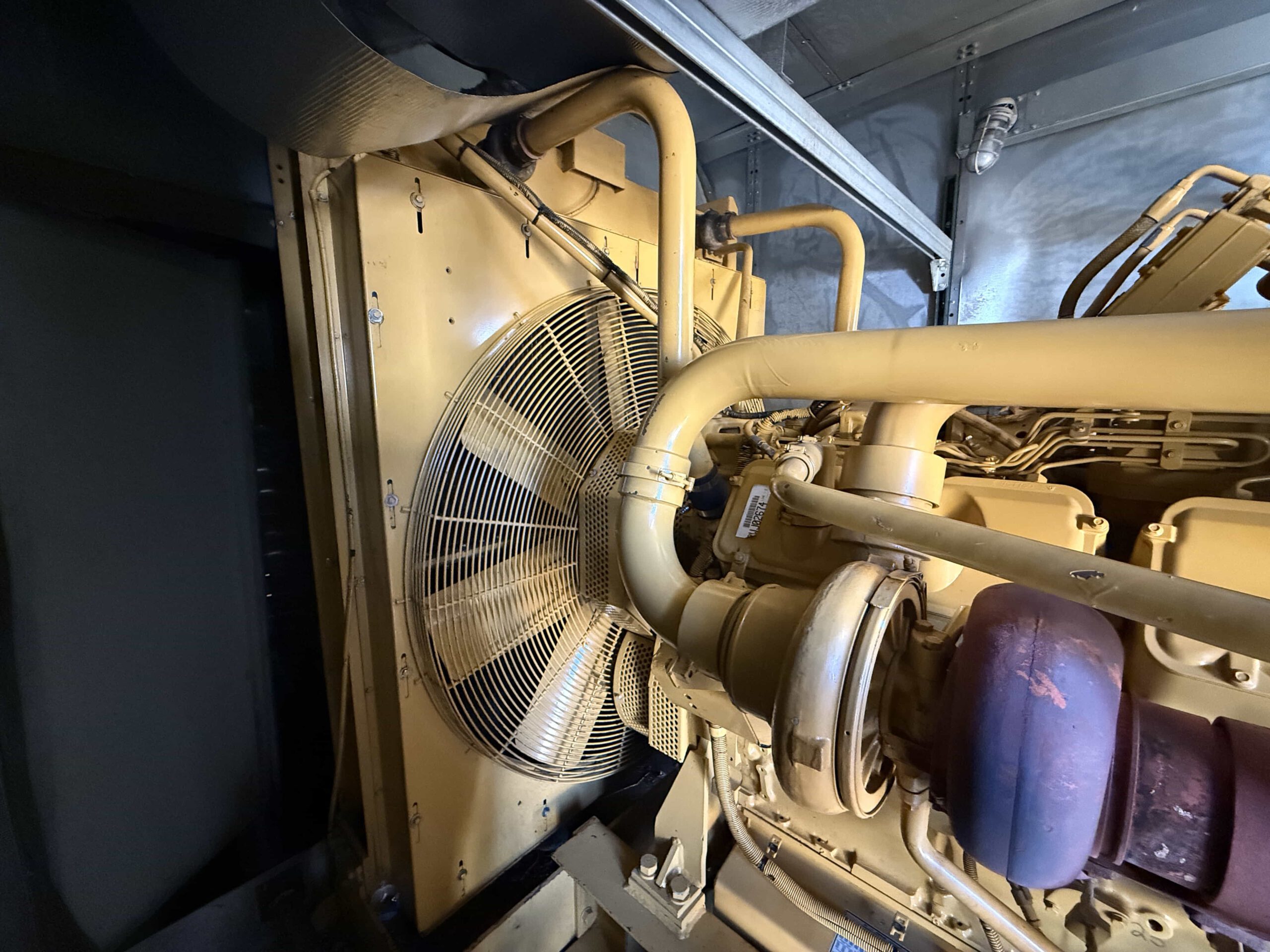

Radiator and cooling fan for Caterpillar 3412 generator

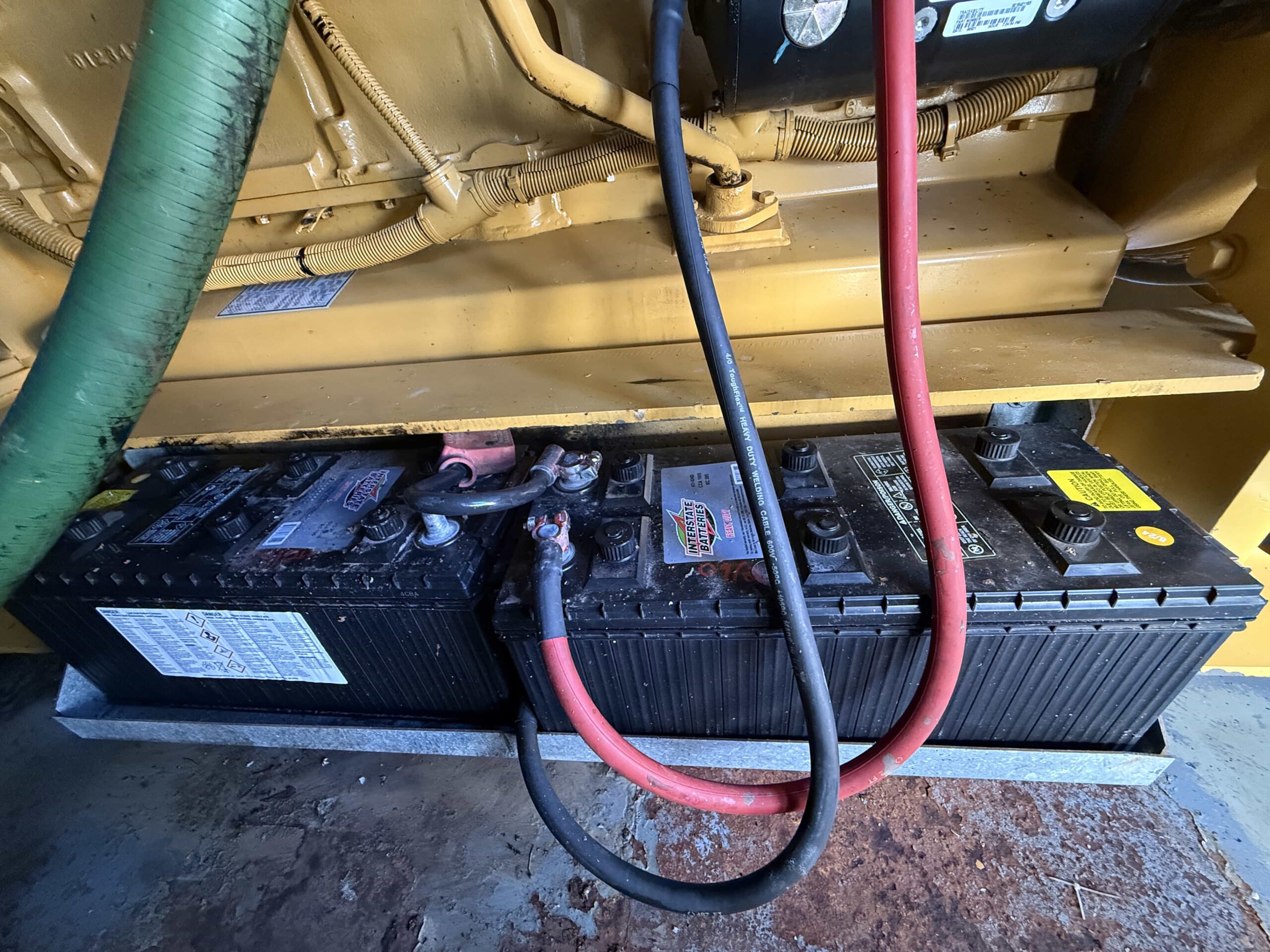

Heavy-duty starting batteries with cabling for generator set

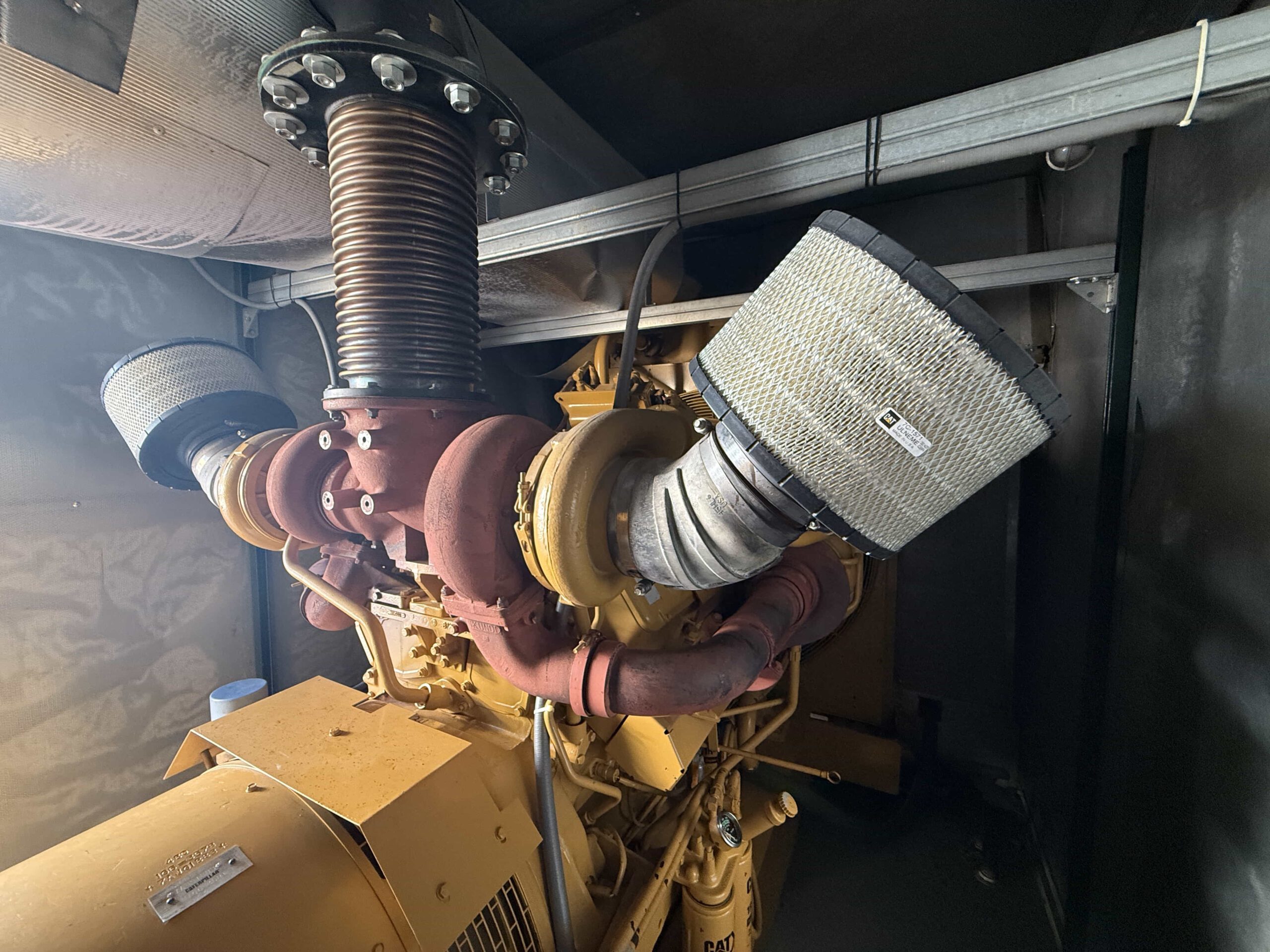

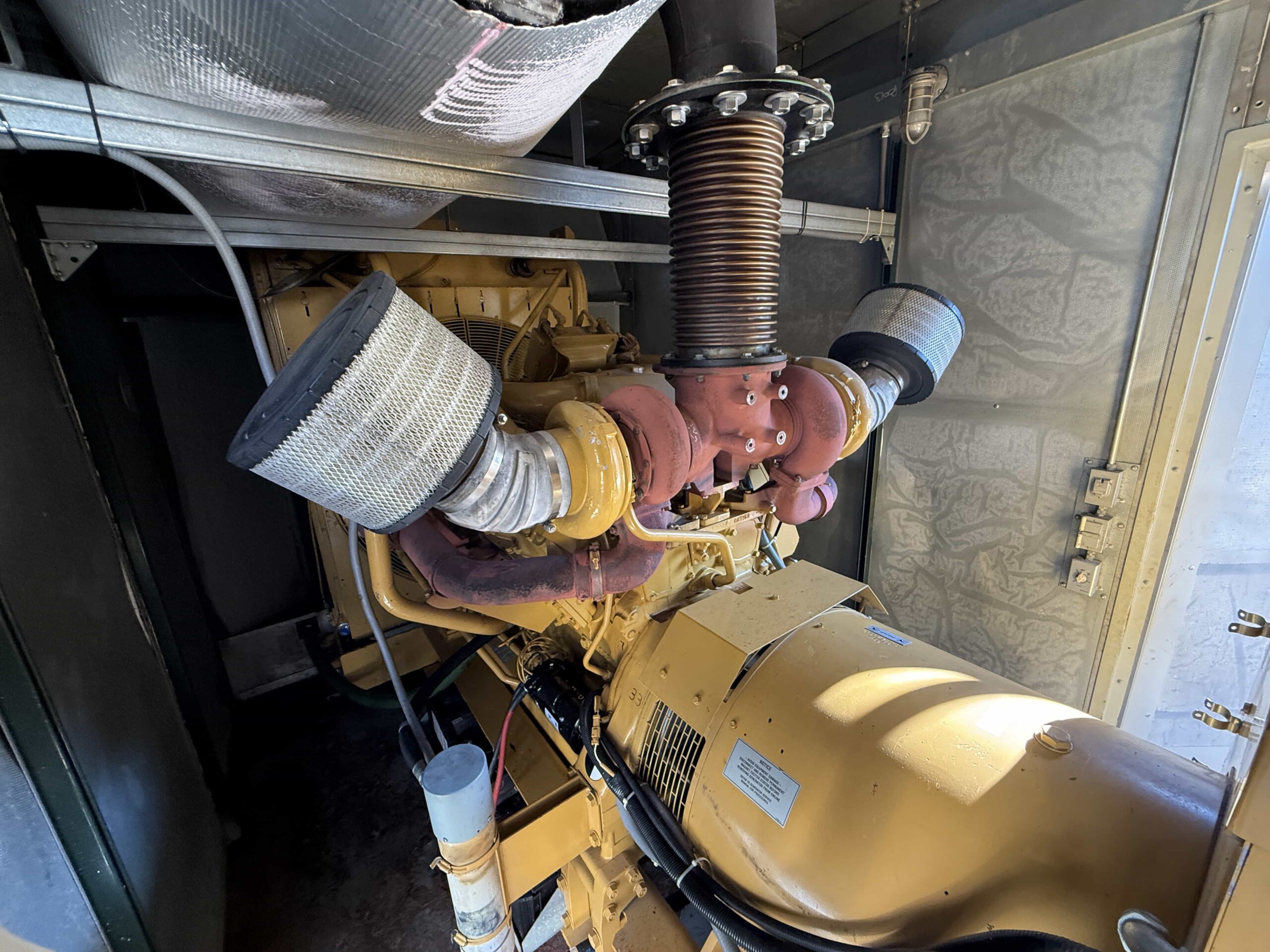

Twin turbochargers and air intake filters on Caterpillar 3412
Overhead view of Caterpillar 3412 twin turbochargers and intake filters

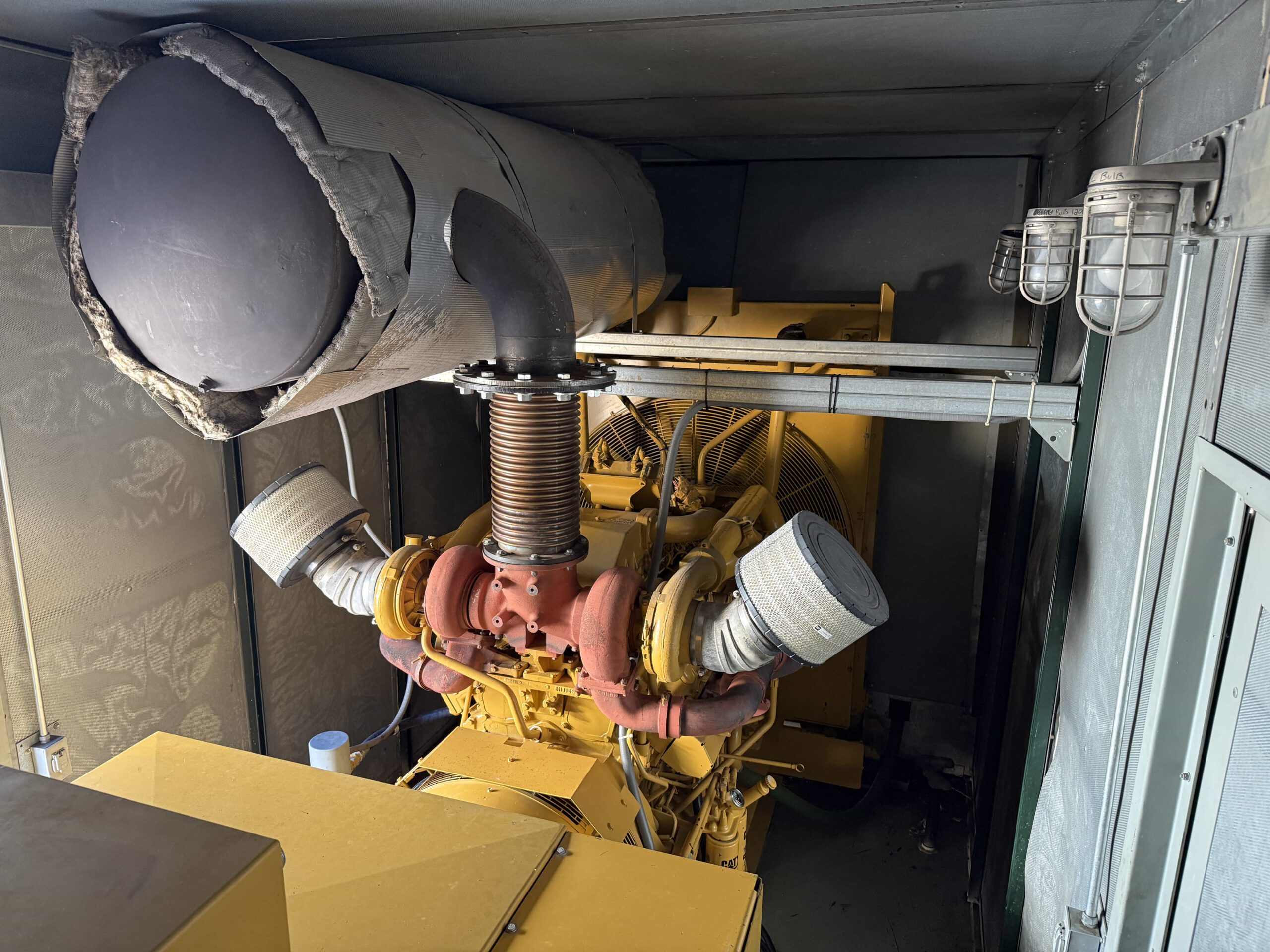

Dual turbochargers and insulated exhaust silencer on Caterpillar 3412 engine

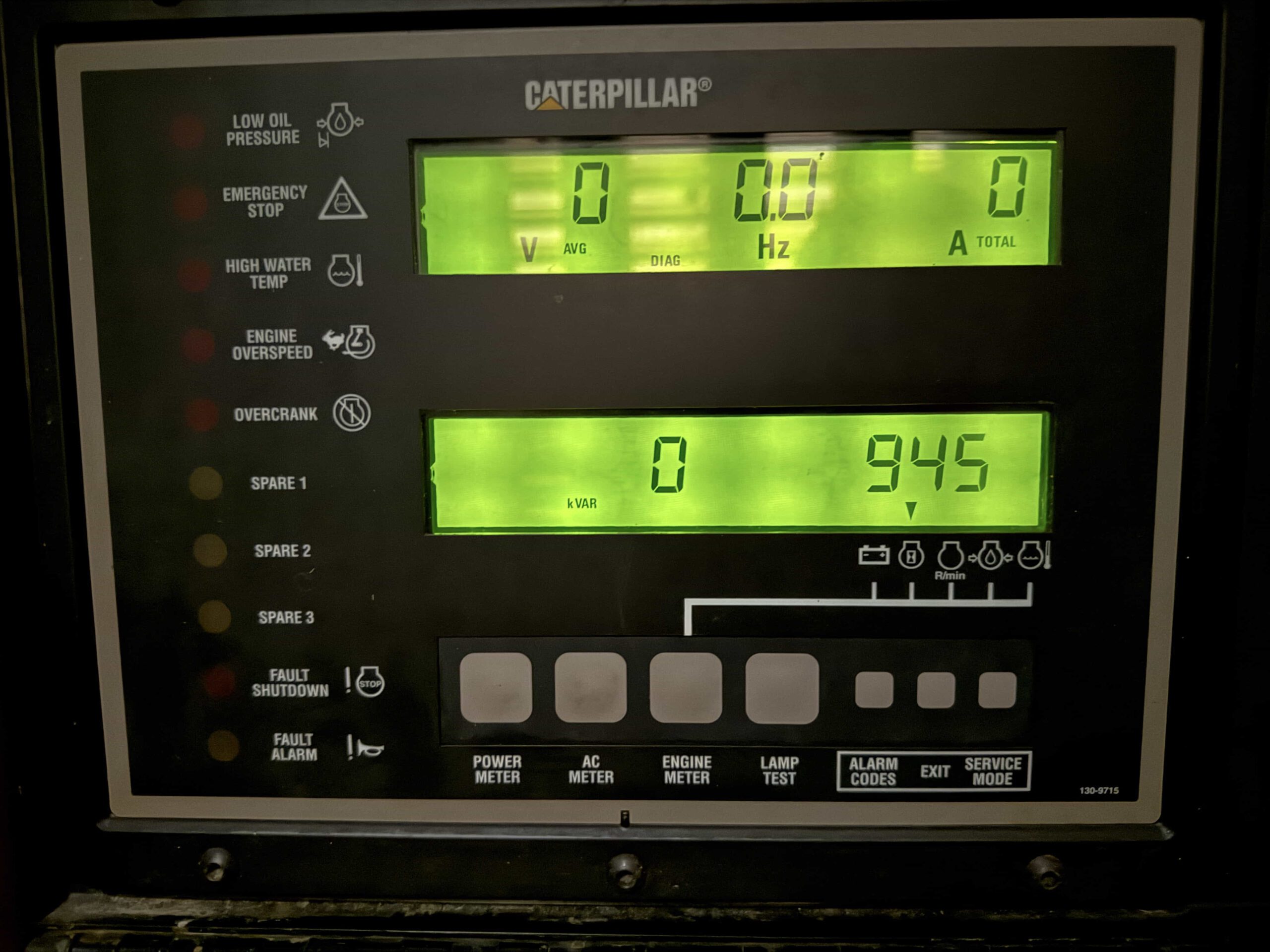

Caterpillar 130-9715 EMCP II-style control panel with LCD metering and status lamps

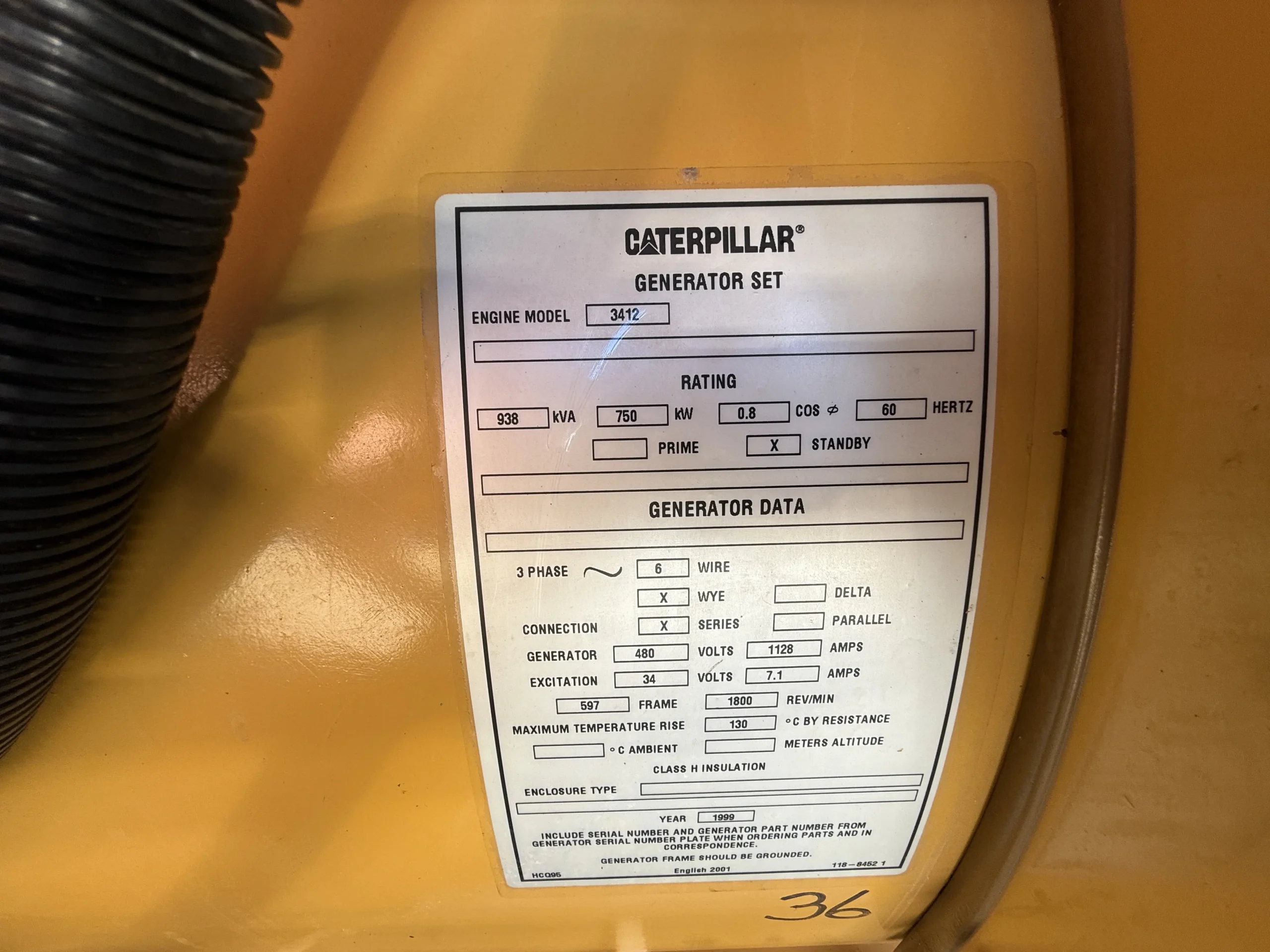

Caterpillar generator set nameplate with kW and kVA rating

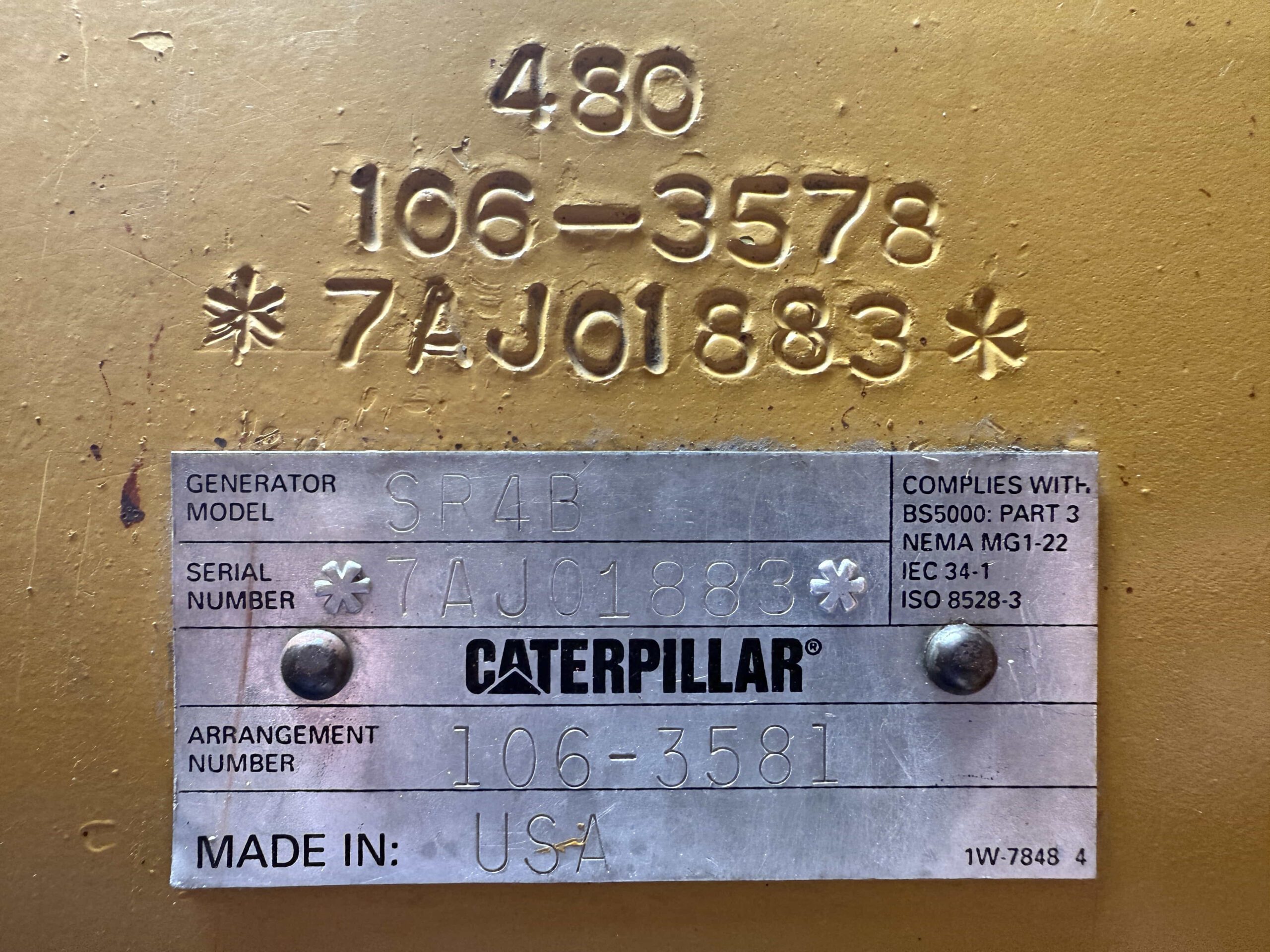

Caterpillar SR4B generator end nameplate with serial number

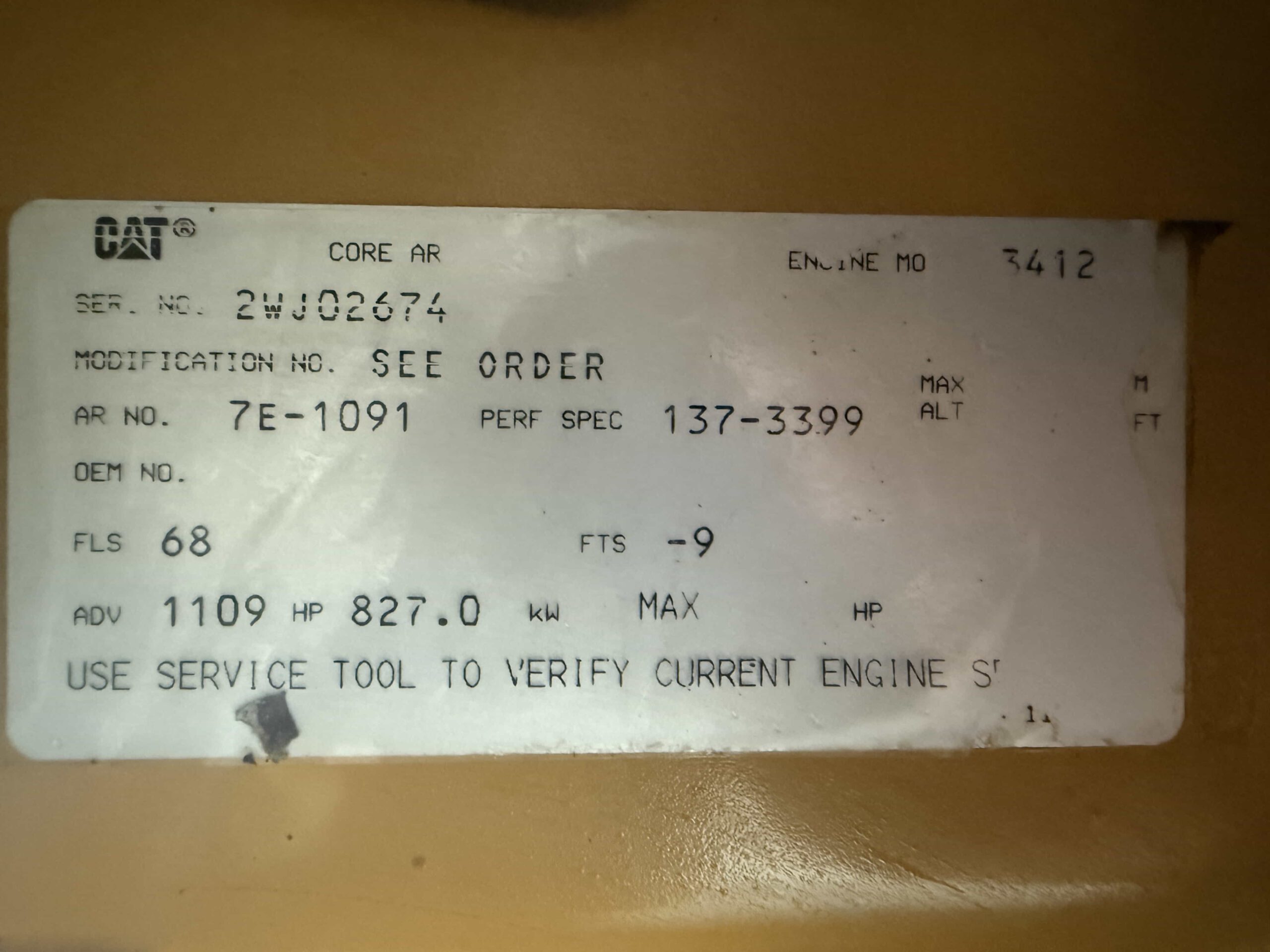

Caterpillar 3412 engine serial number and rating plate

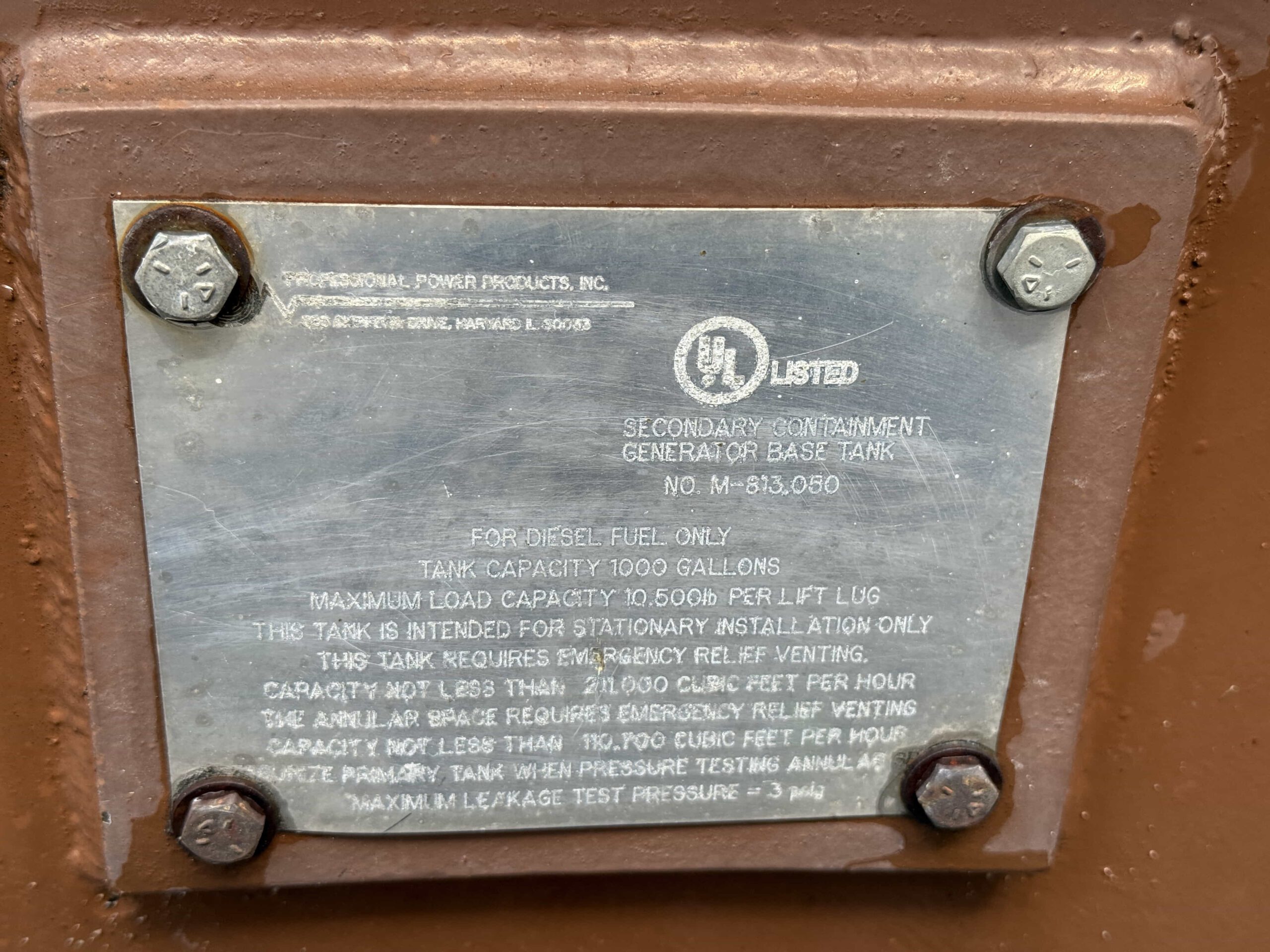

Metal nameplate showing 1,000-gallon UL-listed generator base tank.

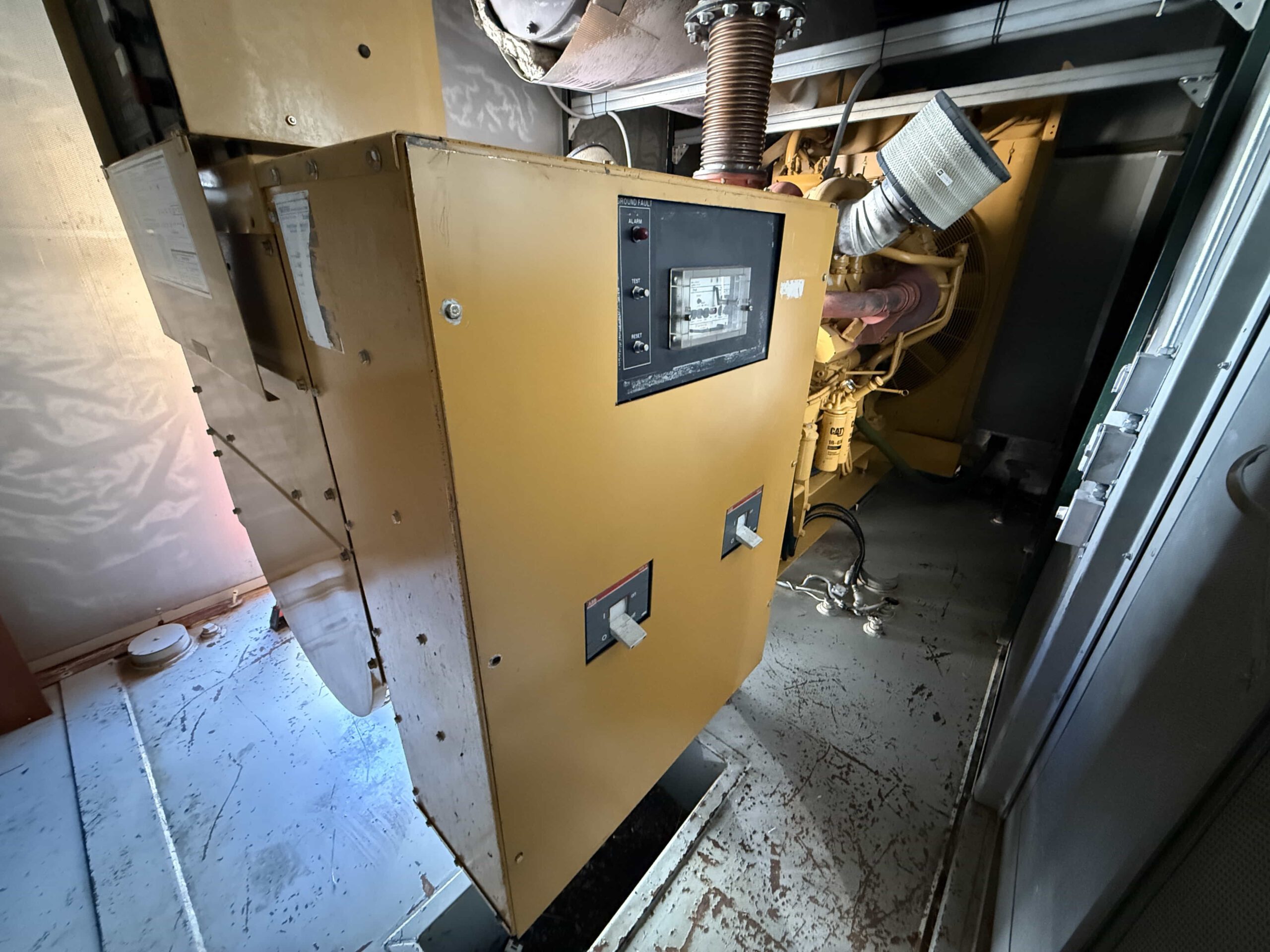

Generator output breaker panel inside switchgear cabinet

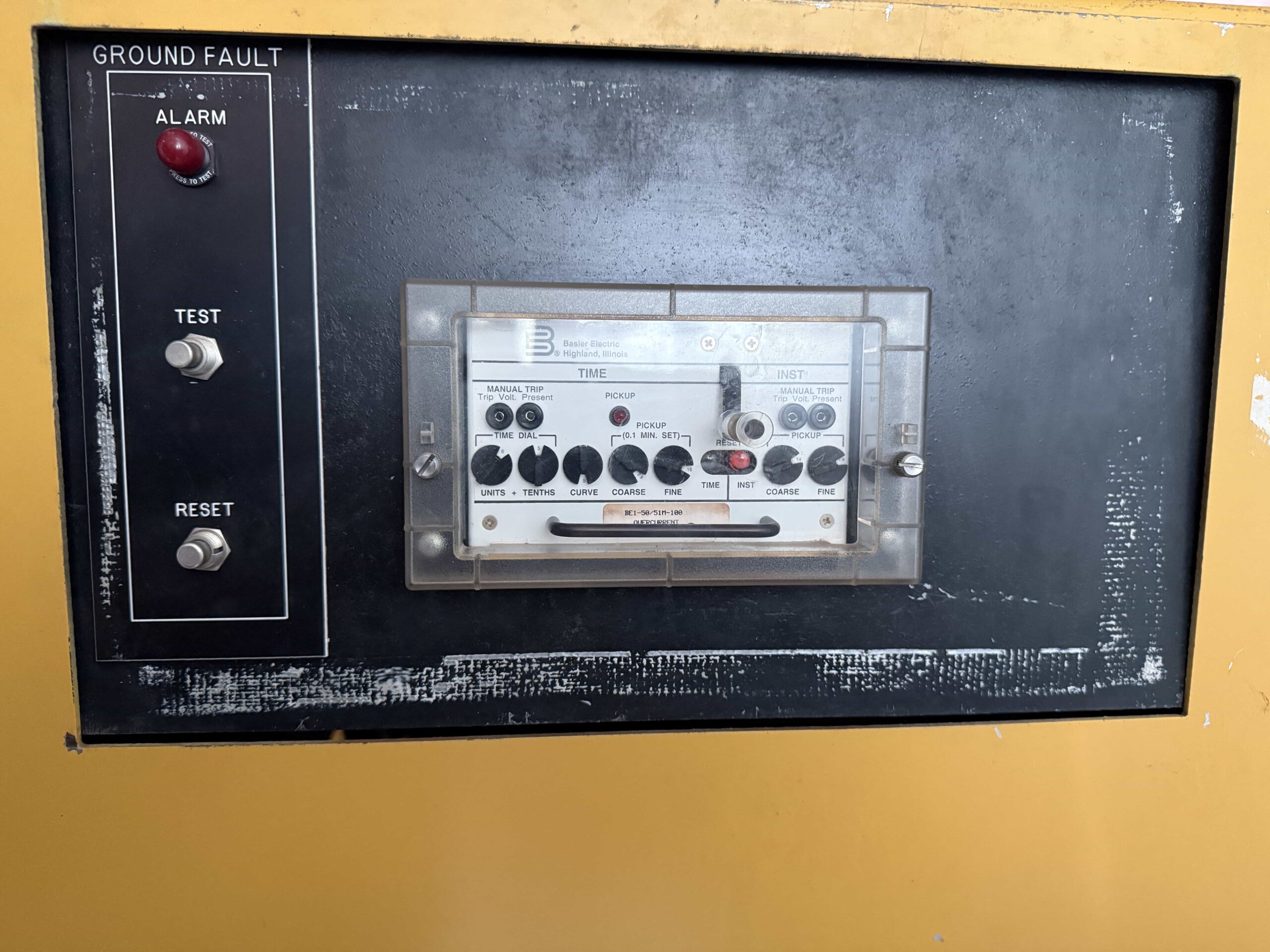

Ground fault protection panel with alarm, test, and reset functions

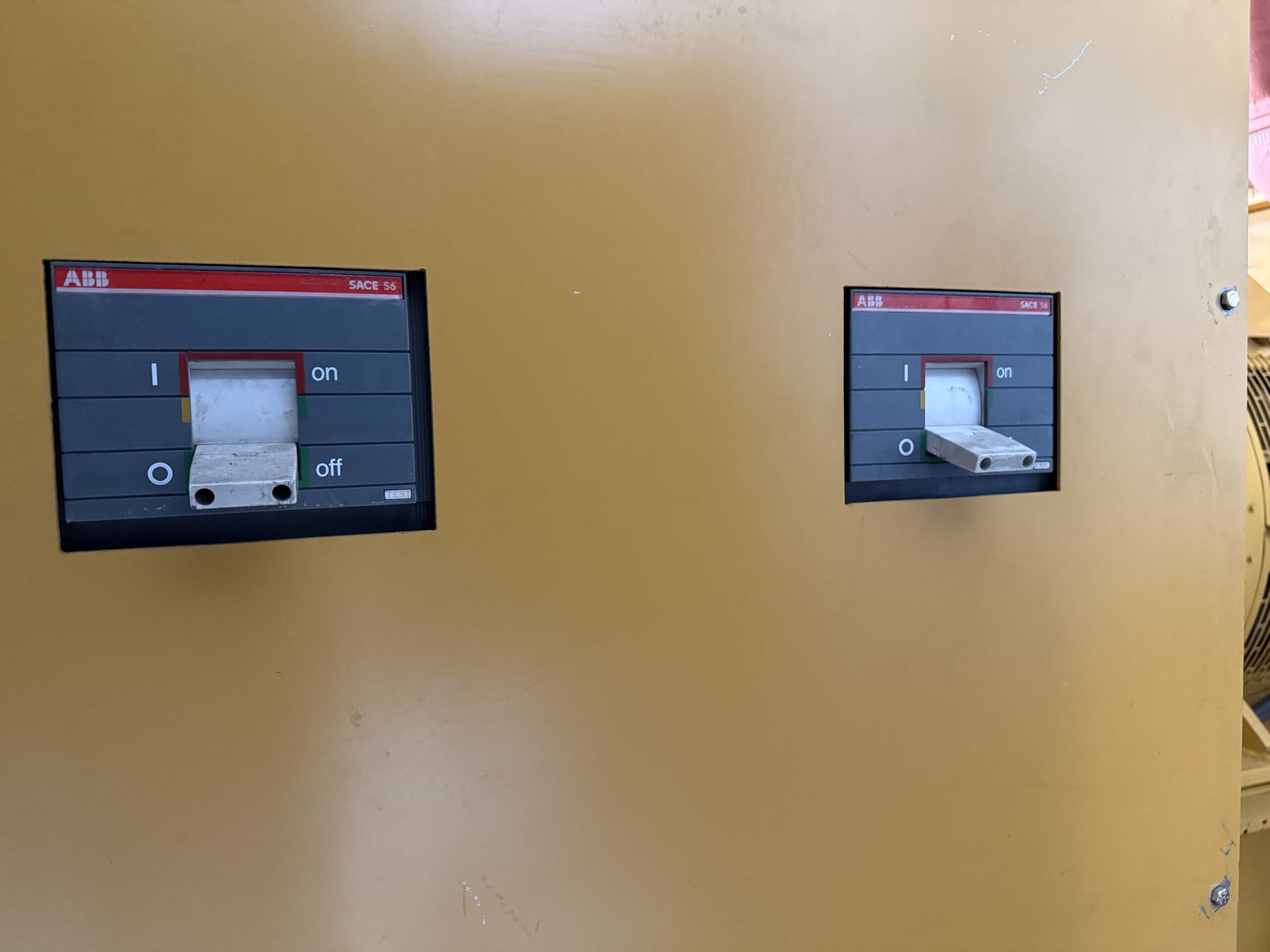

ABB SACE S6 molded case circuit breakers inside generator enclosure

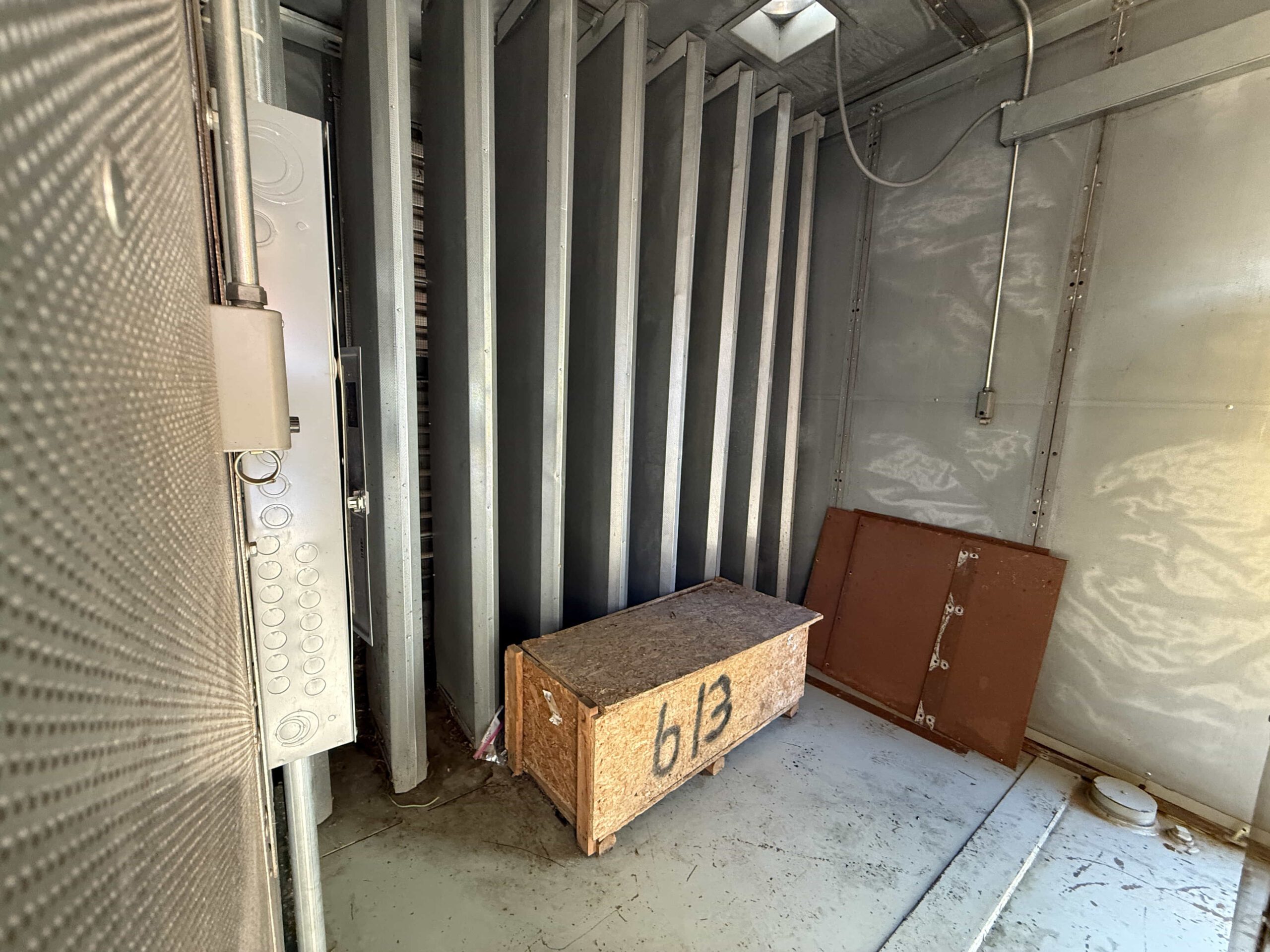

Interior view of enclosure with vertical airflow baffles and louvered intake plenum

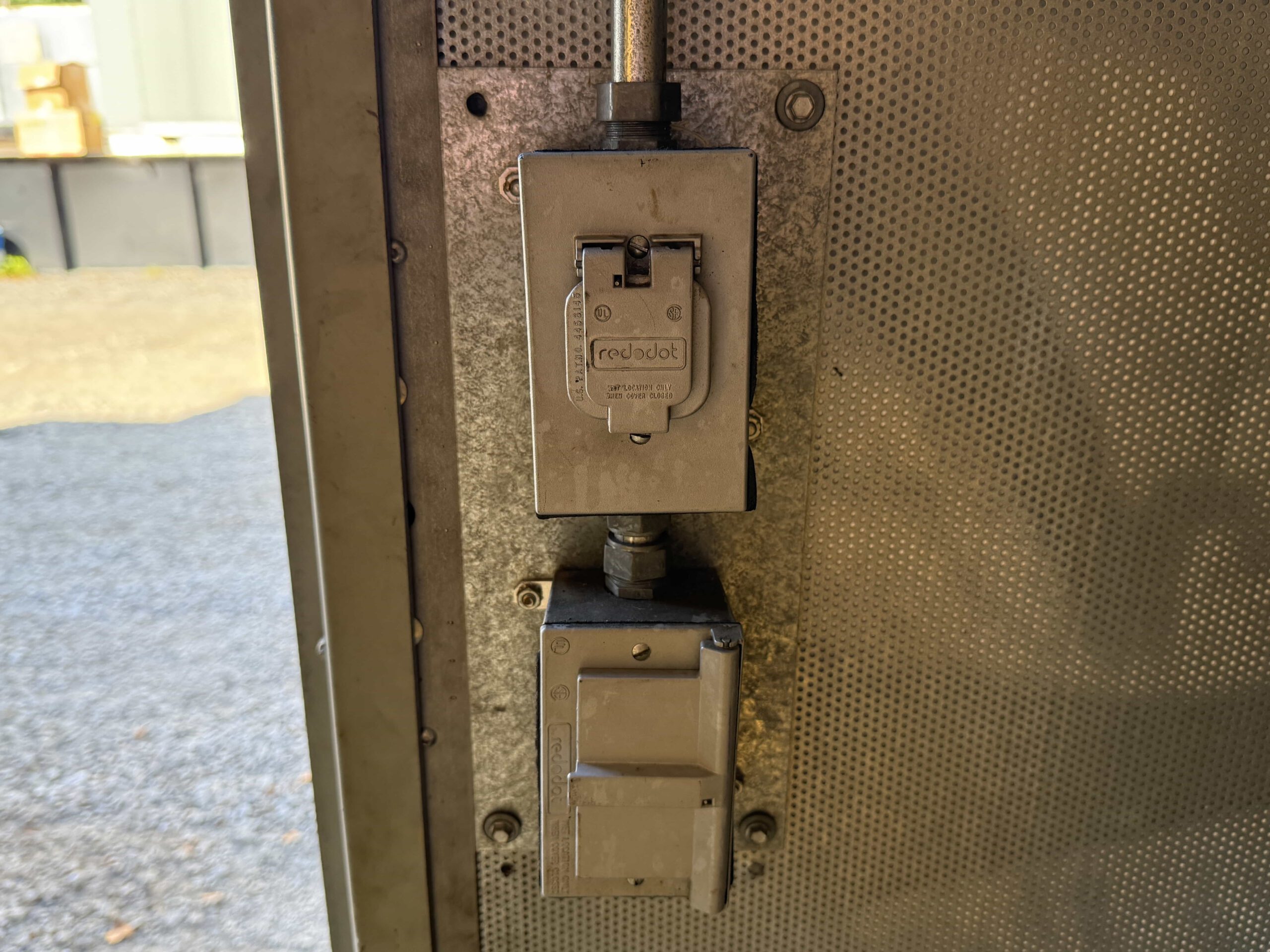

Weatherproof convenience outlets mounted on the enclosure wall

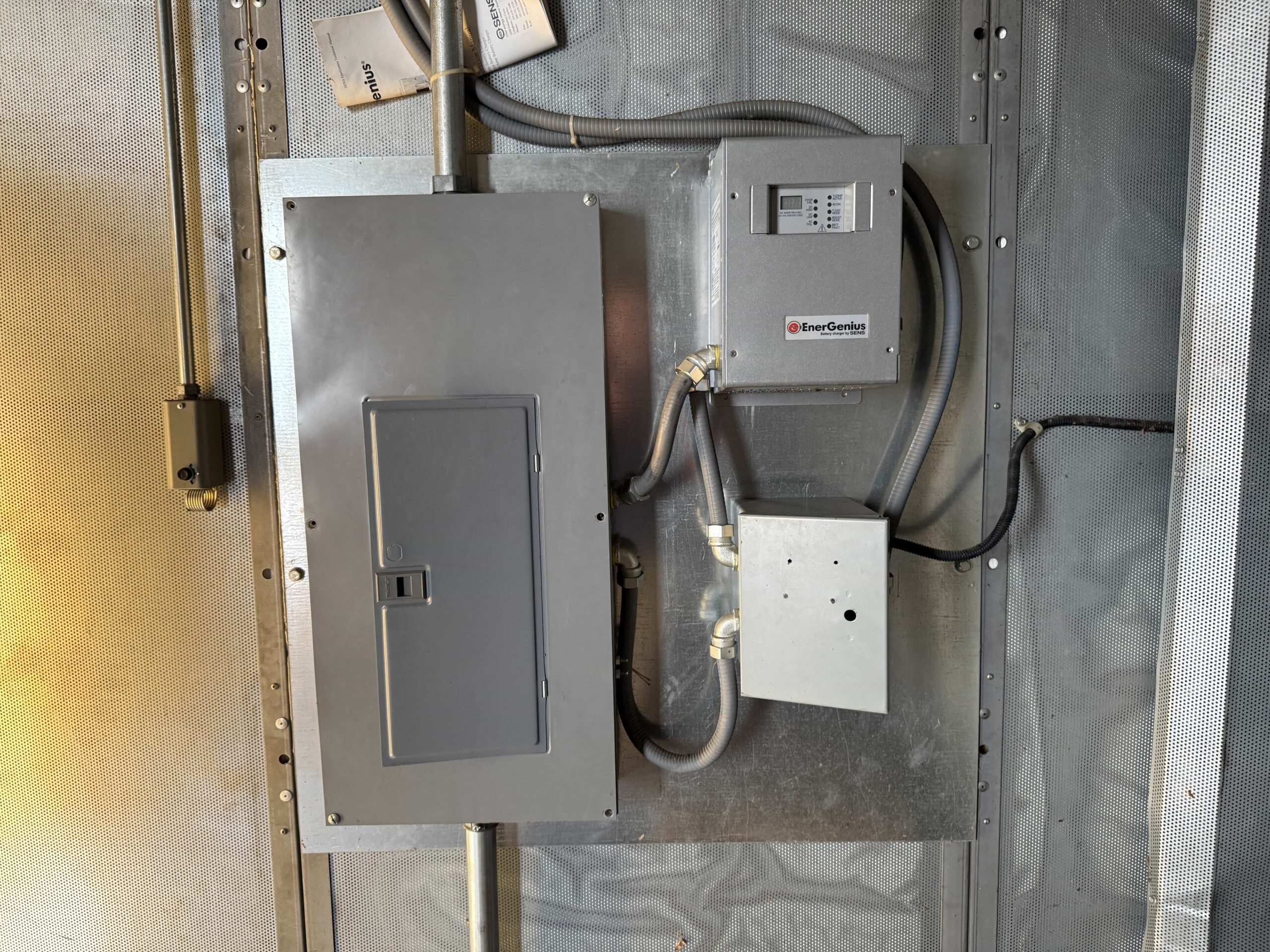

Wall-mounted breaker panel with SENS EnerGenius battery charger and junction box

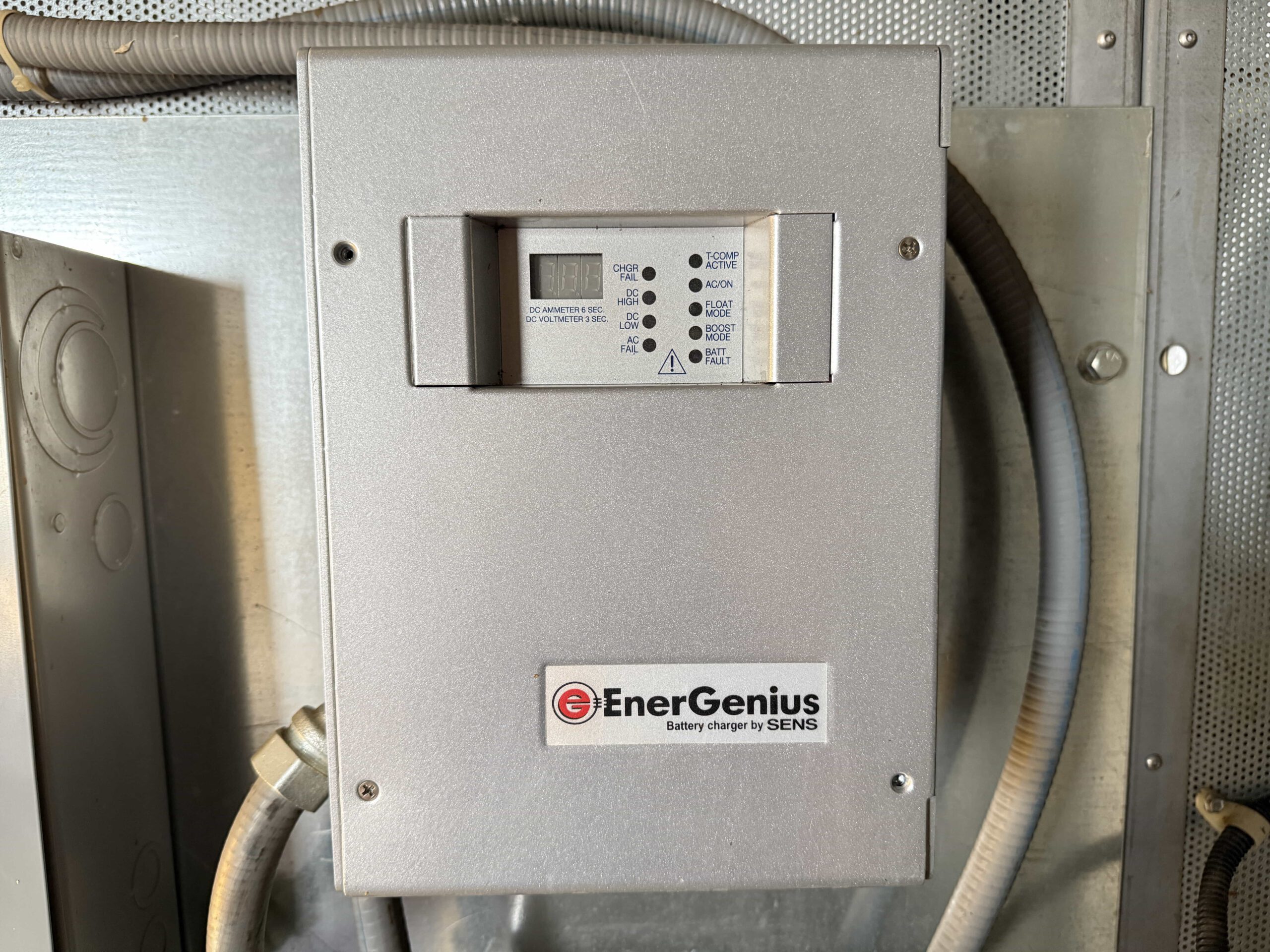

EnerGenius industrial battery charger mounted on enclosure wall

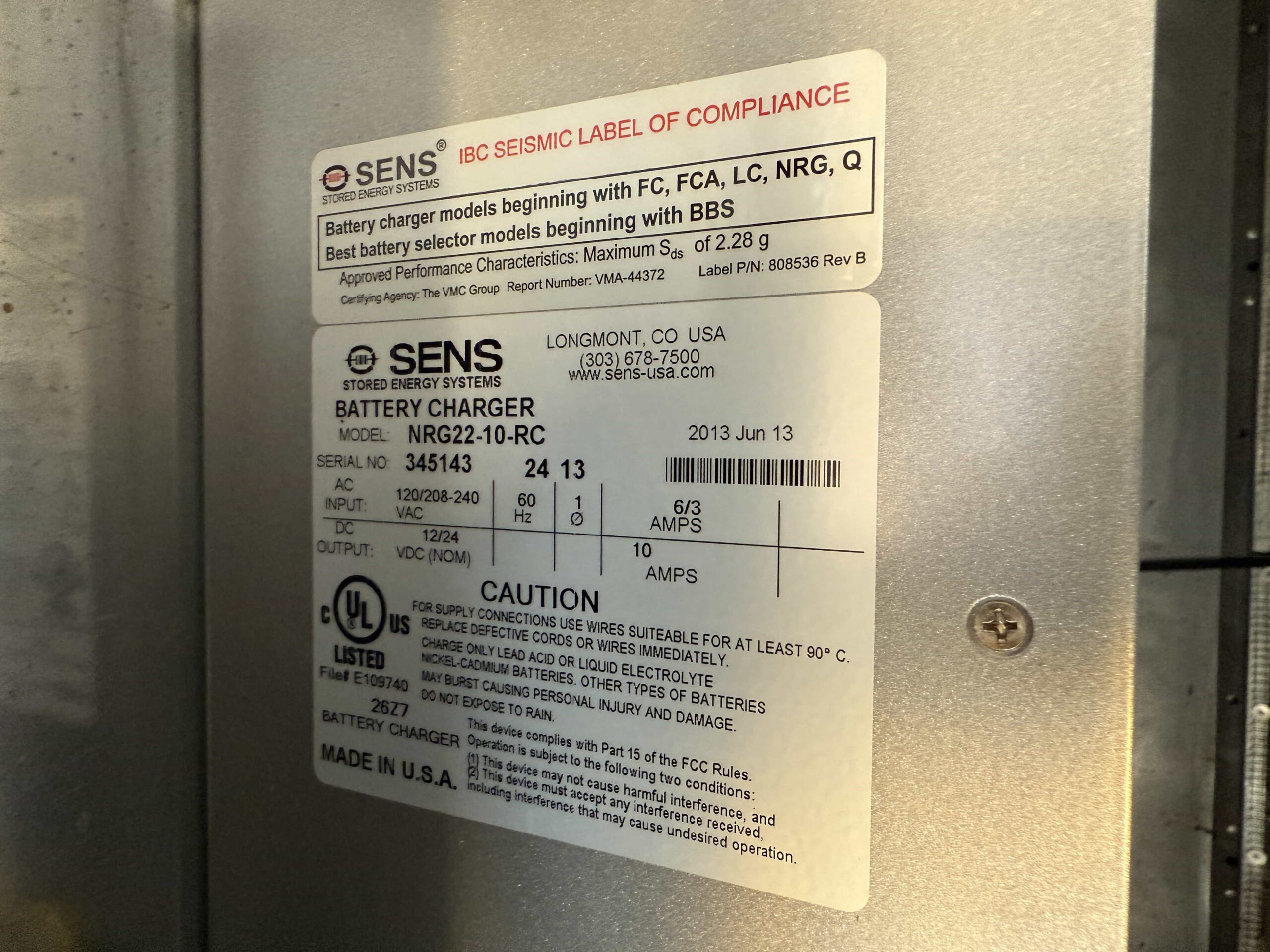

SENS NRG22 battery charger nameplate with specifications

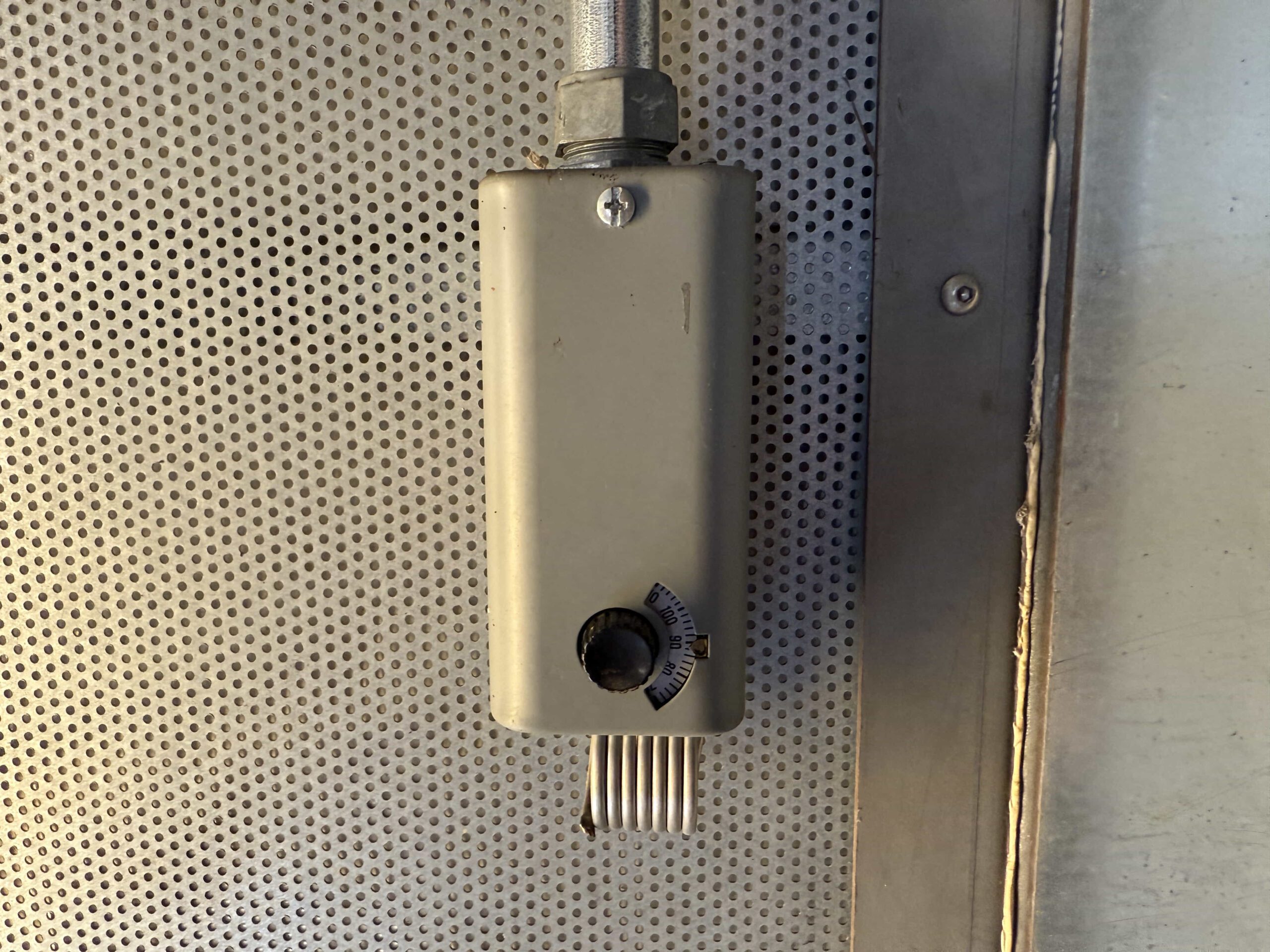

Wall-mounted thermostat inside generator enclosure with adjustable dial

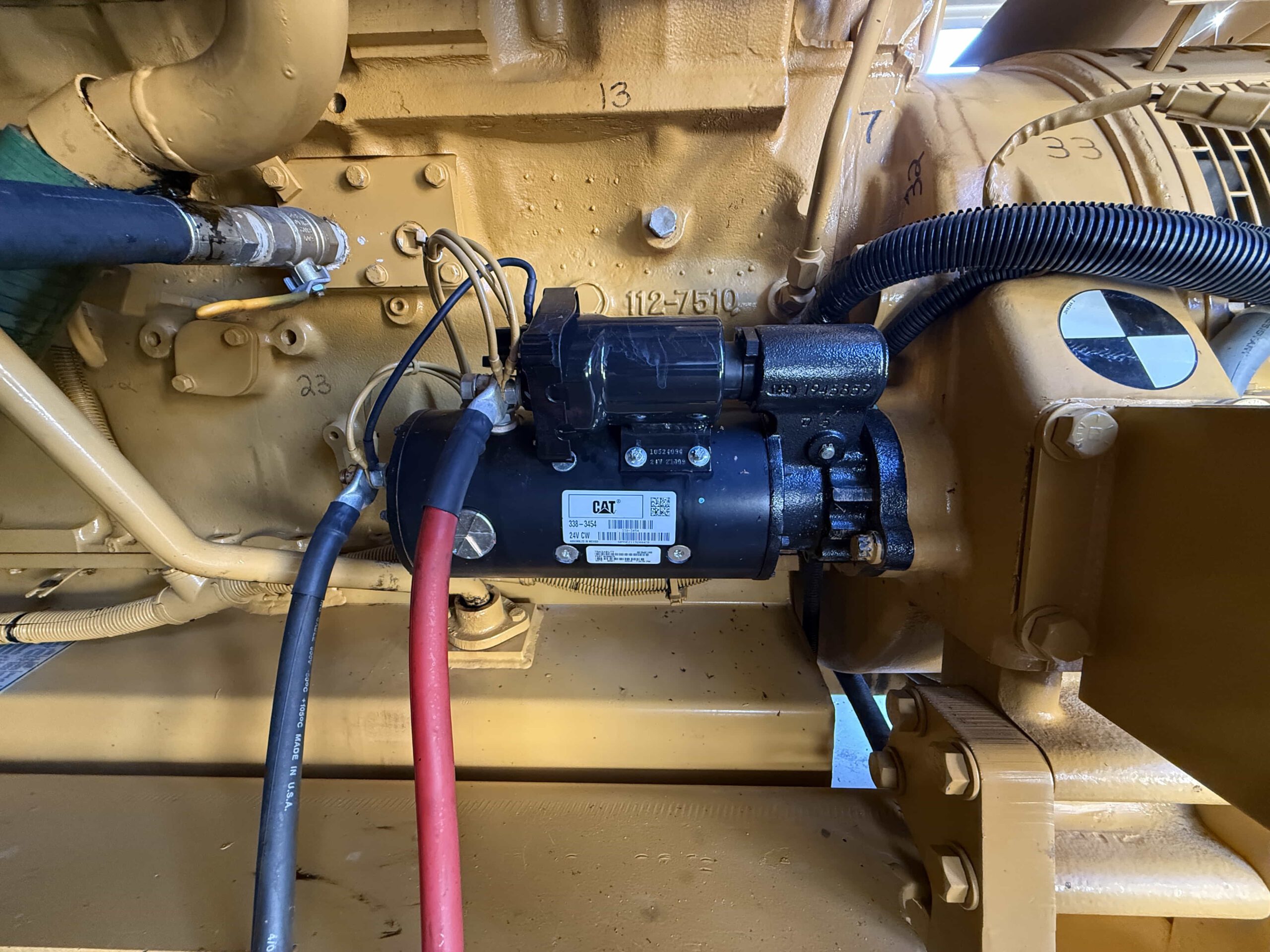

Caterpillar engine starter motor with heavy-duty wiring connections

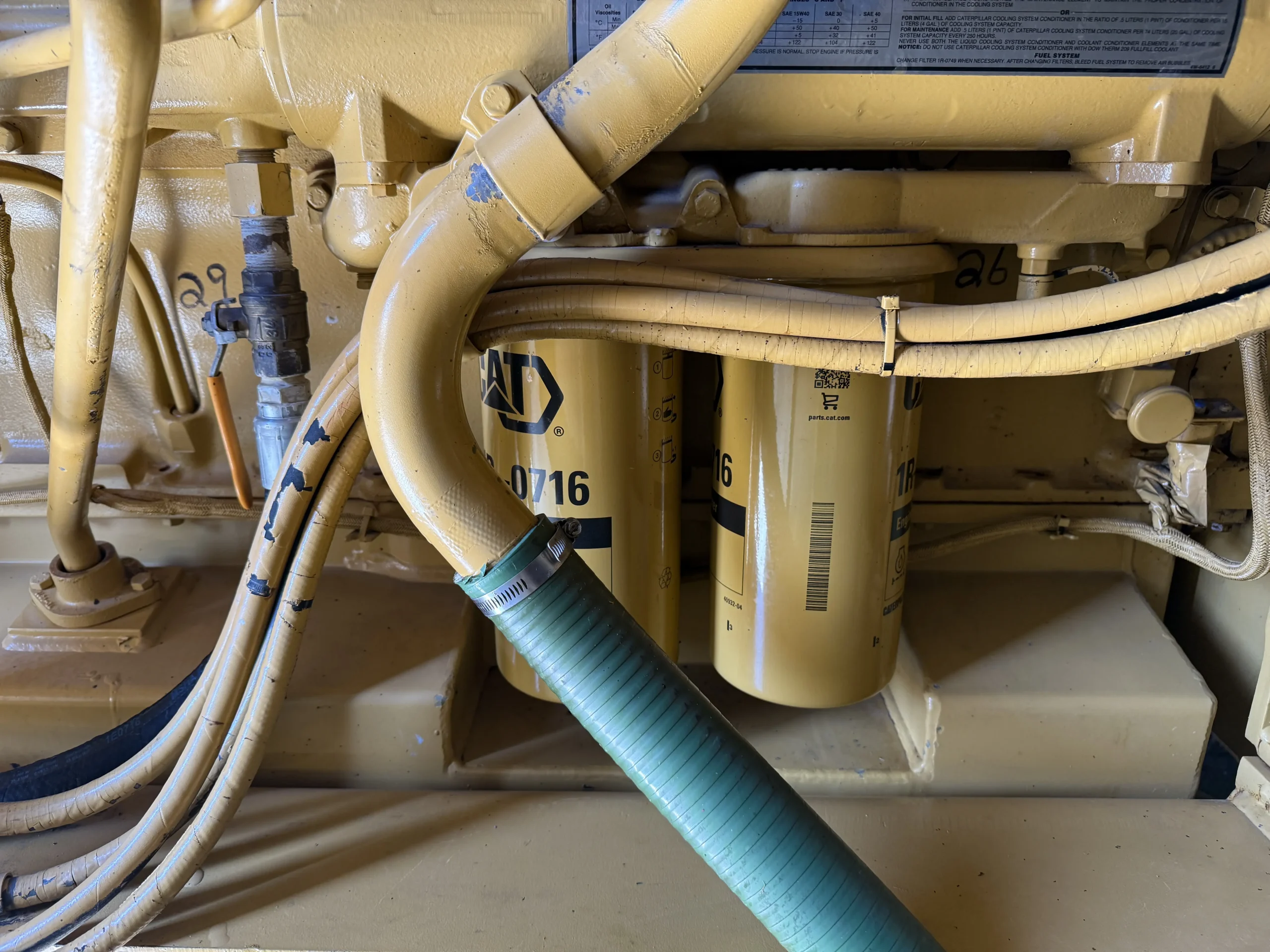

Fuel filter housing with dual Caterpillar 1R-0716 filters on engine

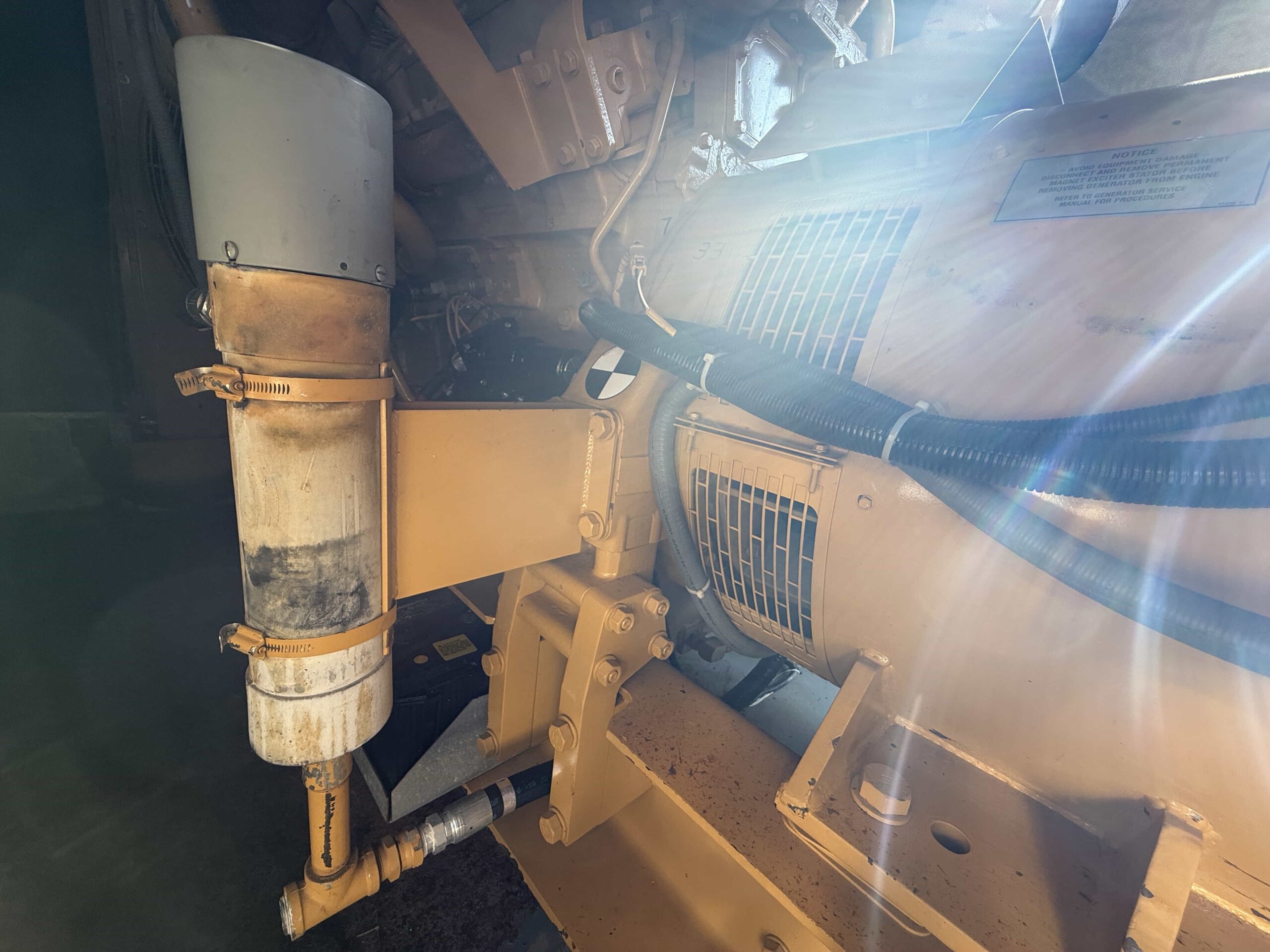

Fuel water separator filter mounted on Caterpillar generator set

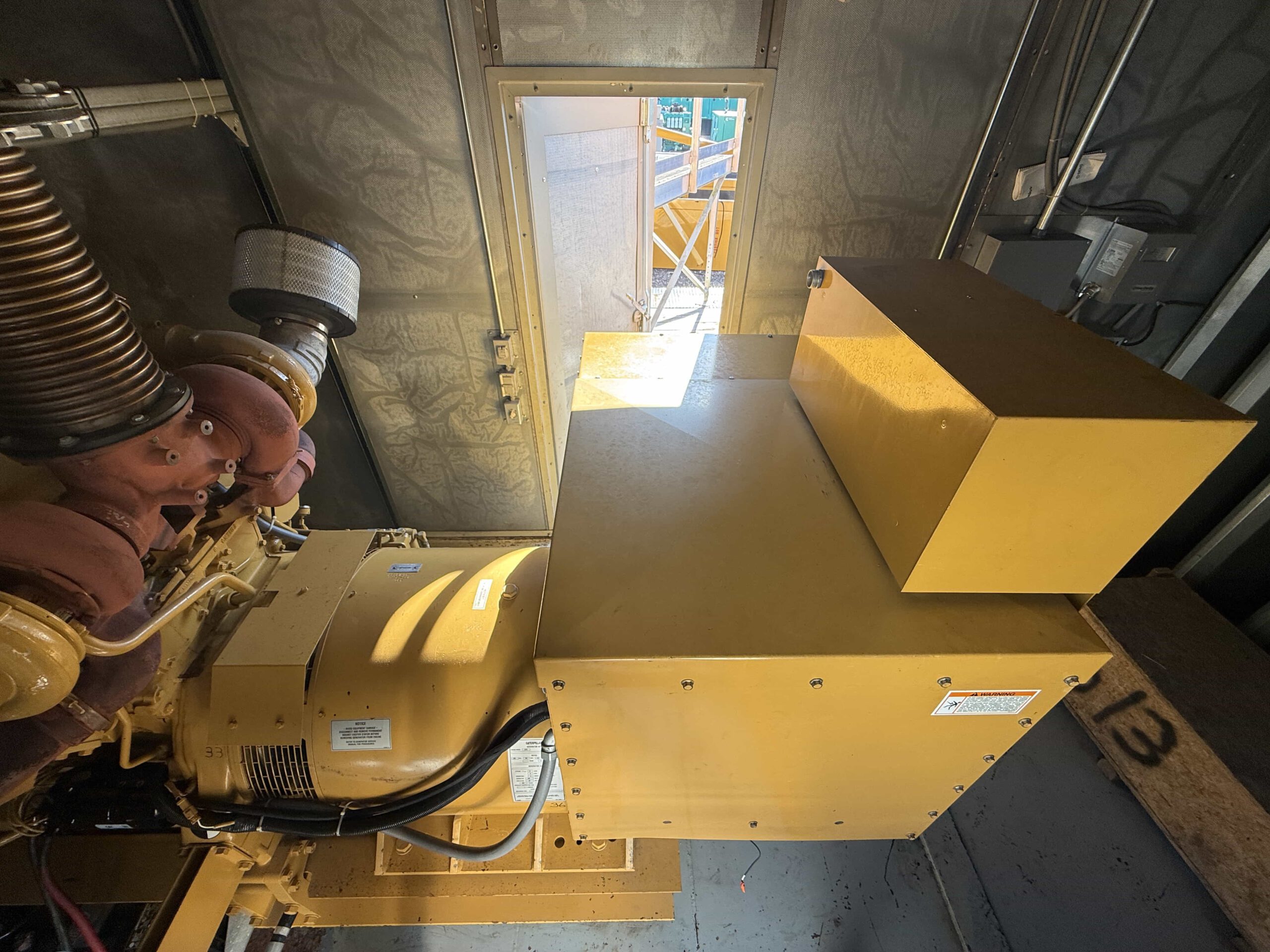

Alternator housing and rear section of generator end

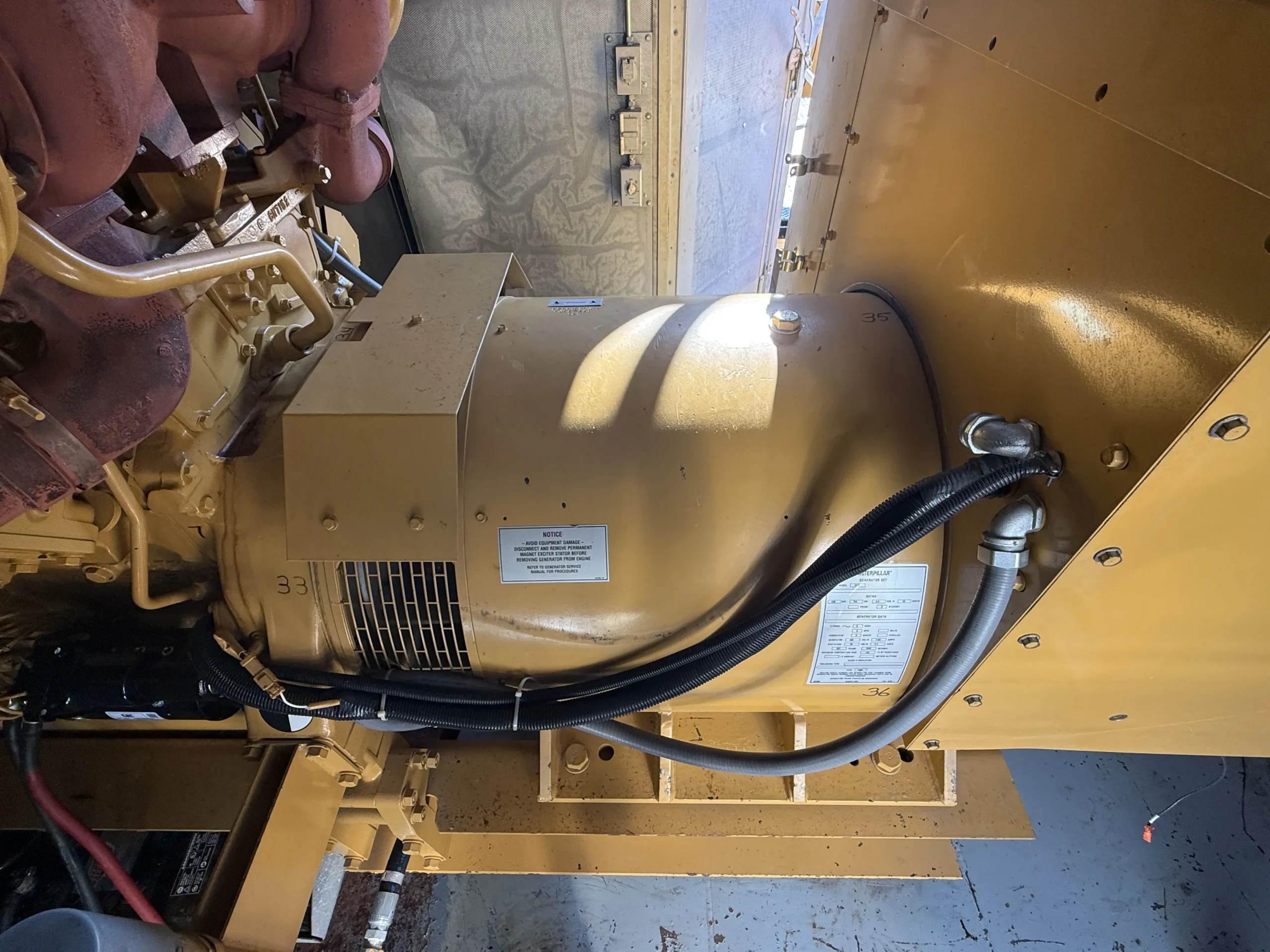

Left side of Caterpillar SR4B generator end with wiring access

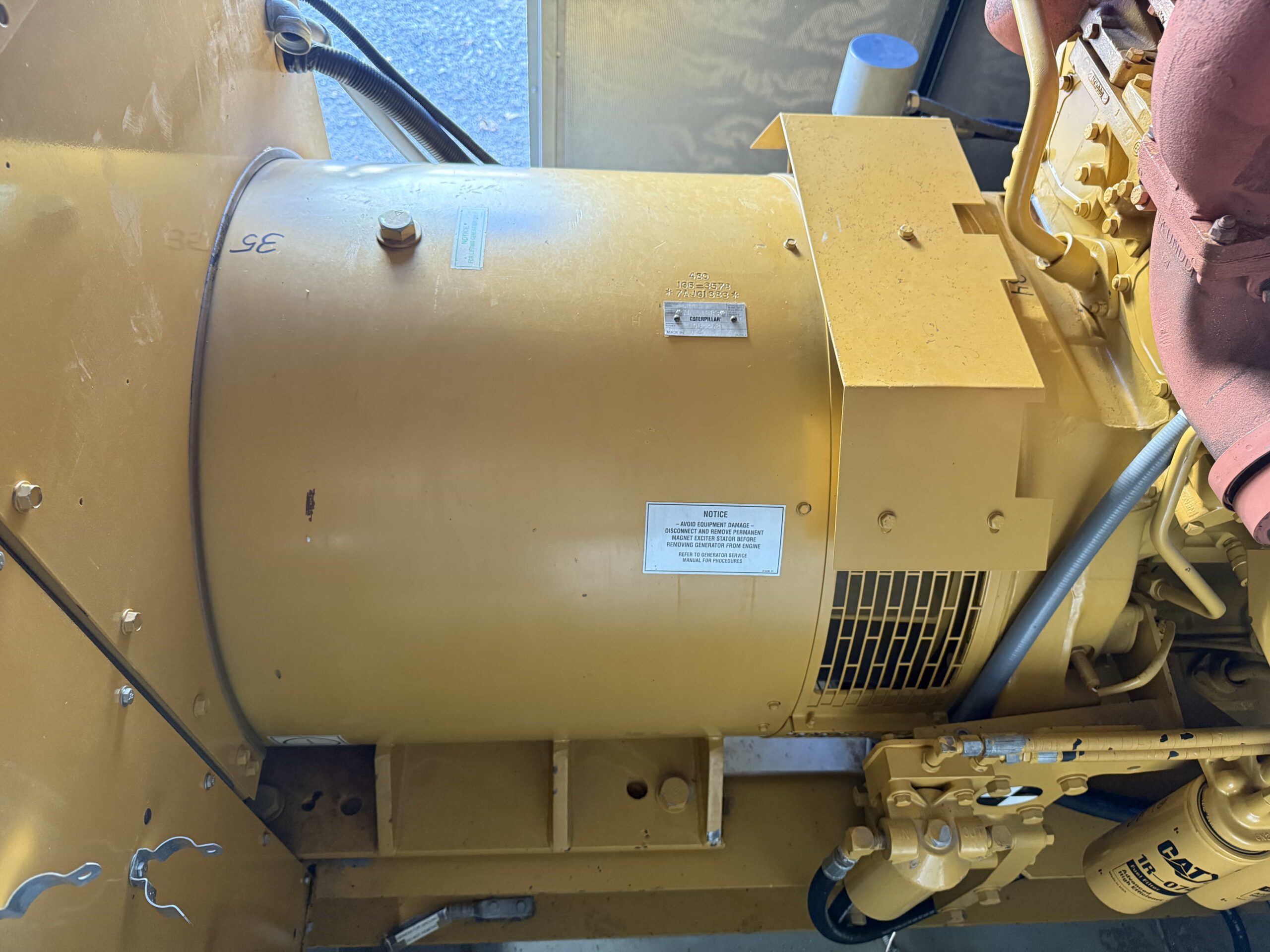

Right side of Caterpillar SR4B generator end with terminal housing

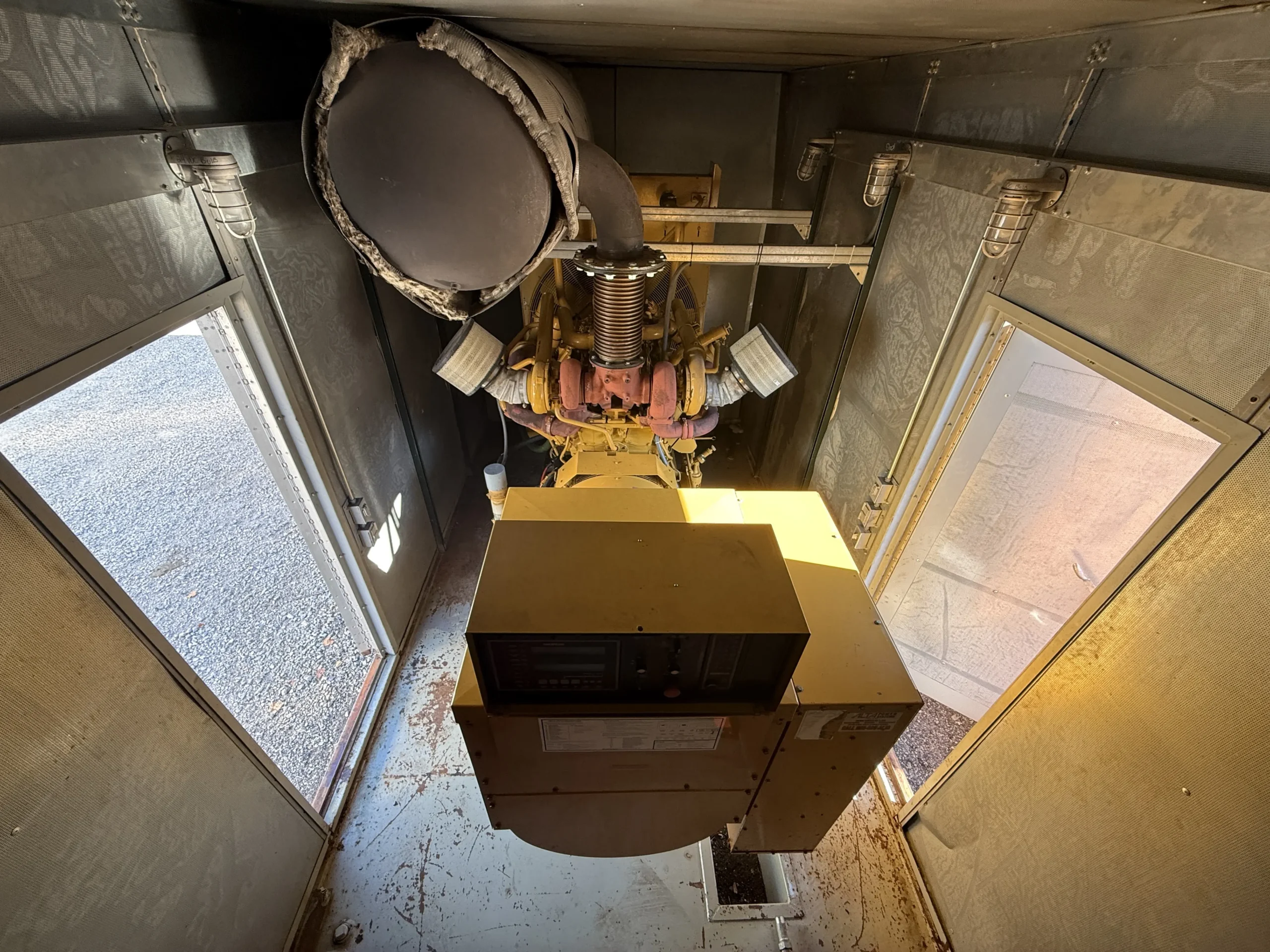

Interior view of generator enclosure with Caterpillar 3412 engine

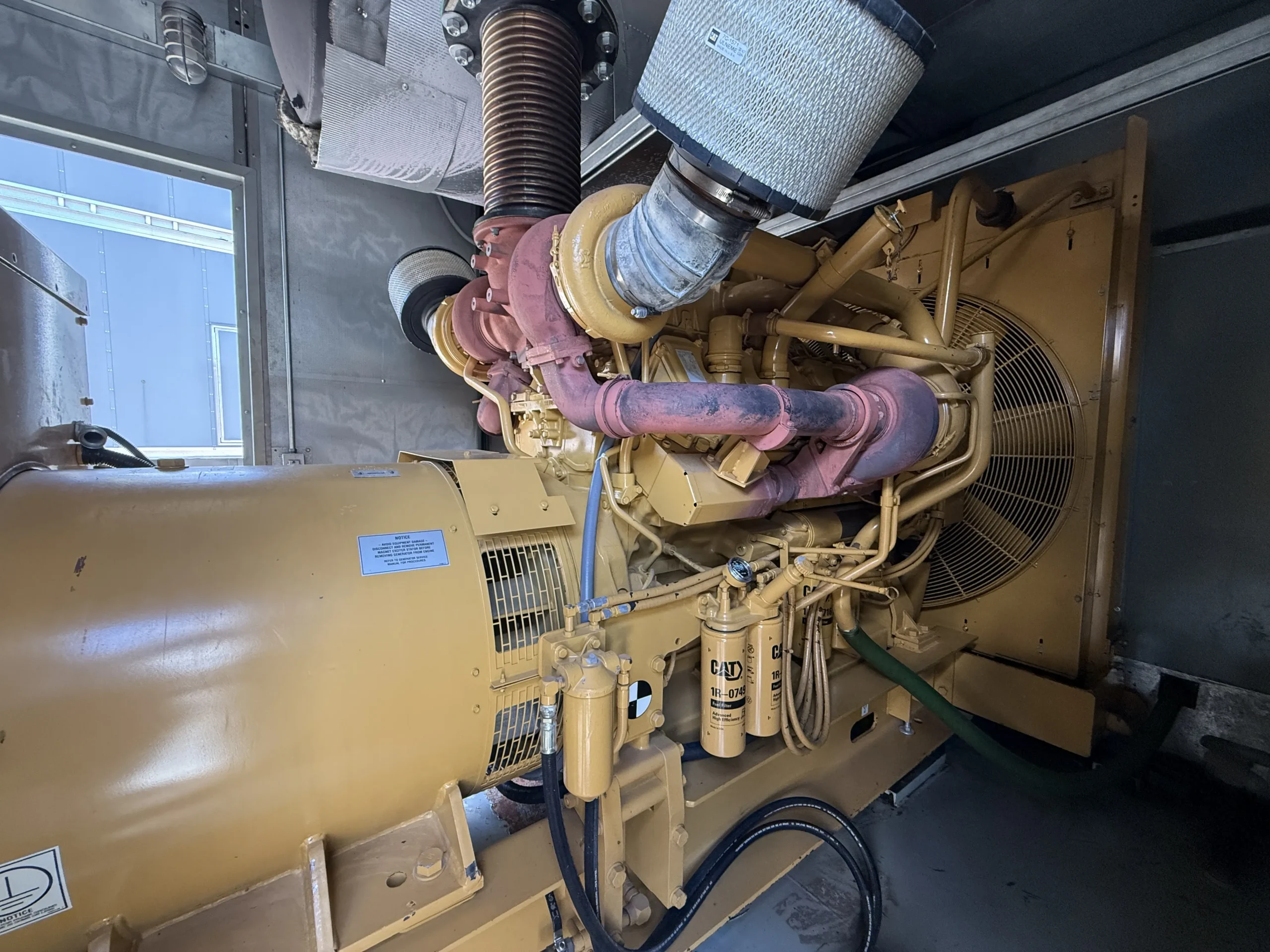

Side view of Caterpillar 3412 engine with alternator housing and fuel filters.

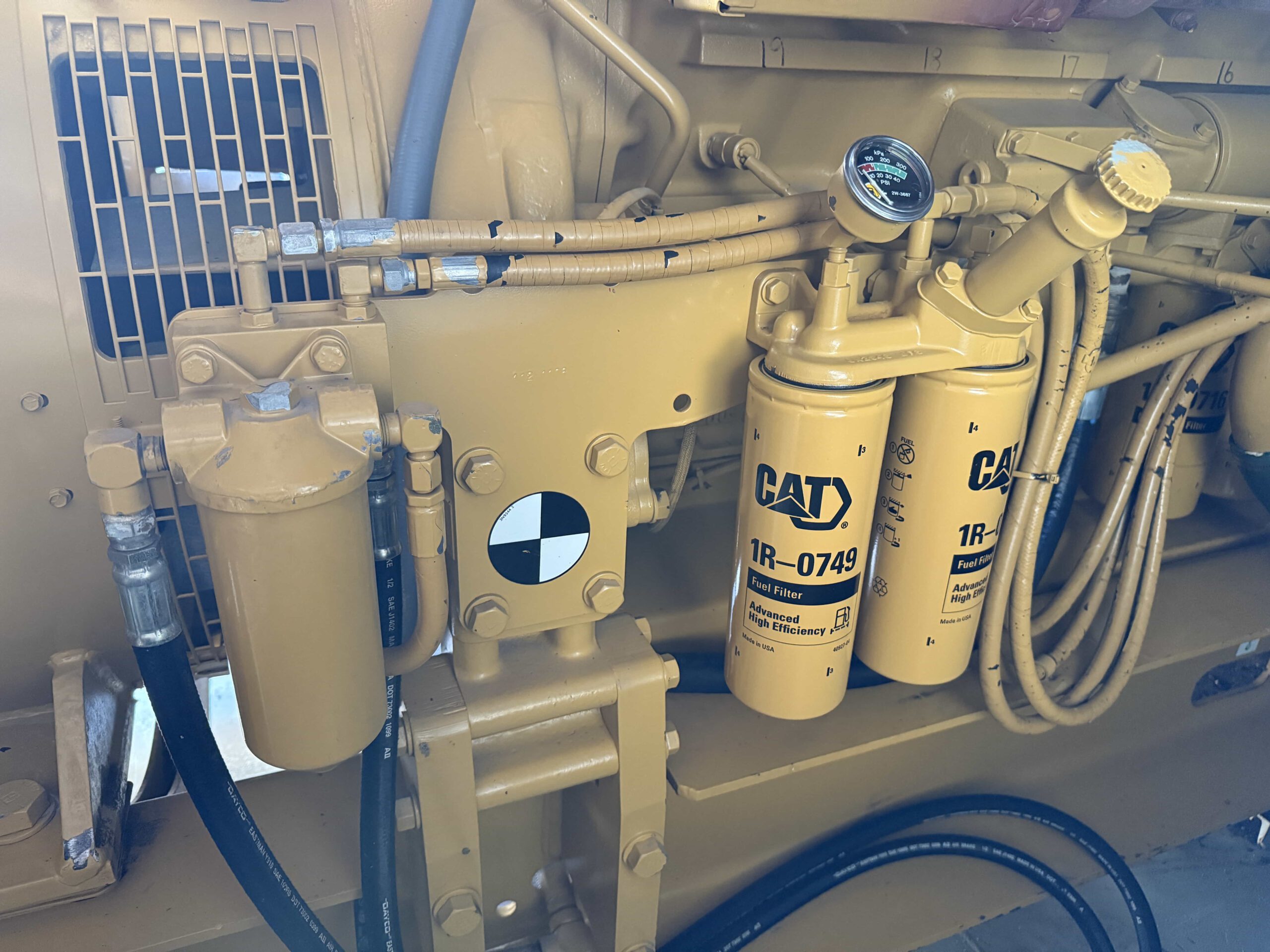

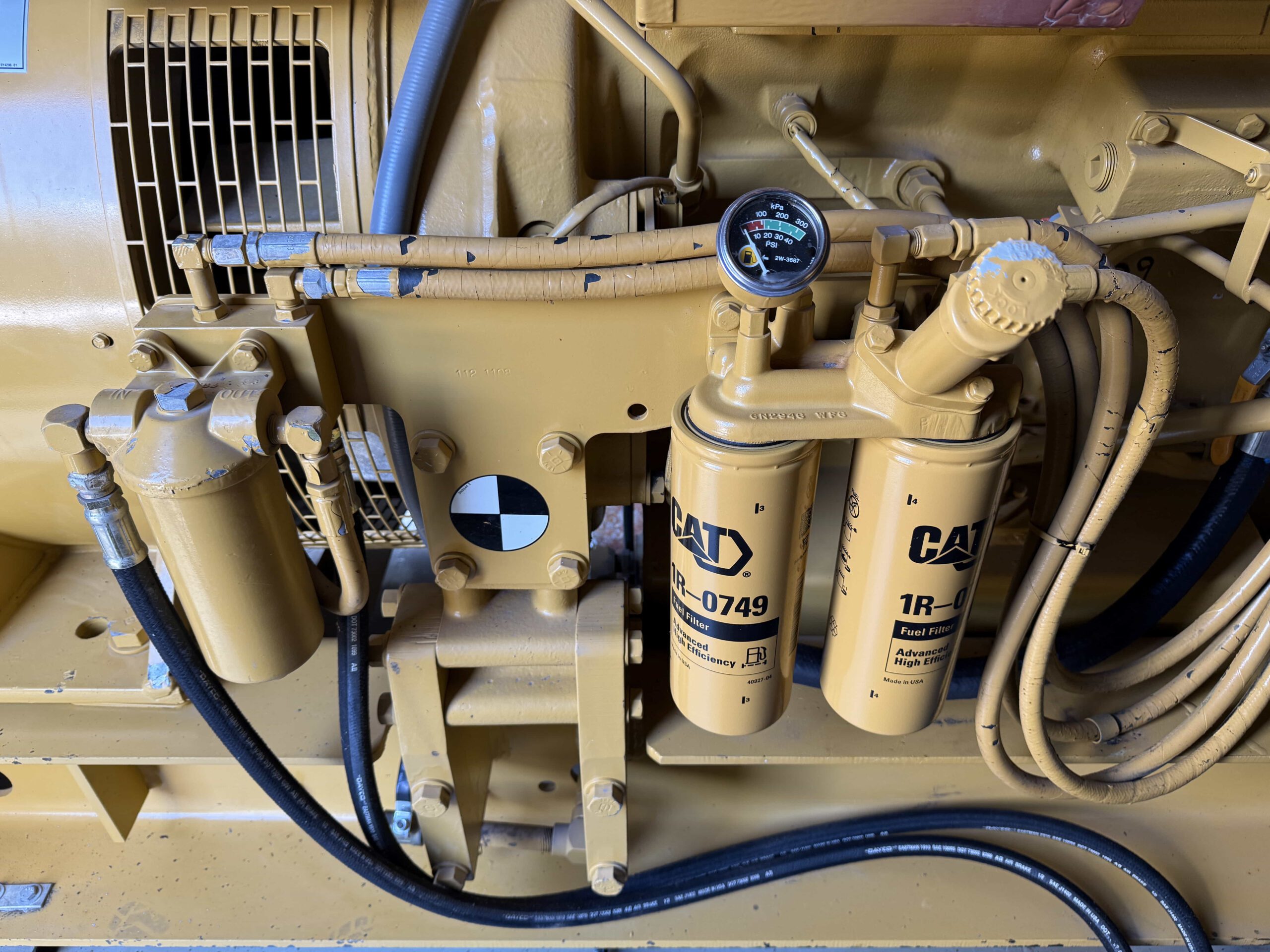

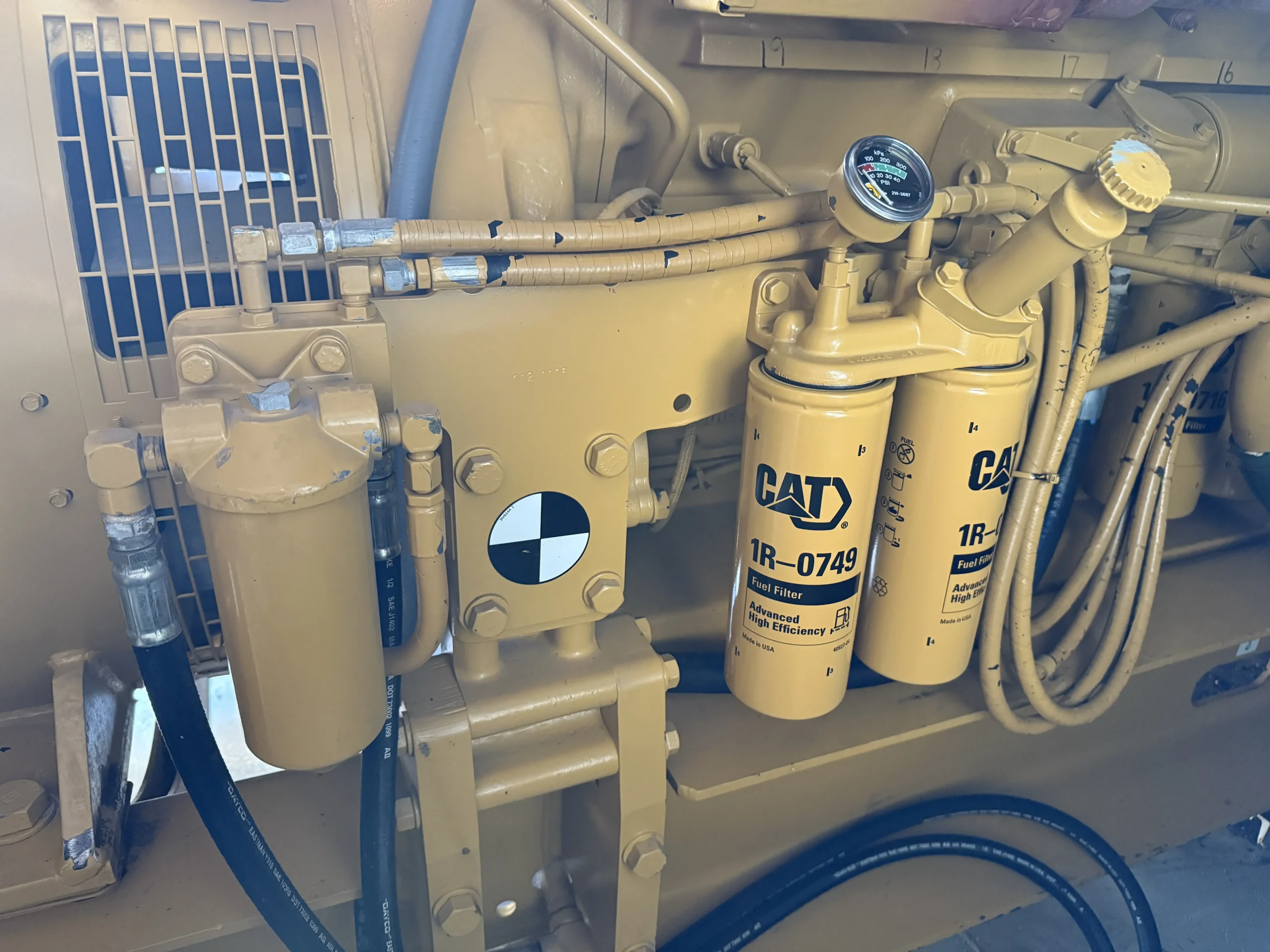

Dual Caterpillar 1R-0749 fuel filters with restriction gauge.
Full front view of Caterpillar generator enclosure in brown finish
Front-left angle view of Caterpillar generator enclosure with louvers
Front-right side view of Caterpillar generator enclosure outdoors
Rear-right side of Caterpillar generator enclosure with service access doors
Rear-left corner of Caterpillar generator enclosure with radiator discharge opening
Inside Caterpillar generator enclosure showing engine and exhaust silencer
Top view of Caterpillar 3412 V-12 engine with twin turbochargers and air cleaners
Side view of radiator and cooling fan assembly
Turbocharger side of Caterpillar engine with radiator visible
Radiator and cooling fan for Caterpillar 3412 generator
Heavy-duty starting batteries with cabling for generator set
Twin turbochargers and air intake filters on Caterpillar 3412
Overhead view of Caterpillar 3412 twin turbochargers and intake filters
Dual turbochargers and insulated exhaust silencer on Caterpillar 3412 engine
Caterpillar 130-9715 EMCP II-style control panel with LCD metering and status lamps
Caterpillar generator set nameplate with kW and kVA rating
Caterpillar SR4B generator end nameplate with serial number
Caterpillar 3412 engine serial number and rating plate
Metal nameplate showing 1,000-gallon UL-listed generator base tank.
Generator output breaker panel inside switchgear cabinet
Ground fault protection panel with alarm, test, and reset functions
ABB SACE S6 molded case circuit breakers inside generator enclosure
Interior view of enclosure with vertical airflow baffles and louvered intake plenum
Weatherproof convenience outlets mounted on the enclosure wall
Wall-mounted breaker panel with SENS EnerGenius battery charger and junction box
EnerGenius industrial battery charger mounted on enclosure wall
SENS NRG22 battery charger nameplate with specifications
Wall-mounted thermostat inside generator enclosure with adjustable dial
Caterpillar engine starter motor with heavy-duty wiring connections
Fuel filter housing with dual Caterpillar 1R-0716 filters on engine
Fuel water separator filter mounted on Caterpillar generator set
Alternator housing and rear section of generator end
Left side of Caterpillar SR4B generator end with wiring access
Right side of Caterpillar SR4B generator end with terminal housing
Interior view of generator enclosure with Caterpillar 3412 engine
Side view of Caterpillar 3412 engine with alternator housing and fuel filters.
Dual Caterpillar 1R-0749 fuel filters with restriction gauge.

Price

$96,000.00

Inquire Now

Product Details

Year 1999
Manufacturer Caterpillar
Generator Model 3412
Generator S/N 7AJ01883
kW 750 kW Standby
kVA 938 kVA
Voltage 480 V
Amperage 1128 A
Frequency 60 Hz
RPM 1800
Hours 946
Phase Type 3-Phase, 6-Wire
Wye or Delta reconnectable
Power Rating Standby
Generator Insulation Class Class H
Fuel Tank Capacity 1,000 gallons
UL-listed double-wall base tank
(secondary containment)
Control Panel Caterpillar 130-9715 (EMCP II)
Engine Manufacturer Caterpillar
Engine Model 3412
Engine S/N 2WJ02674
Emissions Tier –
Dimensions (L x W x H) 395″ x 115″ x 150″
Weight (lbs.) –
Stock Number MEG1158
Additional Features:

  • Enclosed weatherproof container with louvers & airflow baffles

  • 1,000-gallon UL-listed double-wall sub-base fuel tank

  • Dual turbochargers with air intake filters

  • Radiator & heavy-duty cooling system

  • ABB SACE S6 molded case circuit breakers

  • SENS NRG22 battery charger & EnerGenius charger

  • Heavy-duty starting batteries

  • Jacket water heater (for cold weather starting)

  • Ground fault protection panel

  • Fuel/water separator and dual CAT spin-on fuel filters
