2001 CAT 3512B 1500kW Diesel Generator Set

$175,000.00

Year	2001
Manufacturer	Caterpillar

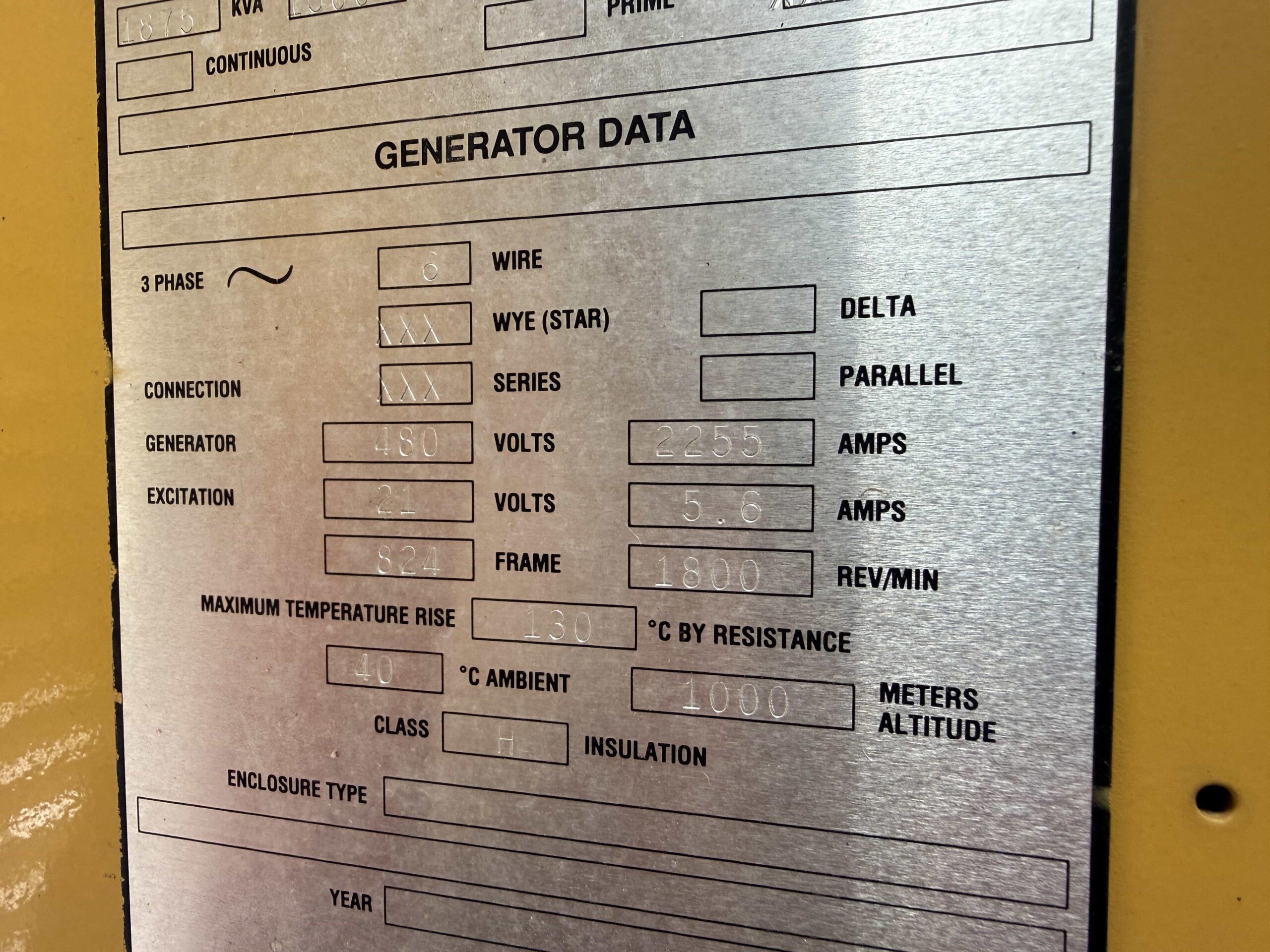

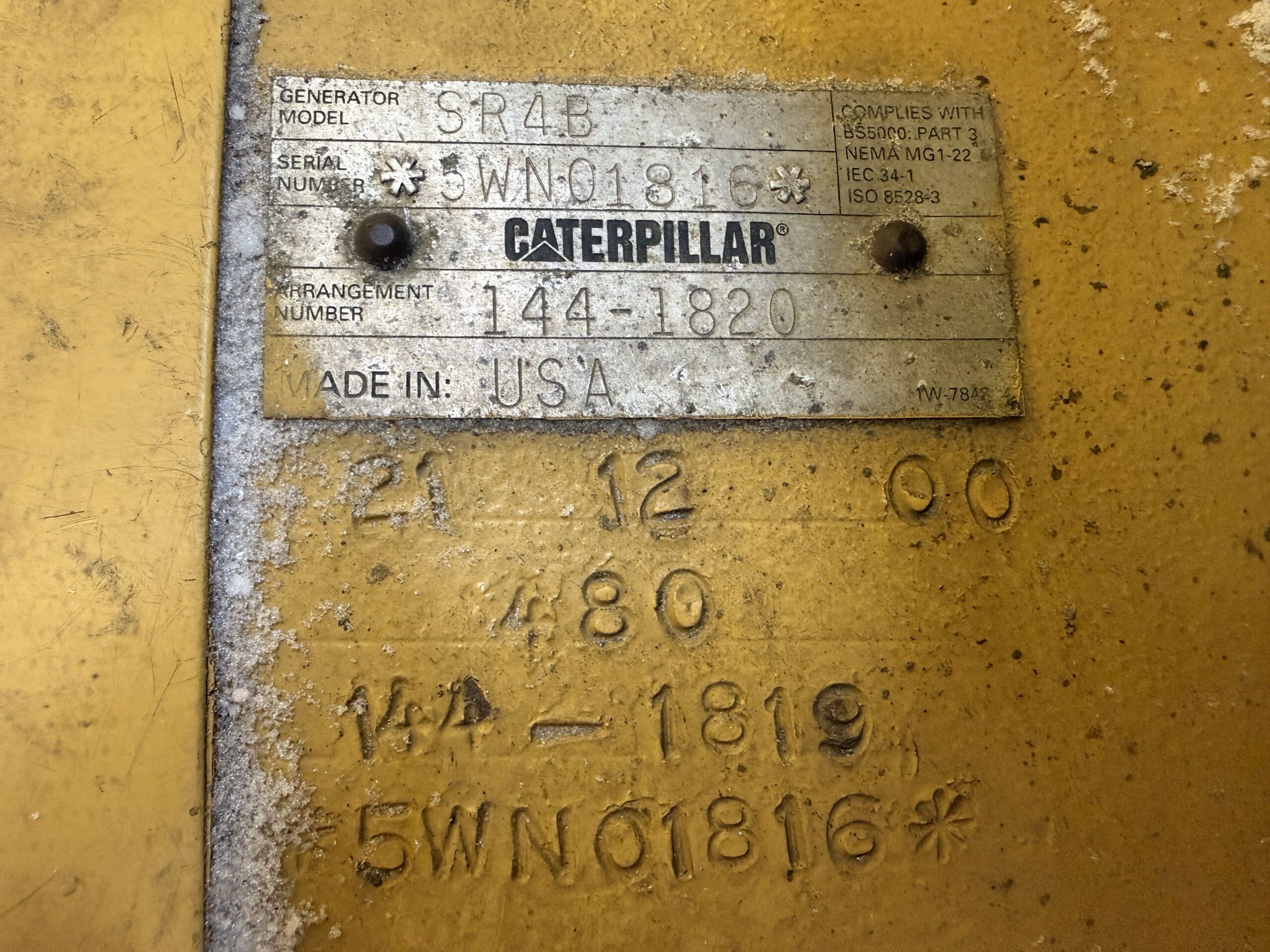

Generator Model	SR4B
Generator S/N	5WN01816
kW	1500 kW
kVA	1875 kVA
Voltage	480 V
Amperage	2255 A
Frequency	60 Hz
RPM	1800 RPM
Hours	–
Phase Type	3-Phase 6-Wire Wye (Star)
Power Rating	Standby
Generator Insulation Class	Class H
Fuel Tank Capacity	2,700 Gallons
Control Panel	CAT EMCP
Engine Manufacturer	Caterpillar
Engine Model	3512B

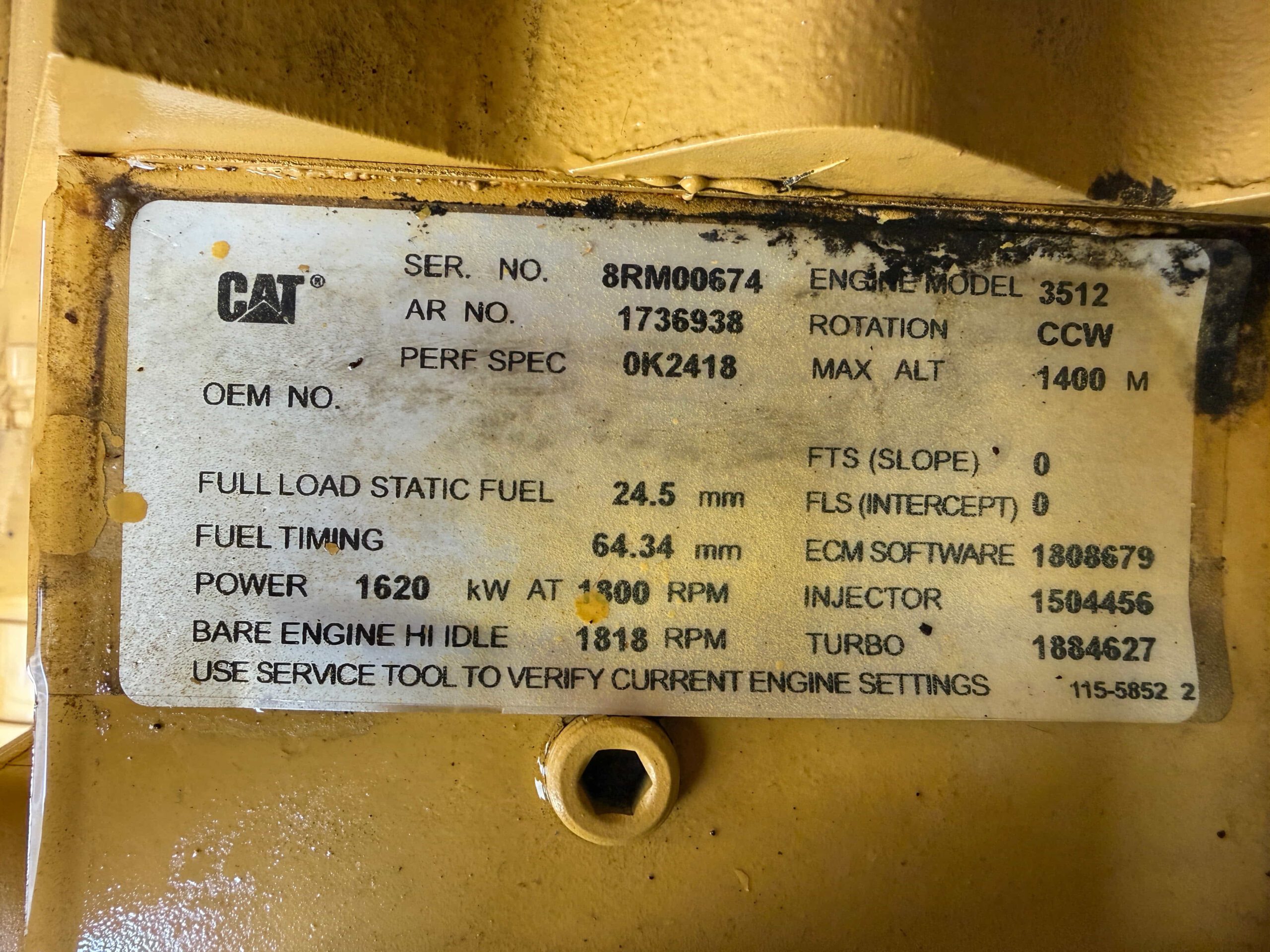

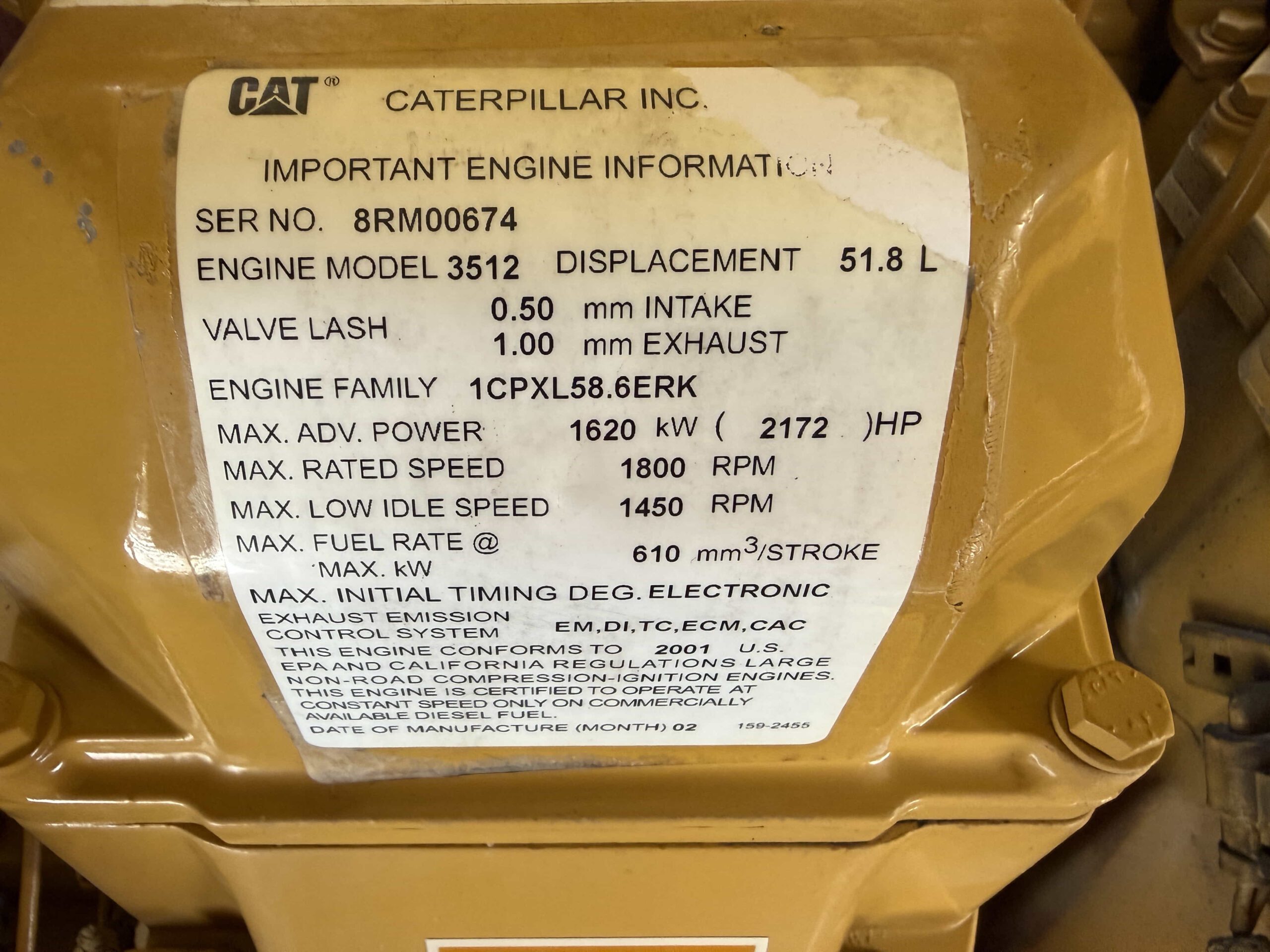

Engine S/N	8RM00674
Emissions Tier	–
Dimensions (L x W x H)	245″ x 122″ x 169″
Weight (lbs.)	–
Stock Number	MEG1208

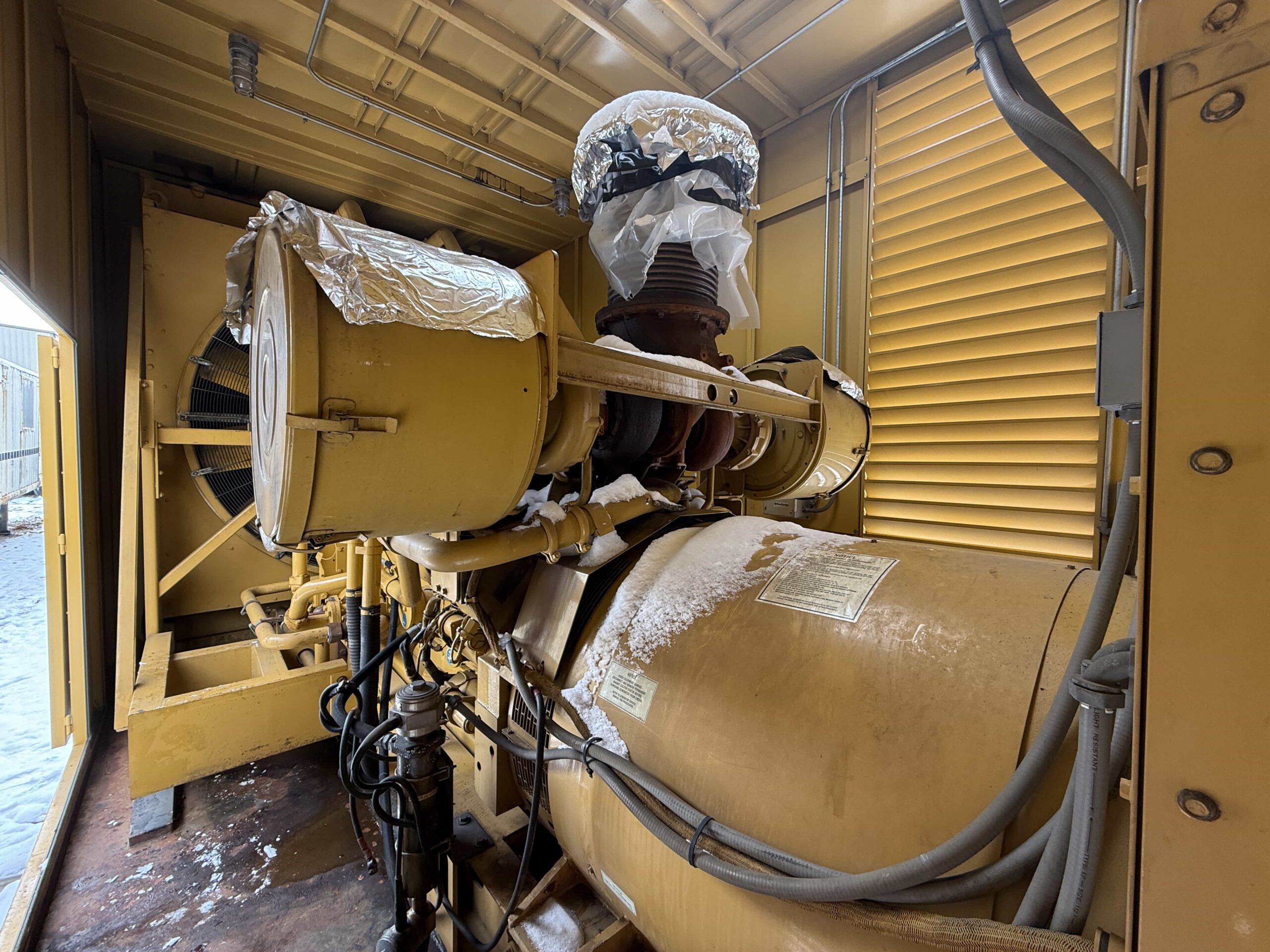

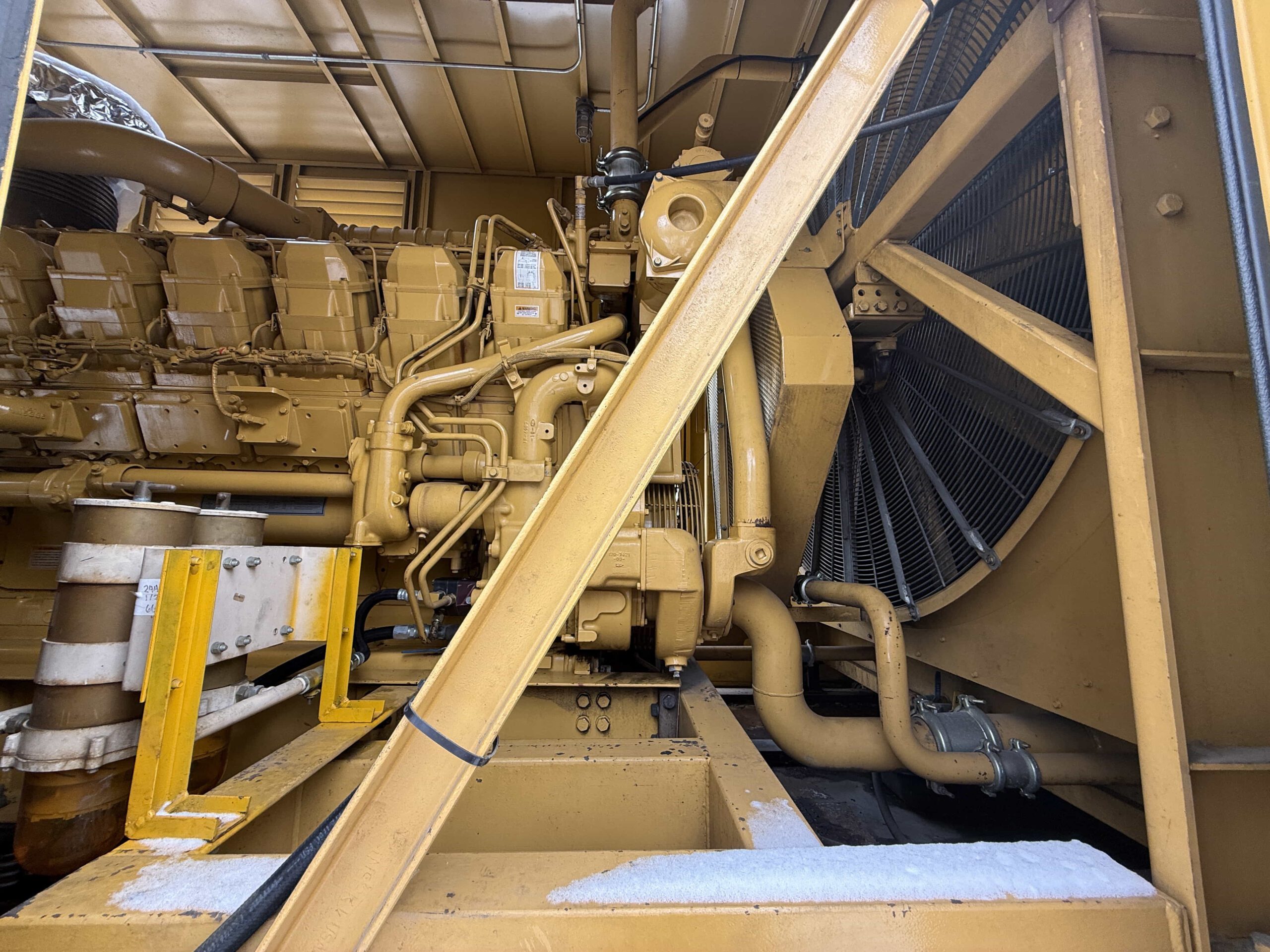

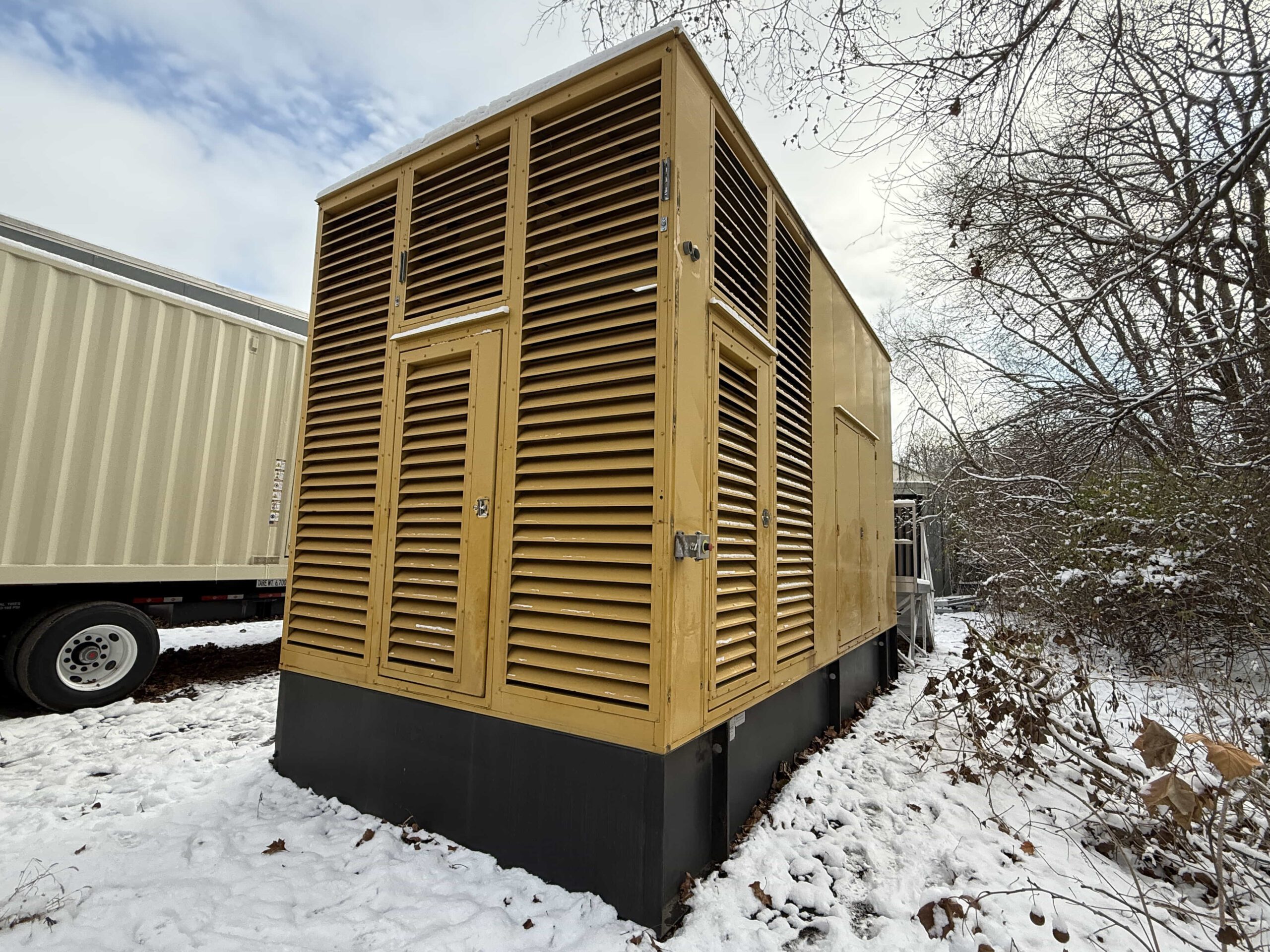

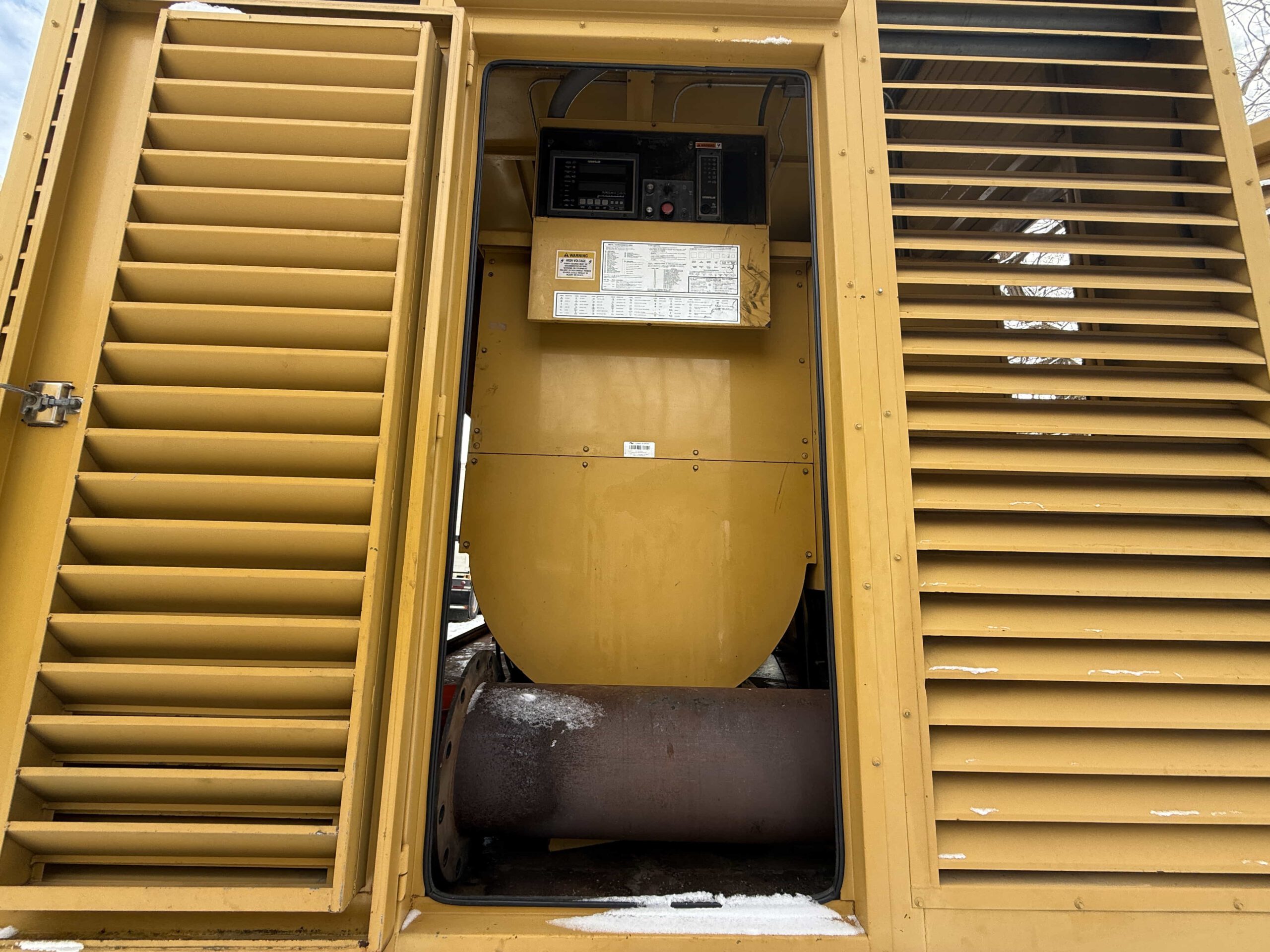

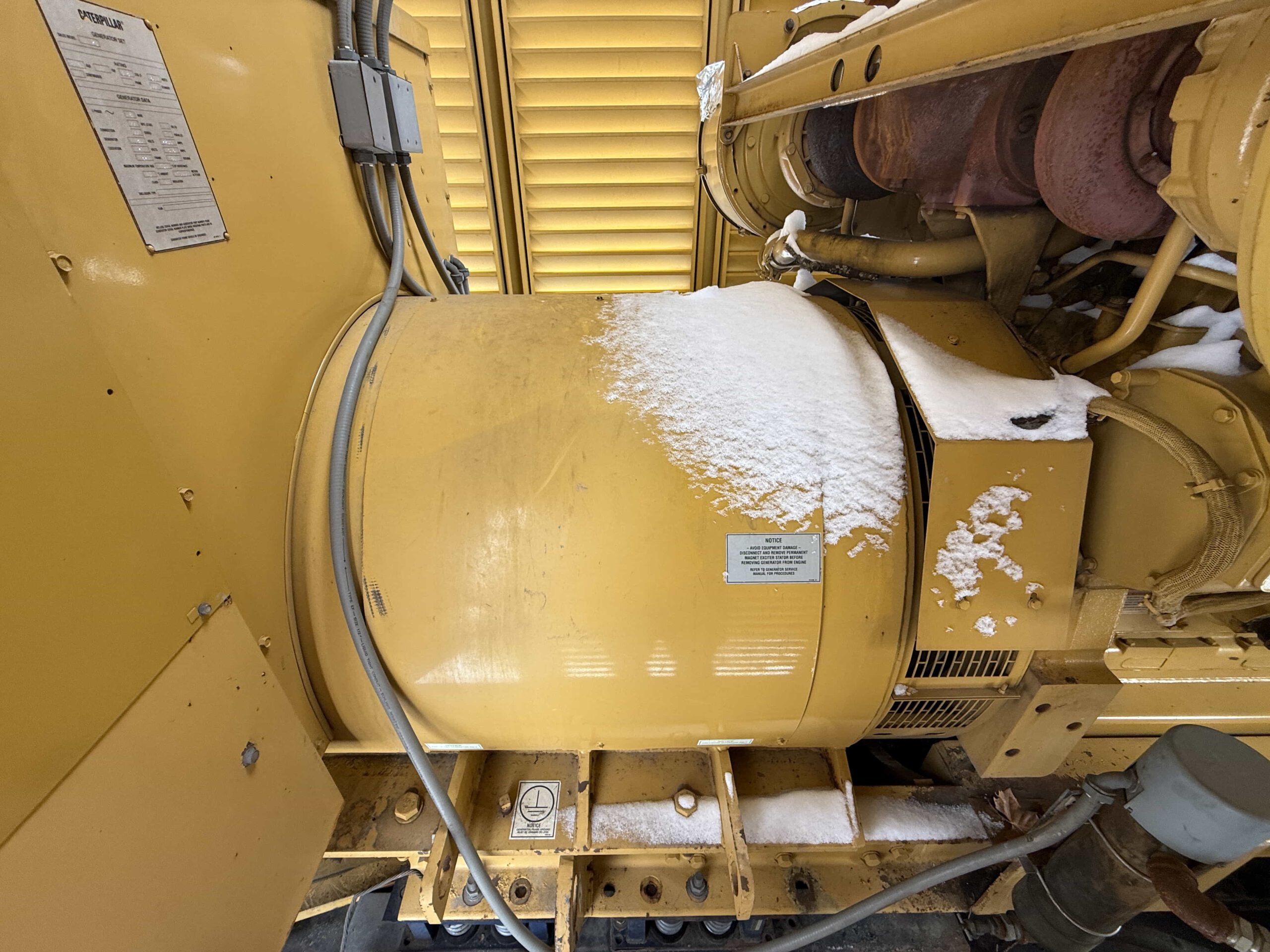

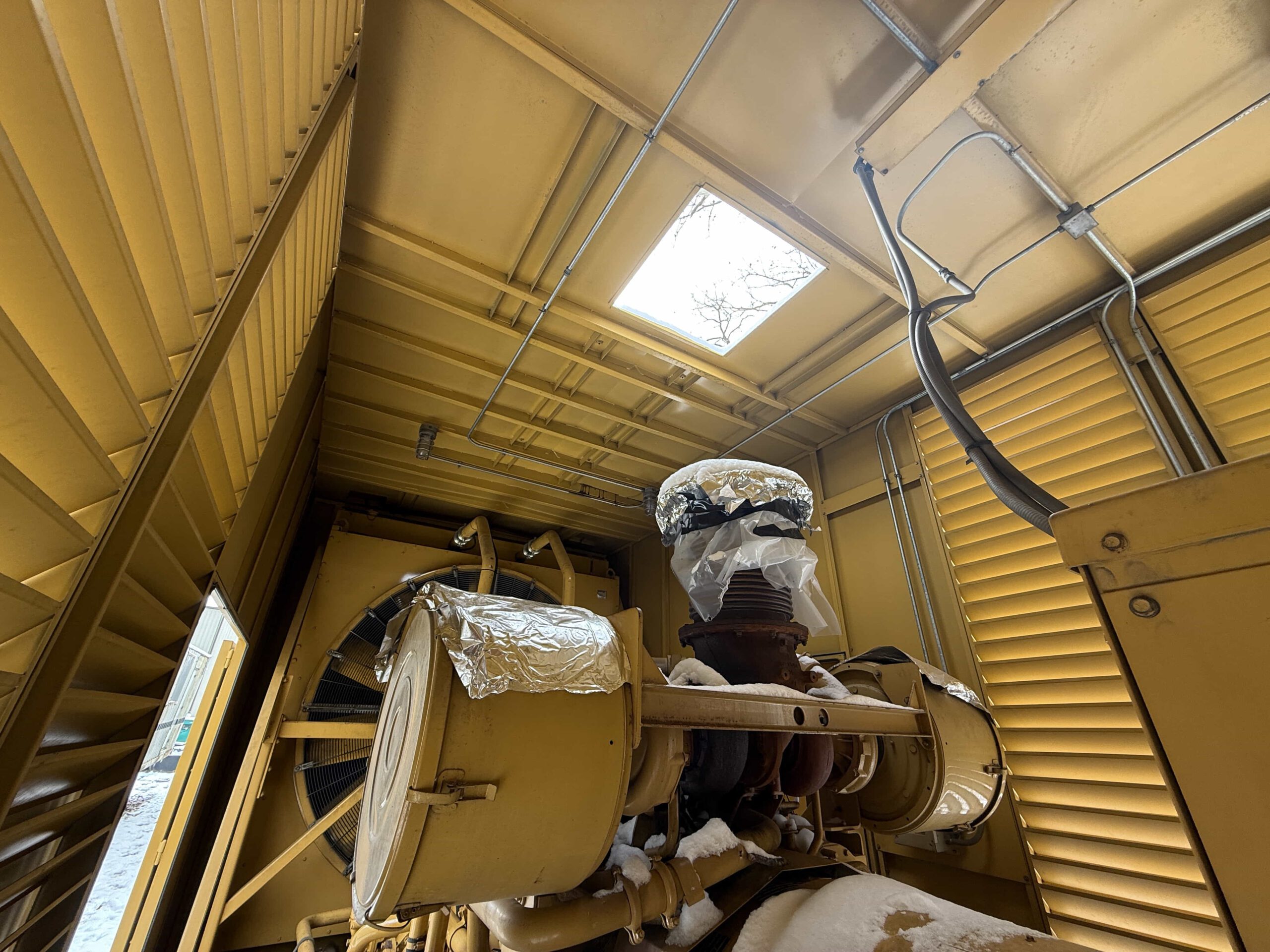

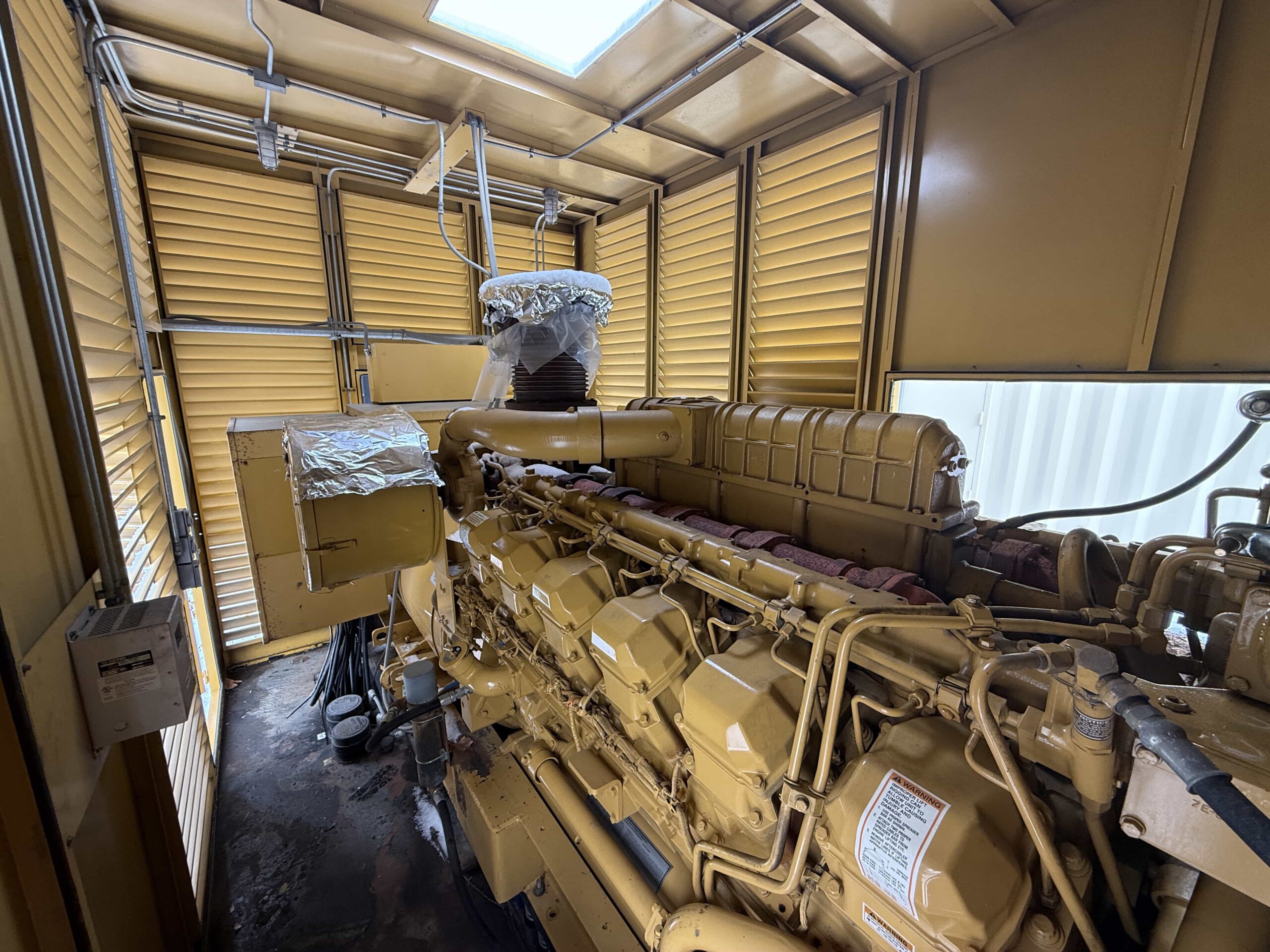

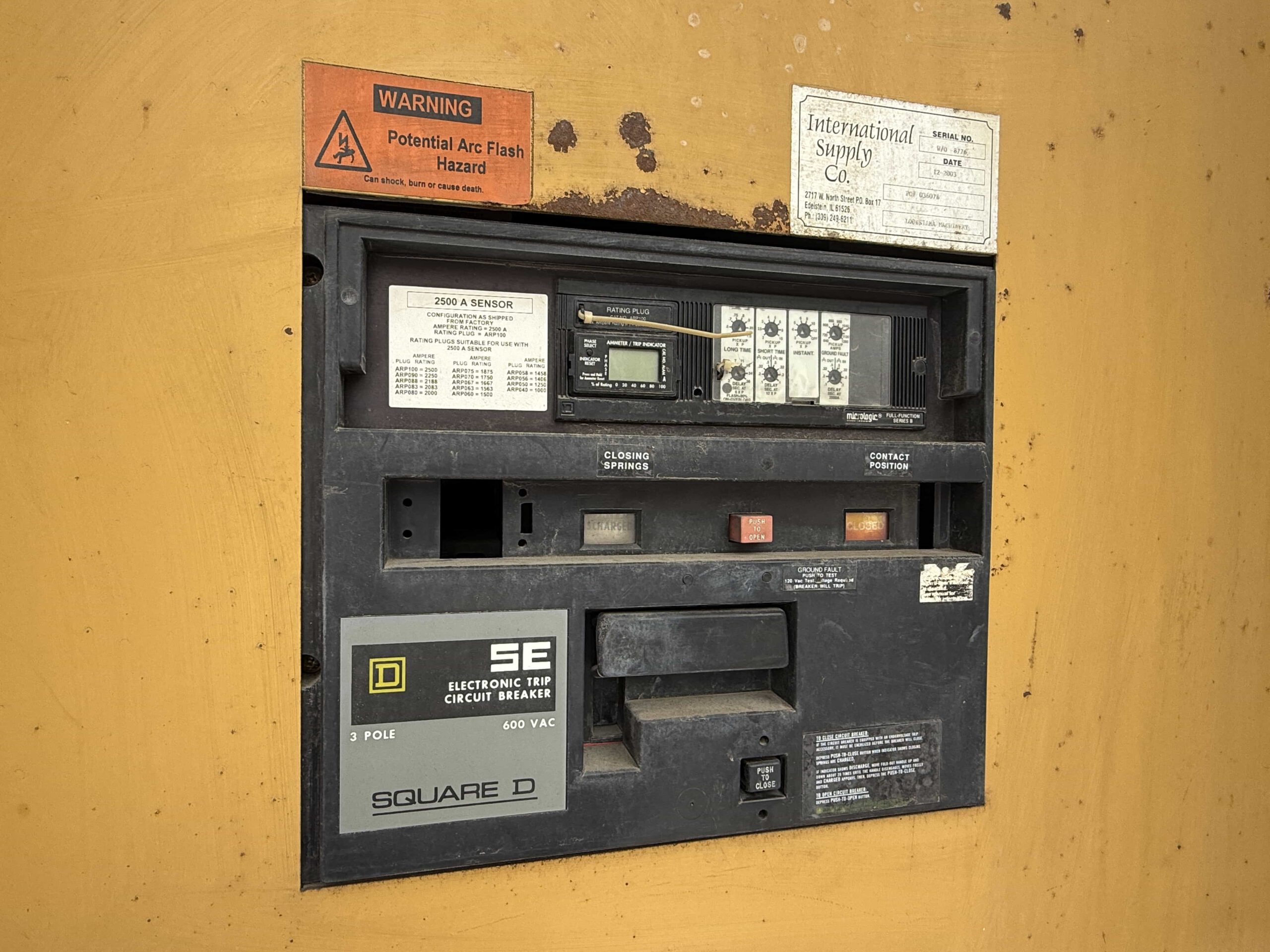

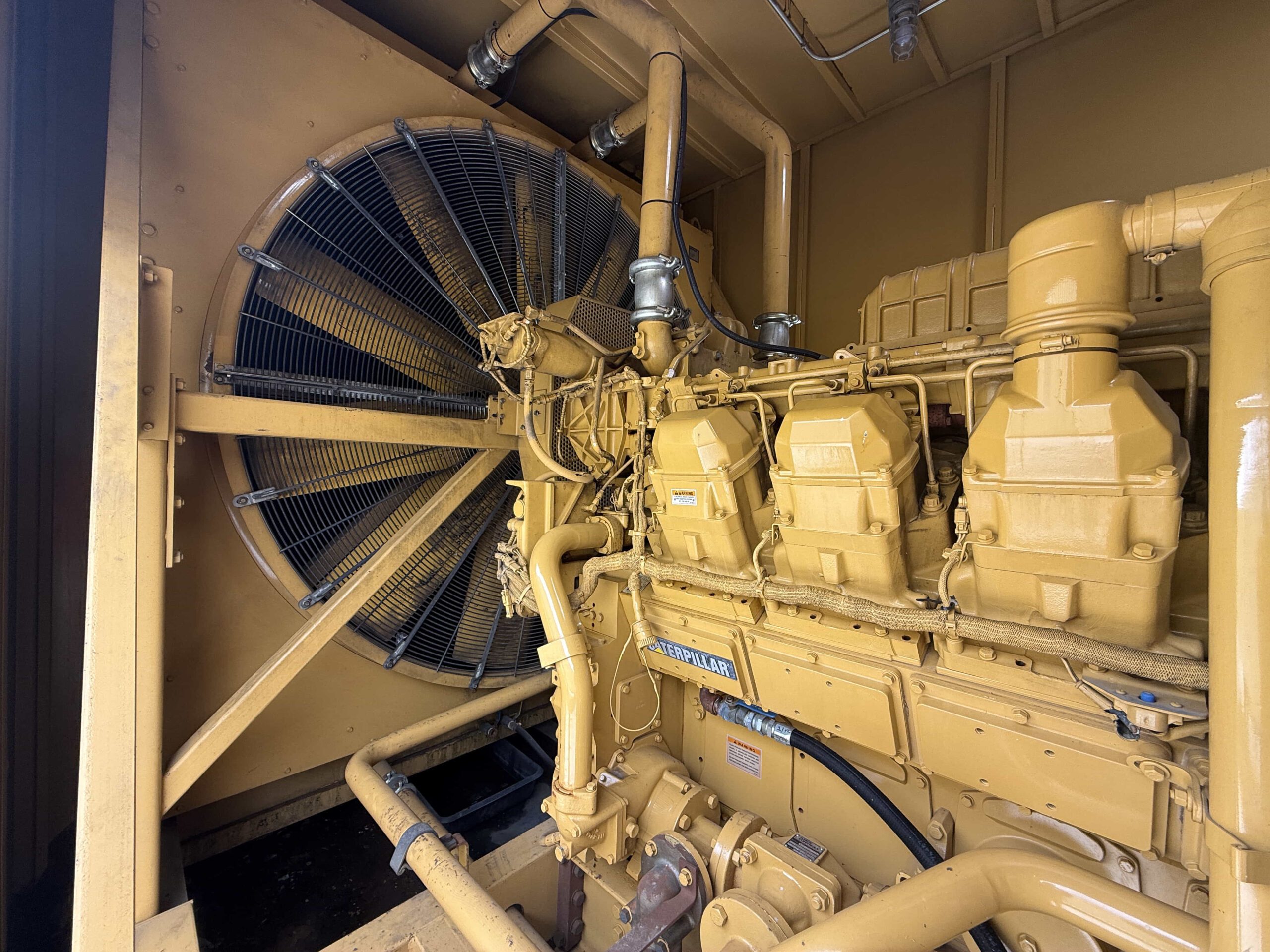

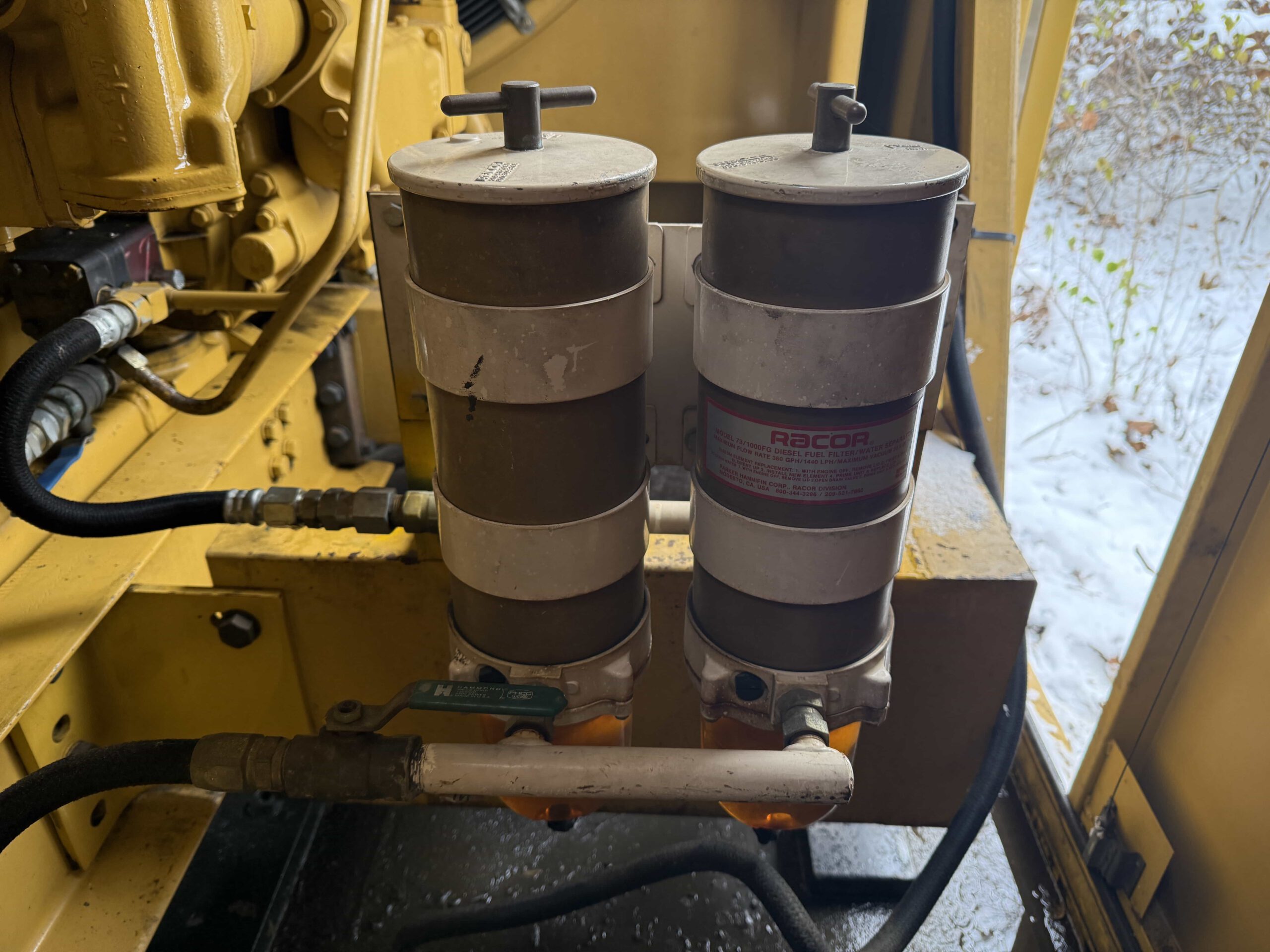

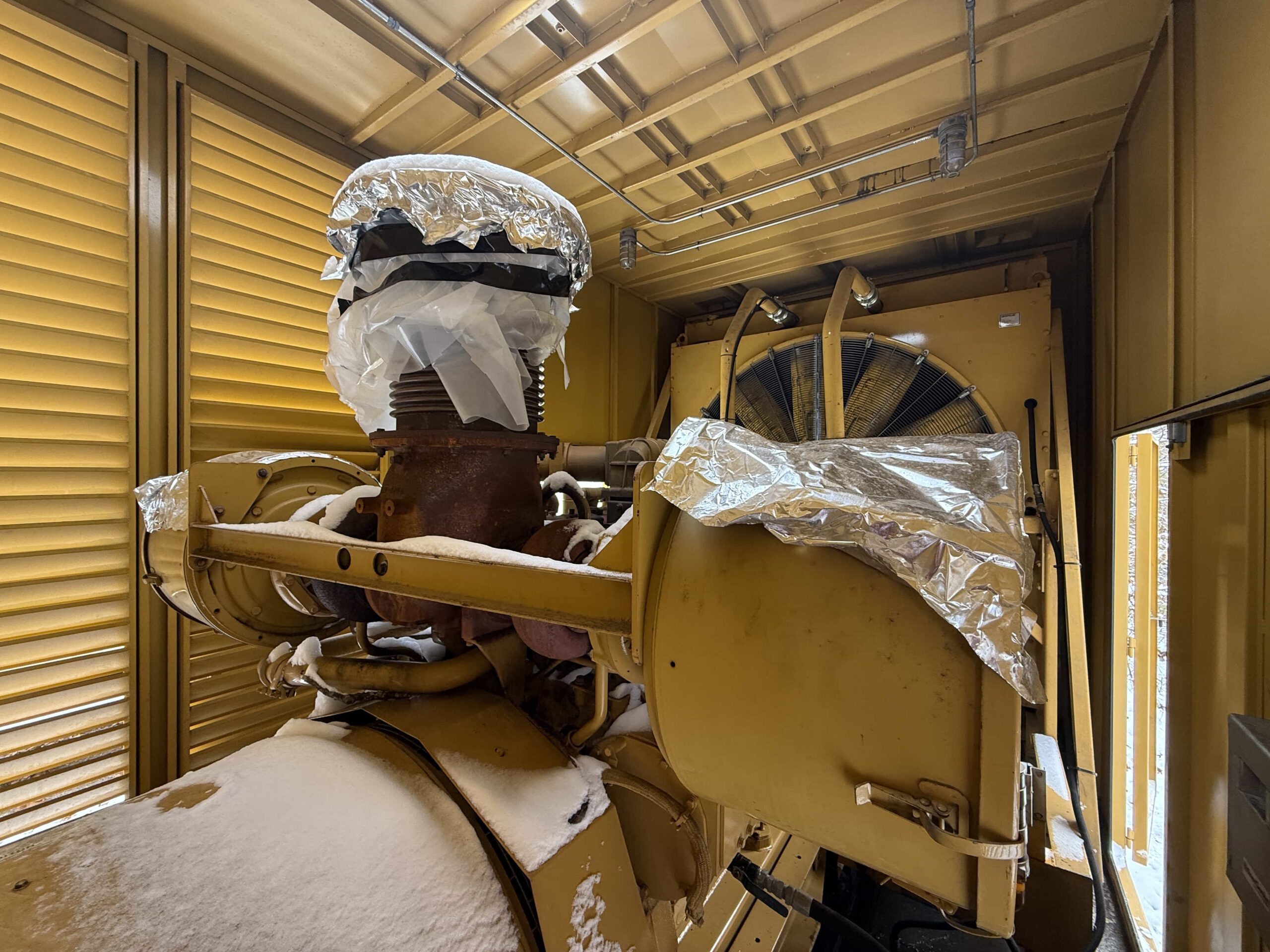

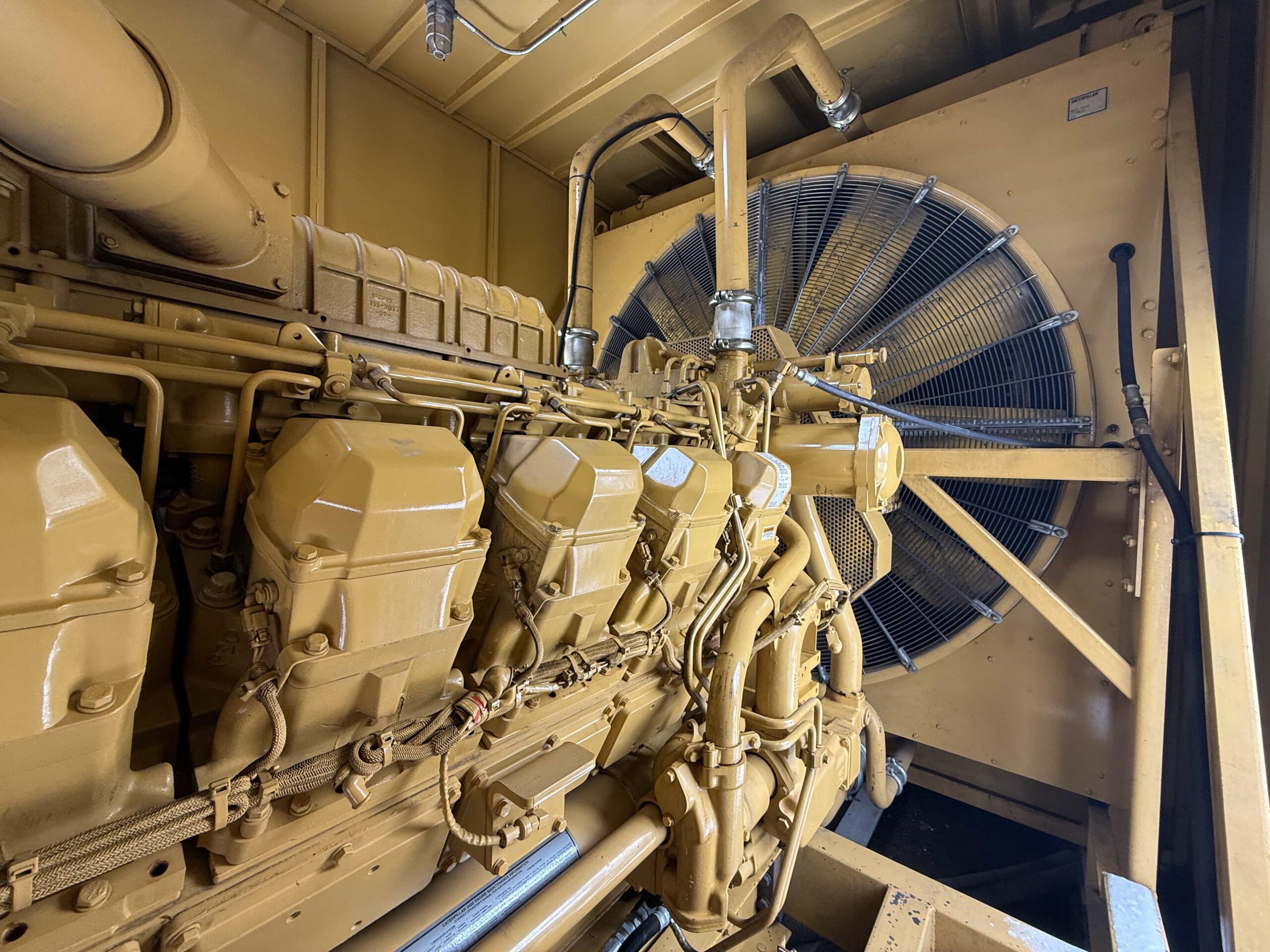

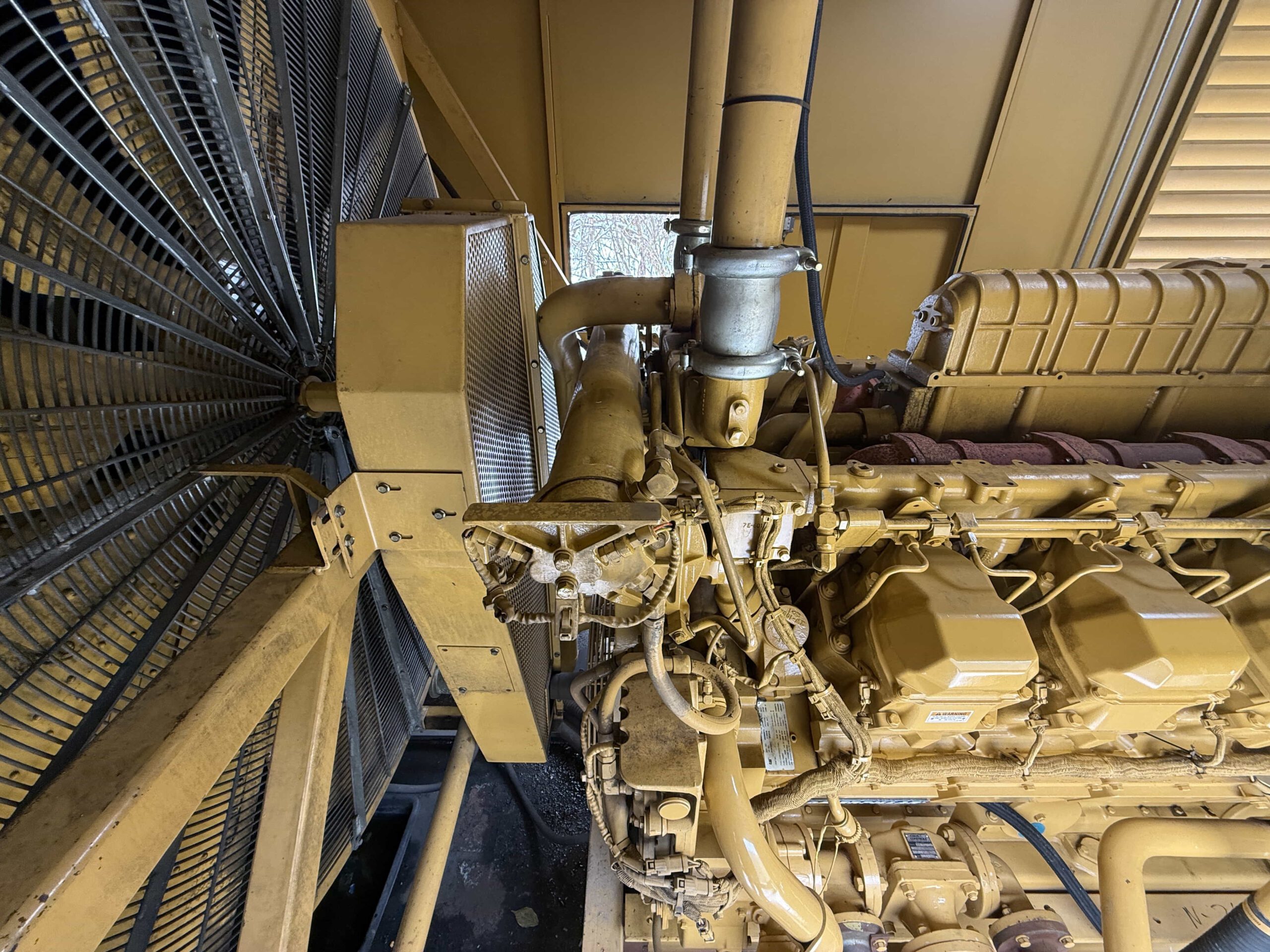

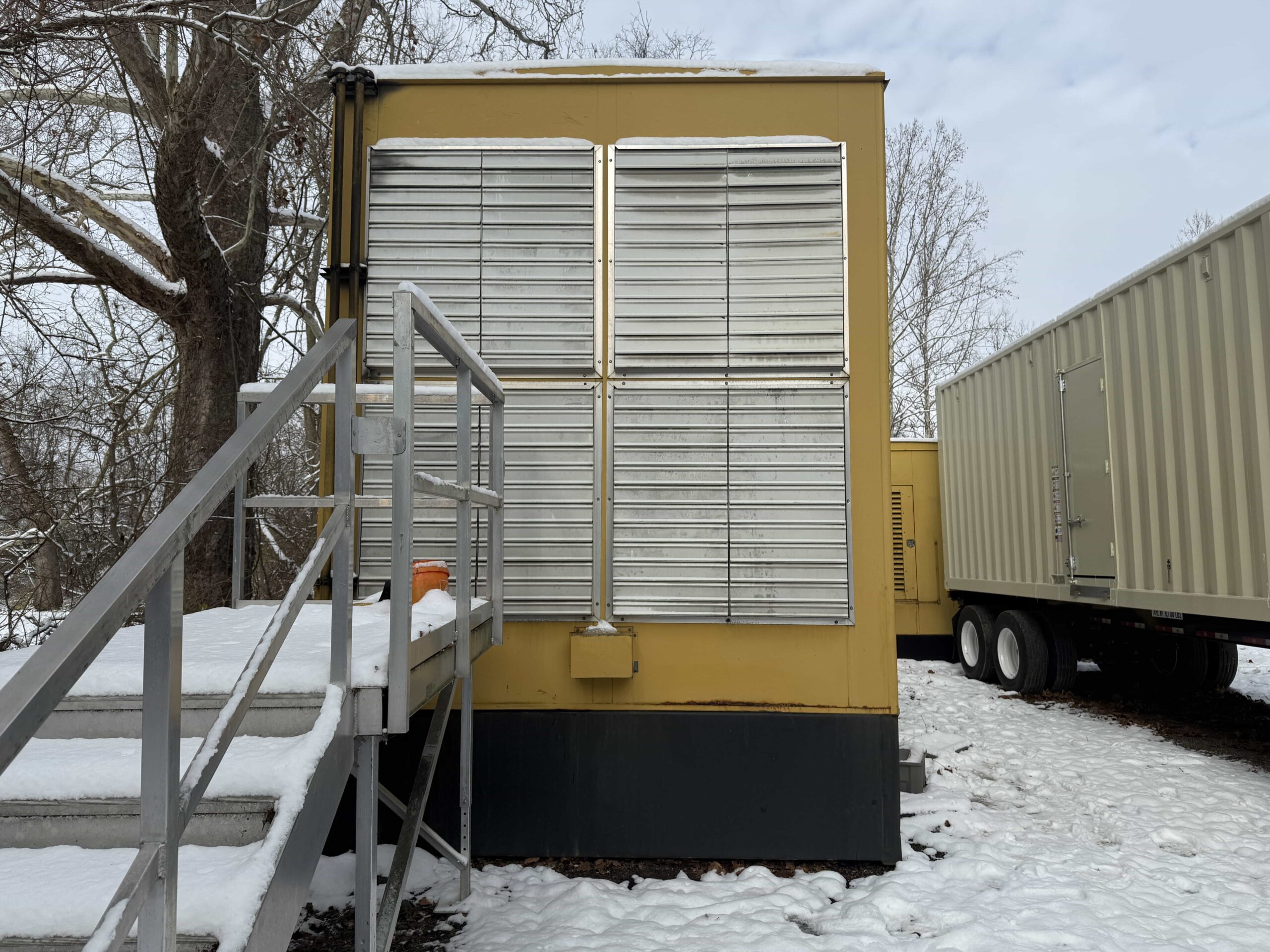

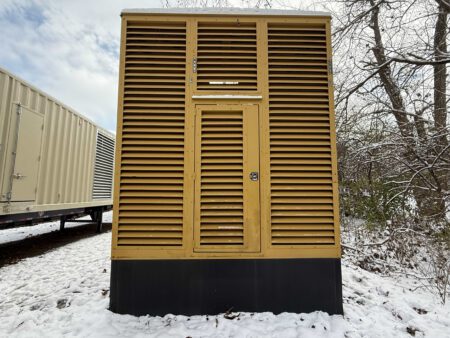

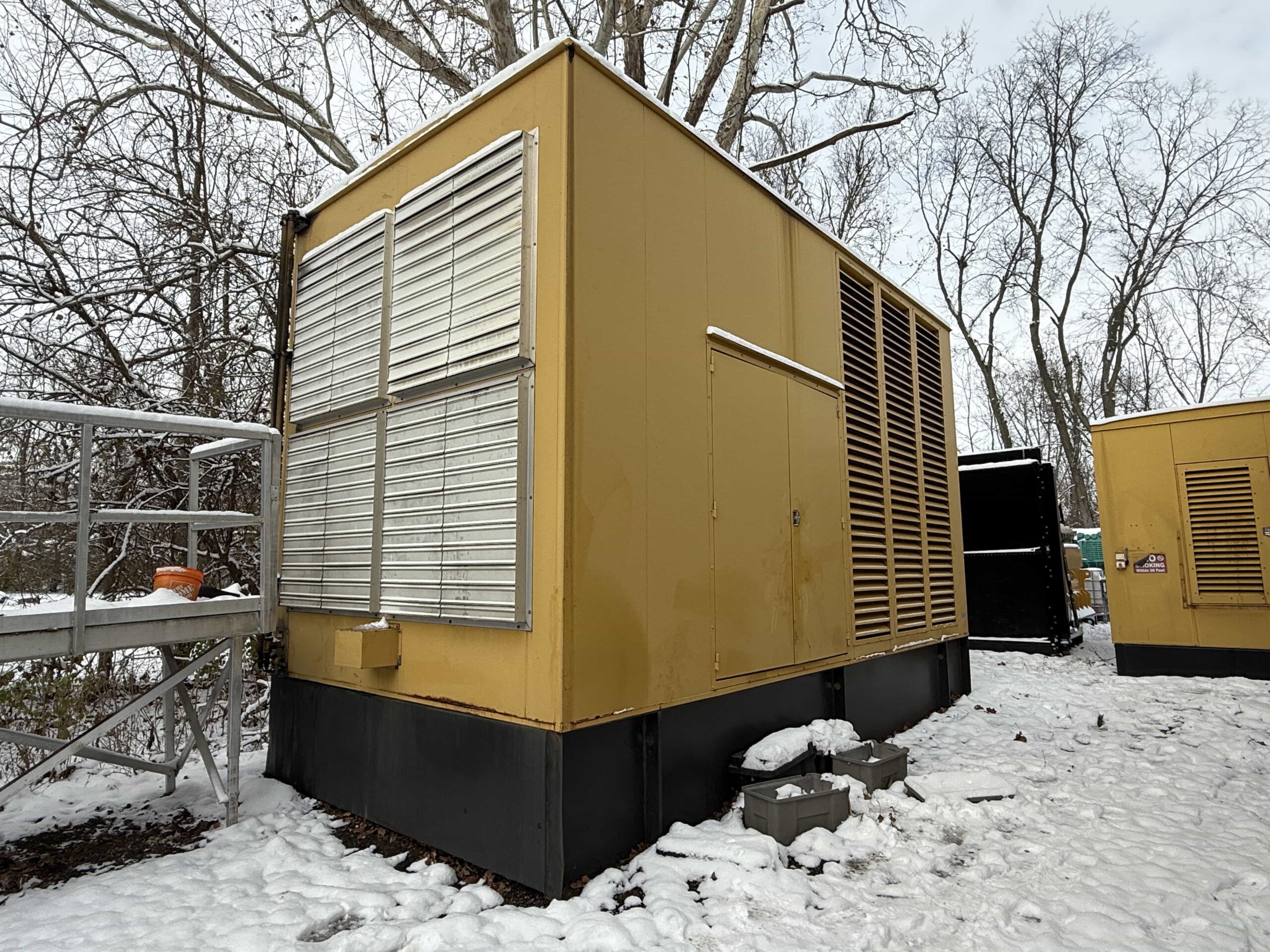

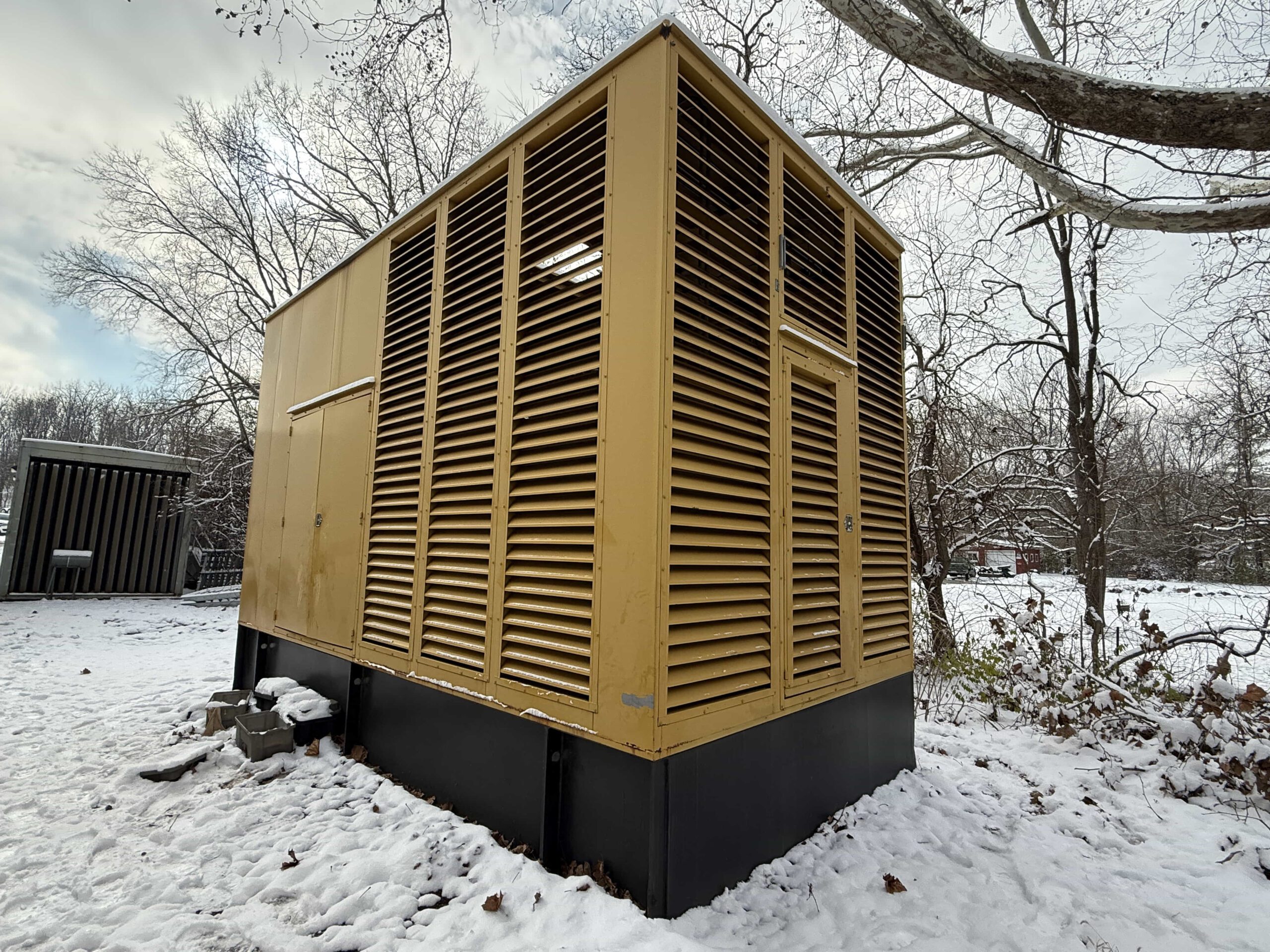

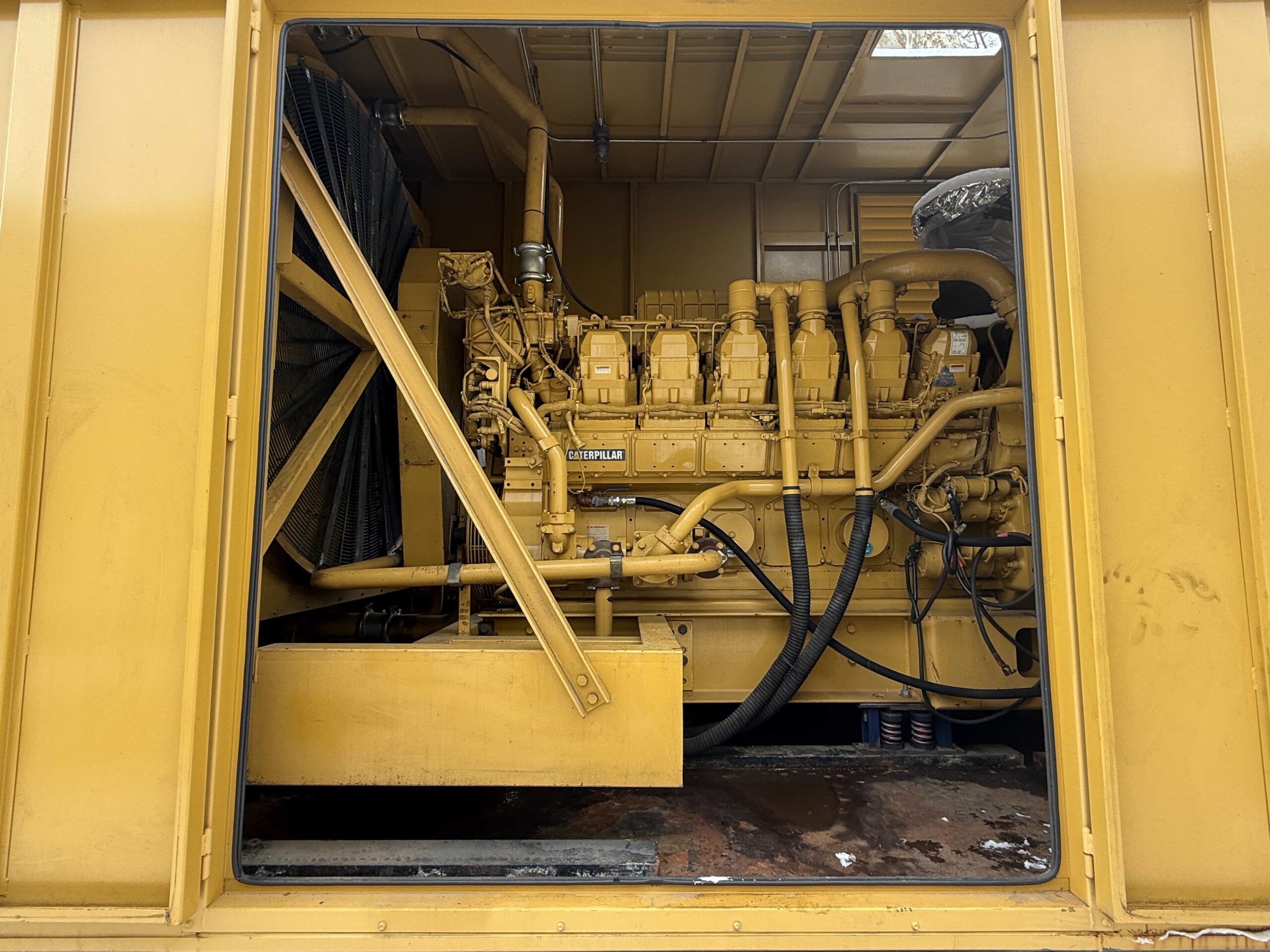

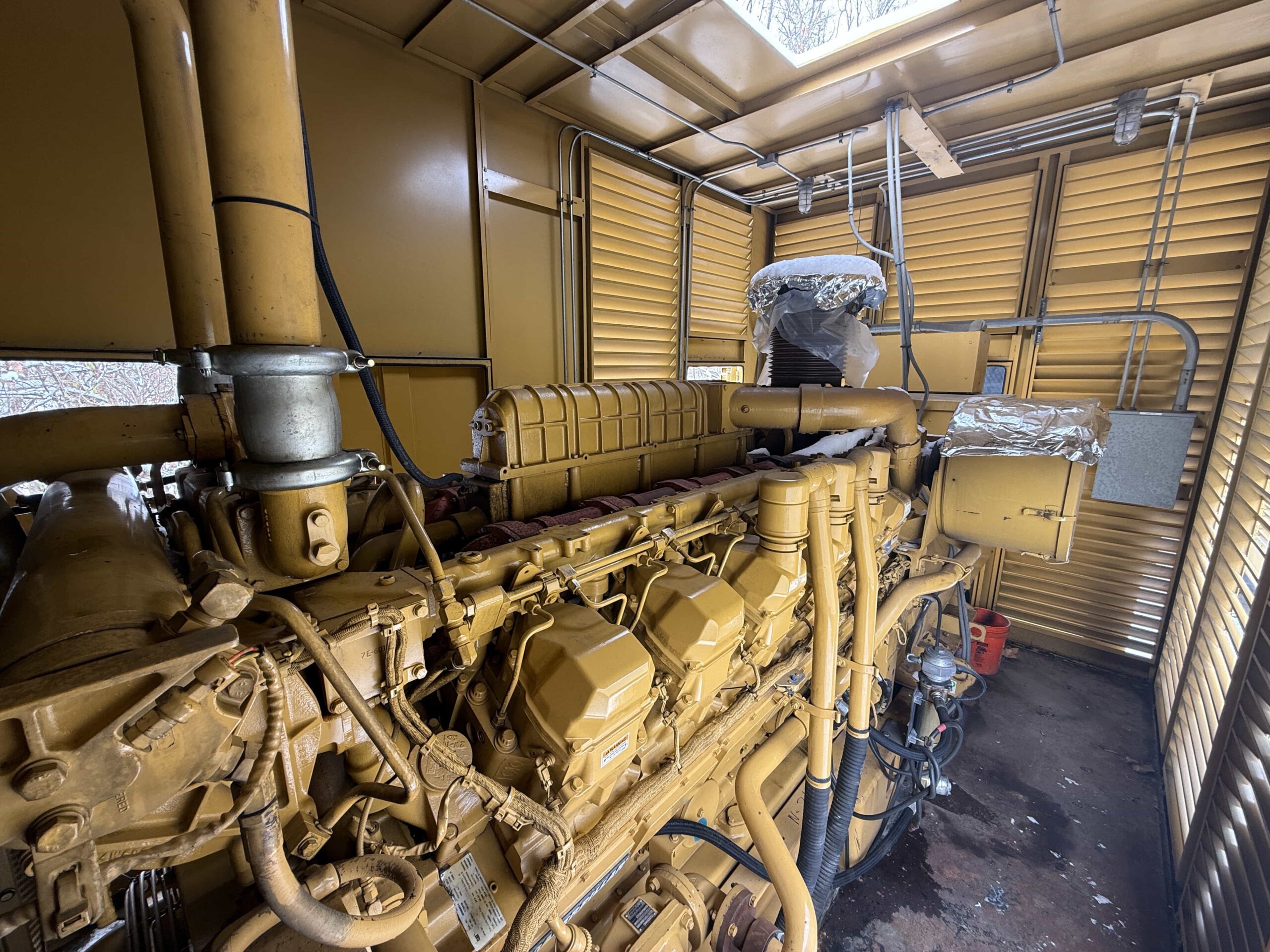

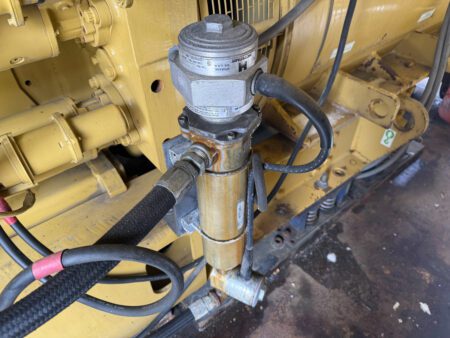

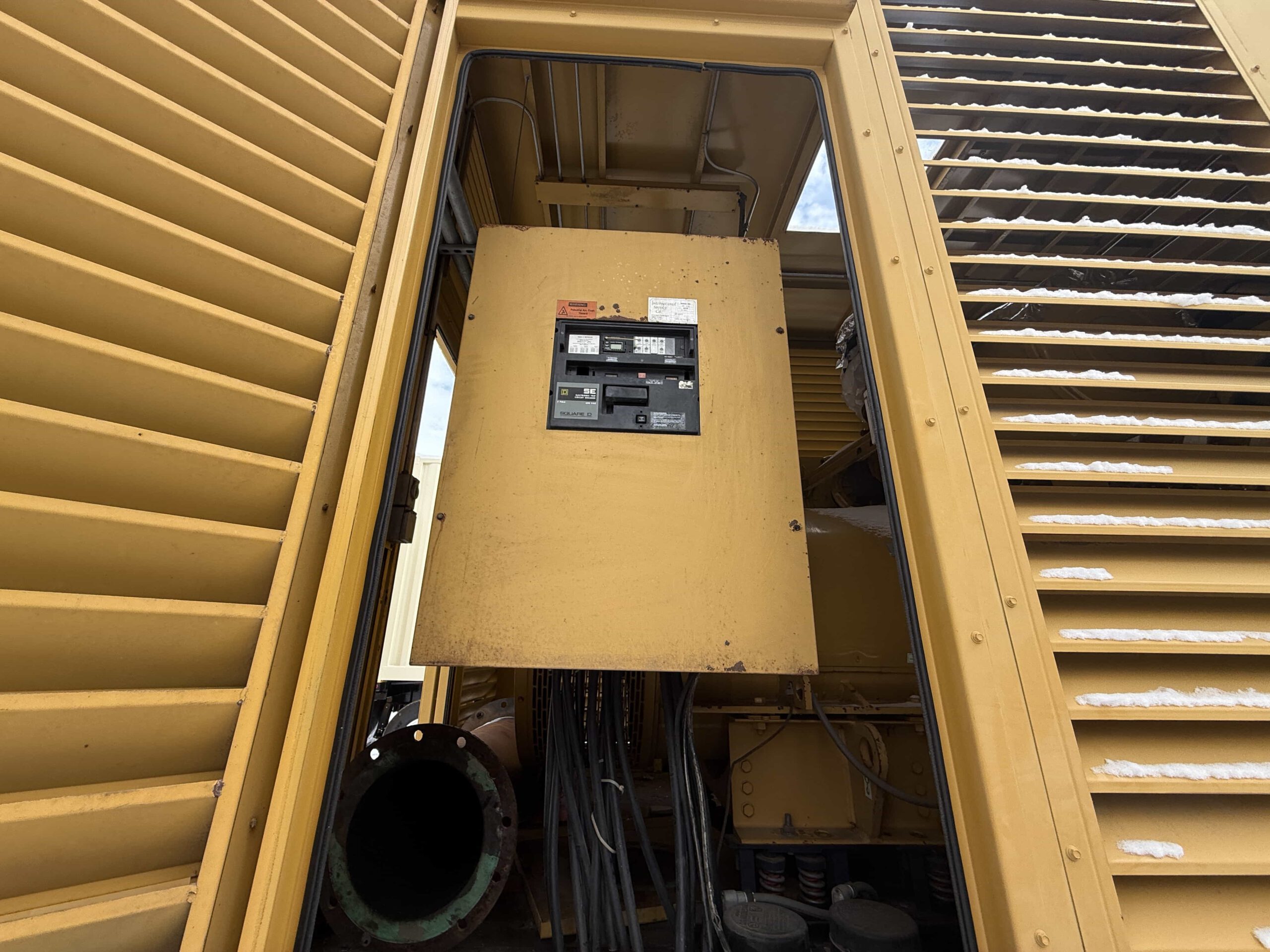

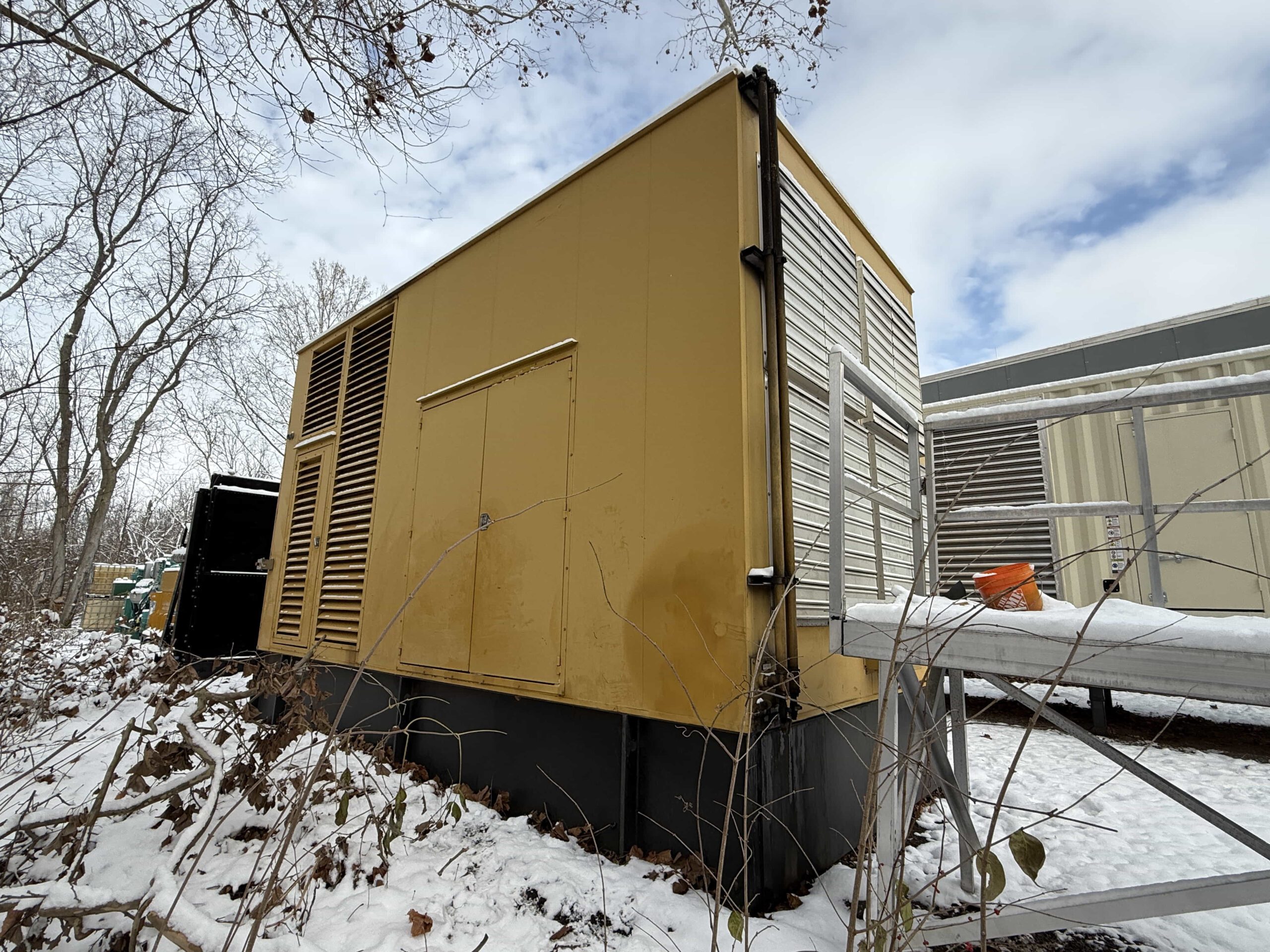

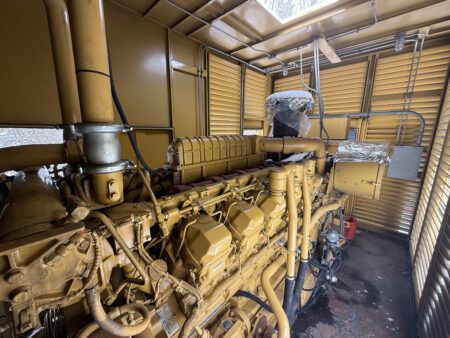

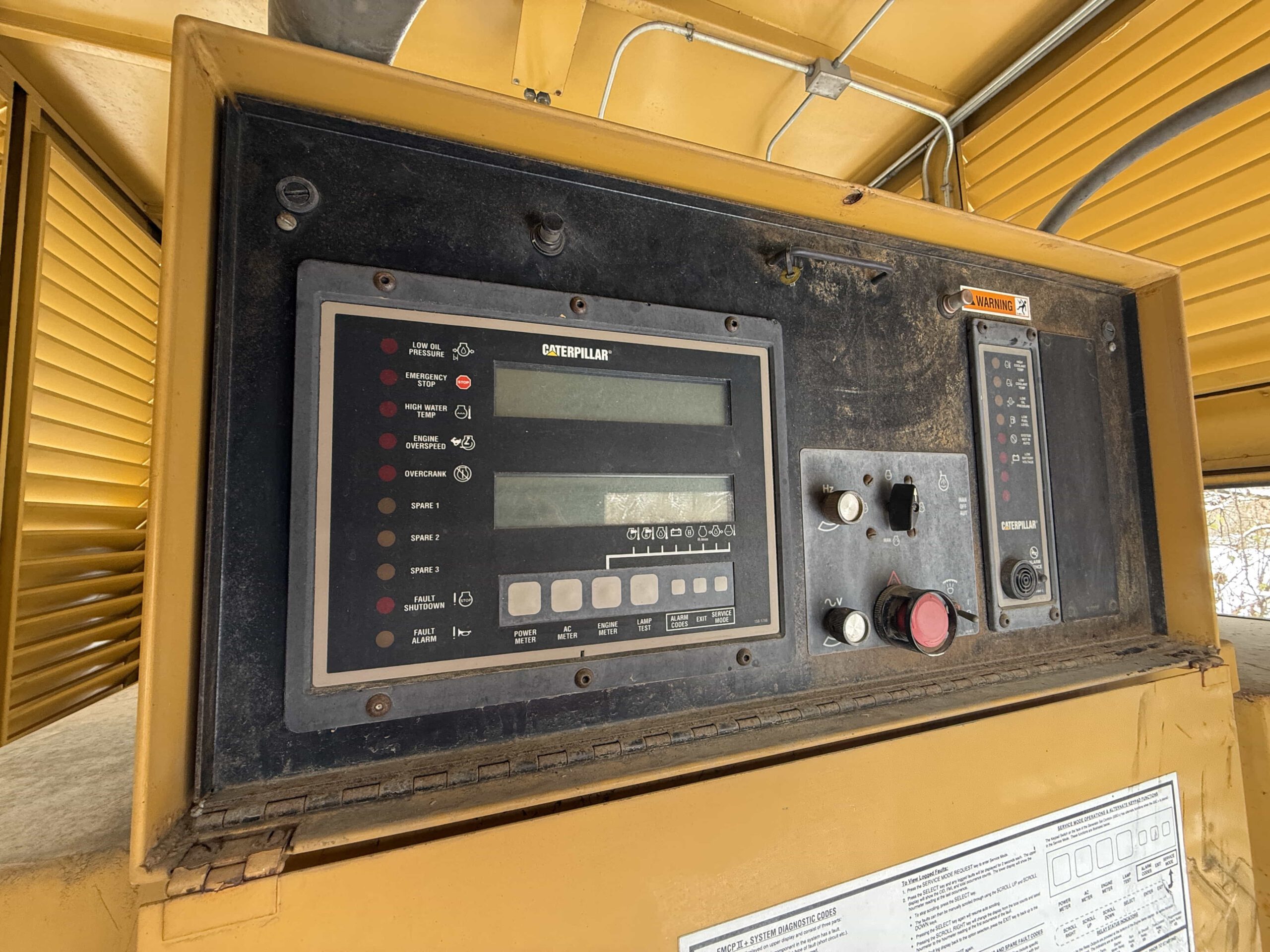

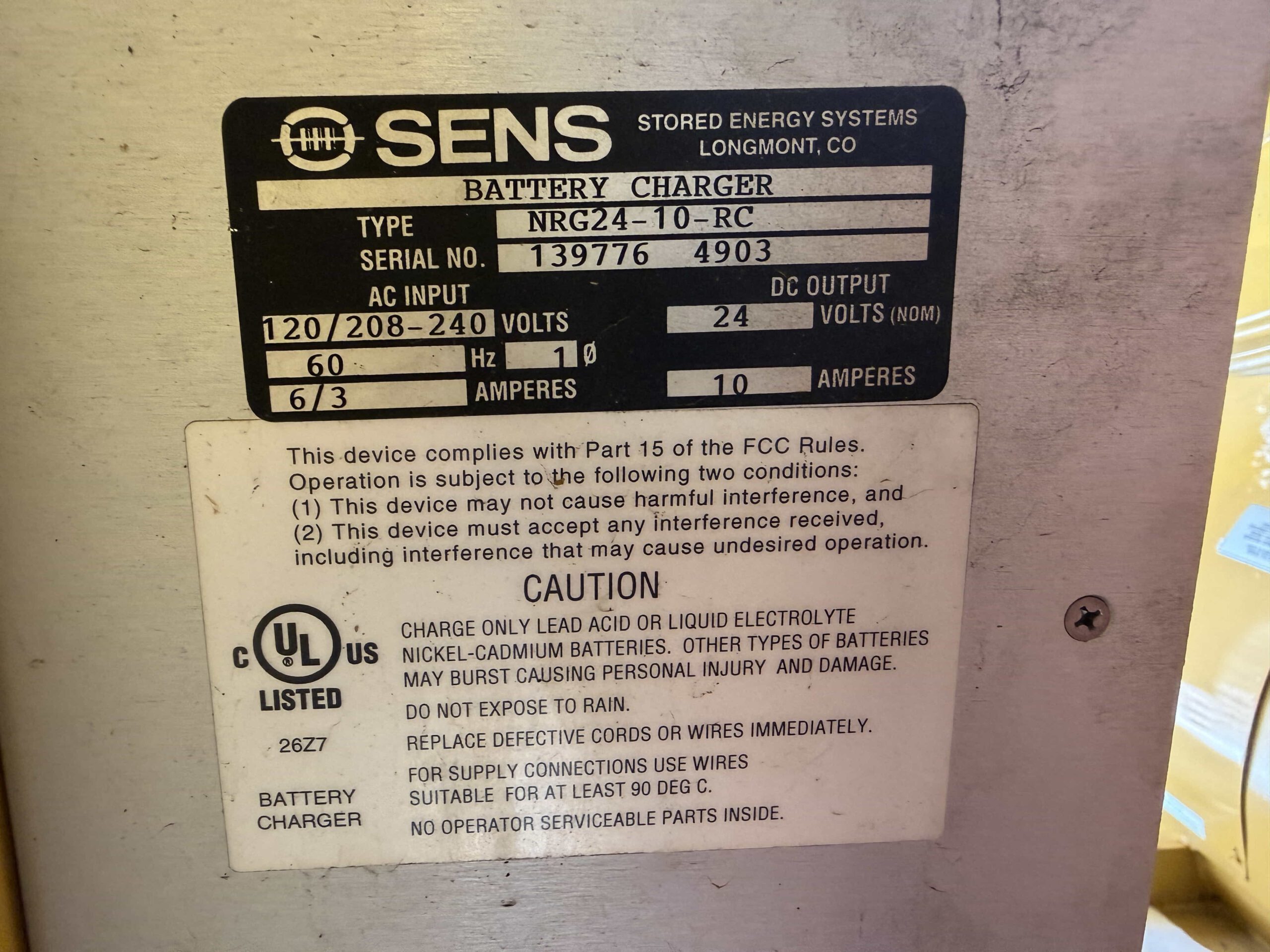

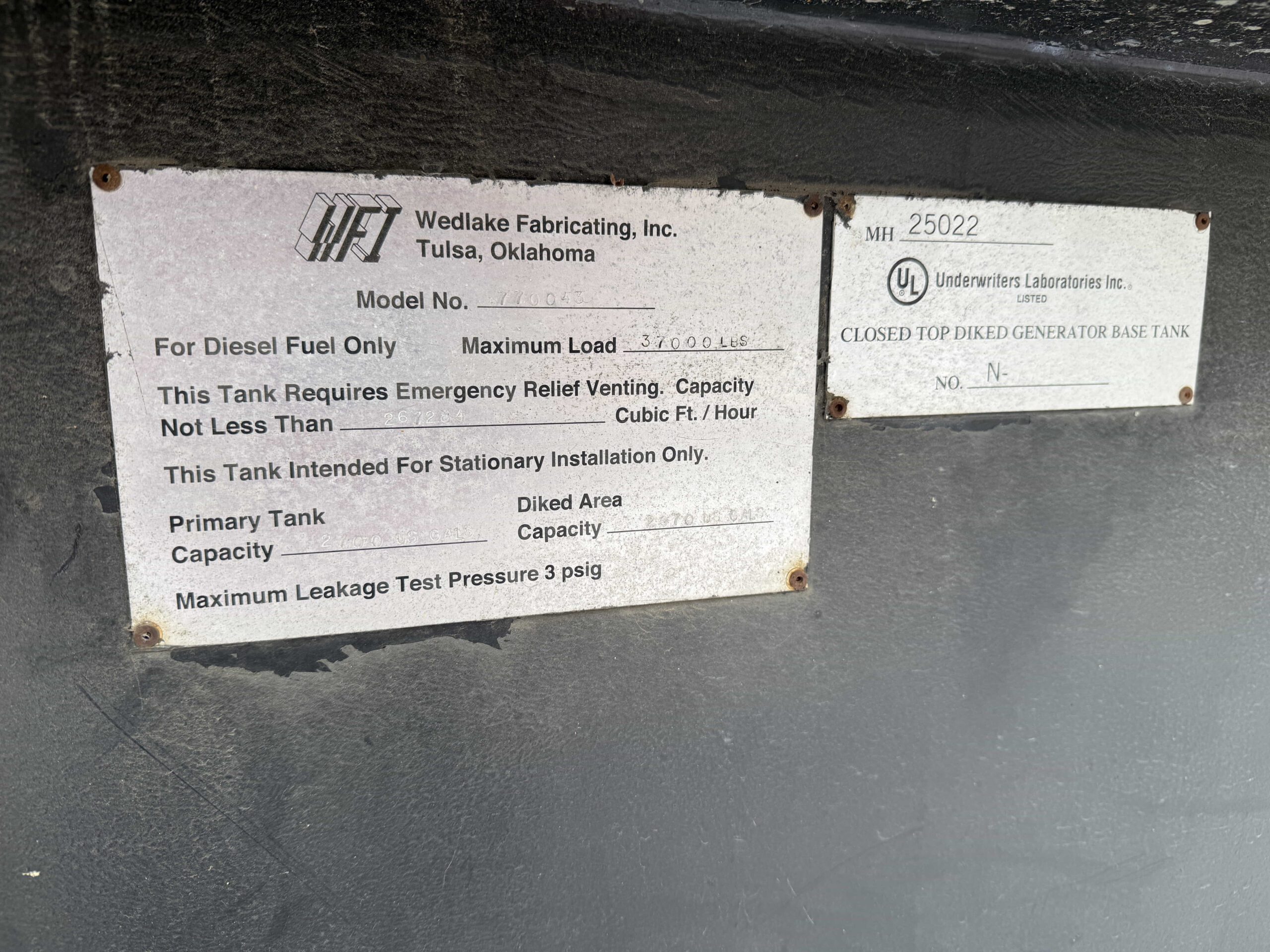

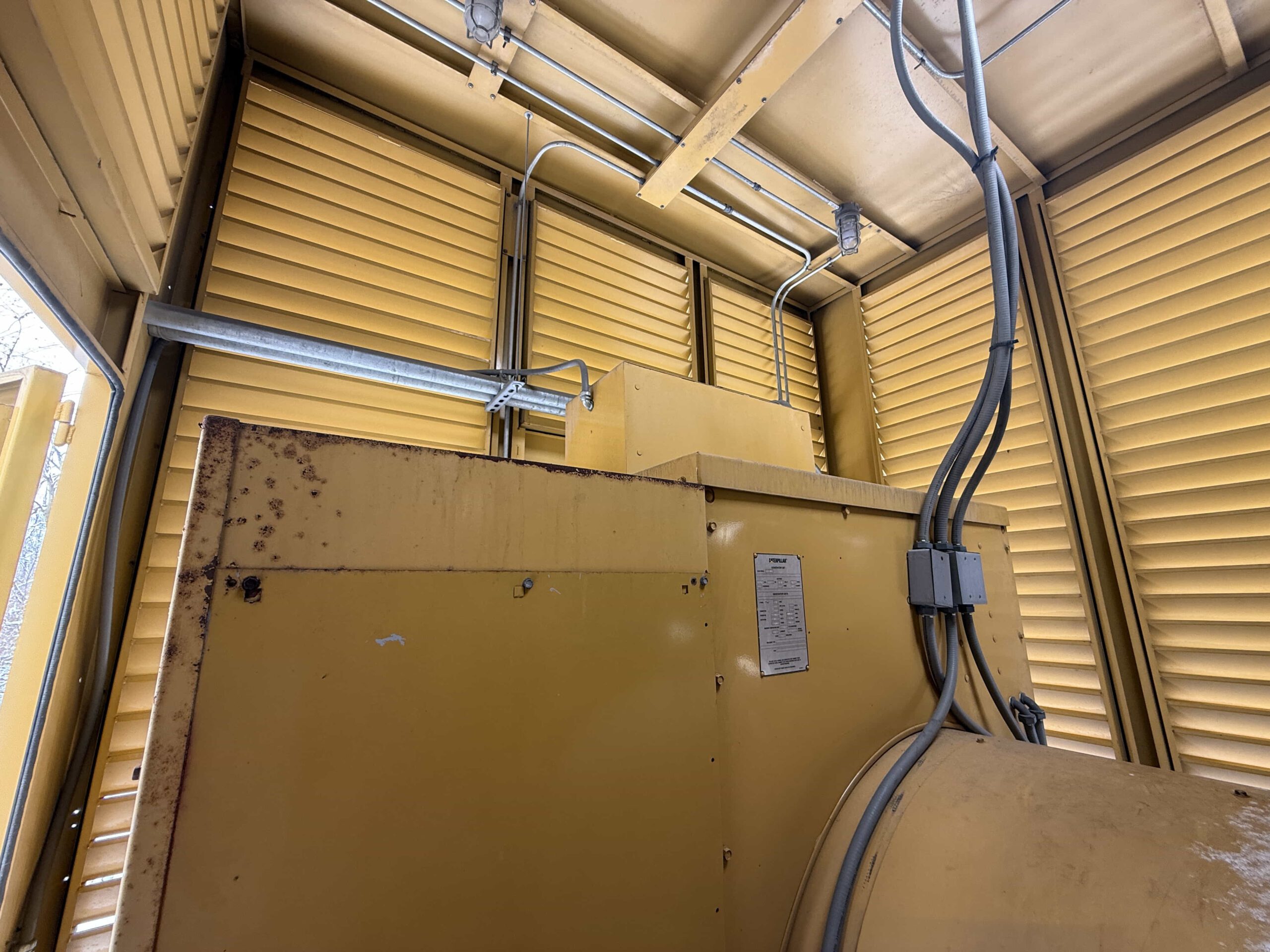

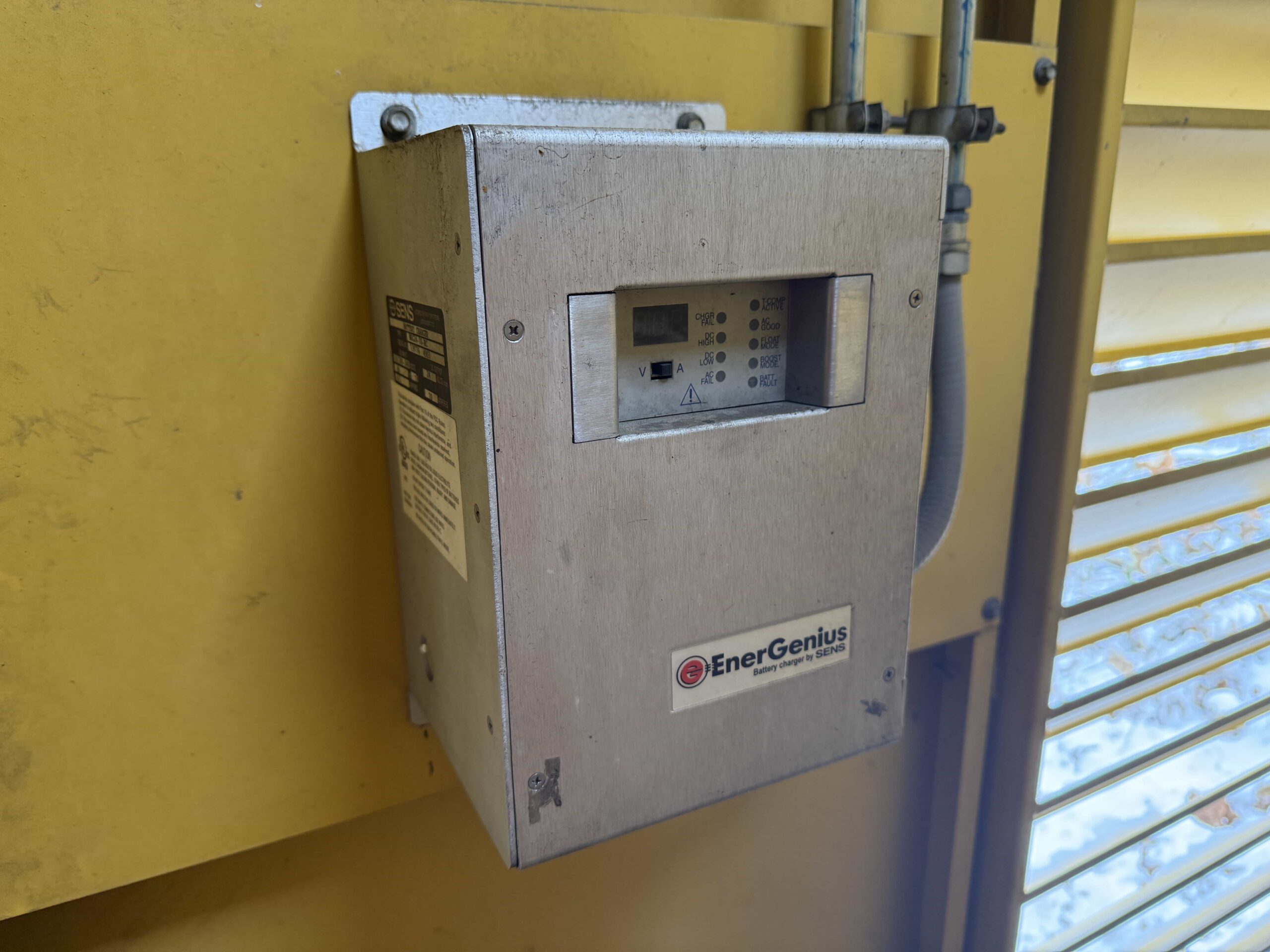

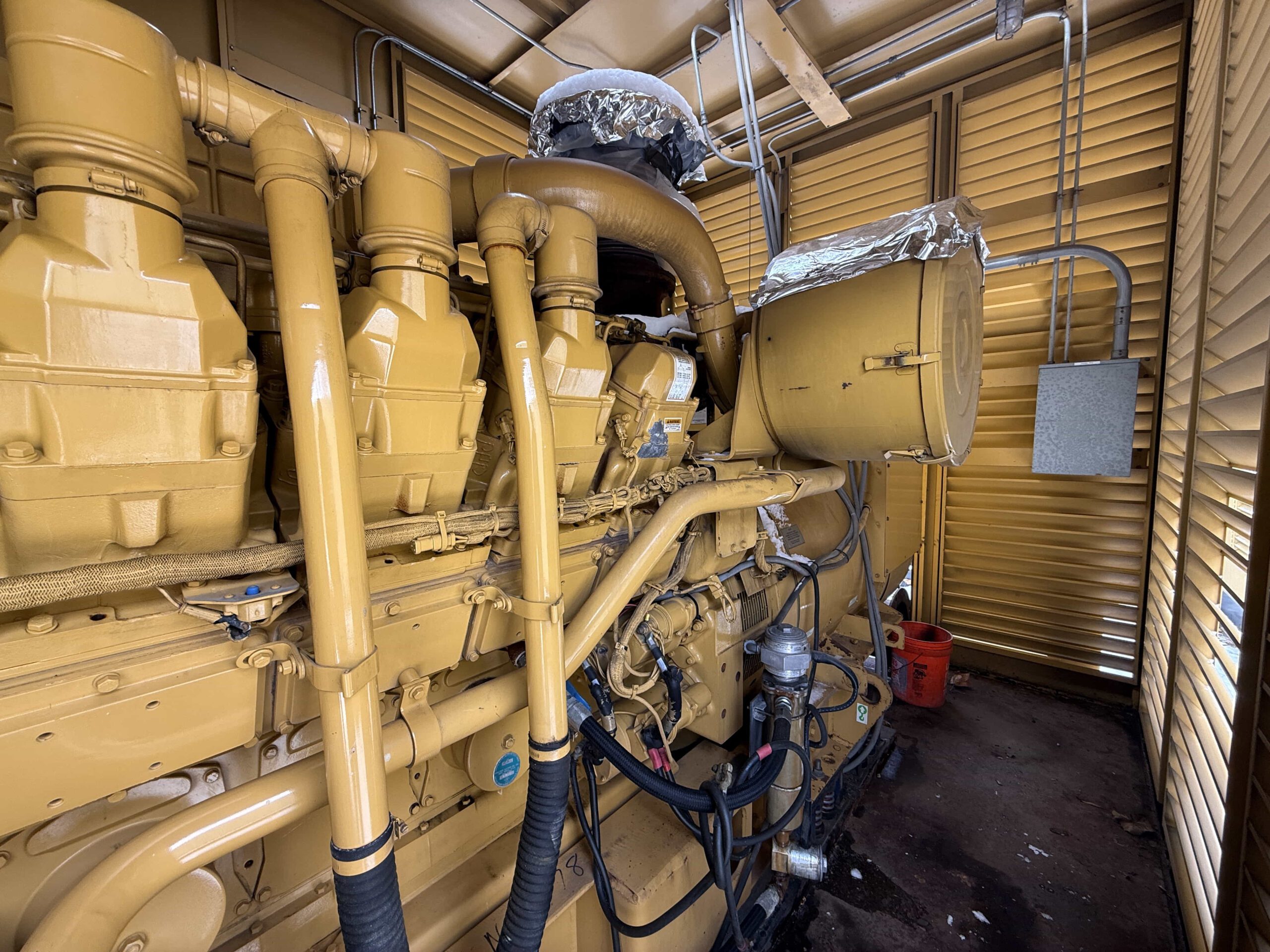

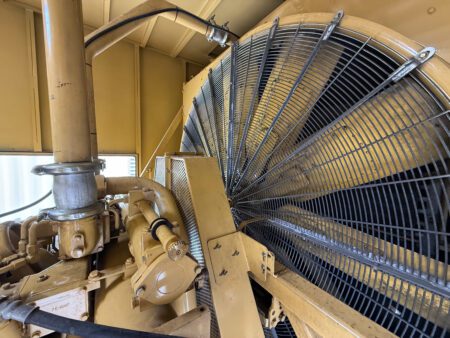

Additional Features: Caterpillar 3512B electronically controlled V12 diesel engine 1500 kW / 1875 kVA standby-rated generator set Caterpillar SR4B generator end, Class H insulation EMCP digital control panel with status LEDs and alarm functions Square D SE 2500A 3-pole electronic trip main breaker Racor dual fuel filtration system Engine pre-lube pump SENS EnerGenius 24V battery charger Weatherproof enclosure Large single-bore radiator with belt-driven cooling fan UL-142 listed closed-top dike fuel tank – 2,700 gallons Interior lighting and conduit wiring Protective coverings installed over the turbo and air intake 480V, 2255A output configuration

Item Number: MEG1208

Year: 2001

Make: Caterpillar

Model: 3512B

kW: 1500

kVA: 1875

Voltage: 480

Amperage: 2255

Control Panel: CAT EMCP

Fuel Type: Diesel

Engine: 3512B
